Baileigh PH-24A Planishing Hammer
This item may incur additional shipping costs and lead times.
Product Details

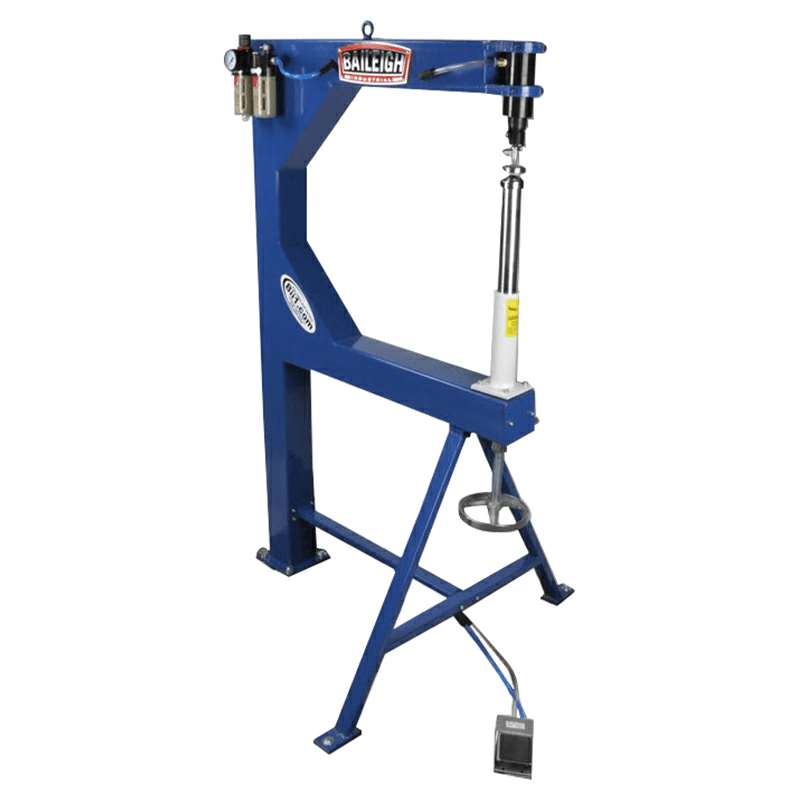

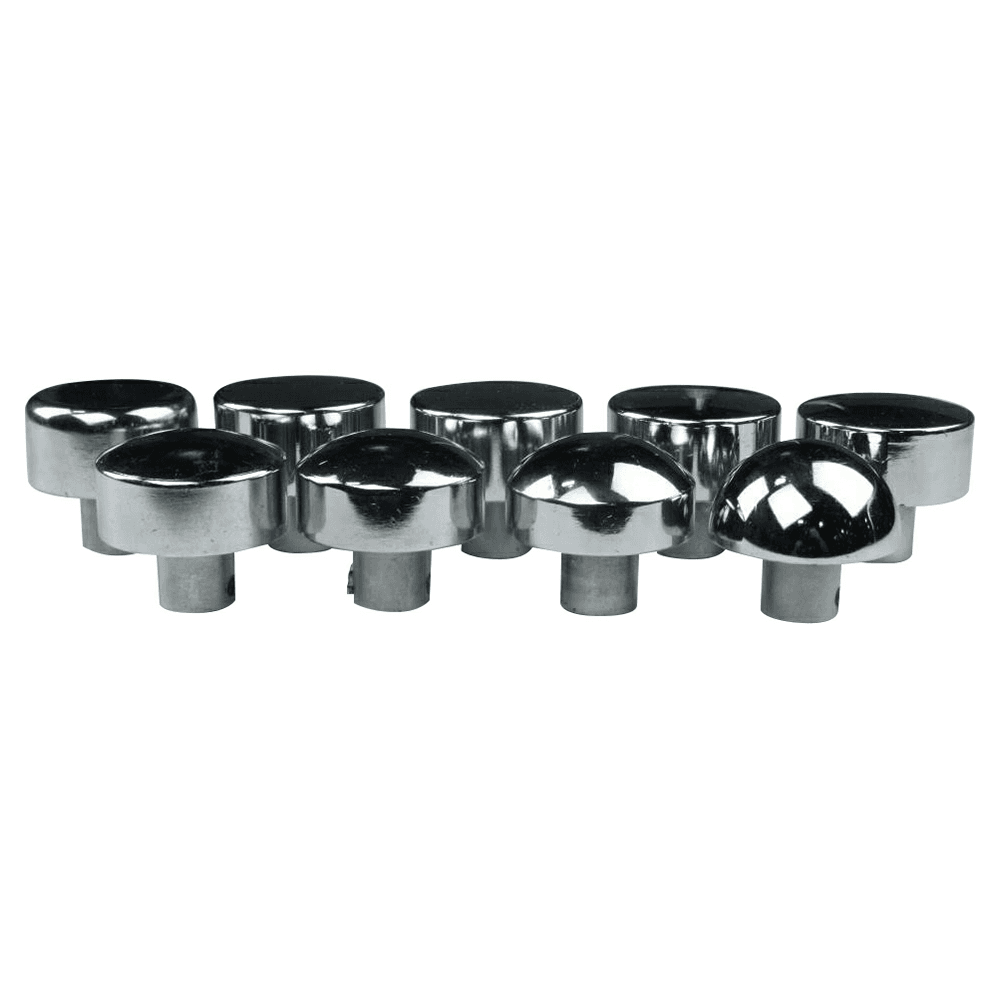

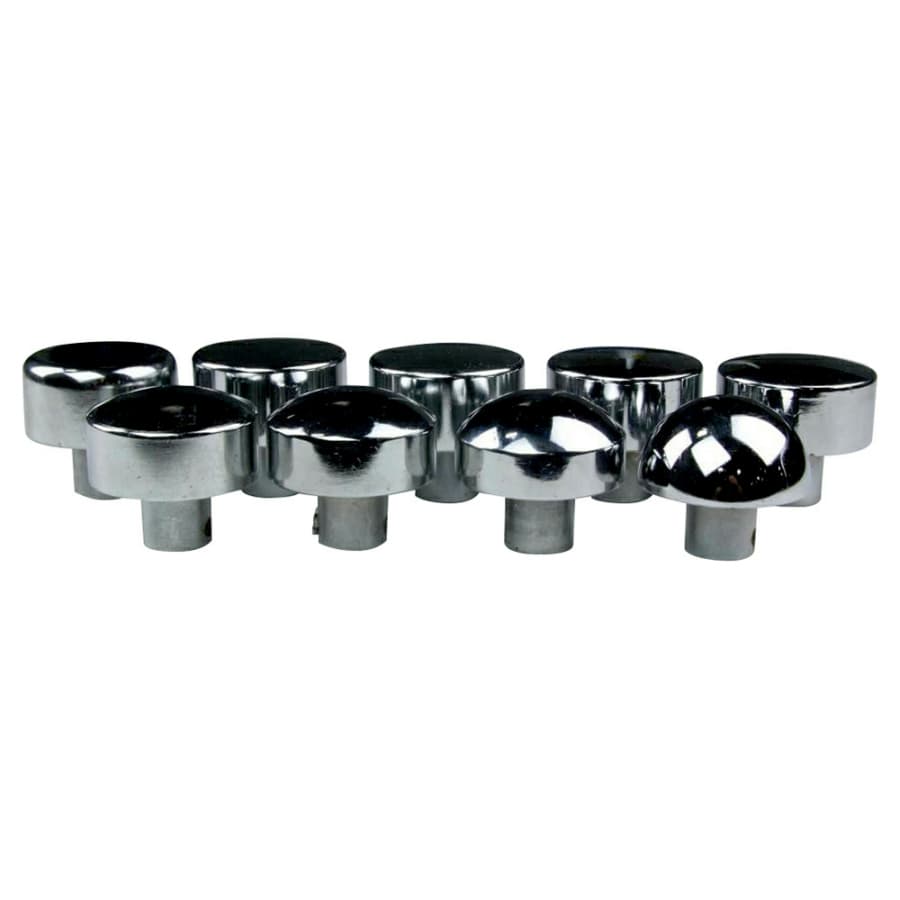

This air-powered Planishing Hammer can transform wrinkled or dented metal into smooth finished products. A great value, the PH-24A can also do light metal shaping on soft materials. Features: • 24" throat depth • 16-gauge mild steel capacity for finishing • Lands 4,600 beats per minute • Requires 90-120 psi to operate • You can adjust the material opening with the handwheel at the bottom • Foot pedal control leaves your hands free • Comes standard with 9 radius dies: flat, ¾", 1½", 2", 3", 4", 6", 8", and 12" • 4" x 4" fully welded frame keeps the machine stable so that force is transferred directly to the material • Stainless steel main shaft helps the machine last longer
Specifications
| Box Quantity | 1 |
| Aluminum Capacity (Gauge) | 14 ga |
| Input Power | 90 - 120 PSI |
| Motor (HP) | |
| Product Type | Power Hammers |
| Short Description | Pneumatic planishing hammer 24" throat depth 16 gauge finishing capacity 4,600 beats per minute Includes 9 radius dies |
| Throat Depth | 24" |
| Tooling Height Adjustment | 1-1/2" |
