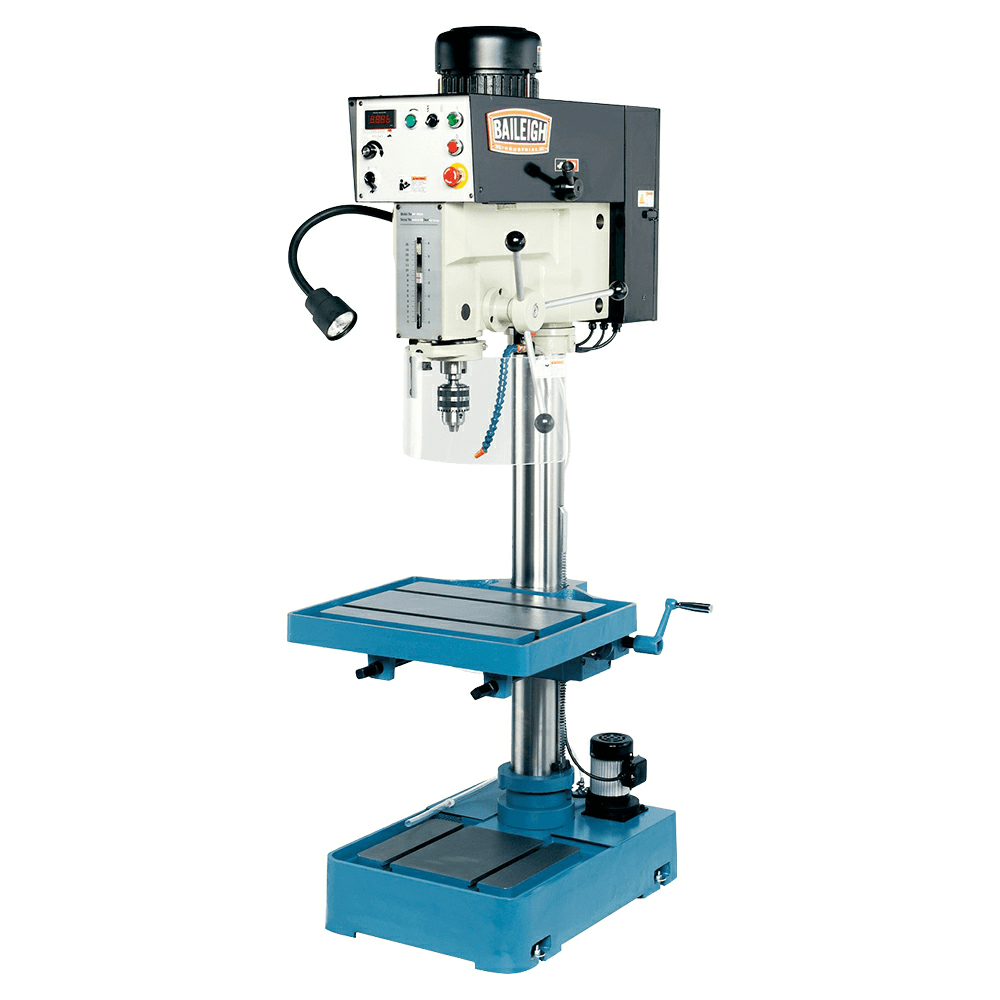

Baileigh DP-1250VS 2 HP Drill Press
This item may incur additional shipping costs and lead times.
Product Details

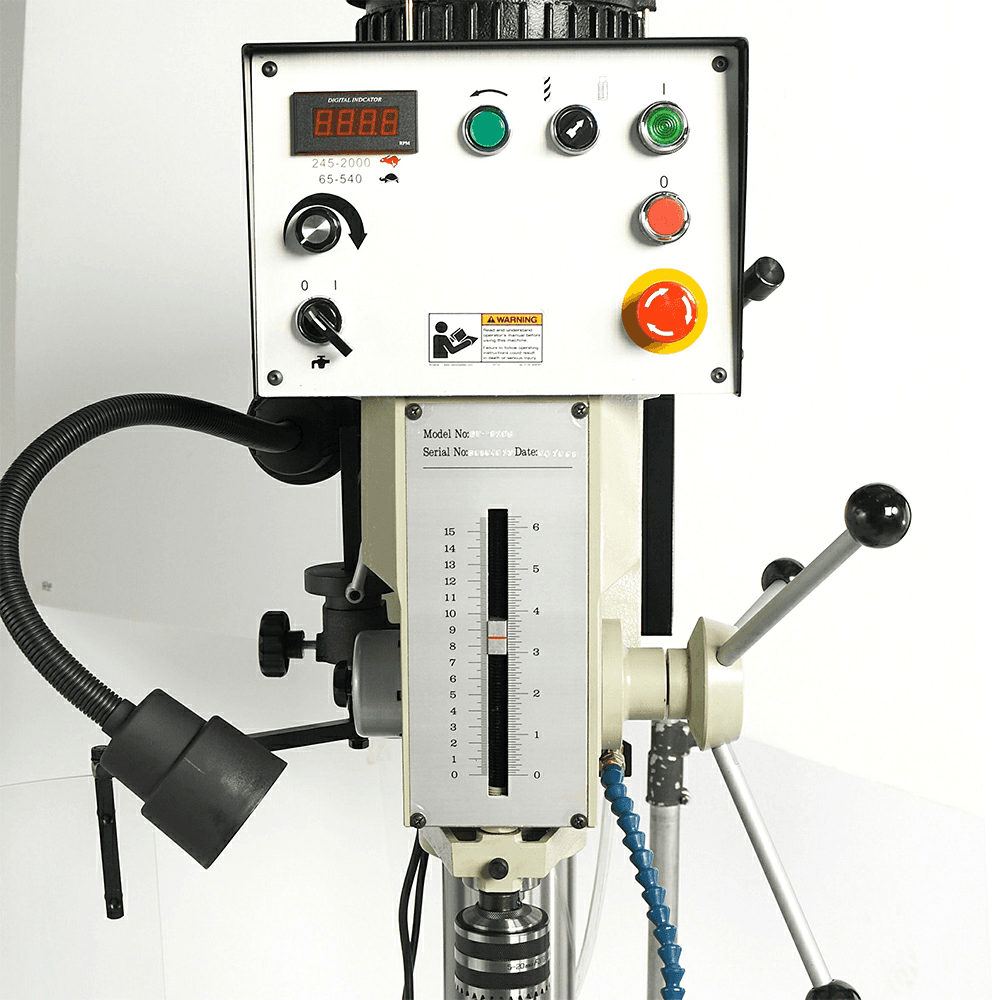

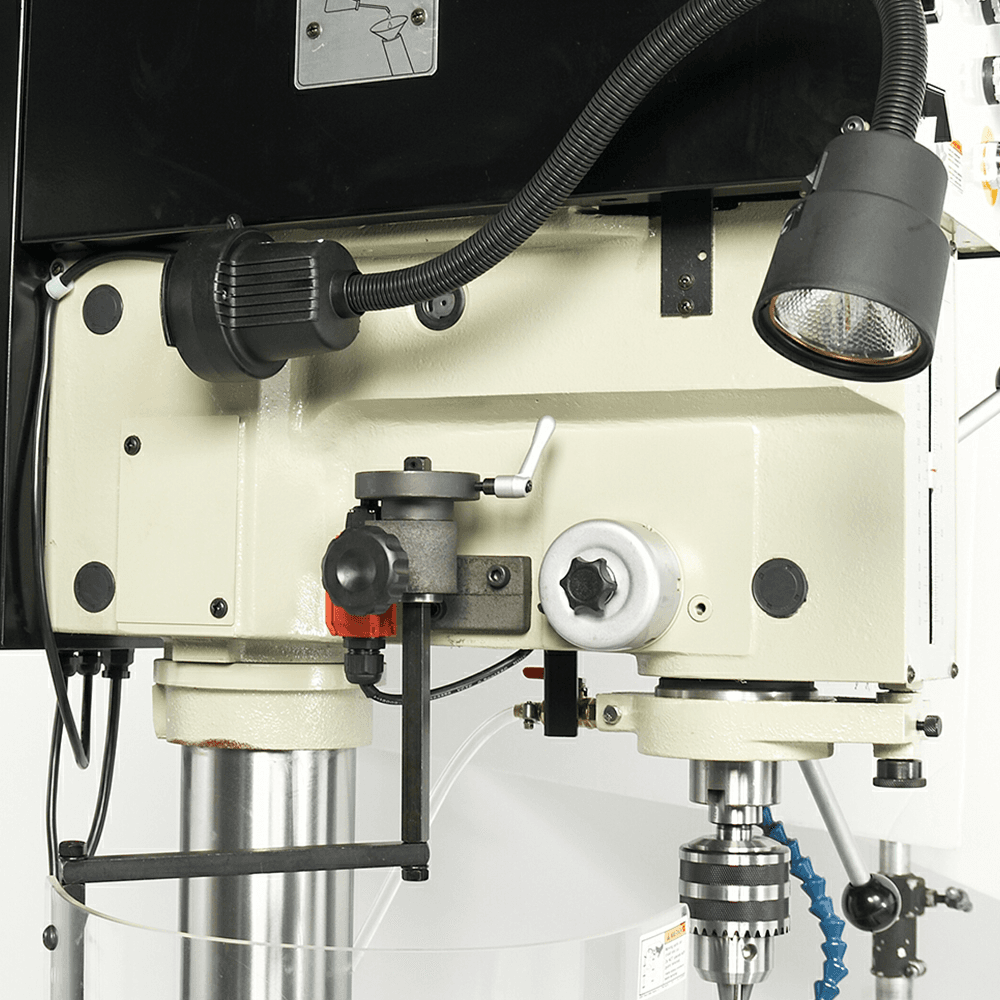

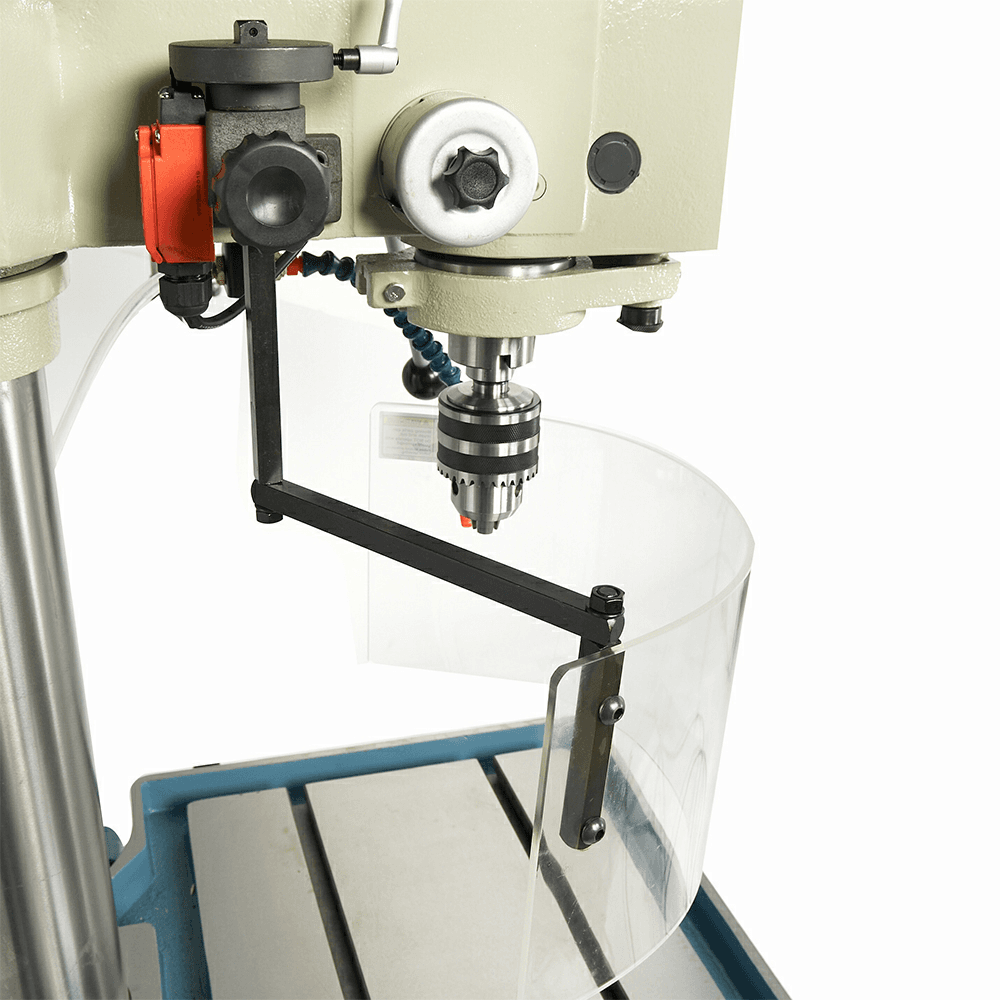

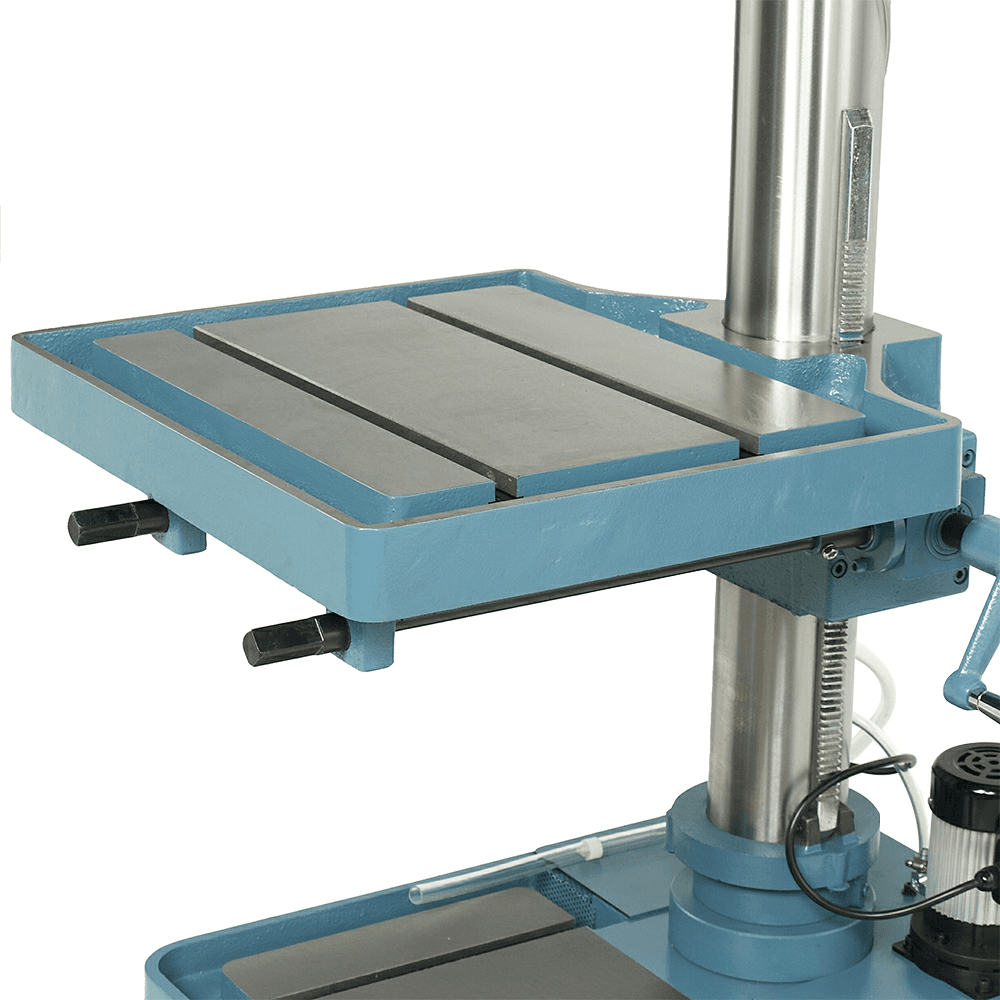

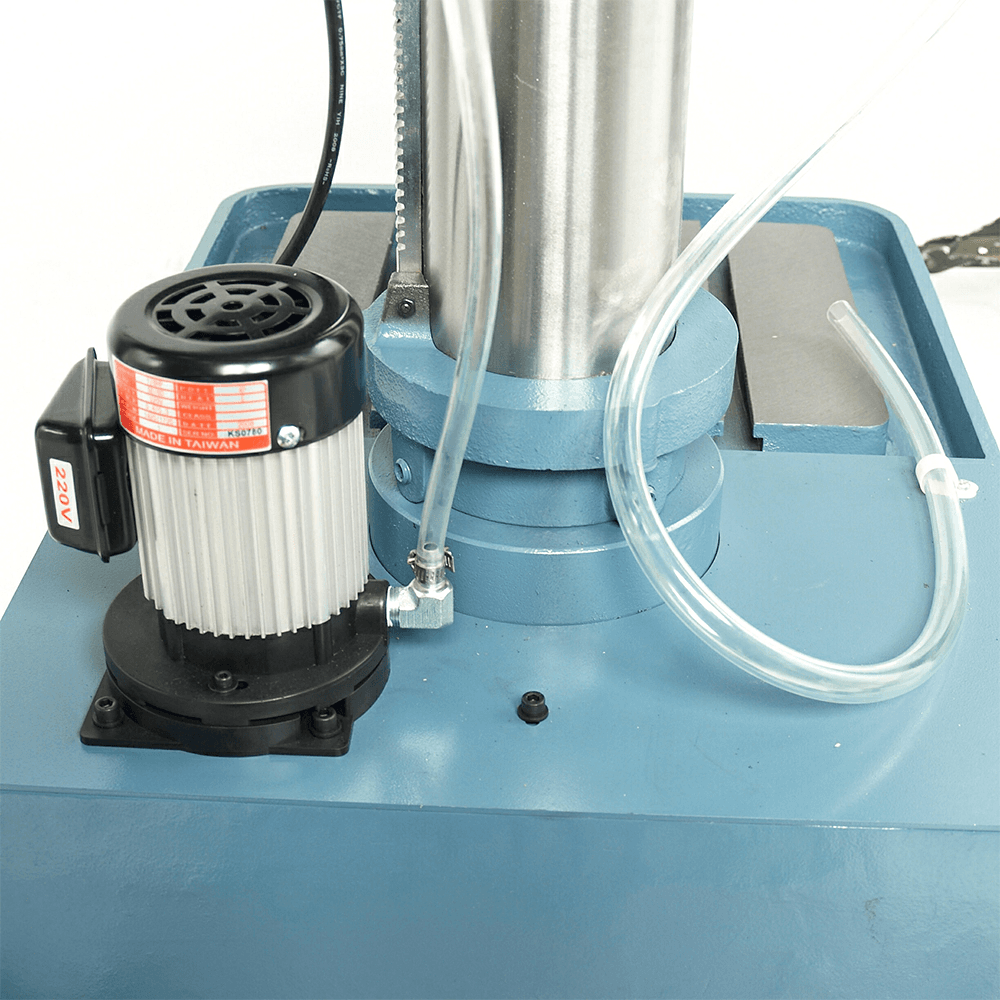

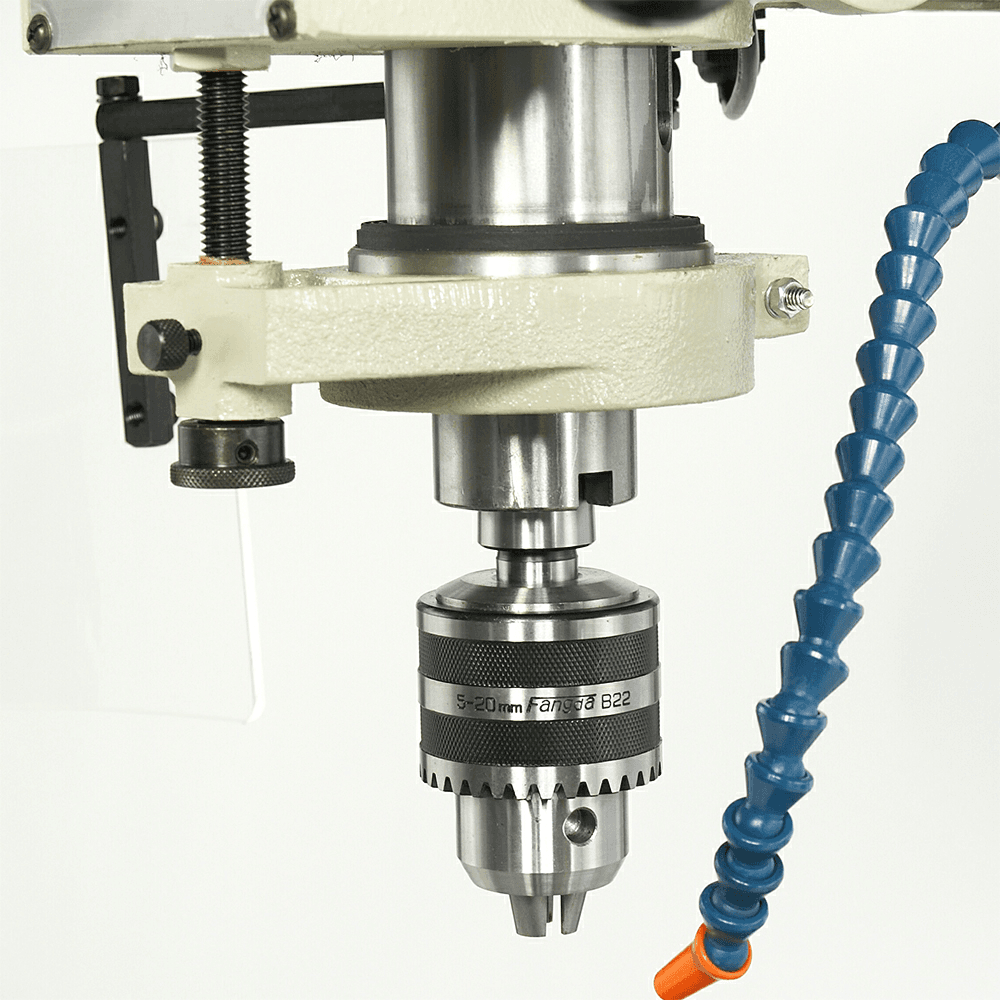

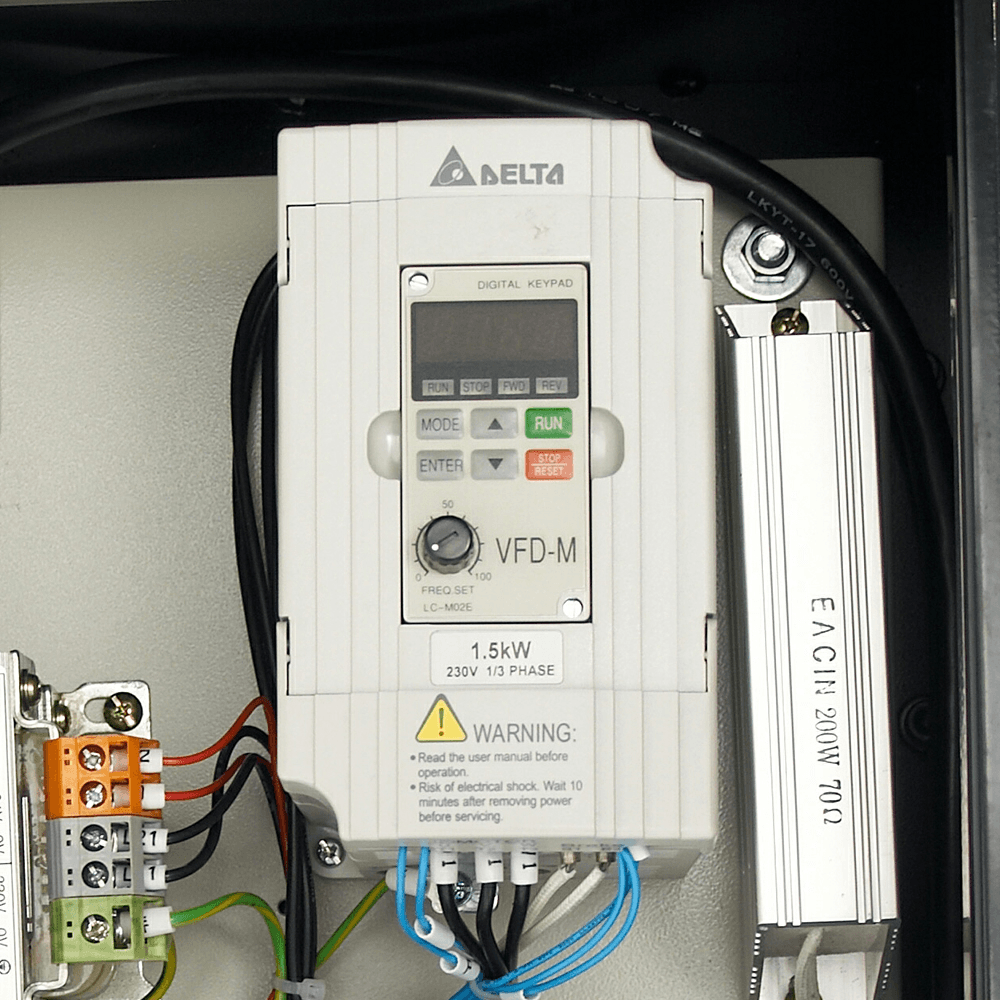

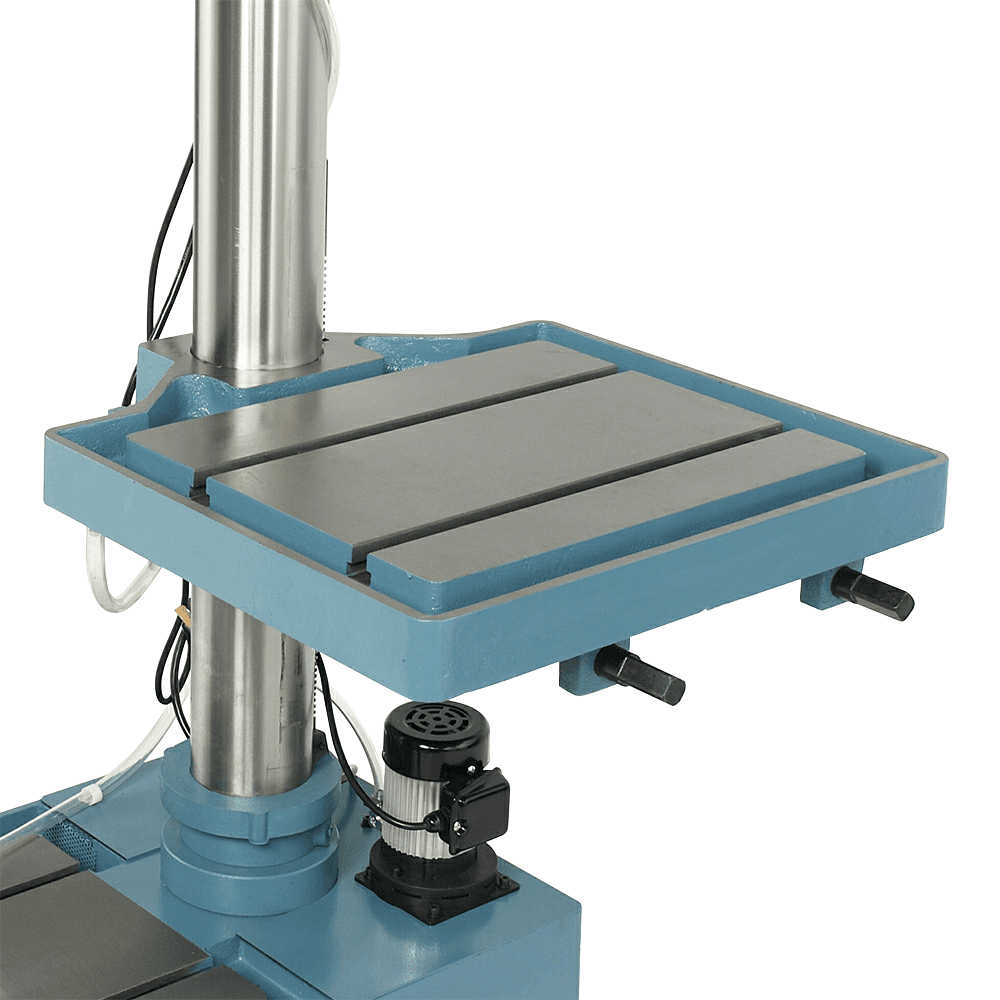

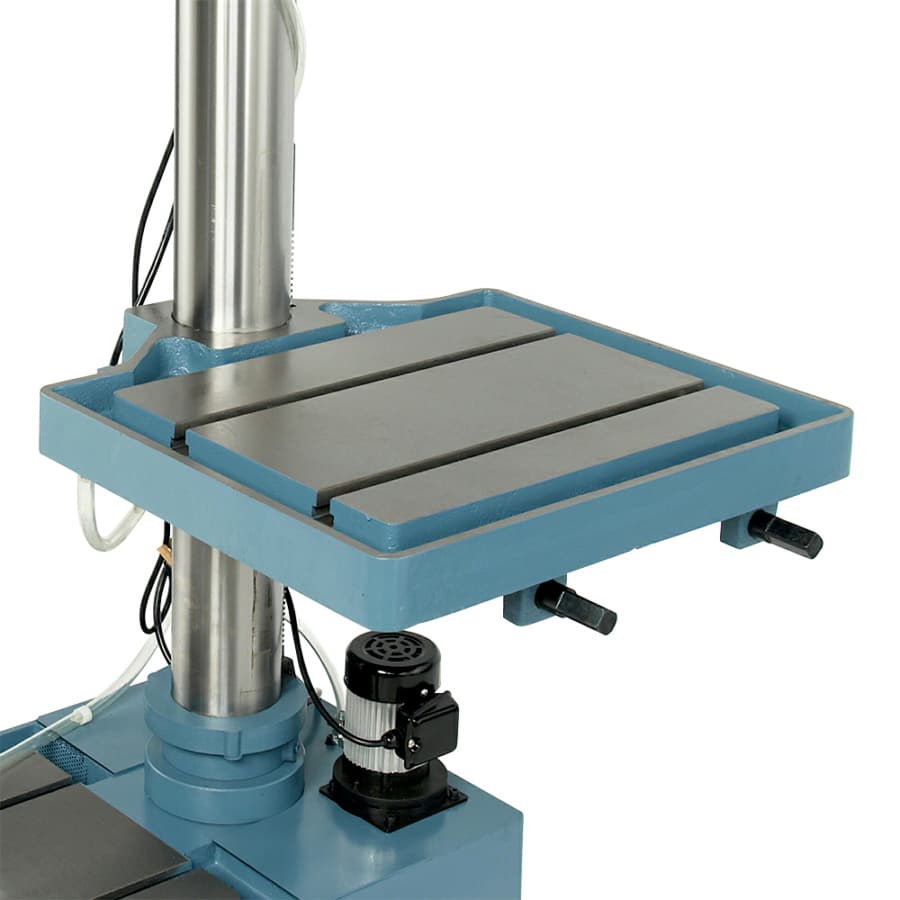

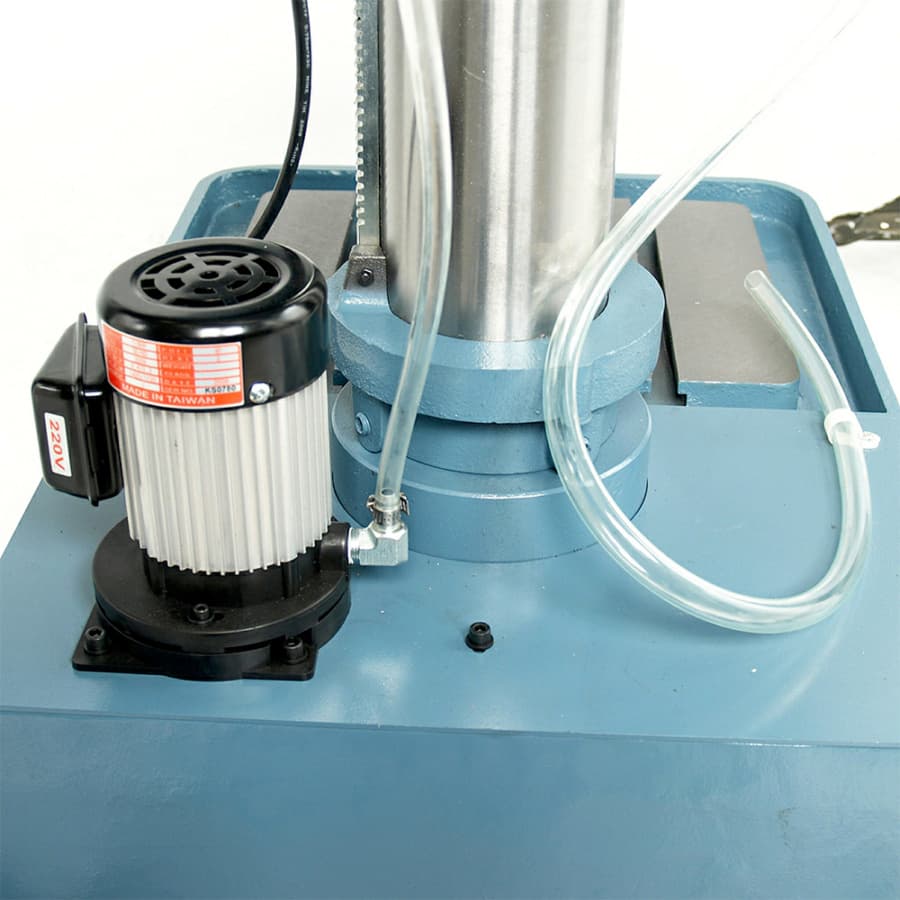

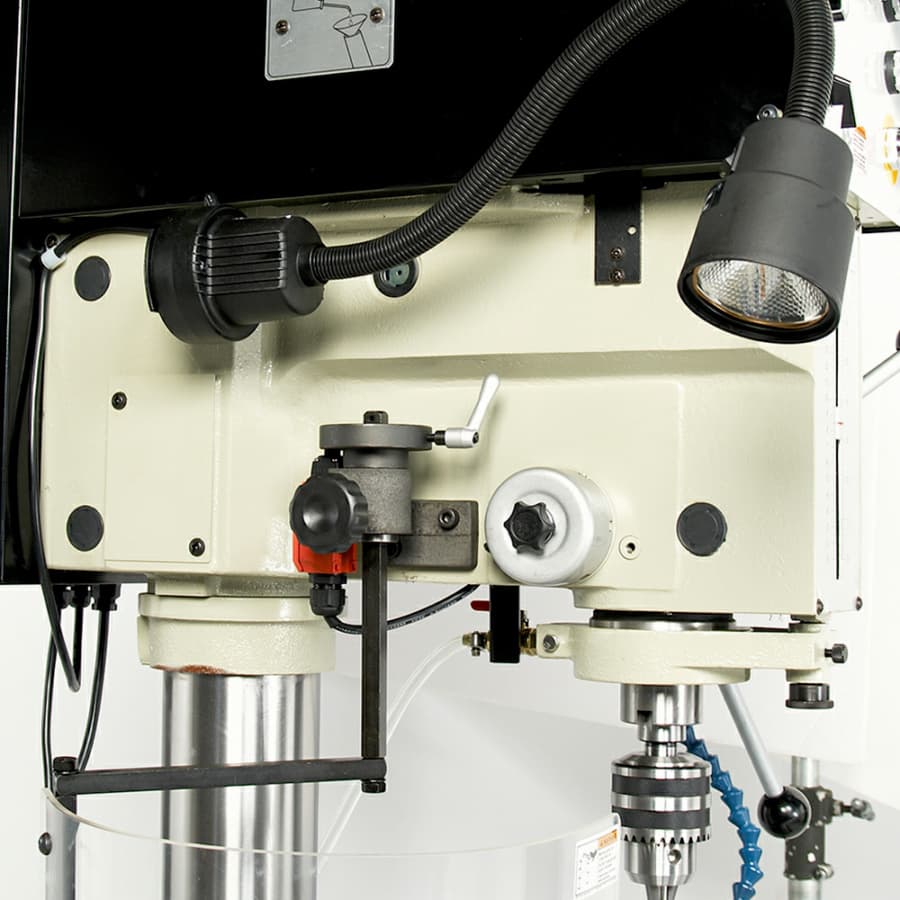

Built to last for years, the DP-1250VS floor drill press draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a 20.8" swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator Features: • 2 hp motor runs on just 220 volts of single-phase power • Tackles a maximum drilling capacity of 1.25" mild steel • Heavy duty spindle transfers power to the #4 Morse taper tooling • Speed Potentiometer dial controls powerful inverter-driven head • Variable drilling speed, ranging from 85 to 2000 rpm, lets you choose the right setting to suit your application • Digital readout displays actual spindle rpm, ensuring precise results time after time • Features an auto-reversing tap function with up to 0.75" capacity • Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions • Base and 22" x 18.5" table are made of a heavy iron casting to increase rigidity with very large 0.625" T-slots which let a vise or fixture securely hold your material • Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan
Specifications
| Box Quantity | 1 |
| Base Dimensions | 27" x 19" |
| Number of Spindle Speeds | |
| Power Feed | |
| Product Type | Variable-Speed Drill Presses |
| Quill Diameter | 2.95" |
| Quill Feed | |
| Speed Range | |
| Spindle Distance to Table (Max.) | |
| Swing | |
| Table Slots | 0.625" |
| Tapping Capacity Cast Iron | |
| Motor Voltage (V.) | 220V |
| Motor Power (HP) | |
| Base Size | |
| Column Diameter | 4.52" |
| Coolant Pump Motor | |
| Distance Base to Spindle (Min.) | |
| Drilling Capacity | 1.25" |
| Drilling Capacity Cast Iron | |
| Drilling Capacity Mild Steel | |
| Max. Spindle Speed | 245 – 2000 rpm |
| Min. Spindle Speed | 85 – 540 rpm |
| Motor Phase | 1 |
| Tapping Capacity Mild Steel |
