Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V

Item # JPWBA9-1230387
Mfr # BA9-1230387
Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V Main - Image
Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V Alt 1 - Image
Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V Alt 2 - Image
Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V Alt 3 - Image
Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V Alt 4 - Image
Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V Alt 5 - Image
Baileigh BSV-12VS-V2 1 HP Vertical Band Saw, 120V Alt 6 - Image

This item may incur additional shipping costs and lead times.

Product Details

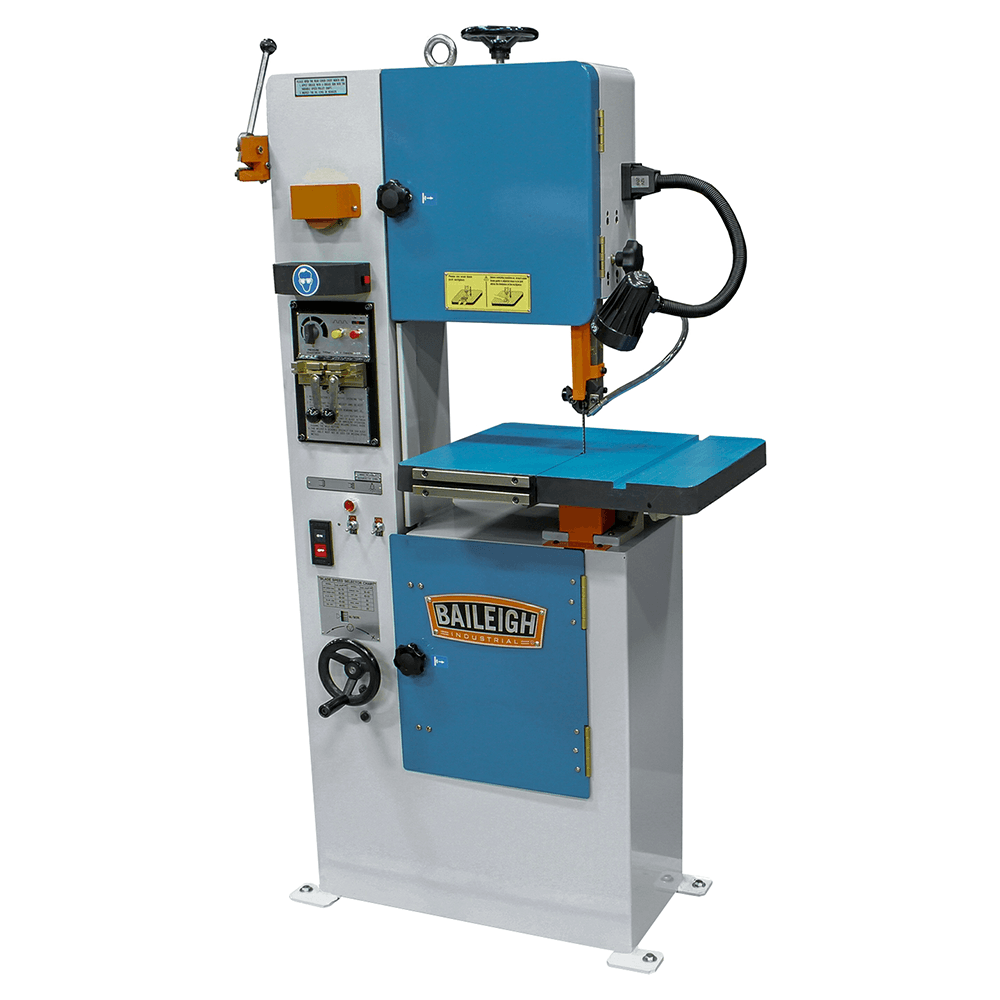

The BSV-12VS-V2 metal cutting bandsaw increases capacity and adds an inverter to control the blade speed. Make straight and curved cuts with the vertical blade. Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Features:

• 1 hp motor runs on 120-volt power and accepts standard 1/8" to 1/2" blades
• Wide 12.2" throat depth and 6.875" maximum cutting thickness

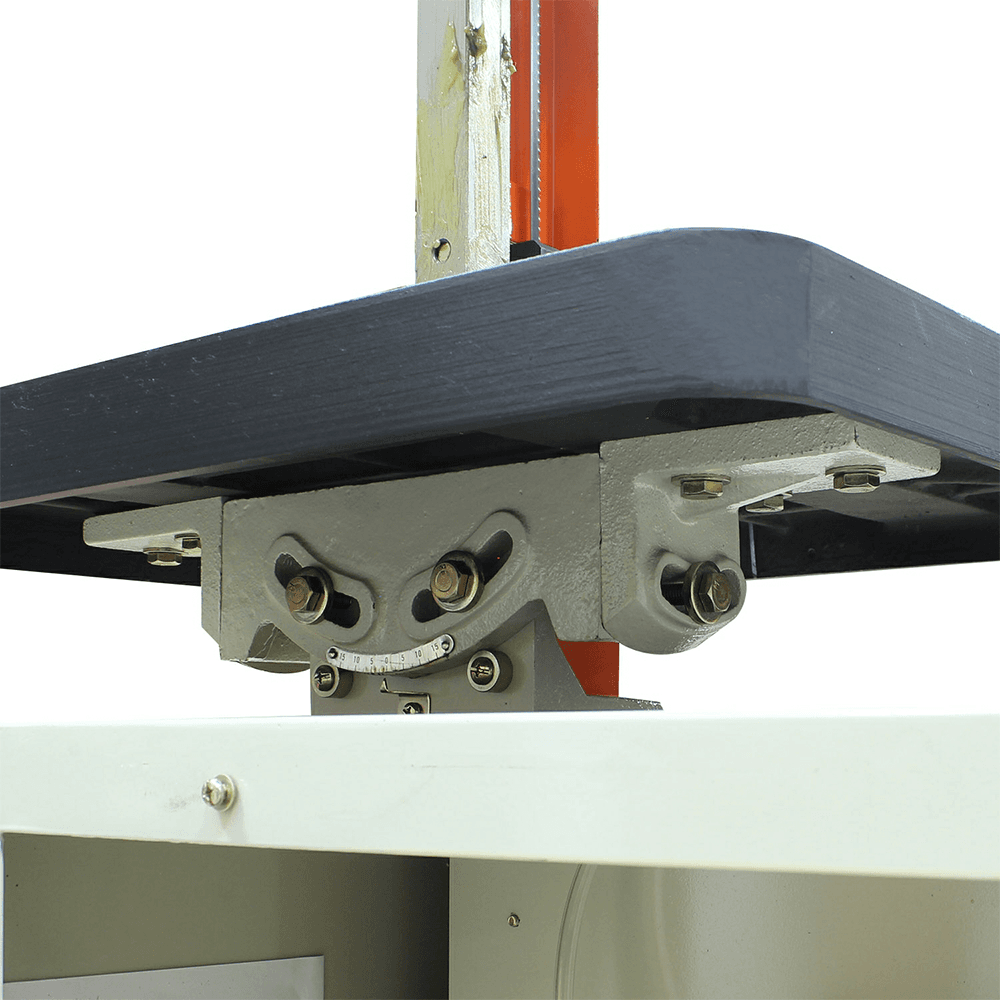

• Cast iron table can pivot front to back and left to right while the LED work light lets you see what you're cutting more clearly
• Variable speed from 100 to 1000 fpm allows you to adjust the speed for cutting wood, metal, and even plastic

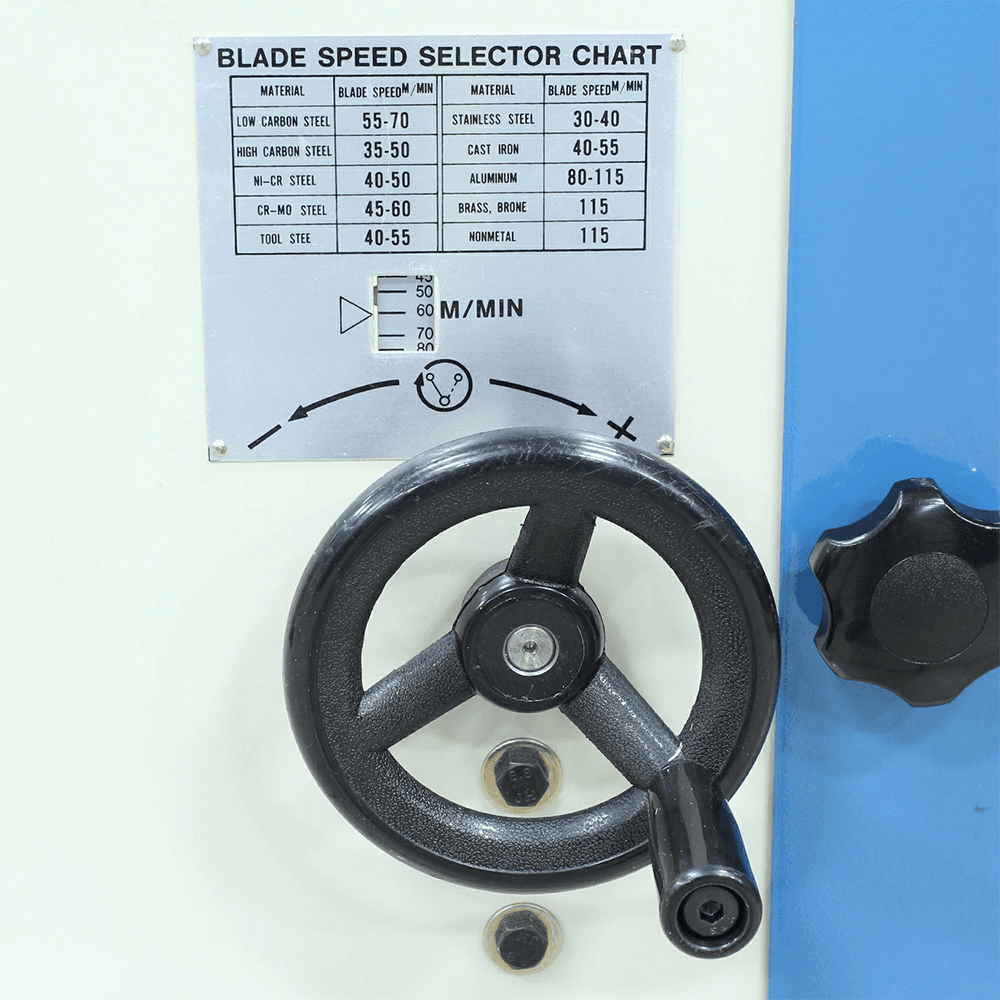

• Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life
• This industrial-grade band saw includes everything you need to cut out the center of the material without having to fix a cut through it
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together

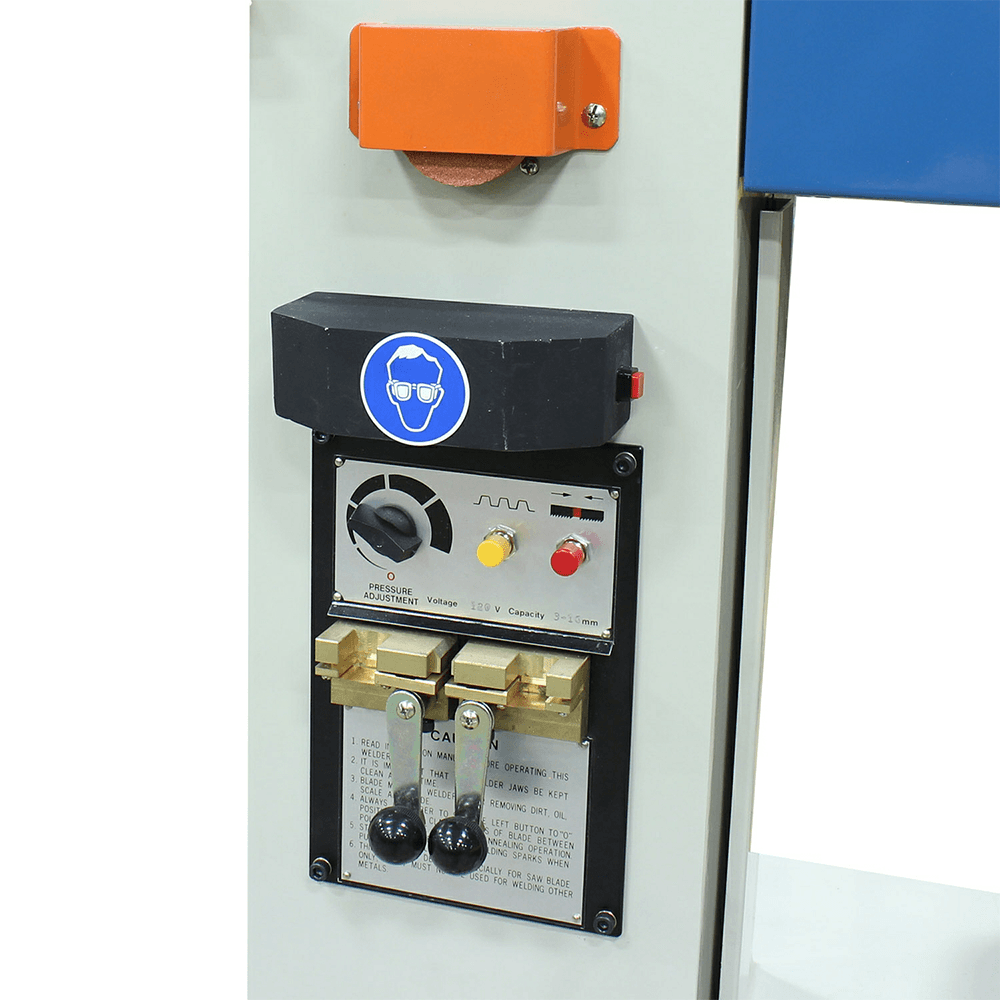

• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint-great for getting to the center of a cut or repairing blades
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years

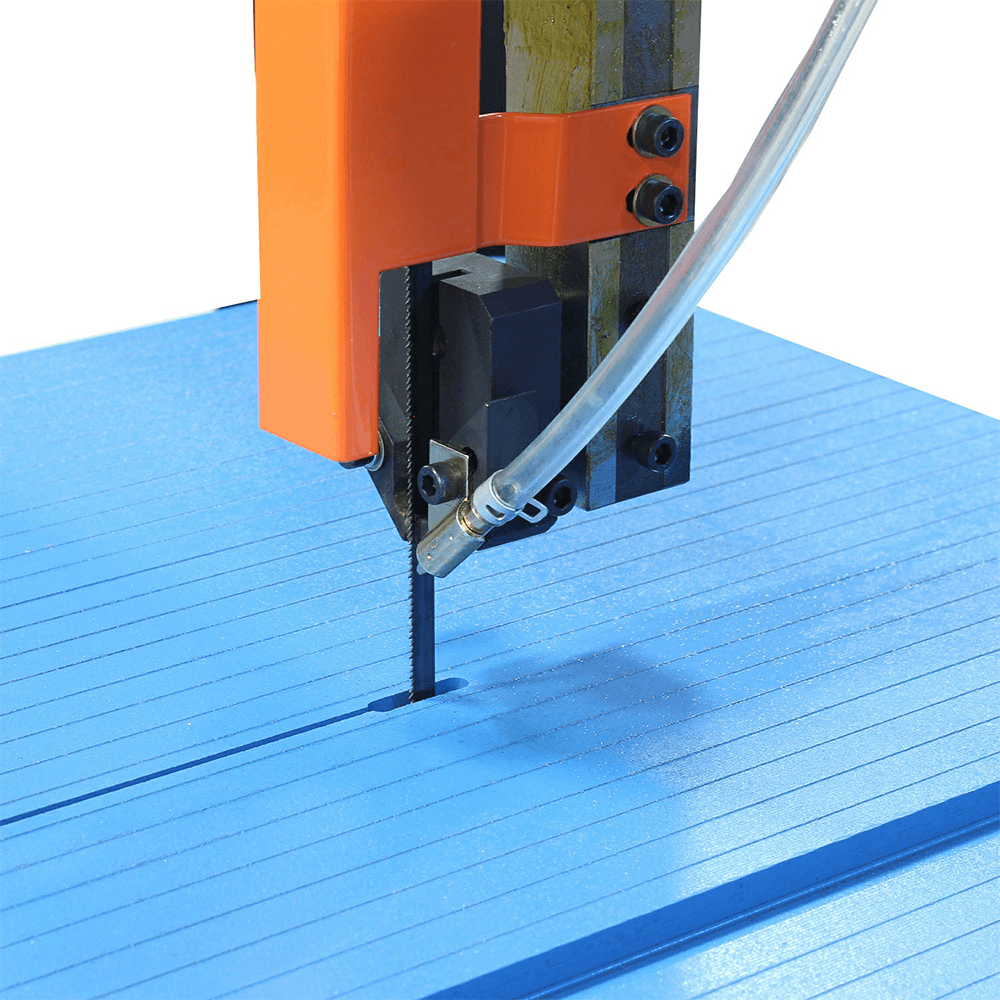

• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings

Specifications

Box Quantity1
Blade Guide
Table Tilt (Deg.)45°R & 15°L
Speed ControlInverter
Short Description120 volt Variable speed 12.2" throat depth 6.875" maximum cutting thickness 1/8" to 1/2" blade width Variable speed : 100 to 1000 fpm
Product TypeVertical Band Saws
Motor Amps
Motor (HP)1 HP
Maximum Vise Opening
Input Power120V
Drive
Coolant Pump Motor
Butt Welder Blade Width
Blade Width1/8" - 1/2"
Blade Thickness0.032"
Blade Speed (RPM)100 - 1000 RPM
Blade LengthRange 93.3" - 98.03"
Throat Depth12.2"
