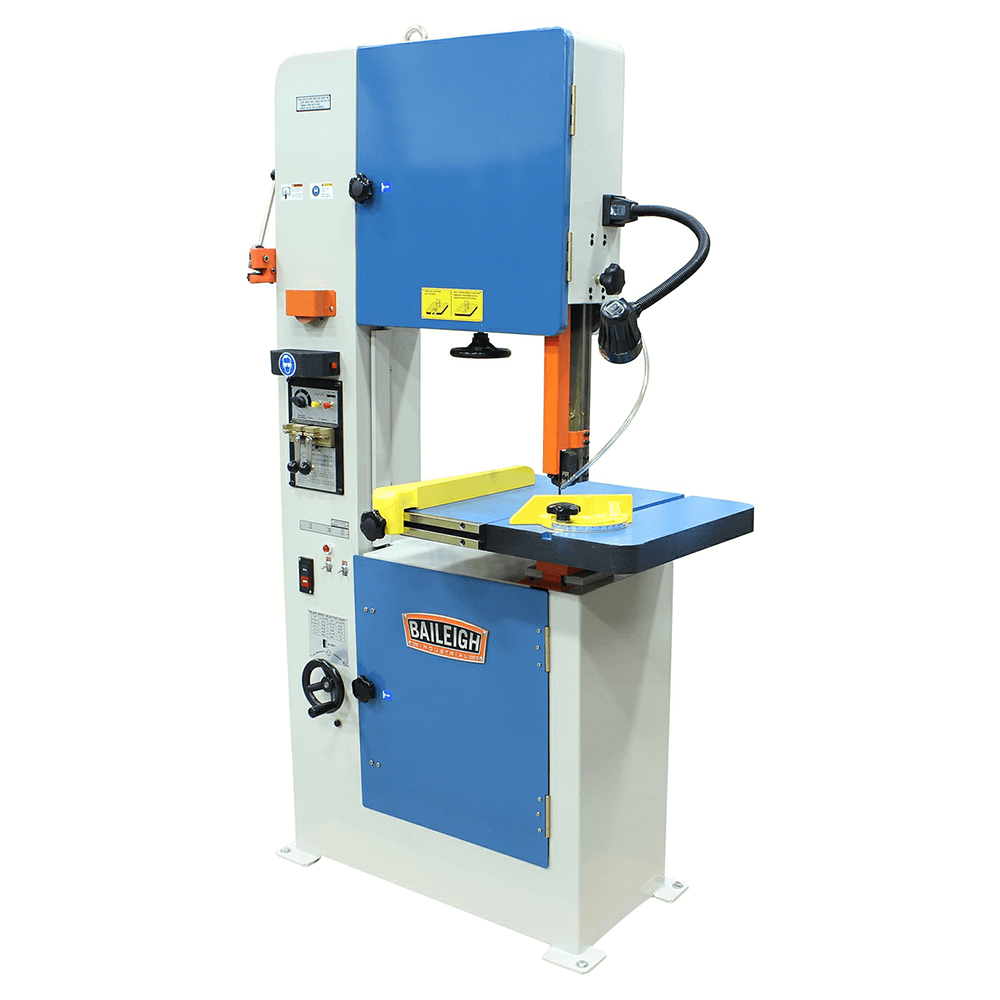

Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V

Item # JPWBA9-1230401
Mfr # BA9-1230401
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Main - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 1 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 2 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 3 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 4 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 5 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 6 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 7 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 8 - Image
Baileigh BSV-18VS-220-V2 1 HP Variable Speed Vertical Band Saw, 1 Phase/220V Alt 9 - Image

This item may incur additional shipping costs and lead times.

Product Details

The BSV-18VS-220-V2 metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.

• 1 HP motor runs on 220-volt single phase power
• Wide 18" throat depth
• 12.9" maximum cutting thickness
• Accepts standard 1/8" to 5/8" blades

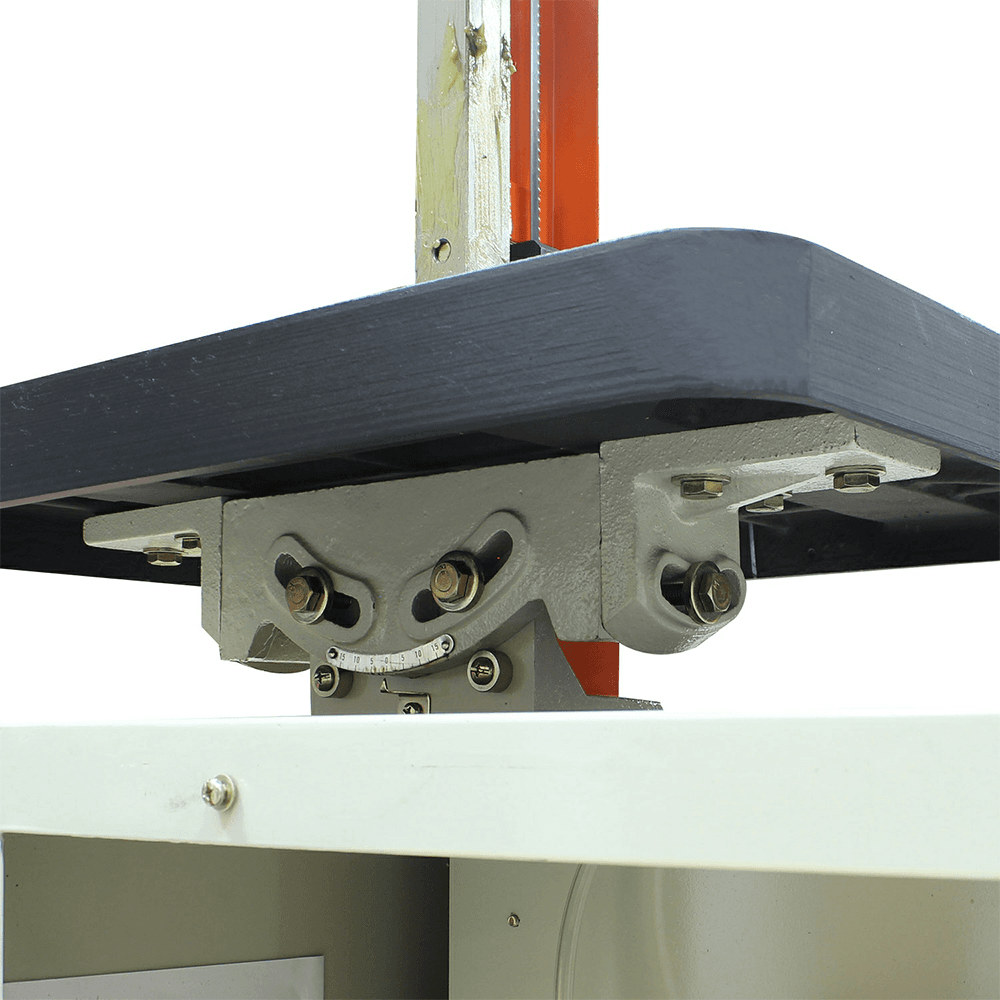

• Cast iron table can pivot front to back and left to right

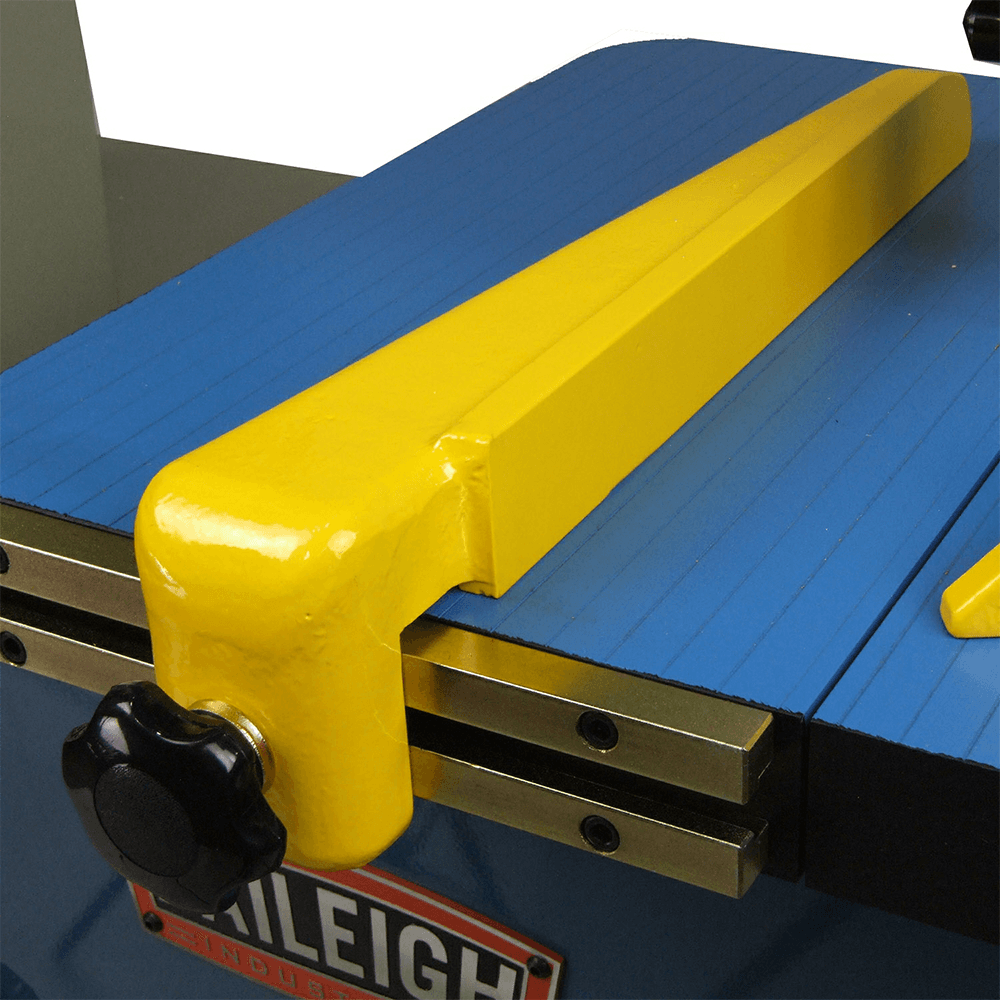

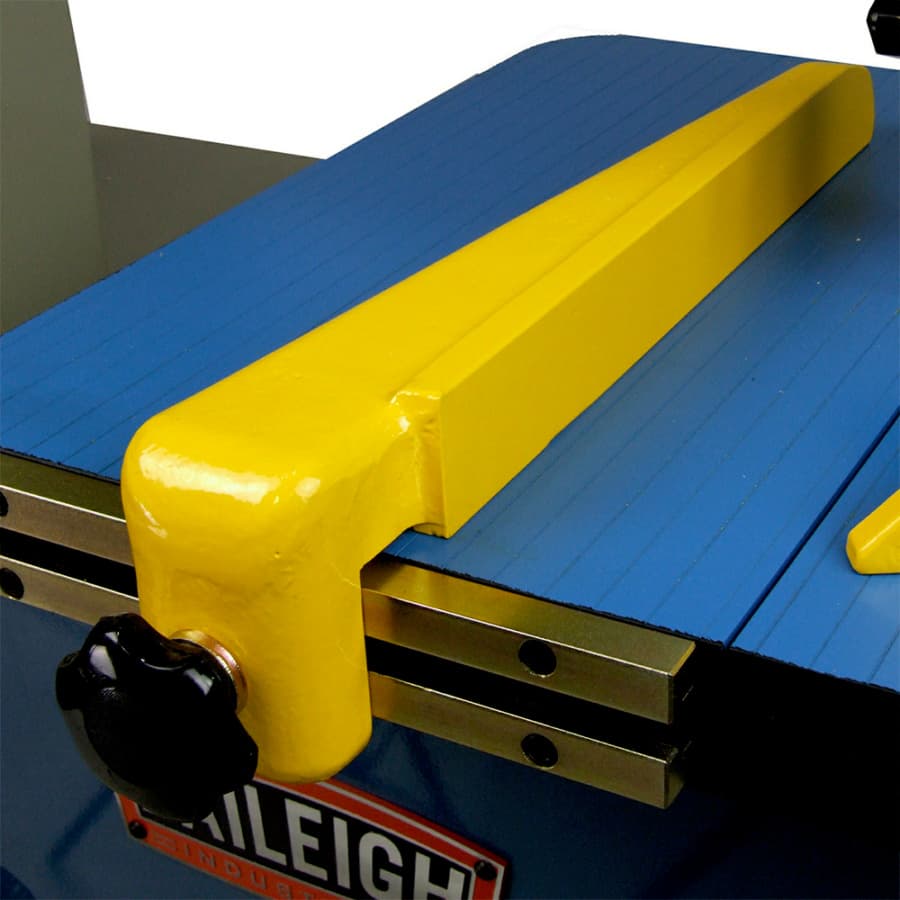

• Includes a cast iron rip fence to make sure your cuts are straight and repeatable

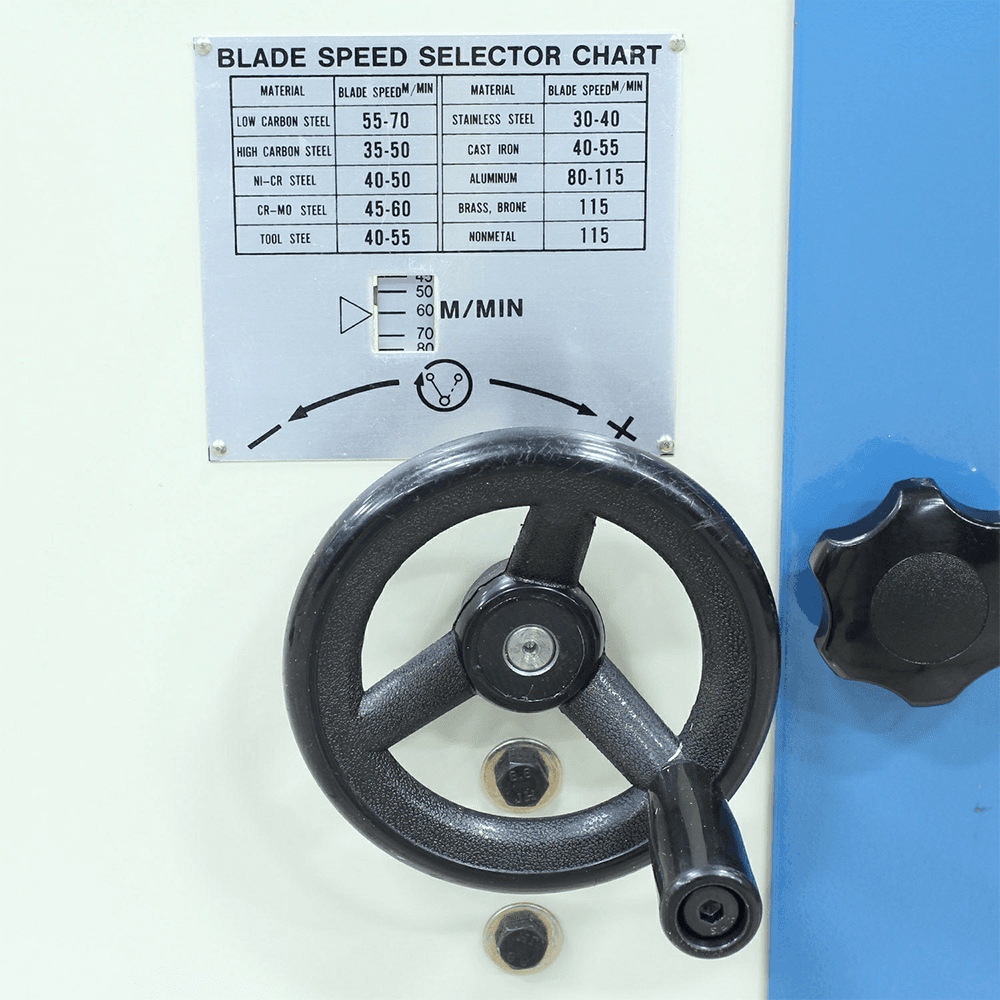

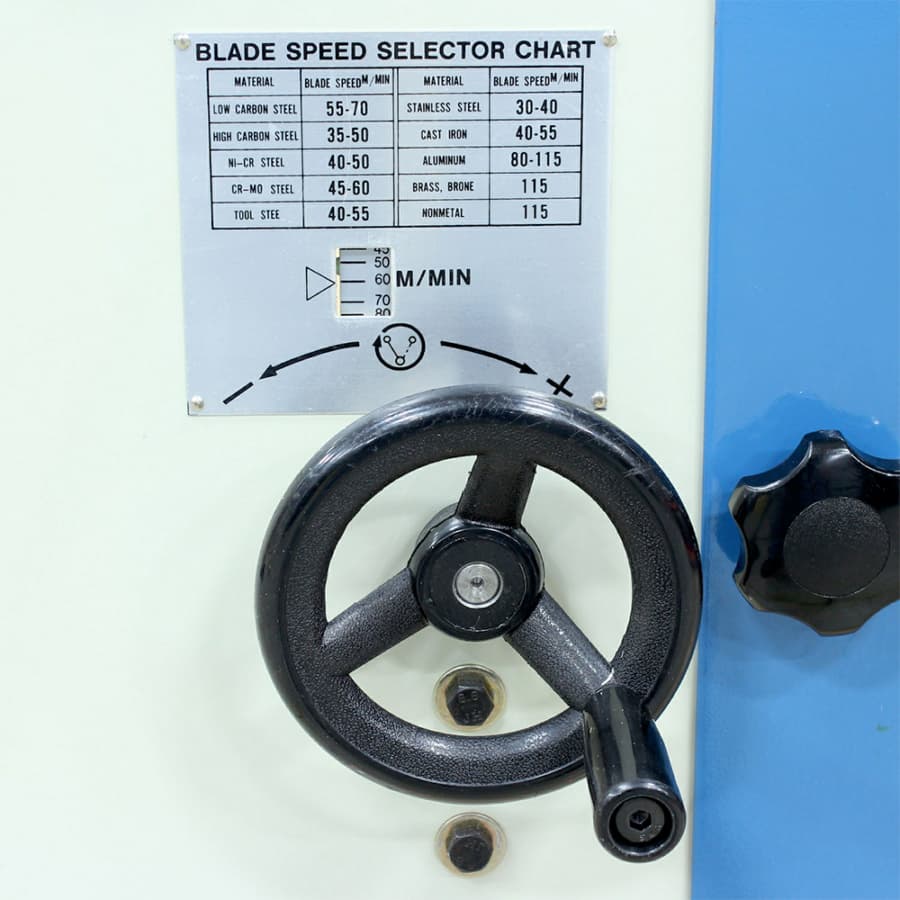

• Variable speed from 90 to 1400 fpm allows you to adjust the speed for cutting wood, metal, and even plastic
• Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together

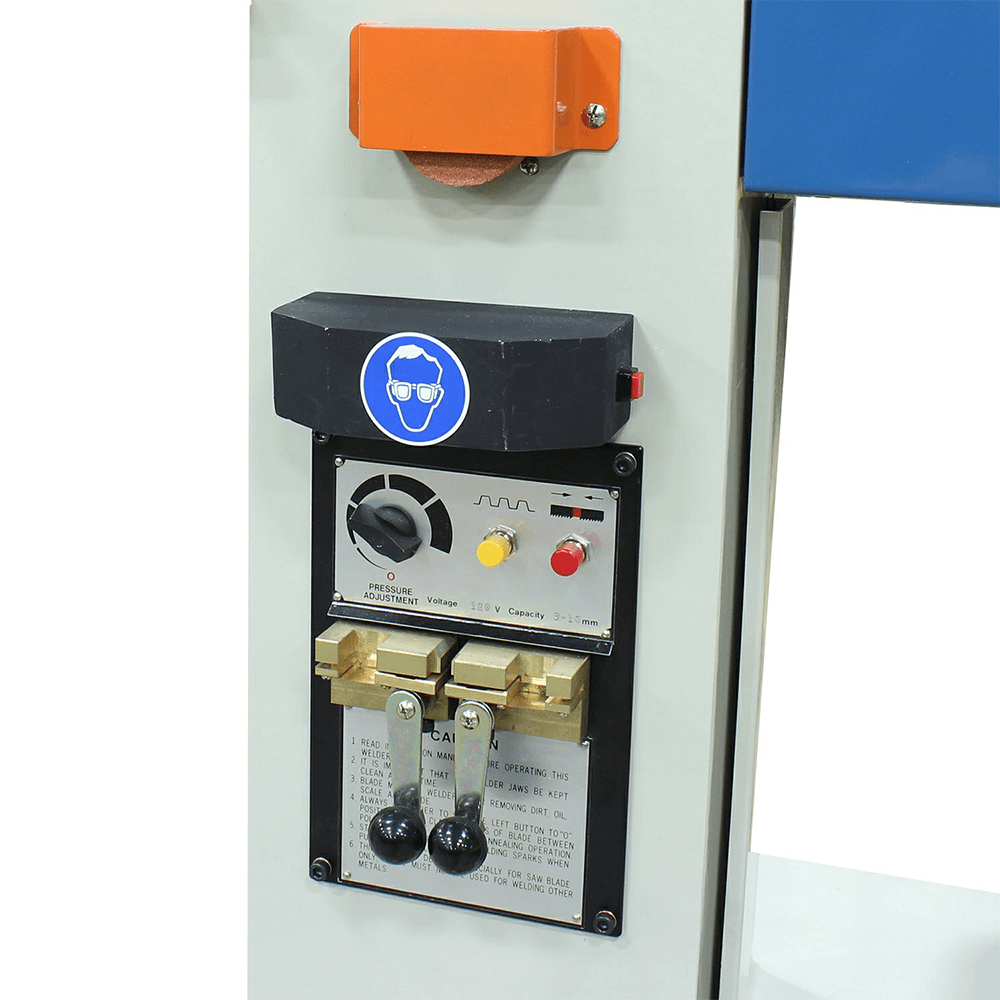

• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint-great for getting to the center of a cut or repairing blades
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years

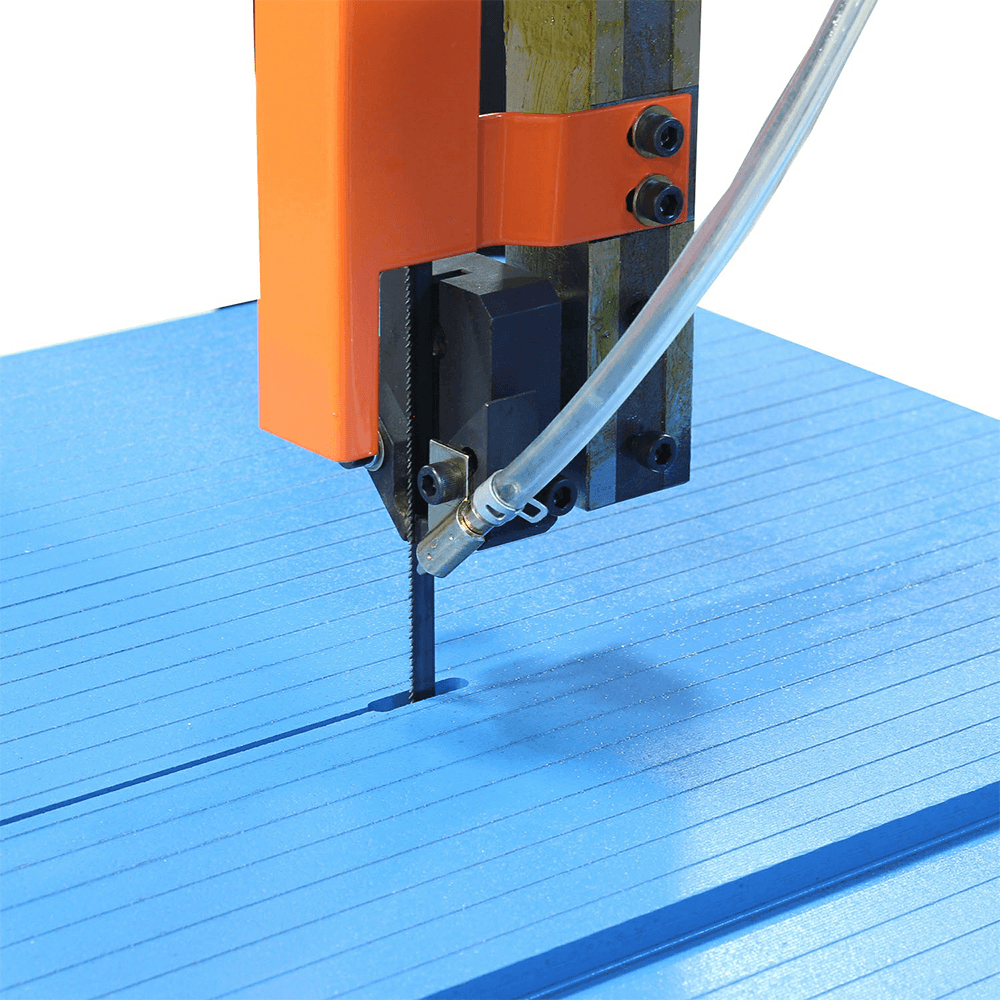

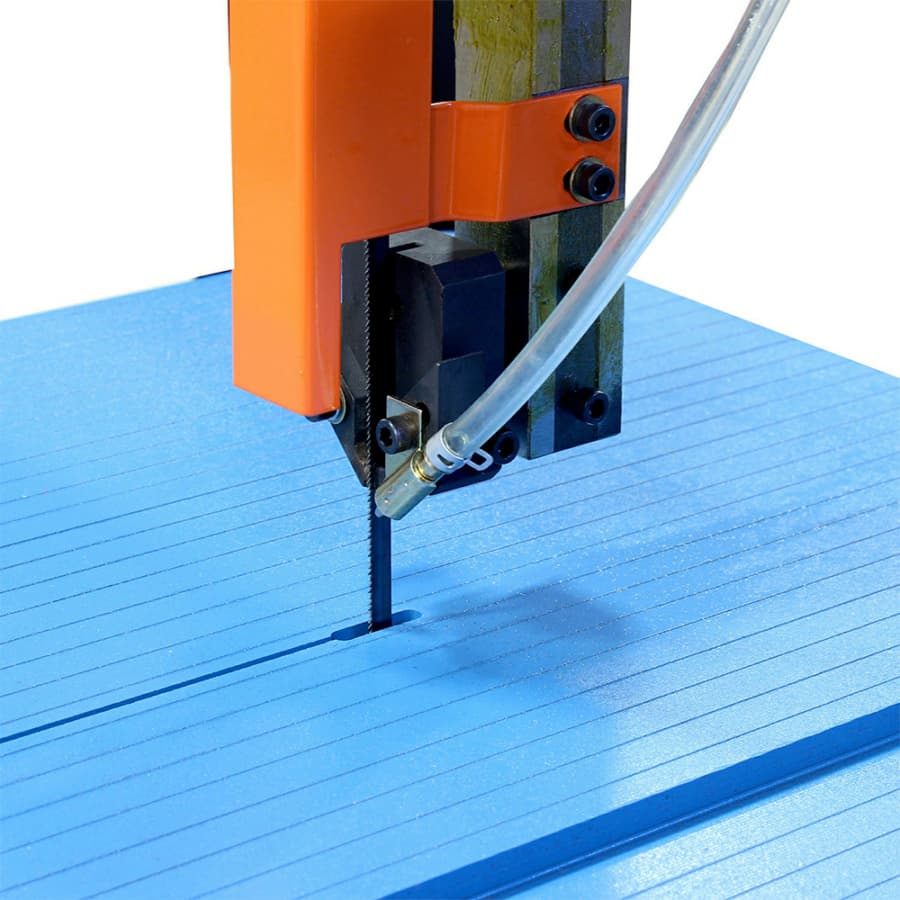

• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings
• LED work light lets you see what you're cutting more clearly
• Covered by a 1-year parts warranty
• Both the saw and its replacement parts are typically in stock for fast deliveries
• Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy

Features:

• 220-volt single-phase
• 18" throat depth
• 12.9" maximum cutting thickness
• 1/8" to 5/8" blade width

Specifications

Box Quantity1
Blade Guide
Table Tilt (Deg.)15° Left, 45° Right
Speed ControlInverter
Short Description220 volt single phase 18" throat depth 12.9" maximum cutting thickness 1/8" to 5/8" blade width Variable speed : 90 to 1400 fpm
Product TypeVertical Band Saws
Motor Amps
Motor (HP)1 HP
Maximum Vise Opening
Input Power220 Volt Single Phase
Drive
Coolant Pump Motor
Butt Welder Blade Width
Blade Width1/8" - 5/8"
Blade Thickness0.032"
Blade Speed (RPM)90 - 1400 RPM
Blade LengthRange 146.45" - 147"
Throat Depth18"
