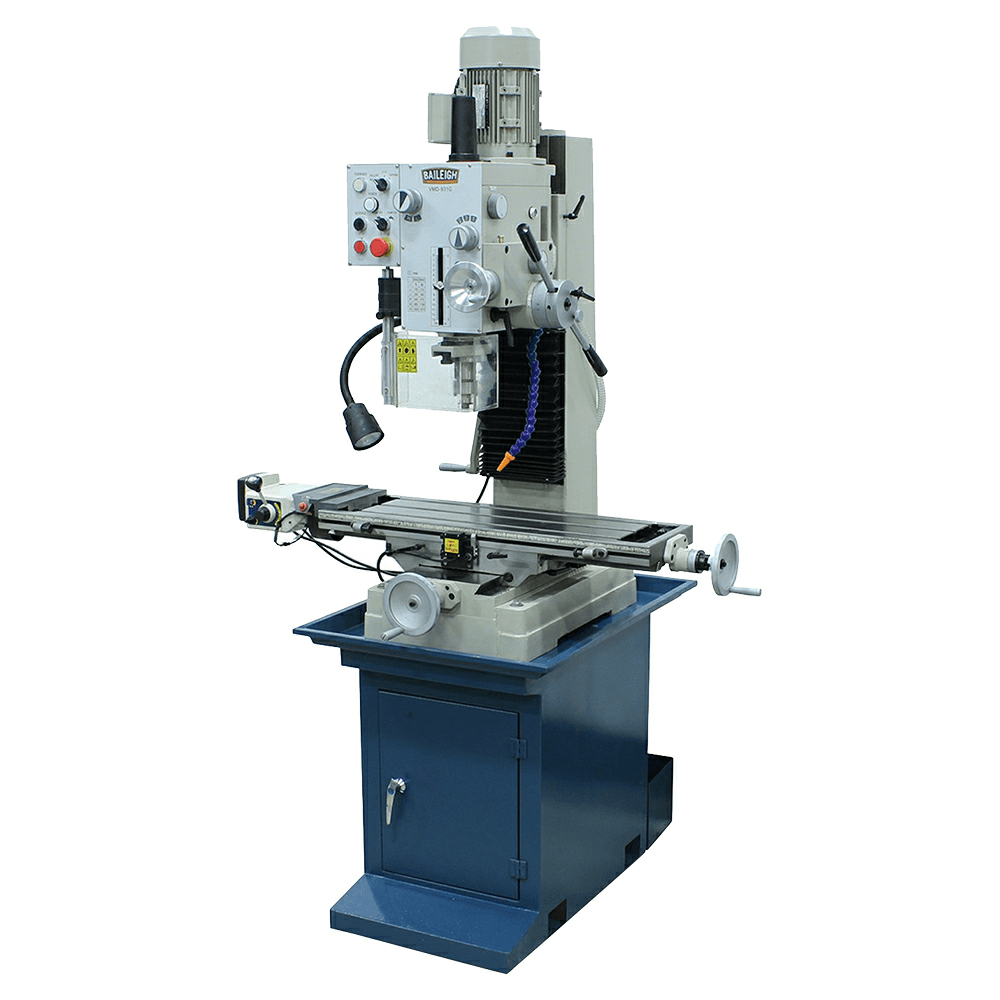

Baileigh VMD-931G Vertical Mill Drill
This item may incur additional shipping costs and lead times.
Product Details

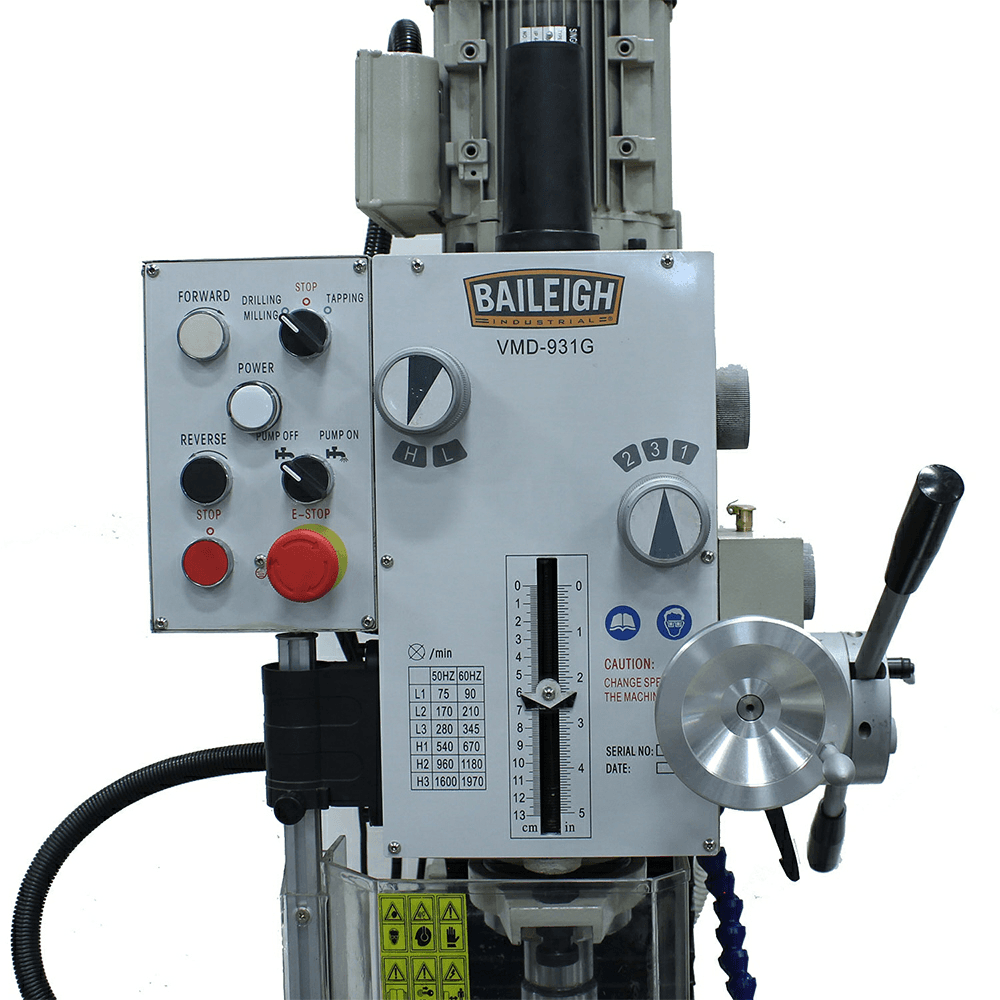

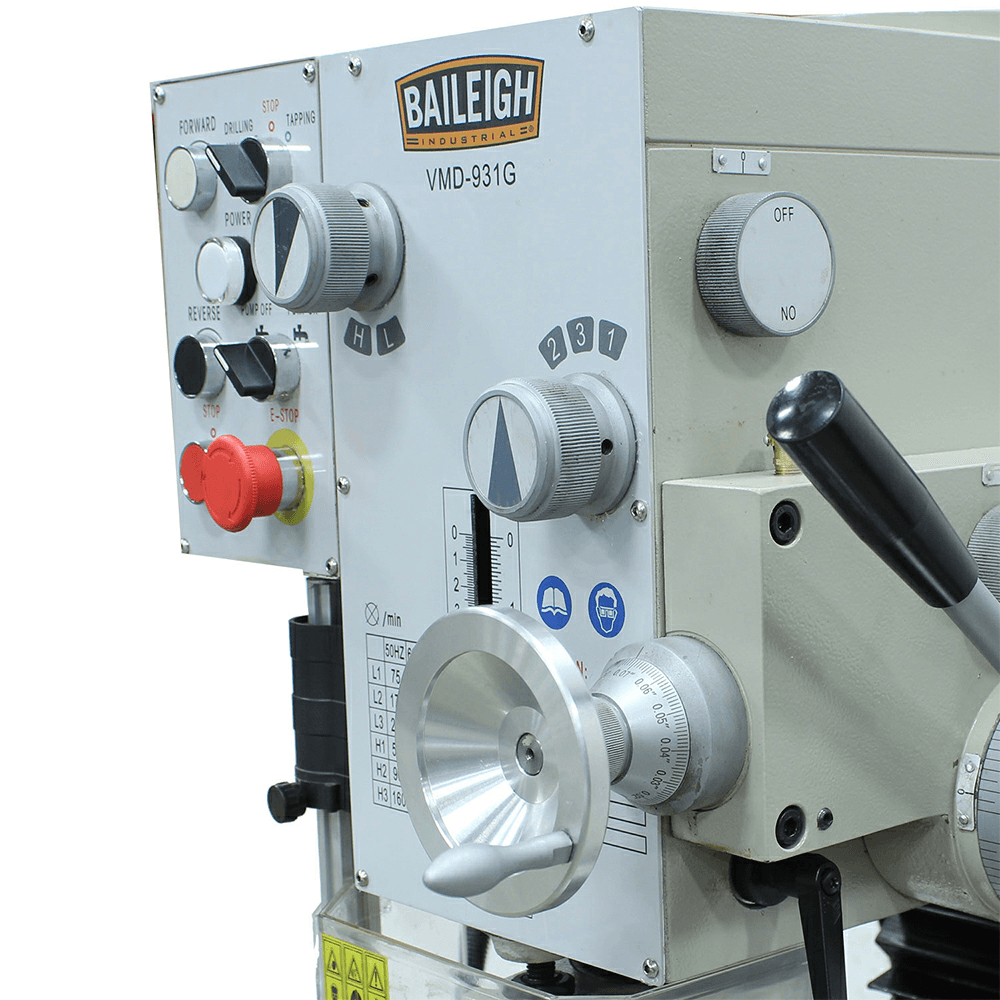

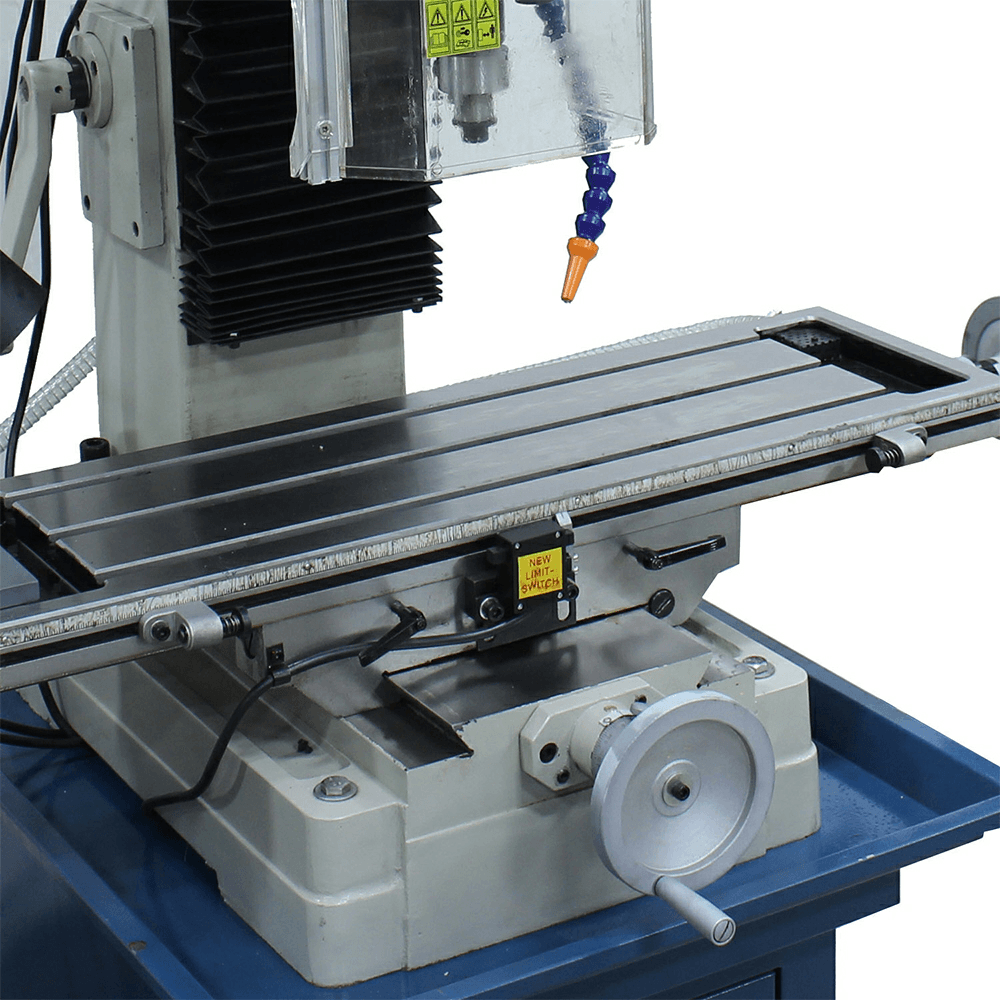

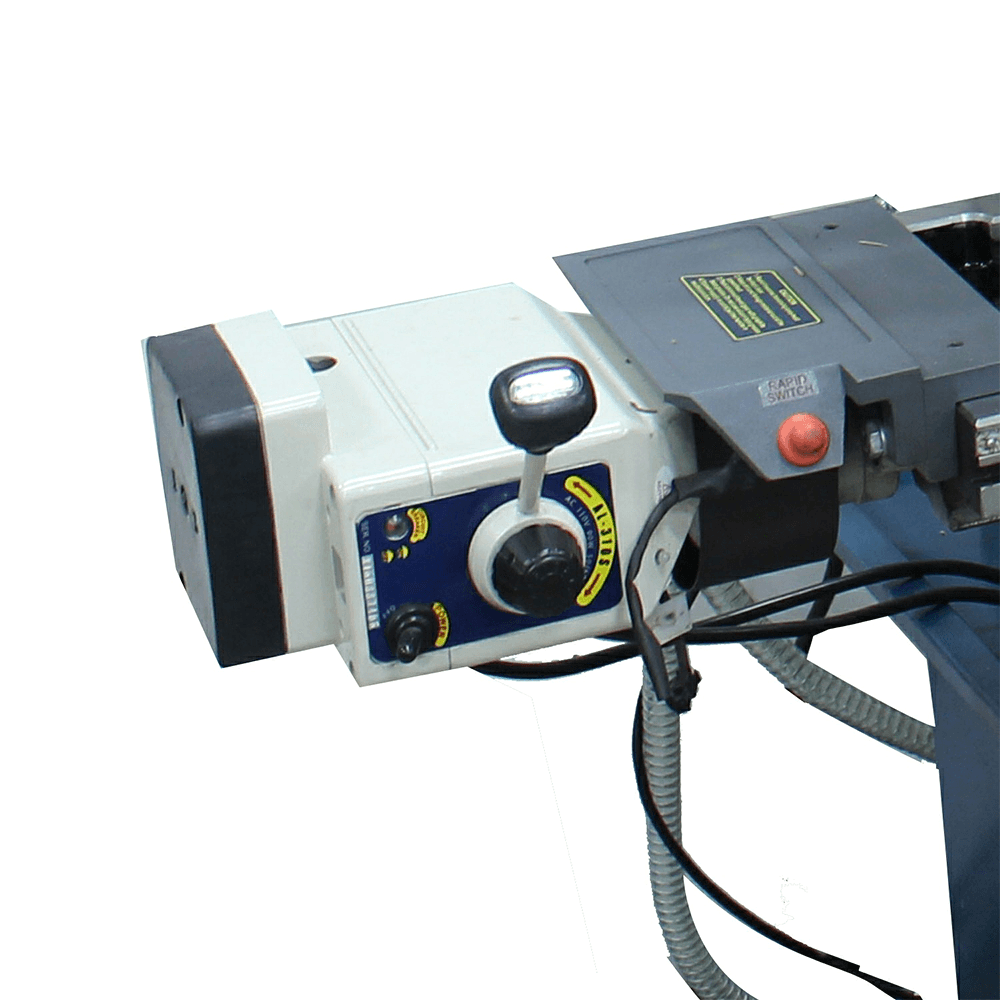

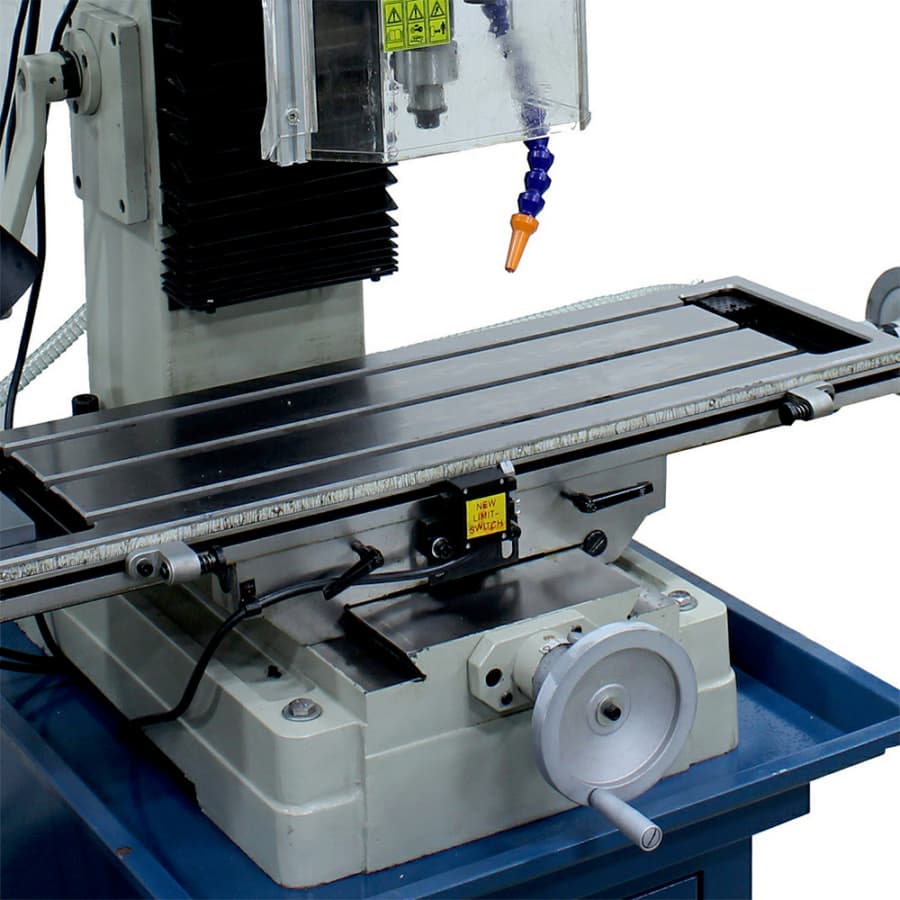

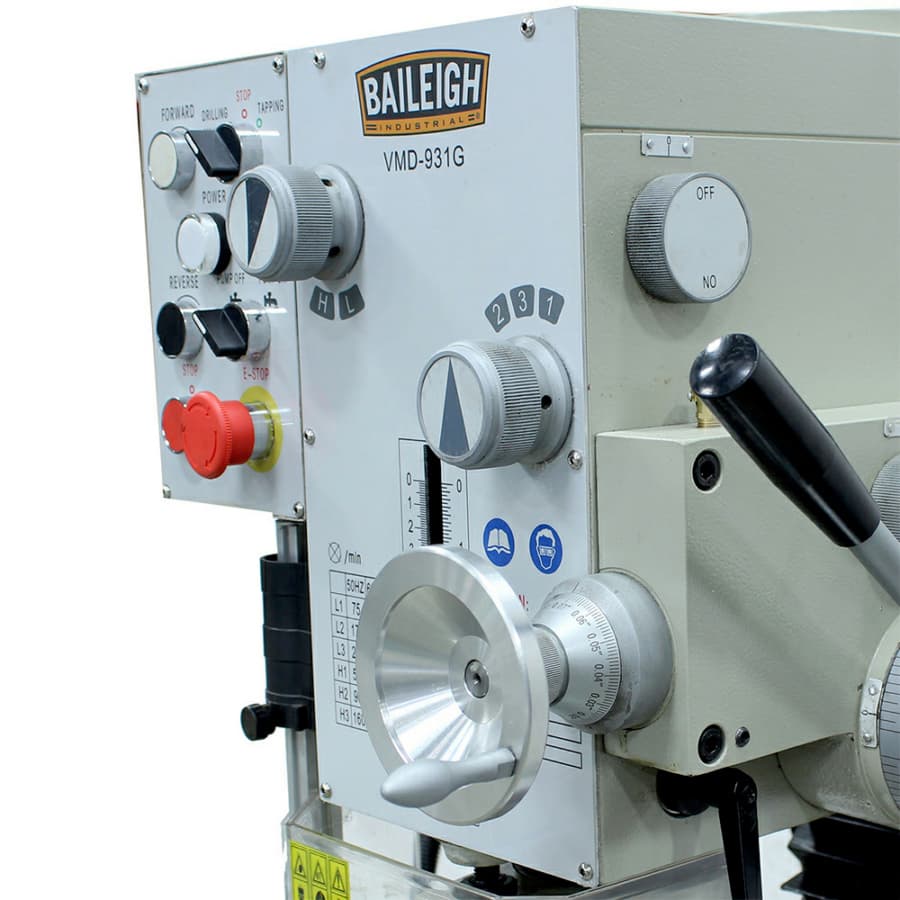

Ever wish you had a milling table on your drill press. That“s why we came up with the VMD-931G. Unlike most Milling Machine-Drill combinations, this multi-functional Vertical Mill Drill lets you select the right speed to suit your application and cut down on tooling wear and tear. Recommended for: Milling, drilling, tapping, and boring. Features: • 2 hp motor runs on 110-volt single-phase power, optimal for any shop, garage, or educational institution • 1.75" maximum drilling capacity • 31.5" x 9.45" milling-style table enables you to tackle a wider variety of projects (with the right tooling) • Table incorporates an X-axis power feed to make those longer cuts accurately • Gear-driven head swivels 90° left and right • You can choose from 6 speeds to accommodate each mill, drill, or tap size available: 90, 210, 345, 670, 1180, 1970 rpm • Wide steel column eliminates flex when you“re milling or drilling at full capacity • Heavy-duty base, made from a rigid iron casting, adds to the machine“s strength, and minimizes vibrations • Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light
Specifications
| Box Quantity | 1 |
| Base Dimensions | |
| Quill Diameter | |
| Quill Down Feed Rates (IPR) | |
| Range of Spindle Speeds (RPM) | |
| Spindle Taper (In. x TPI) | |
| Spindle Travel | |
| Spindle Travel Auto | |
| Swing | |
| Table Longitudinal Travel | |
| Table Size (L x W) | 31.5" x 9.45" |
| T-Slot Centers | |
| T-Slots Number and Size | 0.55" |
| Product Type | Vertical Mill Drills |
| Powerfeed | |
| Overall Dimensions (L x W x H) | |
| Column Diameter | |
| Configurable Base Item | No |
| Configurator Option Type | |
| Drilling Capacity | 1.5" |
| Face Mill Capacity | 3.15" |
| Max Distance Spindle to Table | |
| Motor Pahse | |
| Motor Phase | |
| Motor Power (HP) | 2 HP |
| Motor Voltage (V.) | |
| Number of Spindle Speeds | |
| Work Table Weight Capacity (Lbs.) |
