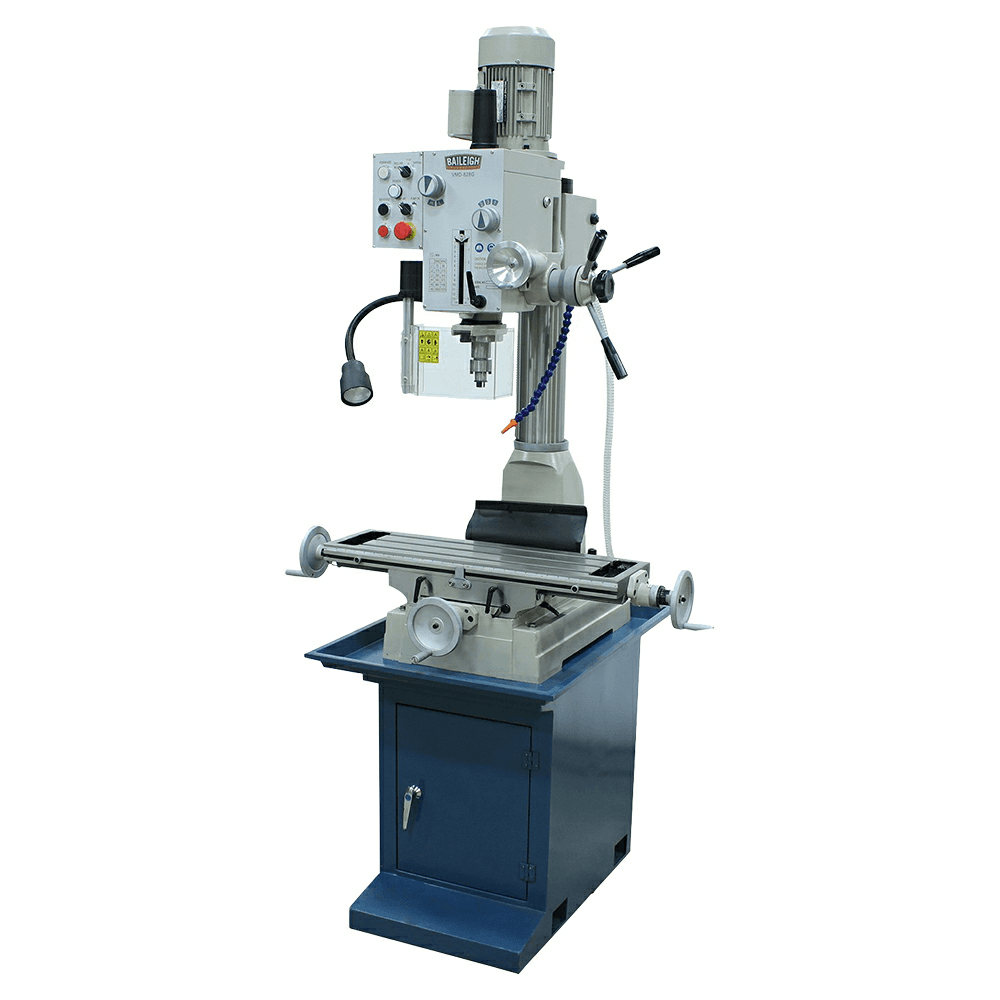

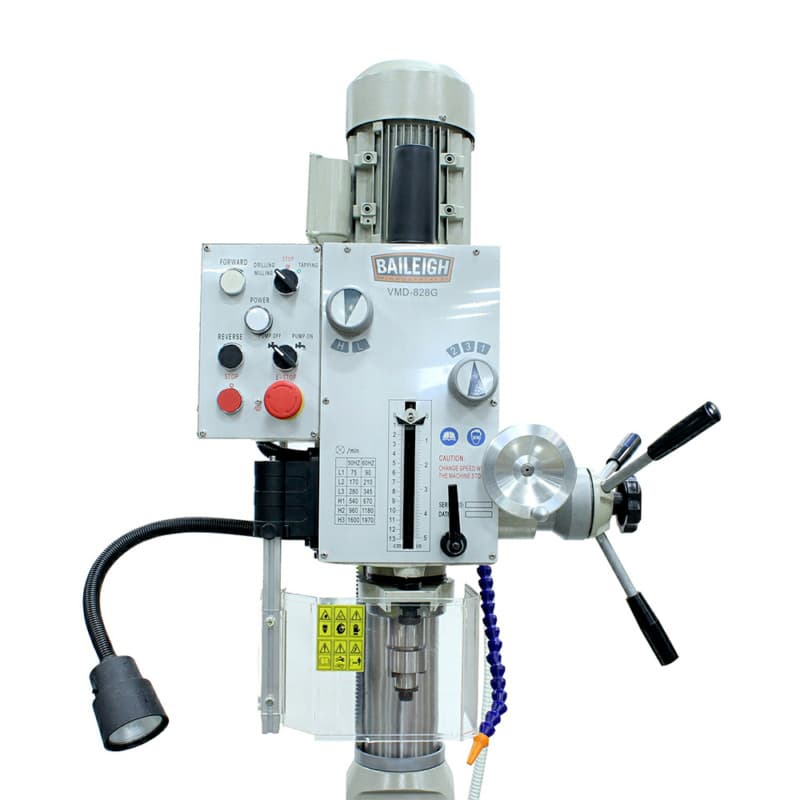

Baileigh VMD-828G Vertical Mill Drill
This item may incur additional shipping costs and lead times.
Product Details

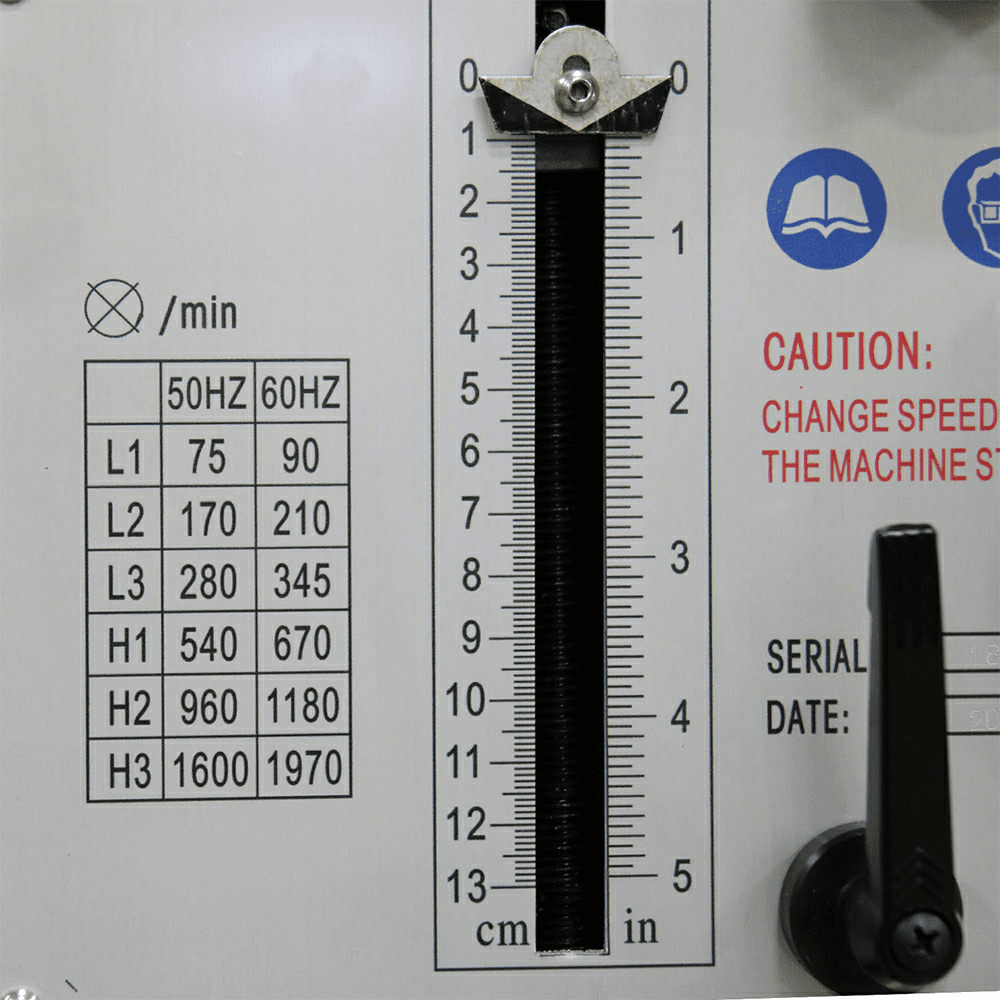

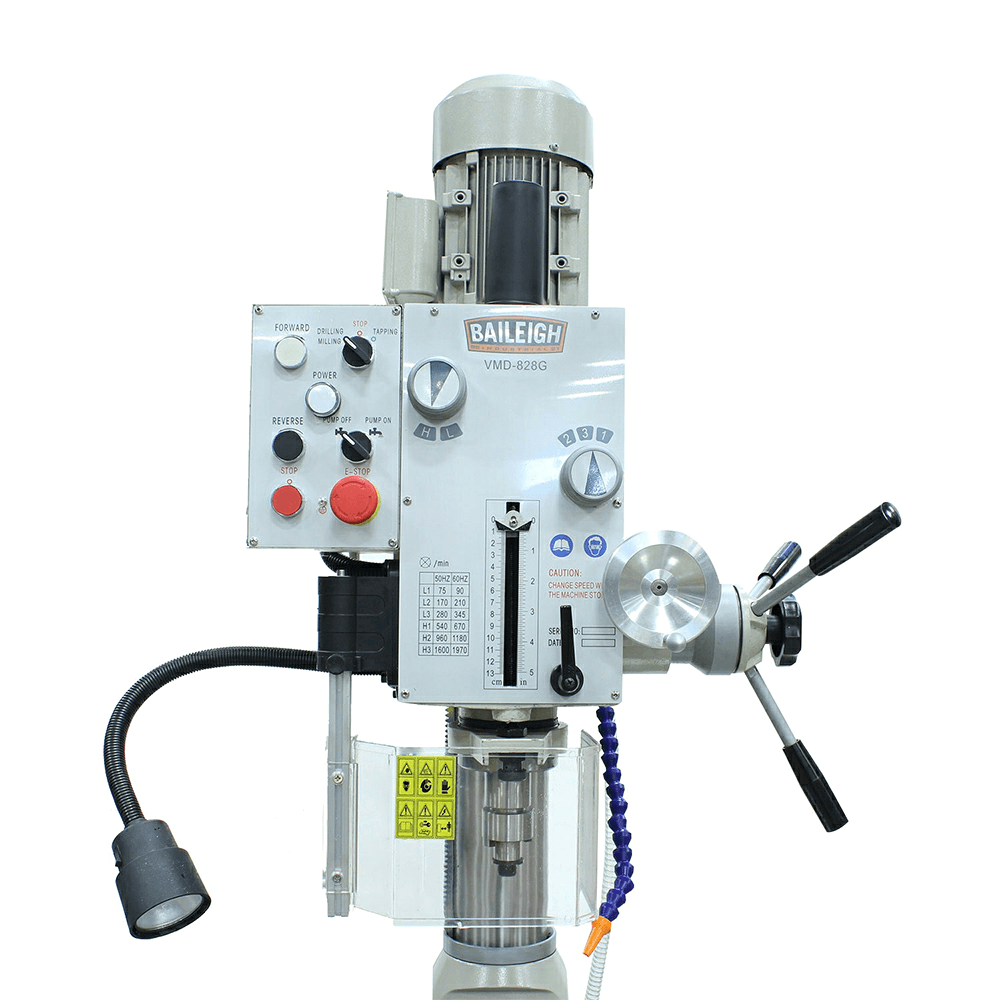

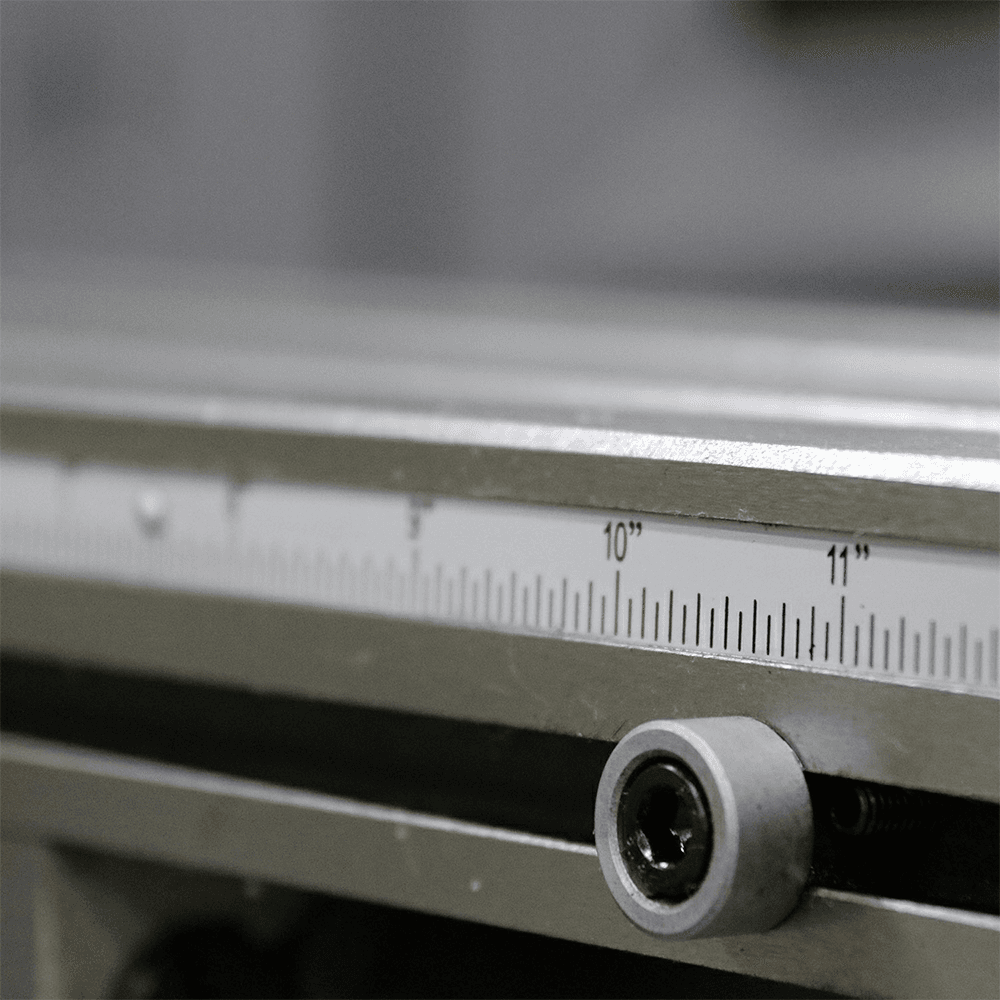

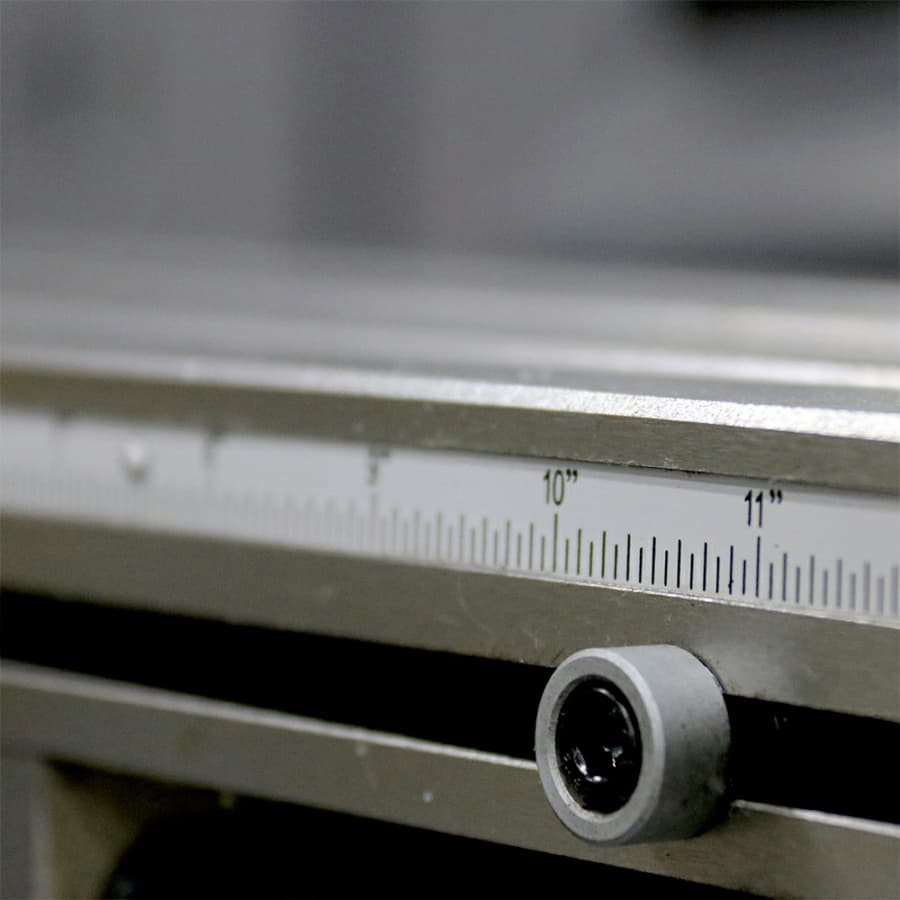

Don“t have the space for both a gear-driven Drill Press and a Milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This Mill Drill lets you set the right speed for a given application, providing greater control and extending tooling life. Features: • 2 hp motor runs on 110-volt power and will work almost any site • 1.5" maximum drilling capacity • Includes 29" x 8" milling-style table which expands the machine“s possible uses • Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm • Rigid base and very wide cast column adds to machine“s strength and eliminates flexing when milling or drilling at full capacity • Comes standard with coolant system, R8 spindle taper, and a flexible halogen light
Specifications
| Box Quantity | 1 |
| Base Dimensions | |
| Quill Diameter | |
| Quill Down Feed Rates (IPR) | |
| Range of Spindle Speeds (RPM) | |
| Spindle Taper (In. x TPI) | |
| Spindle Travel | |
| Spindle Travel Auto | |
| Swing | |
| Table Longitudinal Travel | |
| Table Size (L x W) | 29" x 8" |
| T-Slot Centers | |
| T-Slots Number and Size | 0.550" |
| Product Type | Vertical Mill Drills |
| Powerfeed | |
| Overall Dimensions (L x W x H) | |
| Column Diameter | |
| Configurable Base Item | No |
| Configurator Option Type | |
| Drilling Capacity | 1.5" |
| Face Mill Capacity | 3" |
| Max Distance Spindle to Table | |
| Motor Pahse | |
| Motor Phase | |
| Motor Power (HP) | 2 HP |
| Motor Voltage (V.) | |

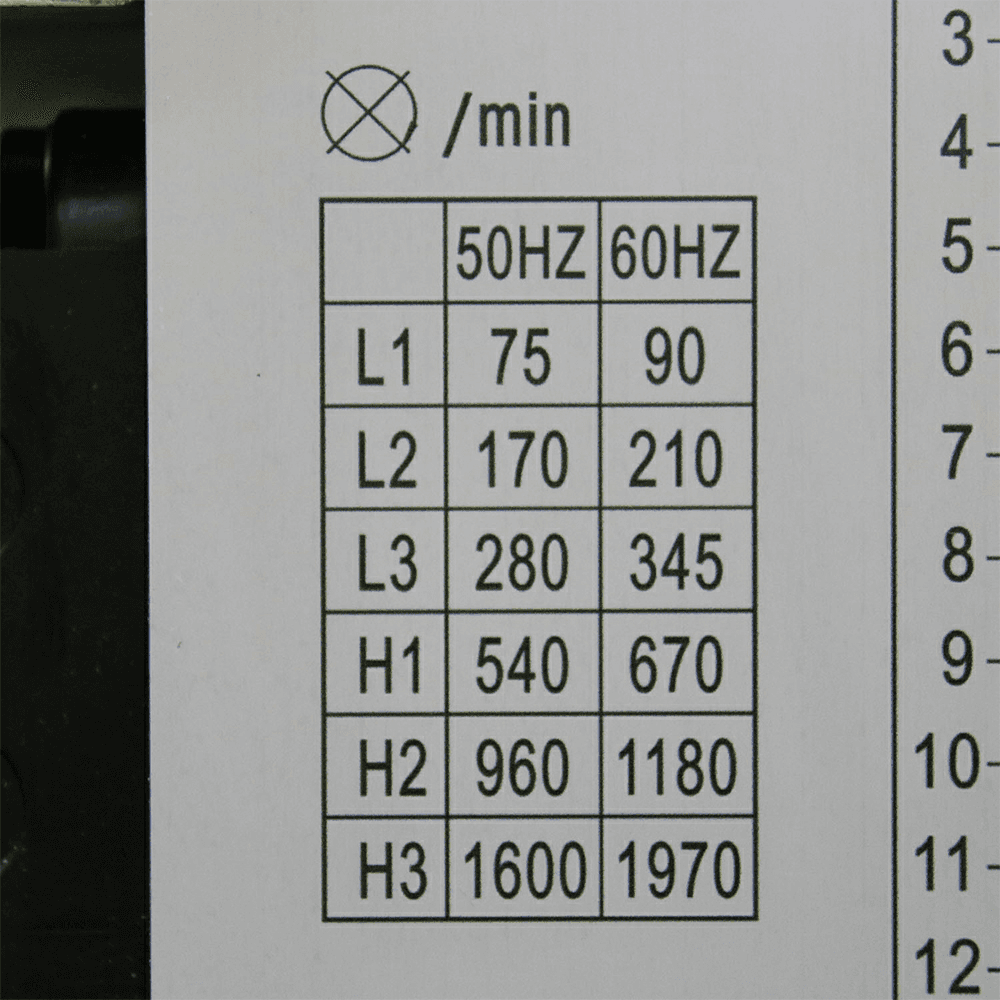

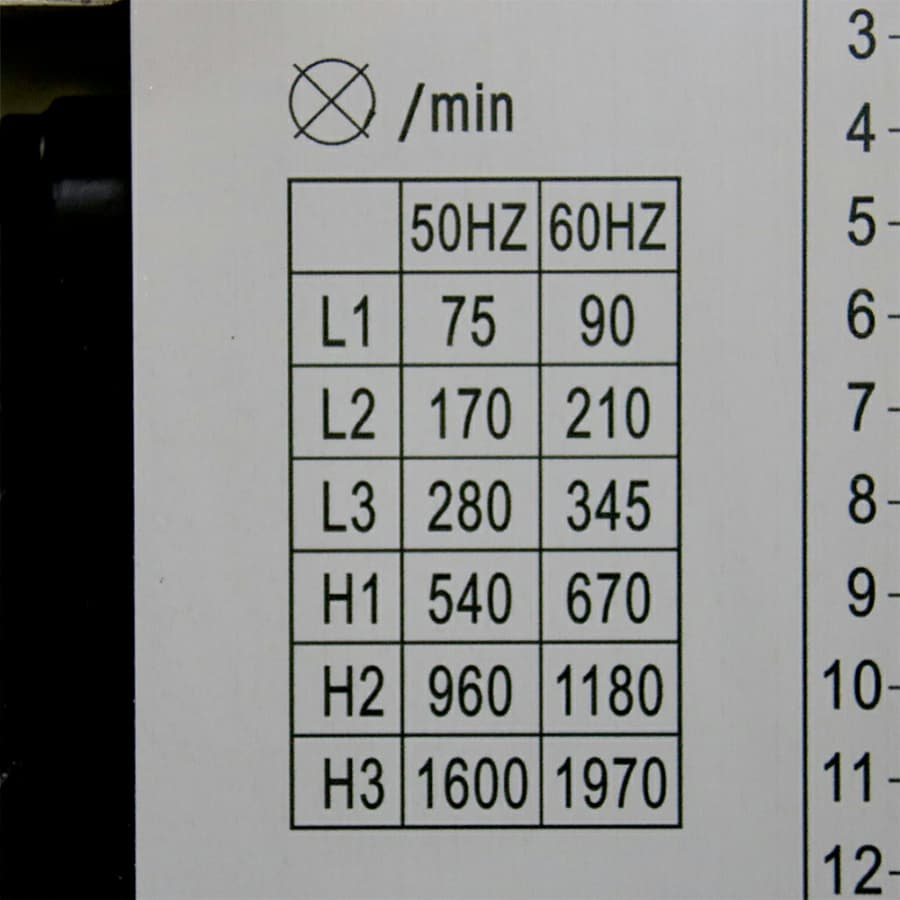

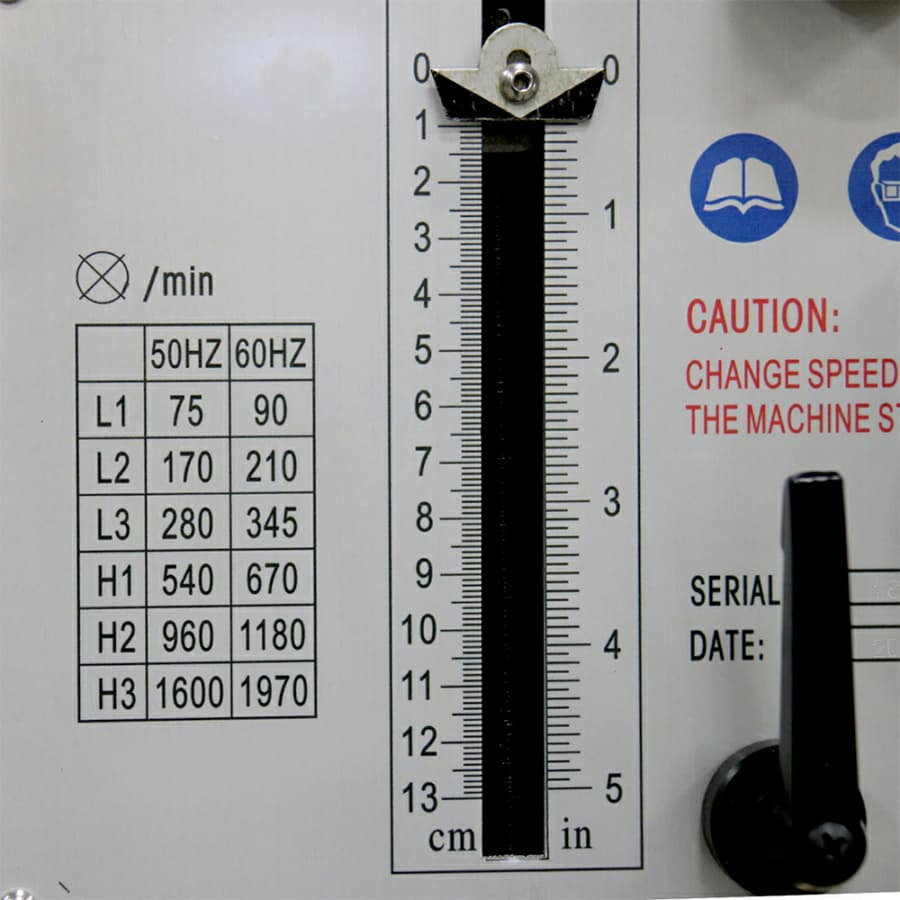

| Number of Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM |
| Work Table Weight Capacity (Lbs.) |
