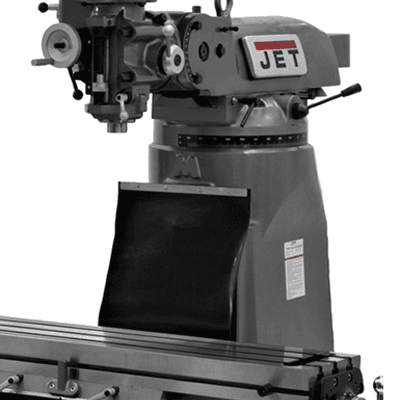

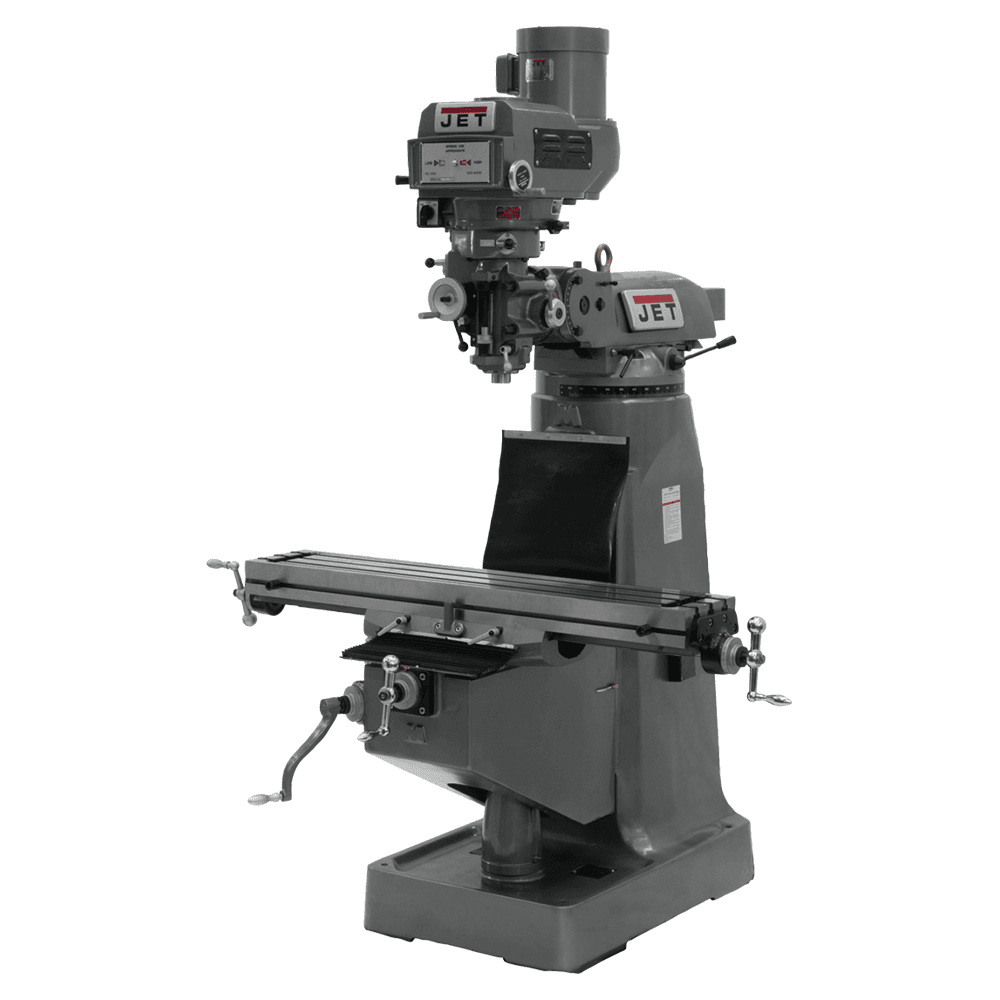

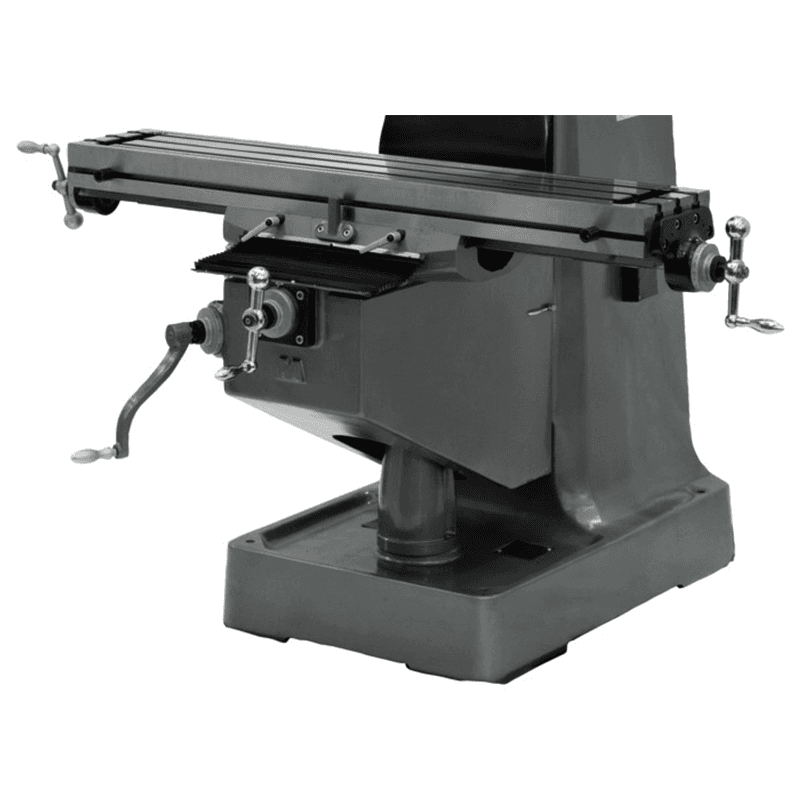

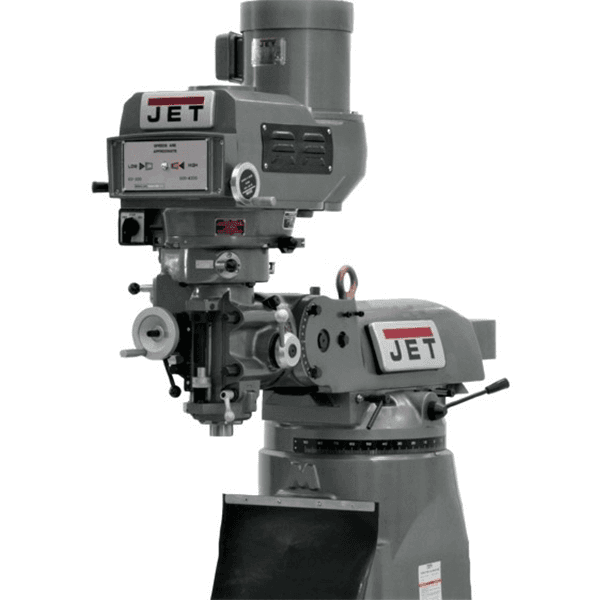

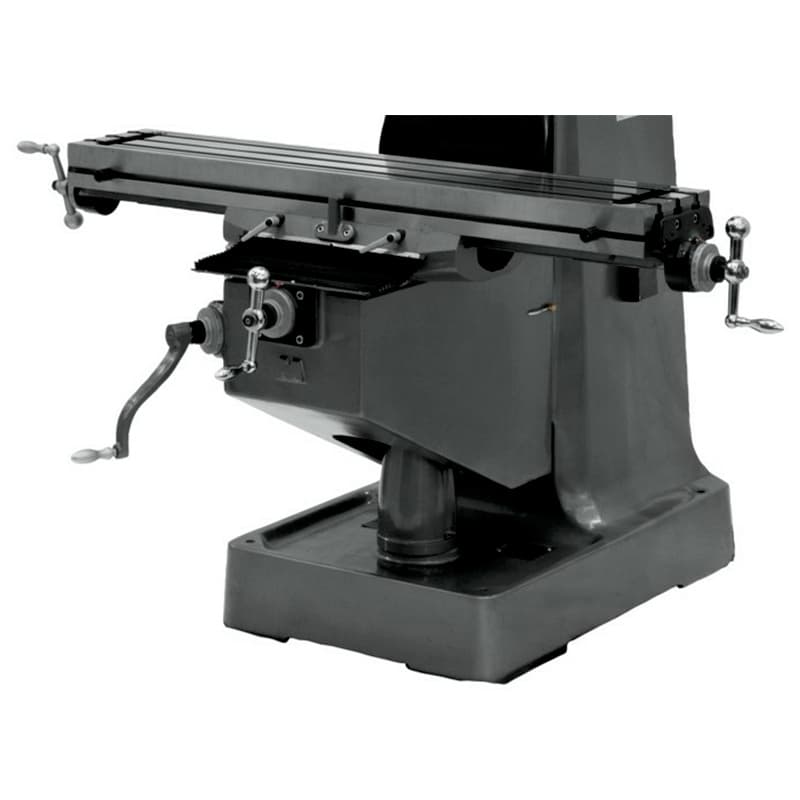

Jet Tools JTM-4VS 3 HP Variable Speed Vertical Milling Machine, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details

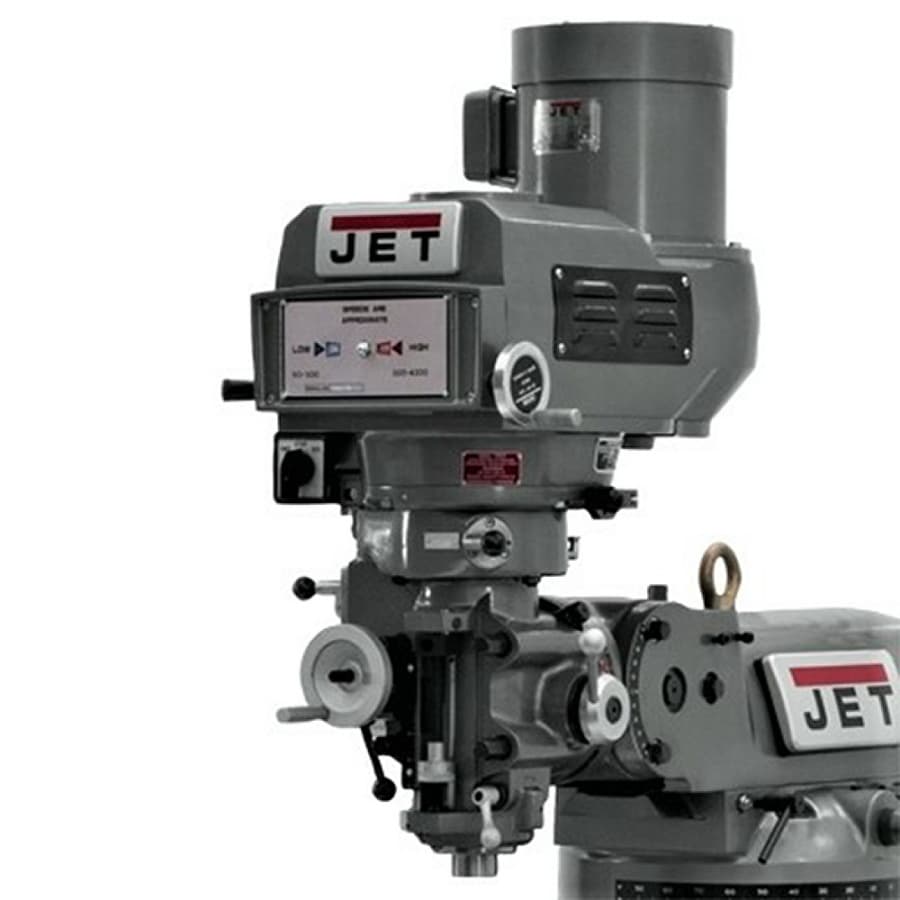

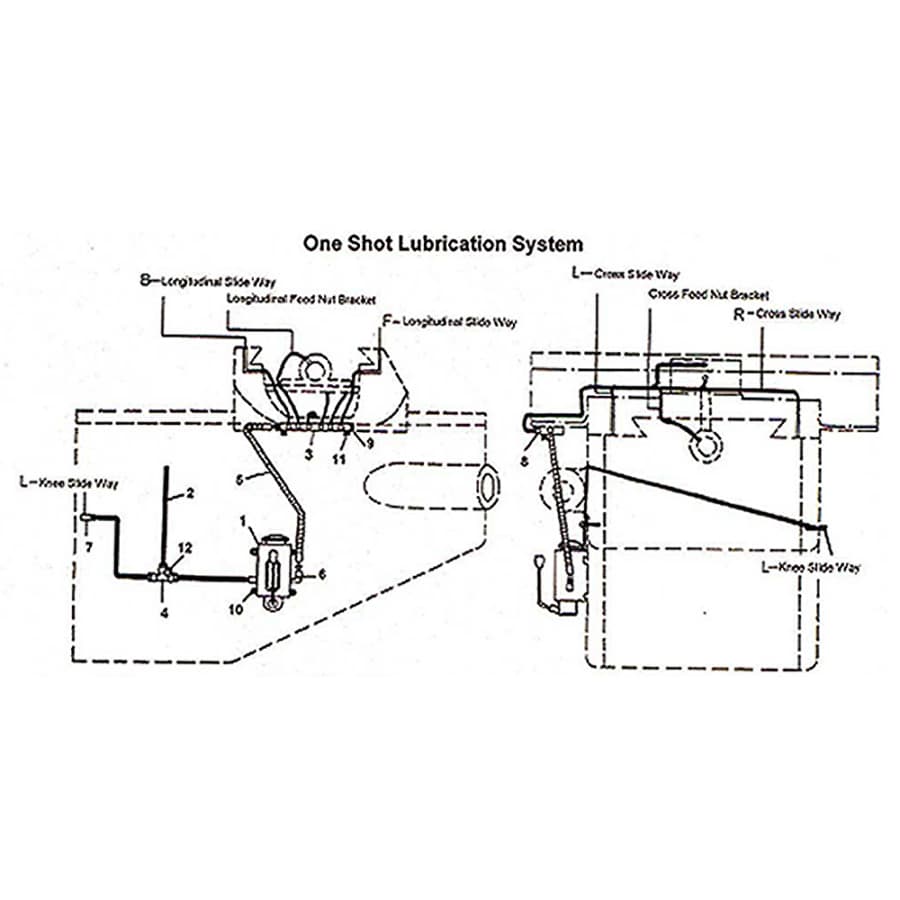

Constructed using the Certified Meehanite® casting process, Jet Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power down feed with automatic stop makes the Jet Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the Jet JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty. Features: • Adjustable gibs throughout • Heavy duty splined motor drive • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included) • Large Diameter quill is chromed • One shot lubrication system • Precision hardened and ground ways and table • Spindle head is internally cooled • Tolerance test sheet included
Specifications
| Box Quantity | 1 |
| Amperage Draw @ 230V 3Ph | |
| Product Type | Vertical Mills |
| Quill Diameter | 3-3/8" |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 60 - 4,200 |
| Saddle Width | |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel | 5" |
| Table Cross Travel | 12" |
| Table Longitudinal Travel | 34" |
| Table Longitudinal Travel With Powerfeed | 28-3/4" |
| Table Size (L x W) | 9" x 49" |
| Travel of Knee | 14-1/2" |
| Travel of Ram | 13-3/8" |
| T-Slot Centers | 2-1/2" |
| T-Slots Number and Size | 3" - 5/8" |
| Powerfeed | |
| Power Draw Bar | |
| CNC Package | |
| Collet Capacity | 1/8 - 7/8 |
| Column Width | |
| Configurable Base Item | Yes |
| Configurator Option Type | Base Machine |
| Distance Spindle to Column (Max.) | 19" |
| Head Movement (Deg.) | 90° R & L, 45° F & B |
| Inverter Type | |
| Max Distance Spindle to Table | 17-1/2" |
| Motor Phase | 3Ph |
| Motor Power (HP) | 3 HP |
| Motor Voltage (V.) | 230/460V |
| Number of Axis | |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) | 66" x 63" x 85" |
| Work Table Weight Capacity (Lbs.) | 660 lbs |
