Baileigh VM-949E-VS 3 HP Vertical Mill, 1 Phase/220V
Item # JPWBA9-1019108
•Mfr # BA9-1019108
$13,799.00
/Each
Freight: $905.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details

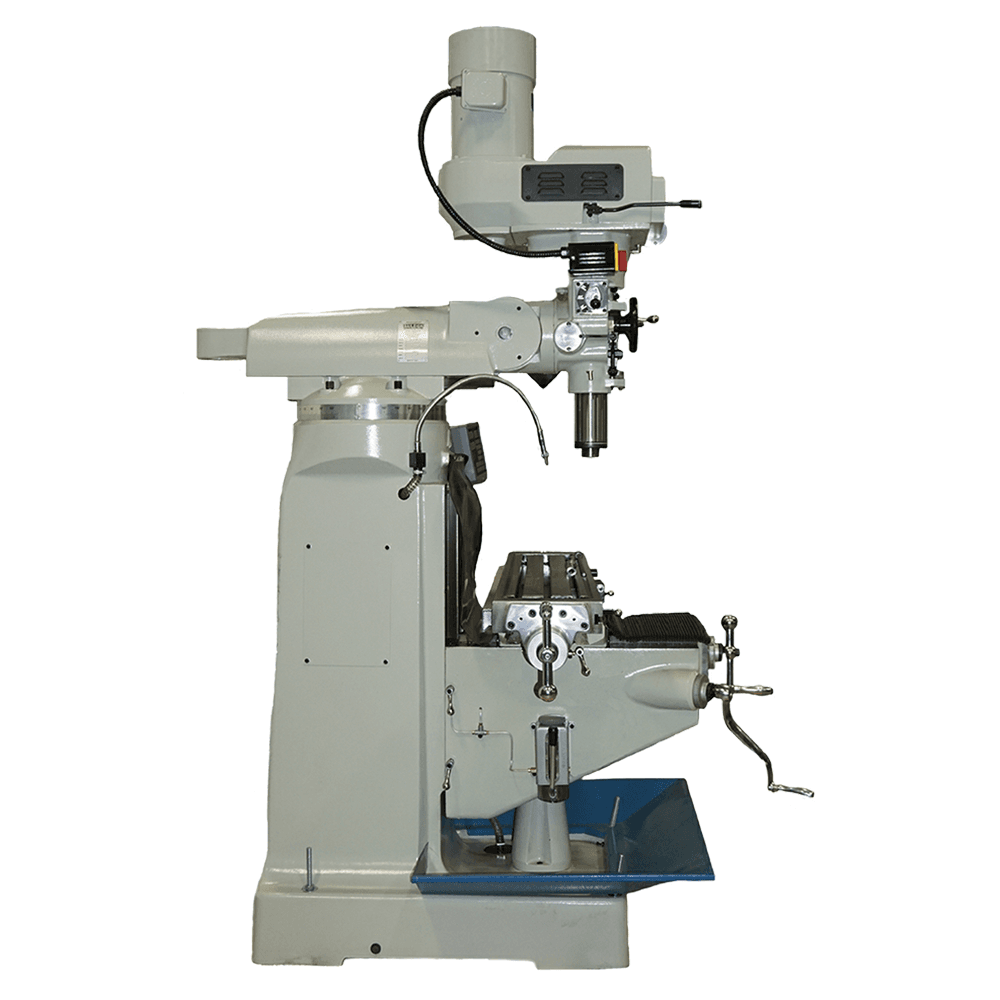

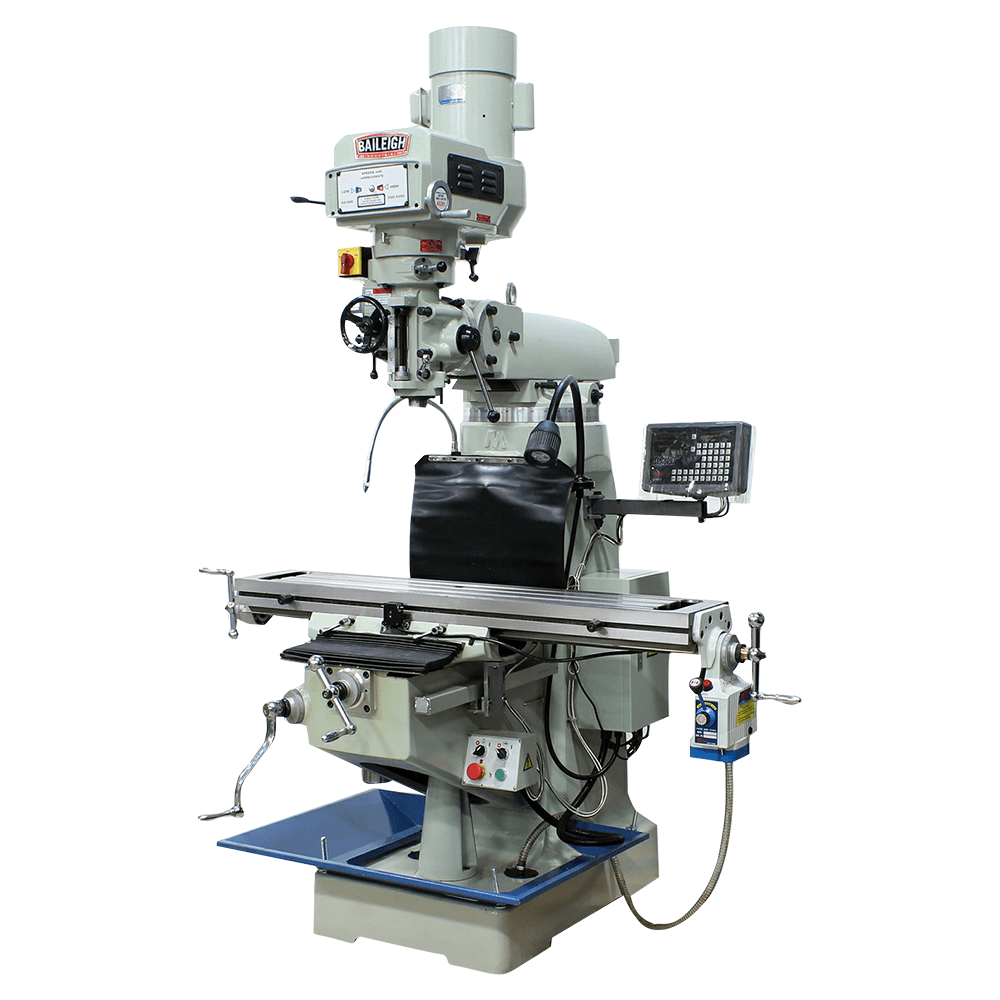

Looking to take the next step from a mill-drill or step pulley mill? Take a look at the Baileigh Industrial VM-949E-VS. This 9x49 workhorse is outfitted with a 3HP continuous duty motor requiring only 220V single phase power, making it perfect for hobbyists, small shops, and professionals alike. This knee mill has a familiar old-school feel, while having many creature comforts not typically found in this market range.
These features and standard accessories include:

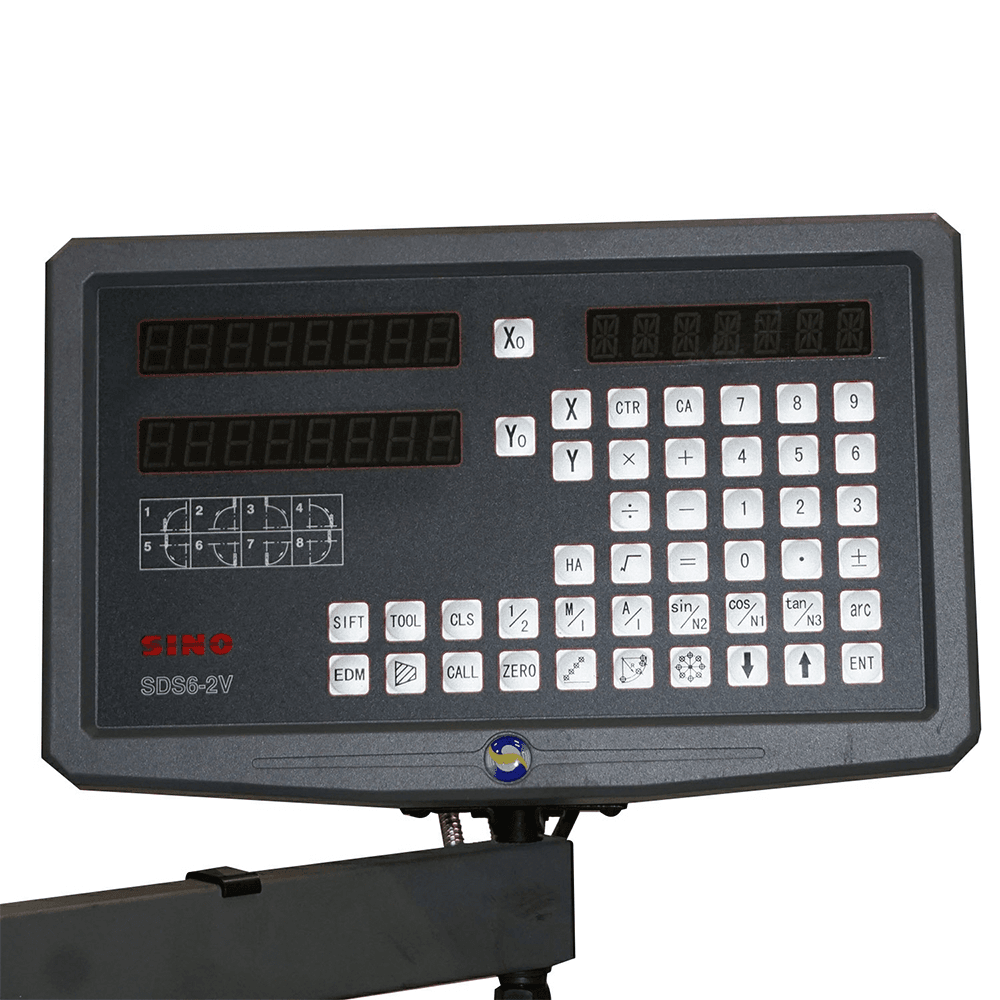

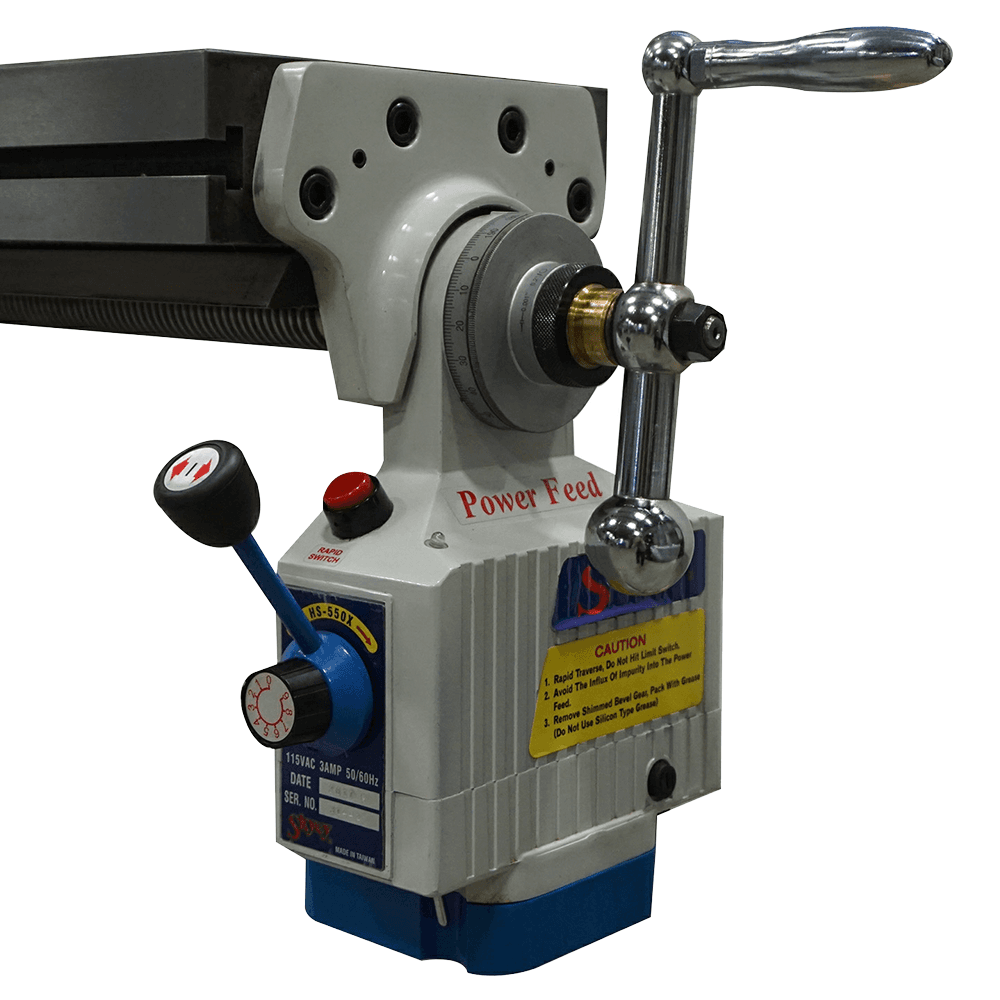

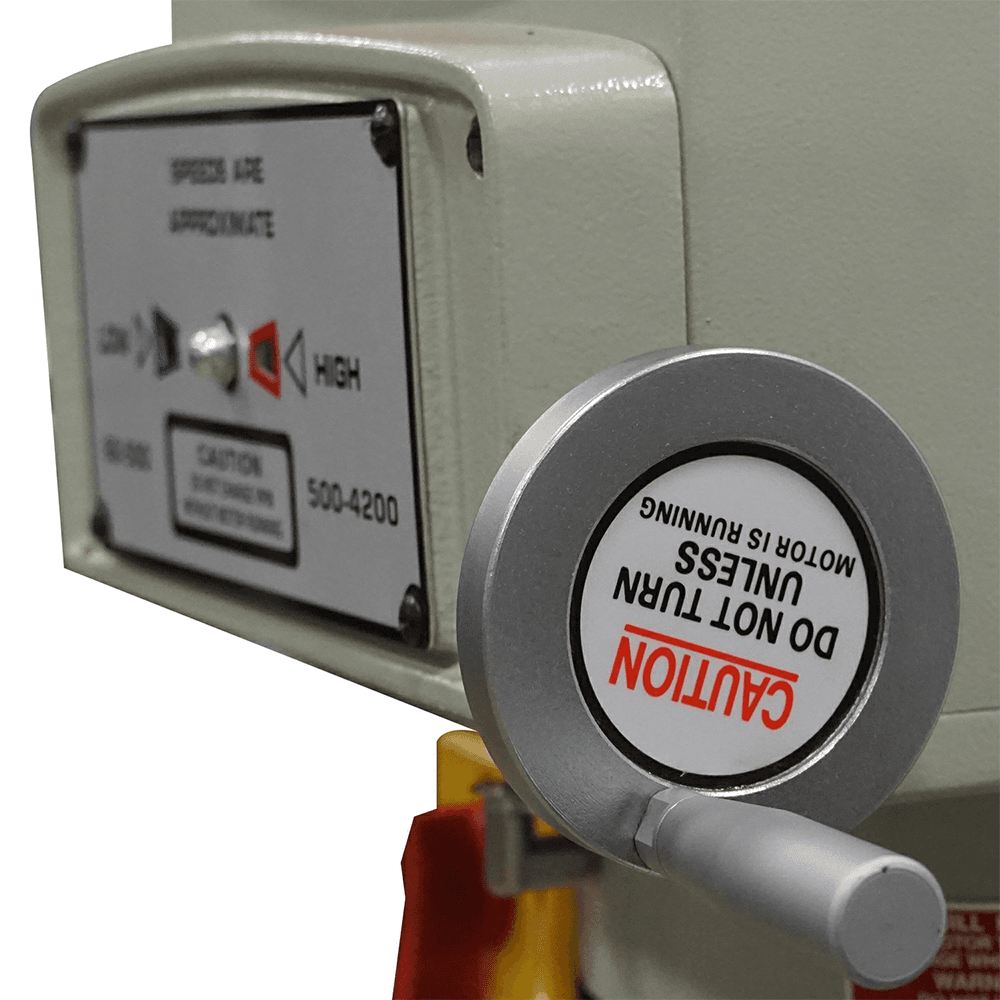

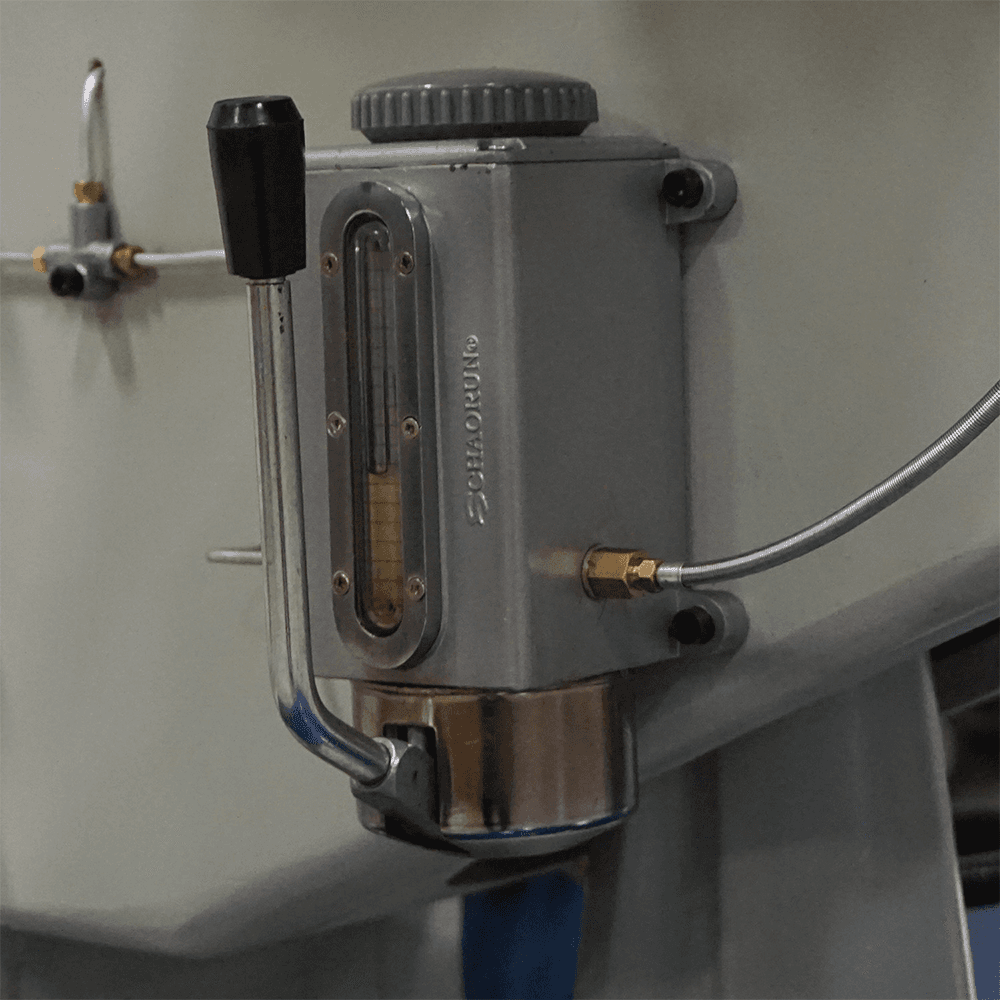

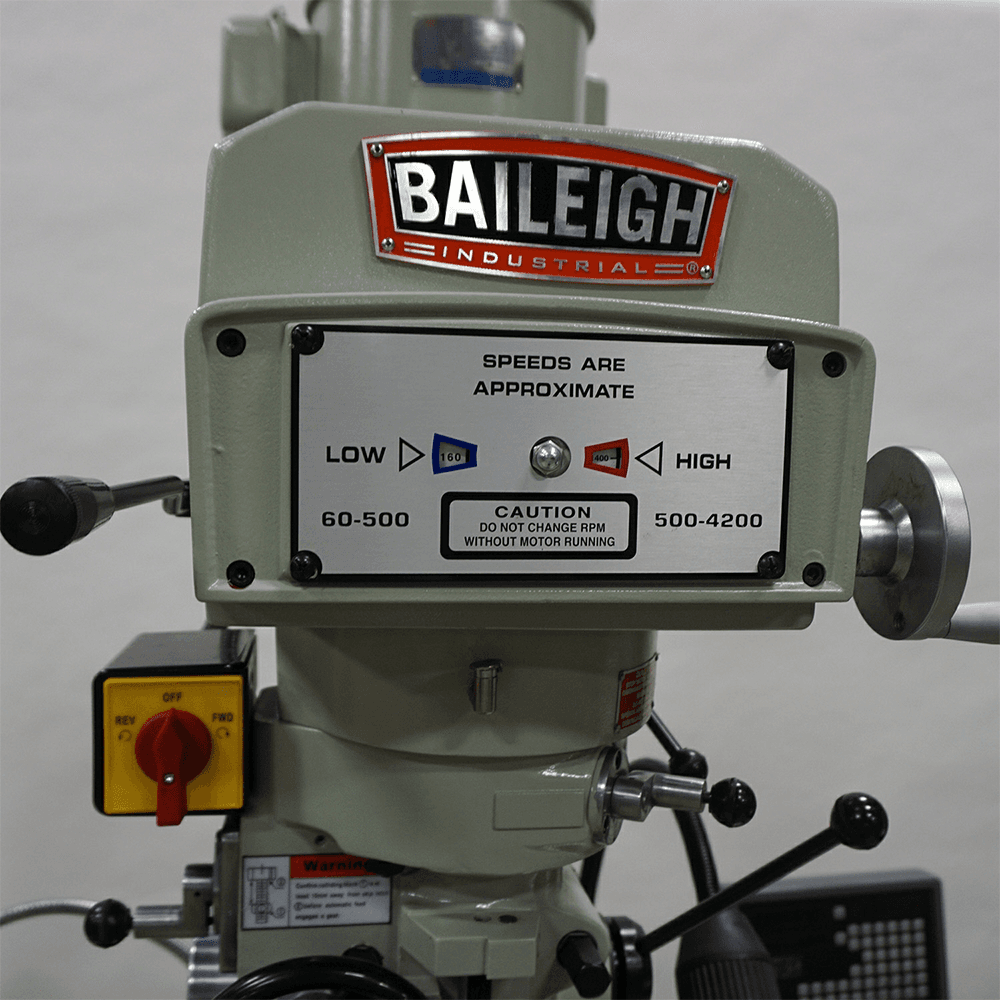

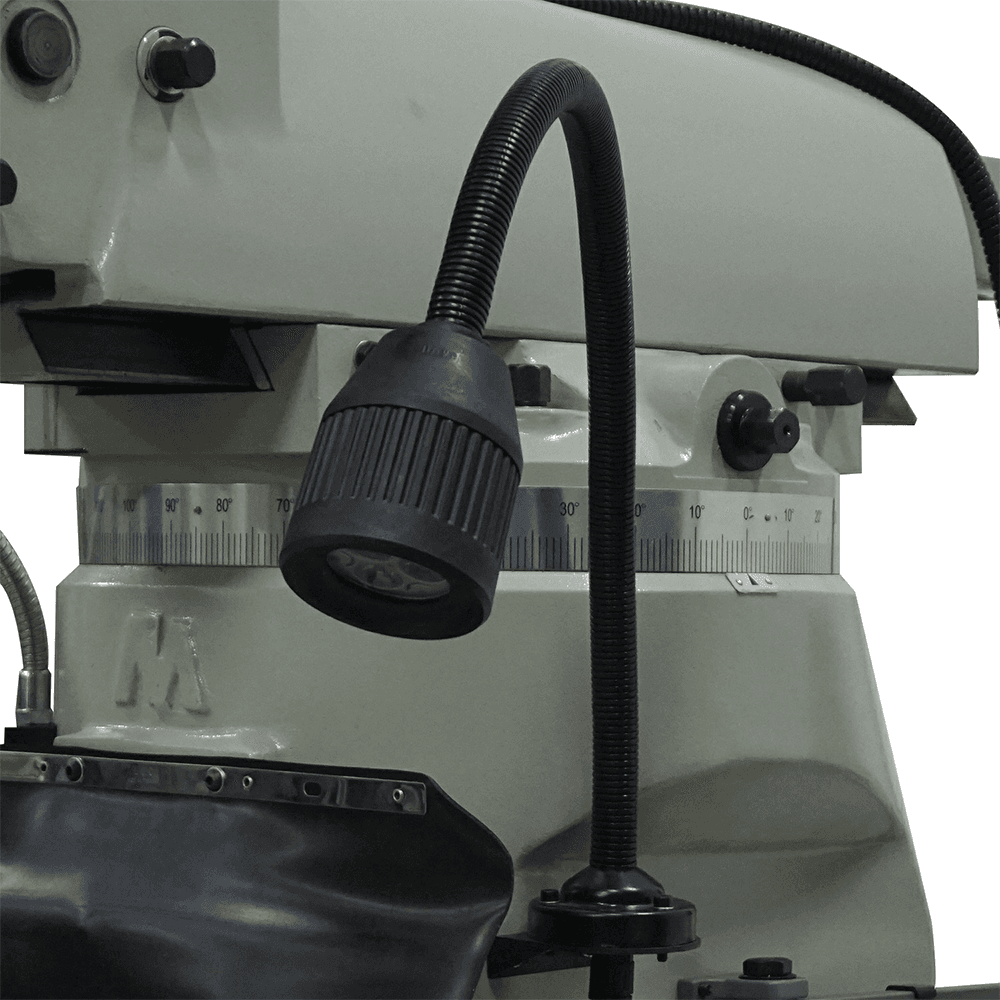

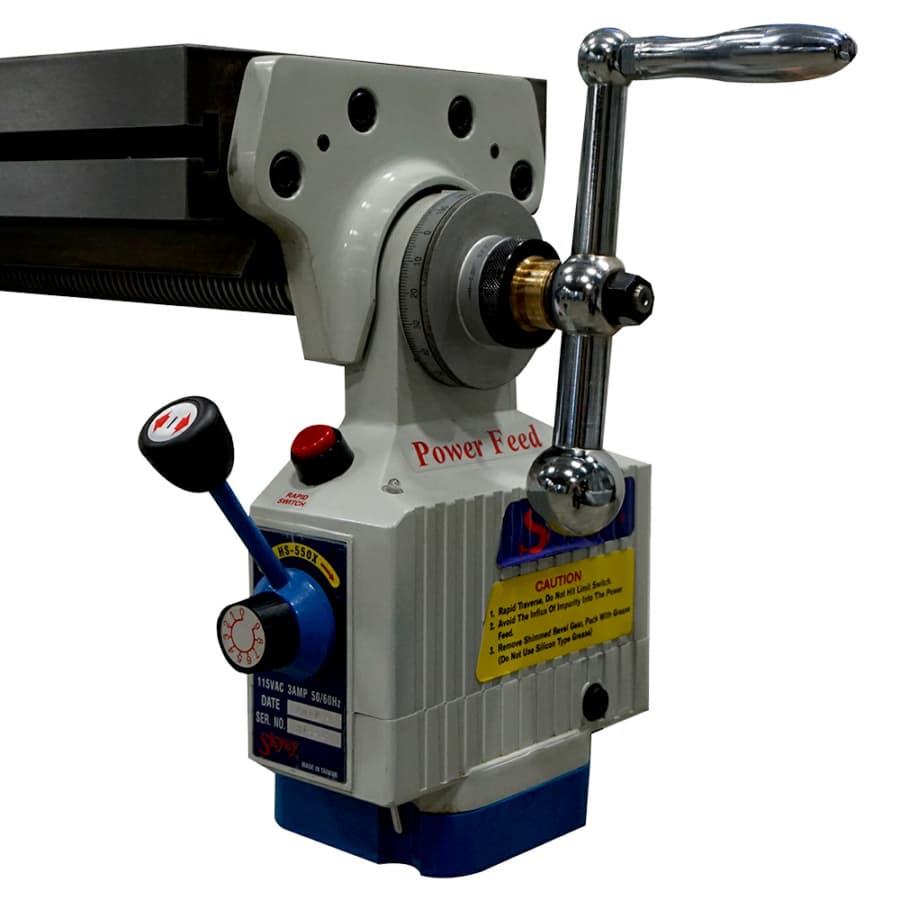

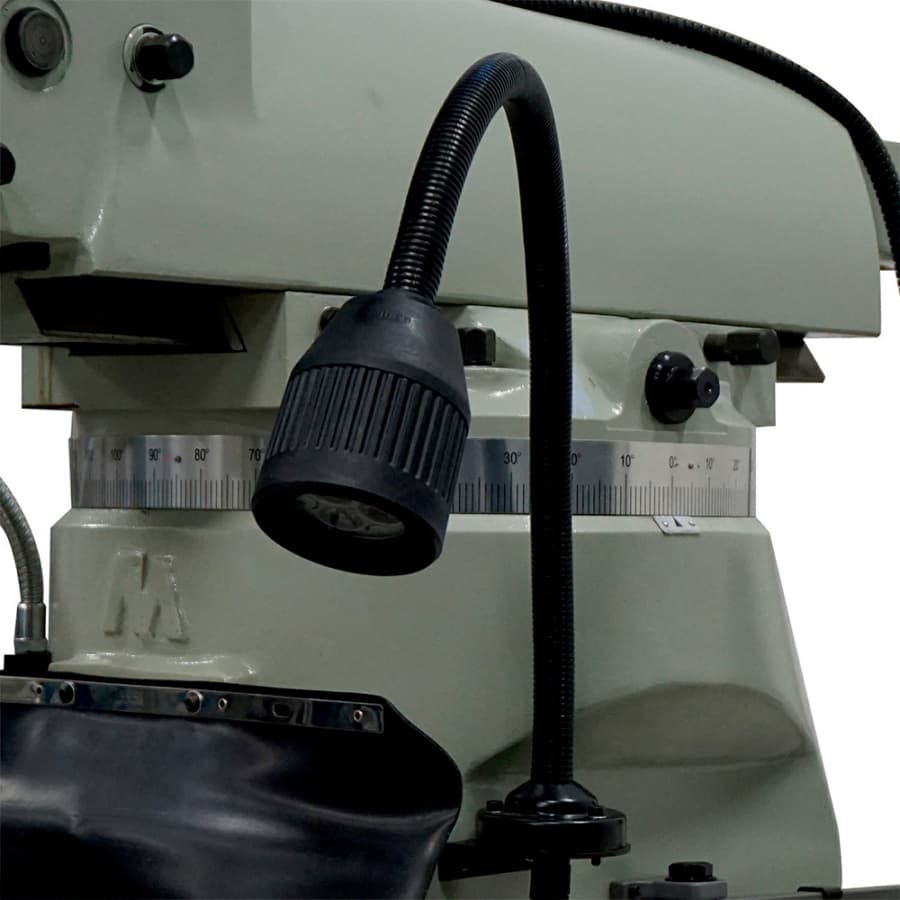

• Variable spindle speed by adjustable sheaves/pulleys - Control spindle RPM with the turn of a handle • Infinitely adjustable variable speed from 60 to 4,200rpm - Allows tooling to run at its intended speed, resulted in longer tool life and better finishes • R8 spindle and drawbar - Accepts the most common tooling • Meehanite® Casting - Rigid and dependable for decades of use • Spindle brake - Easier tool changes and quick spindle stops • 3 speed power quill feed w/ manual wheel - Perfect for boring and accurate, consistent work • DRO for X and Y axes • Power feed X axis w/ rapid - Consistent travel speed without tiresome cranking • Dovetail ways w/ adjustable gibs - Keep tolerances tight year after year • Taiwan lead screws w/ backlash adjustable nuts - Remove backlash instead of compensating for it • Way covers and wipers - Keep chips off ways and bed • Integrated coolant system w/ splash guard - Large 6-gallon reservoir in the base houses the pump. Plumbed return line from the table eliminates overflow and messes • LED work light • One-shot lubricator - Keep up on lubrication maintenance by simply pulling a lever Features: • 9" x 49" table • Variable speed: 60 to 4200rpm • R8 spindle and drawbar • DRO for X and Y axisSpecifications
| Box Quantity | 1 |
| Amperage Draw @ 230V 3Ph | |
| Product Type | Vertical Mills |
| Quill Diameter | |
| Quill Down Feed Rates (IPR) | |
| Range of Spindle Speeds (RPM) | |
| Saddle Width | |
| Spindle Taper (In. x TPI) | |
| Spindle Travel | 4.9" |
| Table Cross Travel | |
| Table Longitudinal Travel | |
| Table Longitudinal Travel With Powerfeed | |
| Table Size (L x W) | |
| Travel of Knee | |
| Travel of Ram | |
| T-Slot Centers | |
| T-Slots Number and Size | .625" |
| Powerfeed | |
| Power Draw Bar | |
| CNC Package | |
| Collet Capacity | |
| Column Width | |
| Configurable Base Item | No |
| Configurator Option Type | |
| Distance Spindle to Column (Max.) | |
| Head Movement (Deg.) | |
| Inverter Type | |
| Max Distance Spindle to Table | |
| Motor Phase | 1Ph |
| Motor Power (HP) | 3 HP |
| Motor Voltage (V.) | 220V |
| Number of Axis | |
| Number of Spindle Speeds | 60 - 4,200RPM Infinitely Variable |
| Overall Dimensions (L x W x H) | |
| Work Table Weight Capacity (Lbs.) |
