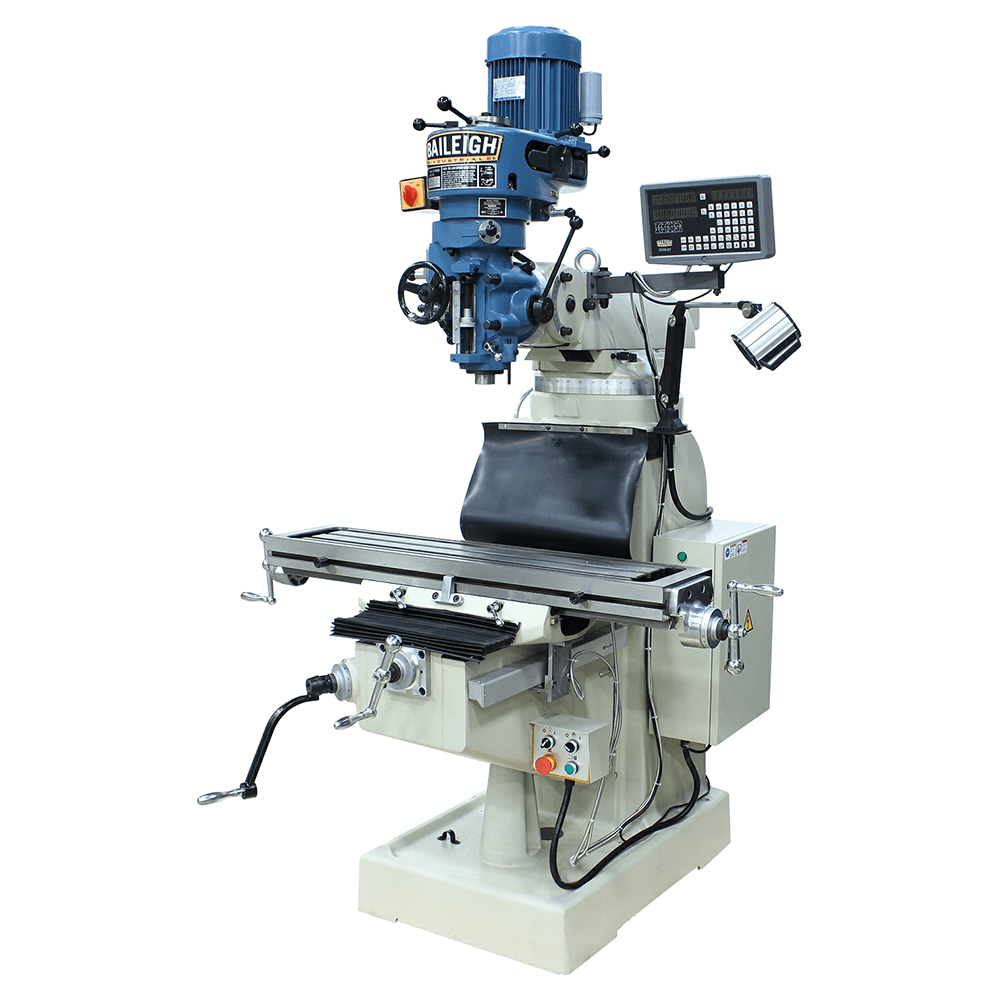

Baileigh VM-942E-1 3 HP Vertical Knee Mill, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

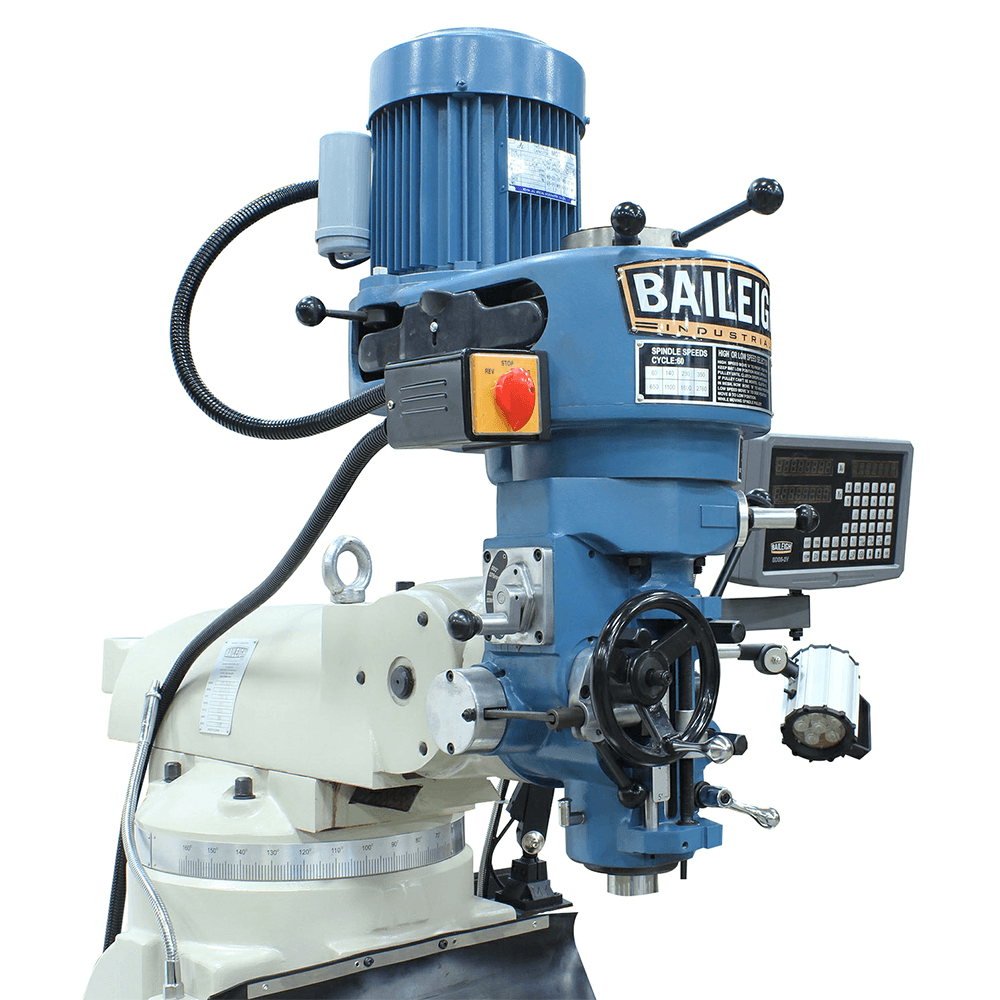

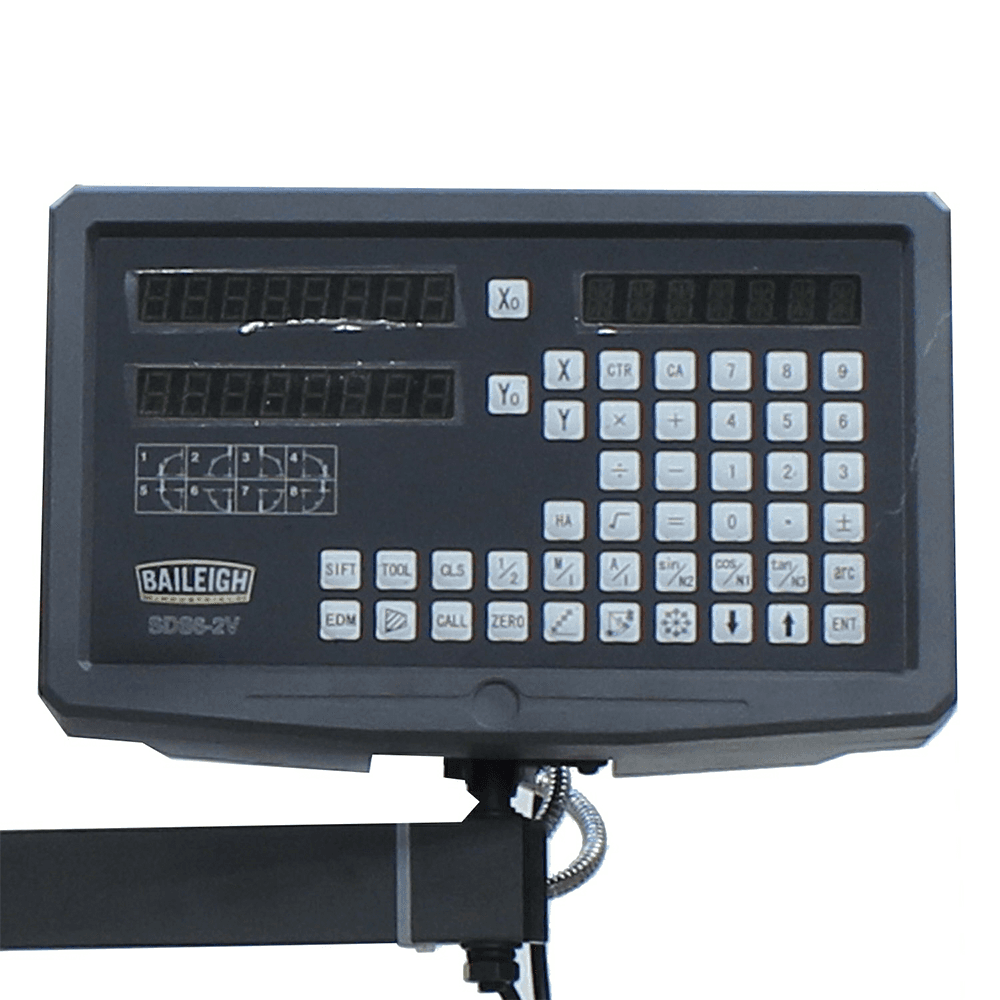

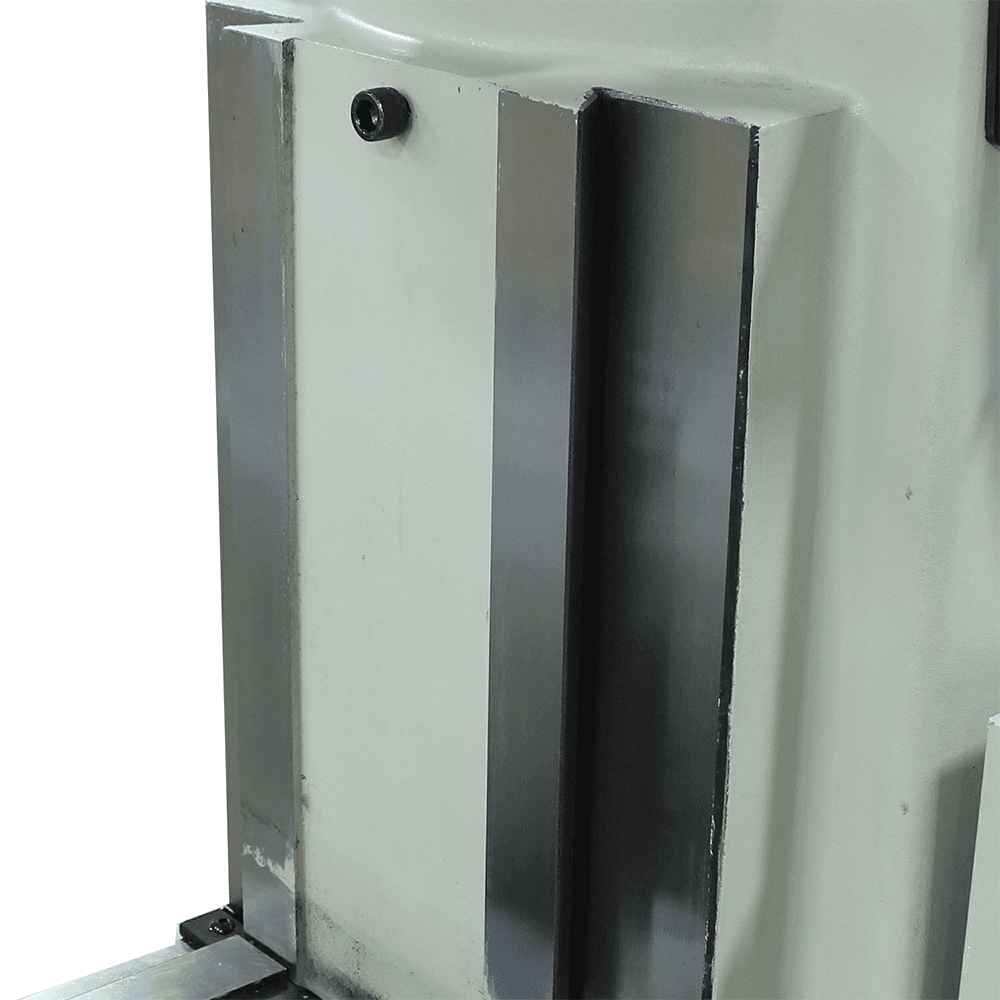

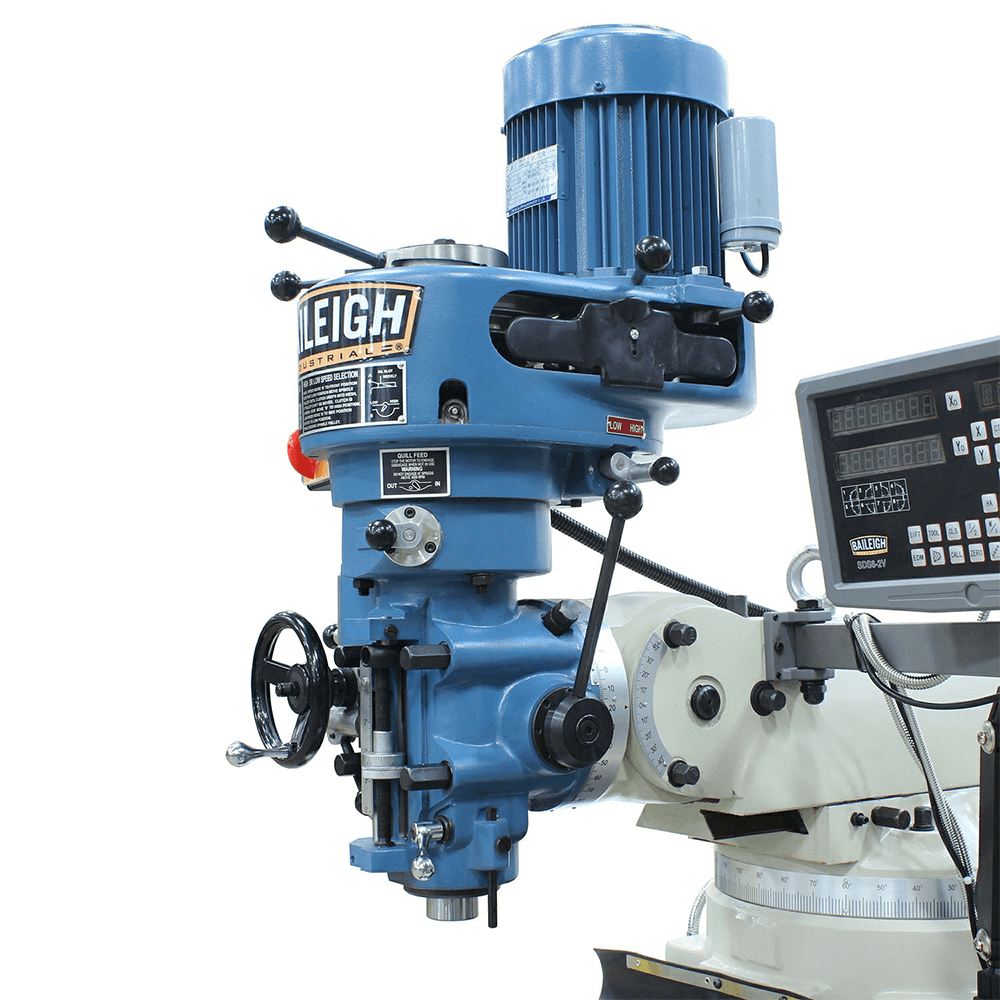

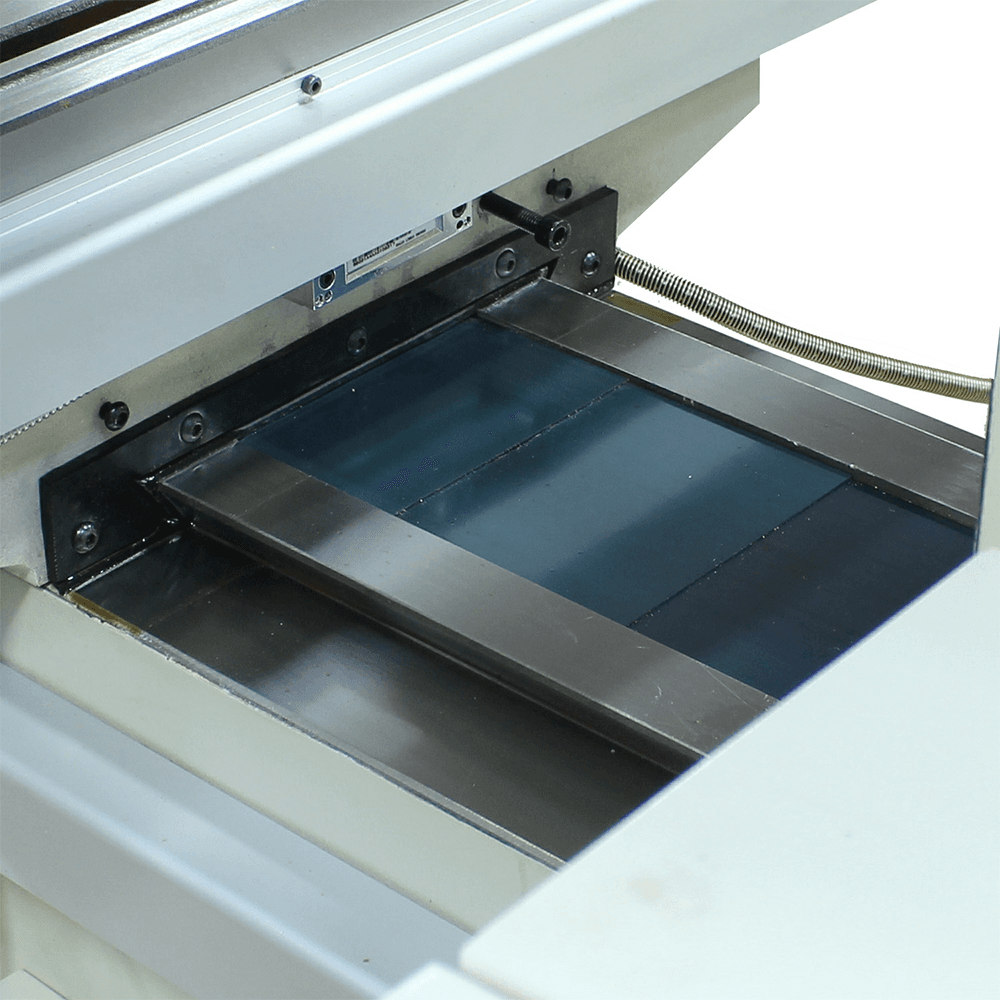

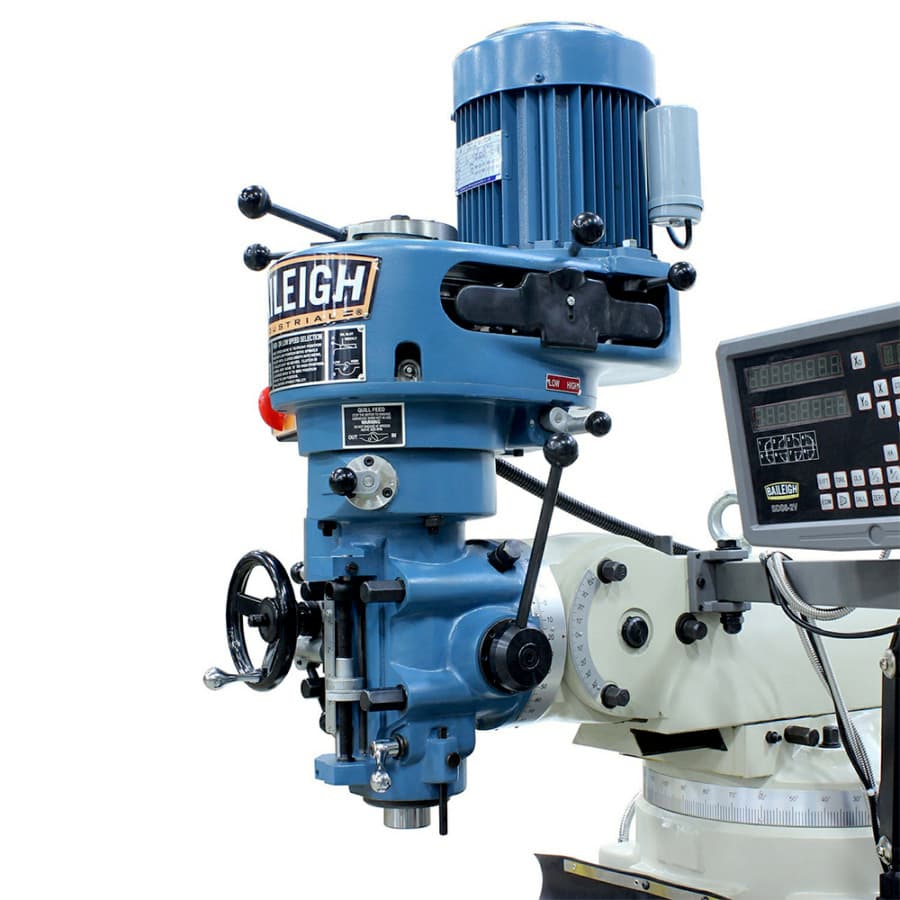

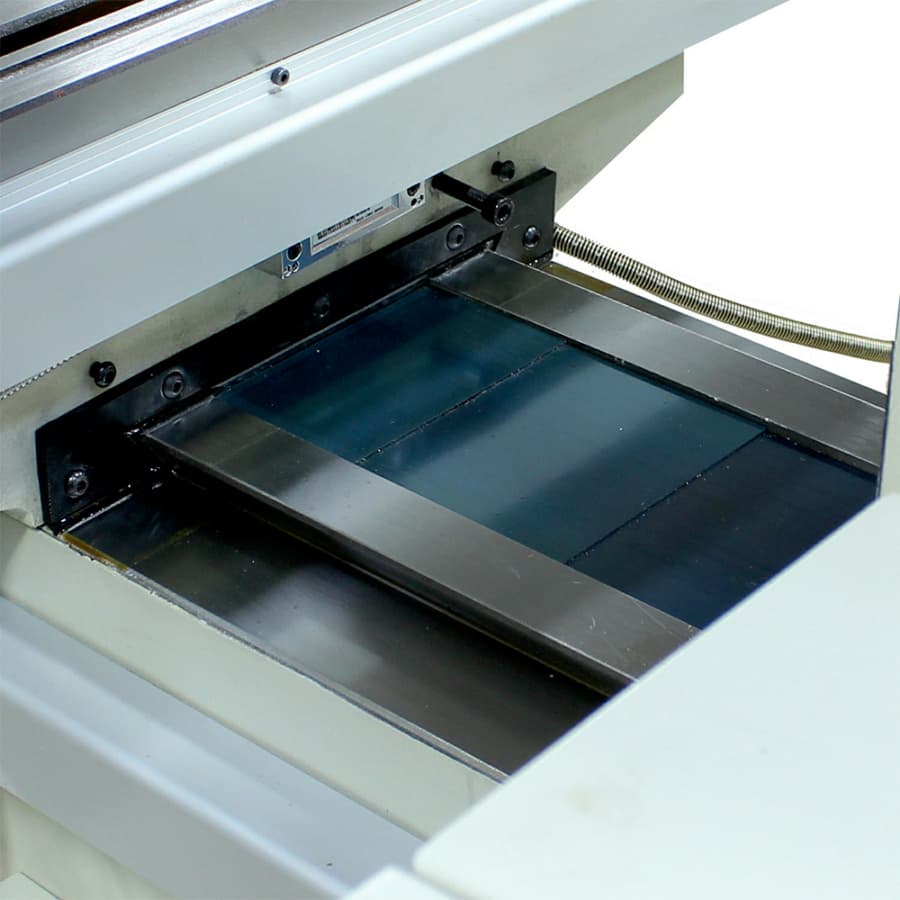

Baileigh Industrial has a line of vertical milling machines to meet any shops requirements, whether it is price, size, or power. The VM-942E-1 vertical milling machine fits into the price category, but that does not mean that it doesn't have features to back it up and make it a great value. The VM-942 is an 8 speed milling machine that allows speed adjustments from 60 to 2760 rpm. Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money. Speaking of the quill or spindle Baileigh Industrial has specified a R8 spindle taper for the VM-942E-1. The R8 taper is the most common taper in the industry making tooling easy to source. The VM-942E-1 has a powerful 3 hp motor that runs on 220 volt single phase power and features a two axis digital read out. Other standard features of the VM-942 milling machine include a, coolant system dovetail slide ways, way covers, and halogen wok light. Features: • 9"x 42" work table • 2-Axis digital readout • R8 spindle Perfect for milling, drilling, tapping, boring, and reaming • 5 speeds • Headstock tilts 90 degree left and right • 220V, 1-phase
Specifications
| Box Quantity | 1 |
| Amperage Draw @ 230V 3Ph | |
| Product Type | Vertical Mills |
| Quill Diameter | |
| Quill Down Feed Rates (IPR) | |
| Range of Spindle Speeds (RPM) | |
| Saddle Width | |
| Spindle Taper (In. x TPI) | |
| Spindle Travel | 5" |
| Table Cross Travel | |
| Table Longitudinal Travel | |
| Table Longitudinal Travel With Powerfeed | |
| Table Size (L x W) | |
| Travel of Knee | |
| Travel of Ram | |
| T-Slot Centers | |
| T-Slots Number and Size | |
| Powerfeed | |
| Power Draw Bar | |
| CNC Package | |
| Collet Capacity | |
| Column Width | |
| Configurable Base Item | No |
| Configurator Option Type | |
| Distance Spindle to Column (Max.) | |

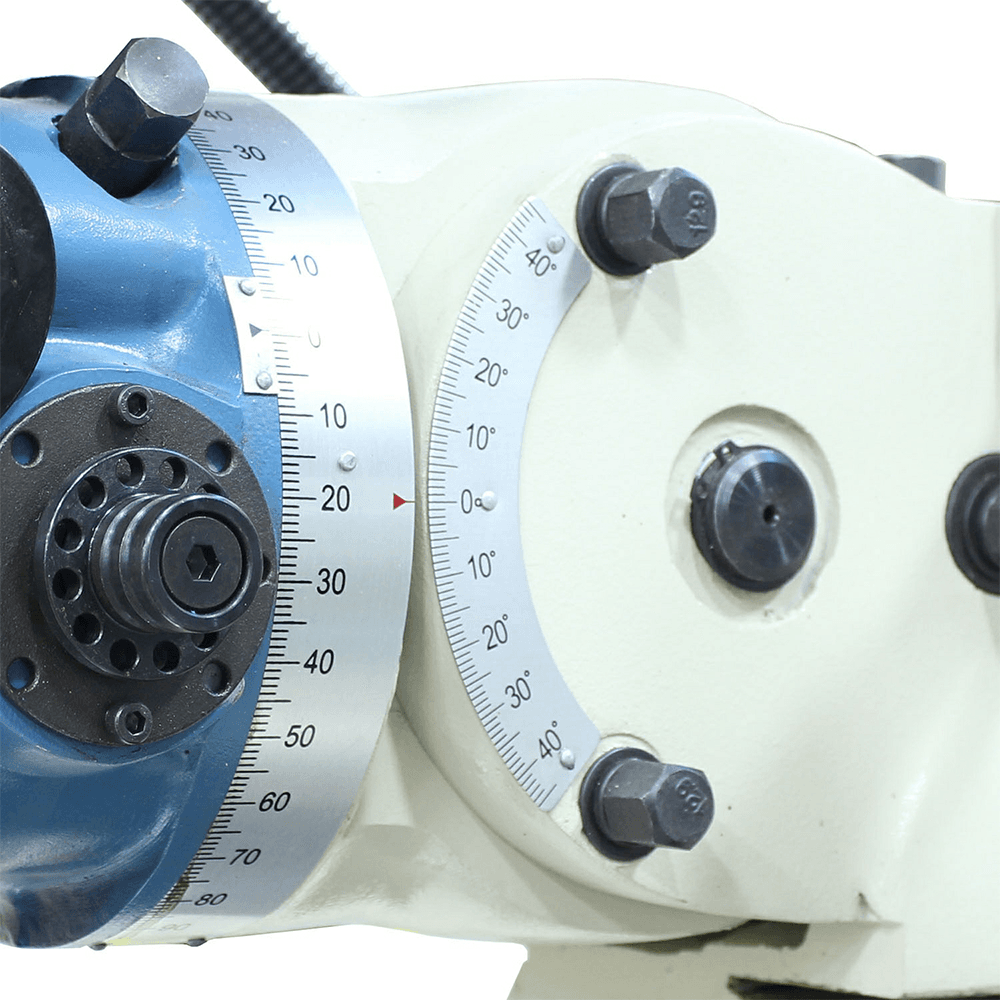

| Head Movement (Deg.) | 45° F & R 90° R & L |
| Inverter Type | |
| Max Distance Spindle to Table | |
| Motor Phase | 1Ph |
| Motor Power (HP) | 3HP |
| Motor Voltage (V.) | 220V |
| Number of Axis | |
| Number of Spindle Speeds | 8 |
| Overall Dimensions (L x W x H) | |
| Work Table Weight Capacity (Lbs.) |
