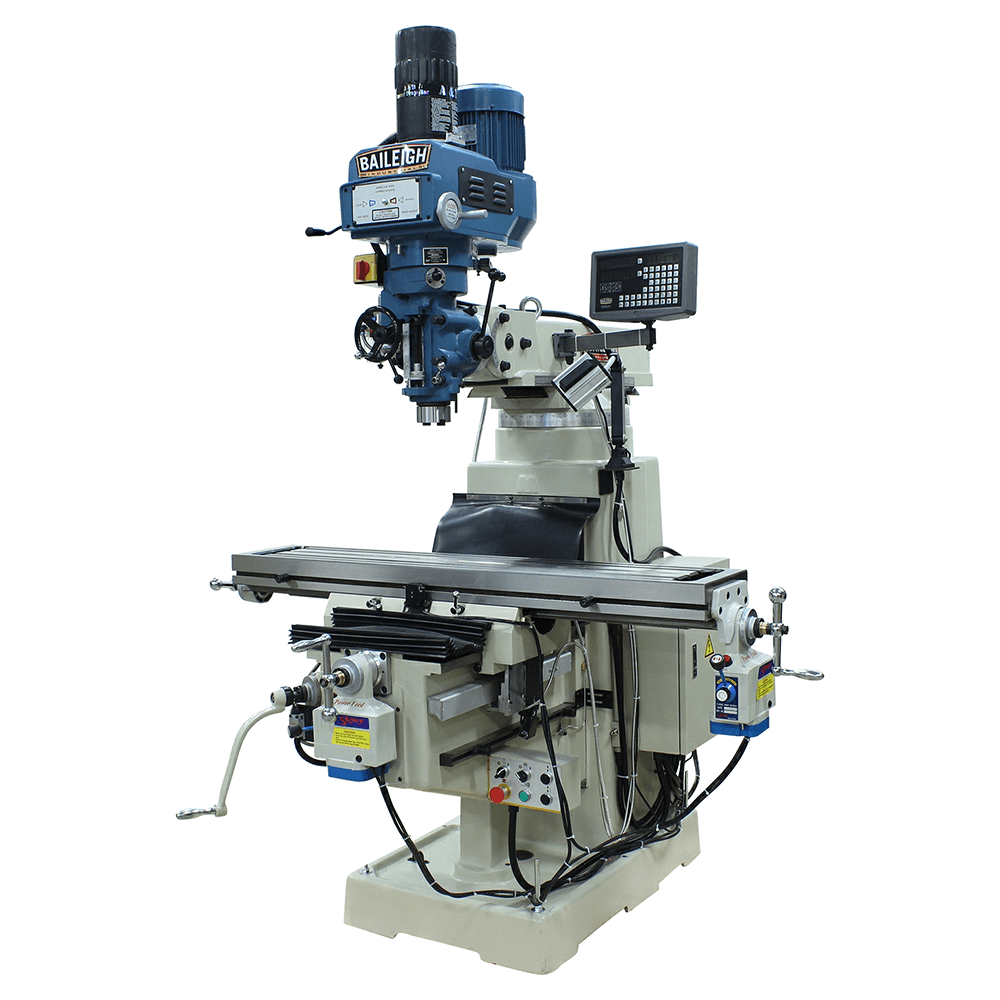

Baileigh VM-1054E-VS Variable Speed Vertical Mill
This item may incur additional shipping costs and lead times.
Product Details

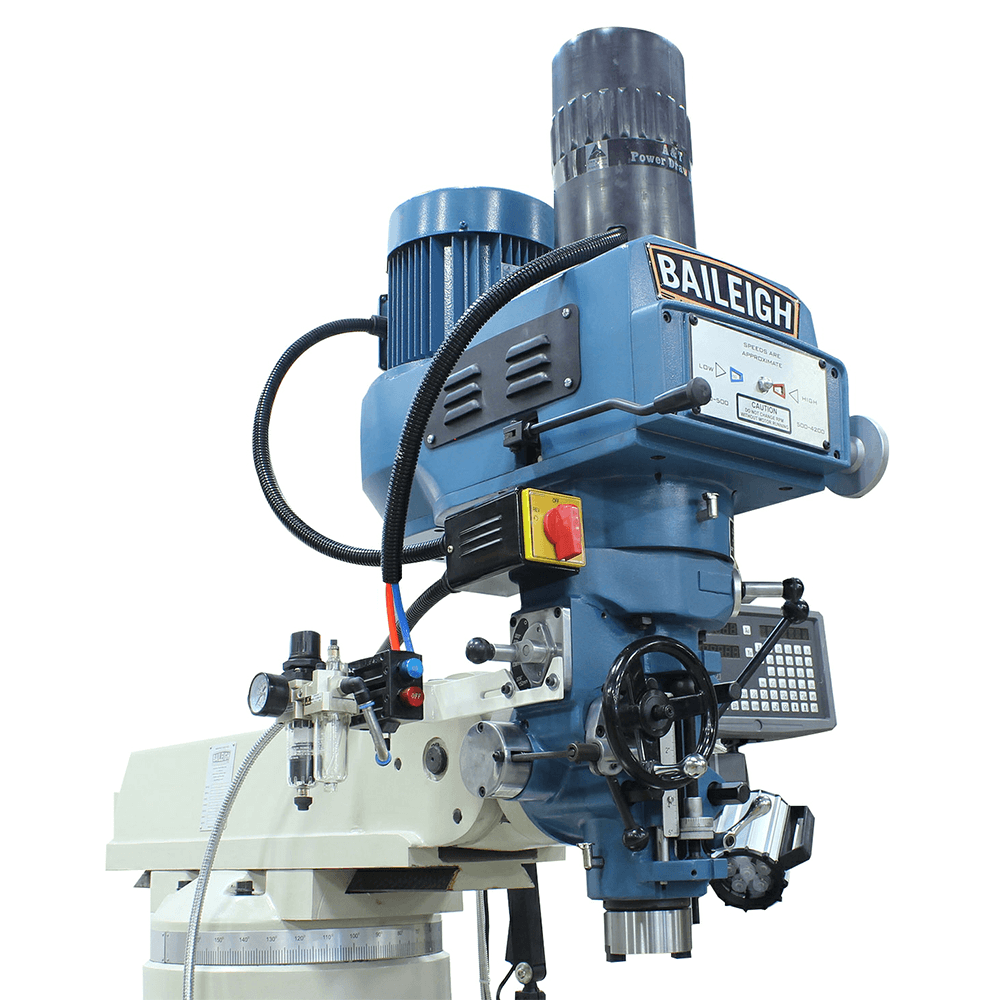

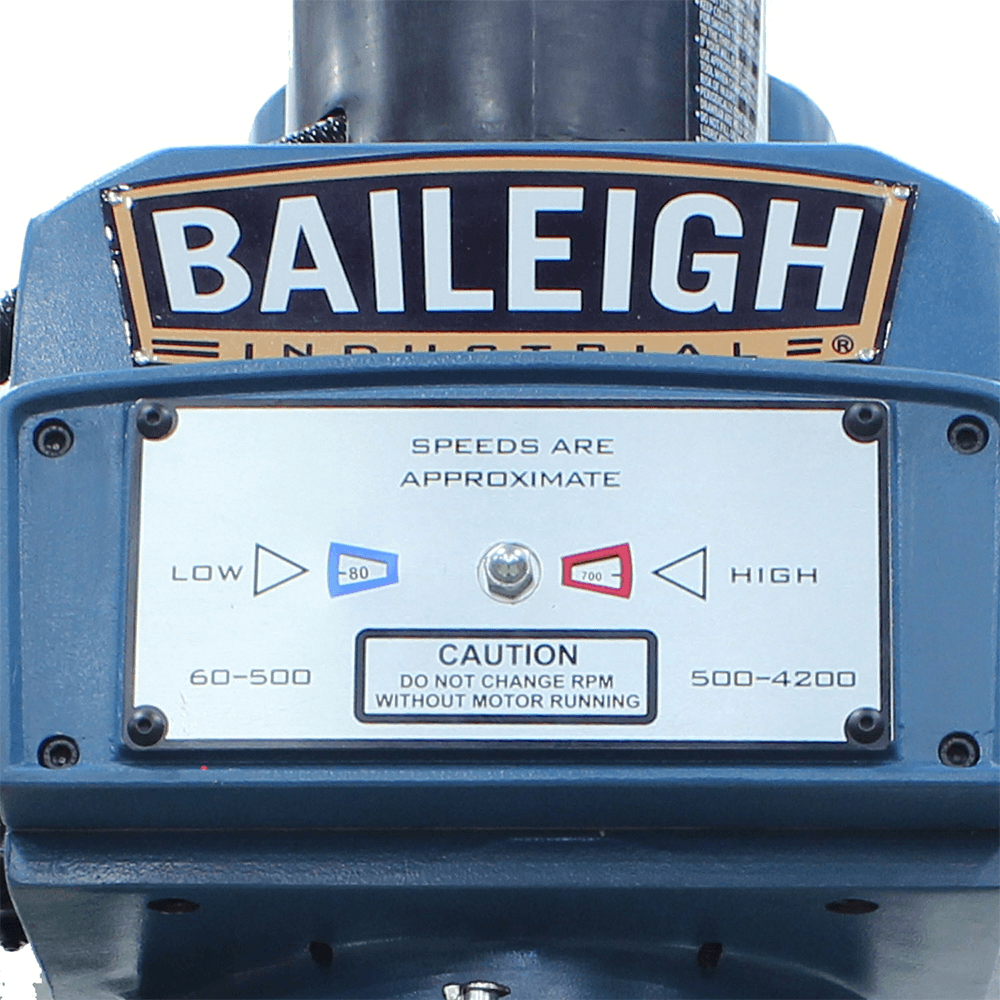

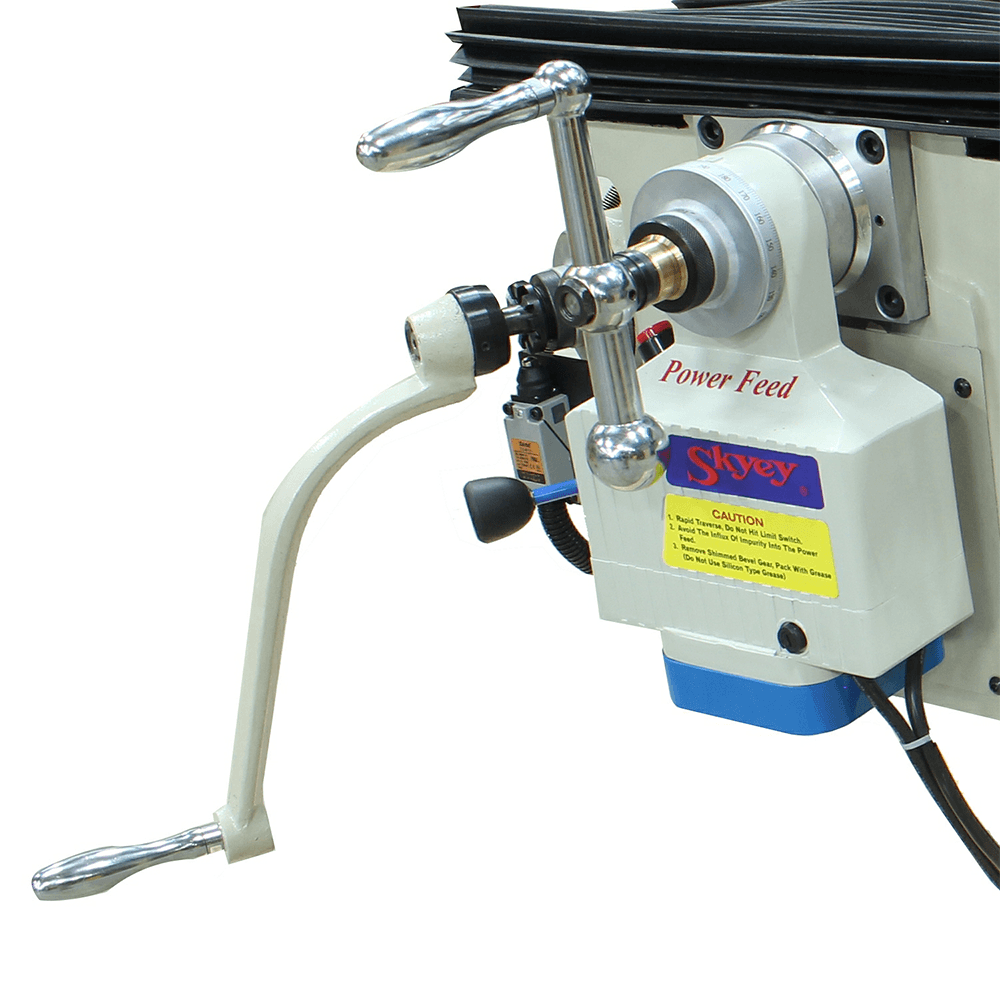

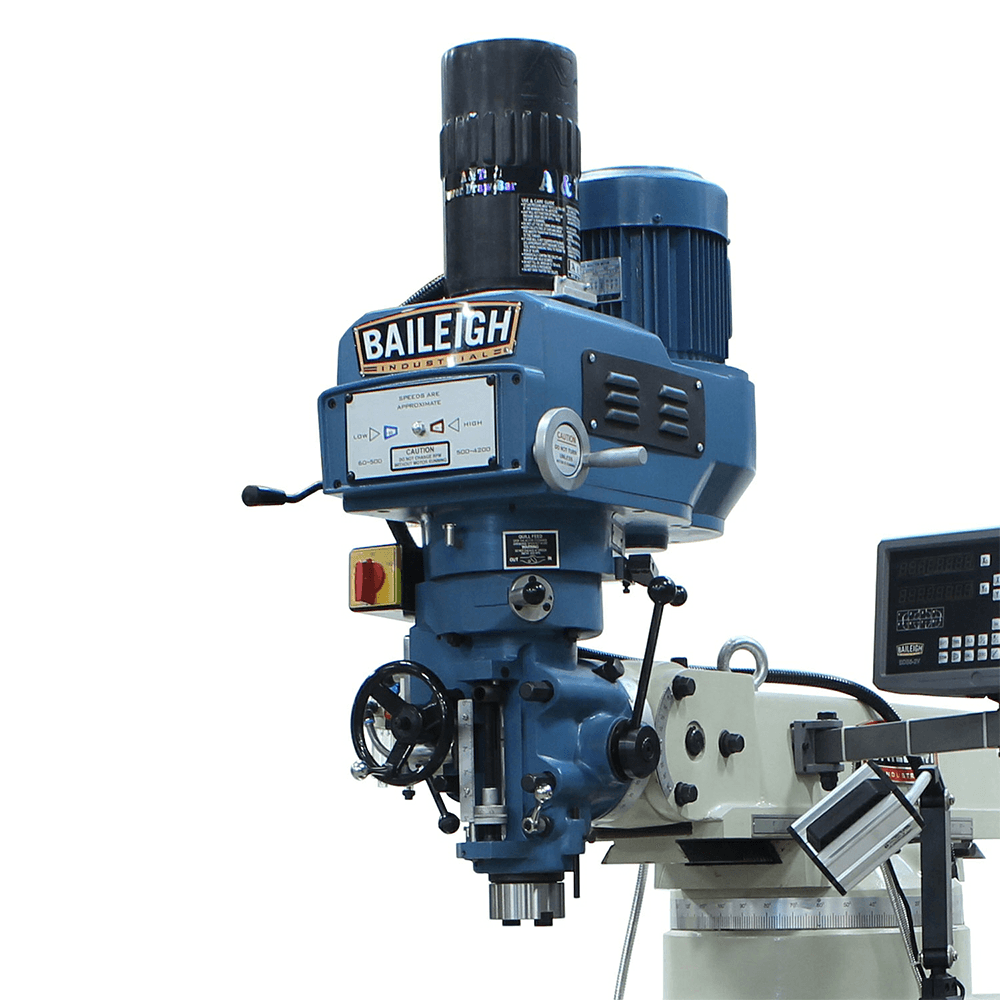

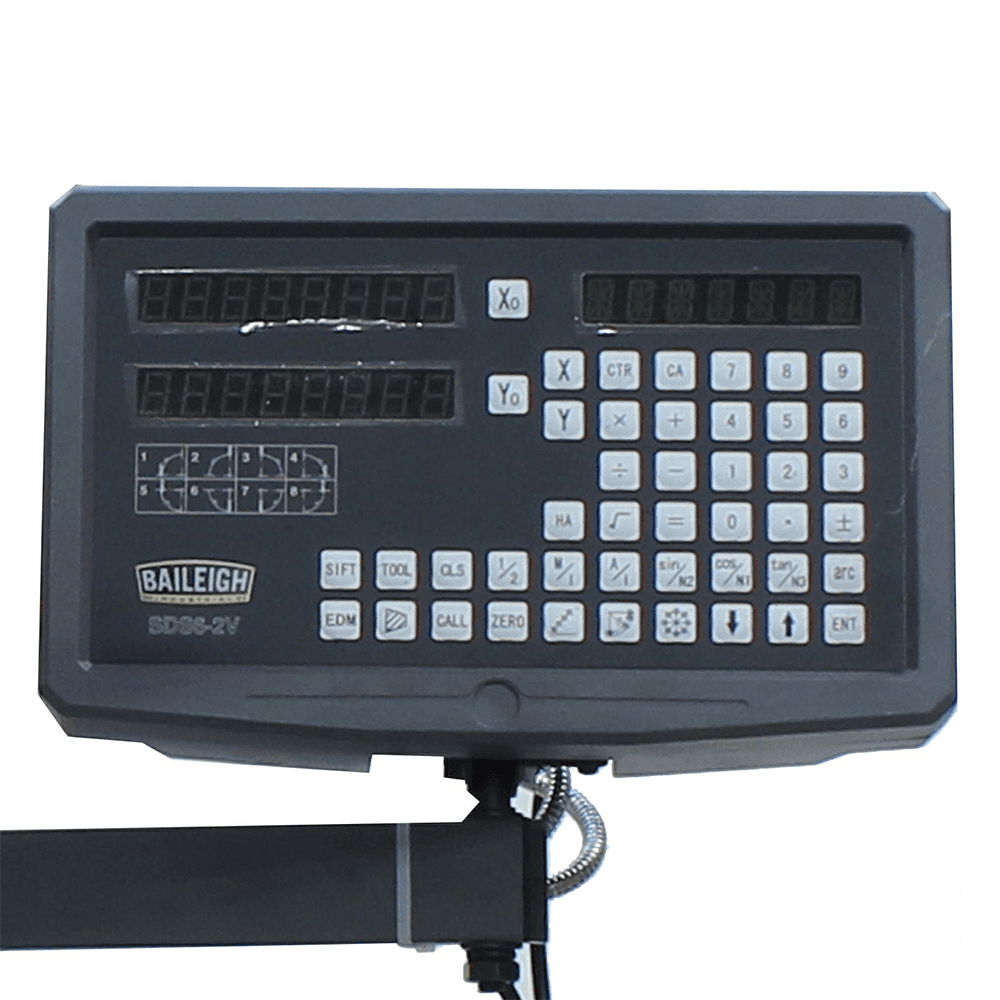

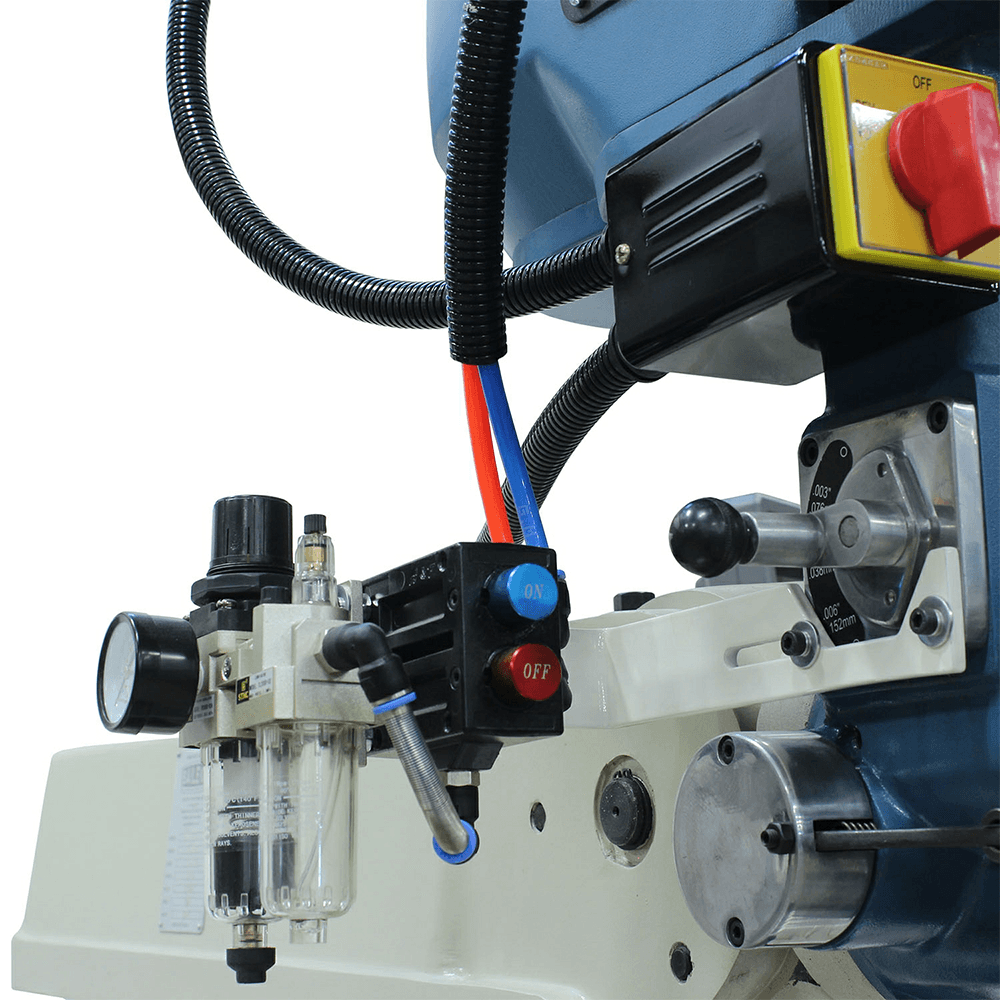

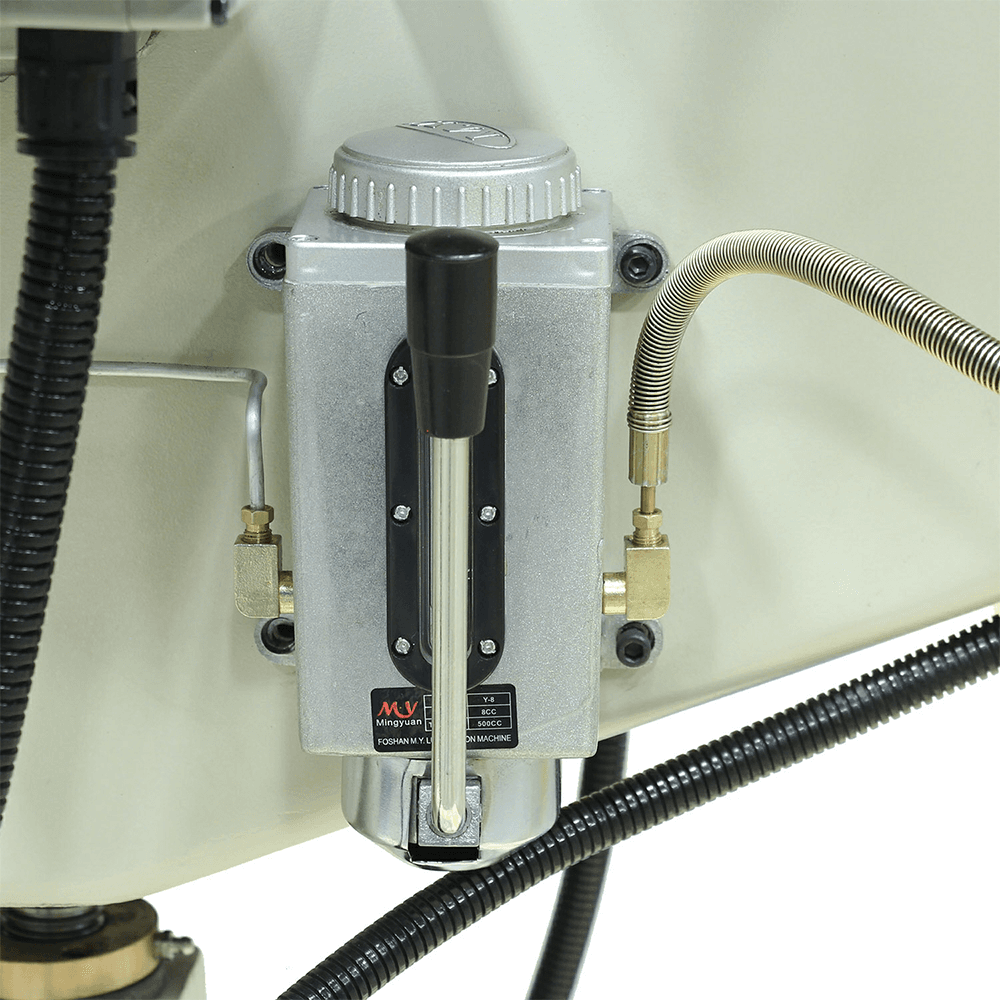

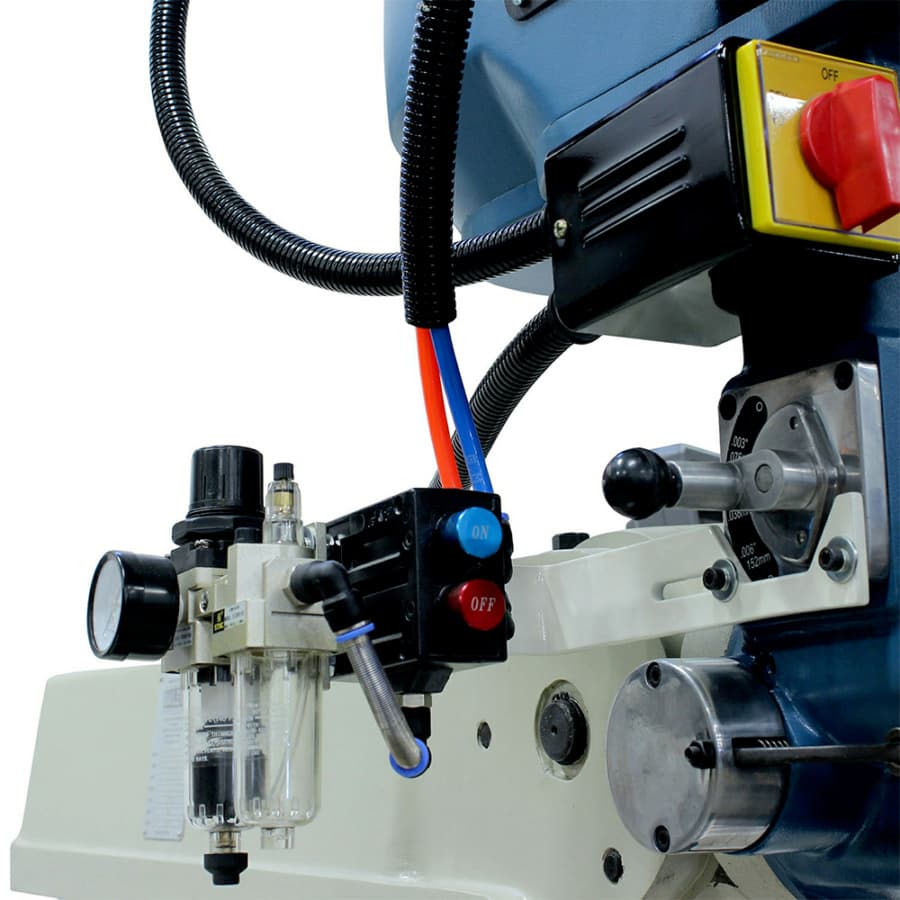

The VM-1054E-VS is a variable speed milling machine that runs from 60 to 4,200 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money. Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time. Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is. Table size is another very important component when deciding which milling machine to buy and VM-1054E-VS has a 10" x 54" table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion. All three axis are powered on the VM-1054E-VS making it easy on the operator. Another nice feature is the two axis digital readout that comes standard. This digital readout is accurate to 1/10 of 1 thousandth of an inch. A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054E-VS. Features: • Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time • Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is • Table size is another very important component when deciding which milling machine to buy and VM-1054E-VS has a 10" x 54" table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion • All three axis are powered on the VM-1054E-VS making it easy on the operator • Another nice feature is the two axis digital readout that comes standard • This digital readout is accurate to 1/10 of 1 thousandth of an inch • A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054E-VS
Specifications
| Box Quantity | 1 |
| Amperage Draw @ 230V 3Ph | |
| Product Type | Vertical Mills |
| Quill Diameter | |
| Quill Down Feed Rates (IPR) | |
| Range of Spindle Speeds (RPM) | |
| Saddle Width | |
| Spindle Taper (In. x TPI) | |
| Spindle Travel | 5" |
| Table Cross Travel | |
| Table Longitudinal Travel | |
| Table Longitudinal Travel With Powerfeed | |
| Table Size (L x W) | |
| Travel of Knee | |
| Travel of Ram | |
| T-Slot Centers | |
| T-Slots Number and Size | .625" |
| Powerfeed | |
| Power Draw Bar | |
| CNC Package | |
| Collet Capacity | |
| Column Width | |
| Configurable Base Item | No |
| Configurator Option Type | |
| Distance Spindle to Column (Max.) | |

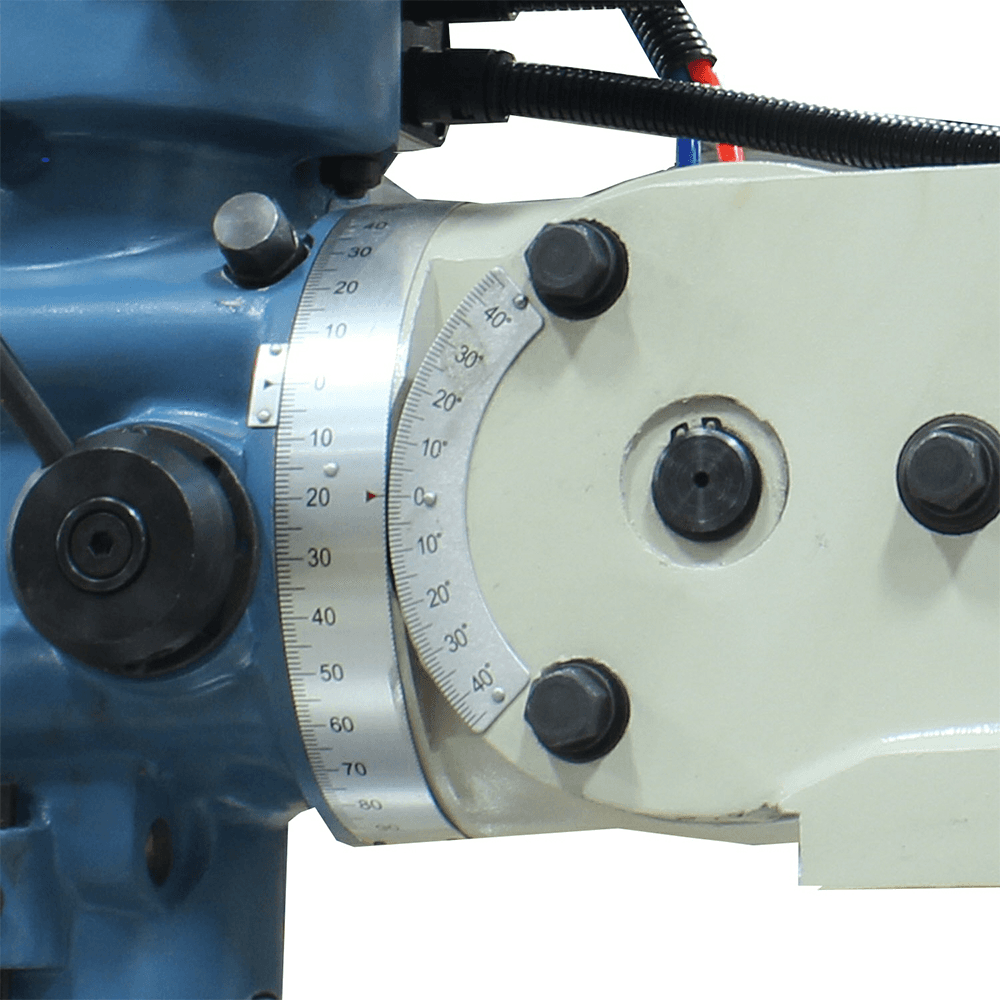

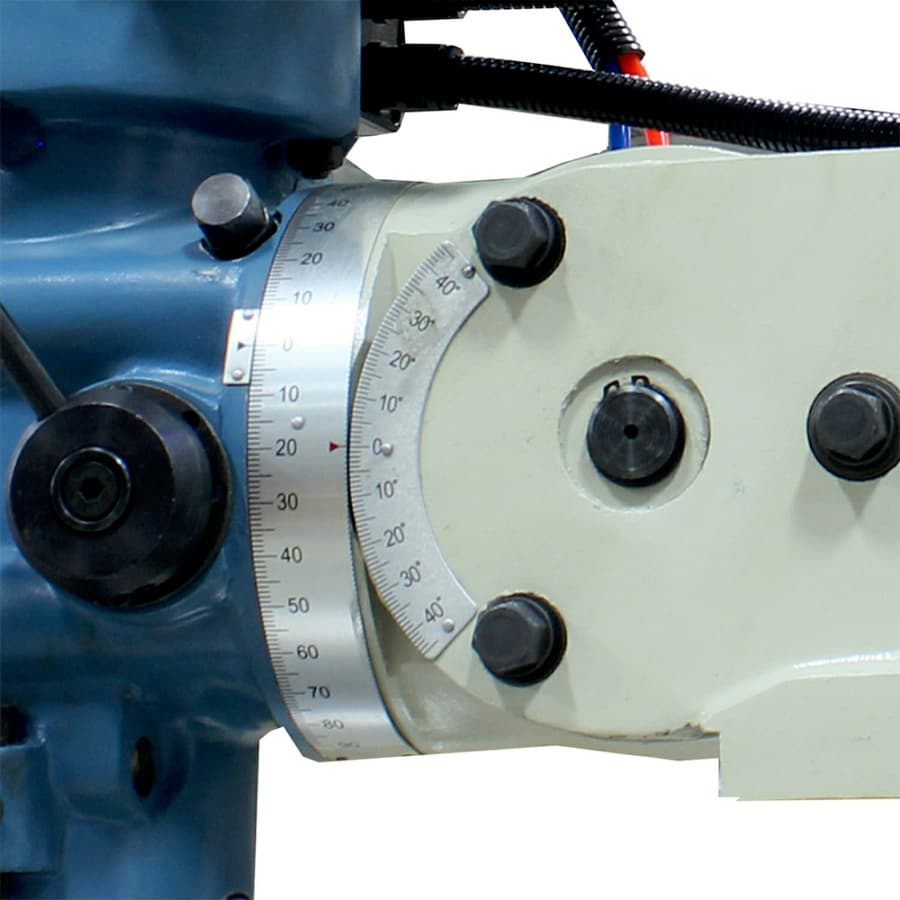

| Head Movement (Deg.) | 45° F & R 90° R & L |
| Inverter Type | |
| Max Distance Spindle to Table | |
| Motor Phase | 3Ph |
| Motor Power (HP) | |
| Motor Voltage (V.) | 230V |
| Number of Axis | |
| Number of Spindle Speeds | |
| Overall Dimensions (L x W x H) | |
| Work Table Weight Capacity (Lbs.) |
