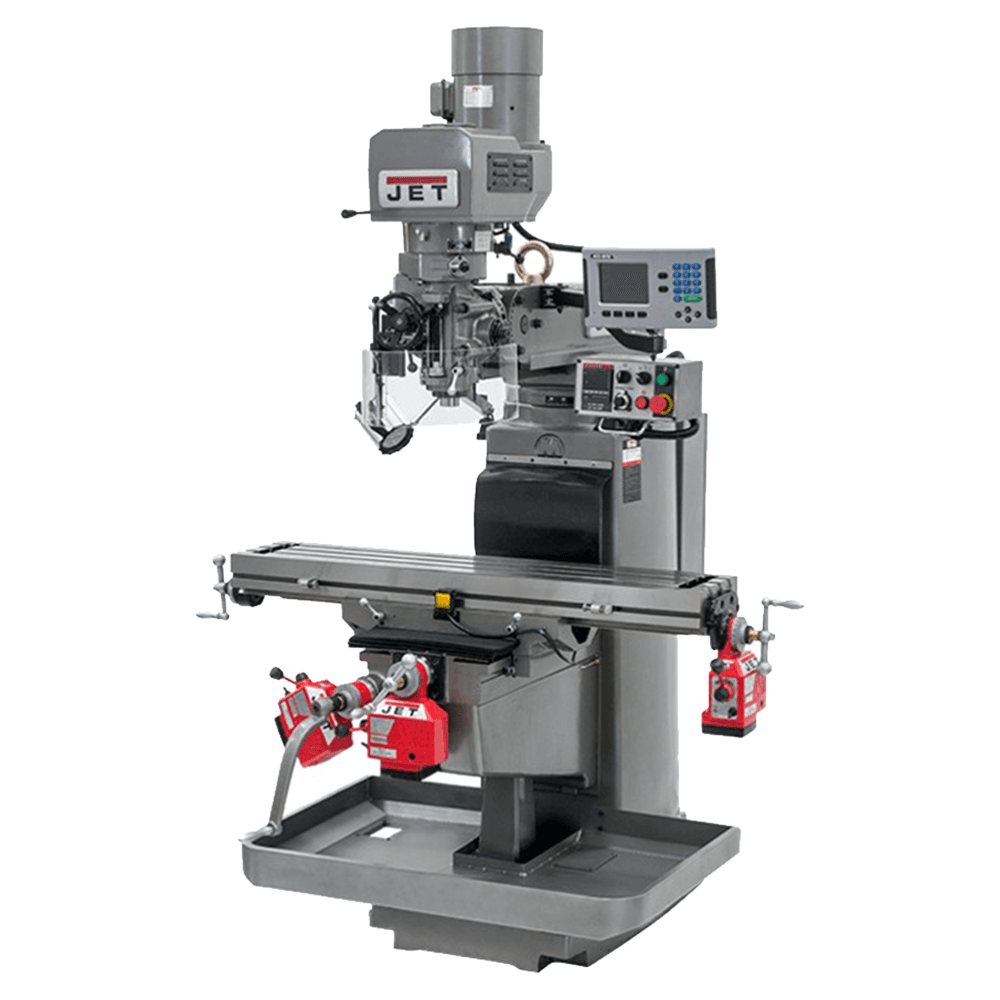

Jet Tools JTM-1050EVS2/230 3 HP Milling Machine with 3-Axis Powerfeeds/Air Powered Drawbar, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

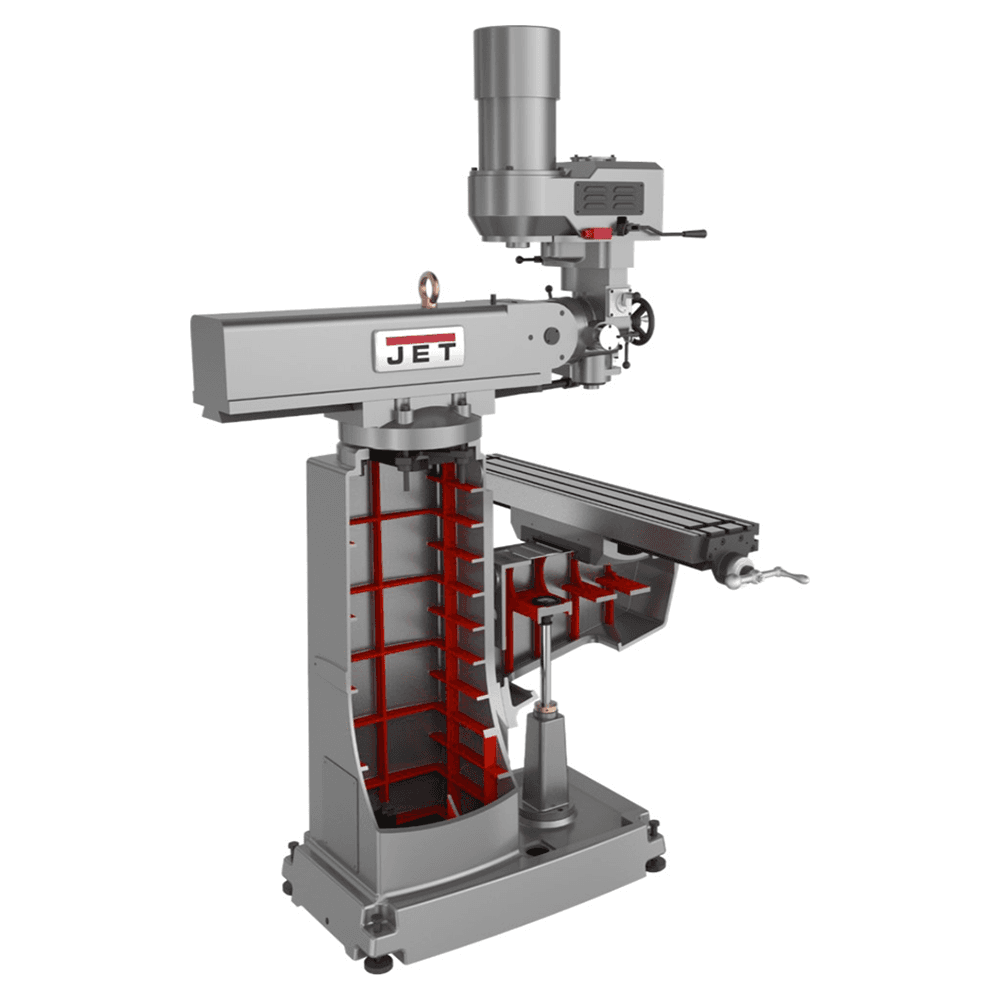

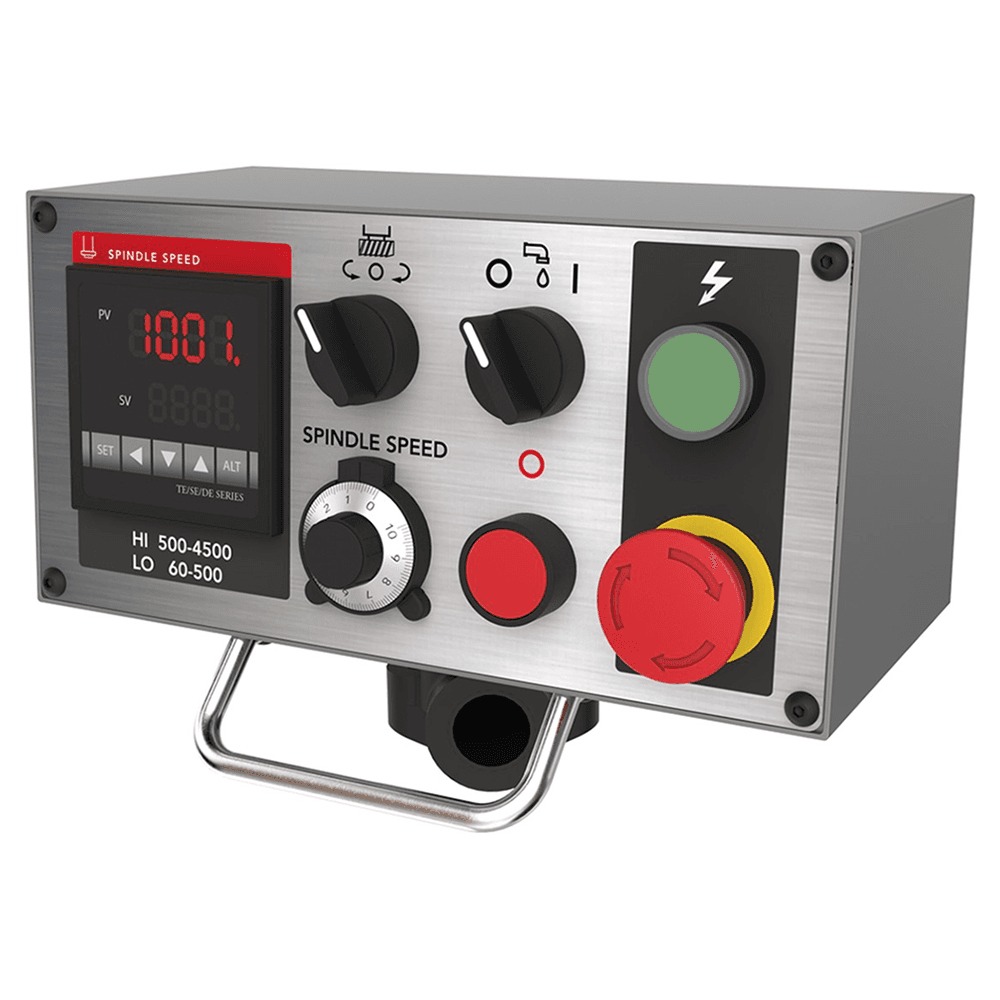

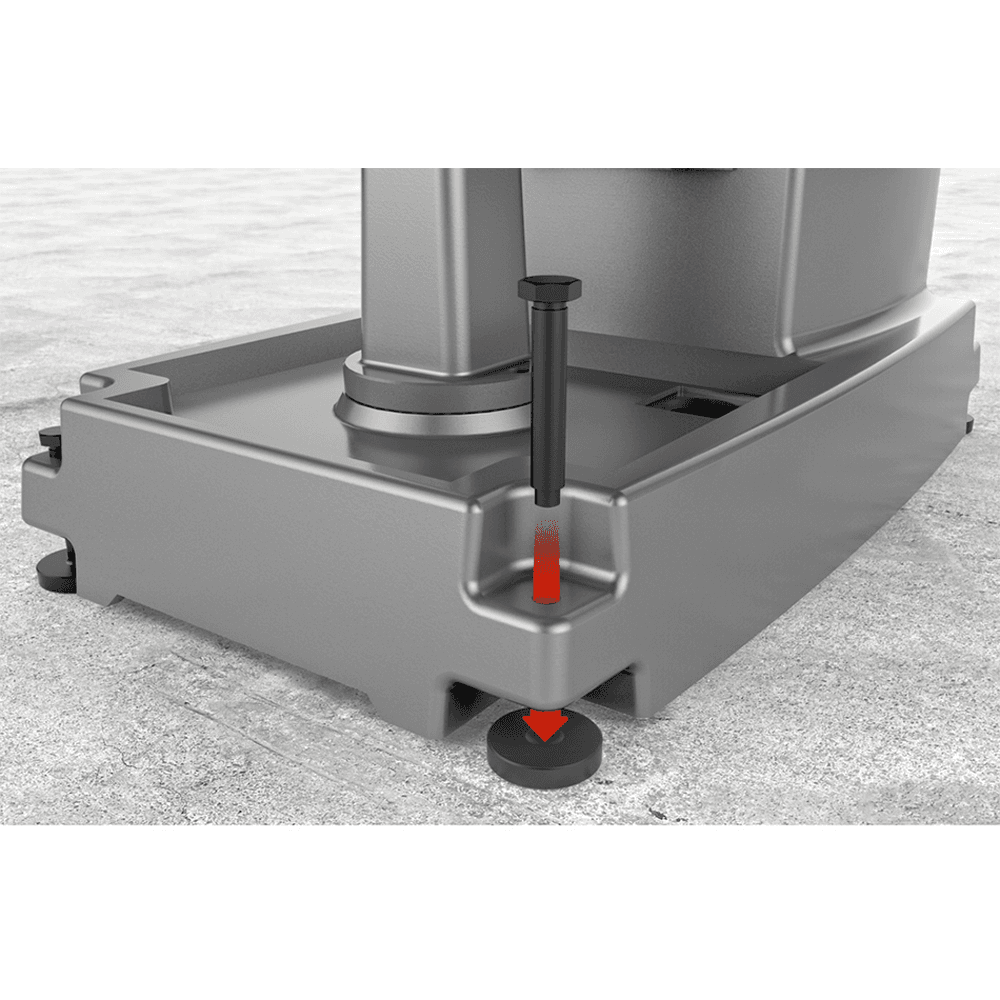

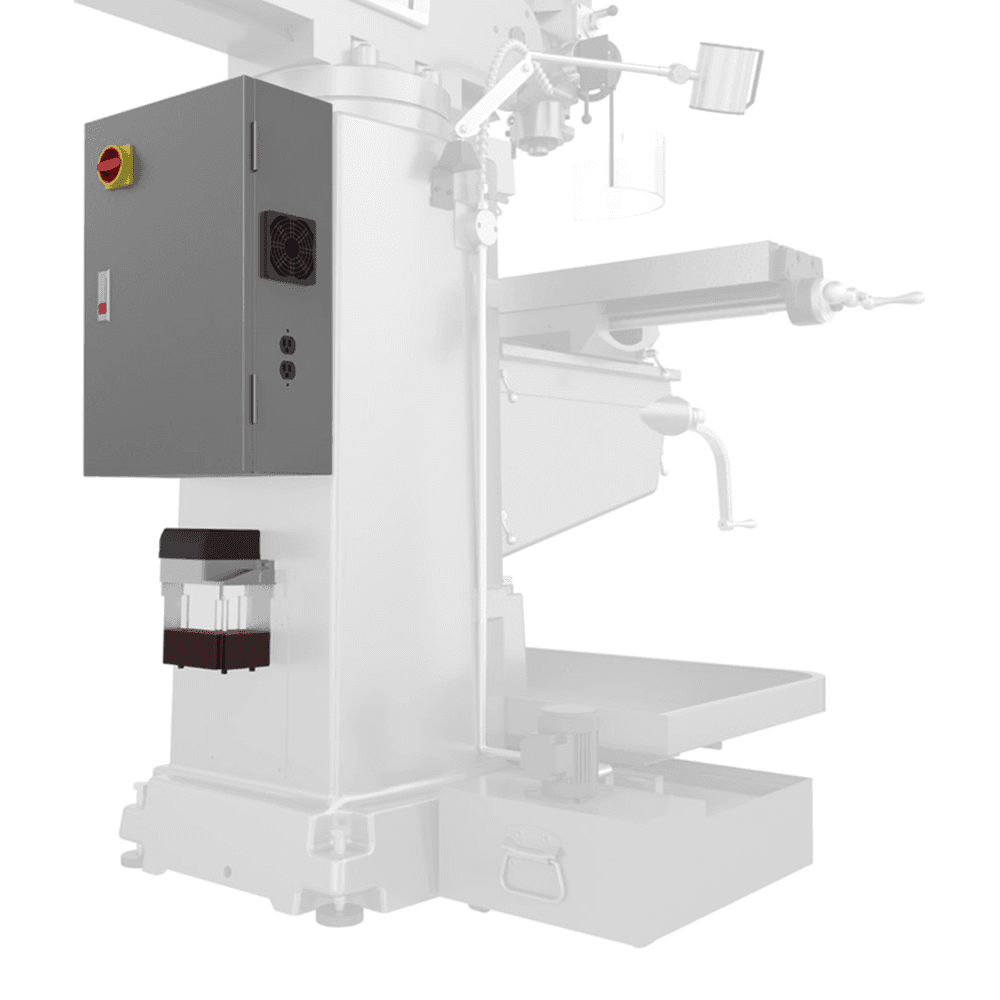

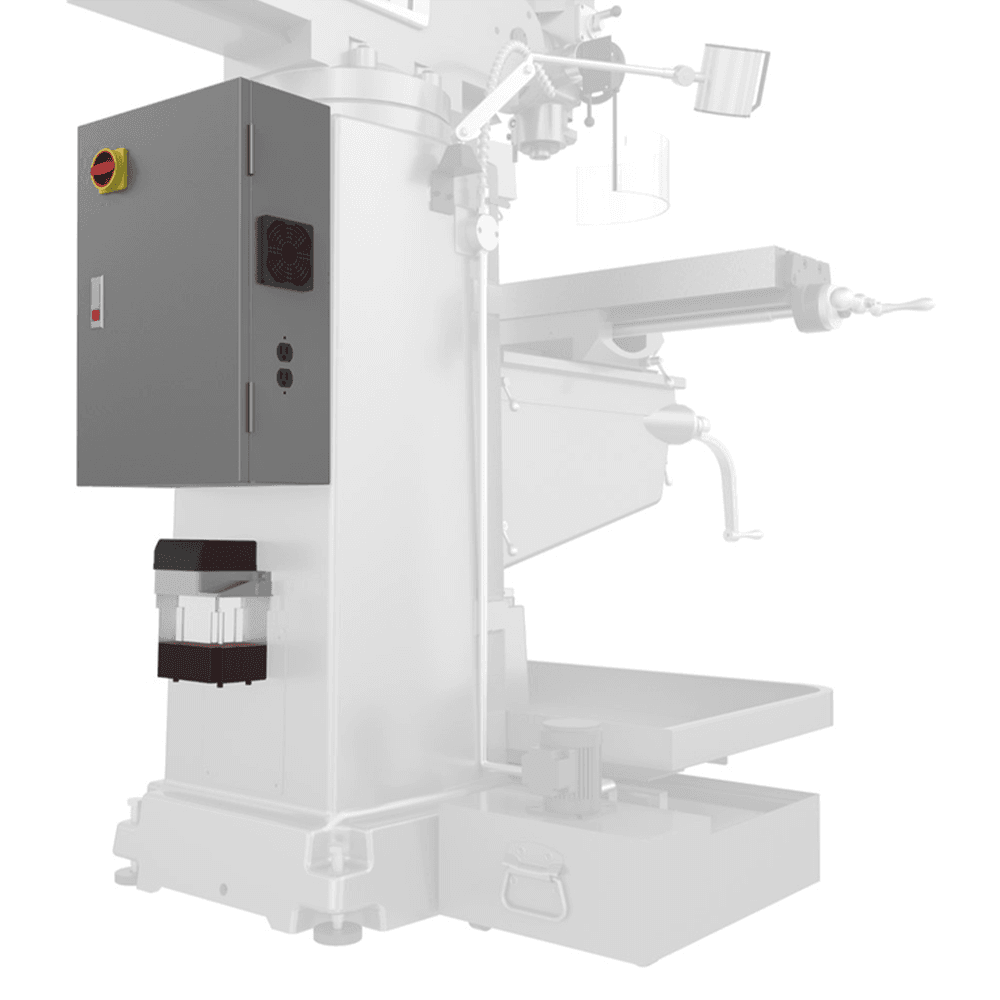

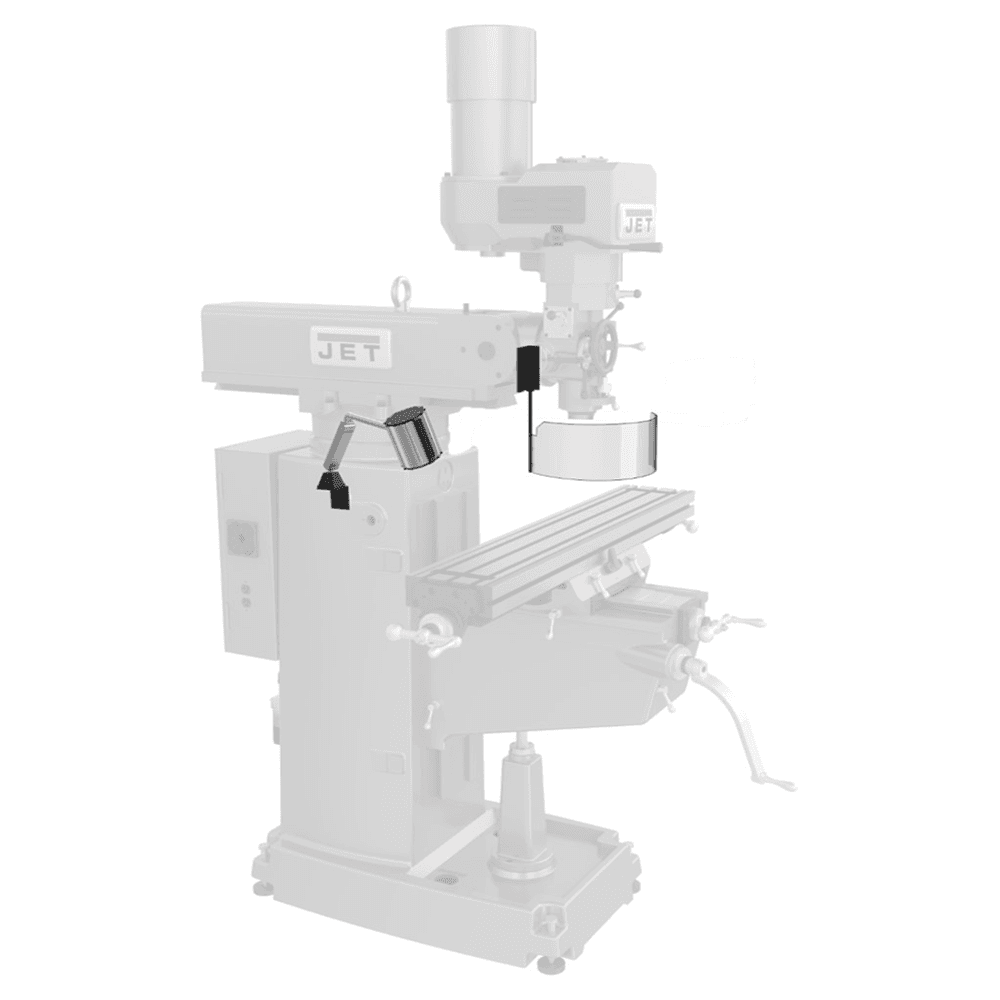

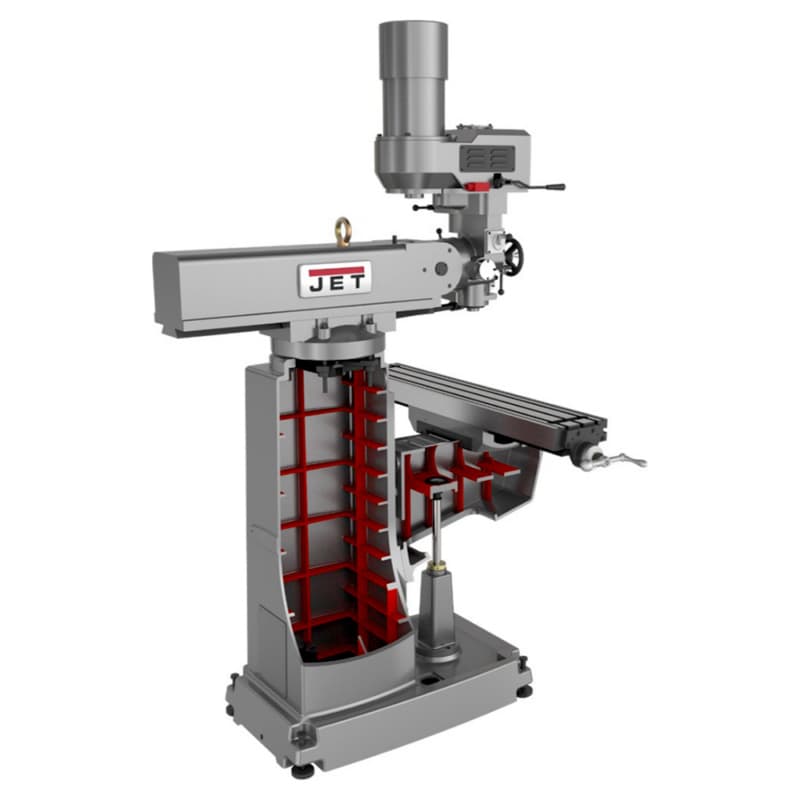

Constructed using the Certified Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. Jet Mills have features you've come to expect and are backed by the industry-leading Jet Two Year Warranty with products CSA/CUS Certified. Features: • Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications • Dual locks on all moveable surfaces • Spindle head is internally cooled extending bearing, belt and motor life • Swing away control box houses an e-stop and puts all controls at the operators fingertips • Swing away safety shield • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor • The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
Specifications
| Box Quantity | 1 |
| Amperage Draw @ 230V 3Ph | |
| Product Type | Vertical Mills |
| Quill Diameter | 3-3/8" |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Saddle Width | 11-1/2" |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel | 5" |
| Table Cross Travel | 14-3/4" |
| Table Longitudinal Travel | 35-1/3" |
| Table Longitudinal Travel With Powerfeed | 29-7/8" |
| Table Size (L x W) | 10" x 50" |
| Travel of Knee | 16-1/8" |
| Travel of Ram | 15-7/8" |
| T-Slot Centers | 2-1/2" |
| T-Slots Number and Size | 3" - 5/8" |
| Powerfeed | X, Y and Z-Axis |
| Power Draw Bar | Pneumatic |
| CNC Package | |
| Collet Capacity | 1/8 - 7/8 |
| Column Width | 20" |
| Configurable Base Item | No |
| Configurator Option Type | |
| Distance Spindle to Column (Max.) | 26-3/4" |
| Head Movement (Deg.) | 90°R & L 45° F & B |
| Inverter Type | Delta, B |
| Max Distance Spindle to Table | 20-3/4" |
| Motor Phase | 3Ph |
| Motor Power (HP) | 3 HP |
| Motor Voltage (V.) | 230V |
| Number of Axis | 2 |
| Number of Spindle Speeds | |
| Overall Dimensions (L x W x H) | 66" x 63" x 87" |
| Work Table Weight Capacity (Lbs.) | 840 lbs |
