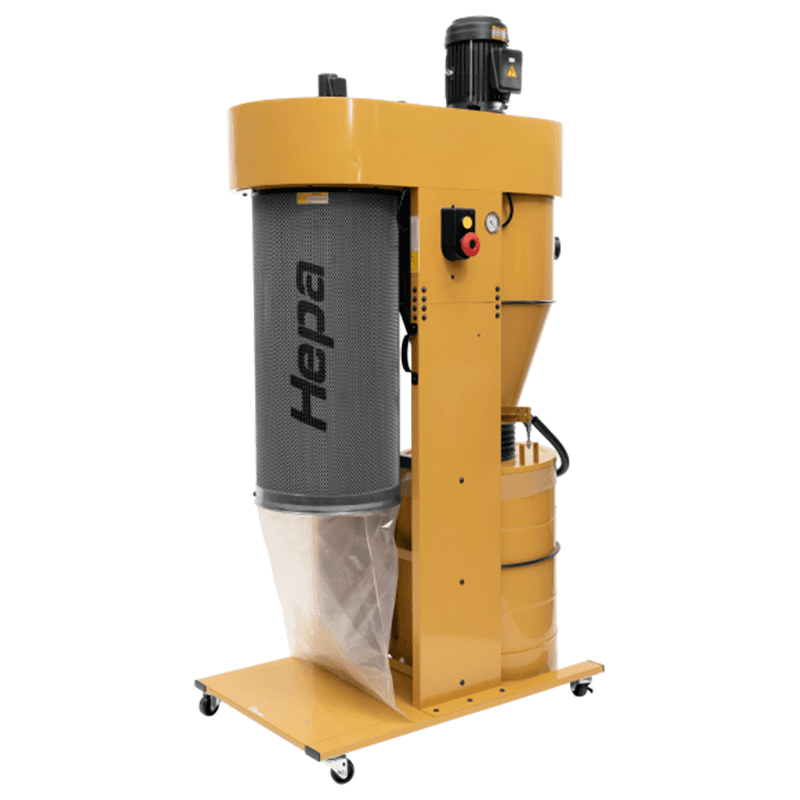

5HP Cyclonic Dust Collector with HEPA Filter
Item # JPW1792205HK
•Mfr # PM9-1792205HK
Product Details
Introducing the Powermatic PM2205 5HP Cyclonic Dust Collector with HEPA filtration. The PM2205 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stable base for quiet operation and minimal vibration. The Powermatic Cyclone is the only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.9% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2205 Cyclone Dust Collector is an innovative addition to the Powermatic family.
Features:
• 63 gal. steel collection drum
• HEPA Filter collects 99.9% of all particles passing through as small as 0.3 Micron
• Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
• One-handed drum release allows for simple removal of the drum for bag changes
• Powerful 5 HP motor moves 1,688 Cubic Feet of air per Minute
• Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life
• Remote Control with 50 foot range for easy management in the shop.
• Vacuum pressure gauge for greater user feedback
Specification:
• Efficiency (Micron): 2
• Motor Amps: 20
• Motor Power (HP): 5 HP
• Motor Voltage (V.): 230 V
• Overall Dimensions (L x W x H) (In.): 63" x 28-15/16" (1600 x 735 mm)
• Prewired Voltage (V.): 230 V
• Prop 65: Cancer and Reproductive Harm
• Sound Rating (Db.): 95 dB at 9.84 ft (3m)
• Static Pressure (Wc.): 2.4 inH2O (60 mmH2O)
• Style (Type): Dust Collector
Features:
• 63 gal. steel collection drum
• HEPA Filter collects 99.9% of all particles passing through as small as 0.3 Micron
• Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
• One-handed drum release allows for simple removal of the drum for bag changes
• Powerful 5 HP motor moves 1,688 Cubic Feet of air per Minute
• Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life
• Remote Control with 50 foot range for easy management in the shop.
• Vacuum pressure gauge for greater user feedback
Specification:
• Efficiency (Micron): 2
• Motor Amps: 20
• Motor Power (HP): 5 HP
• Motor Voltage (V.): 230 V
• Overall Dimensions (L x W x H) (In.): 63" x 28-15/16" (1600 x 735 mm)
• Prewired Voltage (V.): 230 V
• Prop 65: Cancer and Reproductive Harm
• Sound Rating (Db.): 95 dB at 9.84 ft (3m)
• Static Pressure (Wc.): 2.4 inH2O (60 mmH2O)
• Style (Type): Dust Collector
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Dust Collector |
