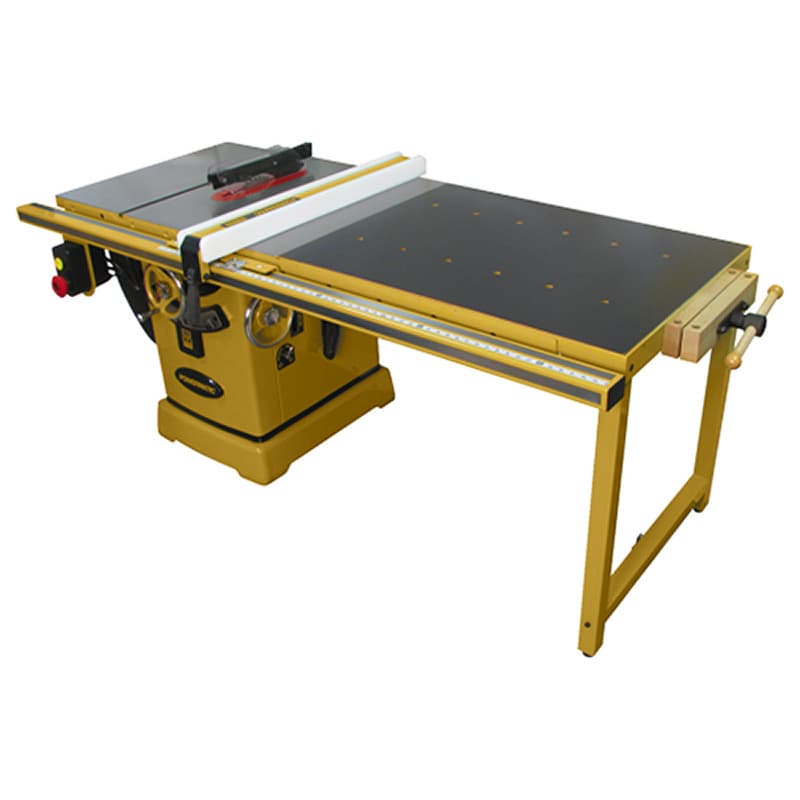

10" x 50 Rip 5HP Table Saw with Workbench, 1 Phase/230V
Item # JPWPM25150WK
•Mfr # PM9-PM25150WK
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details

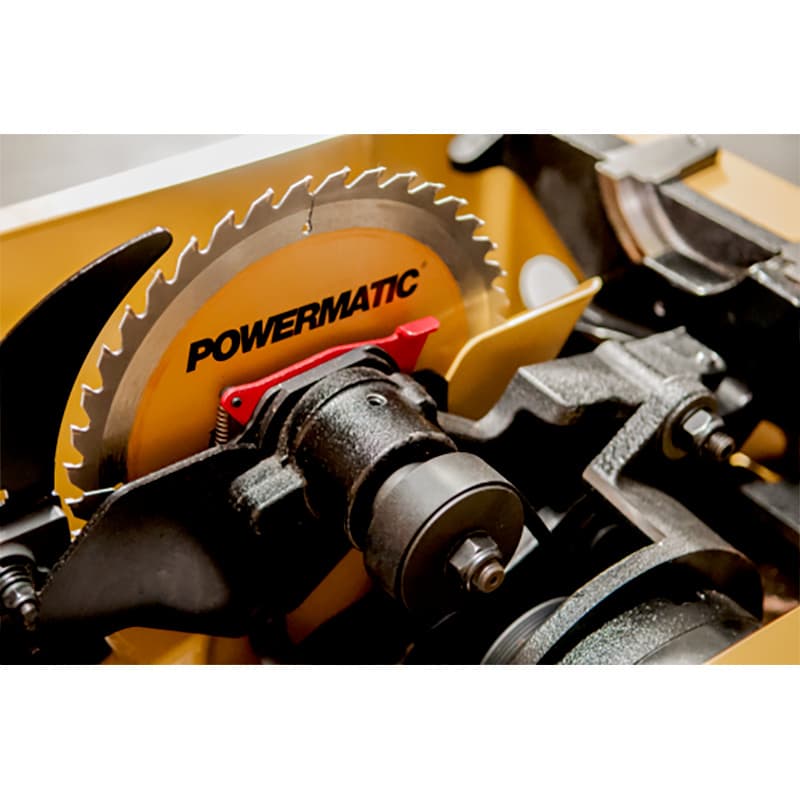

The award winning PM2000B table saw sets a new standard for innovation with an array of patented features and massive body design. The cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital read out as well as adjustable angle indicators for repetitive bevel cuts. The newly designed integrated retractable hydraulic caster system mobilizes your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.
Features:
• Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
• Arbor lock for quick and easy blade changes
• Integrated digital read out for precise bevel cuts
• Integrated dust collection
• Integrated hydraulic castor system for ease of movement around the shop
• Matching beveled edge between table and extension wings
• One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
• Precision-ground, high luster cast iron tabletops with front and rear edge bevel

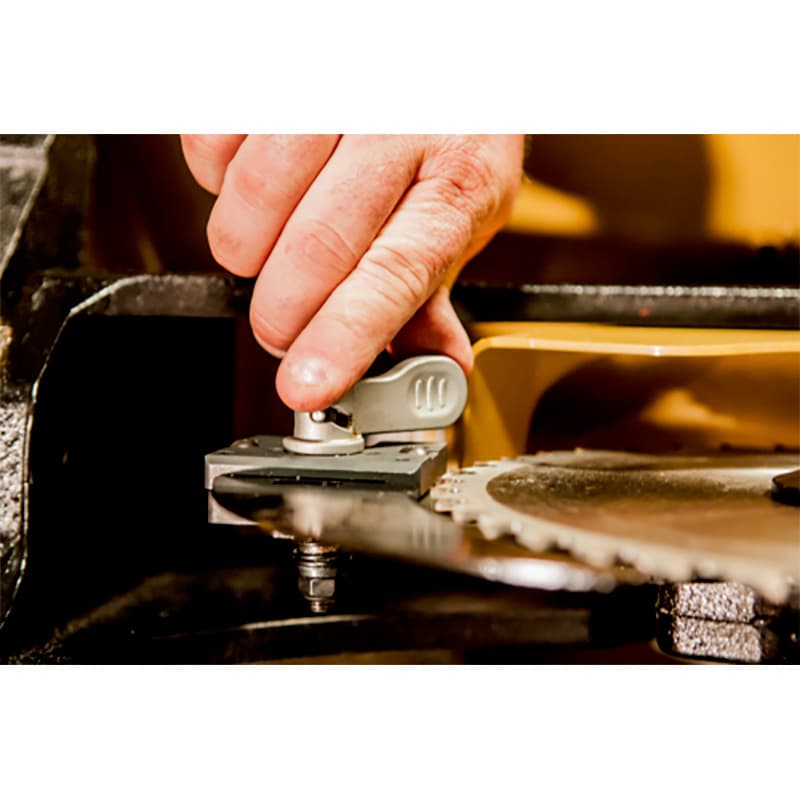

• Quick release riving knife lever for hassle free riving knife changes
Specification:
• Arbor Speed (RPM): 4500
• Dust Collection Minimum CFM Required (CFM): 400
• Dust Port Outside Diameter (In.): 4"
• Gross Weight (Lbs): 555
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8"
• Maximum Depth of Cut (In.): 2-1/8 or 3-1/8"
• Maximum Diameter of Dado (In.): 8"
• Maximum Rip Left of Blade (In.): 13-1/2"
Features:
• Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
• Arbor lock for quick and easy blade changes
• Integrated digital read out for precise bevel cuts
• Integrated dust collection
• Integrated hydraulic castor system for ease of movement around the shop
• Matching beveled edge between table and extension wings
• One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
• Precision-ground, high luster cast iron tabletops with front and rear edge bevel
• Quick release riving knife lever for hassle free riving knife changes
Specification:
• Arbor Speed (RPM): 4500
• Dust Collection Minimum CFM Required (CFM): 400
• Dust Port Outside Diameter (In.): 4"
• Gross Weight (Lbs): 555
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8"
• Maximum Depth of Cut (In.): 2-1/8 or 3-1/8"
• Maximum Diameter of Dado (In.): 8"
• Maximum Rip Left of Blade (In.): 13-1/2"
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Product Type | Table Saw |
| Maximum Cutting Length | |
| Table Height | |
| Height | 40-3/8" |
| Width | 39-1/8" |
| Number of Teeth | 50 |
| Length | 84-3/4" |
| Horsepower | 5 HP |
| Voltage | 230V |
| Blade Diameter | 10" |
| Arbor | 5/8" |
| Phase | 1 |
| Maximum Tilt | |
| Table Size (In.) | |
| Table Height from Floor (In.) | |
| Style | |
| Distance Between Sliding Table and Blade (In.) | |
| Prewired Voltage (V.) | |
| Maximum Diameter of Dado (In.) | |
| Speed | |
| Maximum Rip Left of Blade (In.) | |
| Maximum Width of Dado (In.) | |
| Motor Power | |
| Saw Blade Diameter | |
| Table Type | |
| Maximum Rip Right of Blade (In.) | |
| Motor Voltage (V.) | |
| Dust Port Outside Diameter (In.) | |
| Miter Gauge Type | |
| Table Size with Full Extensions (In.) | |
| Table T-Slot (In.) | |
| Motor Phase | |
| Arbor Diameter (In.) | |
| Recommended Circuit Size (Amps.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Motor Current (Amps) | |
| Table Size with Extensions (In.) | |
| Maximum Depth of Cut at 90 Degrees (In.) | |
| Maximum Depth of Cut at 45 Degrees (In.) | |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | |
| Warranty | |
| Cutting Height | |
| Main Saw Blade Change | |
| Saw Blade Thickness | |
| Cutting Width | |
| Sliding Table Length | |
| Control | |
| Display Resolution | |
| Control Panel | |
| Cutting angle/height | |
| Cutting Width Control | |
| Extraction Connection | |
| Saw Blade Tilting Range |
