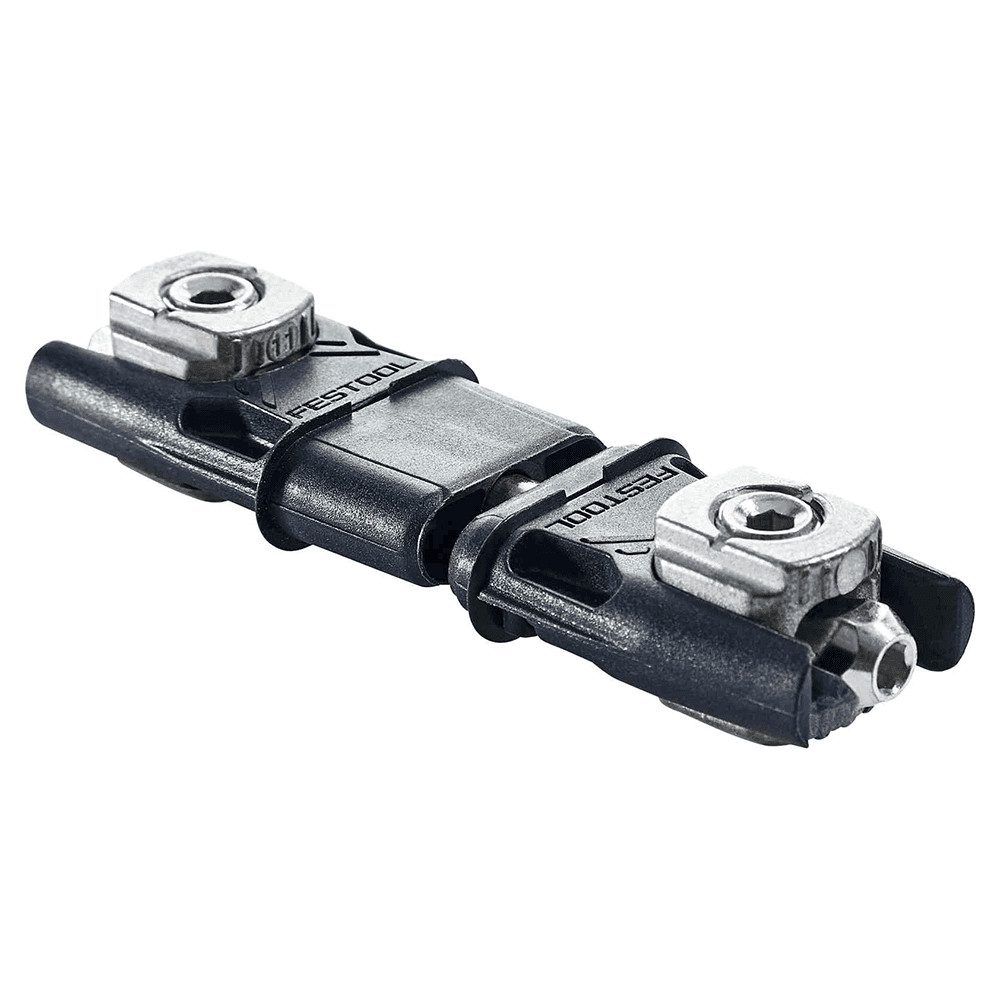

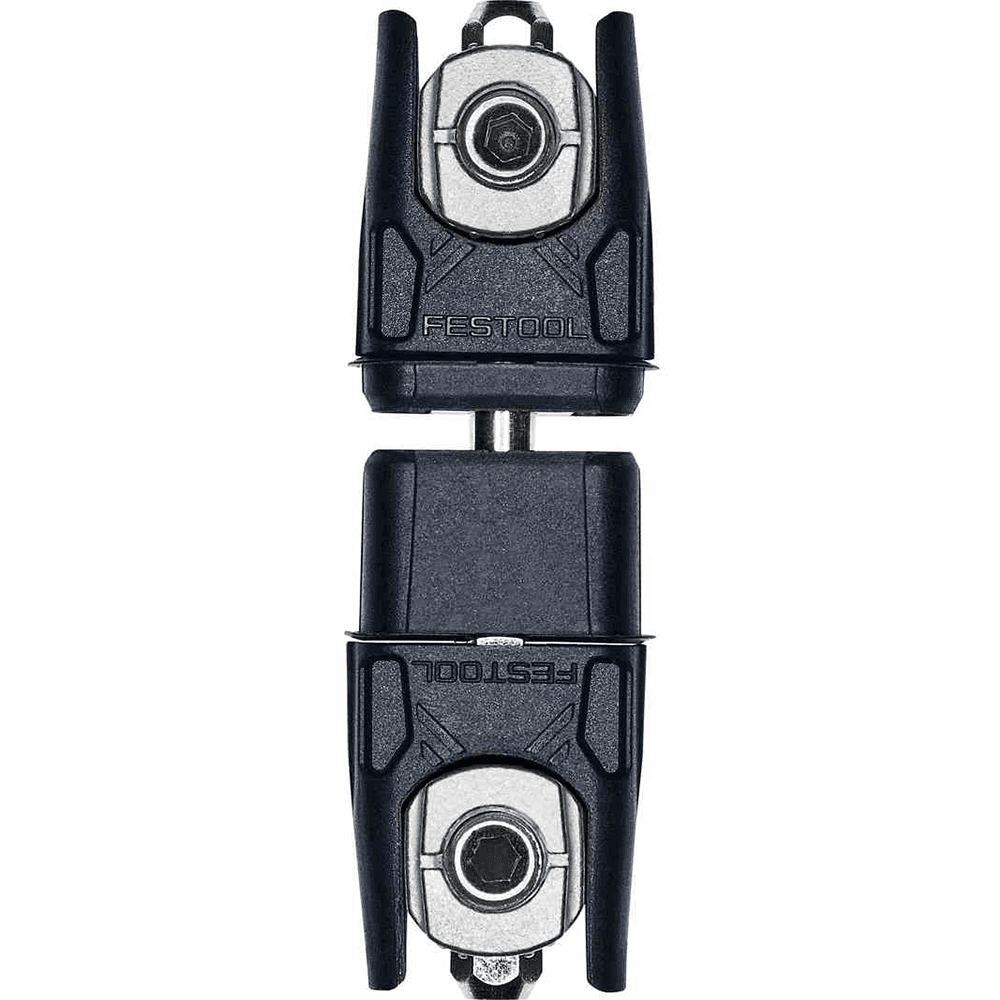

Centre Panel Connector for DF 500
Item # FST203167
•Mfr # 203167
$99.00
/Each
Min Order: 1
Qty mult. by: 1
Product Details
The new Domino basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications - from corner panel joints to center panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.
Features:
• The clever Domino system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• The connector's large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• The flush-screwed fixture elements protect each furniture component from being scratched
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The new detachable Domino basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm

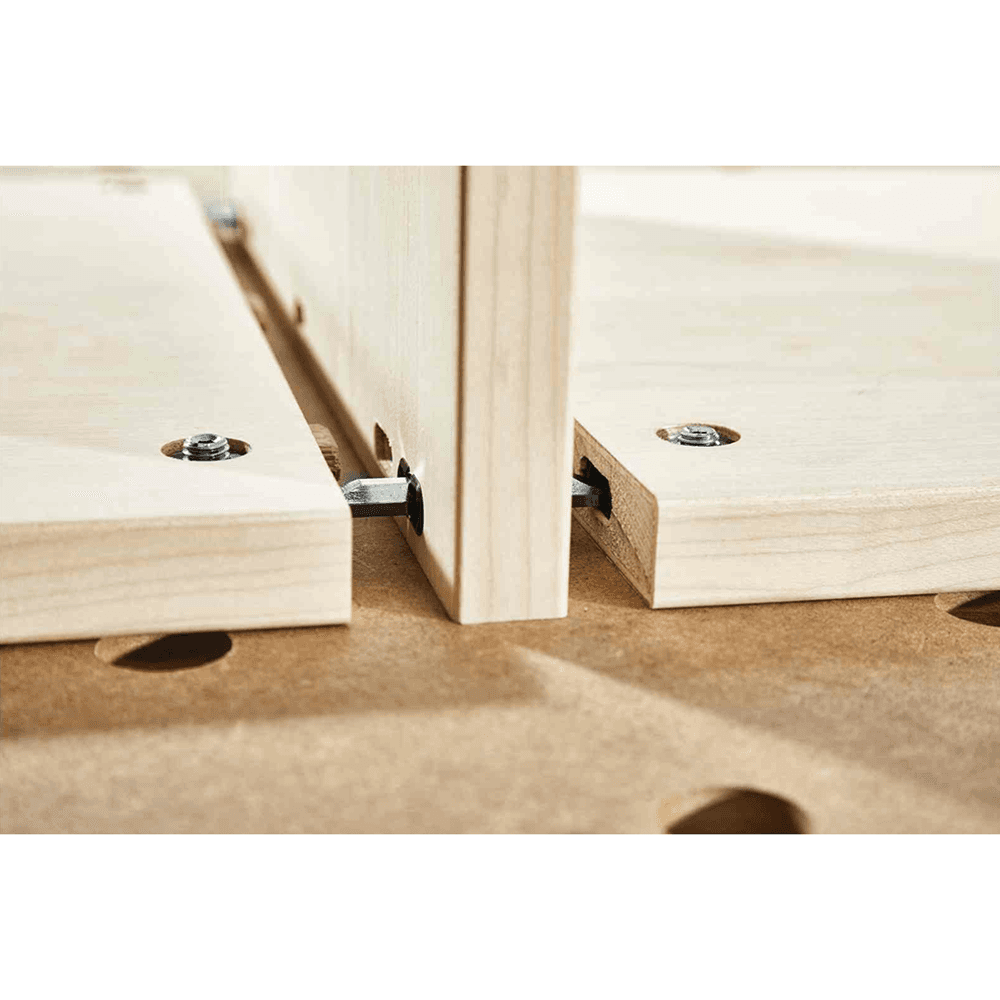

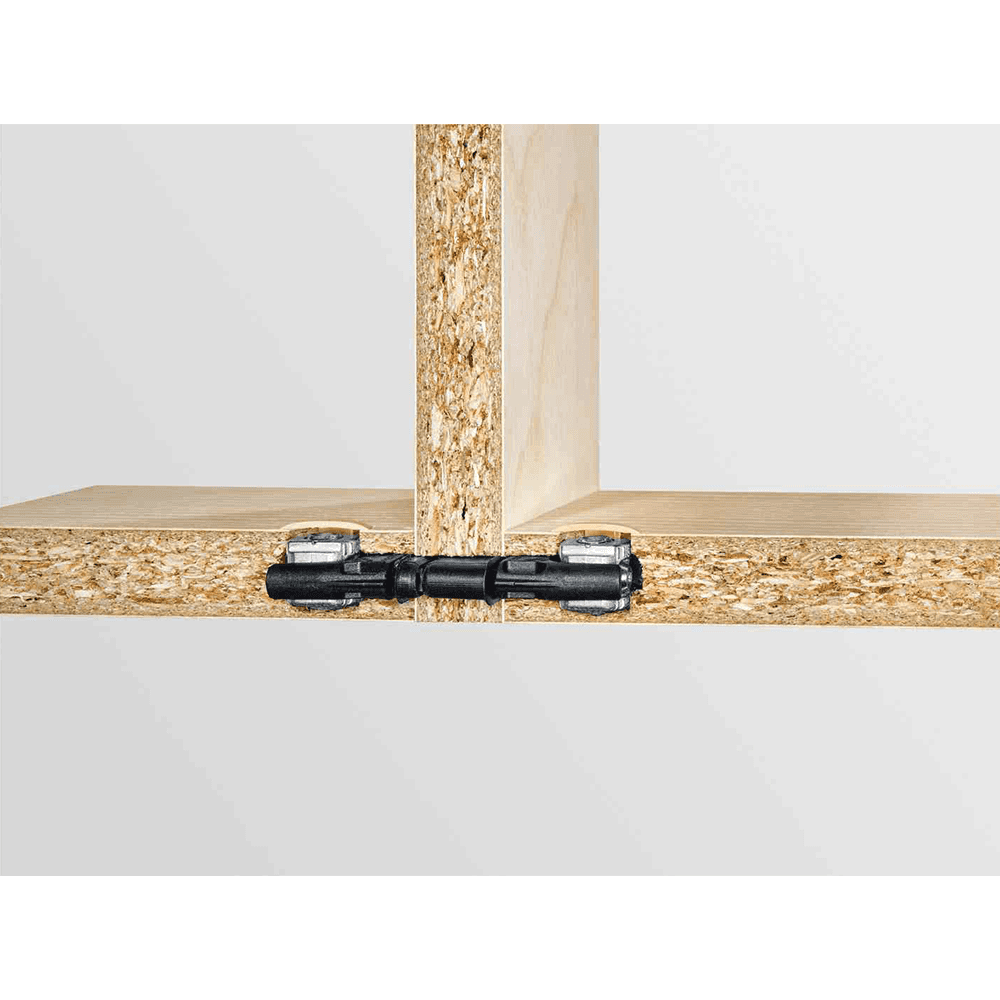

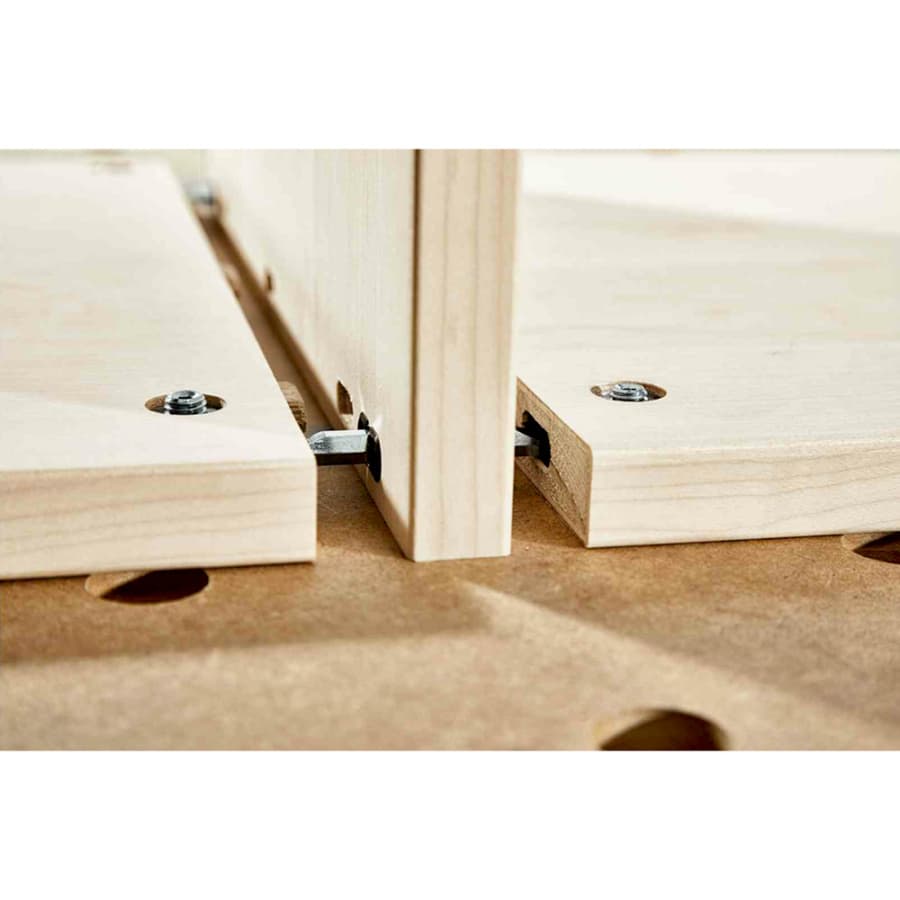

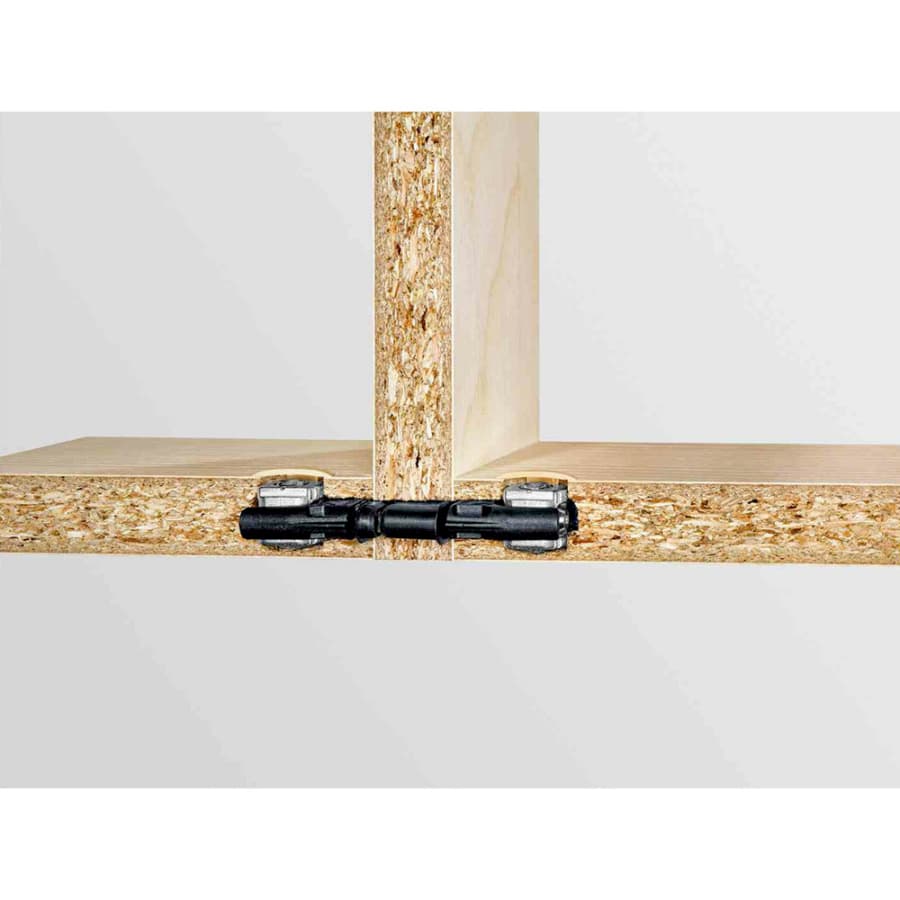

for 25 center panel joints with the DF 500
• drill template is required for drilling holes in the surface of the Domino D 8 mm joint fixture
• The Domino/Domino MSV D8/25 connector is positioned both in the cupboard panel and the base of the structure with the Domino jointer DF 500
Items included:
• 25x bolt with external thread for Domino center panel connector
• 25x bolt with internal thread for Domino center panel connector
• 50x Plastic trays
• 50x Cross anchor with threaded pin
• without cover caps
Features:
• The clever Domino system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• The connector's large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• The flush-screwed fixture elements protect each furniture component from being scratched
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The new detachable Domino basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
for 25 center panel joints with the DF 500
• drill template is required for drilling holes in the surface of the Domino D 8 mm joint fixture
• The Domino/Domino MSV D8/25 connector is positioned both in the cupboard panel and the base of the structure with the Domino jointer DF 500
Items included:
• 25x bolt with external thread for Domino center panel connector
• 25x bolt with internal thread for Domino center panel connector
• 50x Plastic trays
• 50x Cross anchor with threaded pin
• without cover caps
This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Centre Panel Connector |
| Length | |
| Finish | |
| Diameter | |
| Panel Thickness | |
| Material | |
| Drilling Depth | |
| Drilling Distance |
