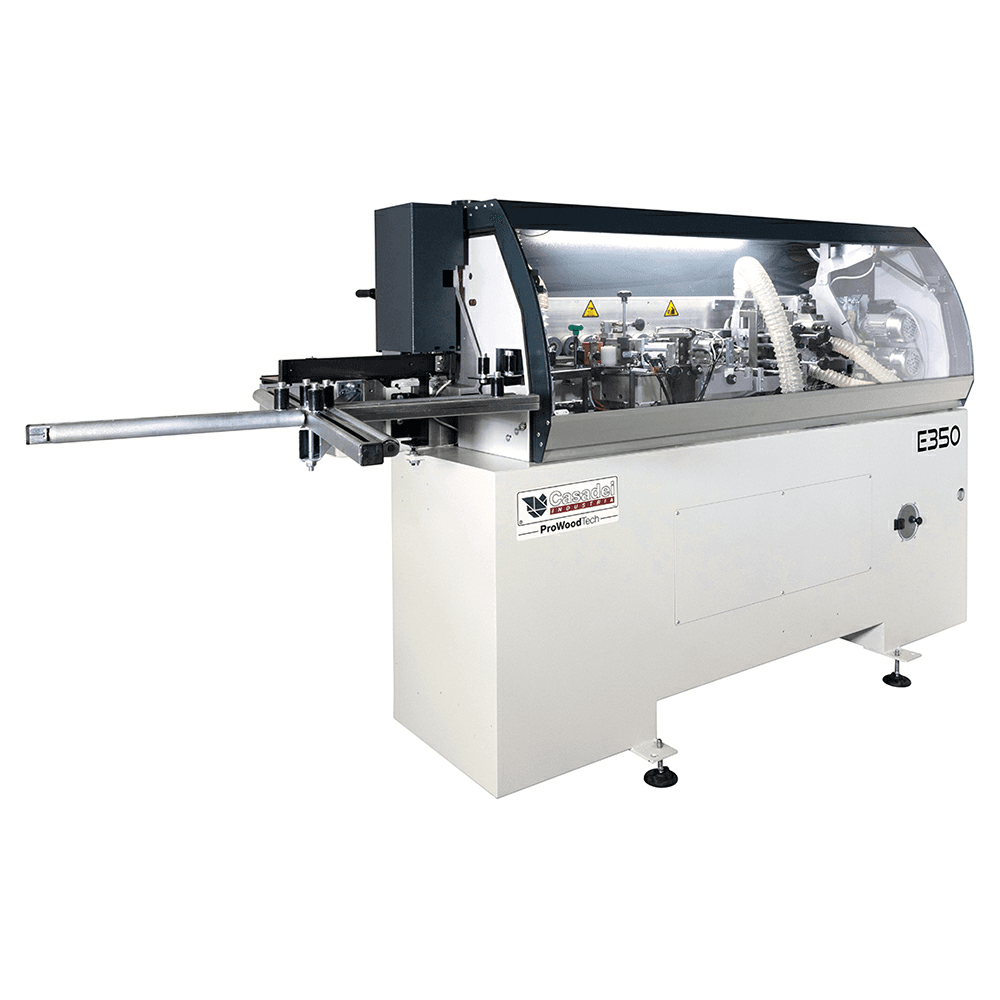

Casadei E350PM Automatic Edgebander with Hot Melt Glue Pot (EVA)/Chain Panel Feeding and Pre-Milling
Product Details

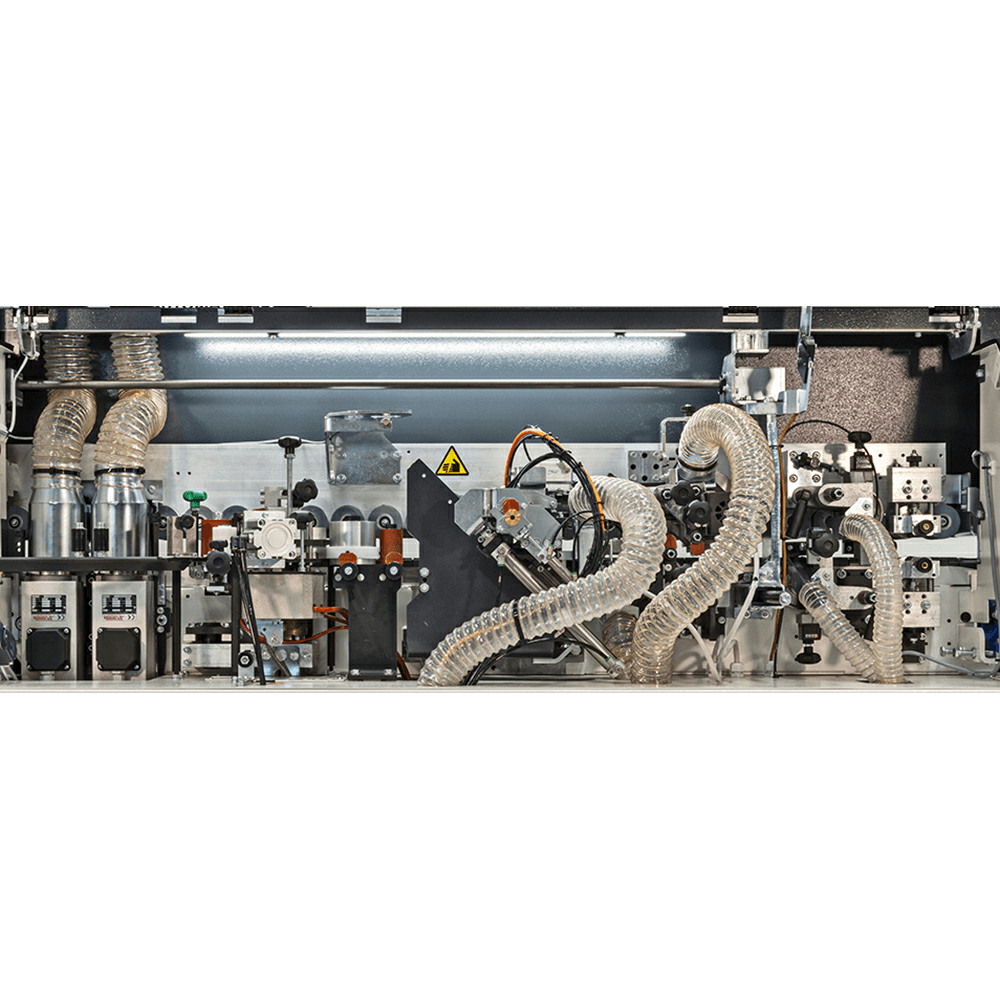

Features: • Thermostatic glue control with automatic stand-by and temperature indicator • Light-up LED buttons to select machine operating units • Diagnostic system with messages for machine use and maintenance • Statistical operating data: total hours of machine use, total and partial meters of edge used • Chain Panel feeder with rubber pads mounted on a steel chain with lubrication system • Top pressure bar with a double row of rubber wheels mounted on bearings, with locking levers and position indicator • Pre milling group (E350 PM) with diamond cutter blocks and two (HF) high frequency motors with chipping collection hoods • 3 position infeed fence (E350 PM): 0-1-2mm (according to edge thickness) • Pneumatic edge - cutting shear from coil with horizontal oscillatory movement • Edge feeding synchrony between panel and edge to guarantee a perfect glueing • Teflon-coated glue pot to allow complete and fast cleaning • Fitted with 6 electrical heating elements (4 in the glue pot, 1 in the turret and 1 inside the glue spreading roller) • 2 Floating pressure rollers • First 80mm aluminum, second rubber • Automatic front and rear edges end trimmer (shears) with follow-up system • Exclusion from the control panel. Absolute precision as no mechanical regulation is required • Flush Trimmers with Z4 75mm cutter blocks, widia disposable knives with combined profile • straight/radius 2mm/bevel with vertical disc copiers and numeric dials • Front extensible support for large panels with Polizene sliding fences • CE Legislation Maximum Finishing Quality • Chain feeding system • Pre-milling (E350PM) • 3 Free spaces for finishing units High Performance • 7m/min feed speed • 45mm panel height • 2mm edge coils Minimum space occupied • 2,30m length Easy to use • Unit settings with a piece of edge • Easy and intuitive use of machine Details of the Machine 3 Position Infeed Fence (E350 PM) • 0-1-2mm (according to edge thickness) Chain Panel Feeding • Firm grip of panel guaranteed by special non-slip rubber on the pads • Linear feeding ensured by double sliding tracks with a special geometric profile accurately machined with precision to a hundredth of a millimetre • Long lasting monolithic frame fully processed only in one cycle on a CNC machining centre Pressure Bar with Locking Levers • Top pressure bar with a double row of rubber wheels mounted on bearings, with locking levers and position indicator Pre-milling Unit (E350PM) • Invisible glueing line • Diamond tools = 60mm H = 52mm • HF motors 200 Hz – 12.000 rpm – 0.75 kW (each) • Dedicated suction system and blower for panel cleaning before glueing E350 Glueing Unit • Perfect glueing, quick and practical set-ups • 6 Heating elements to guarantee uniform glue temperature • Motorized glue spreading roller with an internal electrical heating element • Teflon-coated glue pot to permit complete and rapid cleaning Pneumatic Shear, Pressure Rollers, Edge Feeding System • Details that make the difference • Edge feeding synchronized with panel being processed • Oscillatory movement of the cutting shear unit to guarantee perfect glueing • Quick and precise positioning of the pressure rollers. The system """"reads"""" the edge thickness, making mistakes impossible! Trimming Cut-off • End trims front and rear excess edge • Working cycle controlled by PLC • Exclusion from control panel (PLC) Flush Trimming Unit • Flush trimming unit with vertical disc copiers as standard • Possibility of processing for edges from 0.4-2mm Anti-adherence/release Agent Spraying Unit • Instant perfect cleaning • Spray function controlled by PLC • 2 sprayers (lower and upper) and liquid tank Infrared Lamp • To guarantee the best glueing conditions • Creates the best conditions for perfect glueing • Heats panels and removes all traces of dampness
Specifications
| Box Quantity | 1 |
