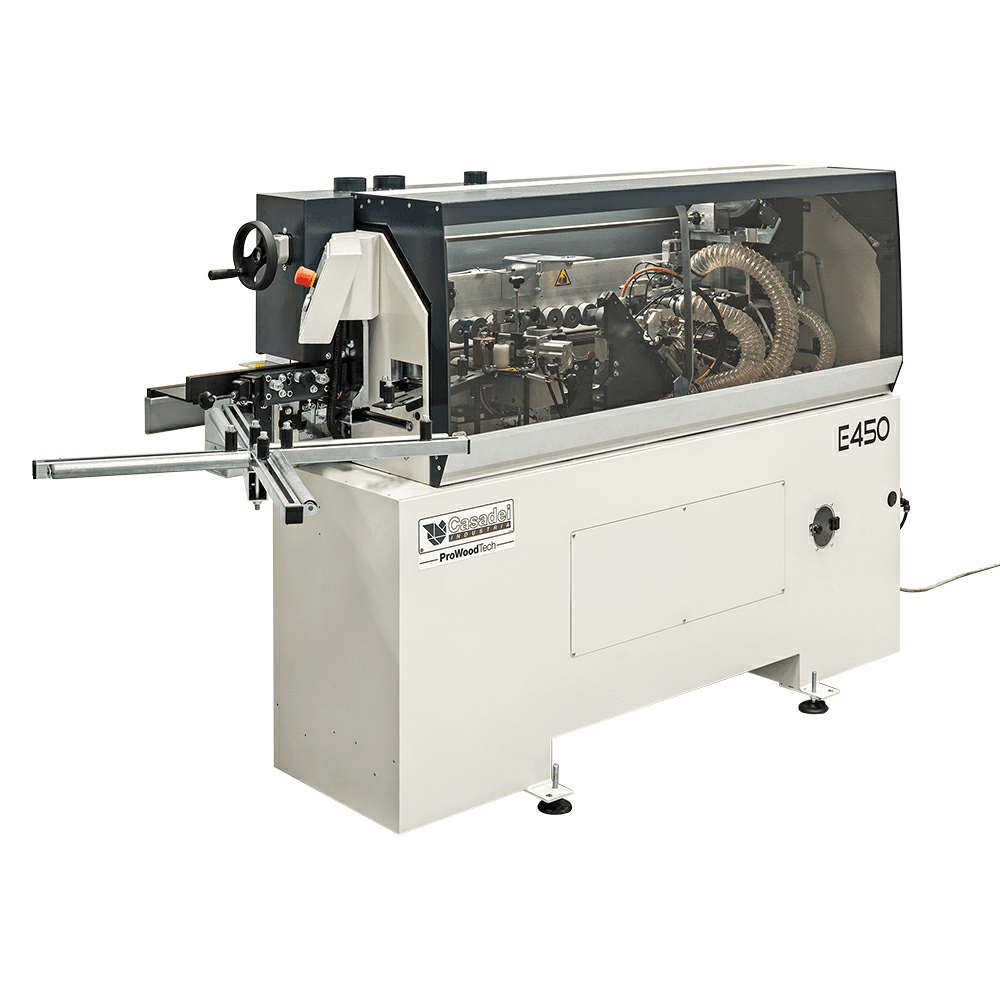

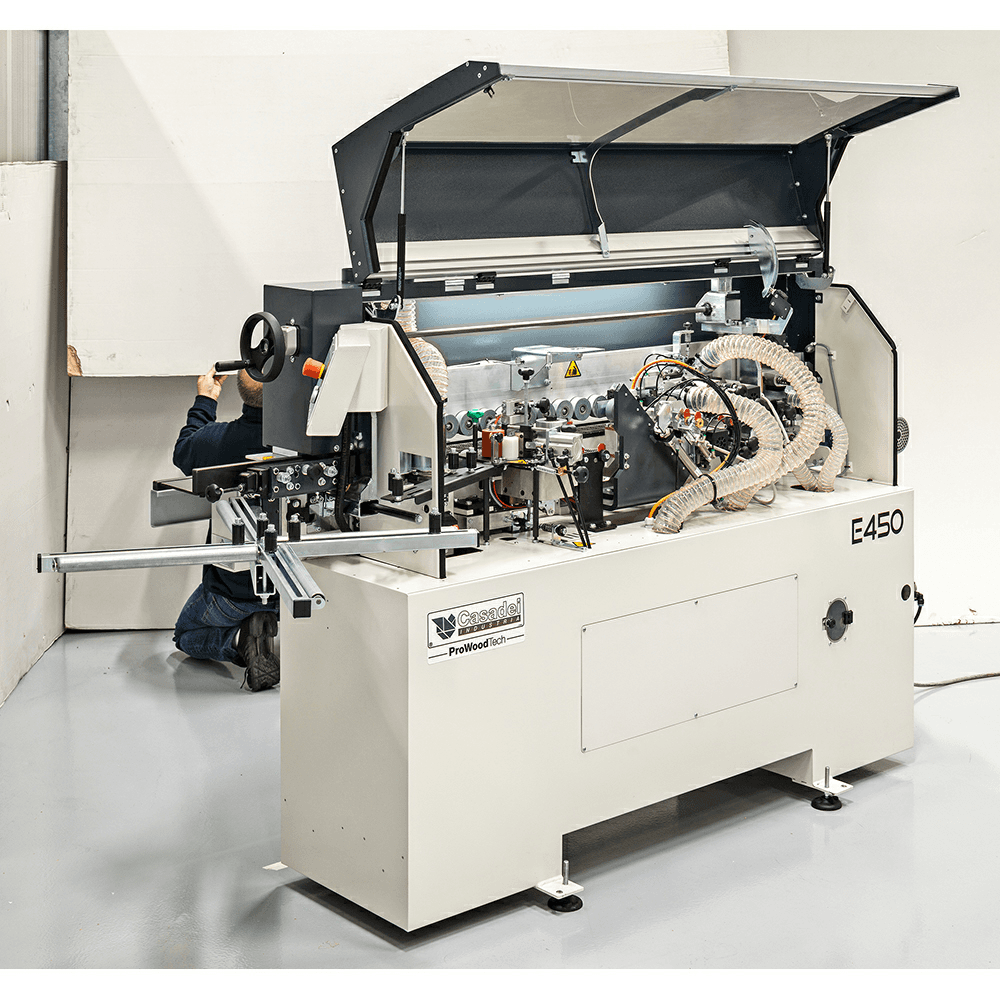

Casadei E450PM Automatic Edgebander with Inferior Holt-Melt Glue Pot (EVA)/Chain Panel-Feeding and Pre-Milling
Product Details

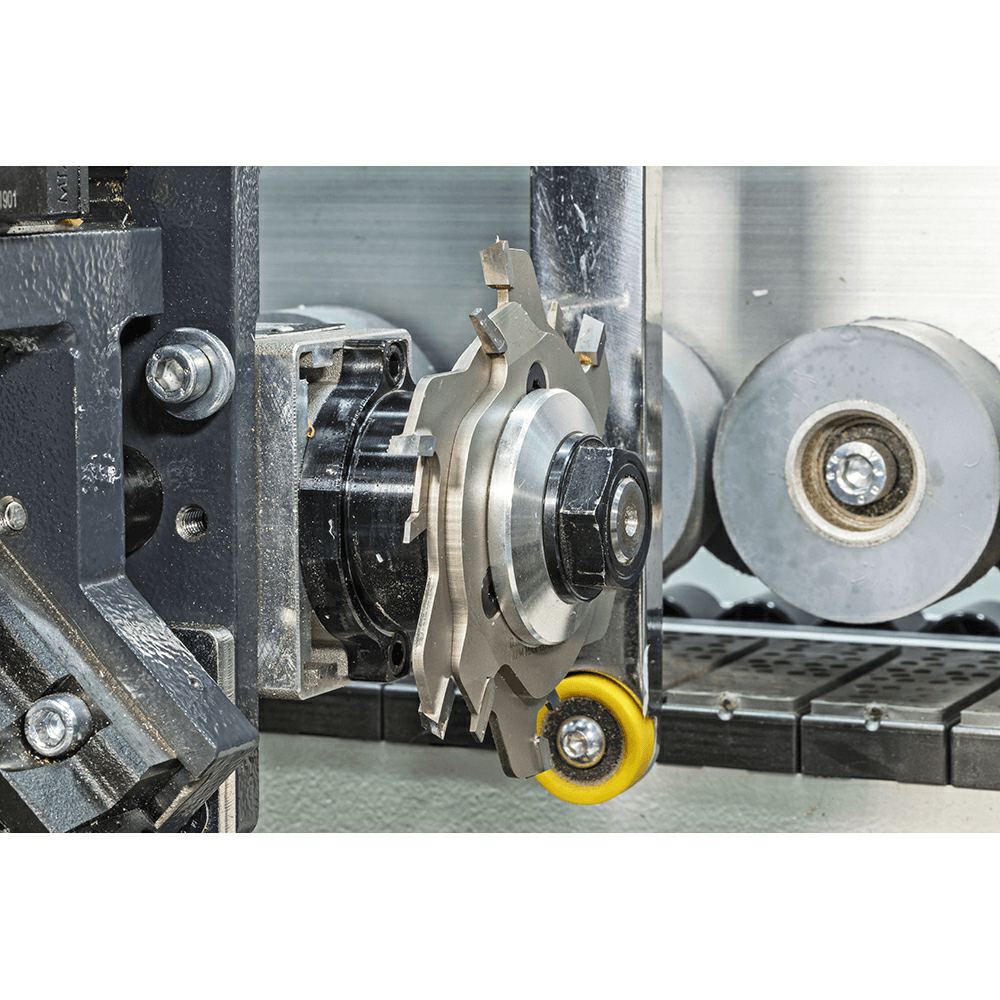

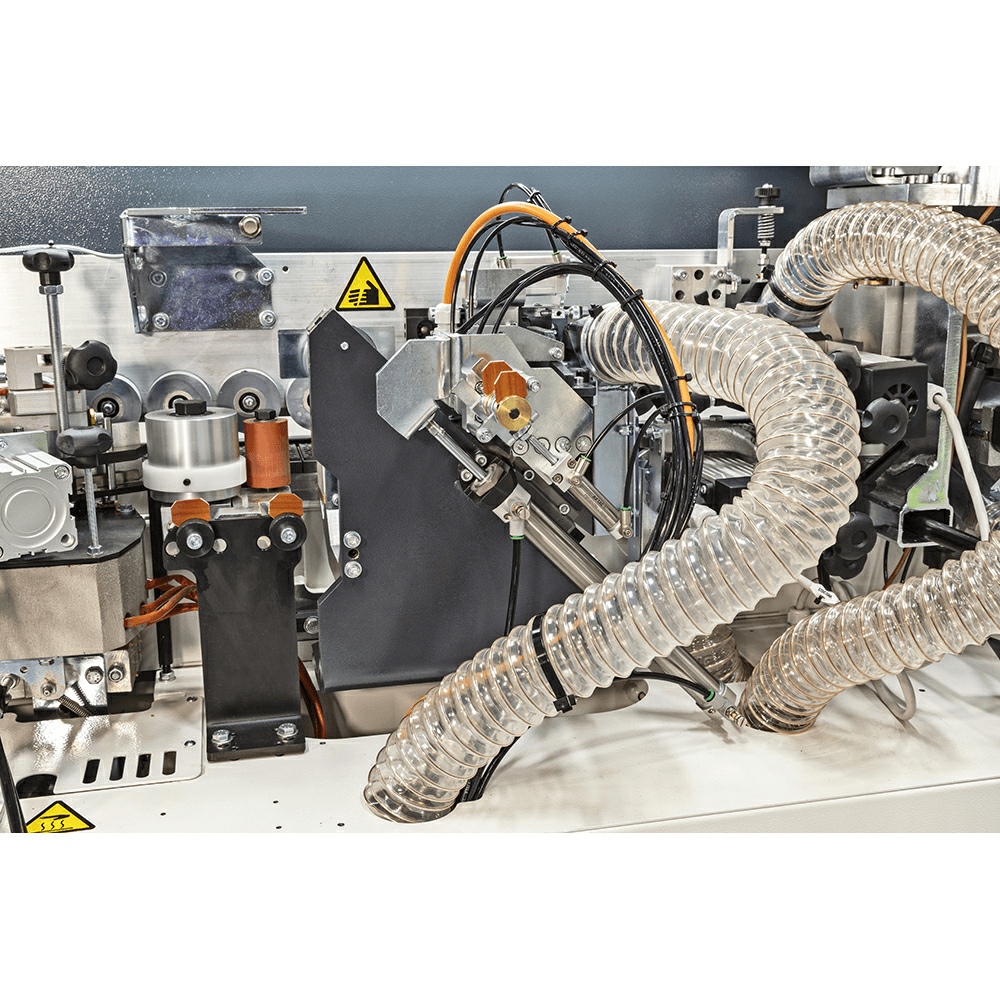

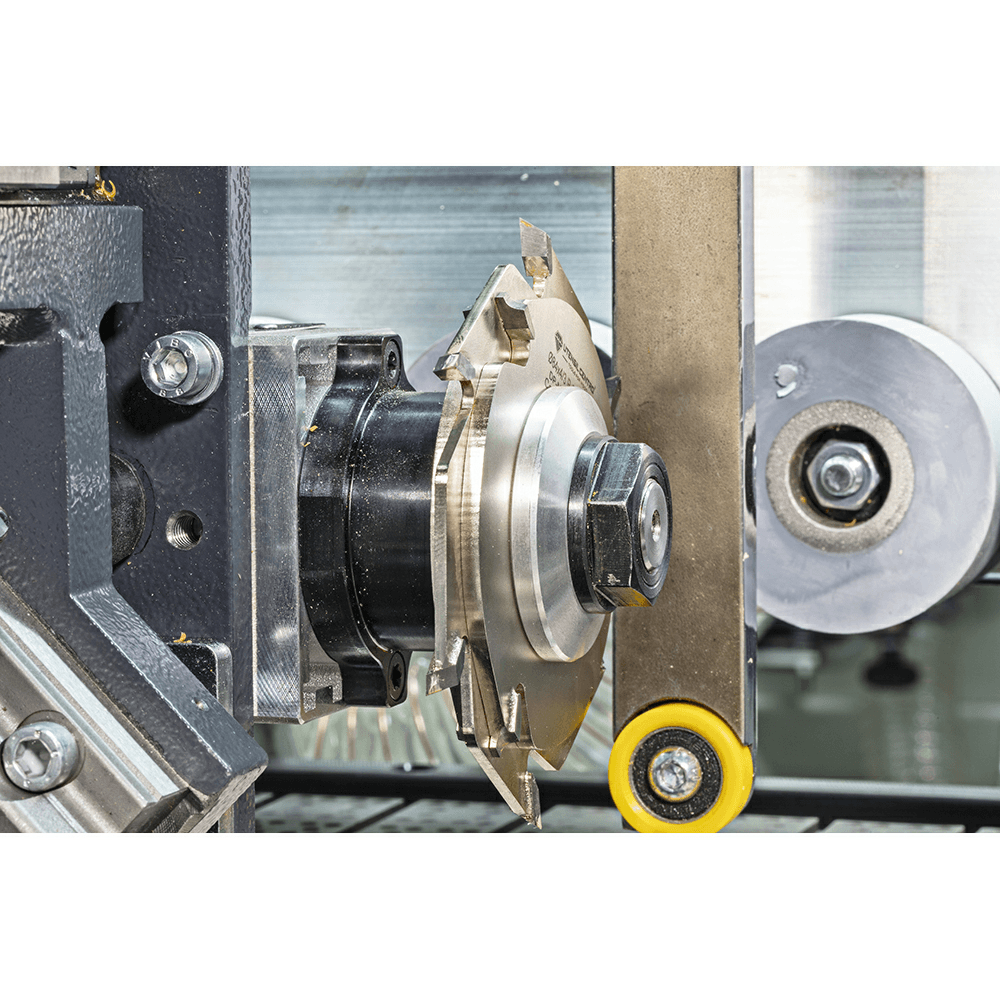

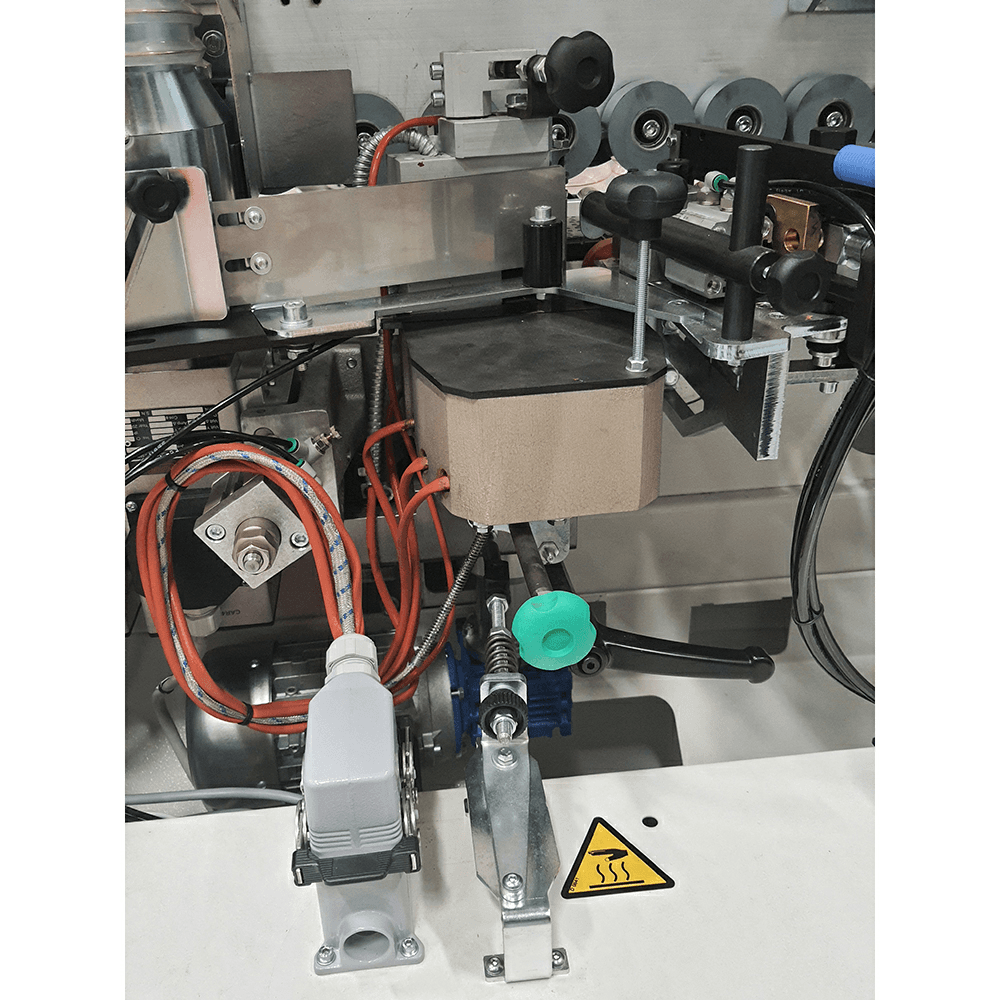

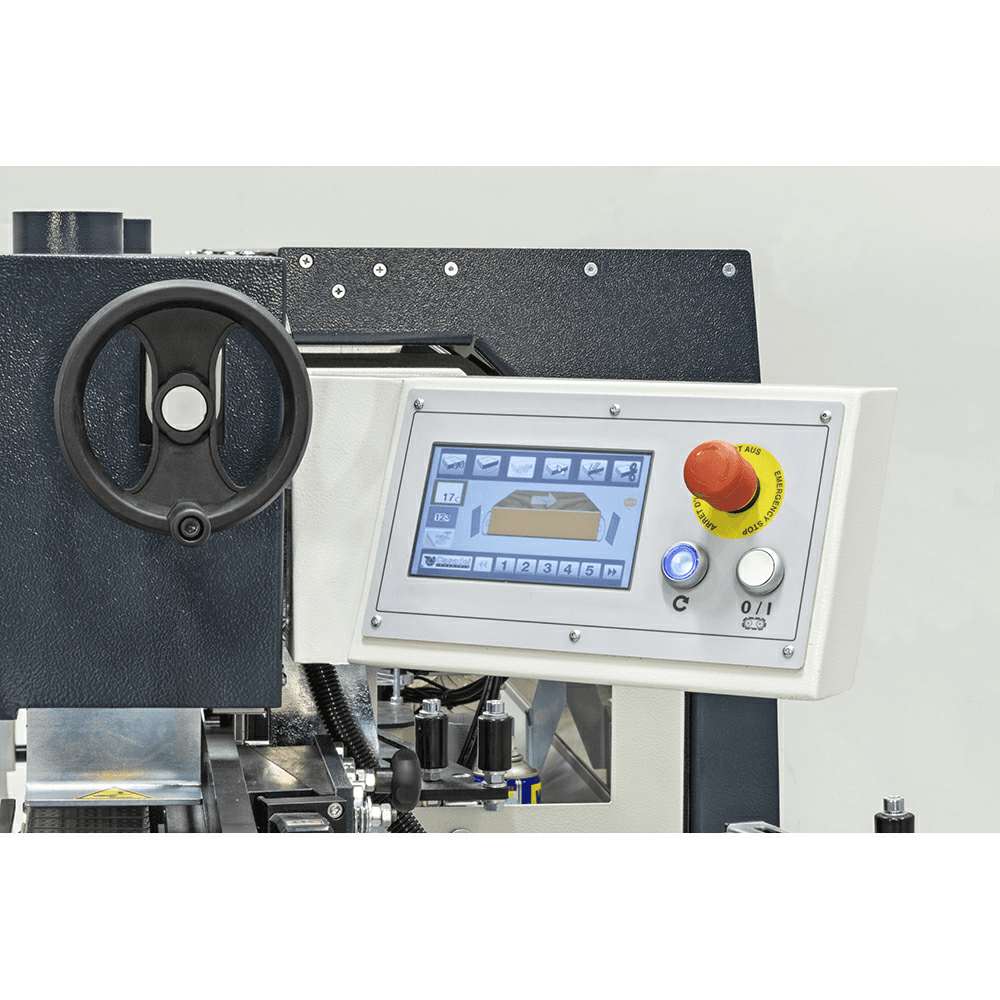

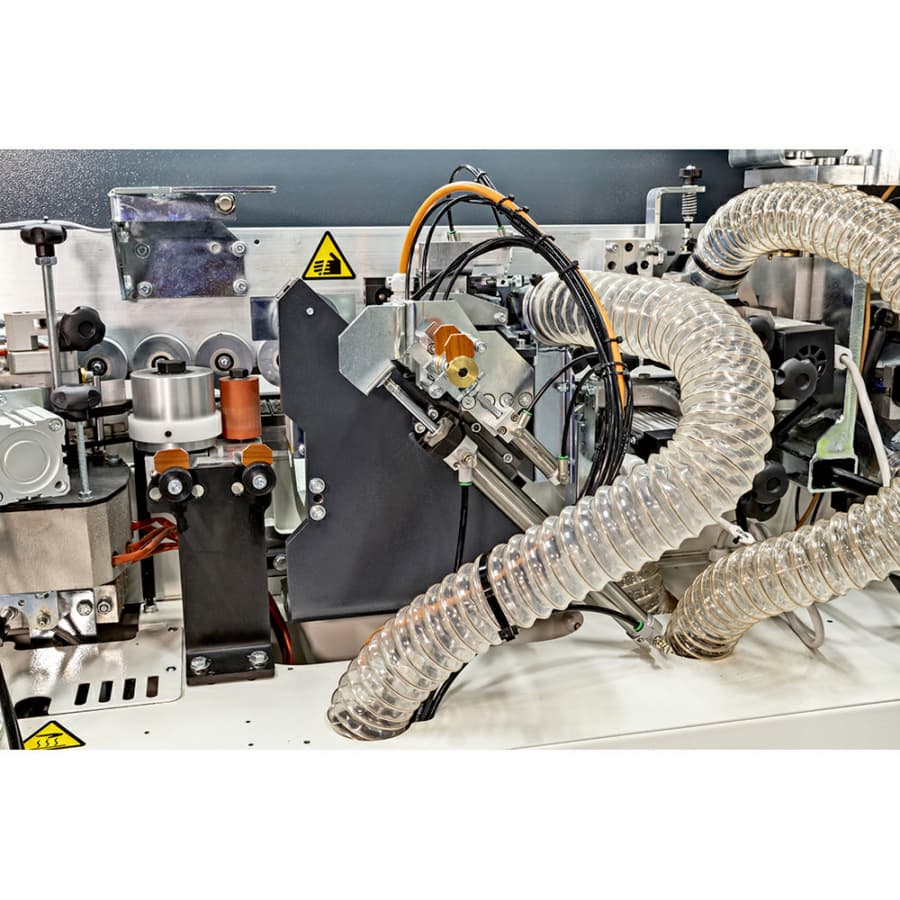

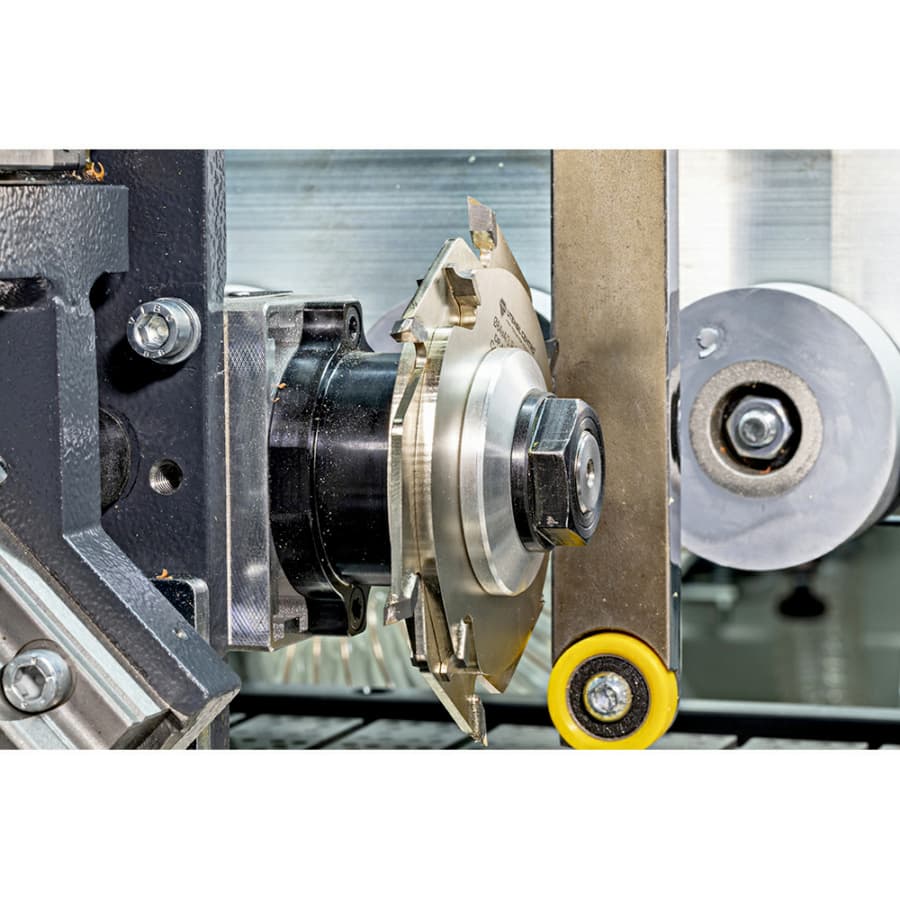

Features: • Thermostatic glue control with automatic stand-by and glue temperature indicator • Light-up LED buttons to select machine operating units • Diagnostic system with messages for machine use and maintenance • Statistical operating data: total hours of machine use, total and partial meters of edge used • Chain panel feeder with rubber pads mounted on a steel chain with lubrication system • Top pressure bar with a double row of rubber wheels mounted on bearings, height can be adjusted by means of a handwheel fitted with a metric dial • Pre milling group with diamond cutter blocks and two (HF) high frequency motors • Infeed fence with micrometric adjustment Variable milling from 0 to 2mm, adjustable with a knob and numerical dial • Edge feeding synchrony between the panel and the edge to guarantee a perfect glueing • Pneumatic edge - cutting shear from coil with horizontal oscillatory movement • Teflon-coated glue pot allows complete and fast cleaning • Fitted with 6 electrical heating elements (4 in the glue pot, 1 in the turret and 1 inside the glue spreading roller) • 2 Floating pressure rollers • First 80mm aluminum, second rubber • Automatic front/rear end trimming unit (straight cut) with copiers and integrated chipping collection • Possibility of independent front/rear cut selection from PLC • End trimming unit tool 2 x 80mm • 3 positions flush trimming unit with 2 (HF) high frequency motors. (HF) Z4 75mm cutter blocks, WIDIA disposable knives, Combined profile: Radius/bevel 2mm Vertical disc copier • Front extensible support for large panels with Polizene sliding fences • CE Legislation Maximum Finishing Quality • Chain feeding system • Pre-milling • Interchangeable glueing unit flex (opt.) • 2 spaces for finishing units High Performance • 7m/min feed speed • 45mm panel height • 3mm edge coils • 5mm solid wood strips Minimum Space Occupied • 230m length Easy To Use • Unit settings with a piece of edge • Easy and intuitive use of machine Details of the Machine Pre-milling with Diamond Cutter blocks (E450PM version) • Feeding fence with micrometric adjustment and numerical dial for the measurement of the removal • Variable milling up to 2mm max with 8 - 50mm panel height • Diamond tools = 60mm H = 54mm • HF motors 200 Hz – 12.000 rpm – 0.75 kW (each) • Dedicated suction system and blower for panel cleaning before glueing Chain Panel Feeder with Rubber Pads • Feed speed 7 m/min • Top bar with double row of rubber rollers adjustable in height VR1 or VS1 End Trimming Group with Vertical Rounding or Bevel Function (Opt) • VR1 or VS1 end trimming group to remove and mill edge excess on front/rear side of the panel 2 processing modes • Unit managed by the electronic control with the possibility to specifically choose the processing mode for the front and the rear of the panel • High frequency motor 0,22kW – 12.000 RPM • Integrated dust extraction system that includes the la extractor hood of the wood chips and flexible hose for connection to the external port D=120mm • Interchangeable glueing unit "Flex" (opt.) • Interchangeable glueing pot Teflon-coated to permit complete and rapid cleaning • Quick release device for fast and easy replacement of the glue pot • Interchangeable glueing pot Teflon-coated to permit complete and rapid cleaning • Glue pot capacity 1 kg • Thermal regulation settable on two different temperatures based on the type of glue used • Automatic standby during the work breaks Touchscreen control Easy to use, Intuitive and Immediate • 4" Colour display standard - 7" Colour display Opt • Possibility of processing with storable programs • Impossible to go wrong; the graphic visualizes • directly the result of the process on the edged panel • Just one click to choose the desired workmanship Feeding Fence • Feeding fence with micrometric adjustment and numerical dial for the measurement of the removal • Variable milling up to 2mm max with 8 - 50mm panel height Glueing Unit • 6 heating elements to guarantee uniform glue temperature • Motorized glue spreading roller with an internal electrical heating element • Teflon-coated glue pot to permit complete and rapid cleaning Pneumatic Shear, Pressure Rollers, Edge Feeding System • Edge feeding synchronized with panel being processed • Oscillatory movement of the cutting shear unit to guarantee perfect glueing • Quick and precise positioning of the pressure rollers • The system "reads" the edge thickness, making mistakes impossible! Infrared lamp • Creates the best conditions for perfect glueing • Heats panels and removes all traces of dampness
Specifications
| Box Quantity | 1 |
