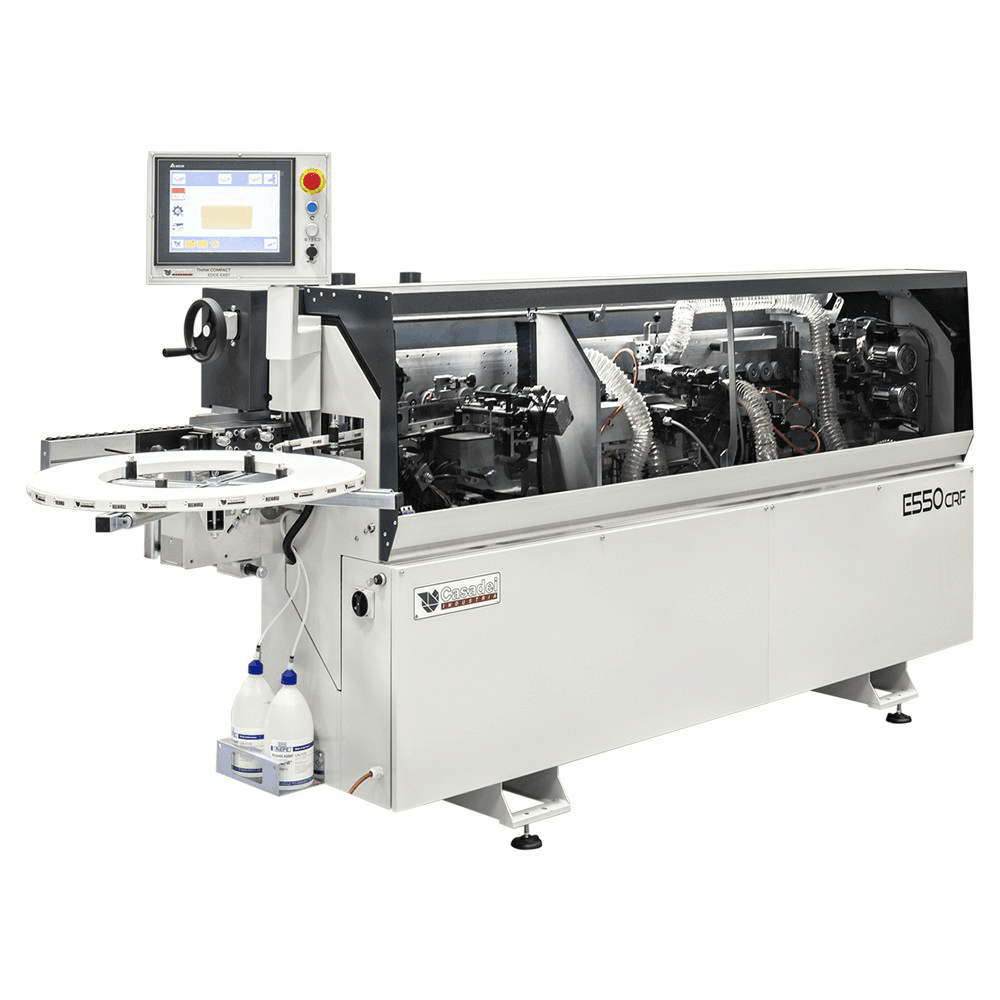

Casadei E550F Automatic Edgebander with Inferior Glue Pot Hot Melt (EVA)/Chain Panel-Feeding and Pre-Milling
Product Details
Features: • Thermostatic glue control with automatic stand-by and glue temperature Indicator in case not using • Diagnostic system with messages for machine use and maintenance • Statistical operating data: total hours of machine use, total and partial meters of edge used • Chain panel feeder with rubber pads mounted on a steel chain with lubrication system • Top pressure bar with a double row of rubber wheels mounted on bearings, height can be adjusted by means of a handwheel fitted with a metric position dial • Pre milling group with diamond cutter blocks and two (HF) high frequency motors with Independent movement • Feeding fence with micrometric adjustment Variable milling from 0 to 2mm, adjustable with a knob and numerical dial • Edge Feeding synchrony between the panel and the edge to guarantee a perfect gluing • Pneumatic edge - cutting shear from coil with horizontal oscillatory movement • Teflon-coated glue pot allows complete and fast cleaning • Fitted with 6 electrical heating elements (4 in the glue pot, 1 in the turret and 1 inside the glue spreading roller) • No. 2 Floating pressure rollers: First 80mm aluminum, second rubber • Automatic Front/Rear End Trimming unit (straight cut) with copiers and integrated chipping collection • Possibility of independent front/rear cut selection from PLC • HF (High Frequency) motors • End trimming unit blade 2 x 100mm • 3 positions flush trimming unit with 2 (HF) high - frequency motors. (HF) Z4 75mm cutter blocks, WIDIA disposable knives, Combined profile: Radius/bevel 2mm Vertical disc copier • Corner Rounder for plastic edges with Z4 50mm DIAMOND cutter 2mm radius profile Std • sliding of the group with pad on linear guides • Front copier with stainless steel ring pad • Vertical/horizontal copier with 50mm diameter wheel • Front extensible support for large panels with Polizene sliding fences • CE Legislation Maximum Finishing Quality • Chain feeding system • Pre-milling • Corner rounding unit (E550 CRF) • 3 free spaces for finishing units High Performance • 9 m/min feed speed • 50mm panel height • 3mm edge coils • 5mm solid wood strips Minimum Space Occupied • 3.2 m (E550 F) • 3.7 m (E550 CRF) Easy To Use • Unit settings with a piece of edge • Easy and intuitive use of machine • Flush trimmers with multiprofile tool (thin-radius-solid wood)
Details of the Machine
Touchscreen Control • Touchscreen control - Easy to use, Intuitive and Immediate • 7", Option 10"’ Colour display • Possibility of processing with storable programs • Impossible to go wrong; the graphic visualizes directly the result of the process on the edged panel • Just one click to choose the desired workmanship Gluing Unit • Perfect Gluing, Quick and Practical set-ups • 6 heating elements to guarantee uniform glue temperature • Motorized glue spreading roller with an internal electrical heating element • Inferior Teflon-coated glue pot to permit complete and rapid cleaning Corner Rounding Unit (E550 CRF) • Finishing of front and rear corners on straight, bevelled and postformed panels • Diamond cutter block • Possibility to Select from PLC the processed front, rear or complete panel VR2 or VS2 End Trimming Group with Vertical Rounding or Bevel Function (Opt) • VR2 or VS2 end trimming group to remove and mill edge excess on front/rear side of the panel 2 Processing Modes: • "VR2" radius (ABS and PVC thick edges) straight (thin edges and wooden strips) or "VS2" bevel (thin edges) straight (thin edges and wooden strips) • Unit managed by the electronic control with the possibility to specifically choose the processing mode for the front and the rear of the panel • High frequency motor 0,27kW End Trimming Unit: Performance and Versatility • 2 blades for perfect front/rear end trimming on all types of edges • Operating cycle controlled by PLC • HF motor 200 Hz - 12.000 rpm • Integrated suction system Flush Trimming unit: Three Processes • Quick changes between machining processes for thin edge, radiused edge and solid edge • The system "reads" the edge thickness, making mistakes impossible • No. 2 motors HF 200 Hz. - 12.000 rpm - 0,37 Kw Infrared Lamp: To Guarantee The Best Gluing Conditions • Creates the best conditions for perfect gluing • Heats panels and removes all traces of dampness Anti-Adherence/Release Agent Spraying Unit (optional.): Instant Perfect Cleaning • Spray function controlled by PLC • 2 sprayers (lower and upper) and liquid tank Cleaning Spray Agent Unit (optional): Mirror Finishing • Spray function controlled by PLC • 2 sprayers (lower and upper) and liquid tank Extra panel supporting roller conveyor (optional) • Improves the processing of large panels, E550F/E550CRF, L 2594mm / L 3080mm Interchangeable Inferior Gluing Unit "Flex" (Opt): Maximum Flexibility • Quick release device for fast and easy replacement of the glue pot • Interchangeable inferior gluing pot Teflon-coated to permit complete and rapid cleaning • Glue pot capacity 1 kg • Automatic standby during the work breaks Edge Scraper with Optional • Edge scraper unit Recommended for perfect finishing of the edge of plastic material • Regulation with numeric indicators • Blowers for detachment and discharge of wood chips • Pneumatic exclusion managed by touchscreen control OptSpecifications
| Box Quantity | 1 |
