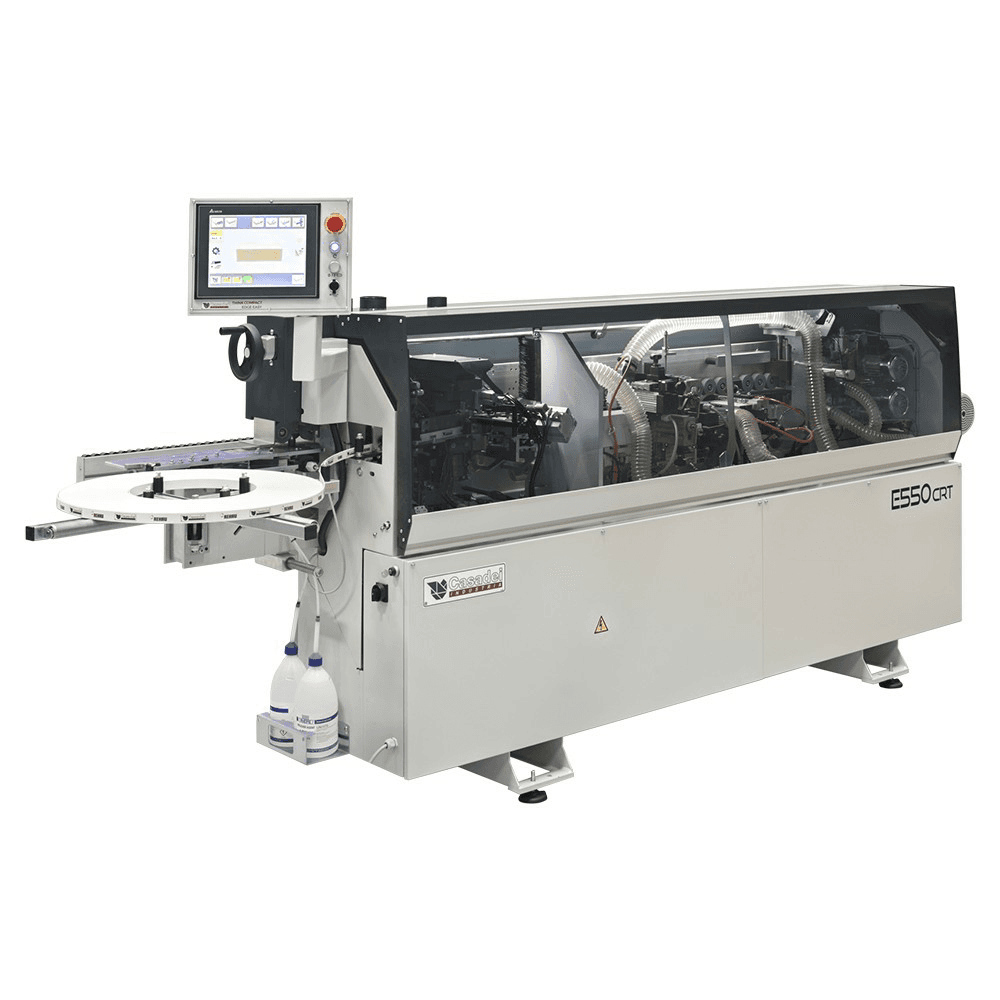

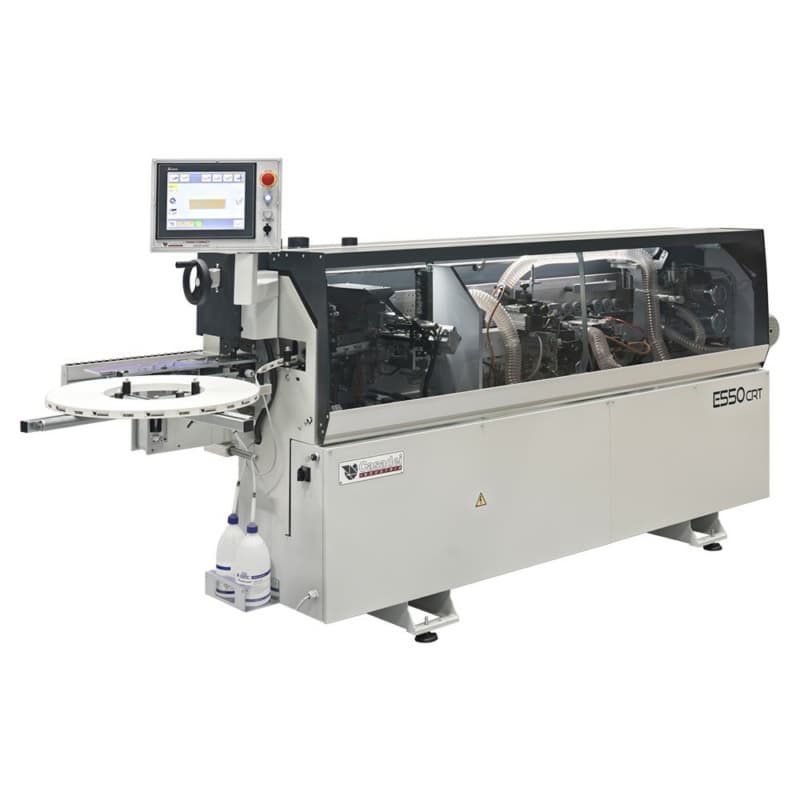

Casadei E550T Automatic Edgebander with Hybrid Superior Hot Melt (EVA)/PUR Polyurethanic
Product Details

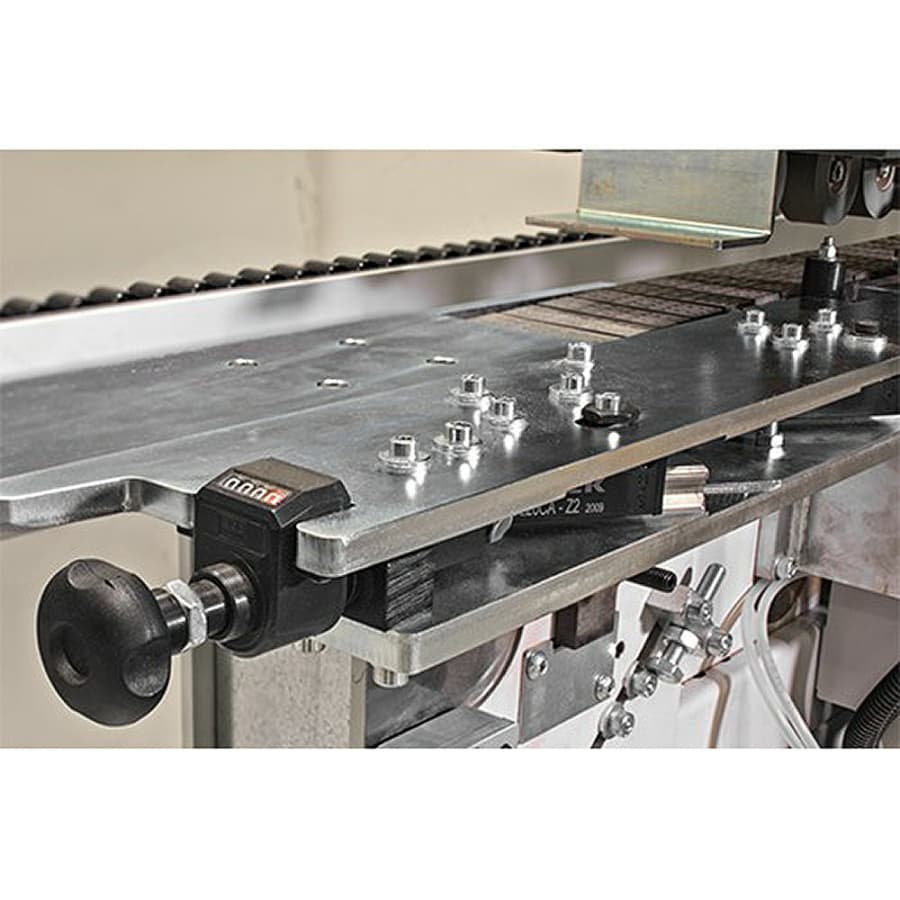

Features: • Thermostatic glue control with automatic stand-by and glue temperature Indicator in case not using • Diagnostic system with messages for machine use and maintenance • Statistical operating data: total hours of machine use, total and partial meters of edge used • Chain panel feeder with rubber pads mounted on a steel chain with lubrication system • Top pressure bar with a double row of rubber wheels mounted on bearings, height can be adjusted by means of a handwheel fitted with a metric position dial • Pre milling group with diamond cutter blocks and two (HF) high frequency motors with Independent movement • Feeding fence with micrometric adjustment Variable milling from 0 to 2mm, adjustable with a knob and numerical dial • Edge Feeding synchrony between the panel and the edge to guarantee a perfect glueing • Pneumatic edge - cutting shear from coil with horizontal oscillatory movement • Teflon-coated glue pot allows complete and fast cleaning • Fitted with 6 electrical heating elements (4 in the glue pot, 1 in the turret and 1 inside the glue spreading roller) • Gluing unit with standard EVA/PUR upper glue pot • Allows you to work with both polyurethane glue (PUR) and EVA glue • With the latest generation of PUR glues, it is possible to stop the machine for several days (up to 4) without having to perform any cleaning operation • Manual granule loading (tank capacity 1.4 kg) • Automatic setting by PLC of temperature parameters depending on the glue used • Automatic glue spreader roller cleaning cycle • Rapid glue unloading cycle • Optional glue roller rotation inversion device for special processes • Quick cleaning or glue change approx. 15 min • Quick release device for quick and easy replacement of the glue pot • Possibility to replace the second glue pot with • EVA/PUR upper glue pot • EVA lower glue pot • No. 2 FLOATING pressure rollers • First 80mm aluminum, second rubber • Automatic Front/Rear End Trimming unit (straight cut) with copiers and integrated chipping collection • Possibility of independent front/rear cut selection from PLC • HF (High Frequency) motors • End trimming unit blade 2 x 100mm • 4 - positions flush trimming unit with 2 (HF) high - frequency motors • 75mm cutter blocks, with Widia multi - profile knives for easy change between thin edge, thickness 1mm, thickness 2mm and solid wood Vertical and front disc copier • Tool positioning with numerical dials • Front extensible support for large panels with Polizene sliding fences • CE Legislation Maximum Finishing Quality • Chain feeding system • Pre-Milling • Superior glueing pot EVA/PUR polyurethane (std.) • Standard interchangeability glue pot (std.) • Corner rounding unit (E550CRT) • 3 free spaces for finishing units High Performance • 9 m/min feed speed • 50mm panel height • 3mm edge coils • 5mm solid wood strips Minimum Space Occupied • 3.2 m (E550T) • 3.7 m (E550CRT) Easy to Use • Unit settings with a piece of edge • Easy and intuitive use of machine • Flush trimmers with multiprofile tool (thin-R1-R2- solid wood) Details of the Machine Touchscreen Control • Easy to use, Intuitive and Immediate • 10" Colour display • Possibility of processing with storable programs • Impossible to go wrong; the graphic visualizes directly the result of the process on the edged panel Just one • Just one click to choose the desired workmanship Glueing Unit PURE/EVA • It is possible to process material either with polyurethane (PUR) or EVA glue • With PUR glue it is possible to stop machine (up to 4 days) without having to effect any cleaning procedure • Automatic cleaning of glue spreader roller • Glue roller with integrated heating uniform and constant glue temperature • Granule manual loading (glue pot 1,4 Kg) • Automatic glue drainage cycle. allows the change of type of glue in around 15 min • Standard interchangeability which allows you to add a second additional glue pot both EVA/PUR and EVA Corner Rounding Unit CRT for Finishing Corners on Straight and Shaped Panels • Finishing of front and rear corners on straight, bevelled and postformed panels • Diamond cutter block • Possibility to select from PLC the processed front, rear or complete panel VR1 or VS1 End Trimming Group with Vertical Rounding or Bevel Function (Opt) • VR1 or VS1 end trimming group to remove and mill edge excess on front/rear side of the panel 2 Processing Modes • "VR1" radius (ABS and PVC thick edges) straight (thin edges and wooden strips) • "VS1" bevel (thin edges) straight (thin edges and wooden strips) • Unit managed by the electronic control with the possibility to specifically choose the processing mode for the front and the rear of the panel • High frequency motor 0,22kW – 12.000 RPM • Integrated dust extraction system that includes End Trimming Unit • Performance and versatility • 2 blades for perfect front/rear end trimming on all types of edges • Operating cycle controlled by PLC • Rotation speed pre-milling tool - 12.000 rpm • Integrated suction system Flush Trimming Unit • Four Processes • Quick changes between machining processes for thin edge, radiused edge and solid edge • The system “reads” the edge thickness, making mistakes impossible • No. 2 motors HF 200 Hz. - 12.000 RPM - 0,37 Kw • Pro Nesting, system for processing perforated panels (optional) Infrared Lamp • To guarantee the best glueing conditions • Creates the best conditions for perfect glueing • Heats panels and removes all traces of dampness Antistatic and Cooling Spray Unit (optional.) • Function of spray controller by PLC electrical • N.2 sprayers (bottom and top) and liquid tank • Suggested optional when the PUR gluing unit is foreseen • Alternatively you can choose the slipping liquid for glossy and delicated panels and edges (High-gloss) Cleaning Spray Agent Unit • Mirror finishing • Spray function controlled by PLC • 2 sprayers (lower and upper) and liquid tank Extra Panel Supporting Roller Conveyor • Improves the processing of large panels • E550T/E550CRT - L 2594mm x L 3245mm x L 3080mm Pre-Milling • Invisible glueing line • Diamond tools Ø= 60mm H= 54mm (E550 T) • Diamond tools Ø= 80mm H= 57mm (E550 CRT) • HF motors 200 Hz – 12.000 rpm – 0.75 kW (each) • Dedicated suction system and blower for panel cleaning before glueing Feeding Fence (E550T) • Practicality and precision • Feeding fence with micrometric adjustment and numerical dial for the measurement of the removal • Variable milling up to 2mm max with 8 - 50mm panel height Feeding Fence (E550 CRT) • Infeed guide with decimal adjustment complete with numeric indicator for measuring the removal • Movement through linear guides and pads with recirculating ball bearings for precise positioning • Maximum milling adjustment 2mm with panel height 8-50 m Anti-Adherence/Release Agent Spraying Unit • Instant perfect cleaning • Spray function controlled by PLC • 2 sprayers (lower and upper) and liquid tank Edge Scraper with Optionals • Perfect plastic edges even in backlight • Blowers for detachment and removal of shavings • Dust extraction system complete with box to separate and collect edge scraping shavings • Pneumatic exclusion managed by control touchscreen (optional) • Pro Nesting, system for processing perforated panels (optional) Glue Scraper with Optionals • Removal of excess glue • Copier discs with automatic cleaning system • Two separate knobs which allow an easy positioning of the tool and a fast exclusion of the unit • Pneumatic exclusion managed by control (optional) • Pro Nesting, system for processing perforated panels (optional)
Specifications
| Box Quantity | 1 |
