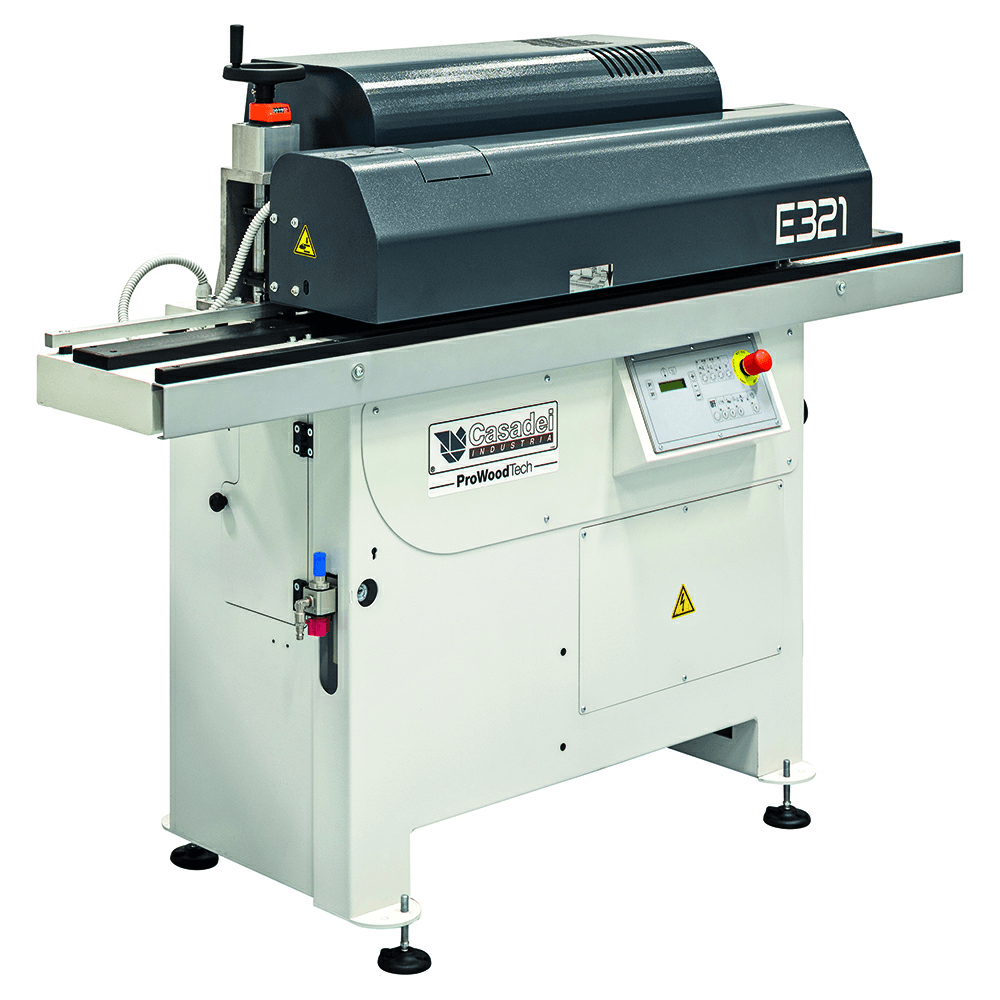

Casadei Automatic Edgebander with Hot-Melt Glue Pot (EVA)/Belt Panel Feeding
Product Details
Features: • Thermostatic glue control with automatic standby and temperature Indicator • Light-up LED buttons for machine operating units selection • Diagnostic system with messages for machine use and maintenance • Statistical operating data: total hours of machine use, total and partial meters of edge used • Automatic panel feeding by steel core toothed belt • 3 position infeed fence: 0-1-2mm (according to edge thickness) • Pneumatic edge cutting shears from coil • Teflon-coated glue pot fitted with 6 electrical heating elements (4 in the glue pot, 1 in the turret and 1 inside the glue spreading roller) for uniform glue temperature. Motorized glue spreading roller • 3 pressure rollers (1 rubber and 2 nylon) • Pneumatic End trimming unit with shears and follow-up system (front and rear edges), can be excluded from the control panel • One motor flush trimming unit (top-bottom) 10.300 RPM with Z4 75mm cutterblocks, WIDIA disposable knives, combined profile: straight/radius 2mm/bevel with vertical disc copiers and numeric dials • Working table length 1.800mm with 7 adjustable rollers and Polizene sliding fences • Front extensible support for large panels with Polizene sliding fences • CE Legislation The Advantages of the E321 Edge Bander • Very good bonding • Ready to use in a few minutes • Easy cleaning and maintenance • Quick edge changing • Quick adjustments according to edge used
Details of the Machine

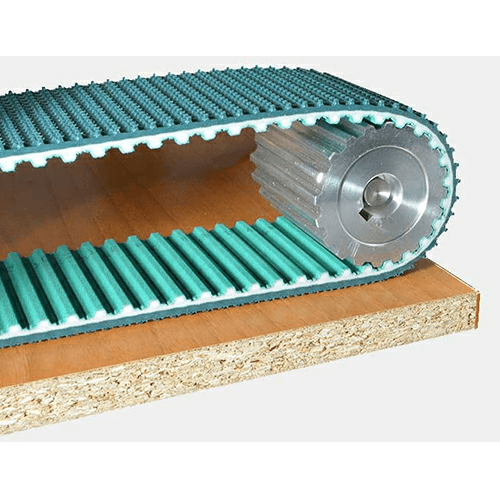

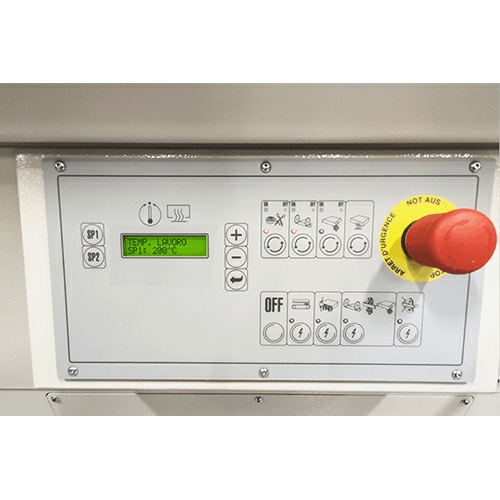

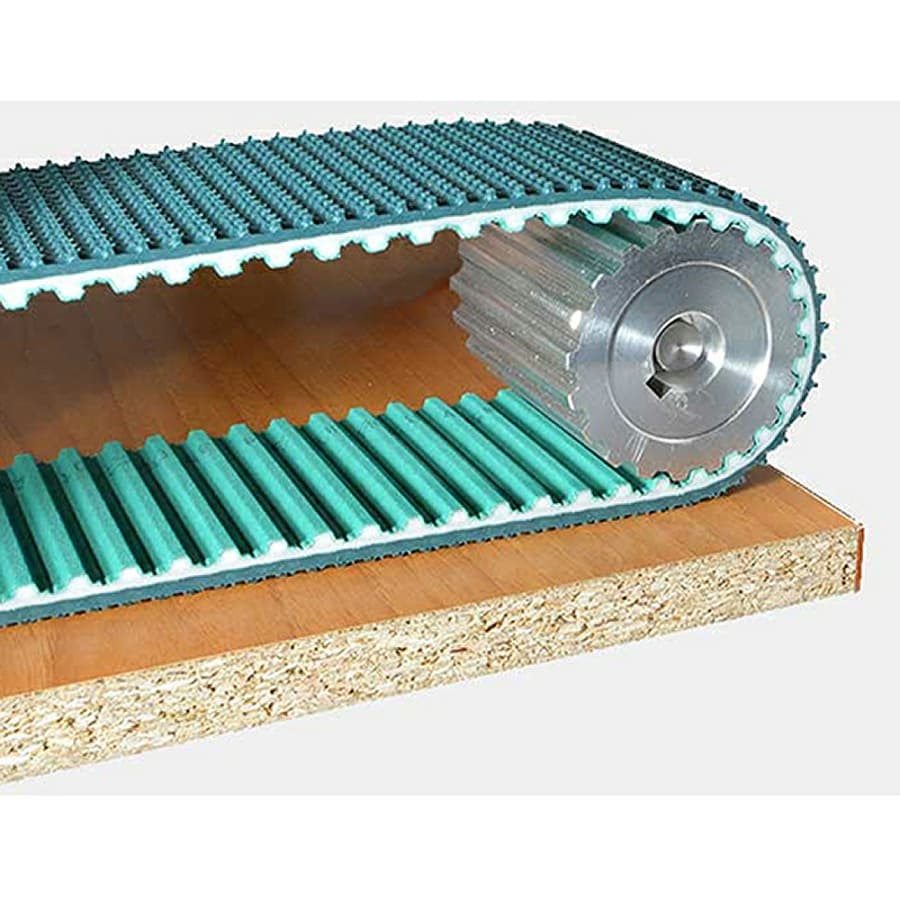

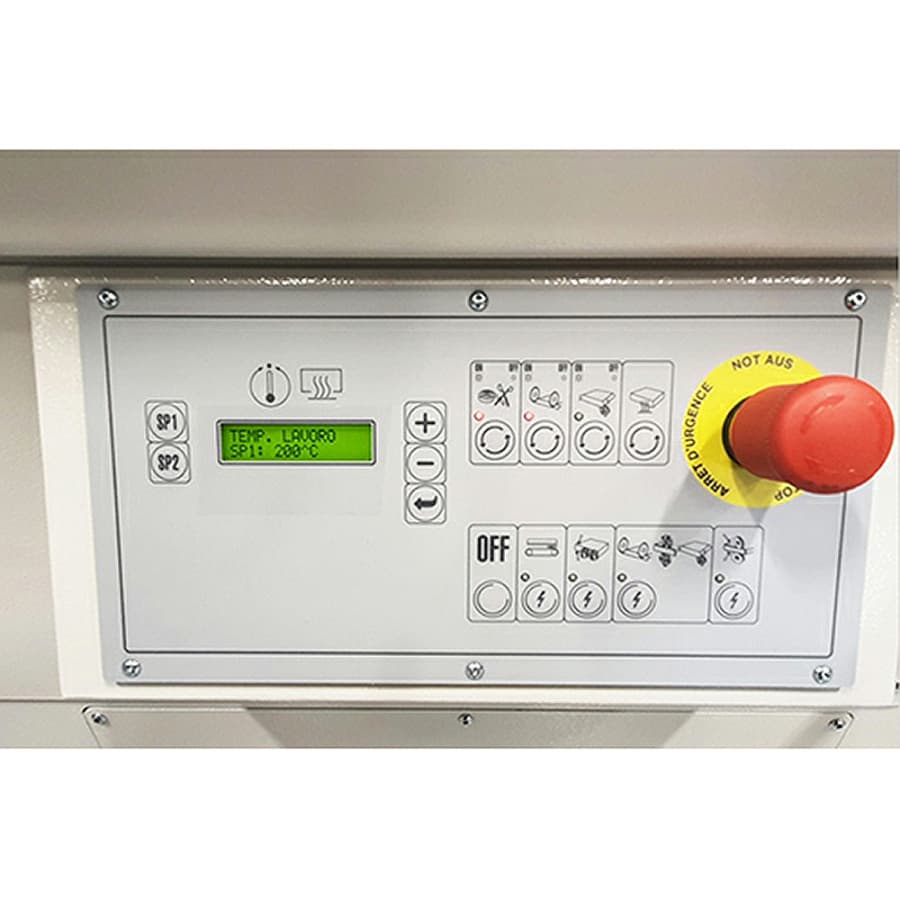

Teflon Coated Glue Pot • N.6 heating elements: 4 in glue pot, 1 on the tower and 1 inside motorized glue spreader roller • The motorized glue spreading roller, with electrical resistance inside, distributes a uniform layer of glue that can be adjusted in thickness on the side of the panel to be processedAutomatic Panel Feeder with Toothed Belt • Feeding speed 7 m/min • Toothed belt with steel strands inside for stiffness Working Table • Working table length 1800mm with Polizene sliding fences • N. 7 small rollers with adjustable angle position for panel side pushing. Each roller can be quickly taken out for easy cleaning • Front extensible support up to 60 cm with polizene sliding fence Logic Functioning Controller by PLC • Thermostatic glue control with automatic standby and temperature • Complete automation control of the various operating units • Diagnostics system with messages for machine use and maintenance • Statistical operating data: total hours of machine use, total and partial metres of edge used
Specifications
| Box Quantity | 1 |
