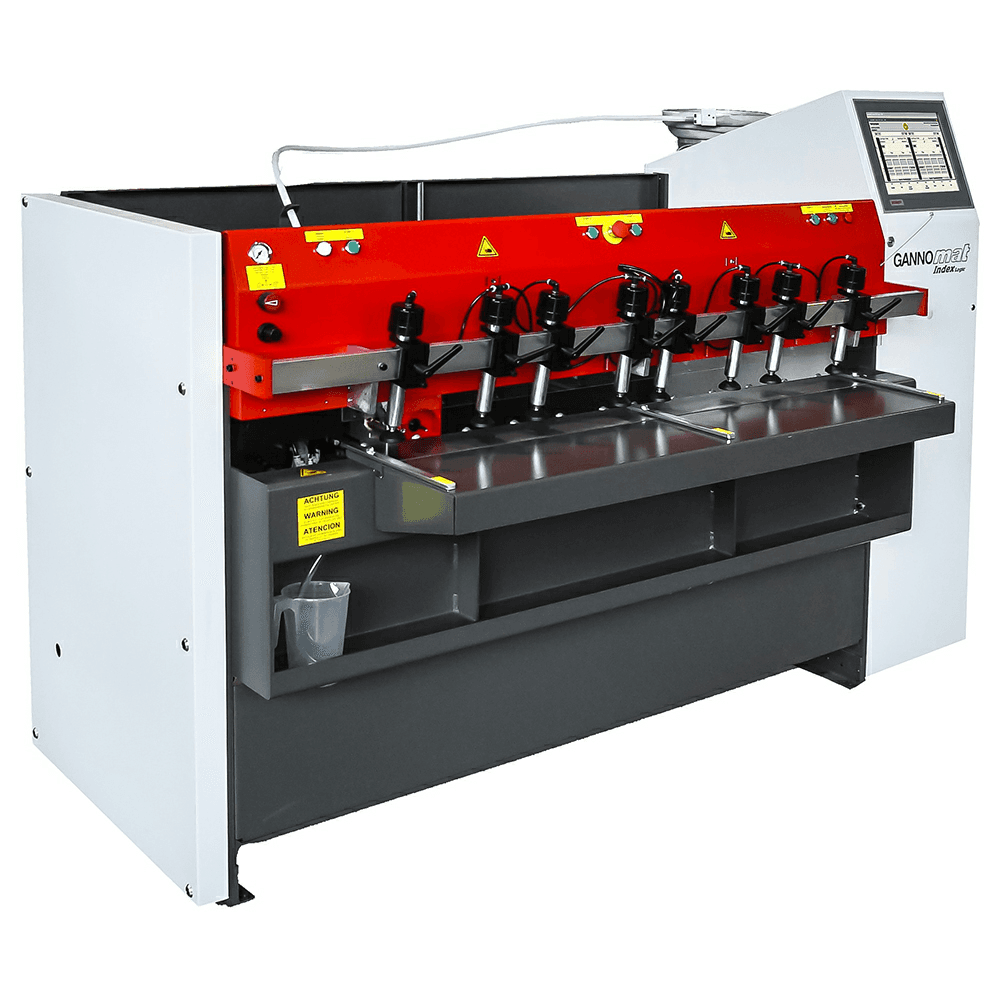

CNC Controlled Drilling/Gluing/Dowel Inserting Machine

Boring/Inserting Aggregate Travel on Profile Bearing Guides With:

• 1 Single spindle horizontal boring unit, motor 0.65 kw, spindle speed selectable through software (3000/5000/8000 rpm)
• 1 Blowing, gluing, dowel inserting unit for dowels 8mm diameter, 25 - 50mm length (optional 6mm and 10mm diameter)
• Fully automatic electronically controlled central lubrication
• X-axis NC controlled, maximum working width 1300mm, travel speed max. 105m/minute
• Z-axis manual setting by digital counter, position from worktable 5 - 40mm
• Outstanding dowel length, 7 - 20mm setting by digital counter, boring depth 0 - 35mm (by drill bit length TL 70mm) automatically calibrated to outstanding dowel length
• Closed gluing system with 6 bar glue pressure
• Electronic optical glue insert control system (G.I.C.) monitoring glue injection (0470-0810)
• Variable setting of glue amount by computer control
• Selector switch GLUE/WATER for quick rinsing of entire system
• 1 Stainless steel container for 1½ gallon glue and 1 Stainless steel container for 1-1/2 gallon water
• Glue control warning light indicating low volume in the glue container

Stopping System (Fences) Consisting of:

• 1 Right-hand stop and 1 left-hand stop (removable) and 1 Pneumatic Center stop, retractable
• 4 Starting buttons for individual processing of 1 - 4 work pieces
• 8 Pneumatic clamping cylinders for work piece thickness max 80mm, work piece length min. 70mm
• Exhaust ducting, with connection diameter 80mm
• Programming by menu-based software; boring patterns variably programmable by Absolute-Relative-Pitch; automatic mirror image programming, work piece optimization; 4 working zones can be operated with different programs; graphical work piece image; parametric programming; programmable job list
• Clear text on-screen identification of program errors and supporting photo documentation
• Industrial PC, soft PLC type Beckhoff TWINCAT; temperature range 0 - 50°C; TFT display 15" touchscreen resistive; resolution 1024 x 768; CPU 2 GHz, 256 MB RAM; 2x network-interface adapter, IDE- hard drive; 1x USB on the front, 4x USB on the back

Power Requirements:

• Electrical requirements: 208 - 575 volt; 3 phase w/Multi-Tap Transformer
• Wye NOT delta power
• All case clamps require 220V 3-Ph Wye power with ground
• All three Phase must measure the same Voltage from A, B or C Phase to Neutral (120V, 277V) and between phases at either 208V, 220V or 480V
• Akins machinery division of wurth baer supply recommends that a licensed electrician for your jurisdiction measure the power in your facility with proper equipment to assure that the connection provides Wye power
• If Wye power is not available a Delta to Wye isolation transformer must be procured and properly installed prior to providing power to the Gannomat machine
• Connection of any of the listed Gannomat
• Machines to a delta or open Delta power sources
• VOIDS factory and OEM component warranties
• Isolation Transformer is needed with Delta (AKA: “high leg”) power
