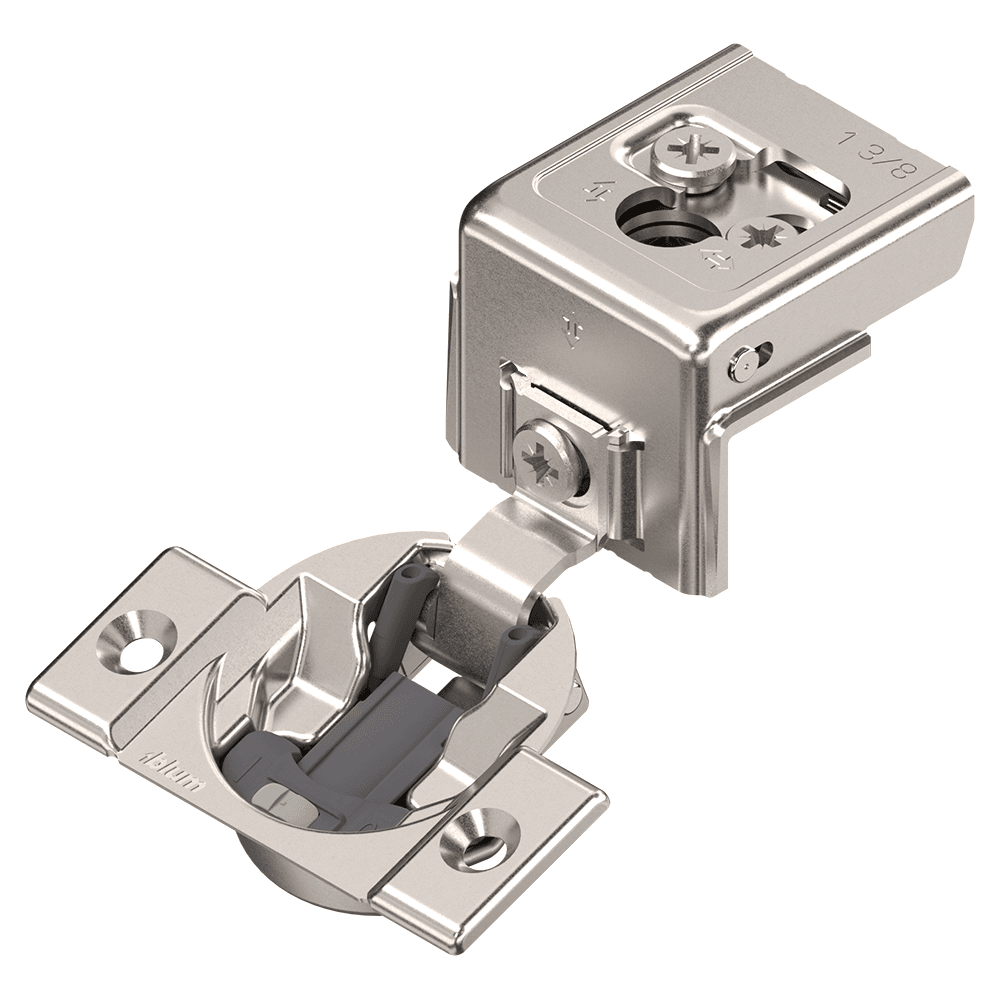

Compact Clip 31C3 110° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1-3/8" Overlay, Screw-On
Item # B30C2258B.08EM
•Mfr # 07973748
Product Details
Features:
• Screw-on mounting type • Overlay in inches: 1-3/8" • 110° opening angle • Closing mechanism with spring • Wraparound of design and positioning on the frame • Steel material, nickel plated finish • +/- 2mm of height adjustment with cam • 4.8mm of gapSpecifications
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Self-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Edge-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
