The 1-1/4 HP Compact Router Kit (model RT0701CX3) delivers performance, versatility and precision in a compact size. With a full 1-1/4 maximum horsepower and three bases included in the kit, the RT0701CX3 is engineered for a full range of precision routing applications.
The RT0701CX3 has a powerful 1-1/4 HP (maximum horsepower) motor with a variable speed control dial (10,000-30,000 RPM) that enables the user to match the speed to the application. Additional performance features include electronic speed control to maintain constant speed under load, and soft start feature for smooth start-ups. The RT0701CX3 is double-insulated with a heavy-duty aluminum motor housing for increased durability.

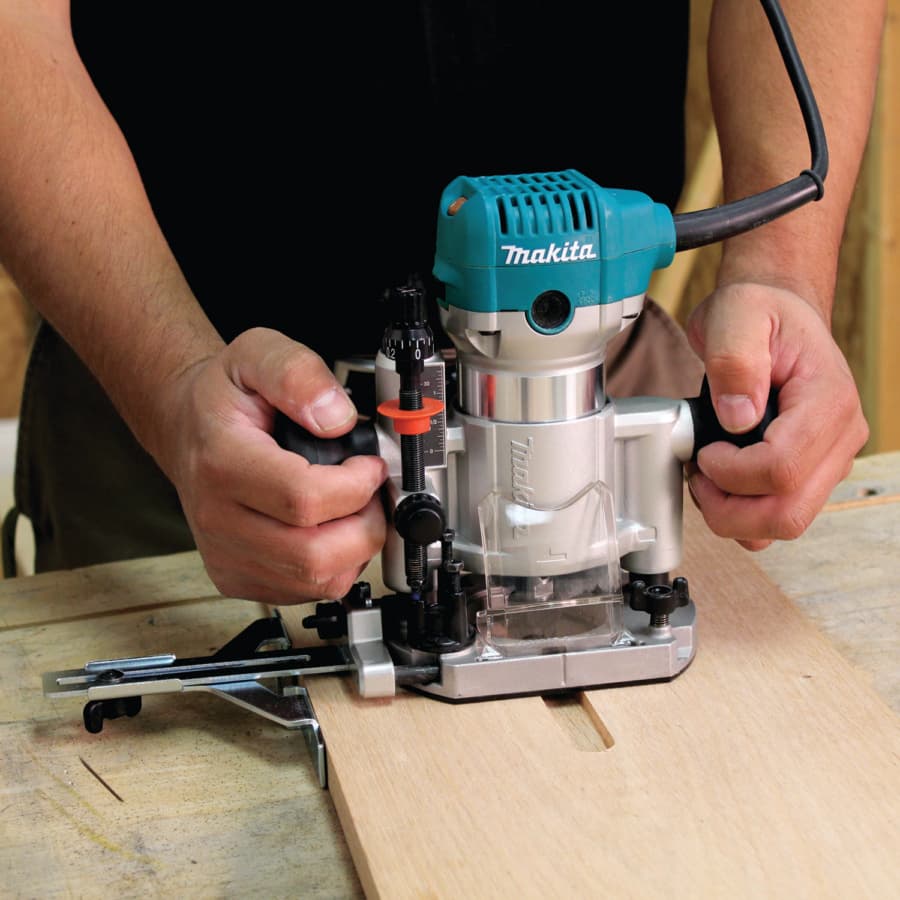

The RT0701CX3 is engineered for precision and includes a smooth rack-and-pinion fine depth adjustment system and easy-to-read depth scales for more precise settings. The quick release cam lock system is designed for easy depth adjustments and base removal/installation, with a high-visibility base design for improved handling and performance.
Additional features include a slim and ergonomic design that weighs only 3.9 lbs., with a durable flat top design for added convenience when changing bits. The base can be removed quickly to install other bases, and the shaft lock is engineered for quick and easy bit changes (uses 1/4" shank router bits).
The kit includes three bases needed for a range of routing applications. The plunge base has a full 0" - 1-3/8" plunge capacity while the tilt base is for routing at different angles (-30° to 45°) and the offset base allows for routing in hard-to-reach areas and as close as 3/4" to a wall. The router accepts industry standard template guides for added versatility.
Features:
• Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
• Smooth rack-and-pinion fine depth adjustment system for more precise settings
• Slim and ergonomically designed body for increased comfort and control
• Quick release cam lock system for convenient depth adjustments and base removal/installation

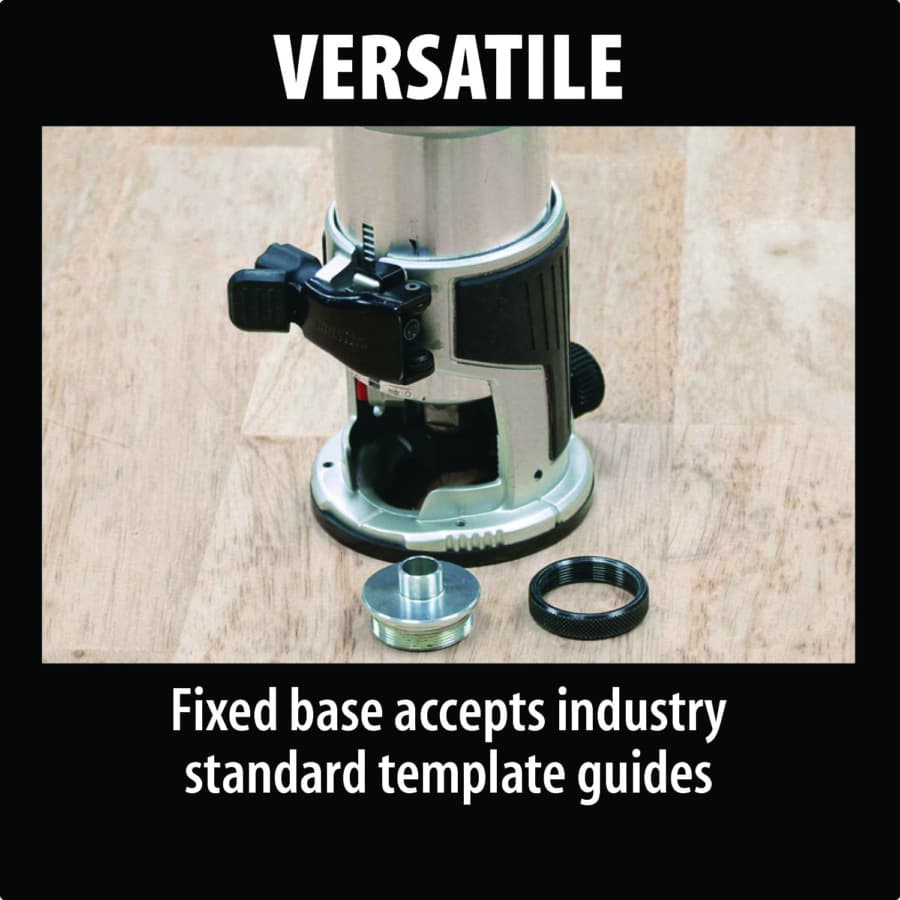

• Accepts industry standard template guides
• Electronic speed control maintains constant speed under load
• Soft start feature for smooth start ups
• High visibility base design for improved handling and performance
• Base can be removed quickly to install other bases (plunge, tilt and offset)
• Heavy duty aluminum motor housing engineered for increased durability
• Shaft lock for quick and easy bit changes
• Durable flat top design for added convenience when changing bits
• Non-marring high-durability base insert for increased work piece protection
• Easy-to-read depth scales
• Uses 1/4" shank router bits
• Double insulated
• Ideal for routing small profiles, dovetailing, door hinges and more

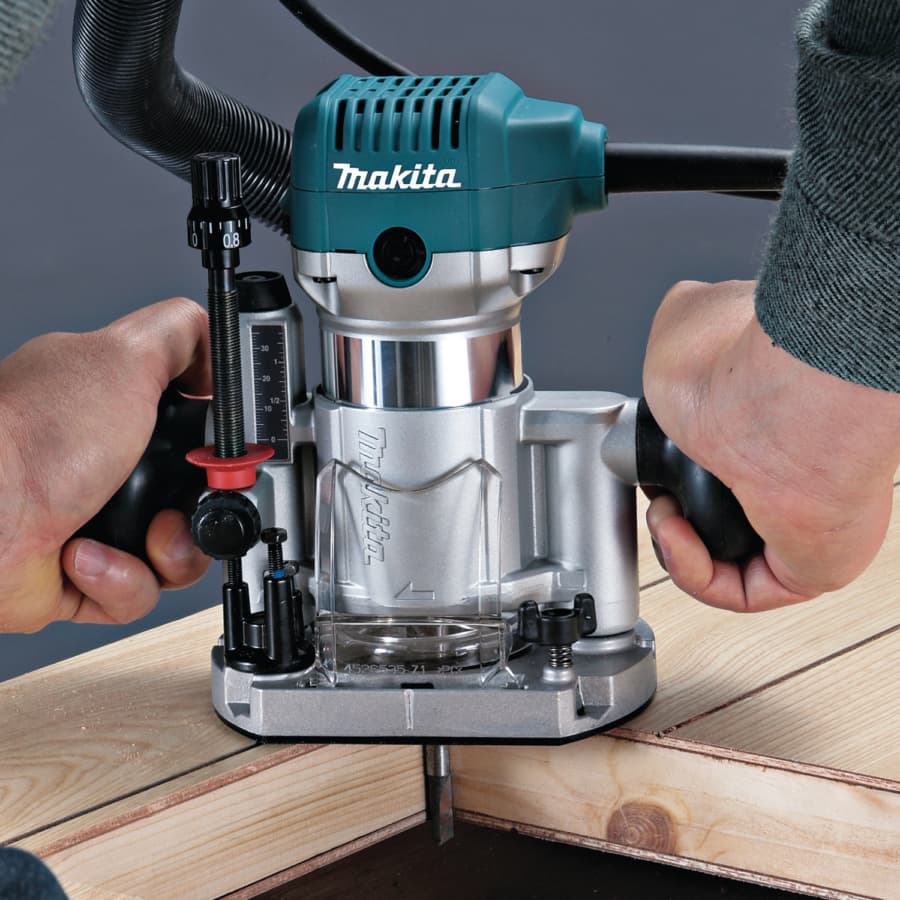

• Included plunge base features: 0" - 1-3/8" plunge depth capacity for easy penetration into workpiece, Easy-to-use fine depth adjustment with 3 preset depth stops for added precision, Conveniently located plunge lock lever for operator convenience, Removable clear plastic shield helps protect the operator from airborne debris, Removable clear plastic shield helps protect the operator from airborne debris

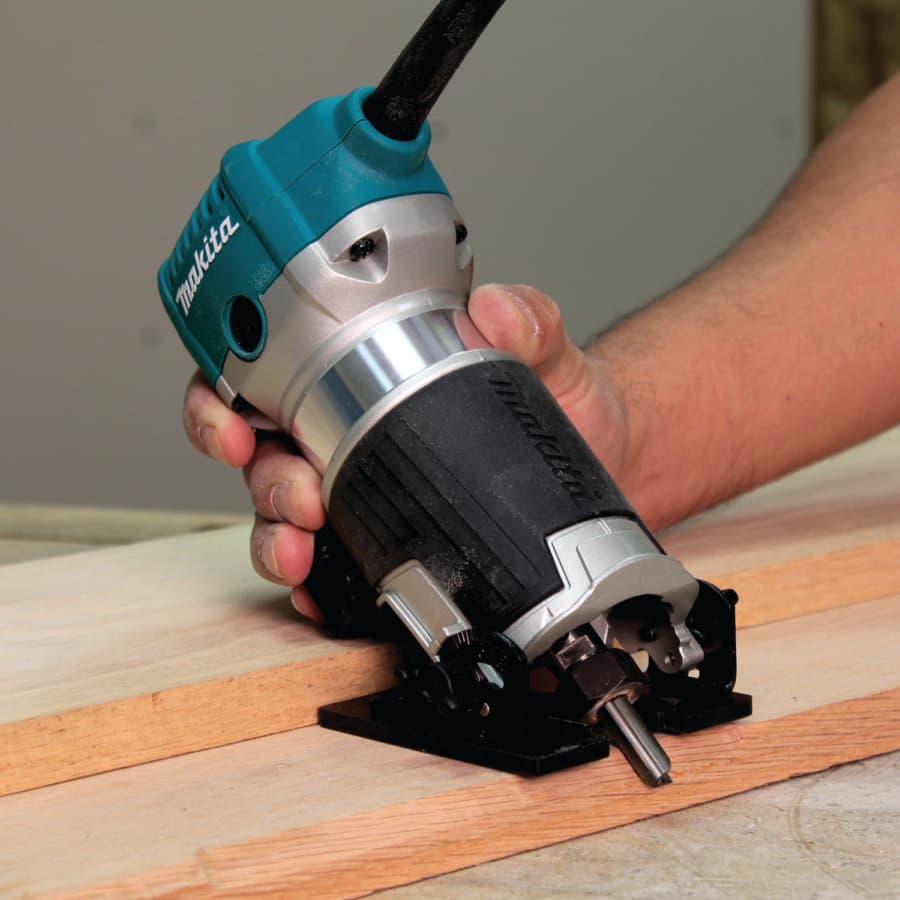

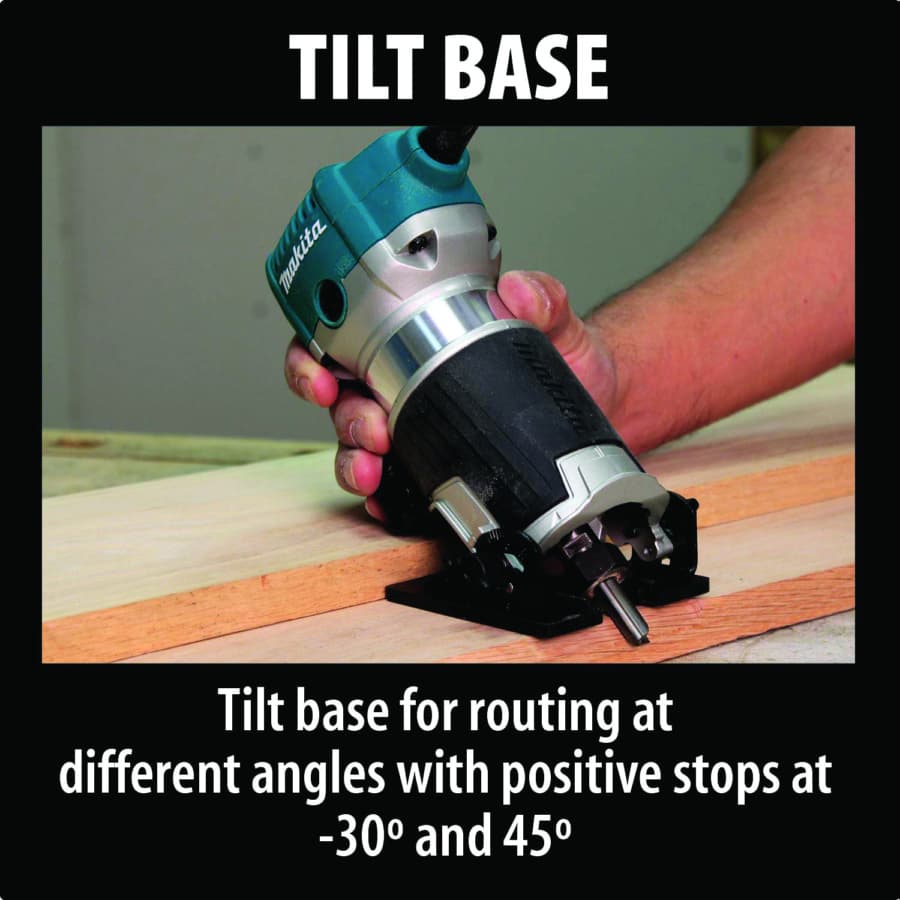

• Included tilt base features: Tilt base for routing at different angles (-30° to 45°), Allows different profiles when using the same router bit

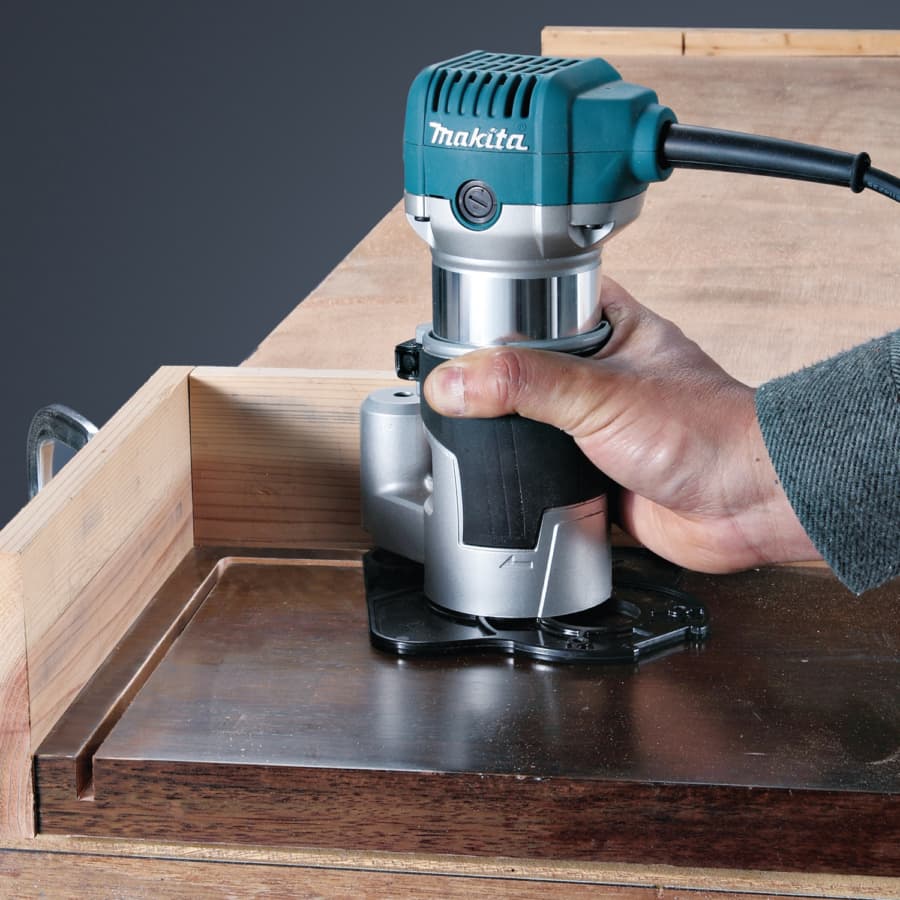

• Included offset base features: Offset base allows routing in hard-to-reach areas and as close as ¾" to the wall, Ideal for counter tops, kitchen and bath sink cutouts

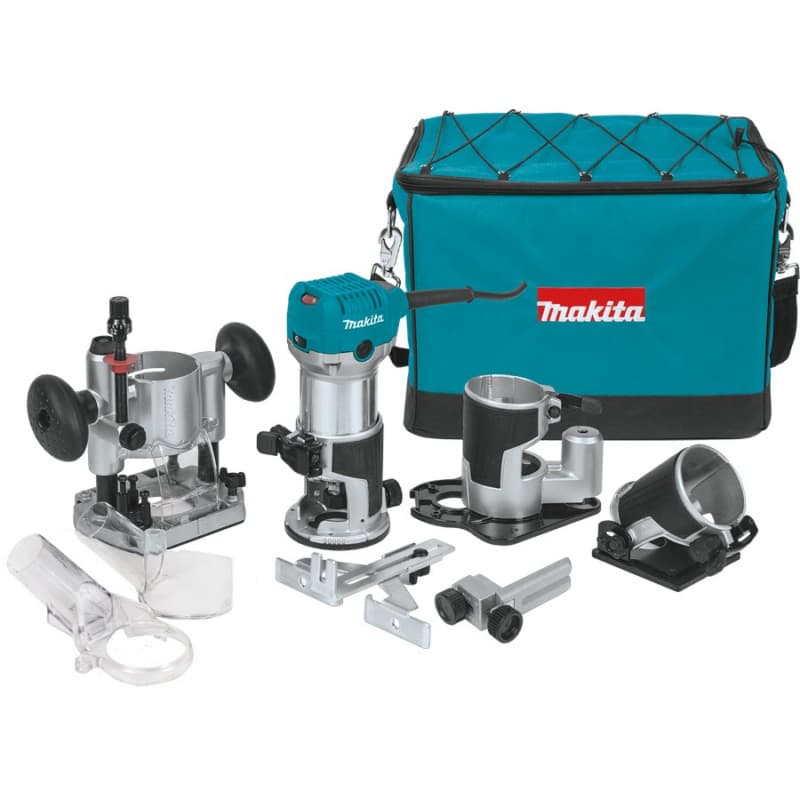

Includes:
• 1-1/4 HP* Compact Router (RT0701C)
• 1/4" Collet (763637-1)
• Trimmer Base (196613-4)
• Plunge Base (196094-2)
• Tilt Base (198987-9)
• Offset Base (196093-4)
• Straight Guide (122965-7)
• Dust Extracting Attachment
• Fixed Base (195559-1)
• Dust Extracting Attachment
• Plunge Base (194733-8)
• Spanner Wrench (781039-9)
• Spanner Wrench (781011-1)
• Trimmer Guide (122703-7)
• Tool Bag
