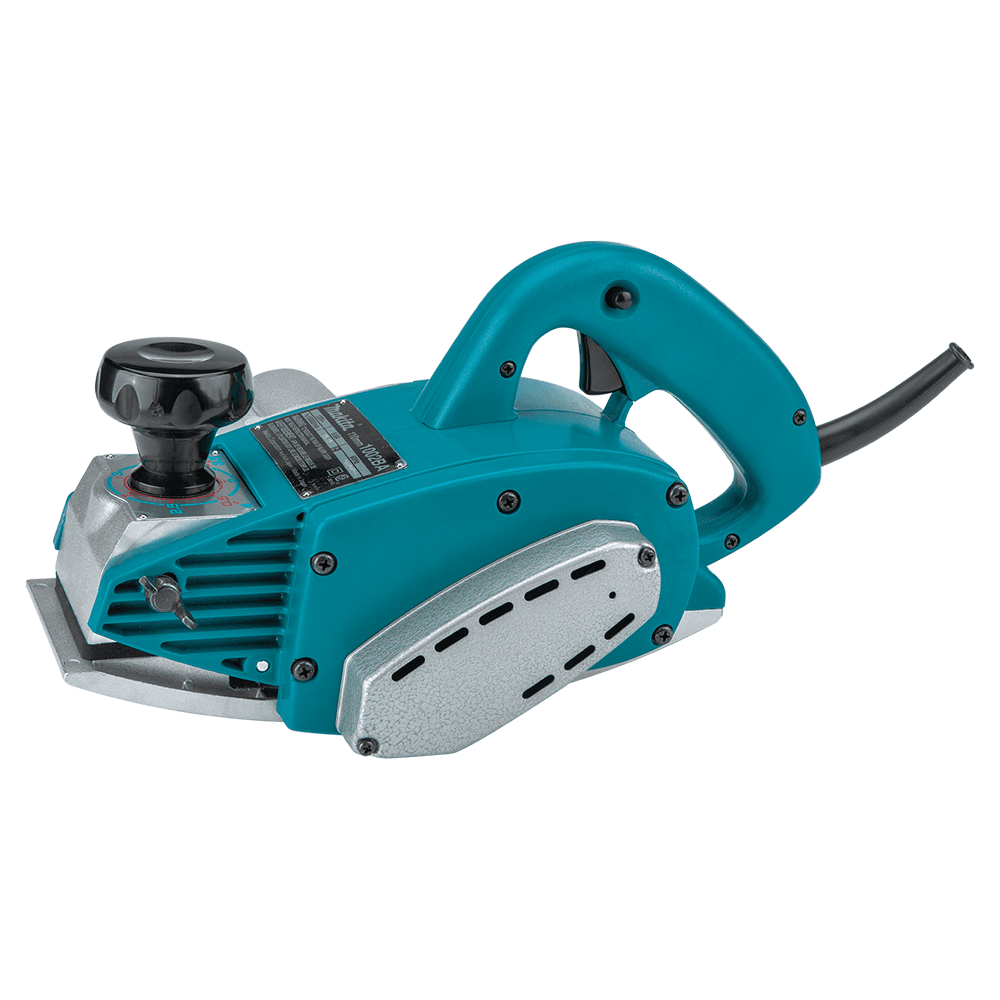

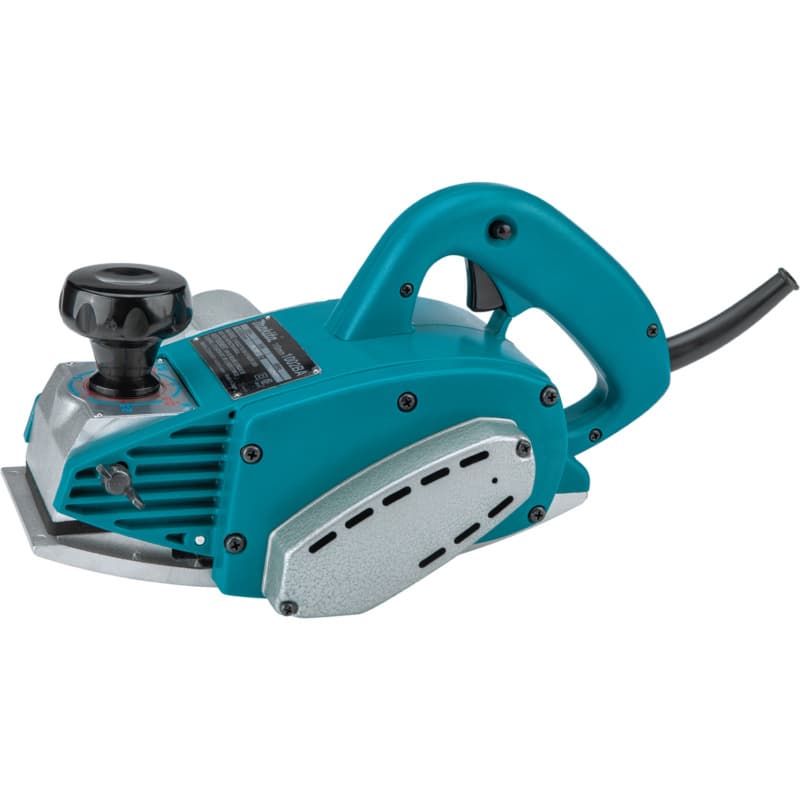

4-3/8" Curved Base Planer

The 1002BA Curved Base Planer is used for creating arches and arcs in timbers and working on scarfs in logs. With a simple modification to the blades, the tool is frequently used to create the hand-hewn look in timbers and logs. The 1002BA has a large two-handed design and a large front grip for improved comfort and fine depth adjustment. Additional features include the large chip ejection chute, and a lock-on button for continuous use. The adjustable bevel radius adjust up to 11-13/16", and the bevel base is factory adjusted for notching out logs at a 12-5/8" radius.

Features:

• Powerful 9.6 AMP motor with 15,000 RPM for improved performance
• Precision machined base for notching out logs at a 12-5/8" curved radius
• Planes 4-3/8" width and 3/16" deep in a single pass

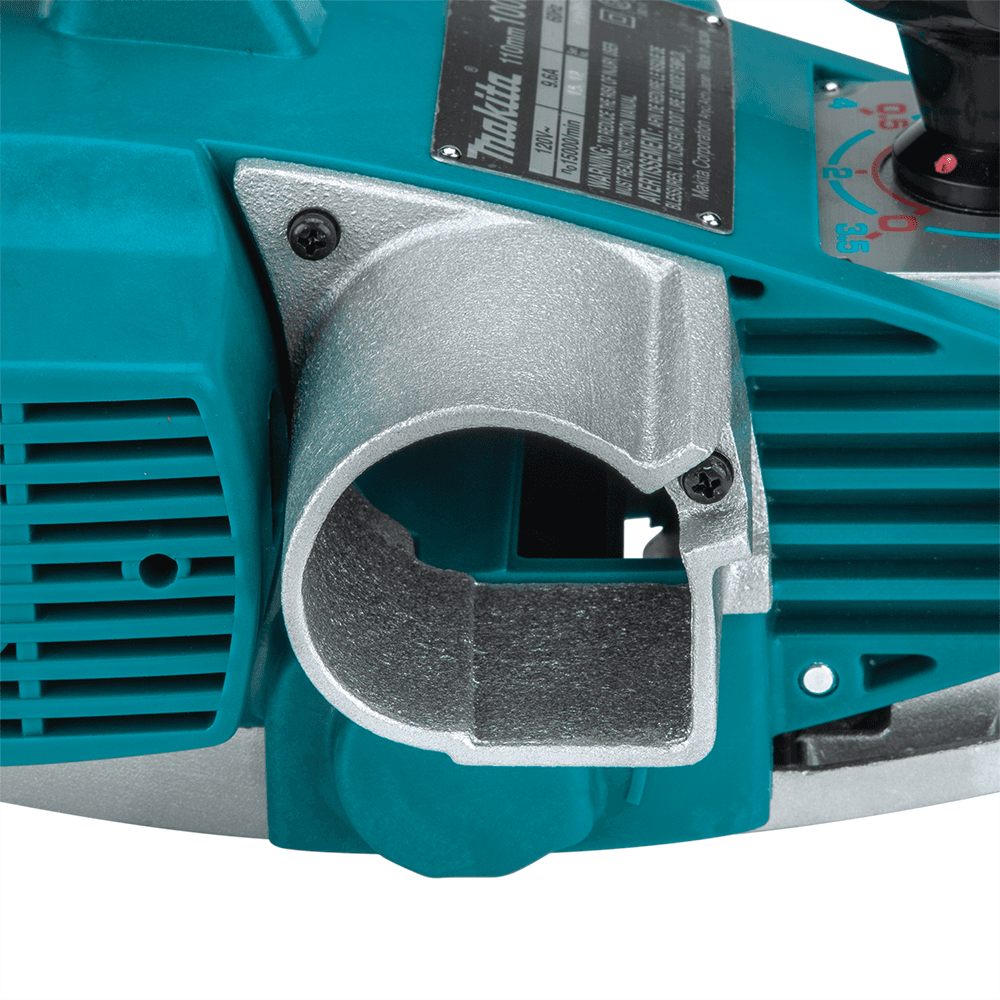

• Large ejection chute for high rate of chip discharge

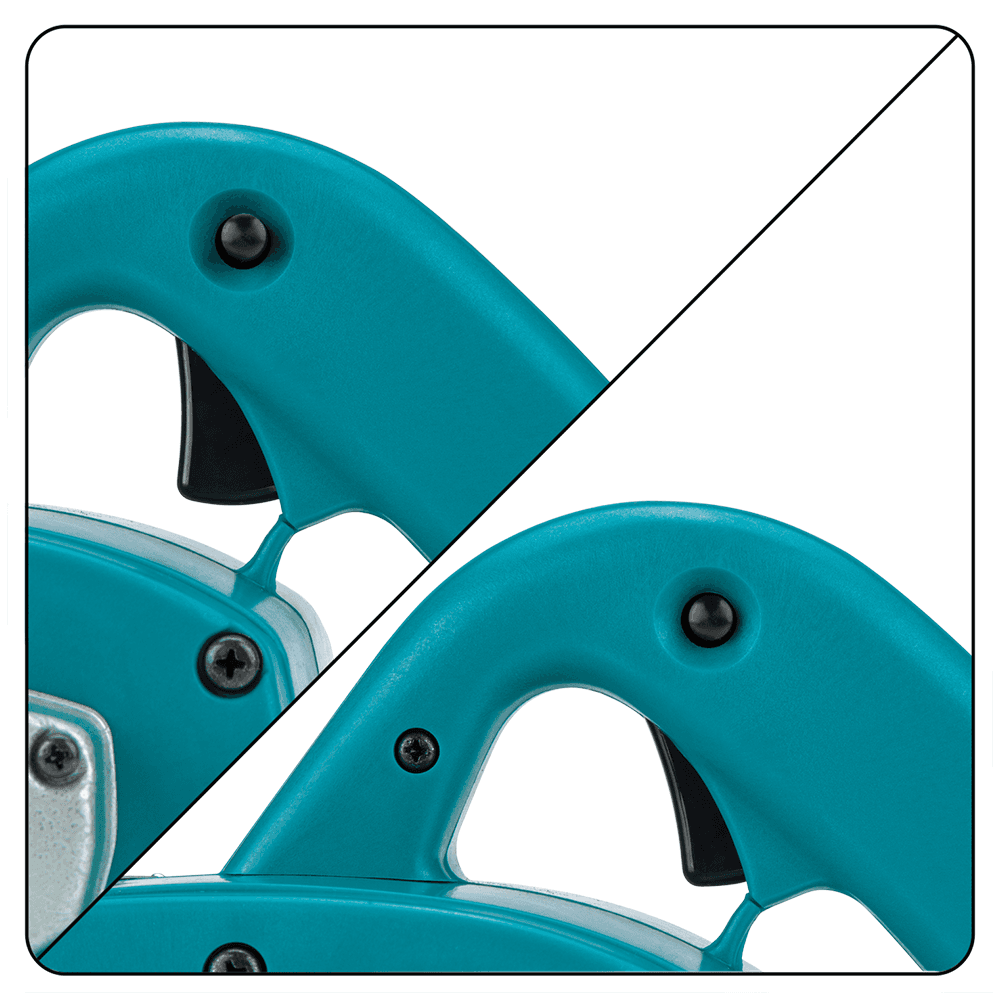

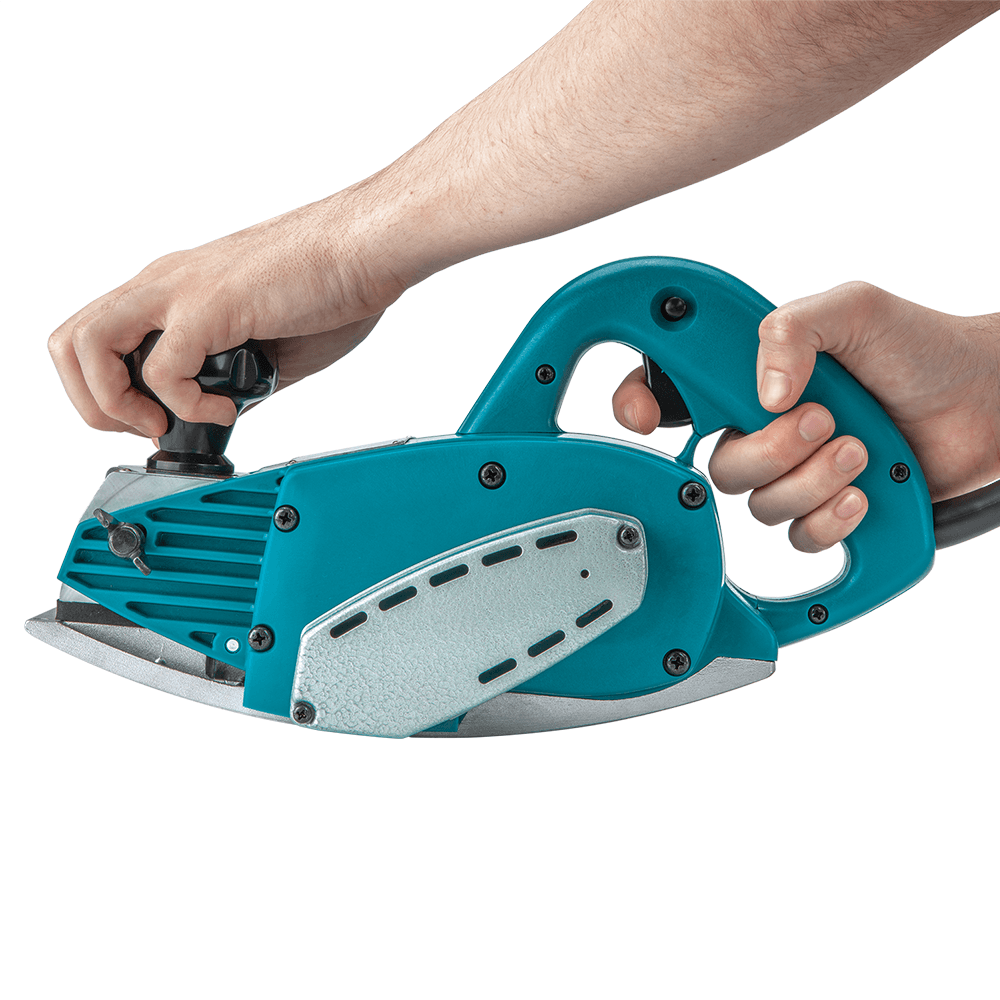

• Conveniently located front and rear grips for operator control
• Lock-on button for continuous operation
• Smoothes and notches out logs for a perfect fit
• Adjustable bevel radius to 11-13/16"

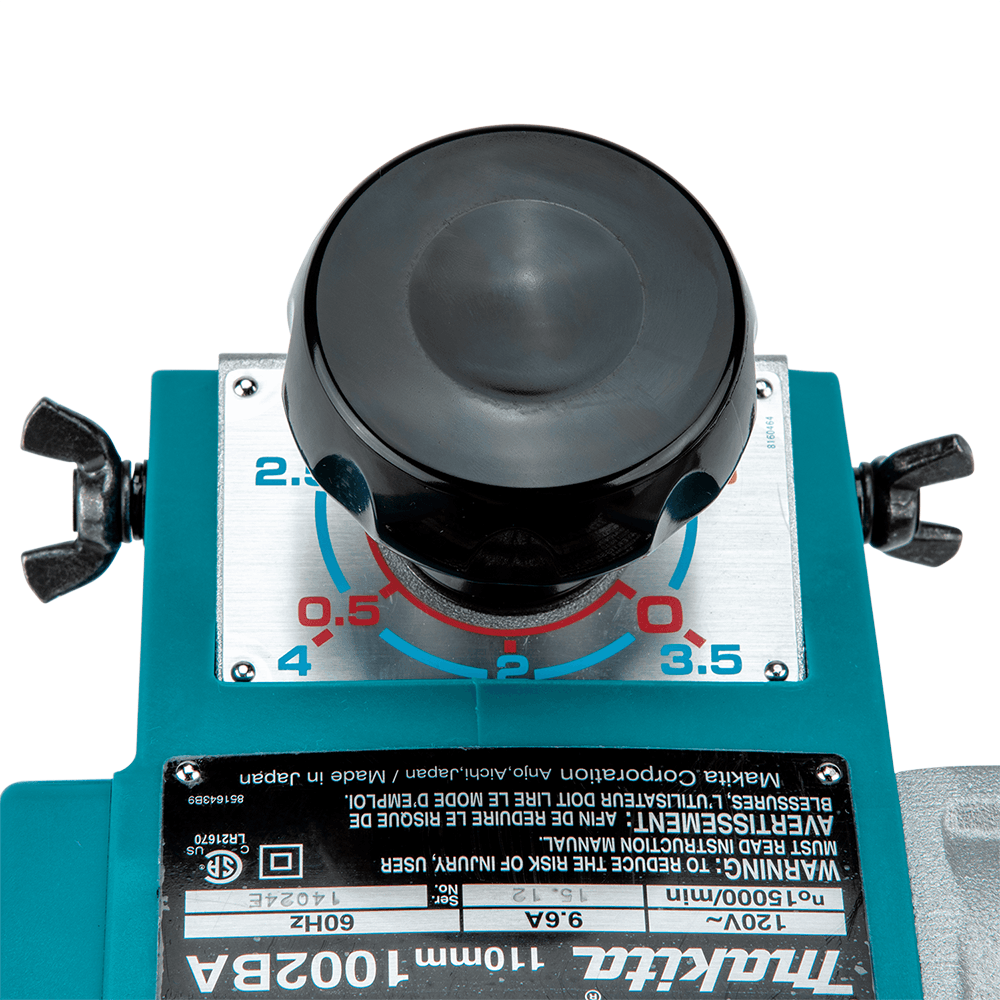

• Large conveniently located depth settings knob for easy adjustments
• Ideal for planning curved lumber and other radius materials

Includes:

• (1) 4-3/8" Planer blade, 2/Pack (793008-8)
• (1) Sharpening holder (123055-9)
• (1) Blade gauge (123010-1)
• (1) Socket wrench (782209-3)
