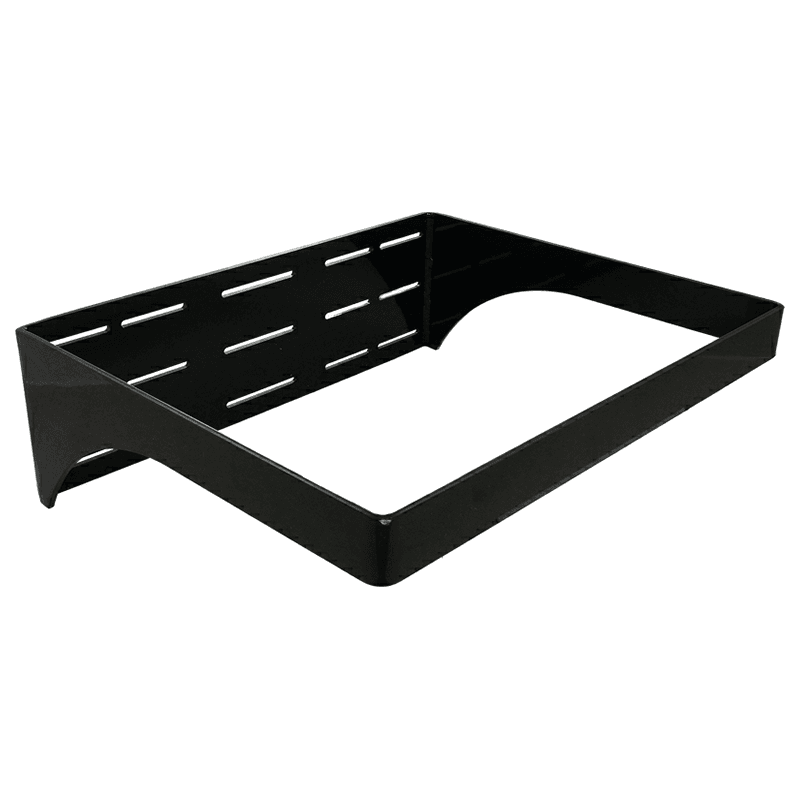

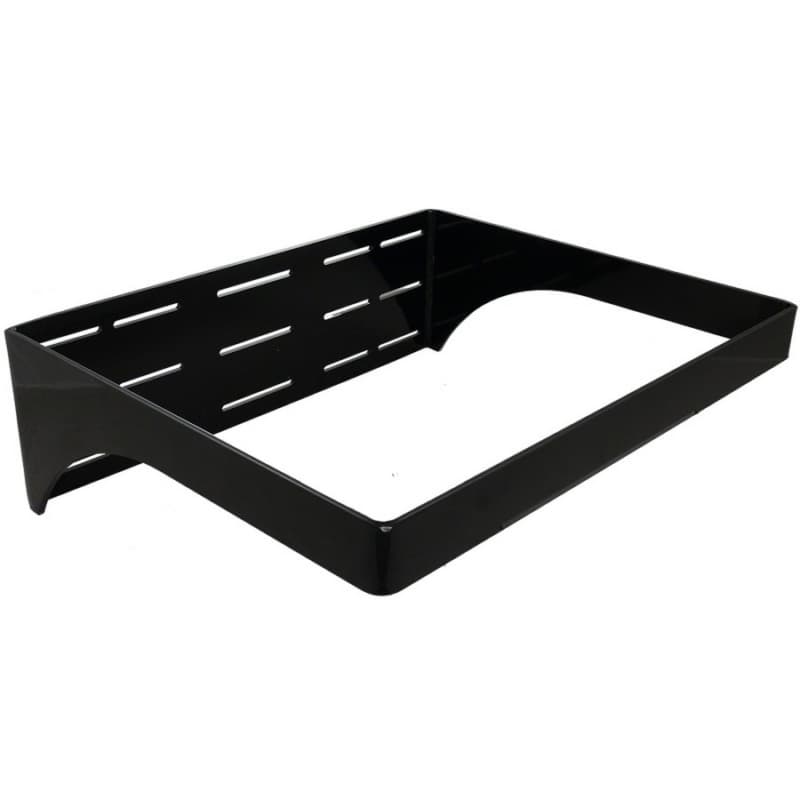

18" x 7" Maidan Vanity Support Bracket, Black Finish

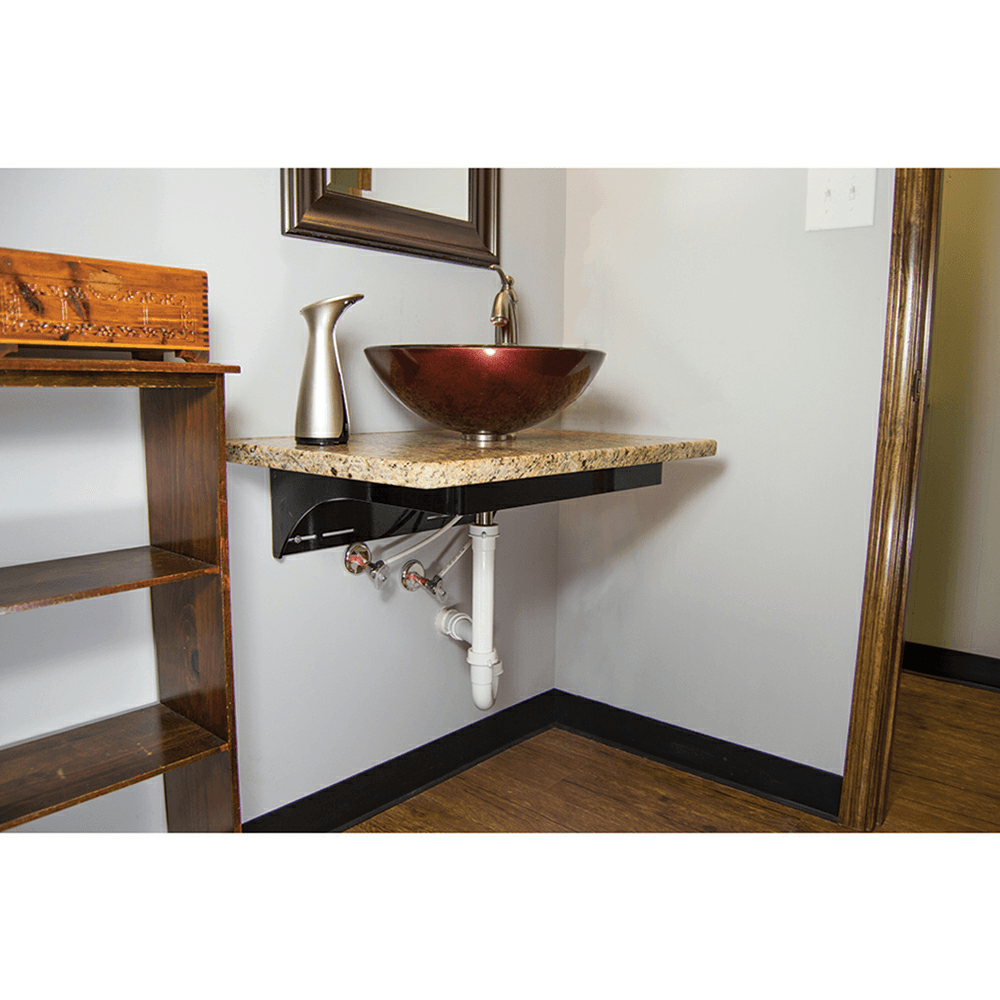

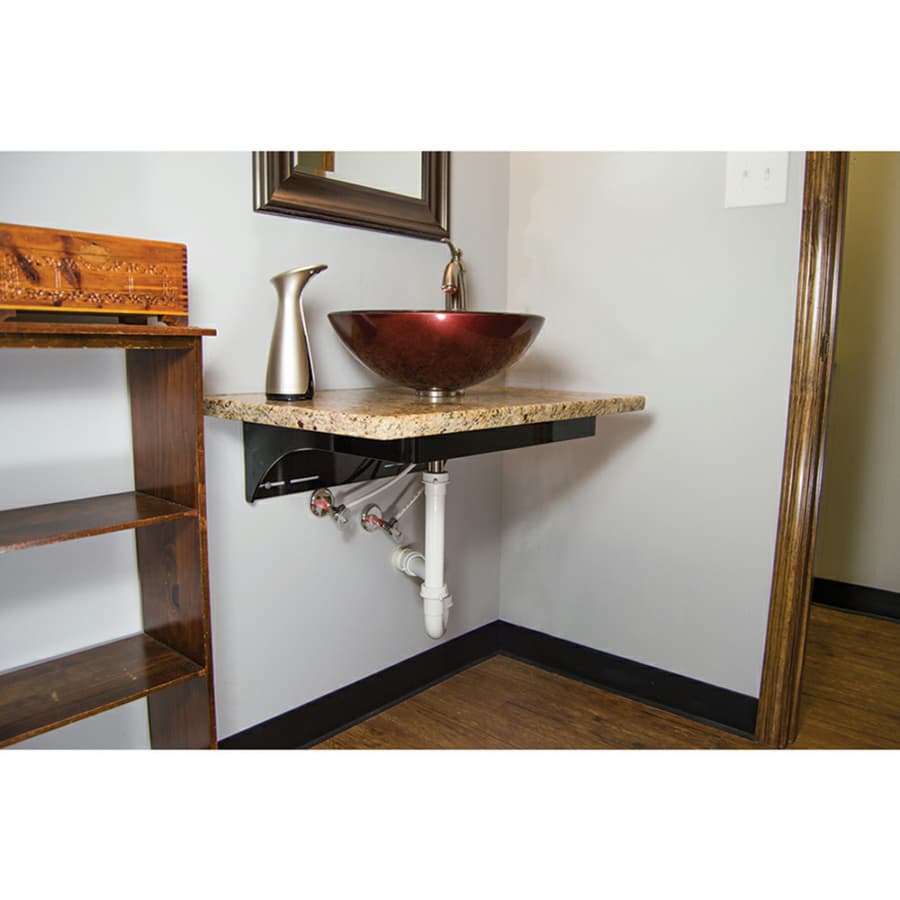

The Maidan vanity support bracket is a wall hung vanity support that provides essential carrying strength with a small front profile, easily hidden with an apron. The Maidan can also be hidden inside a base cabinet to create a floating vanity. The 18" arms and 22" width will support a 24" base cabinet and counter no deeper than 22". Additional Maidan brackets should be used for wider vanities. Mounting slots make installing into studs a snap

Vanity Supports will comply with the Americans with Disabilities Act (ADA) when installed per the requirements of the Accessibility Guidelines, Section 606 Sinks, of the Act.

recommends using a vanity support that extends within 4" of the front edge of the vanity. Excessive overhang may cause significant force in a point load situation. Maximum load carrying capacity on vanity support brackets is 200 lbs. with 1/32 deflection.

Our Maidan Vanity Bracket is designed to provide the support strength necessary to wall mount a standard vanity in a bathroom setting. The material thickness of the Maidan floating vanity support bracket is 1/4". The Maidan Support comes in both brushed stainless steel and black powder coat painted steel materials. Slots are providing for mounting to allow positioning always to be in a stud. The Maidan Vanity Support has a 200lbs carrying capacity.

Features:

• 18" x 22" Maidan vanity support bracket in black finish
• 1/4" of material thickness
• 15 - 1/4" slots holes
• ADA compatible
