24" x 3/4" Hammam Small Lavatory Support, Black Finish

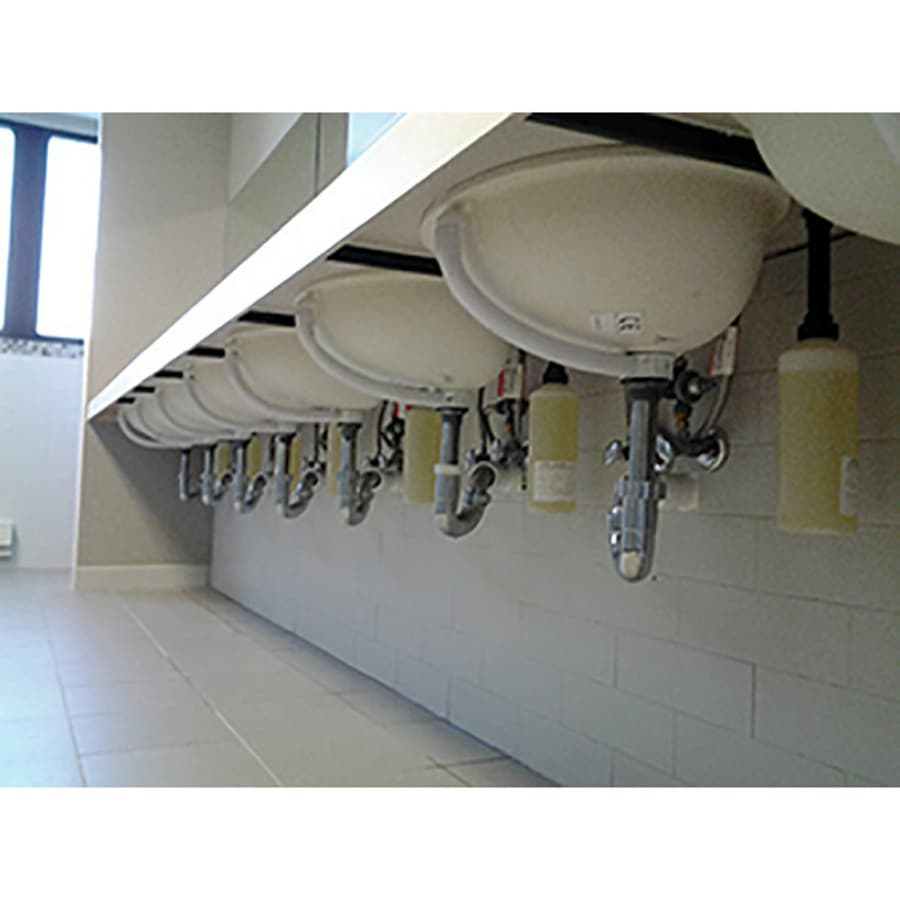

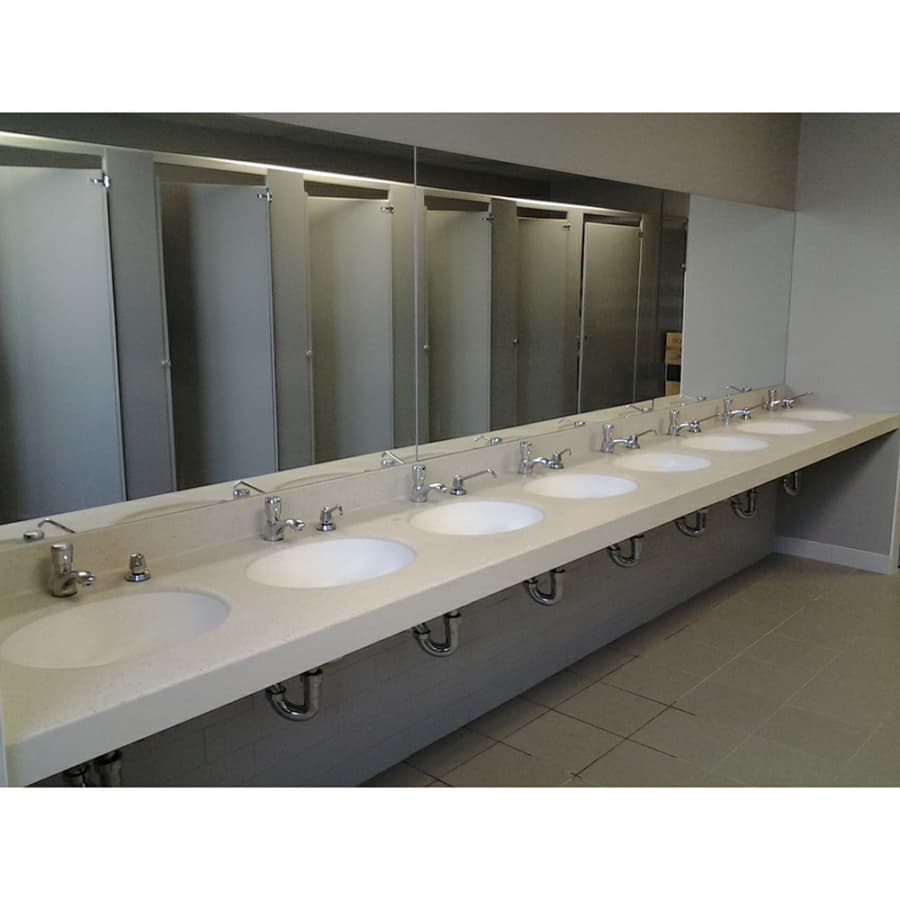

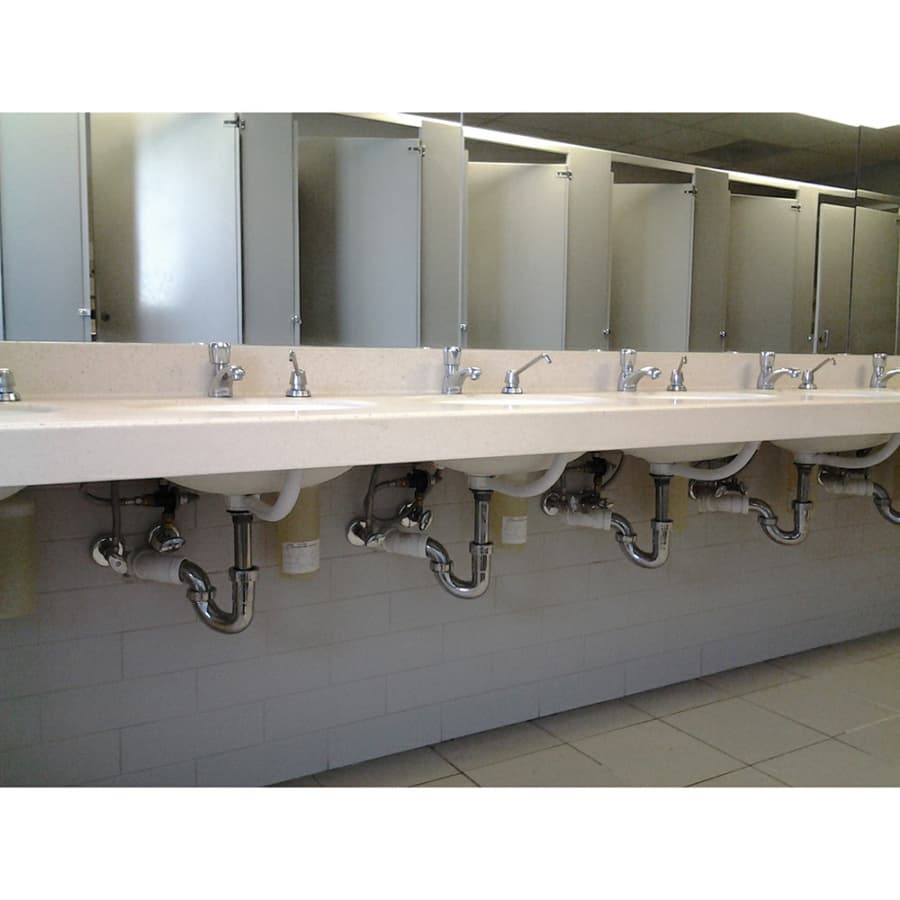

The Hammam lavatory support is designed to mount on the side of wooden wall studs with the support arm extending out and under a vanity or stone top. This support system comes in two sizes and finishes with an invisible or floating surface configuration. The 1/2" thick arm is placed 33" from the bottom of the 48" tall Hammam and is centered on the 24" tall Hammam. Both sizes provide 20" of support under a lavatory counter. Your vanity surface should not extend more than 4" past the end of the support. Place one bracket on every stud for the length of the lavatory counter.
Vanity Supports will comply with the Americans with Disabilities Act (ADA) when installed per the requirements of the Accessibility Guidelines, Section 606 Sinks, of the Act.

recommends using a vanity support that extends within 4" of the front edge of the vanity. Excessive overhang may cause significant force in a point load situation. Maximum load carrying capacity on vanity support brackets is 200 lbs. with 1/32 deflection.

Features:

• 1/4" of material thickness plate, 0.50" rod
• 4 - 0.26" straight holes
