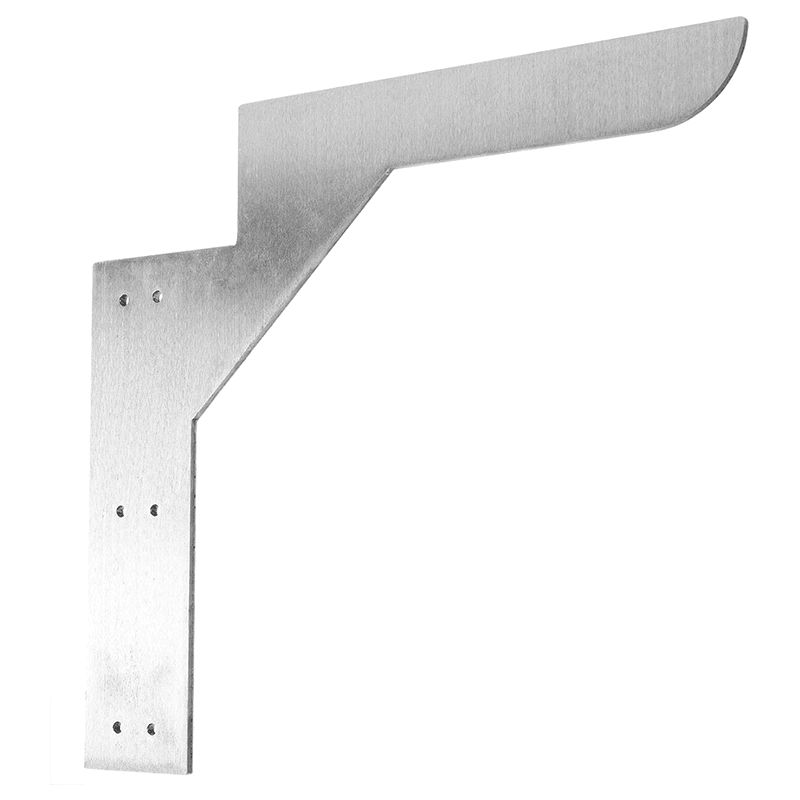

10" x 10" Franklin Hidden Countertop Bracket, Steel Finish
Product Details

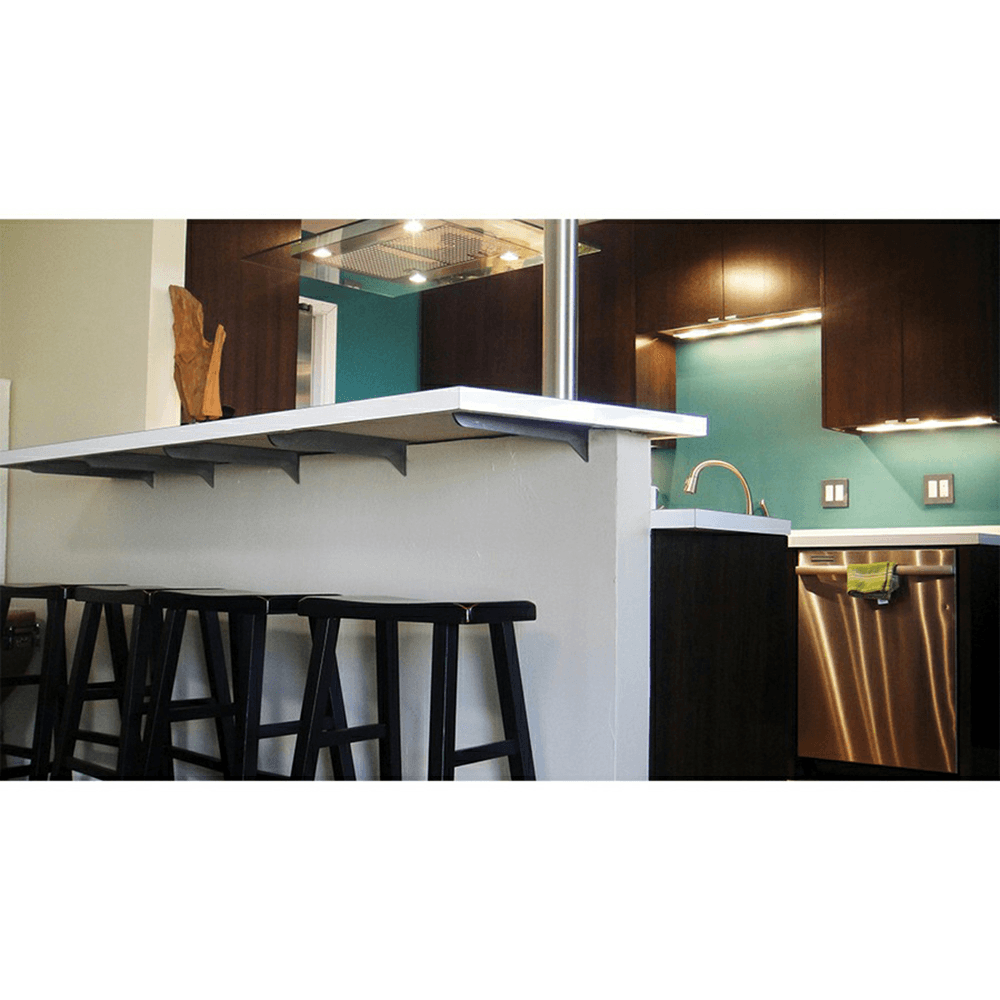

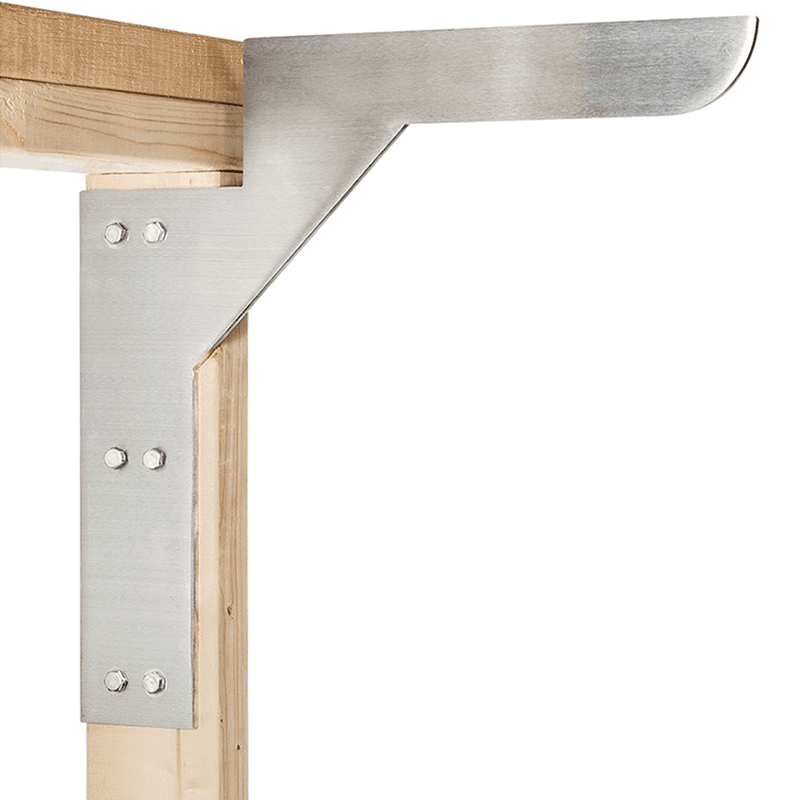

The franklin hidden countertop support bracket is designed to mount to the side of the stud of your half wall (pre drywall). Perfect for a breakfast bar or reception counter, no routing is required during installation for a partially hidden bracket application. The bracket was engineered for optimal knee clearance for sitting areas. The floating support arm is flush with the top of your half wall to support overhangs between 14" to 18" depending on the size of the bracket. We typically recommend having no more than 4" of overhang past the tip of the bracket. This support comes in sizes of 10 x .25 x 10 with a steel finish. The bracket will arrive unfinished and will need to be painted or clear coated to prevent oxidation. The plate is 3" wide to fit the side of a 2x4 width. The best part about the Franklin is the high carrying capacity while still discrete. This bracket has a carrying capacity of 375 lbs per bracket. Never have to worry about the weight of items placed on the counter or someone leaning on it.
Features:
• 10" x 10" franklin hidden countertop bracket in steel finish • 1/4" and 0.375" of material thickness • 4 - 0.26" straight holesSpecifications
| Box Quantity | 1 |
| Depth | 10" |
| Height | 10" |
| Product Type | Countertop Bracket |
| Finish | Steel |
| Material | Steel |
| Weight Capacity | 375lb |
| Width | 1/4" |
| Length | 10" |
