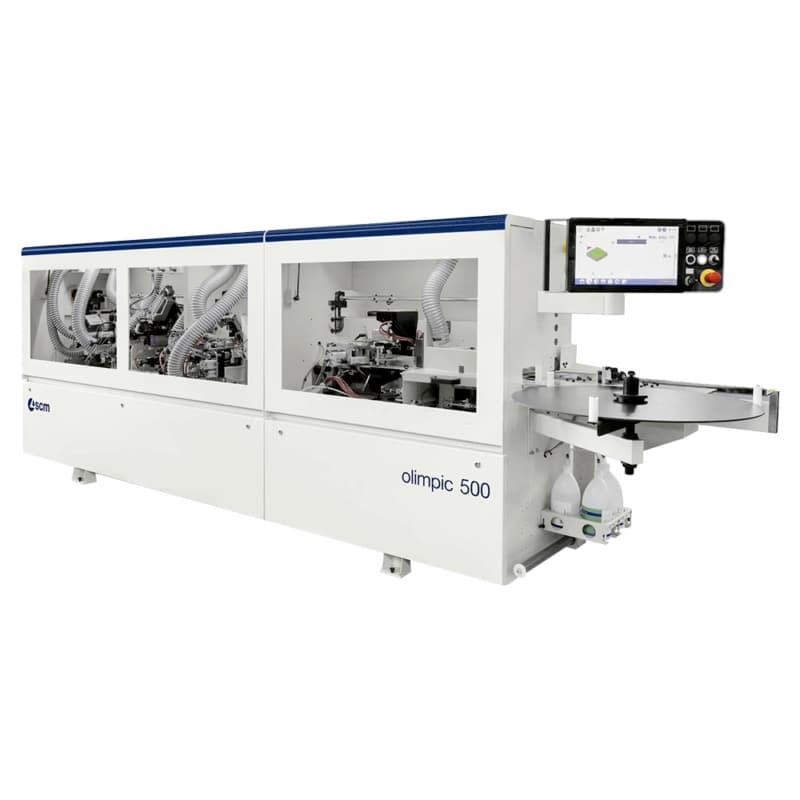

Olimpic 500 Single-Sided Automatic Edgebander
This item may incur additional shipping costs and lead times.
Product Details
Olimpic 500 is a complete and versatile edgebander for SME′s able to perform different machining operations, in a small space, always with high quality standards. Available in both pneumatic and electronic set-up versions, olimpic 500 allows machining with 2 radii, each with dedicated tool and panels with a minimum width of 60mm.
Advantages:

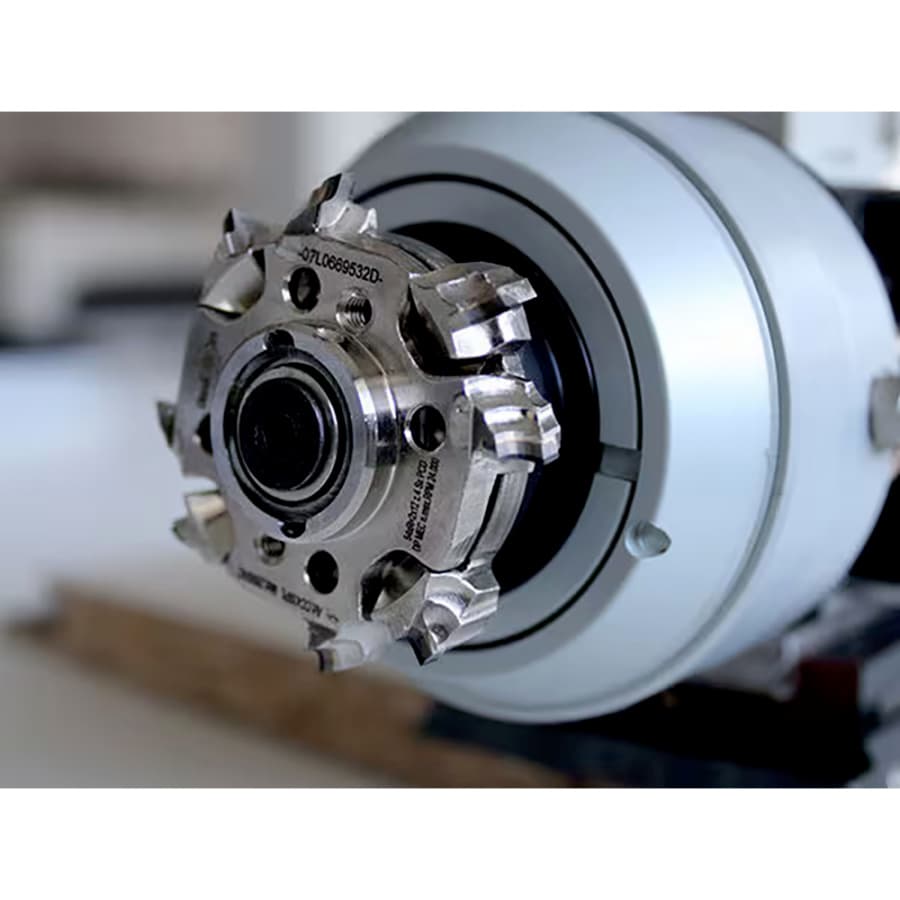

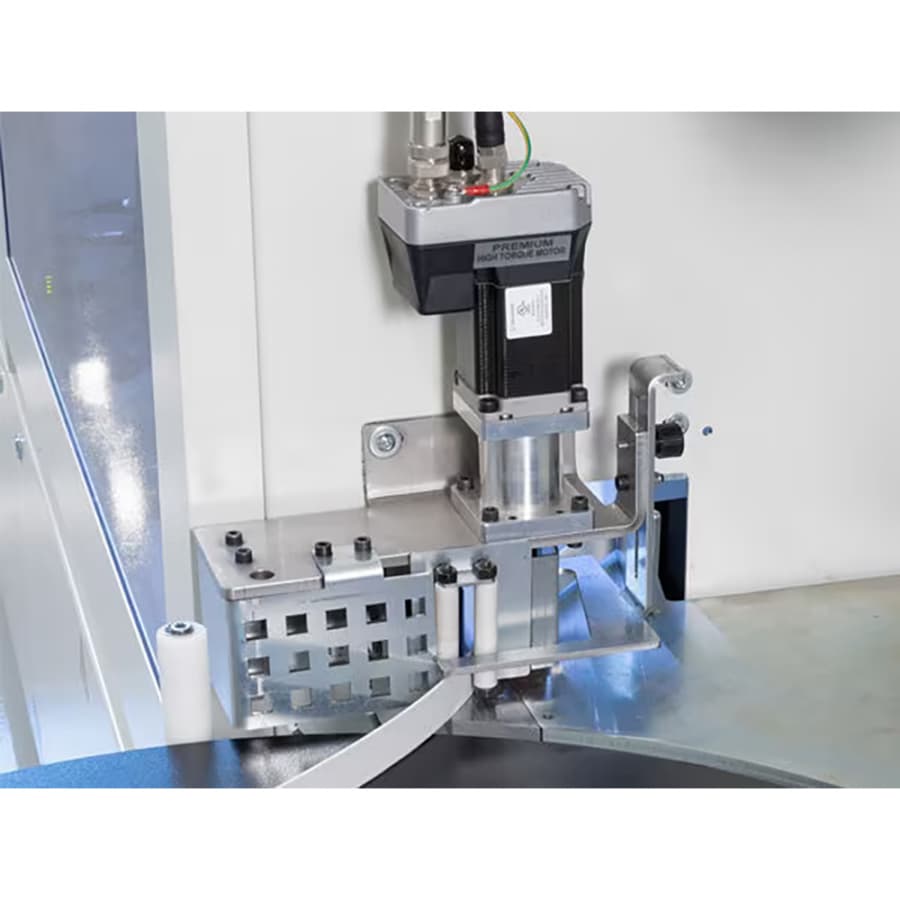

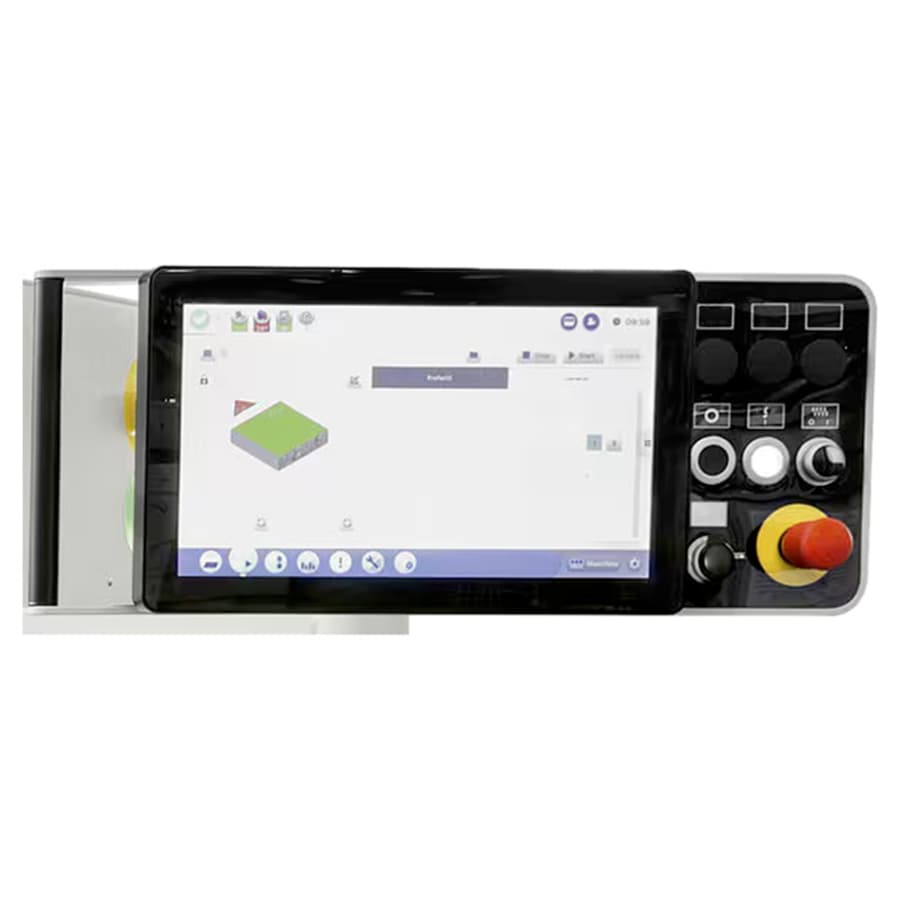

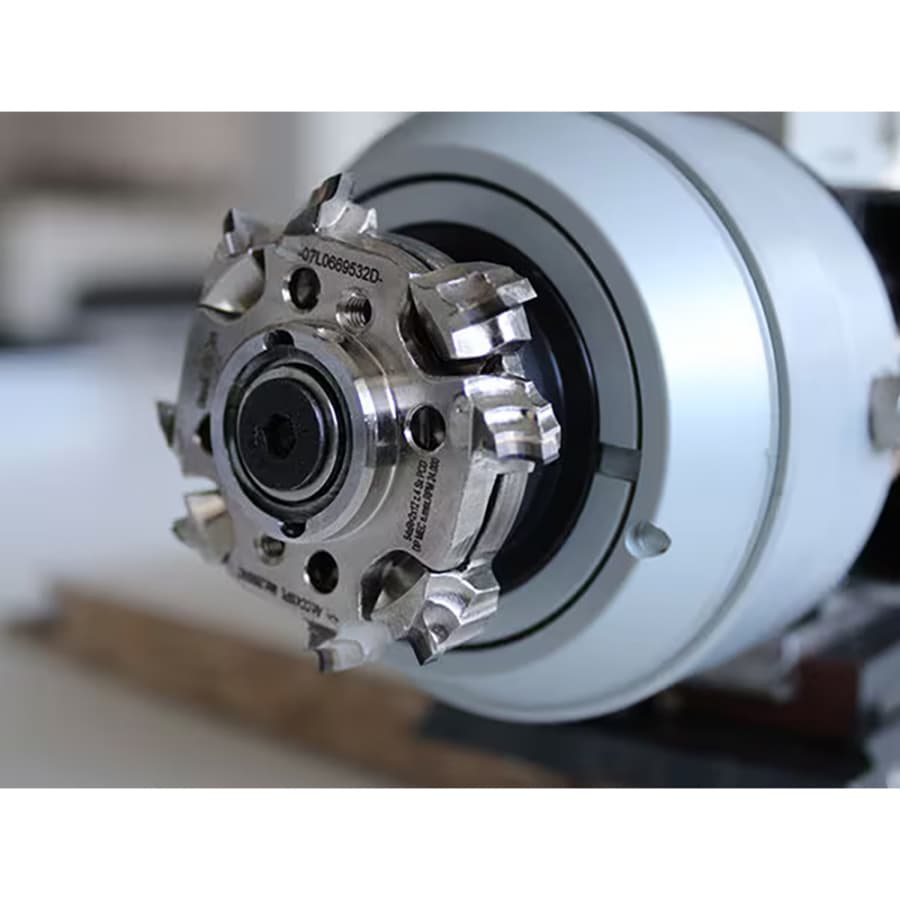

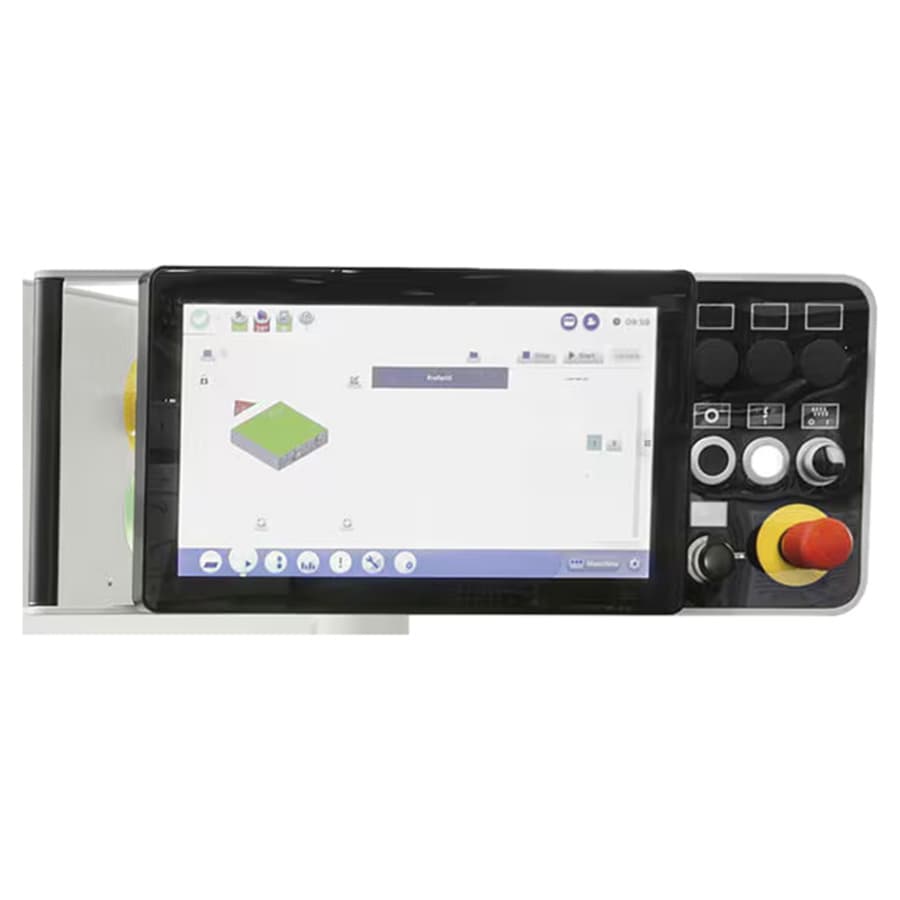

Versatility: • The SGP-E glue pot allows the use of different types of colors and glue, EVA or PUR • Machining of 2 radii, each with a dedicate tool, thanks to Multiedge device for all working units, including the rounding • Workable panels of small dimensions up to 60 mm width Quality: • 2-motor rounding unit: corner rounding in straight and shaped panels and chamfering of top and bottom panel sides • New machine structure for greater stiffness and zero vibration on the panel • Top finish: one of its kind with the plastic edge brightening unit for a top panel finishing User-Friendly: • Large touch control panels and software Maestro active edge offer the operator an efficient and intuitive work experience, as well as providing connectivity and synchronization to company systems • Automatic edge introduction placed outside the cabin reduces the changeover times in total safety • Single operator for the complete process with the panel return device fastback • Automatic edge feeding outside the cabin to reduce setup times in total safetyTechnical Data:
• Edge Thickness: 0.3mm - 6mm • Panel Thickness: 8mm - 60mm • Minimum Panel Width: 60mm • Feed Speed: 12 m/min • Compressed Air: 6 BarSpecifications
| Product Type | Automatic Edgebander |
| Flow Rating | |
| Height | 1543mm |
| Handle Length | |
| Speed | |
| Length | 4300mm |
| Width | 1670mm |
