Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The 12V max CXT Lithium-Ion Self-Leveling Cross-Line Green Beam Laser (SK105GDZ) gives the user a cordless solution for selectable horizontal/vertical cross reference lines required for level, align, and plumb applications. Depending on ambient light in the working environment, the SK105GDZ has a line visibility range up to 115' and is detectable up to 262' with a Laser Detector (sold separately).
The SK105GDZ has a bright 525 nm class II green laser with +/-1/8" at 33' for best"-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity.
For longer run time, all 12V max CXT cordless tools are also compatible with the 12V max CXT Lithium-Ion 4.0Ah battery (BL1041B). 12V max CXT lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It's part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size.
For users in the 18V LXT battery platform, the SK105GDZ has a power connector port that allows an 18V LXT battery to be used with the Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately).
When the job takes your tool into harsh conditions, Extreme Protection Technology (XPT) provides added protection. XPT is a series of integrated seals engineered to channel away dust and water for increased durability. Wherever the job takes you, tools equipped with XPT are engineered for increased durability and longer tool life.
CXT is the next generation in 12-volt max cordless tools. 12V max CXT gives users a more compact solution with more comfort and more capacity. The slide style lithium-ion batteries provide superior ergonomics and comfort, and allow go-to tools like the impact driver and drills to stand up on their own for added convenience. Select 12V max CXT tools are equipped with efficient brushless motors for longer run time, increased power and speed, and longer tool life. For even longer run time, the expanding 12V max CXT platform includes an efficient 4.0Ah battery.
Features:

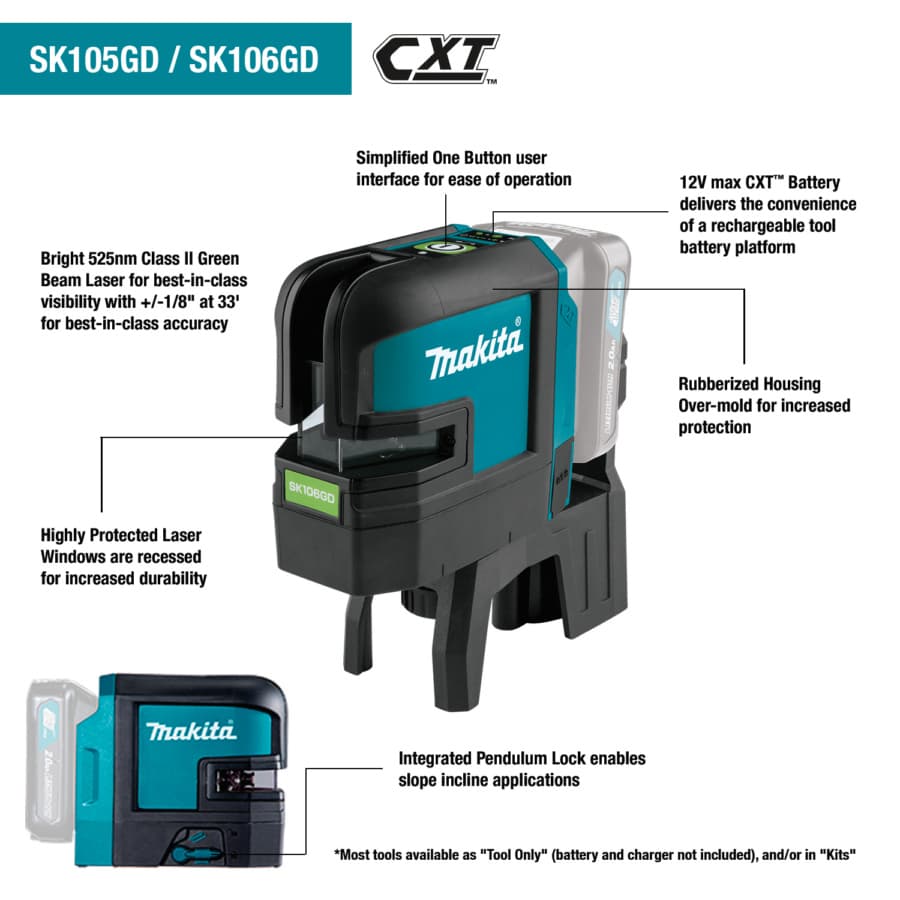

• Selectable horizontal/vertical cross reference lines required for level, align and plumb applications
• 12V max CXT 4.0Ah rechargeable battery provides up to 20 hours of continuous run time (battery not included)
• Green line visibility range up to 115' depending on ambient light and detectable up to 262' with Laser Detector LE00855702 (sold separately)
• Bright 525 nm class II green laser for best"-class visibility with +/-1/8" at 33' for best"-class accuracy

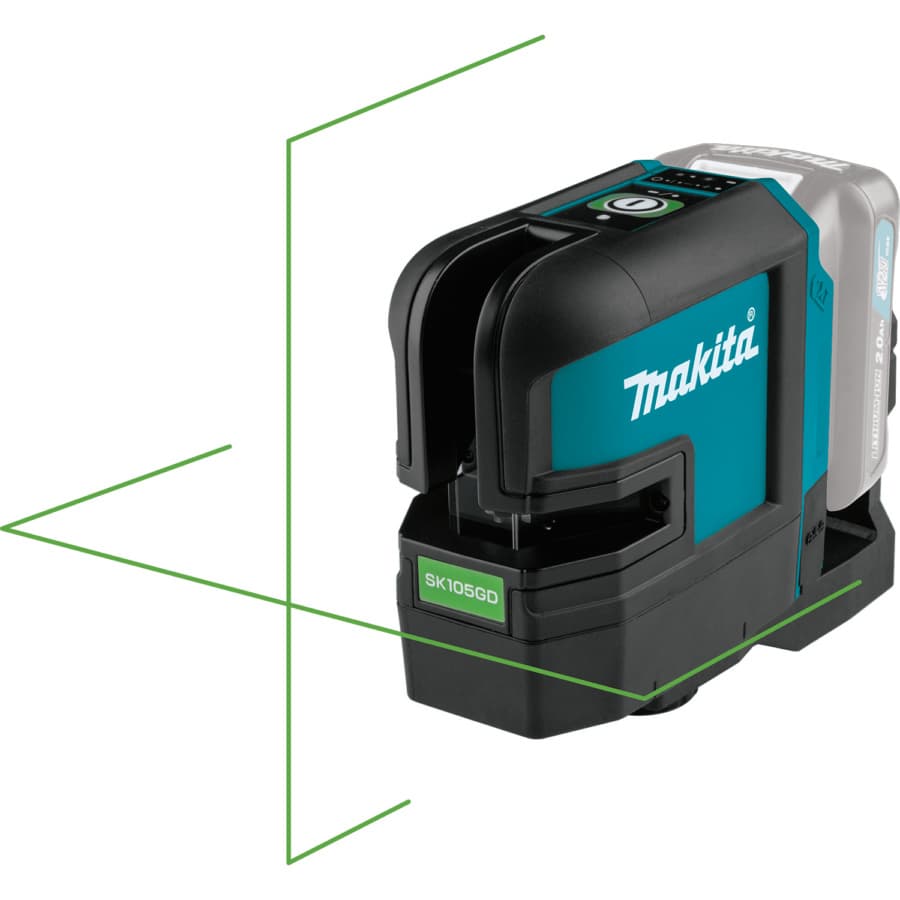

• Laser line fan angle spans past the 180° horizontal line and 160° vertical line positions for full reference line coverage
• Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
• Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport and storage
• Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
• Dust and water resistance with IP 54 rating for increased durability
• Highly protected laser windows are recessed into the housing for increased durability
• Rubberized housing over-mold for increased protection
• Simplified one button user interface for ease of operation
• Low laser brightness mode conserve battery power for extended run-time performance
• Power connector port allows 18V LXT lithium-ion battery to be used as alternate power source with Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately)
• Multi-purpose magnetic bracket with integrated 1/4" and 5/8" threads allow laser attachment to metal surfaces, wood surfaces or Tripods (TK0LM1001F and TK0LM5030F)
• Battery protection Circuit protects against overloading, over-discharging and over-heating
• Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
• Not compatible with 12V max pod-style tools, batteries and chargers
• 3-year limited warranty
• Only use genuine batteries and chargers

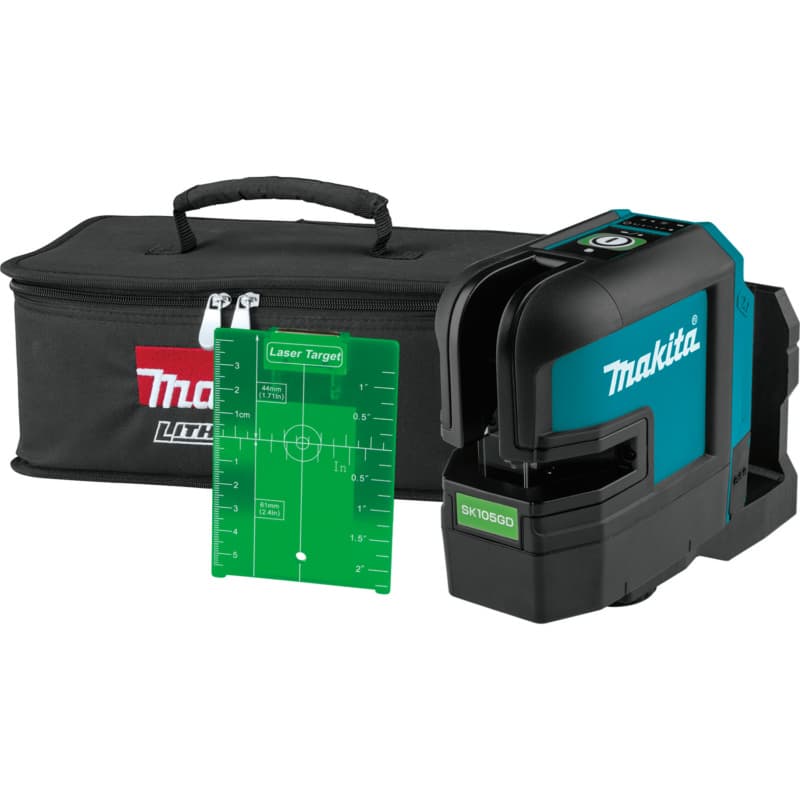

Includes:
• (1) Magnetic L-Adapter (LE00870131)
• (1) Magnetic Green Target Plate (LE00823195)
• (1) Storage Pouch
