12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah)

Item # MKSK106DNAX
Mfr # SK106DNAX
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Main - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 1 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 2 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 3 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 4 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 5 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 6 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 7 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 8 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 9 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 10 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 11 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 12 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 13 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 14 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 15 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 16 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 17 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 18 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 19 - Image
12 V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Red Beam Laser Kit (2.0Ah) Alt 20 - Image
$537.90
/Kit
Qty /
Min Order: 1
Qty mult. by: 1

Product Details

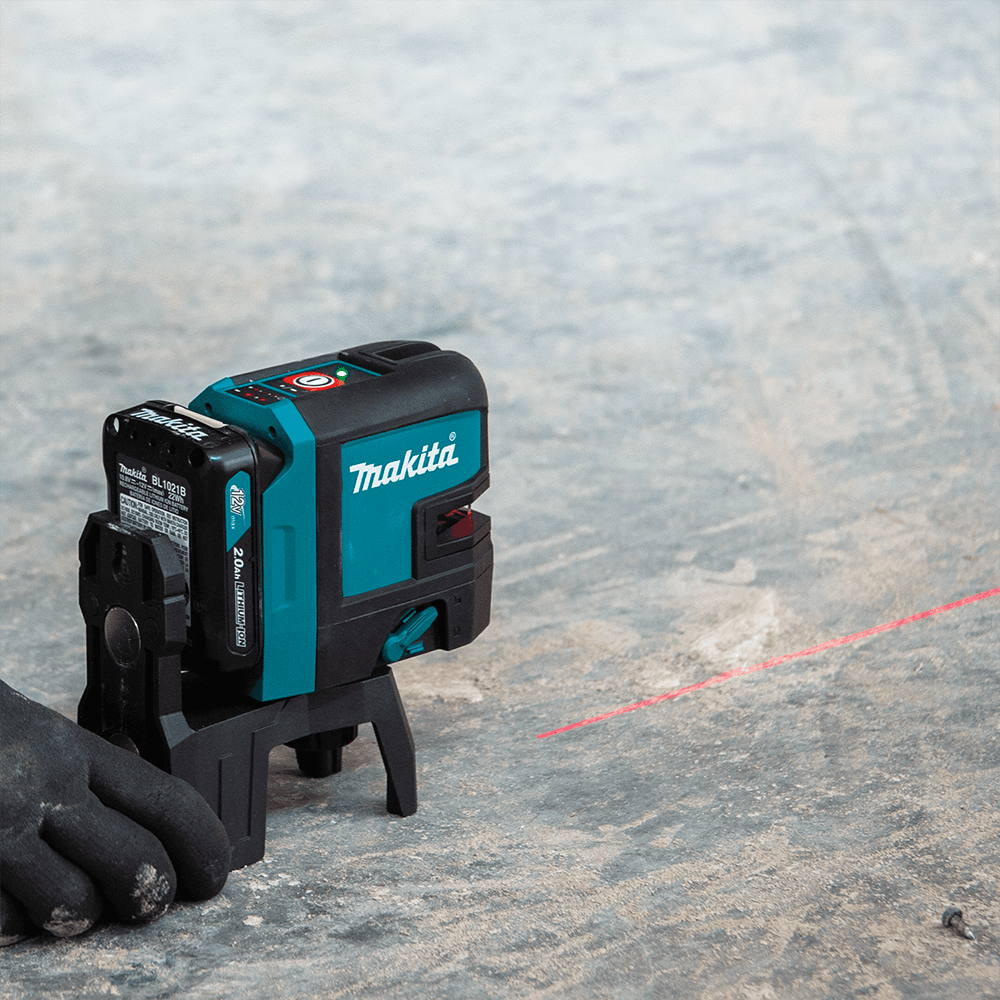

Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The 12V max CXT Lithium-Ion self-leveling cross-line/4-point red beam laser (SK106DNAX) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb, and square applications. Depending on ambient light in the working environment, the SK106DNAX has a line visibility range up to 82′ and is detectable up to 262′ with a Laser Detector (sold separately).

The SK106DNAX has a bright 635 nm class II red laser with +/-1/8" at 33′ for best"-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity.

For longer run time, all 12V max CXT cordless tools are also compatible with the 12V max CXT Lithium-Ion 4.0Ah battery (BL1041B). 12V max CXT lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It′s part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size.

For users in the 18V LXT battery platform, the SK106DNAX has a power connector port that allows an 18V LXT battery to be used with the Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately).

When the job takes your tool into harsh conditions, Extreme Protection Technology (XPT) provides added protection. XPT is a series of integrated seals engineered to channel away dust and water for increased durability. Wherever the job takes you, tools equipped with XPT are engineered for increased durability and longer tool life.

CXT is the next generation in 12-volt max cordless tools. 12V max CXT gives users a more compact solution with more comfort and more capacity. The slide style lithium-ion batteries provide superior ergonomics and comfort, and allow go-to tools like the impact driver and drills to stand up on their own for added convenience. Select 12V max CXT tools are equipped with efficient brushless motors for longer run time, increased power and speed, and longer tool life. For even longer run time, the expanding 12V max CXT platform includes an efficient 4.0Ah battery.

Features:

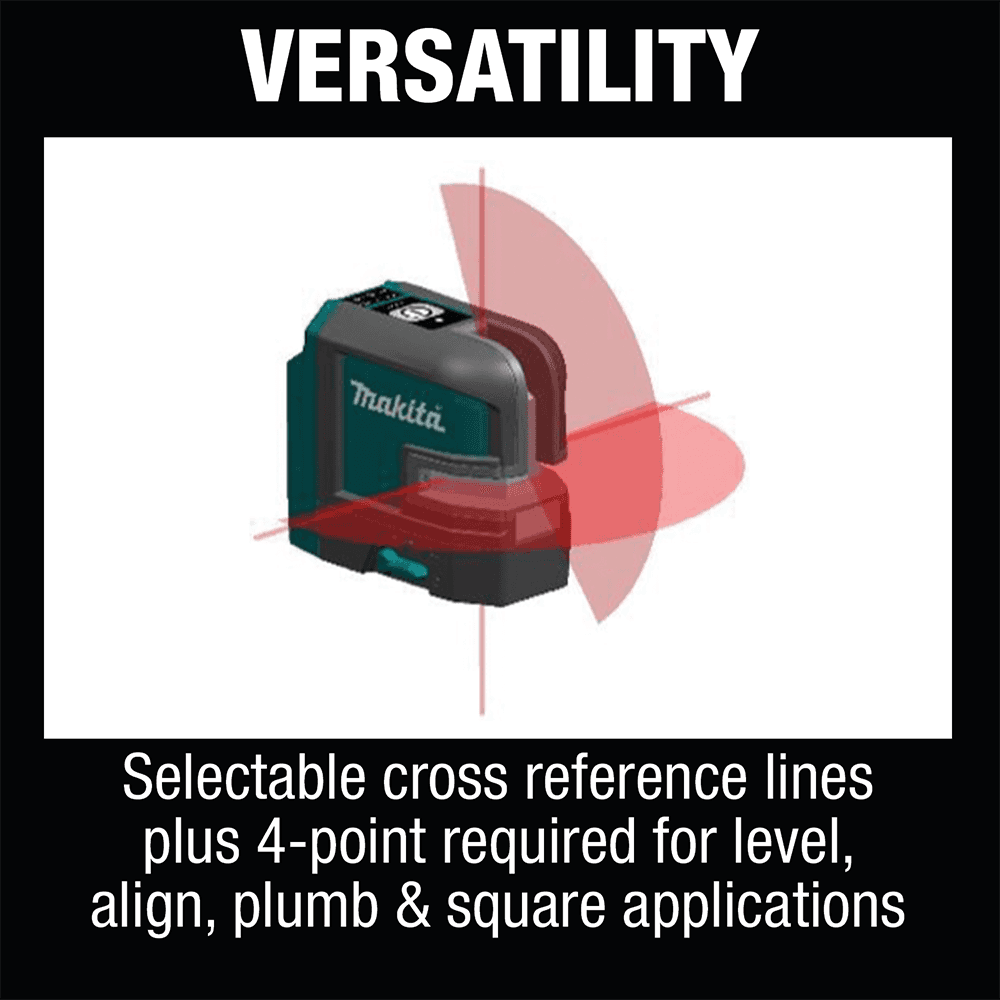

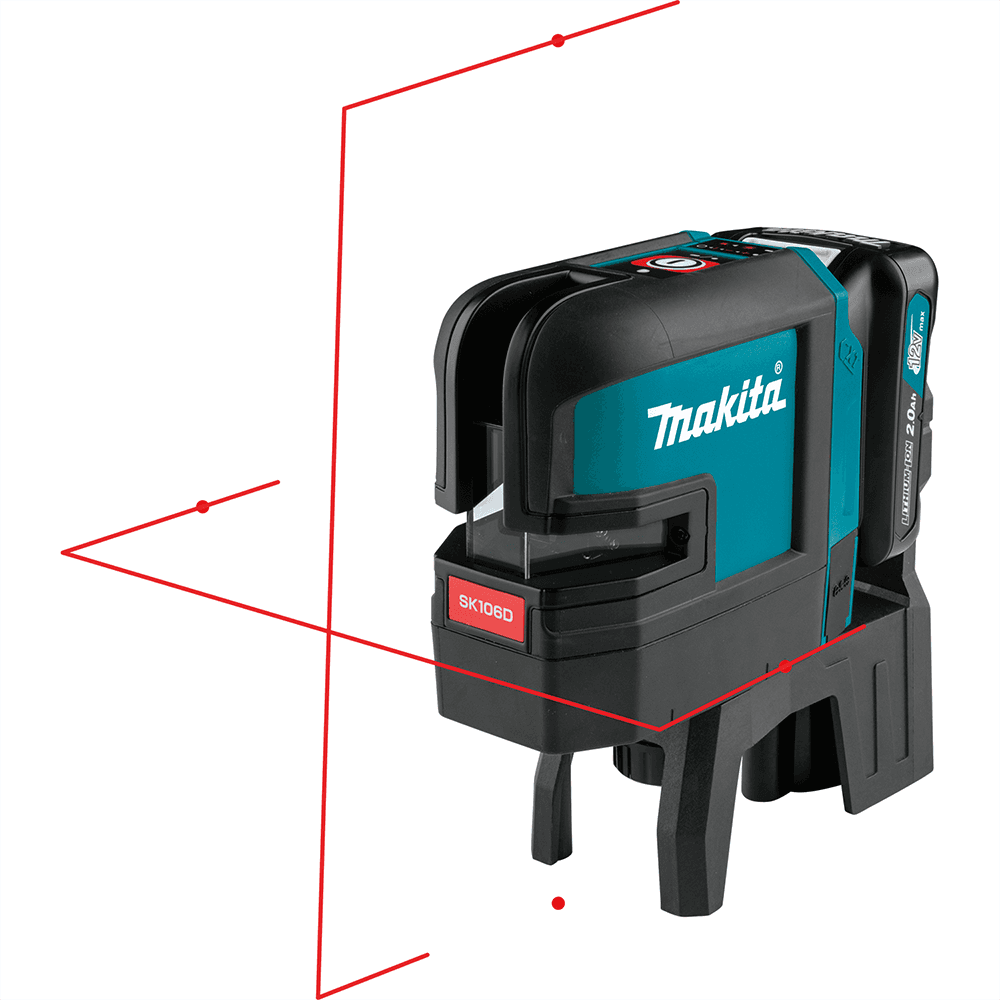

• Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications
• Up to 20 hours of continuous run time using included 12V max CXT 2.0Ah rechargeable battery; up to 40 hours of continuous run time using a 12V max CXT 4.0Ah battery

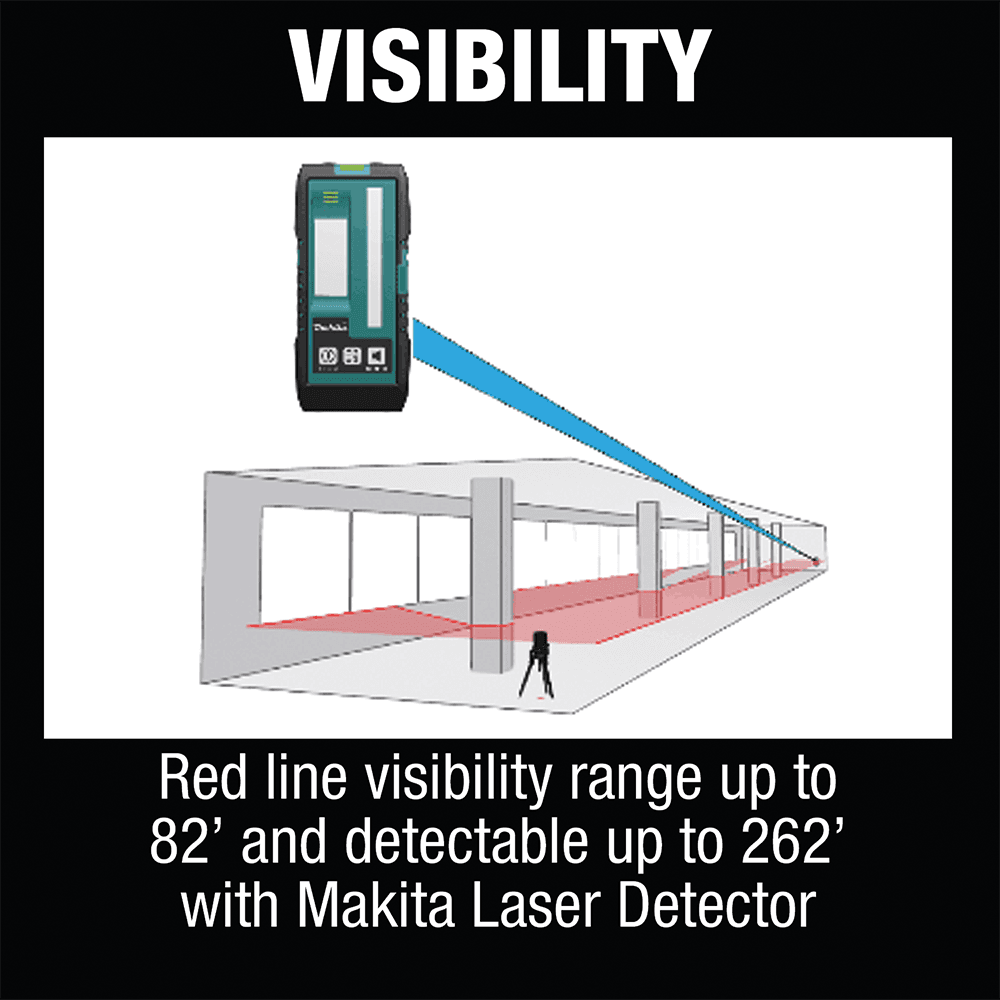

• Red line visibility range up to 82′ depending on ambient light and detectable up to 262′ with Laser Detector LE00855702 (sold separately)
• Bright 635 nm class II red laser with +/-1/8" at 33′ for best"-class accuracy

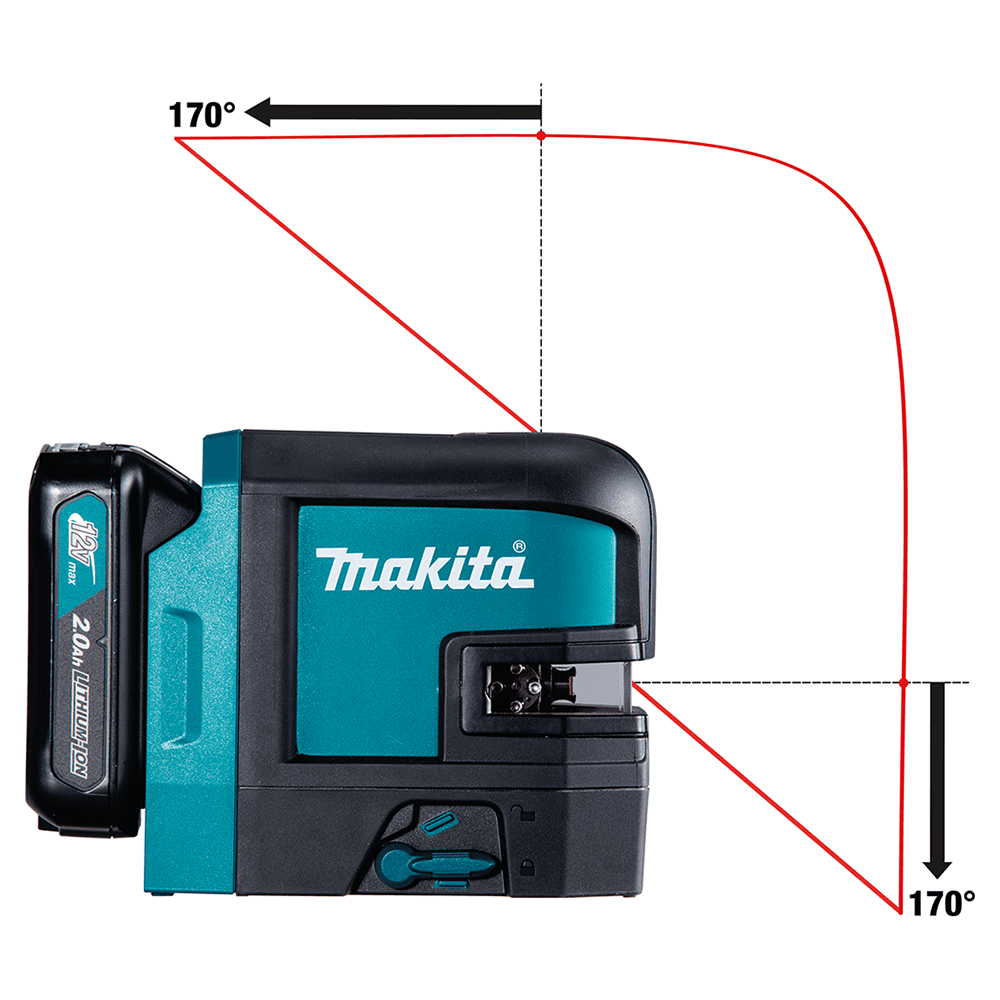

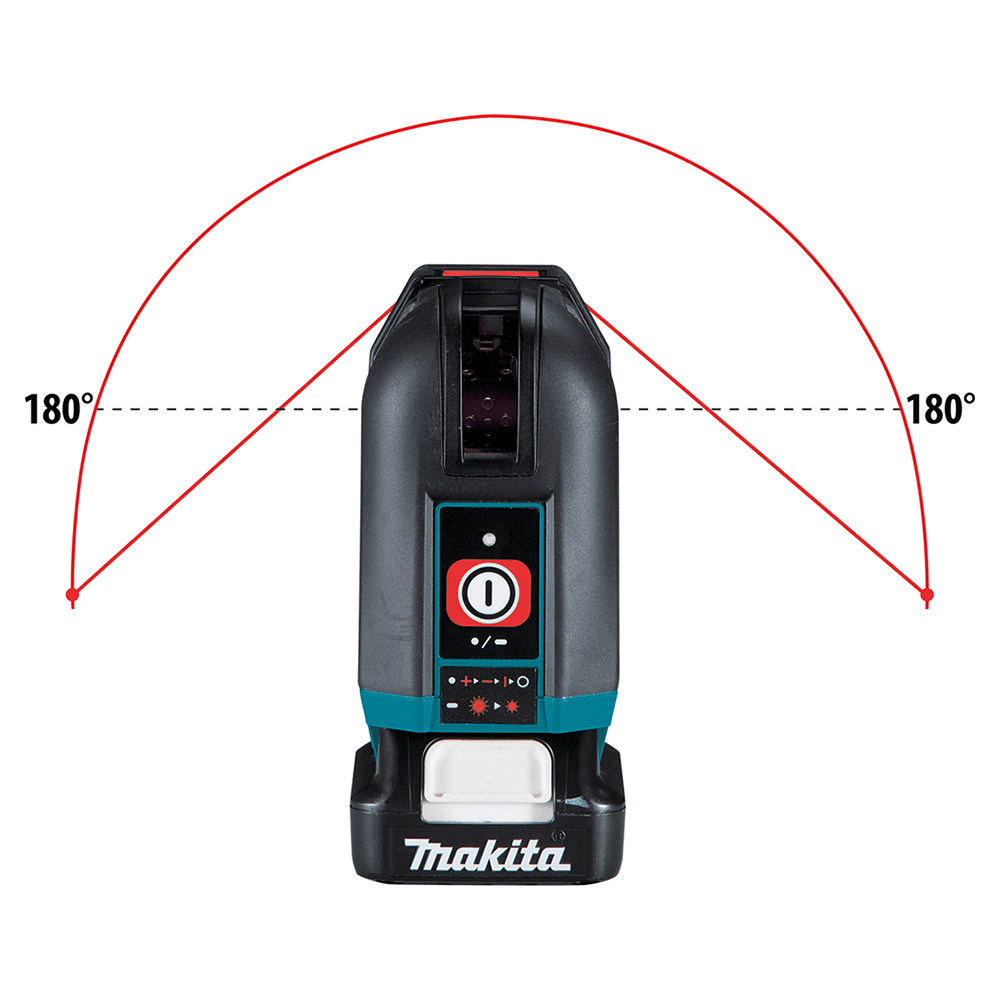

• Laser line fan angle spans past the 180° horizontal line and 170° vertical line positions for full reference line coverage
• Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
• Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces

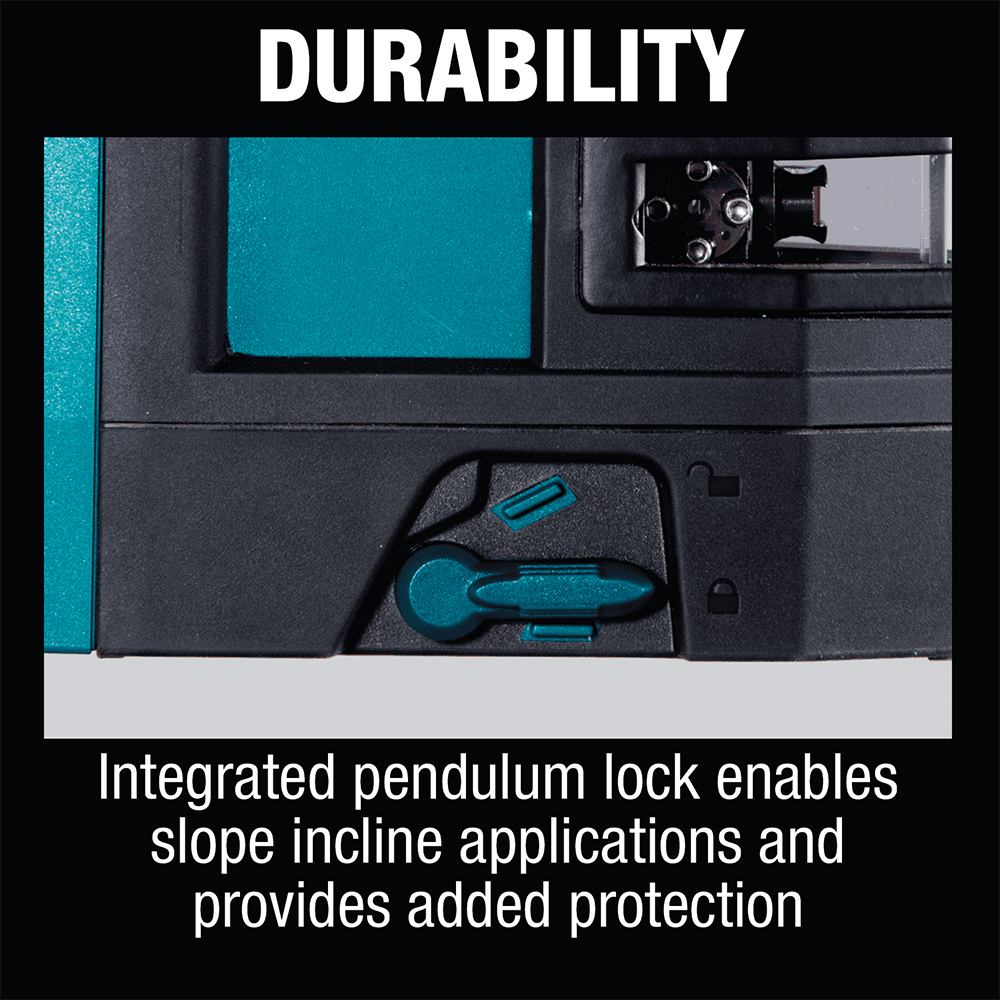

• Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport and storage
• Dust and water resistance with IP 54 rating for increased durability
• Highly protected laser windows are recessed into the housing for increased durability
• Rubberized housing over-mold for increased protection
• Simplified one button user interface for ease of operation
• Low laser brightness mode conserve battery power for extended run-time performance
• Power connector port allows 18V LXT lithium-ion battery to be used as alternate power source with Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately)

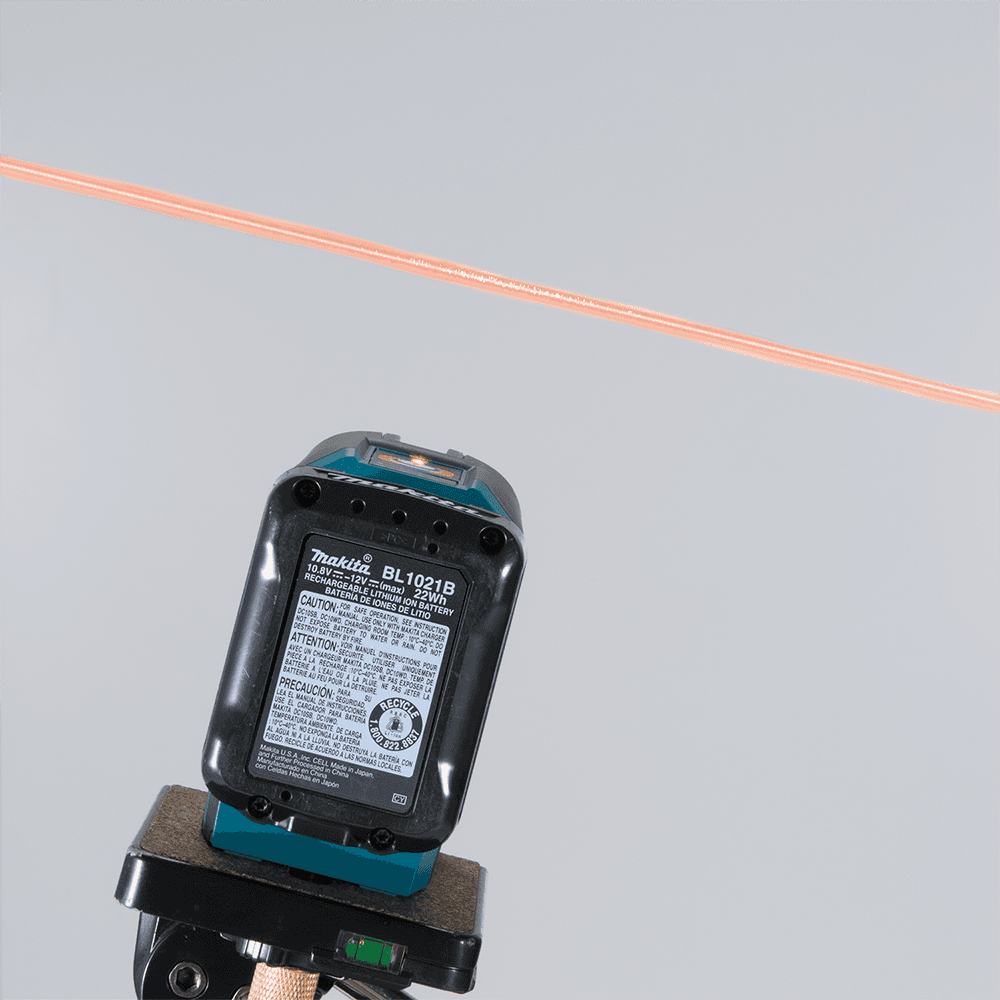

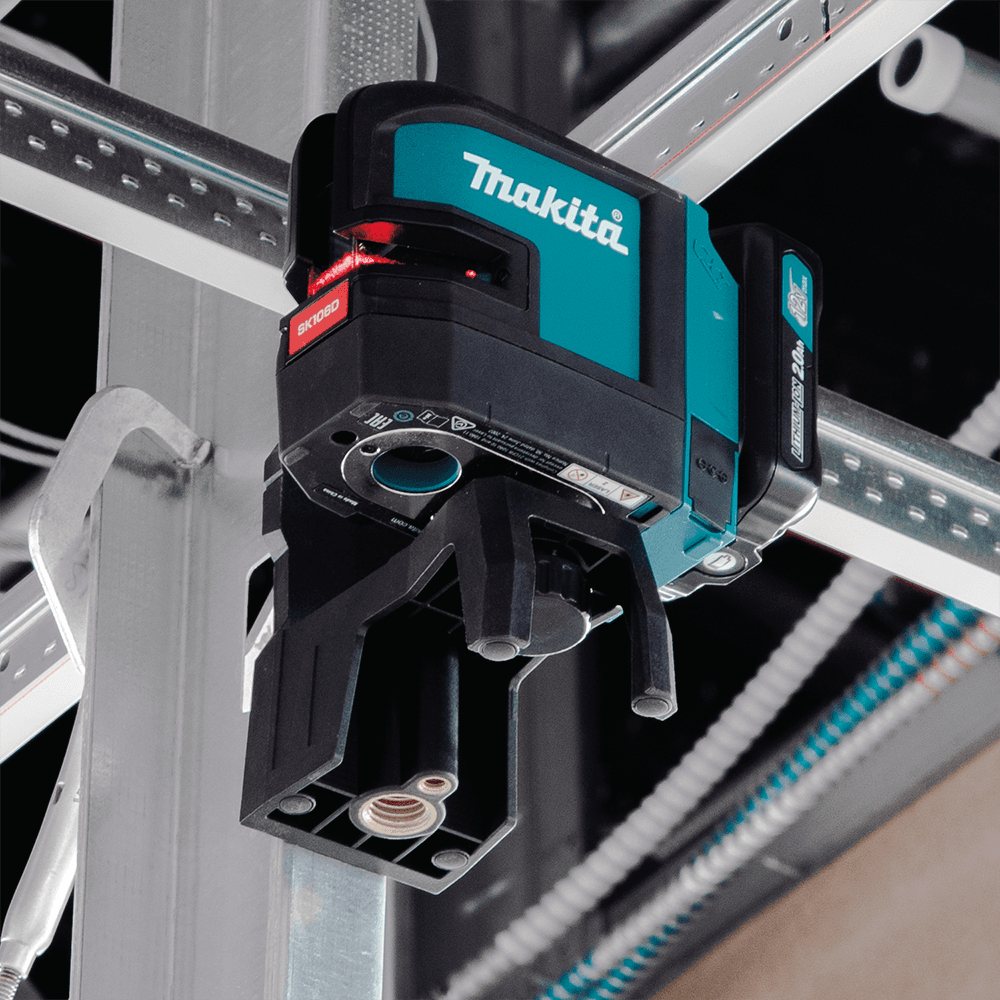

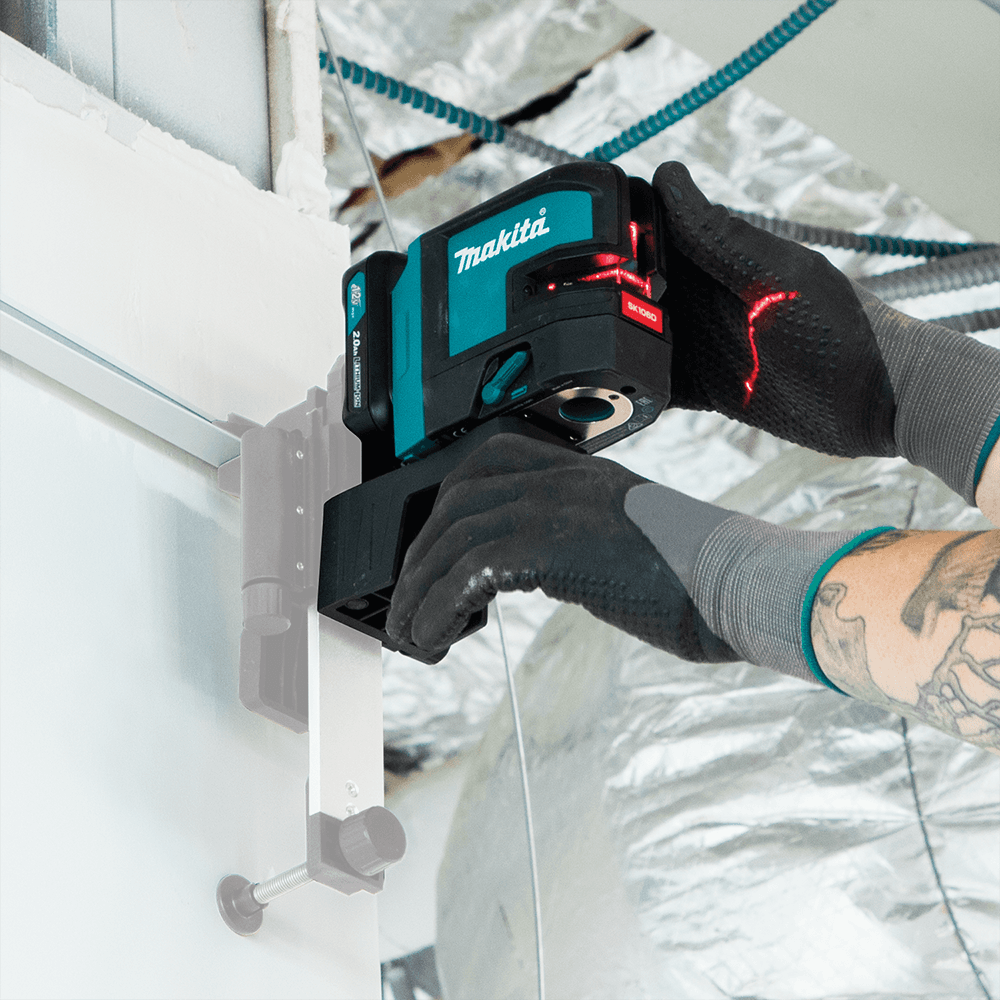

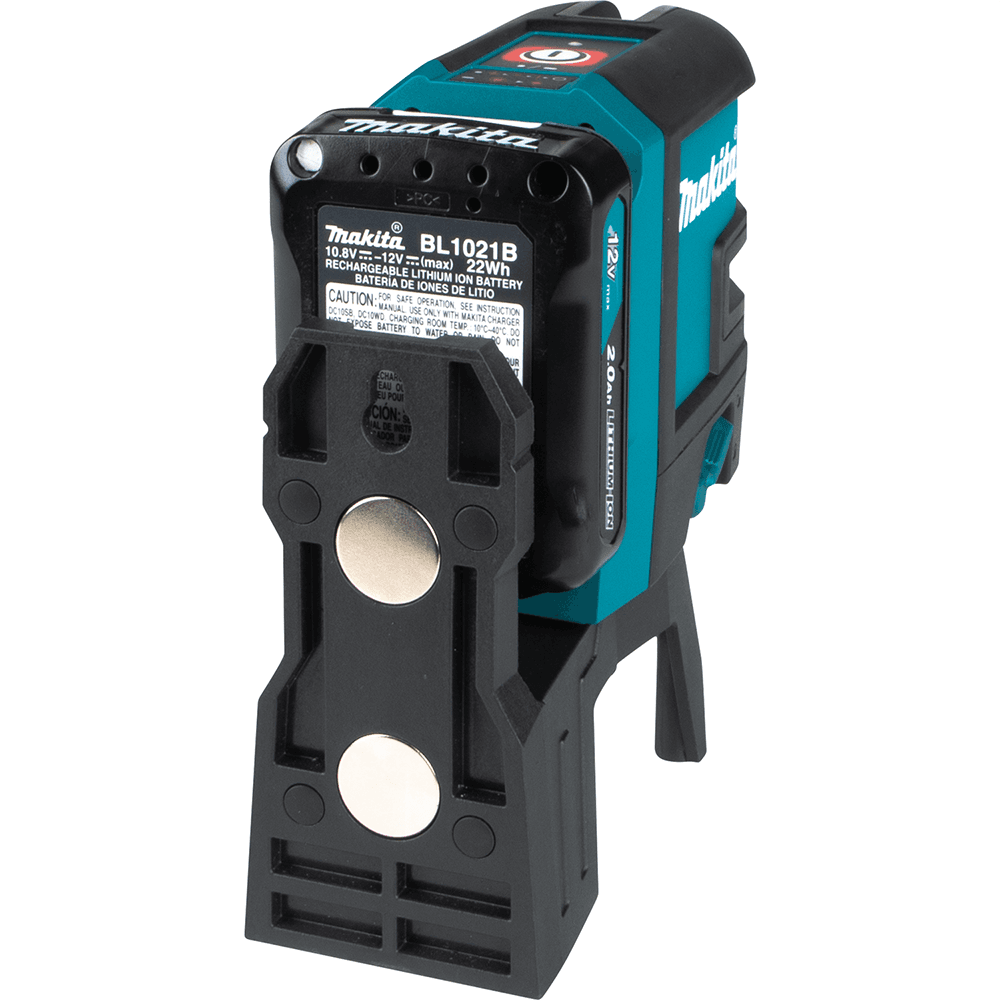

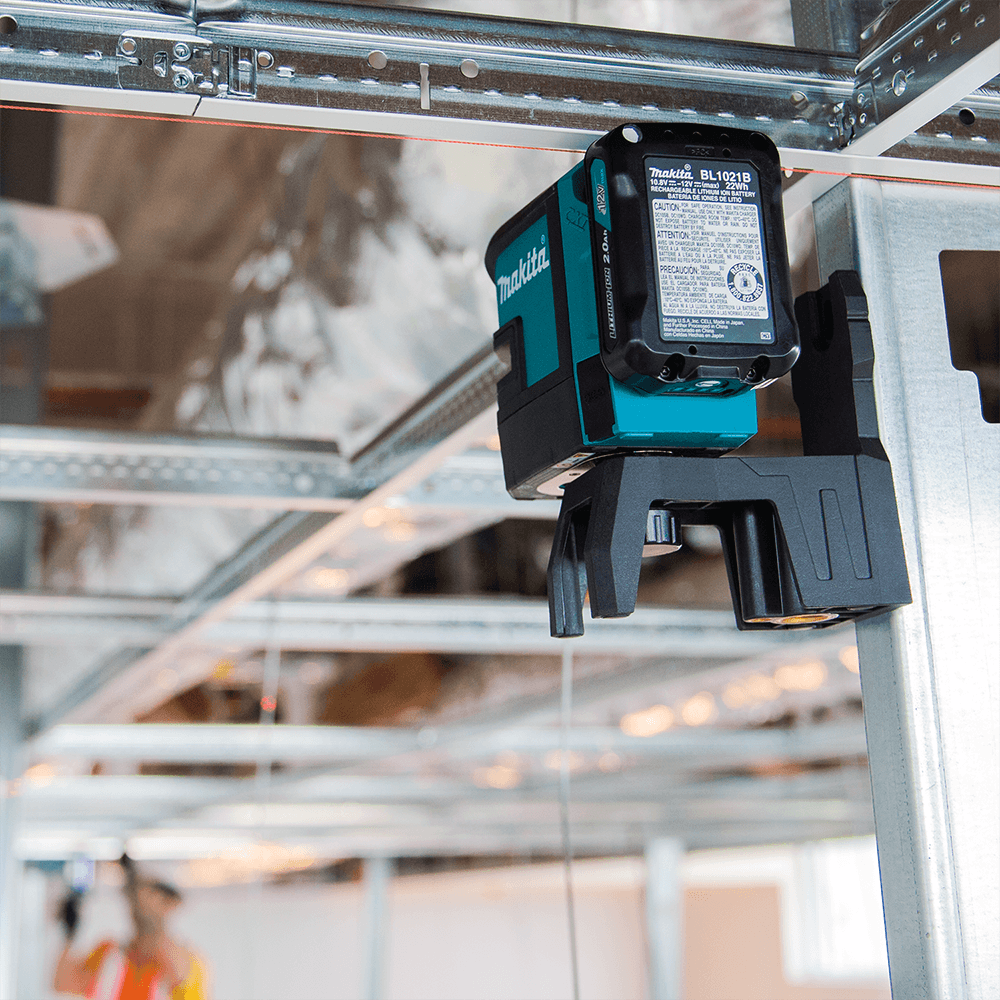

• Multi-purpose magnetic bracket with integrated 1/4" and 5/8" threads allow laser attachment to metal surfaces, wood surfaces or Tripods (TK0LM1001F and TK0LM5030F)
• Battery protection Circuit protects against overloading, over-discharging and over-heating

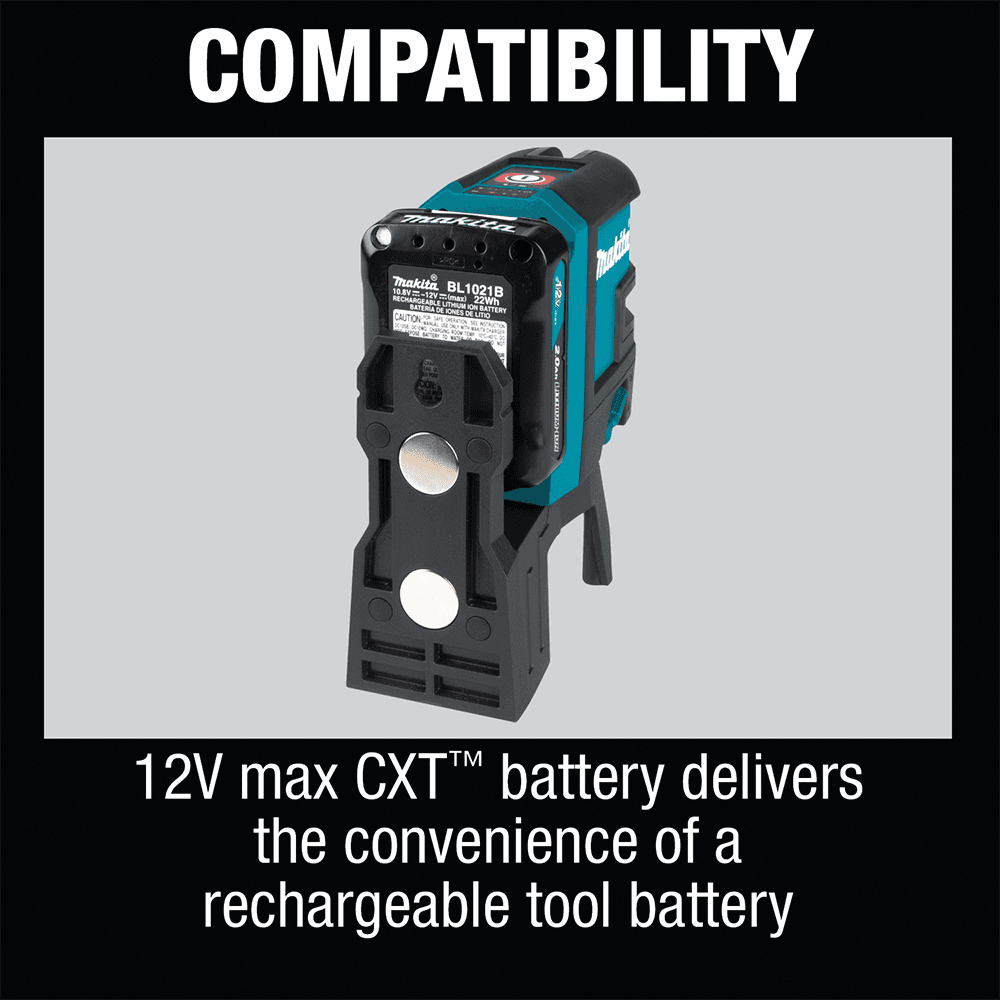

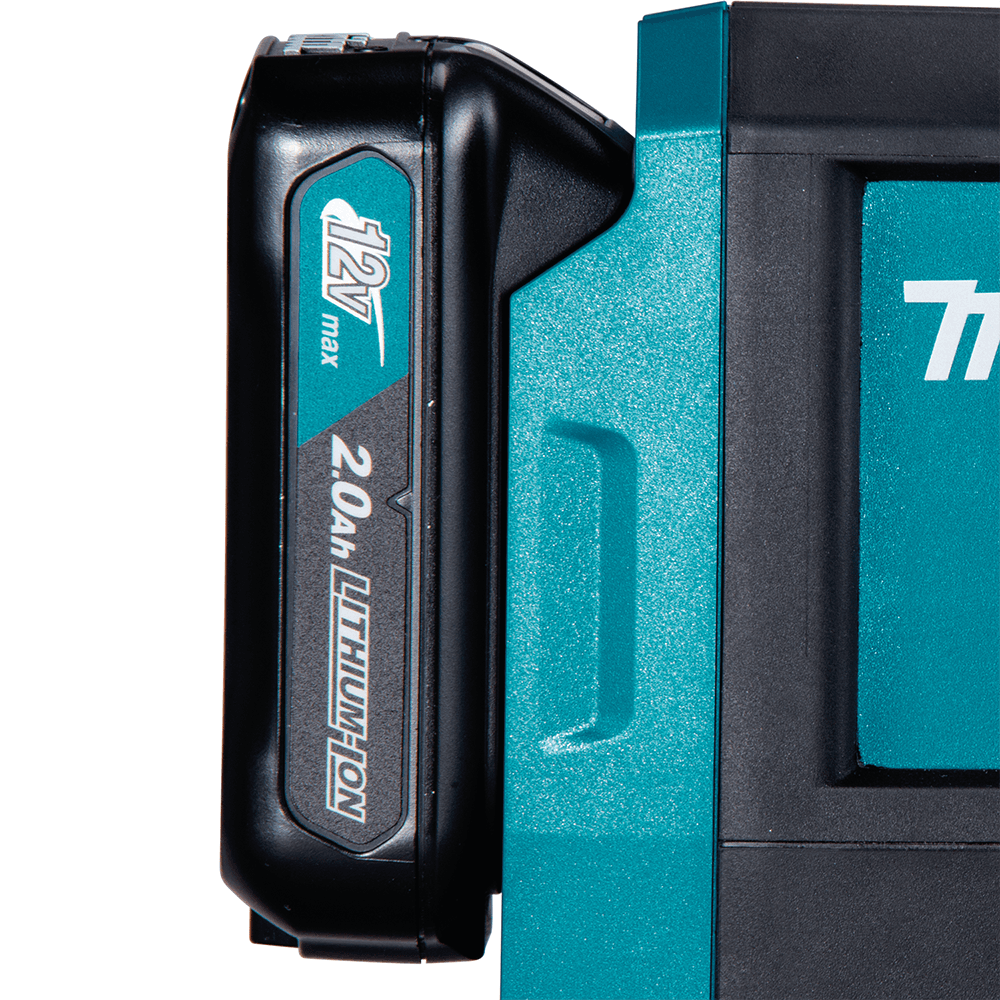

• 12V max CXT lithium-ion 2.0Ah battery BL1021B, features an integrated L.E.D. battery charge level indicator
• Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
• Not compatible with 12V max pod-style tools, batteries and chargers
• 3-year limited warranty on tool, battery and charger
• Only use genuine batteries and chargers

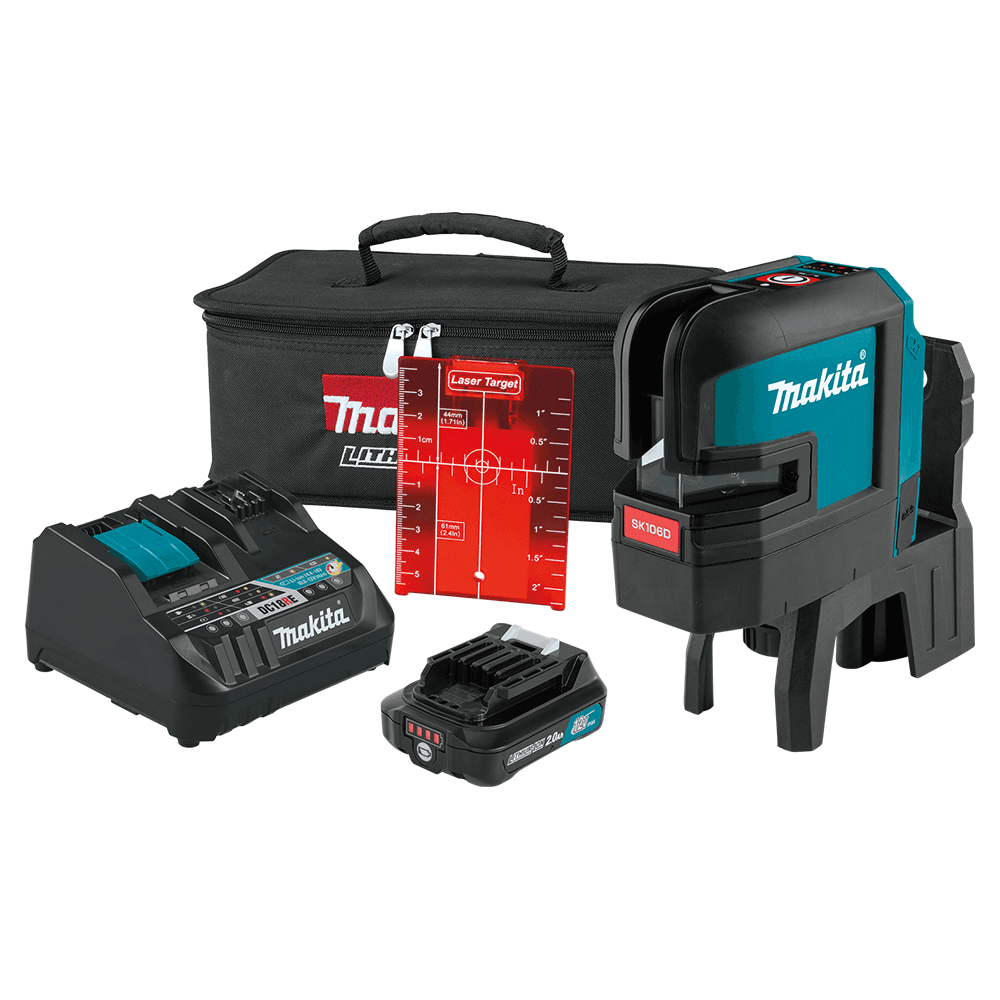

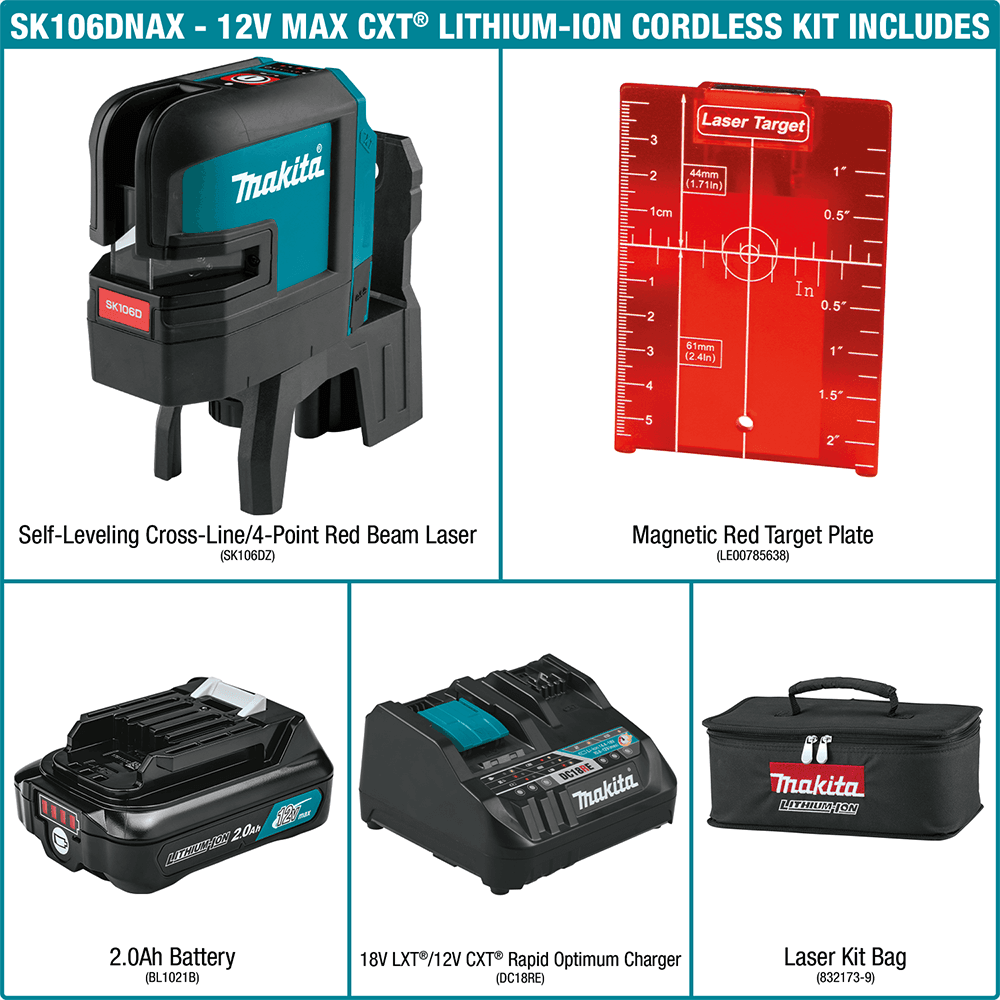

Includes:

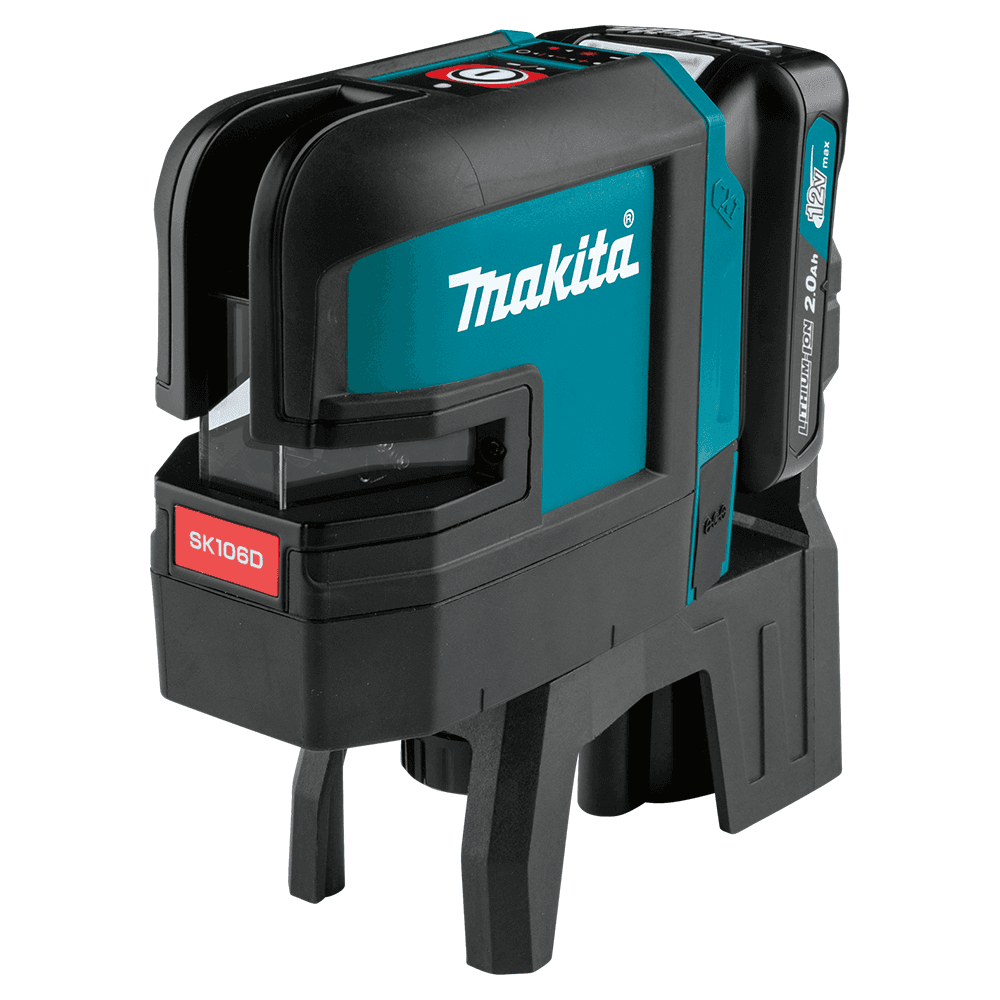

• (1) 12V max CXT Self-Leveling Cross-Line/4-Point Red Beam Laser (SK106DZ)
• (1) 12V max CXT Lithium-Ion 2.0Ah Battery (BL1021B)
• (1) 18V LXT / 12V max CXT Lithium-Ion Rapid Optimum Charger (DC18RE)

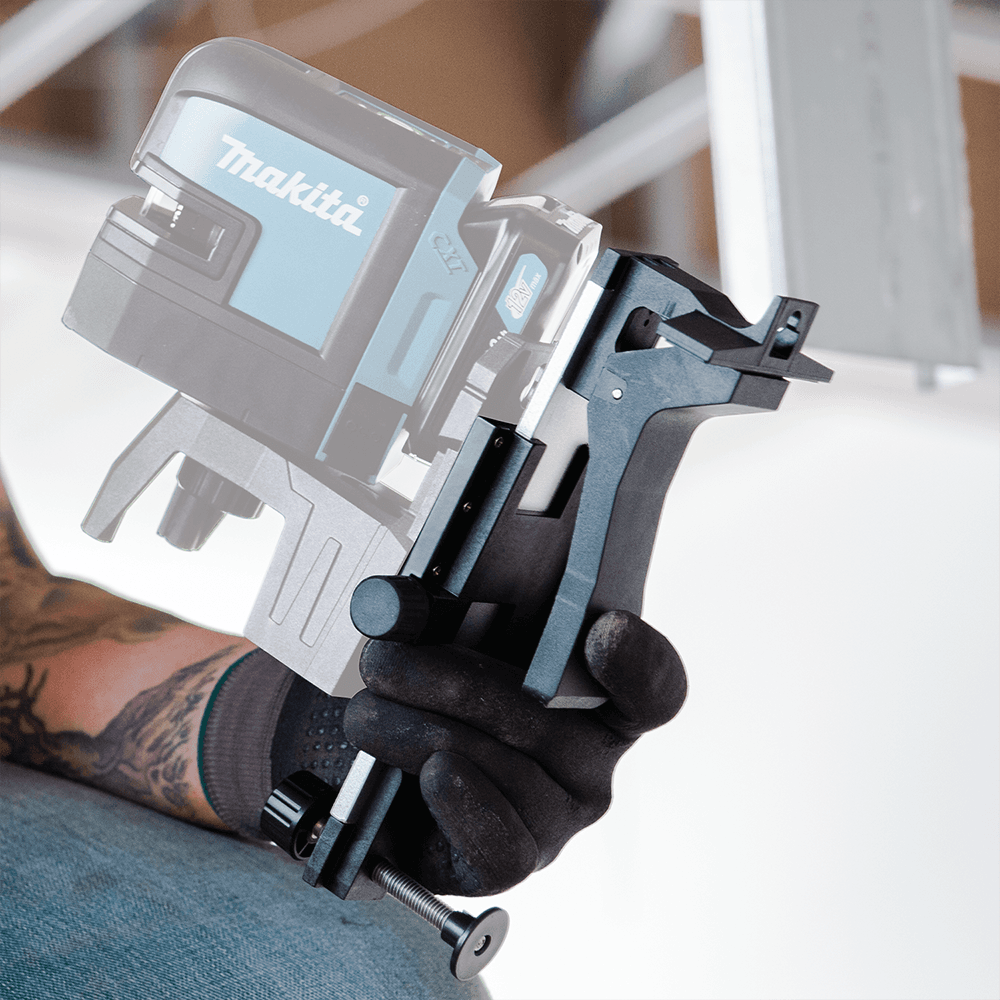

• (1) Magnetic PRO L-Adapter (LE00870134)
• (1) Magnetic Red Target Plate (LE00785638)
• (1) Laser Kit Bag (832173-9)

Specifications

Box Quantity1
Battery TypeLithium-Ion
Product TypeLaser Kit
Chuck Size
Torque
Length
Voltage12 V
