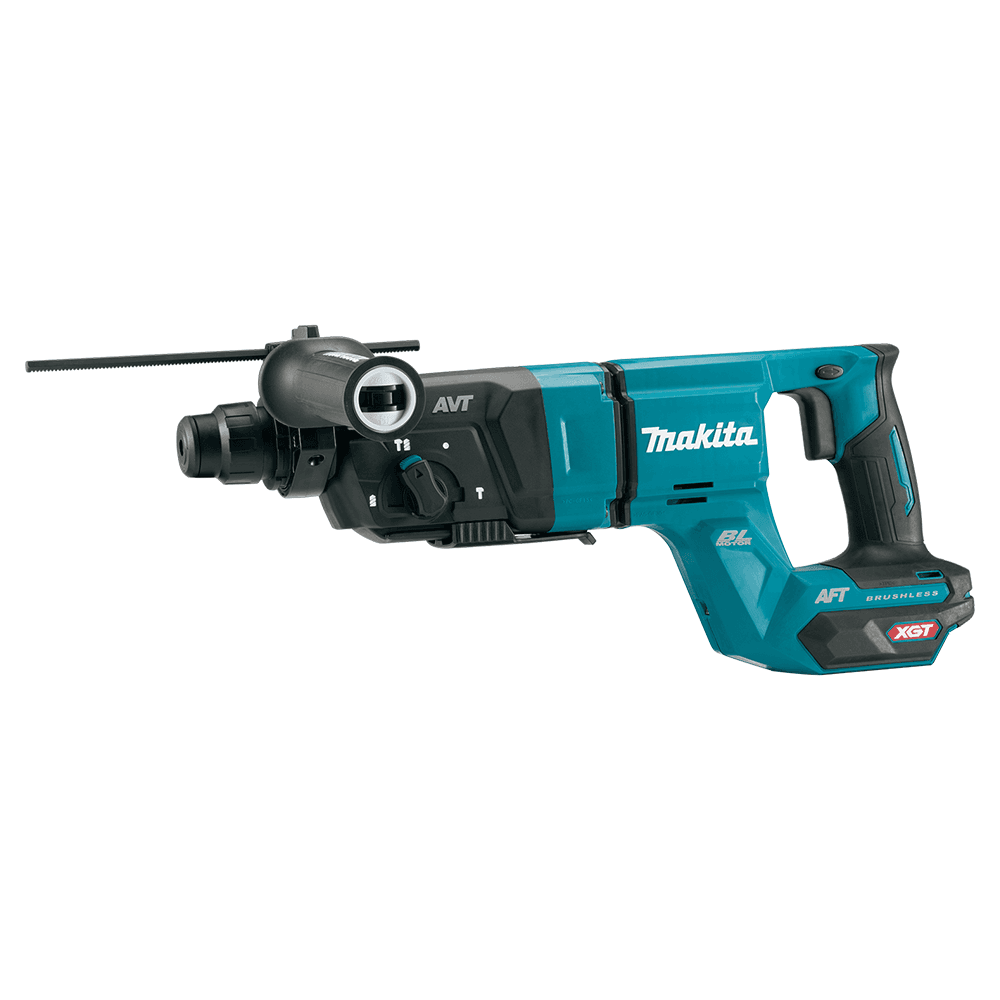

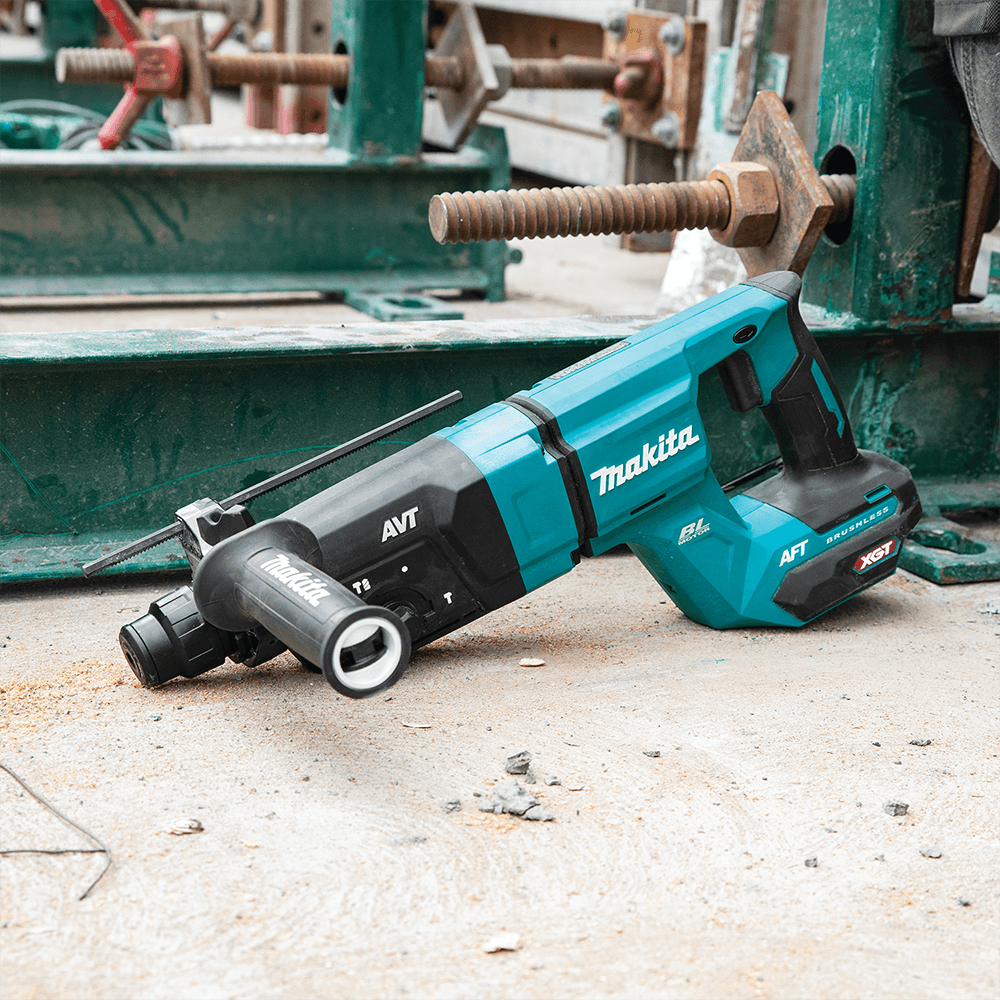

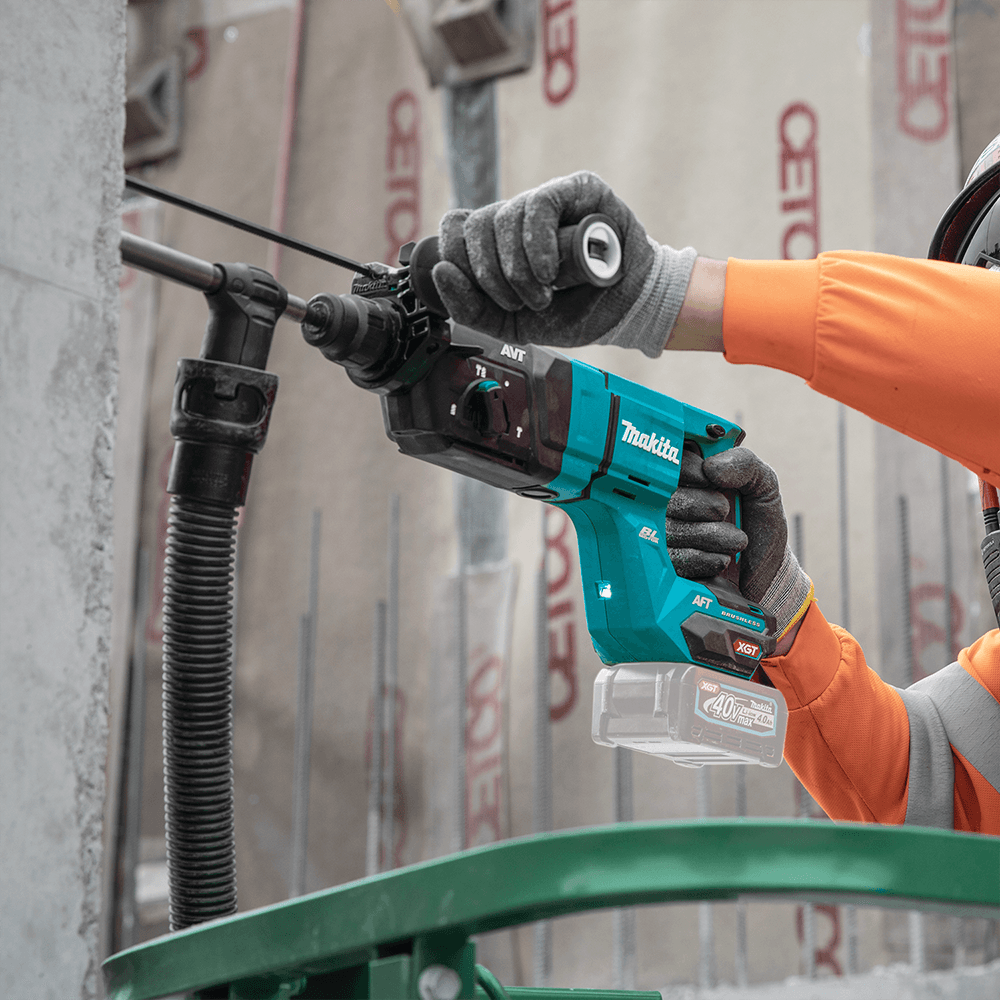

The 40V max XGT Brushless 1-1/8" AVT rotary hammer (GRH07Z, tool only) is a cordless concrete solution engineered for heavy-load applications. It delivers the power, speed, and run-time for corded demands, and features a convenient D-handle design that is ideal for overhead, downward or hard-to-reach horizontal drilling/chipping applications.
The -built brushless motor delivers a full 2.7 ft. lbs. of impact energy, with 0-980 RPM and 0-5,000 BPM. Constant speed control automatically applies additional power under load for optimum performance.
It's equipped with Active Feedback-Sensing Technology (AFT), which electronically turns off the motor if rotation of bit is suddenly forced to stop, and Anti-Vibration Technology (AVT) for reduced vibration. More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. For added durability in harsh job site conditions, Extreme Protection Technology (XPT) is engineered for improved dust and water resistance.

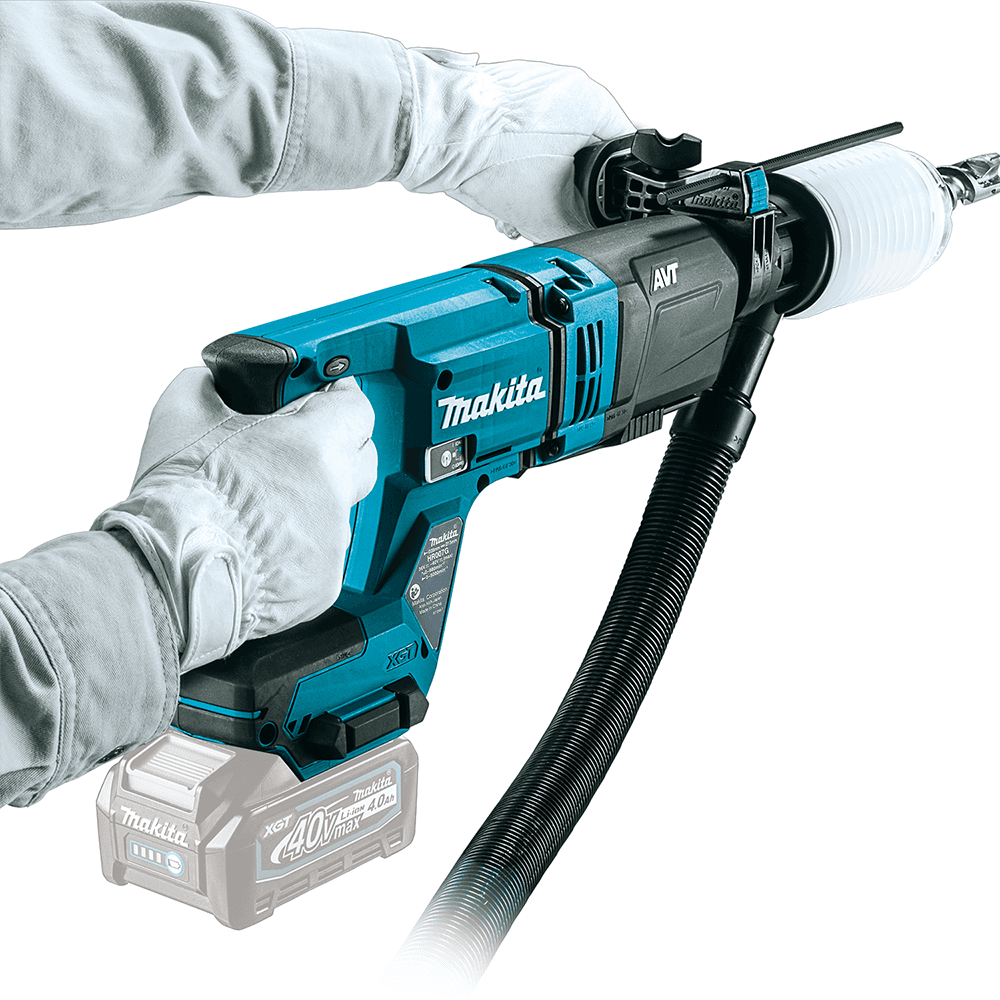

The rotary hammer has dust extraction capability with an OSHA Table 1 compliant on-board HEPA dust extractor attachment (model DX15, sold separately). Users many also use a standalone dust extractor with Auto-Start Wireless System (AWS). AWS uses Bluetooth technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site.
The torque limiting clutch is engineered to prevent gear damage by automatically disengaging the gears if the bit binds, and constant speed control automatically adds power to the motor to maintain speed under load to complete the most demanding jobs. Additional performance features include an electric brake, variable speed dial, built-in L.E.D. light, and a tethering loop/hanging hook to help secure the tool when working at heights or on a lift.
It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits.
XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
XGT is a new 40V max system of cordless equipment and tools. XGT outpowers, outsmarts, and outlasts the rest. Through Makita's innovative engineering, the technology within XGT will lead to creating the equipment and tools of the future
Makita takes another step toward a truly cordless job site with Auto-Start Wireless System. AWS uses Bluetooth technology for wireless power-on and power-off communication between the equipped tool and dust extractor. AWS is intelligent communication that eliminates cords and excessive noise since the dust extractor runs only when trigger-activated by an AWS tool. When the trigger is released, the dust extractor powers-down. The Makita AWS dust extractor (XCV08Z) is powered by two 18V LXT batteries for maximum performance, and users benefit with an expanding AWS system that includes cordless tools for concrete, metal and woodworking.

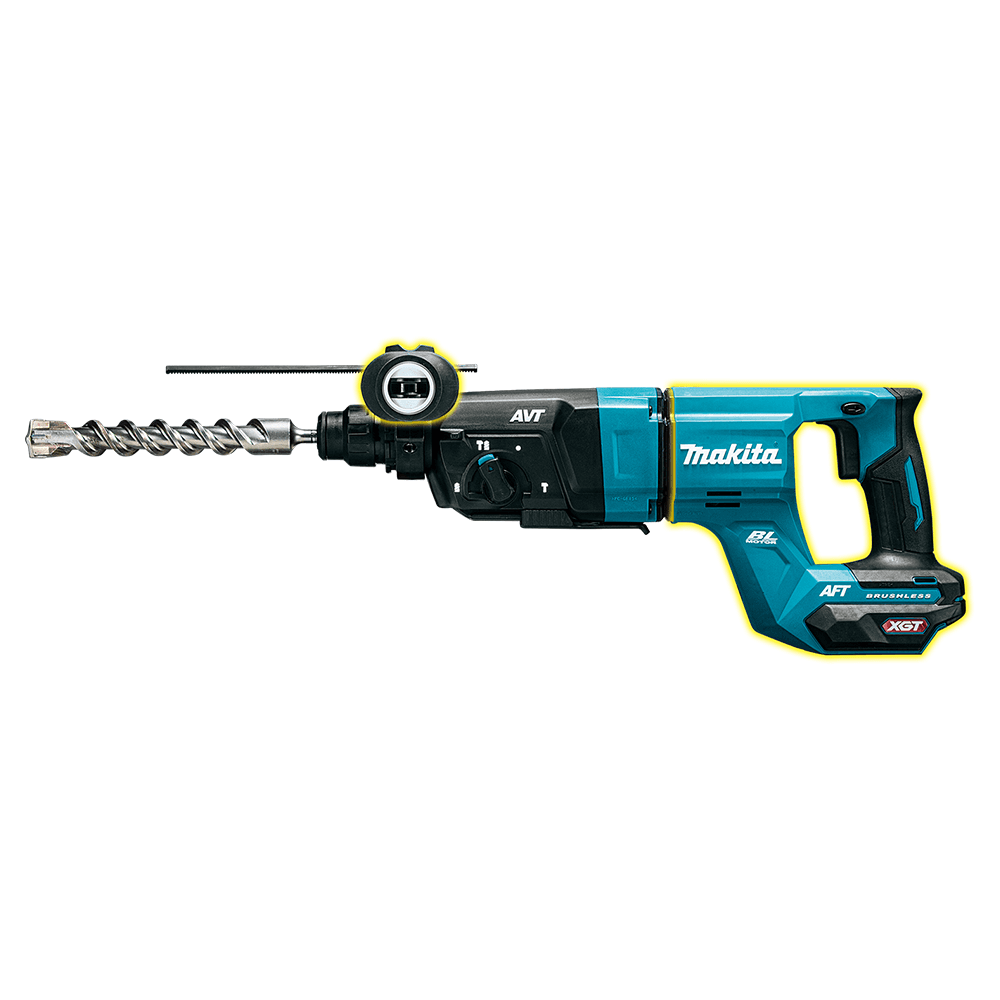

Advanced AVT enhances Makita Anti-Vibration Technology (AVT) with a 3-component system that sets new standards in vibration reduction, with no compromise in performance. The Air Actuated Counterbalance moves counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. The Vibration Absorbing Housing isolates the rear and side handle, reducing vibration for the user. And the Integrated Damper Spring is engineered to absorb impact vibrations from the drill bit.

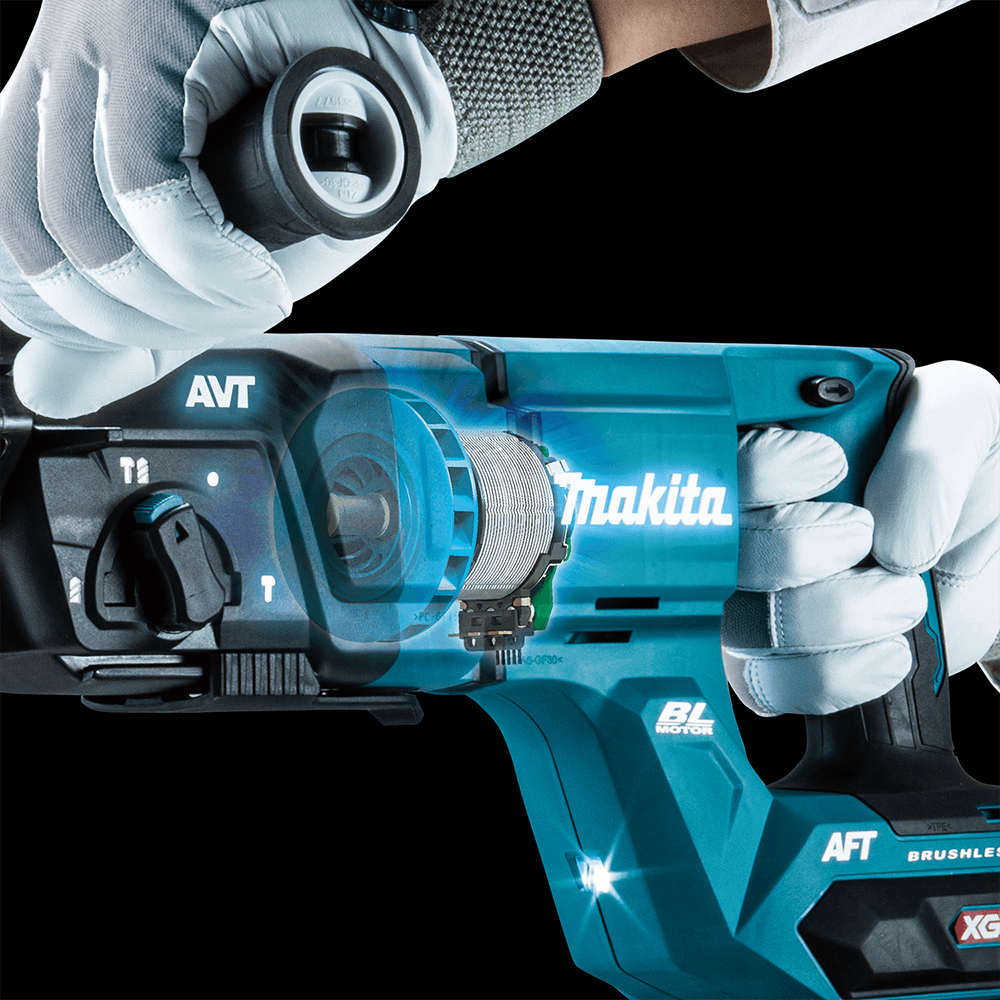

Anti-Vibration Technology (AVT) is a counterbalance system inside the tool that significantly reduces vibration. The AVT counterbalance design is based on seismic engineering, which developed this damping science to absorb shocks and protect buildings from earthquakes. AVT uses a mechanical damper, effectively a counterbalance weight inside the tool, that provides an equal and opposite force that puts a mass directly opposite the point where the striker bolt delivers the impact. As vibration is eliminated, power is efficiently increased which allows more of the generated energy in the motor to be delivered to the tool bit. Makita also has an AVT counterbalance system in select recipro saws. For users, AVT means significantly less vibration with no compromise in power and performance.
Features:
• Outpower: Built brushless motor and 40V max XGT battery delivers up to 23% faster drilling in concrete*
• Outsmart: Drills up to 38% more holes per charge
• Outlast: Active Feedback-Sensing Technology (AFT) electronically turns off the motor if the rotation of the bit is suddenly forced to stop
• Anti-Vibration Technology (AVT) is designed to reduce vibration for increased comfort
• Dust extraction capability with optional OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS Extractor

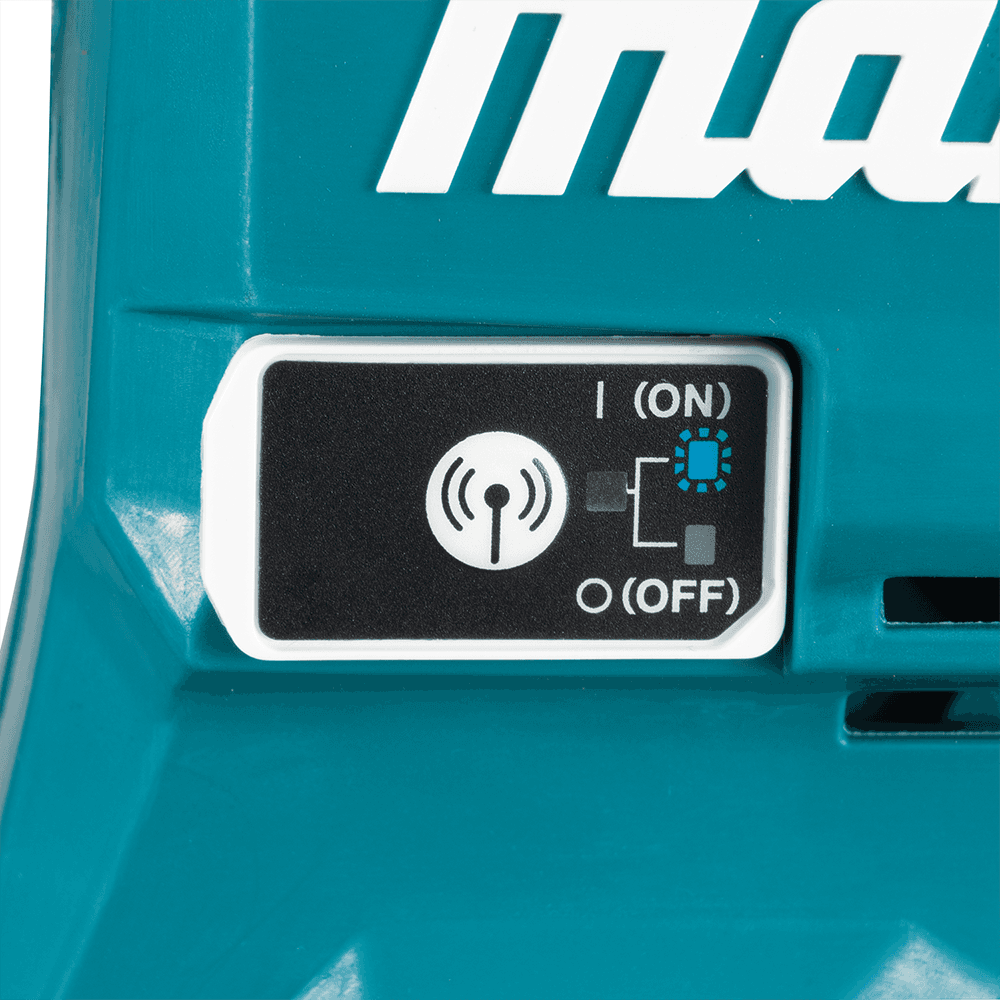

• Auto-Start Wireless System (AWS) which utilizes Bluetooth technology for wireless power-on/off communication between tool and dust extractor (AWS Transmitter sold separately)
• Electric brake allows the tool to be repositioned faster for maximum productivity
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
• Variable speed trigger enables the user to match the speed to the application
• D-handle design is ideal for overhead, downward or hard-to-reach horizontal drilling/chipping applications
• Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job

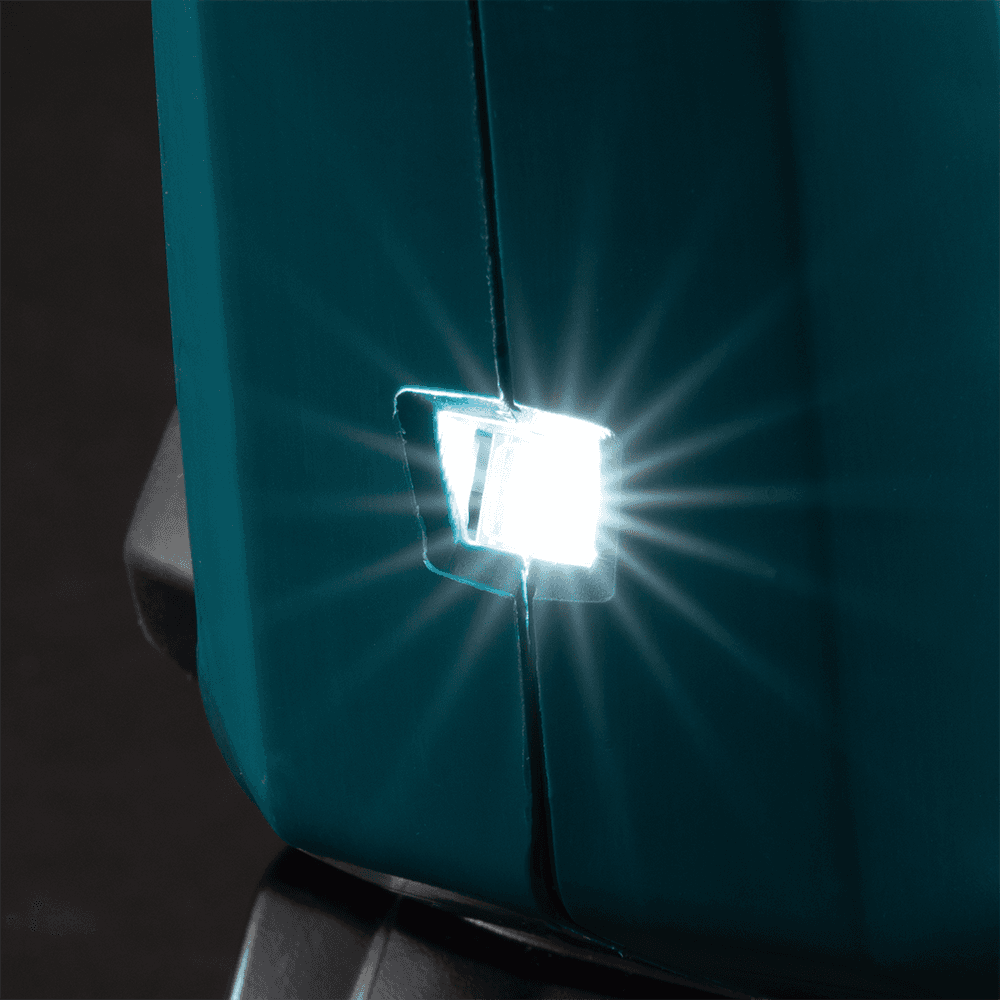

• Built-in L.E.D. light with an independent on/off illuminates the work area
• Tethering loop/hanging hook helps secure the tool when working at heights or on a lift (sold separately)
• 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
• Multiple bit angles allow the bit to be set at different positions for increased comfort

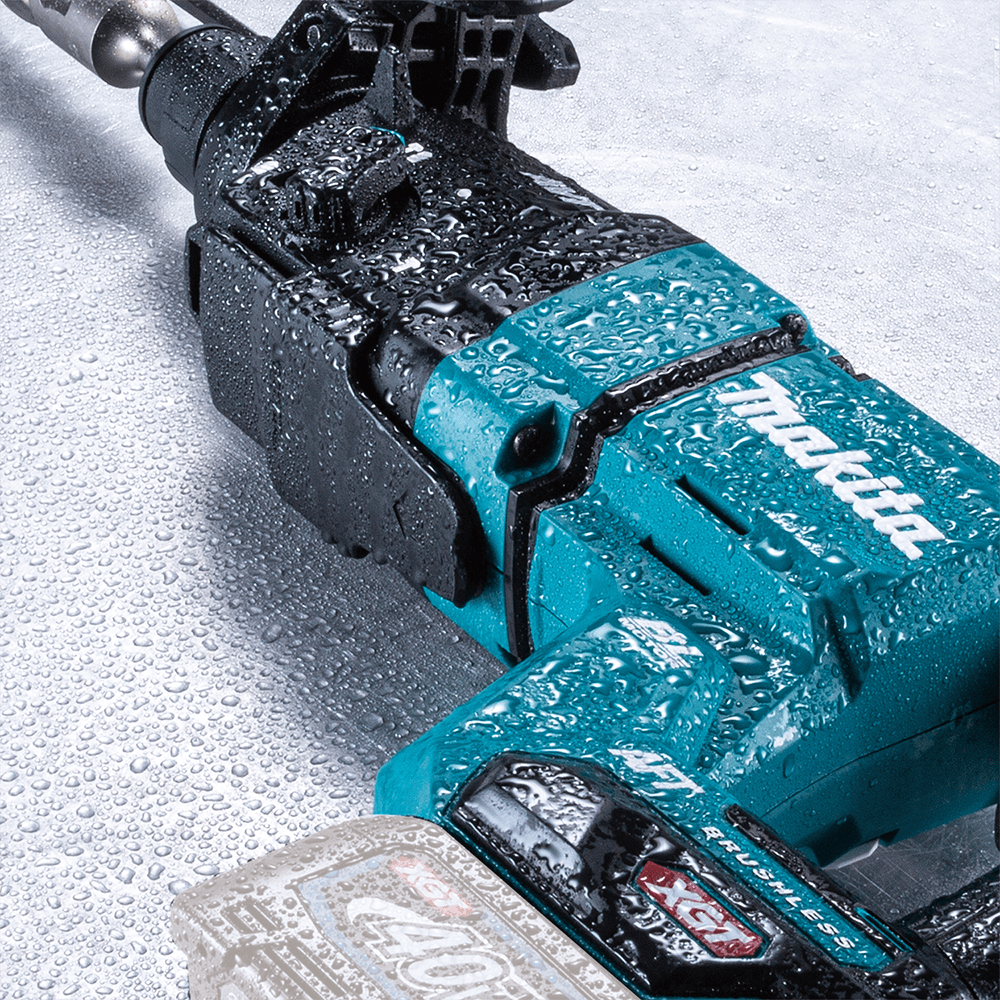

• Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• The digital communication within XGT optimizes performance to provide up to 2X longer sustained power under heavy-load applications
• The digital communication within XGT actively monitors and protects against overload, over-discharge and overheating
• XGT Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
• XGT Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (batteries not included)
• The XGT Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
• The XGT Rapid Charger's digital display indicates battery charge level (-80%, +80%, 100%)
• The XGT Rapid Charger's built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
• Compatible with 40V max XGT Lithium-Ion Batteries
• Only use genuine batteries and chargers
• 3-year limited warranty
Includes:
• (1) Hammer Bit Grease (194683-7)
• (1) CLOTH F/WIPING OIL (443122-7)
• (1) Side Handle Assembly
