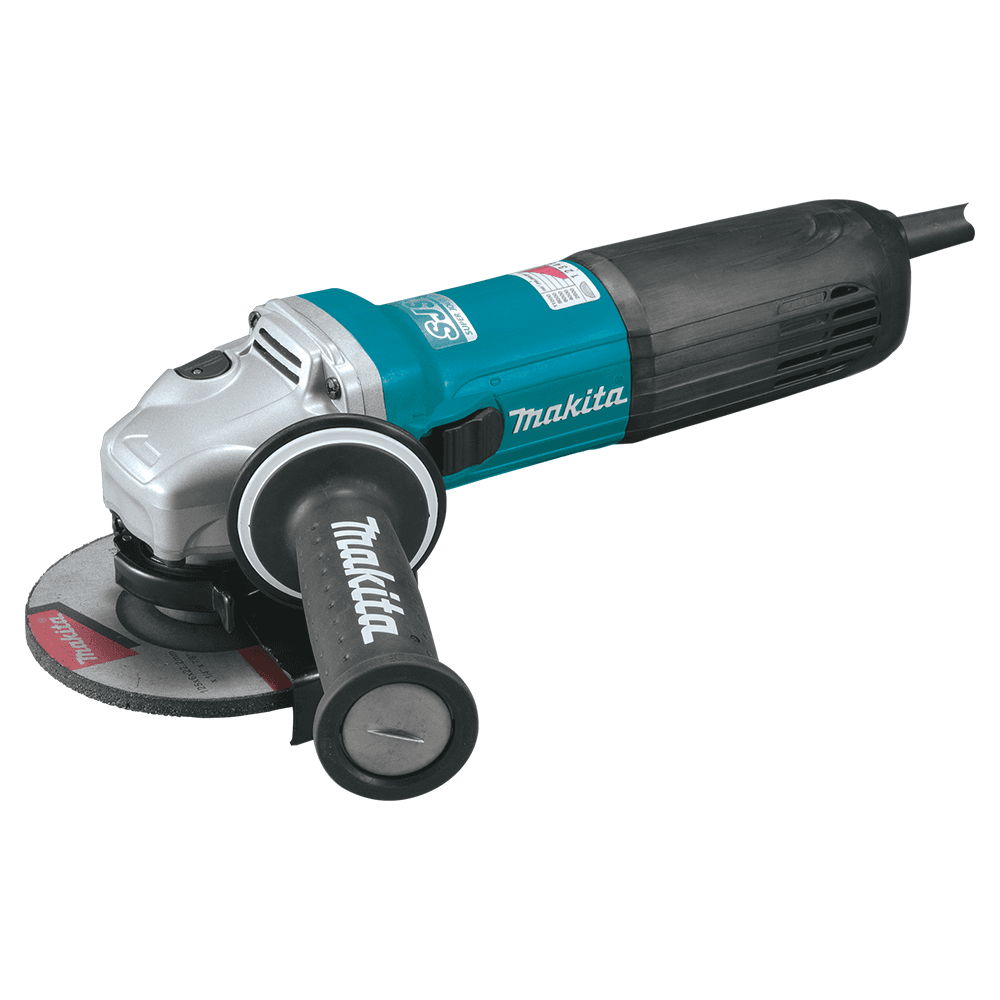

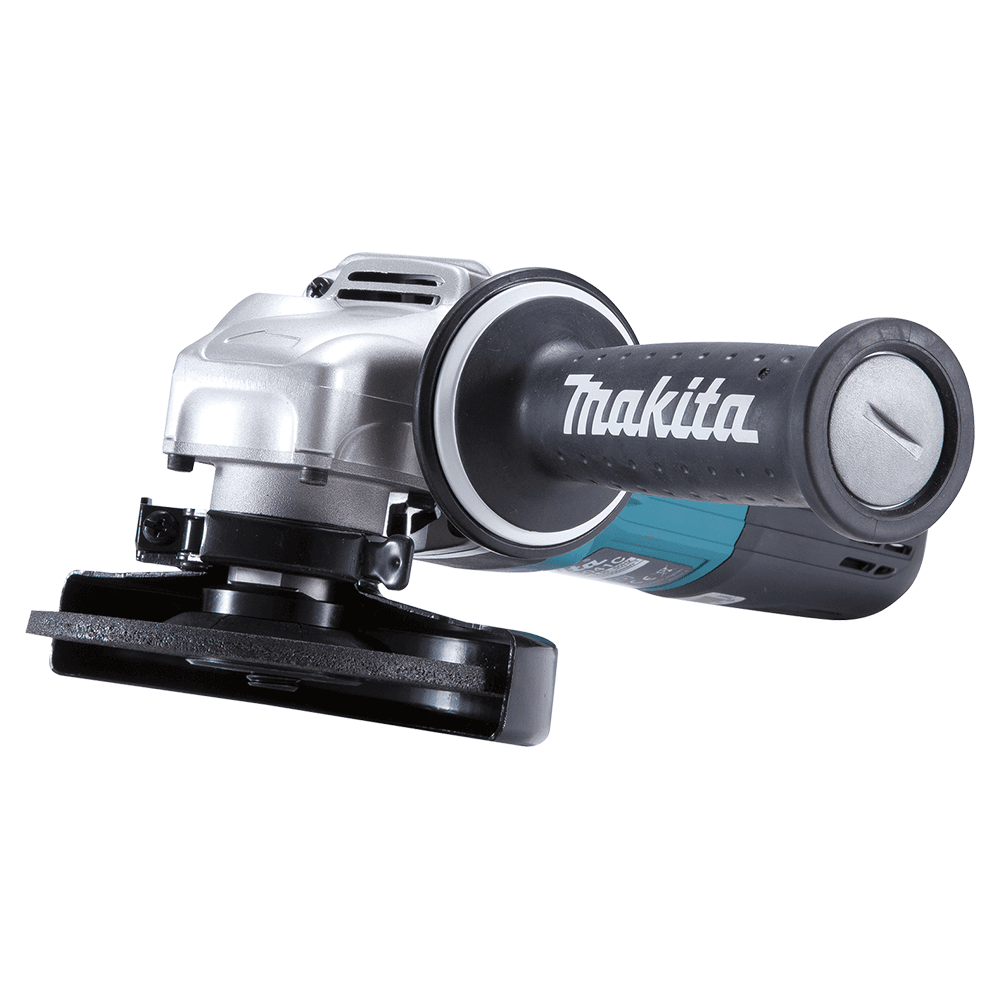

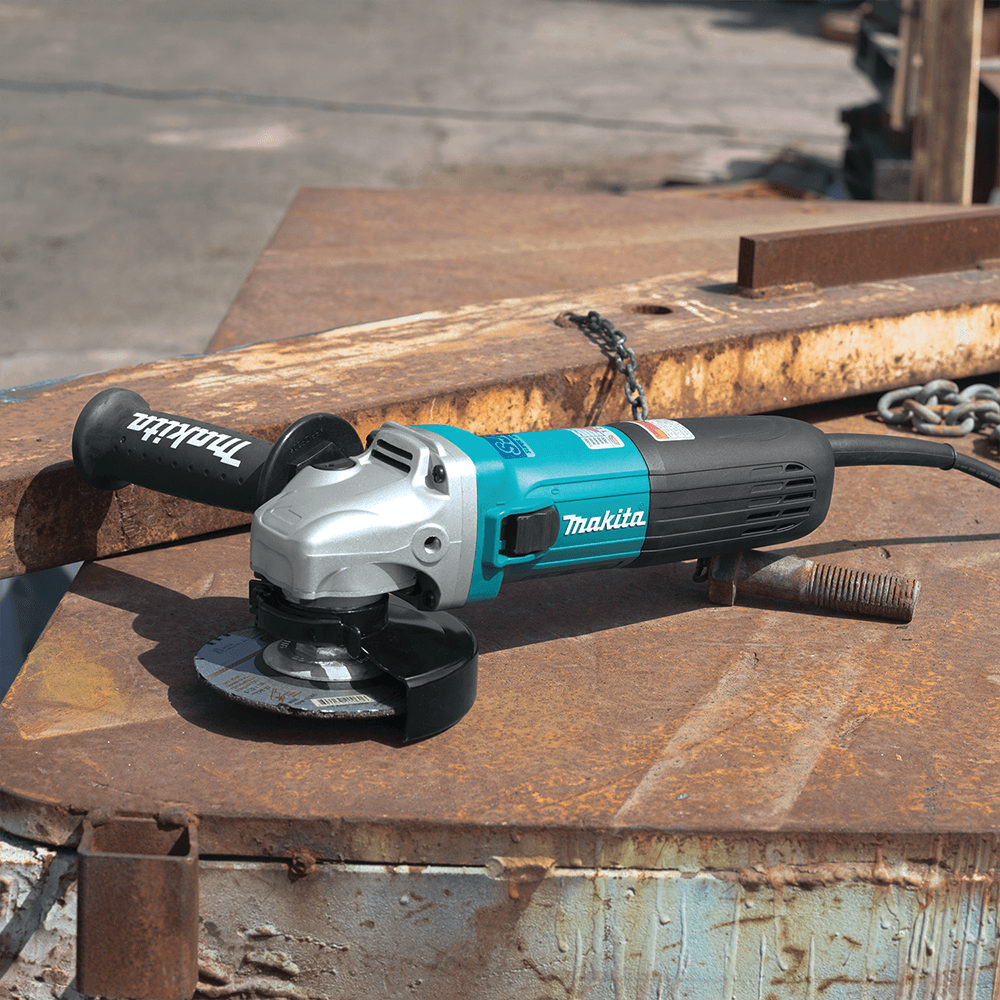

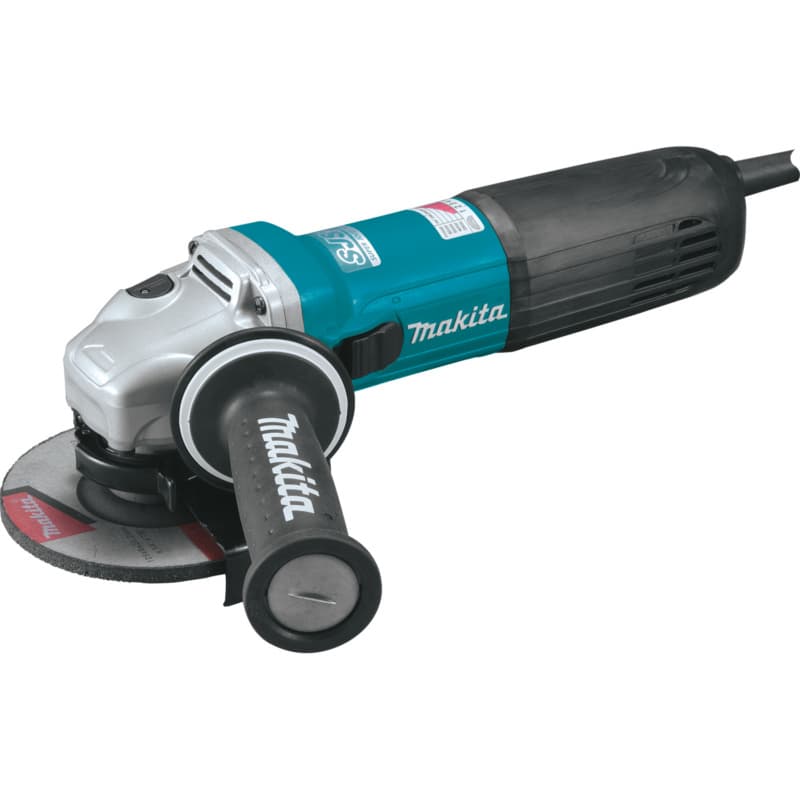

The 5" SJS II high power angle grinder (GA5042C) combines power, convenience, comfort and motor-protection features for longer-lasting industrial performance. It is ideal for cutting, grinding ferrous metal, paint and rust removal, shipyard maintenance, metal polishing, general steel grinding, auto repair work, cutting brick and masonry, restoration work, and more.
The GA5042C is equipped with SJSII, a mechanical gear drive system to help prevent motor and gear damage by dampening the force on the gear when the wheel is forced to stop. SJSII is also features a leaf spring and cam gear drive mechanism that is engineered to reduce vibration for increased operator comfort during extended use.

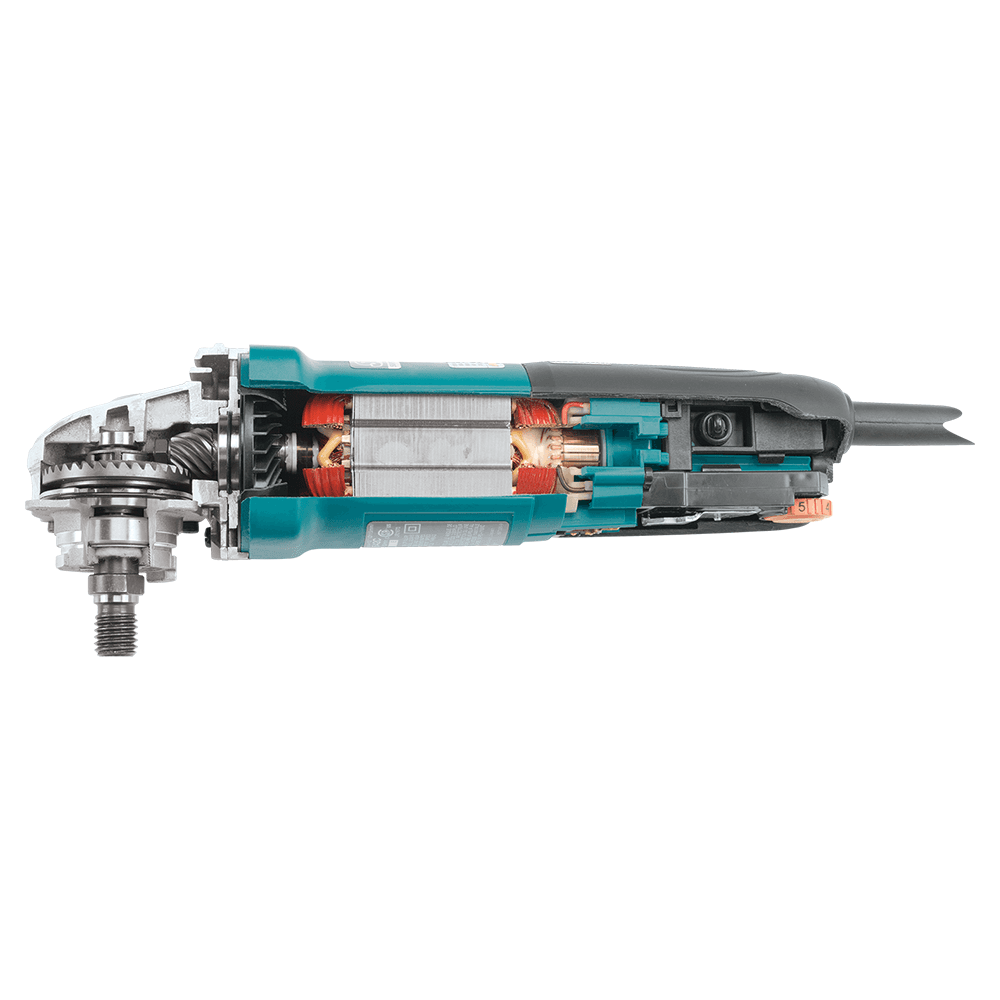

The 12 AMP motor delivers 2,800-11,000 RPM for versatility and maximum productivity. Labyrinth construction protects the motor with a complex set of channels, prohibiting dust and contamination from entering the motor. Additional protection features include a zig-zag epoxy applied to both sides of the armature coil, and a powder-coating to the field. This forms a barrier under rotation and is engineered to protect from dust and debris penetration for longer tool life.

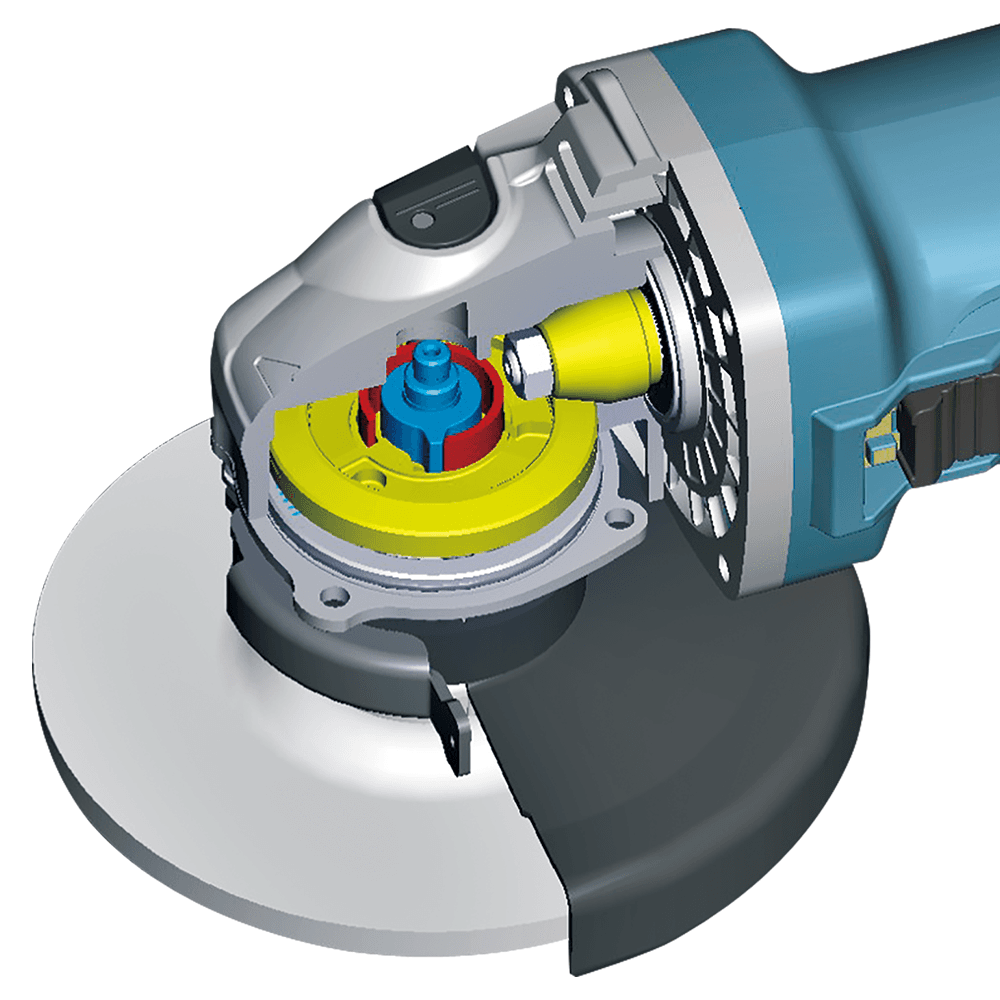

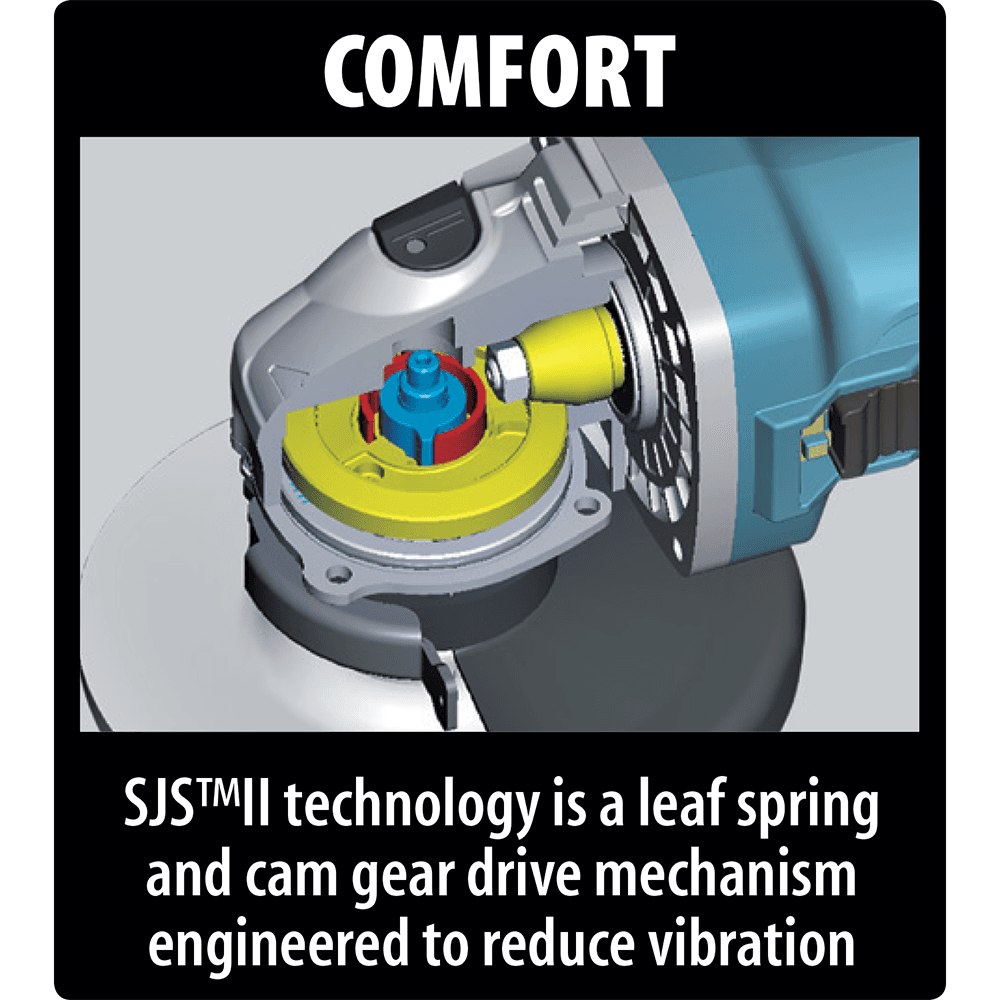

Excessive vibration in a power tool is wasted motion which may affect a worker™s comfort level and, ultimately, productivity. Makita is bringing unprecedented levels of vibration reduction to the grinder category with the exclusive SJS II Technology. SJS II is a leaf spring and cam gear drive mechanism that is engineered to reduce vibration for increased operator comfort during extended use. It works by transferring the vibration through the wheel accessory spindle and onto a CAM component. The vibration causes the a cam to press against the leaf spring and absorb vibration for increased operator comfort.
Features:
• Powerful 12.0 AMP motor delivers more output and variable (2,800 - 11,000) RPM
• SJSII provides a leaf spring and cam gear drive mechanism that is engineered to reduce vibration for increased operator comfort during extended use
• Vibration absorbing side handle provides increased comfort on the job
• Electronic controller provides constant speed control which automatically applies additional power to the motor to maintain speed under load
• Electronic Controller provides soft start which is designed to suppress start-up reaction for smooth start-ups and longer gear life
• Electronic Controller provides an electronic current limiter which helps protect the motor from overload in high torque applications
• Variable speed control dial enables user to match the speed to the application
• Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
• Motor fan is designed with enlarged fins for increased air flow and a cooler running motor
• Complete zig-zag epoxy is applied to both sides of the armature coil and a powder coating to the field for protection from debris and longer tool life

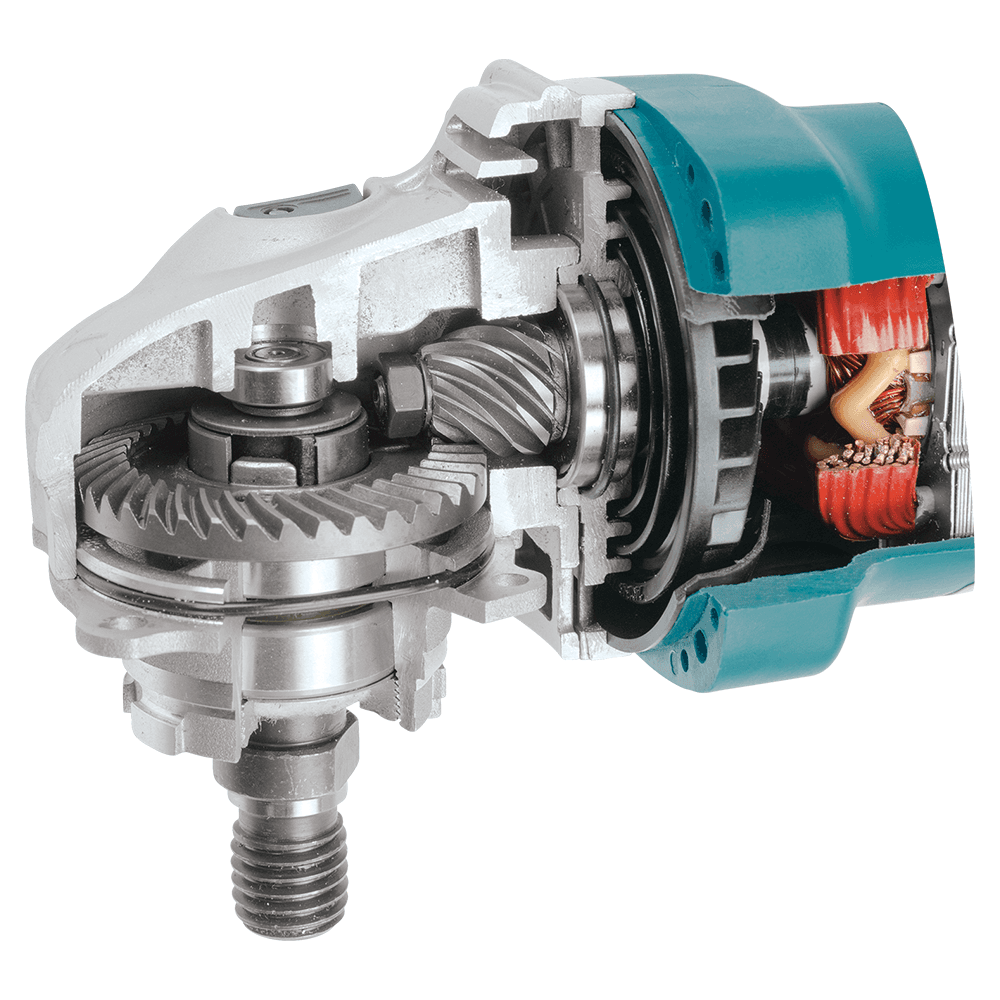

• Spiral bevel gears for smoother rotations and a more efficient transfer of energy
• Fully aluminum constructed gear housing provides superior gear alignment and smooth transmission for increased durability and comfort

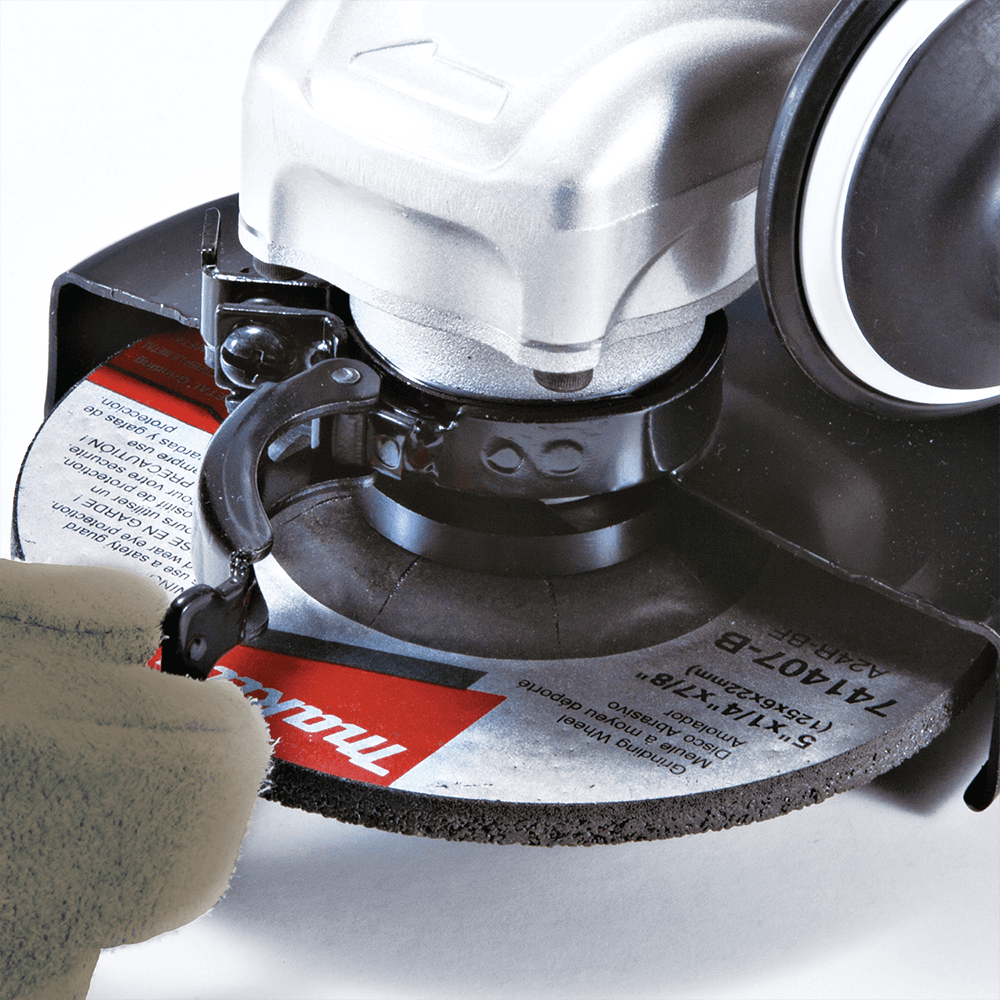

• "Tool-less" wheel guard for easy adjustment
• Slide switch with lock-on for continuous use
Includes:
• (1) 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
• (1) 5" Tool-less Wheel Guard (123145-8)
• (1) Inner Flange (224399-1)
• (1) Lock Nut Wrench (782412-6)
• (1) Side Handle (162258-0)
• (1) Lock Nut (224568-4)
