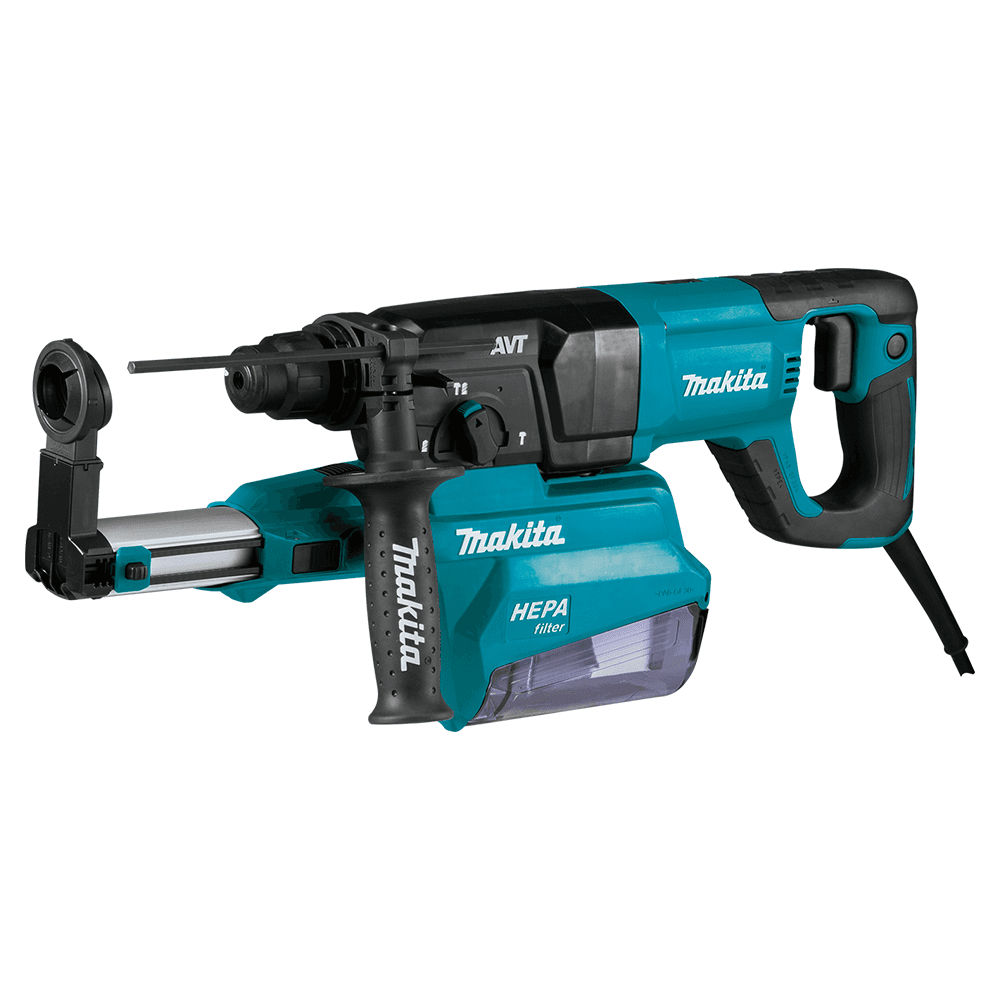

1" SDS-PLUS AVT Rotary Hammer with HEPA Dust Extractor/D-Handle

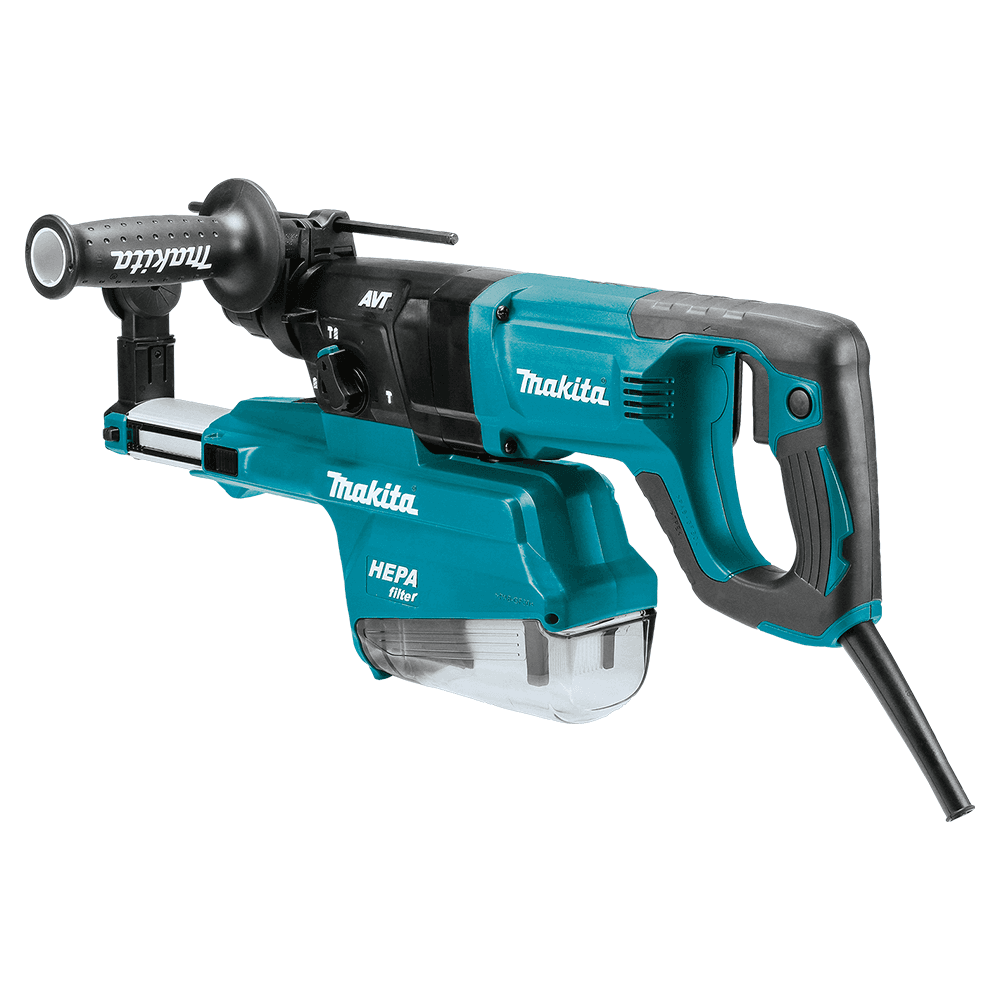

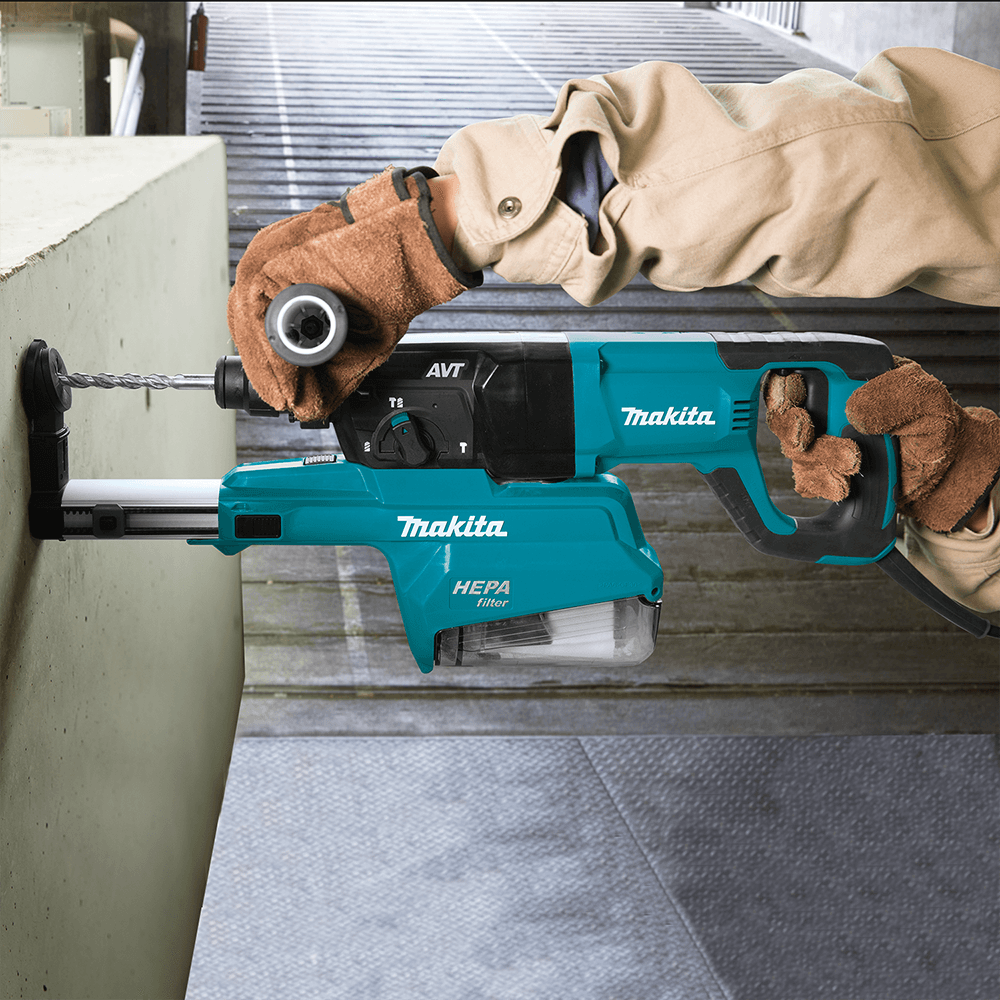

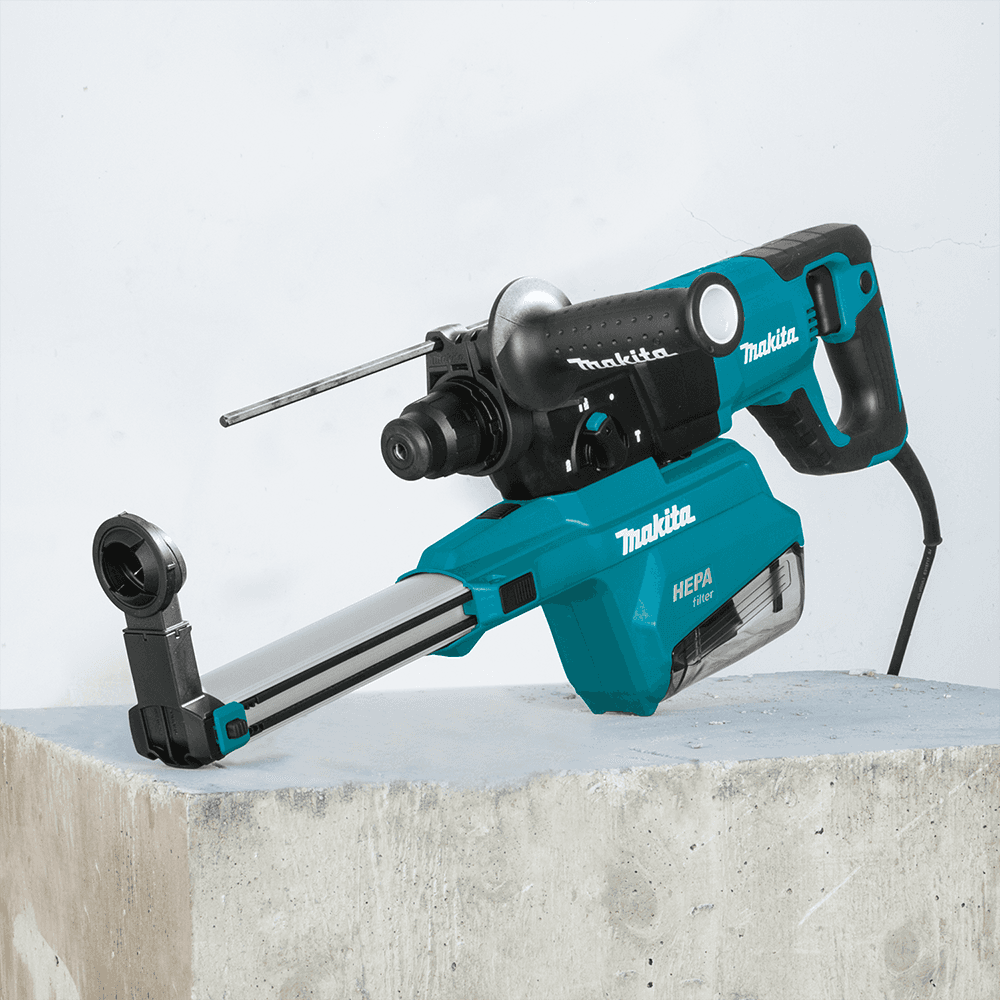

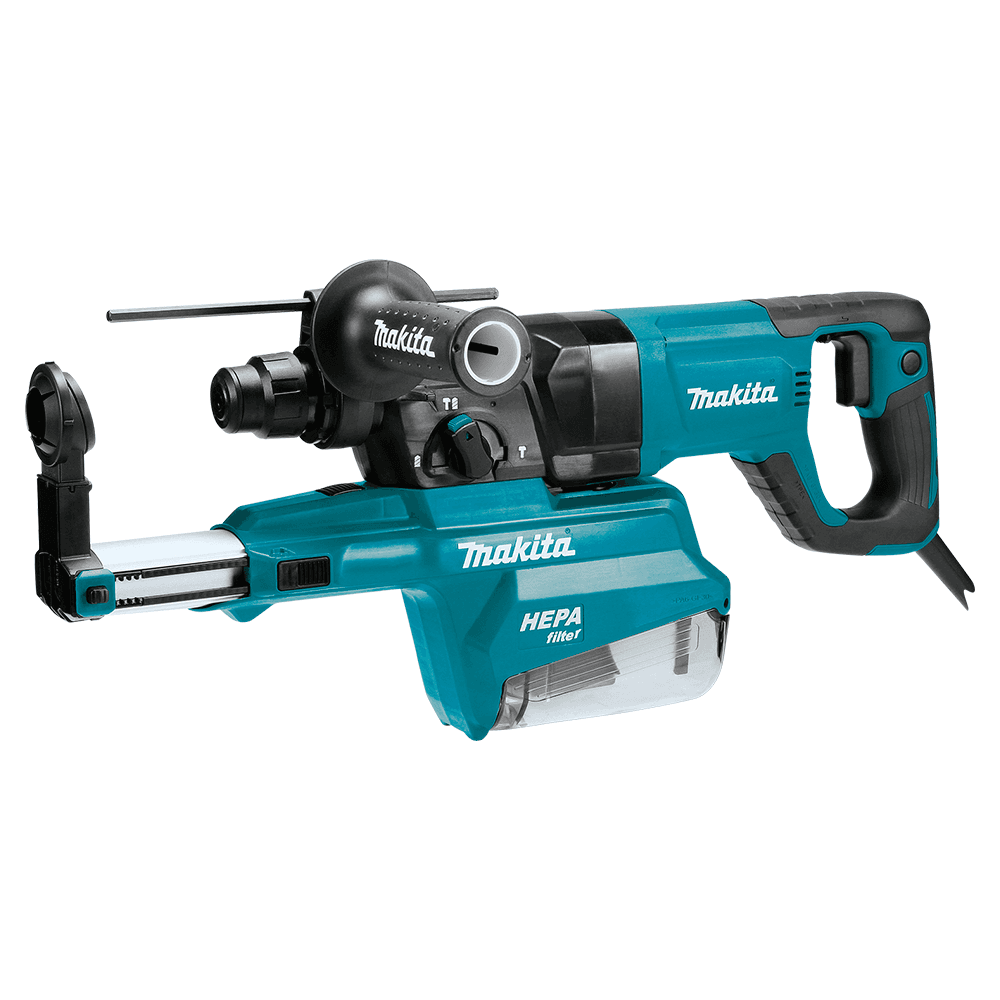

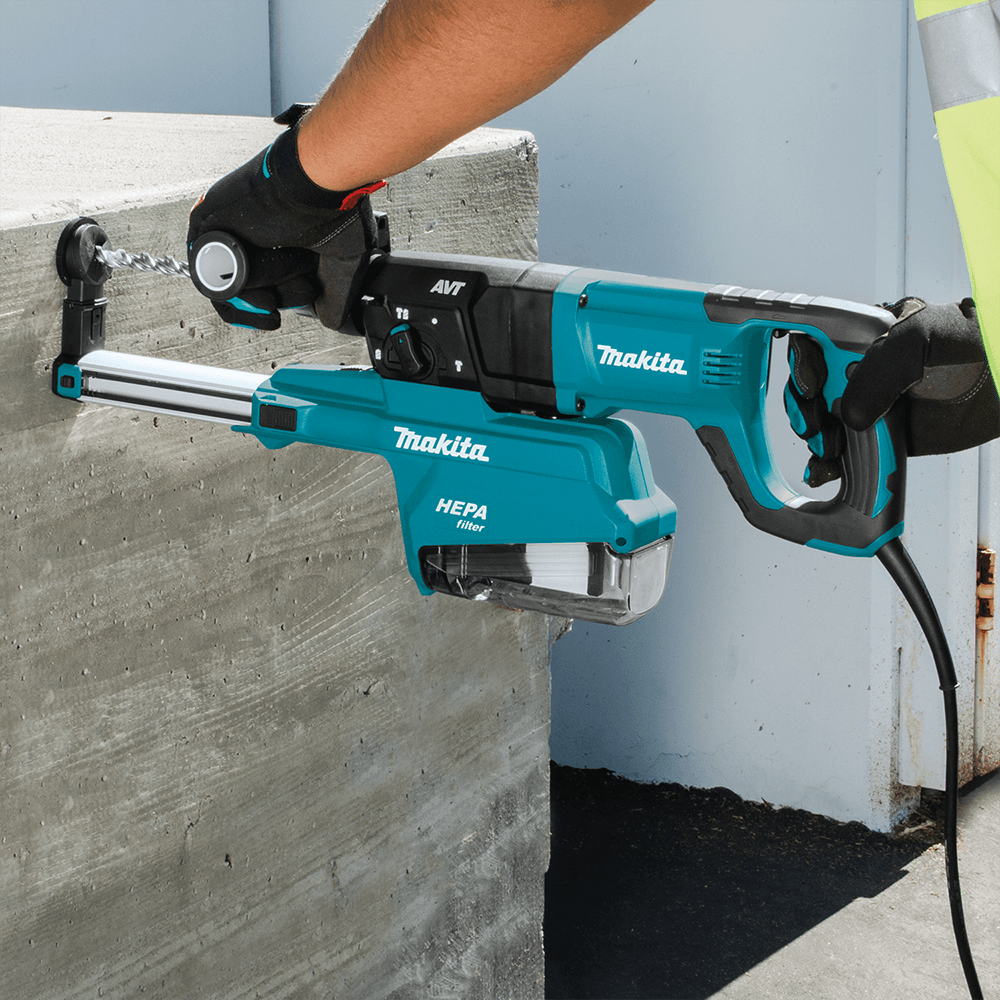

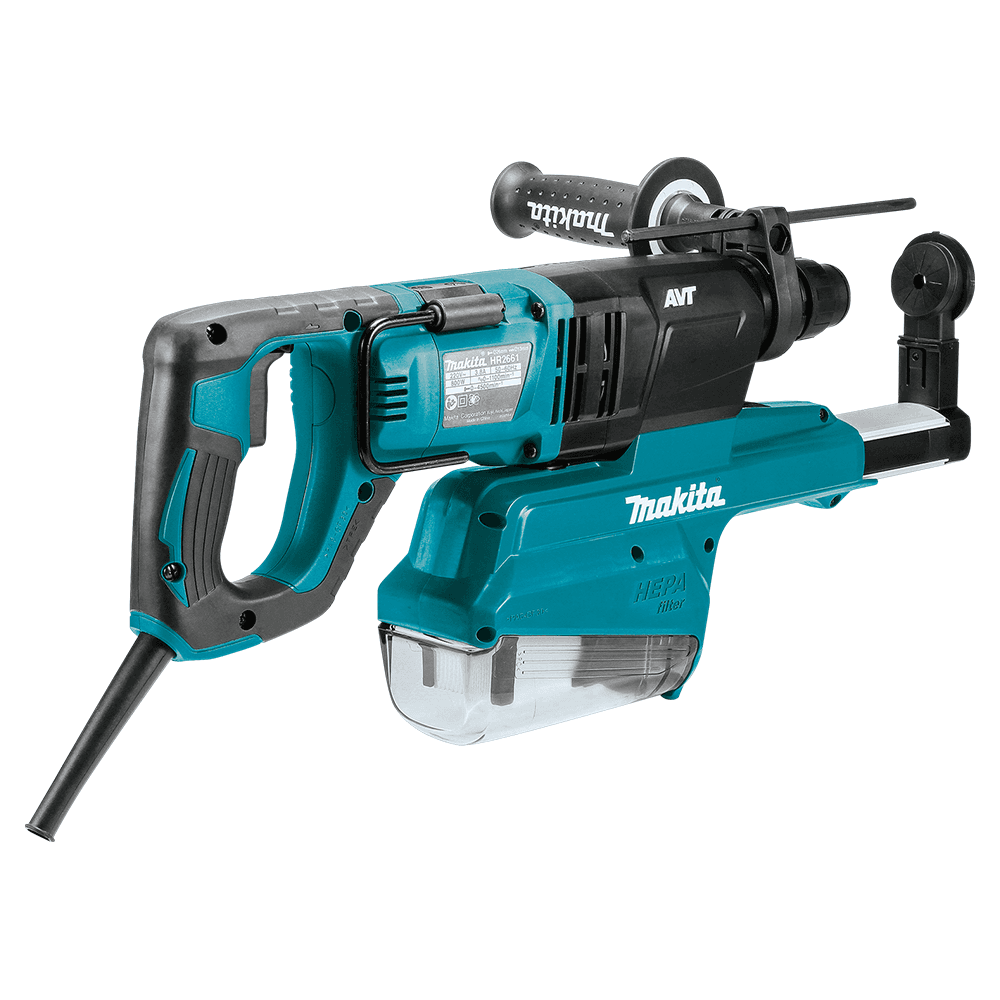

The 1" AVT rotary hammer with HEPA dust extractor (model HR2661, with D-Handle) is a total solution that combines efficient drilling and chipping with reduced vibration and improved dust extraction. The HR2661 is engineered with Anti-Vibration Technology (AVT), an internal counterbalance system for significantly less vibration. It has a built-on dust extractor that captures concrete dust during drilling. The HR2661 combines these performance features in a compact size. It is ideal for a range of applications including overhead drilling into concrete, wood and metal, removing tile, and more.

The HR2661 has an 8 AMP motor that delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications. The 3-mode operation offers "rotation only", "hammering with rotation" or "chipping only" for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability. The ergonomic D-shaped handle with a rubberized soft grip provides increased operator comfort, as well as a retractable tool hook to secure the tool to studs, ladders, and rails when not in use.

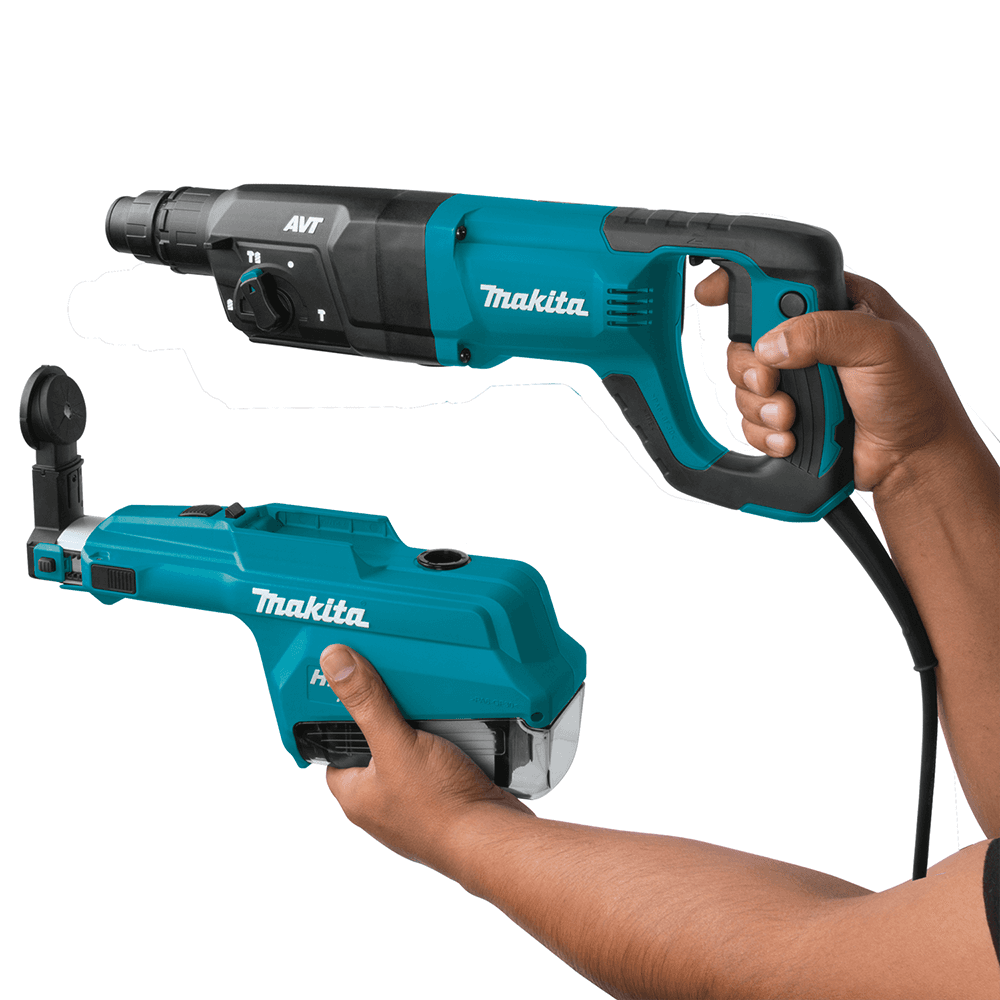

The dust extractor is activated by the tool for operator convenience and is equipped with an efficient HEPA filtration system that captures 99.97% of particulates .3 microns and larger. It has a transparent dust container with an accurate level indicator of collected material for added convenience.

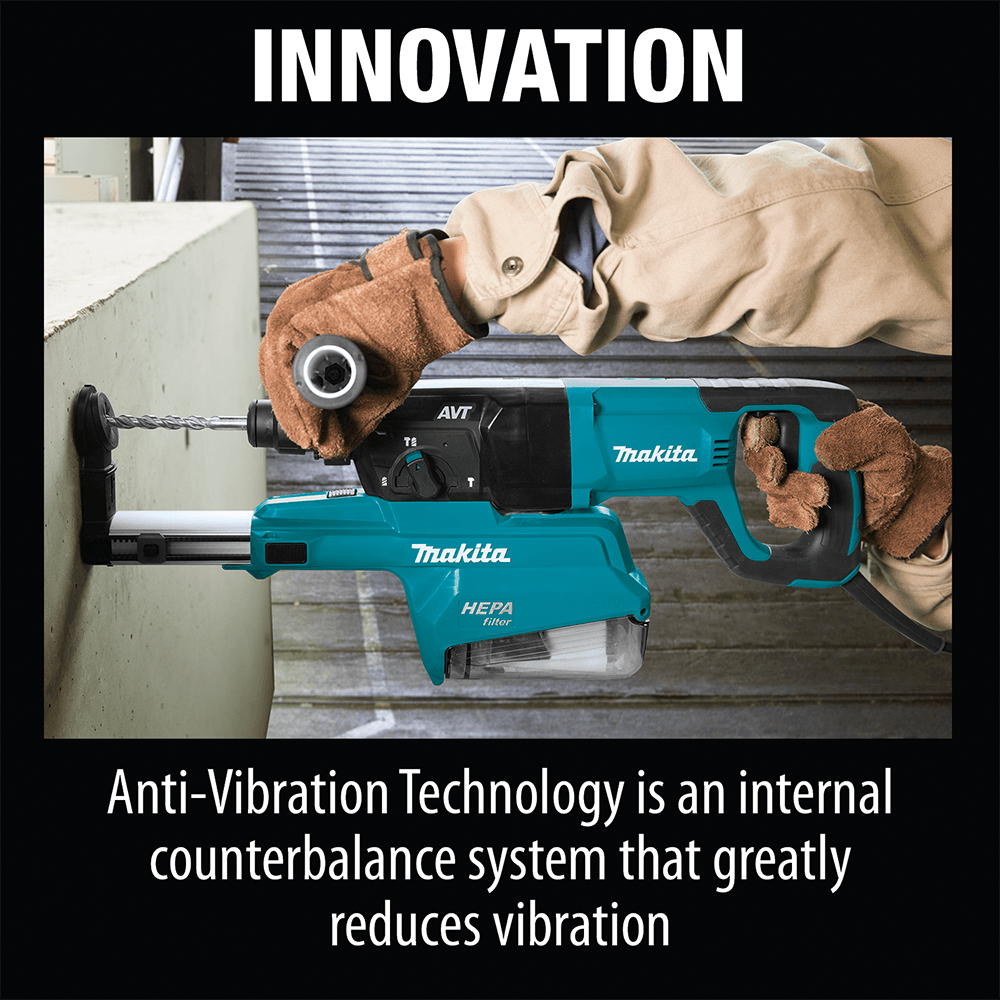

Anti-Vibration Technology (AVT) is a counterbalance system inside the tool that significantly reduces vibration. The AVT counterbalance design is based on seismic engineering, which developed this damping science to absorb shocks and protect buildings from earthquakes. AVT uses a mechanical damper, effectively a counterbalance weight inside the tool, that provides an equal and opposite force that puts a mass directly opposite the point where the striker bolt delivers the impact. As vibration is eliminated, power is efficiently increased which allows more of the generated energy in the motor to be delivered to the tool bit. Makita also has an AVT counterbalance system in select recipro saws. For users, AVT means significantly less vibration with no compromise in power and performance.

Features:

• Powerful 8 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications

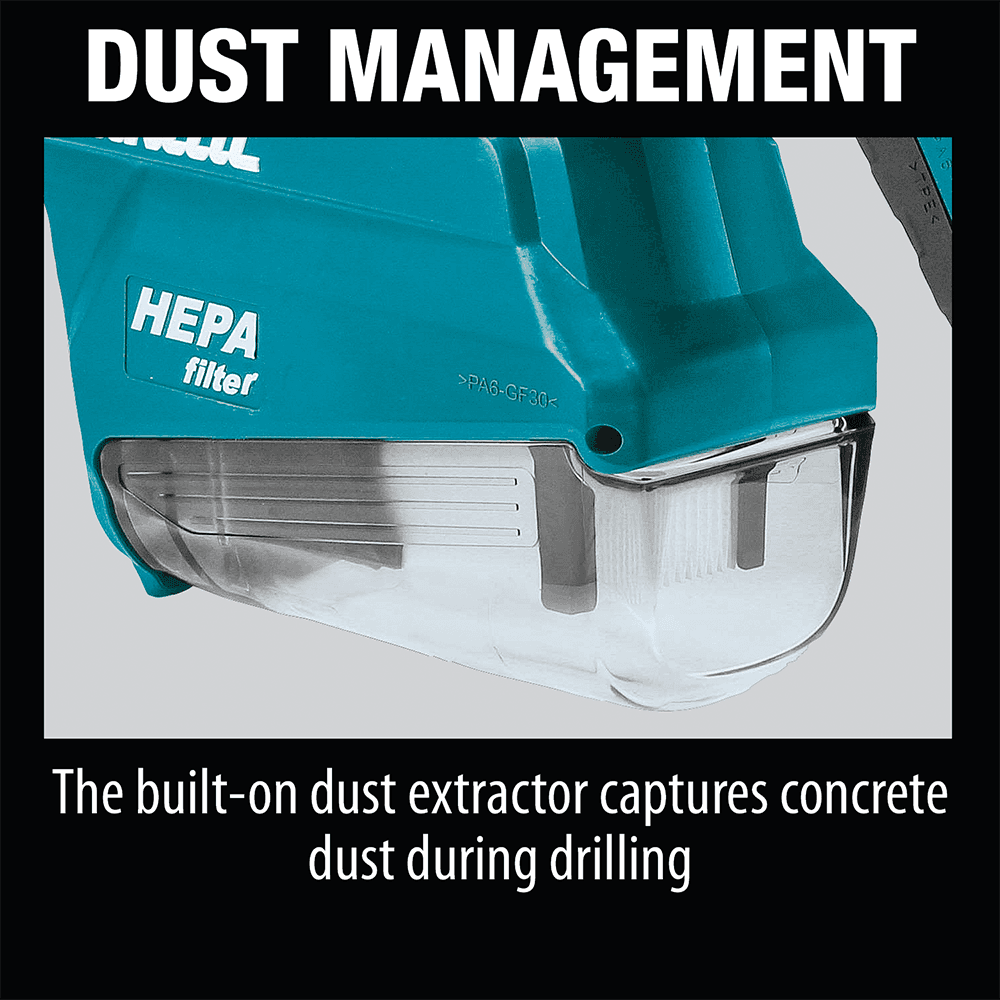

• On-board dust extractor captures concrete dust during drilling and is activated by the tool for operator convenience

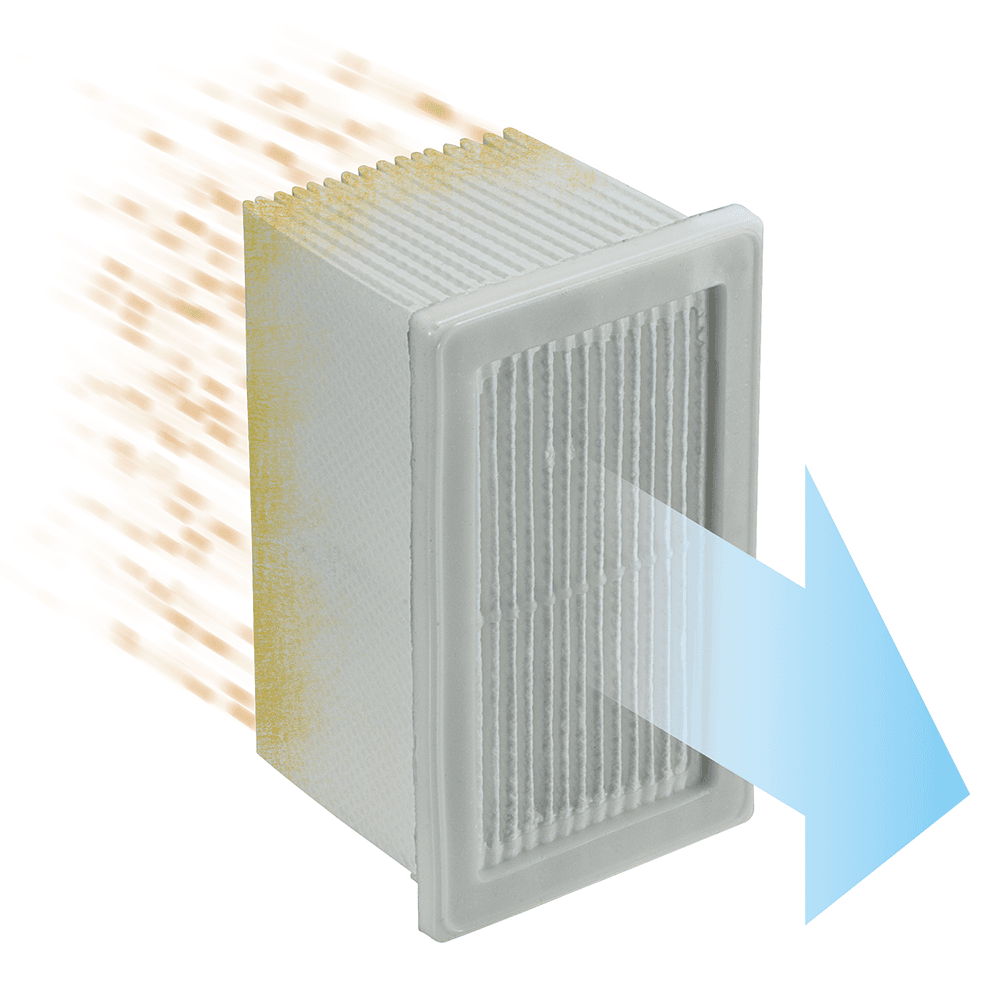

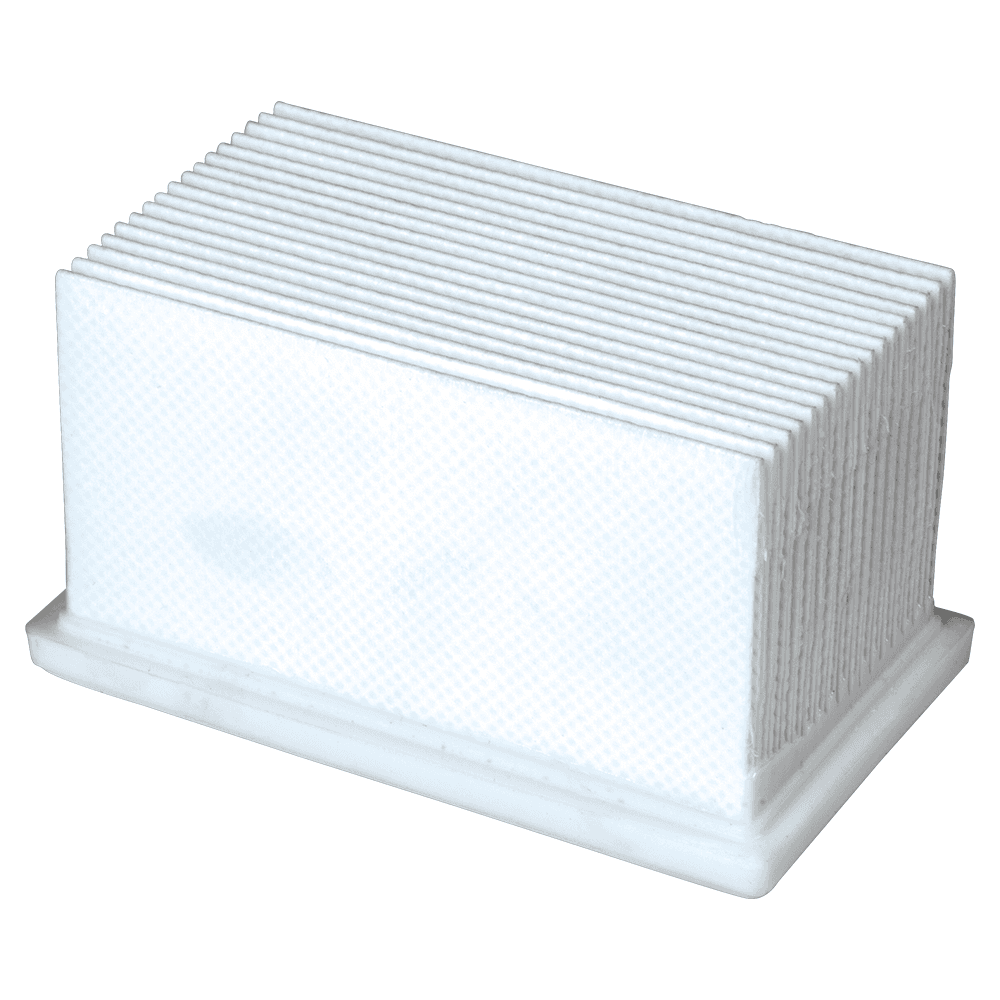

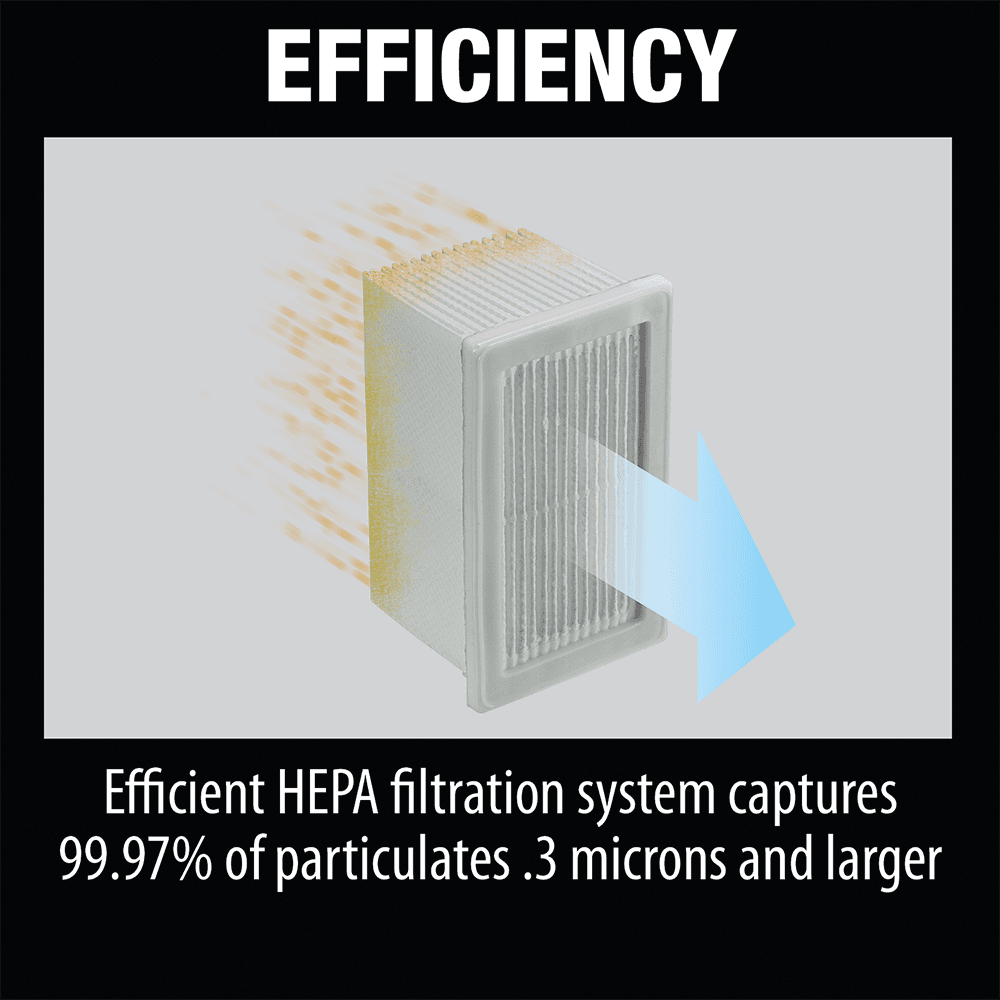

• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
• Anti-Vibration Technology (AVT) is an internal counterbalance system that actively works to reduce vibration to the operator

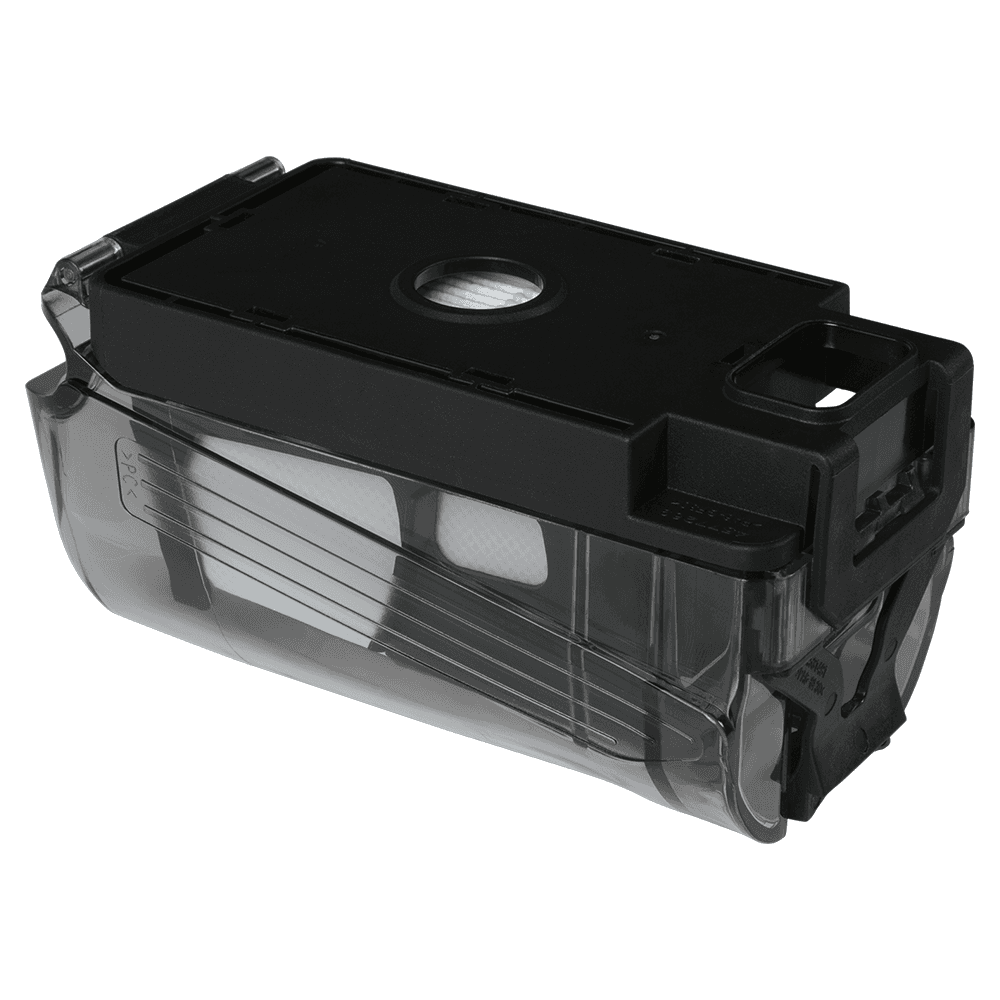

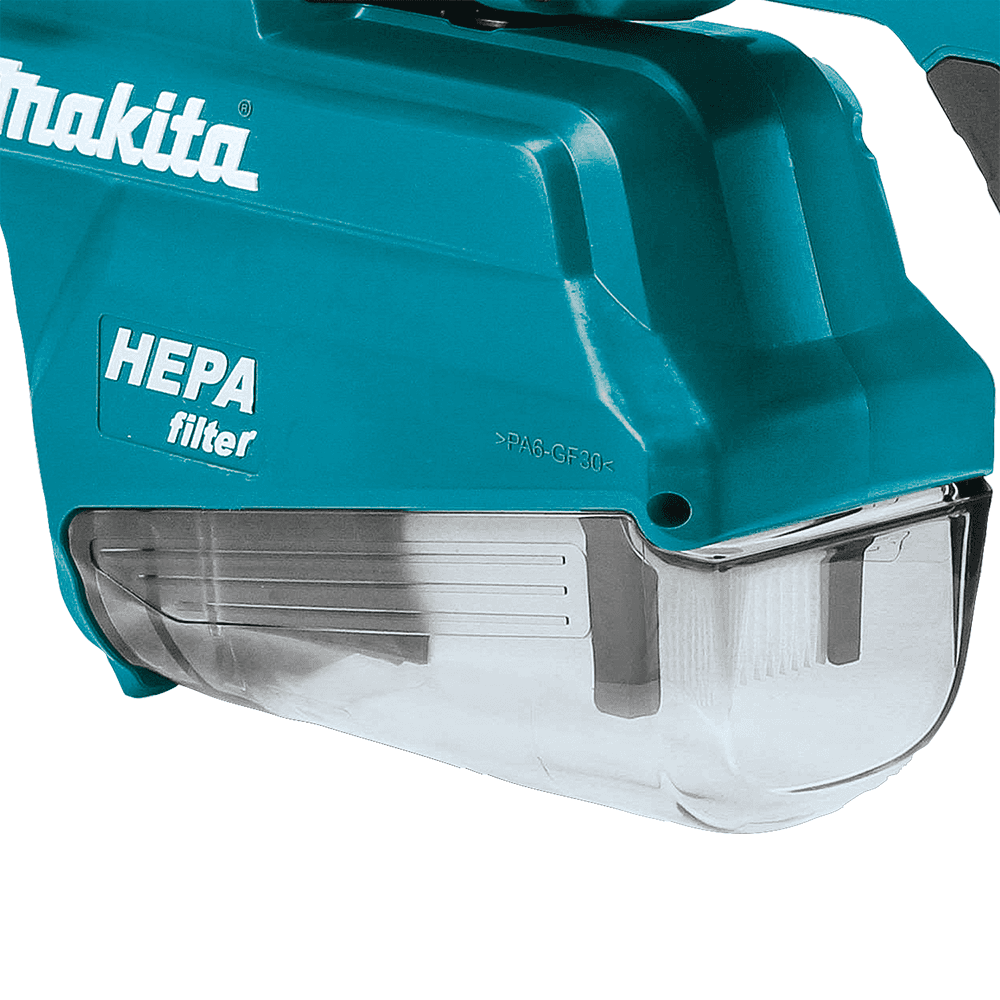

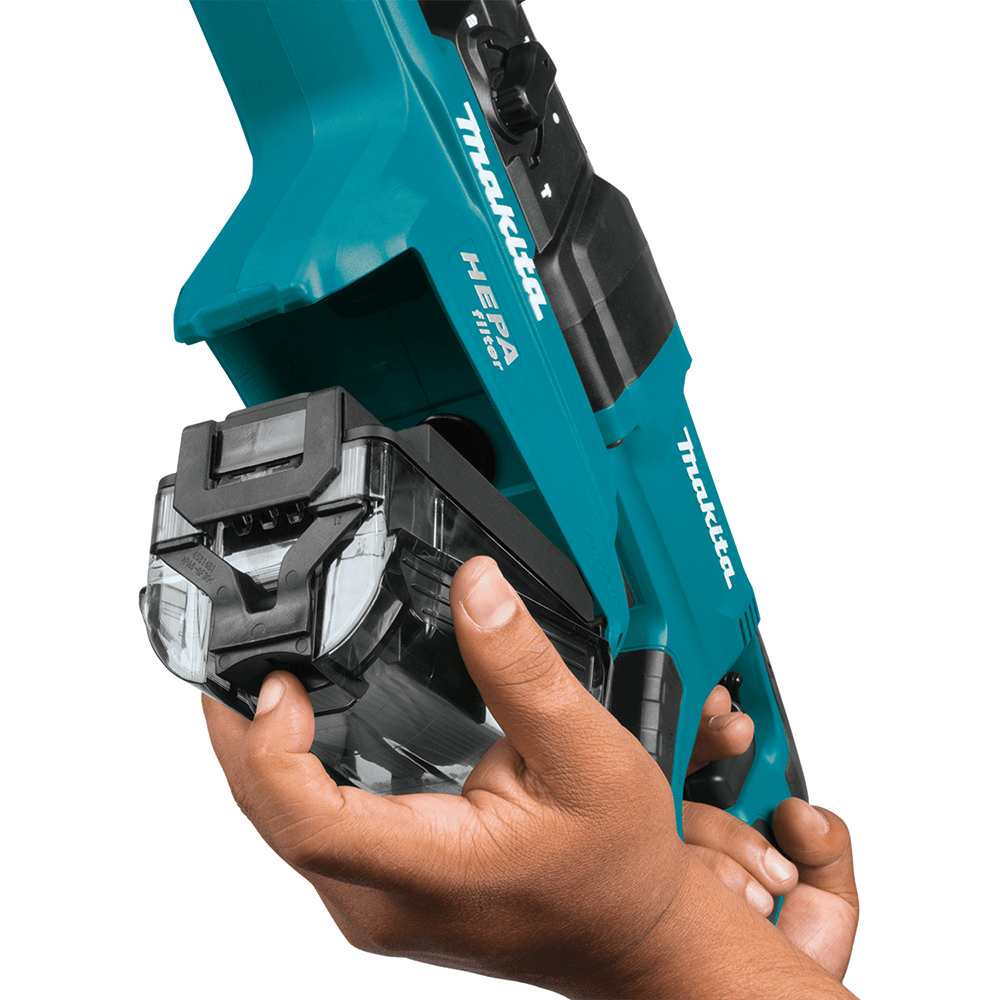

• Transparent dust container provides needed visibility in determining when the dust box needs to be emptied

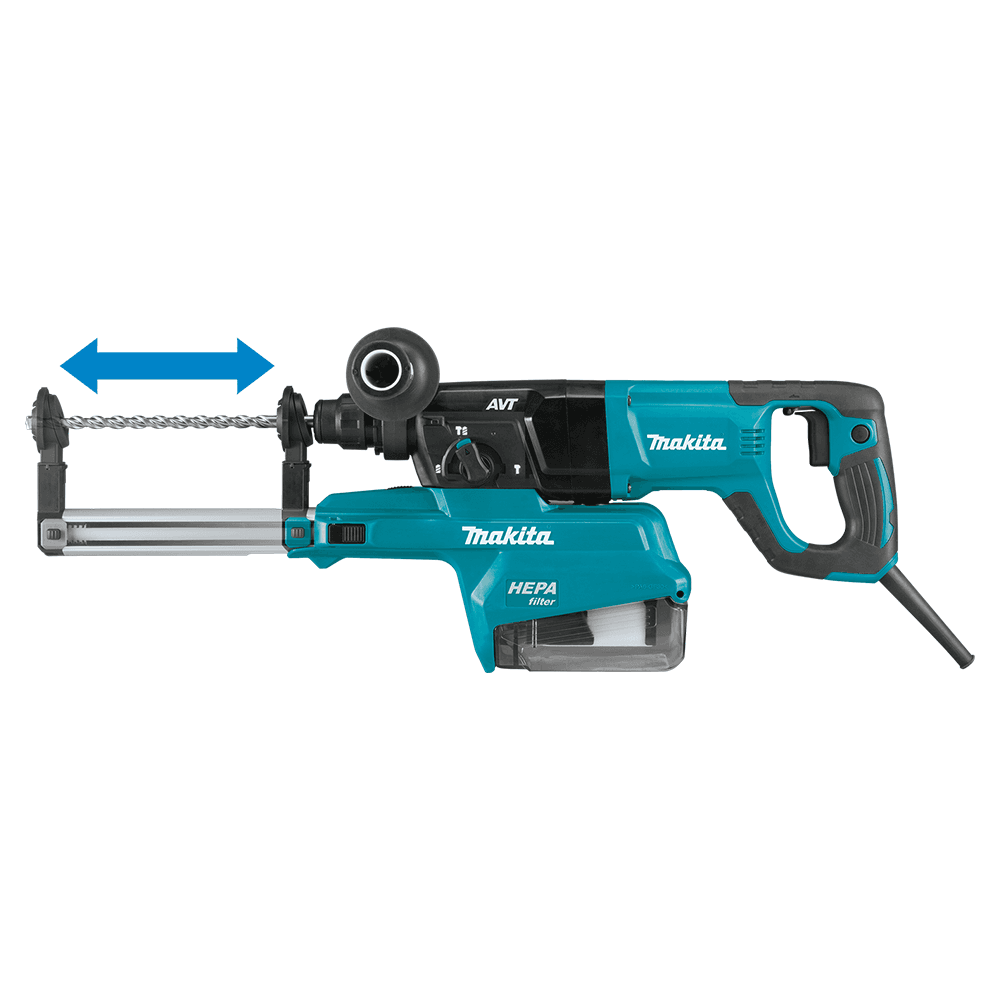

• Depth stop adjustment allows drilling up to 7-1/2" deep for increased capacity
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds

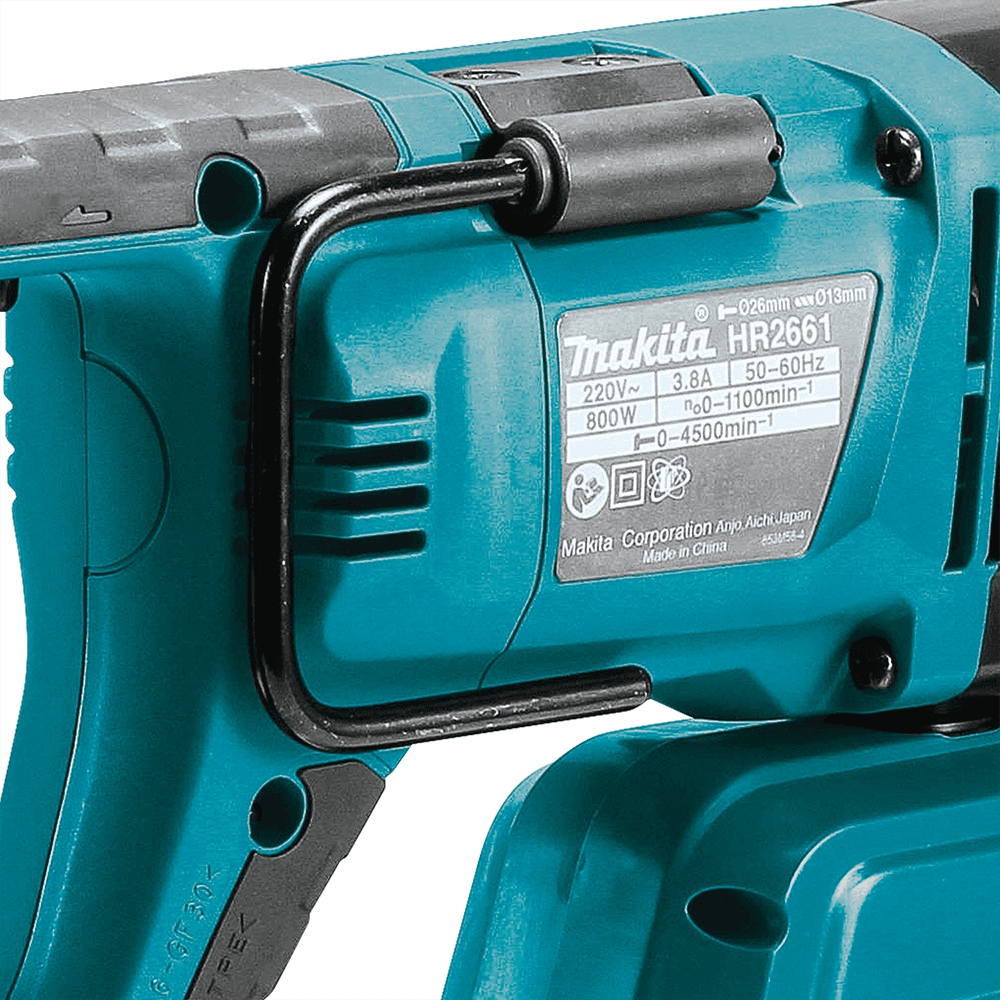

• Retractable hook allows tool to remain close by but never in the way
• 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping Only" for multiple applications
• Variable speed trigger enables user to match the speed to the application for greater versatility
• 40 bit angle settings allow the bit to be set at different positions for operating convenience
• Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort

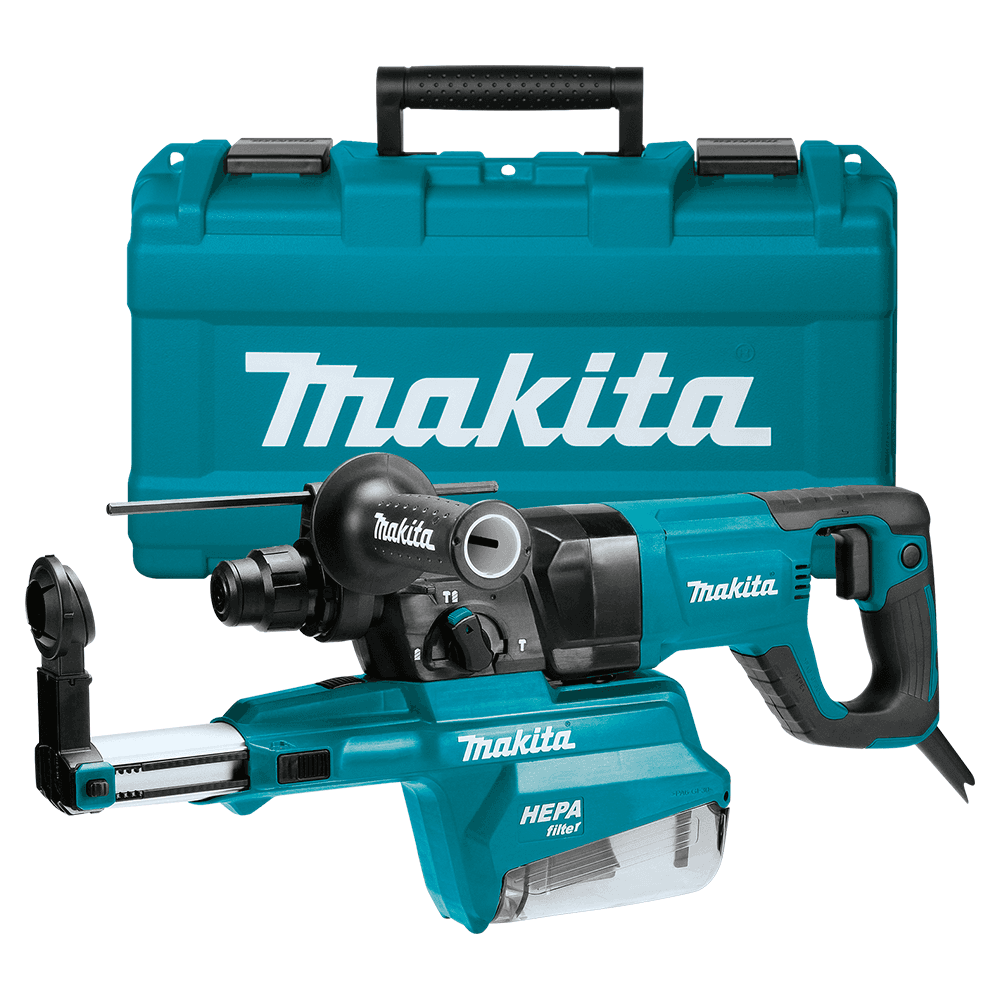

Includes:

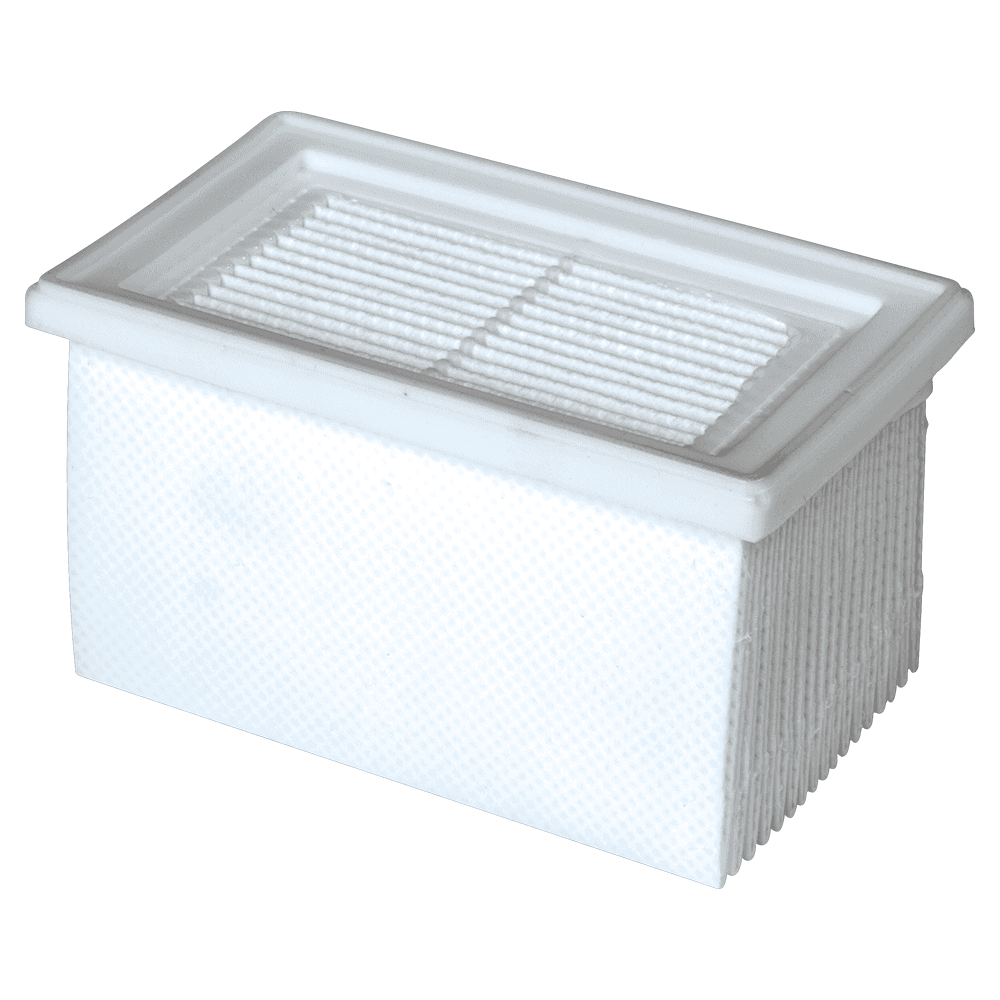

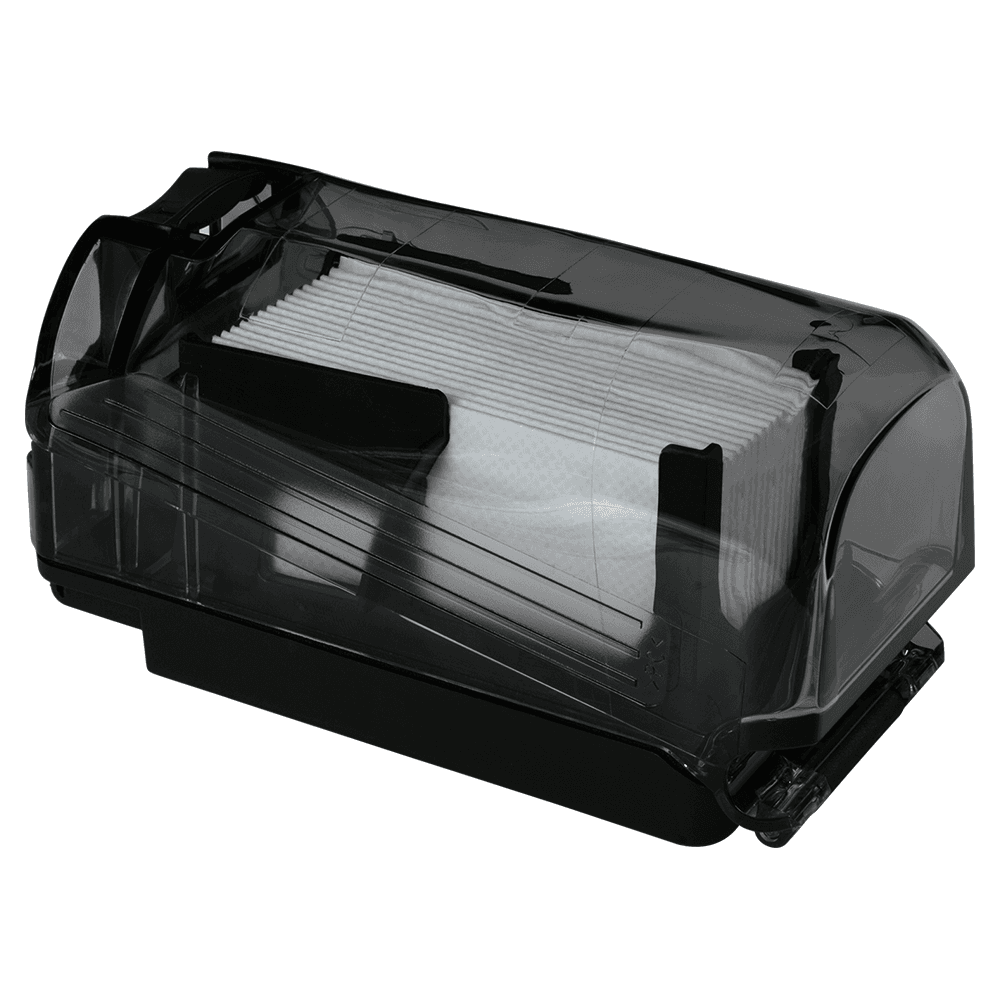

• (1) Dust Extractor Attachment with HEPA Filter (135905-6)

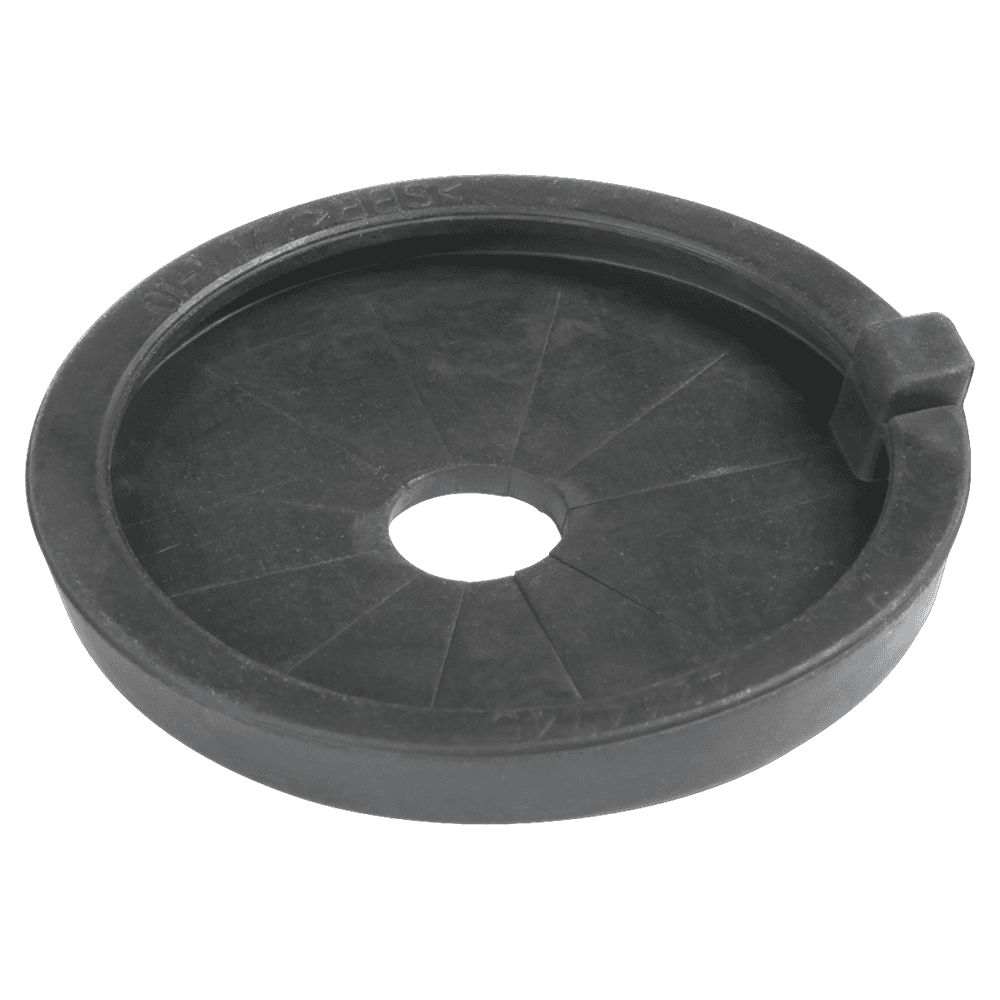

• (6) Sealing Cap (424474-5)
• (1) Side Handle
• (1) Depth Rod
• (1) Tool Case
