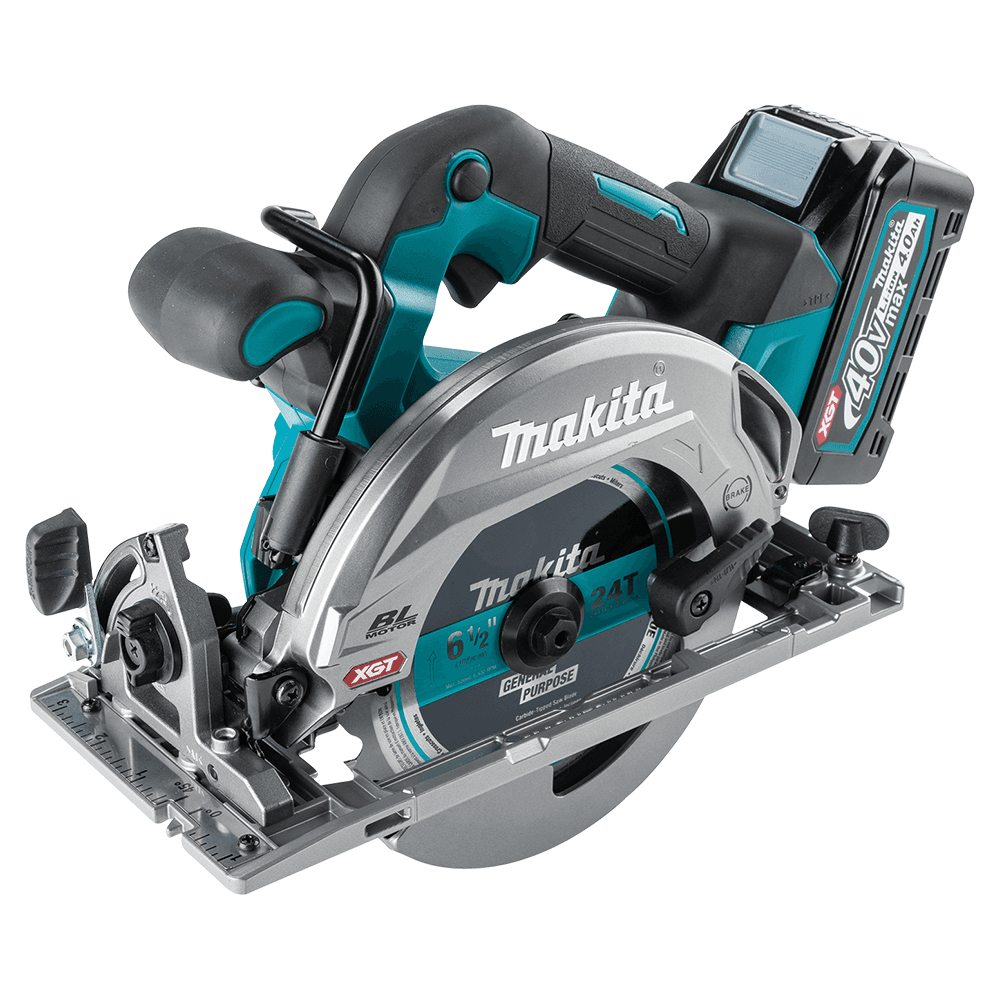

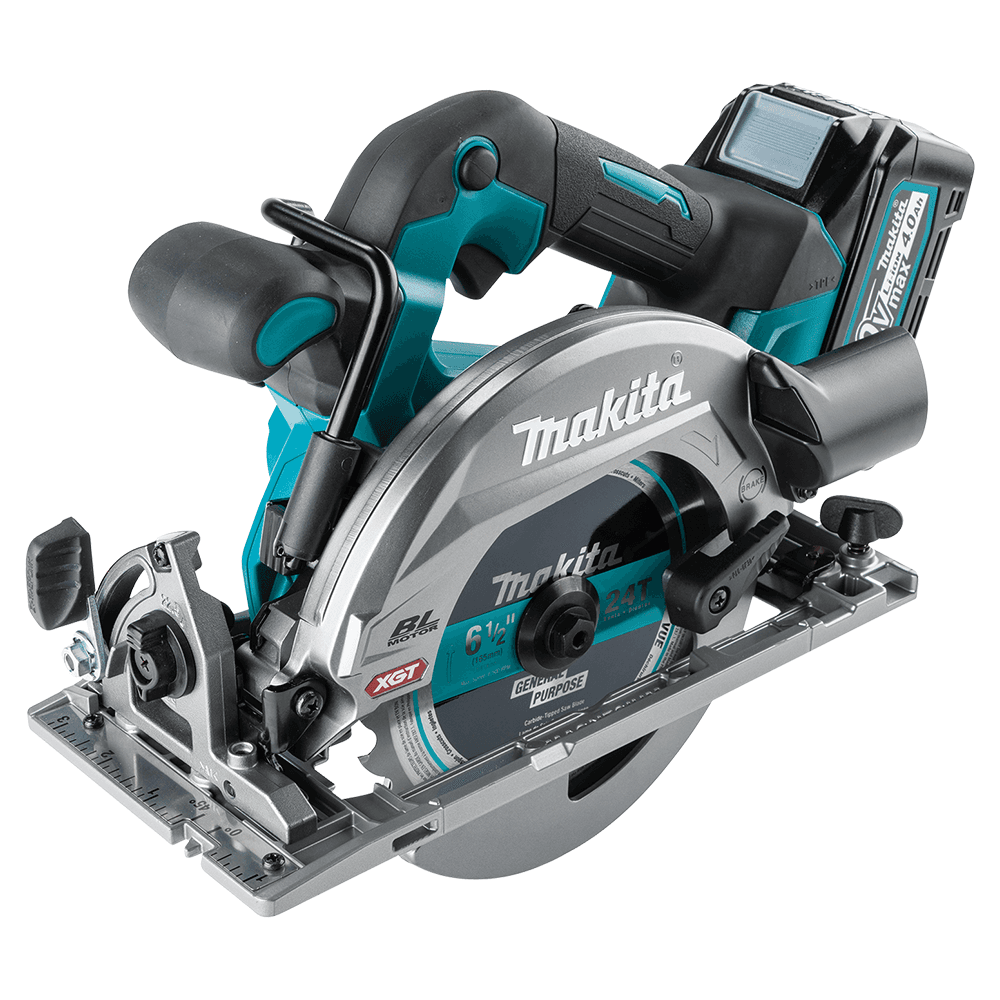

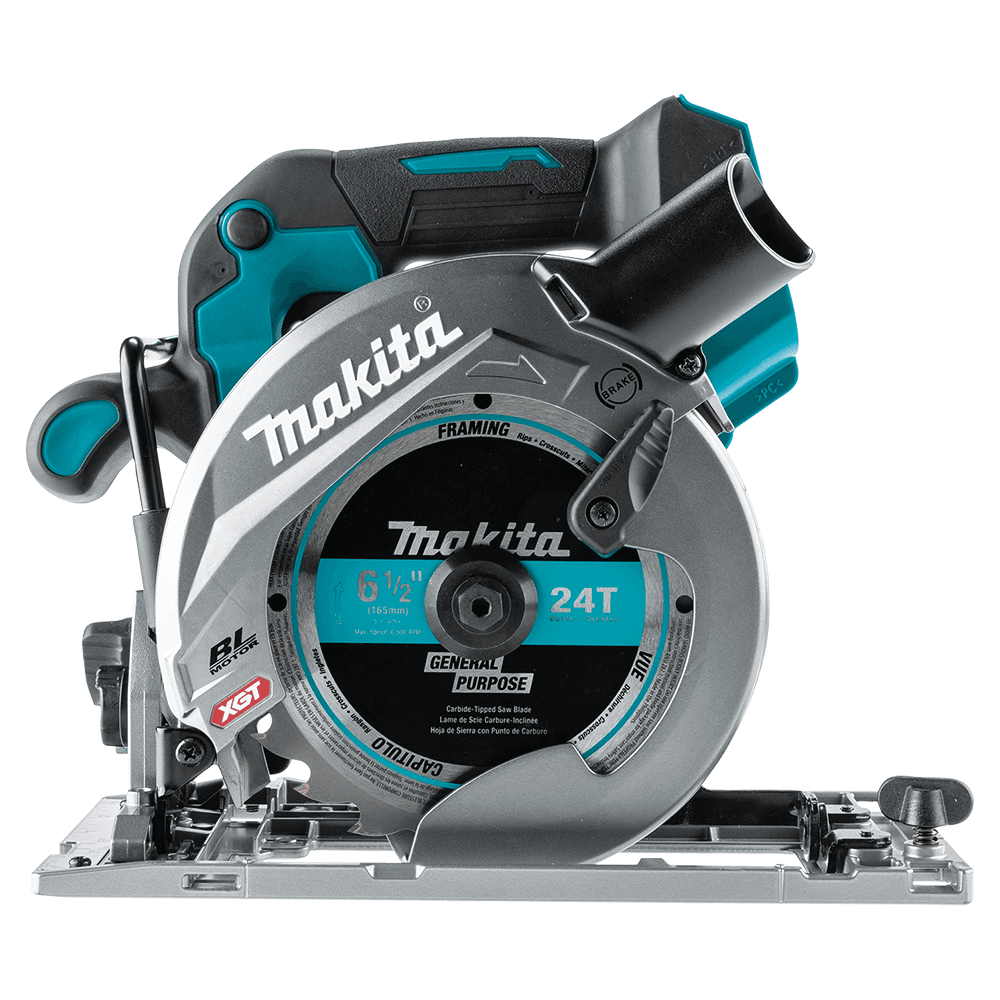

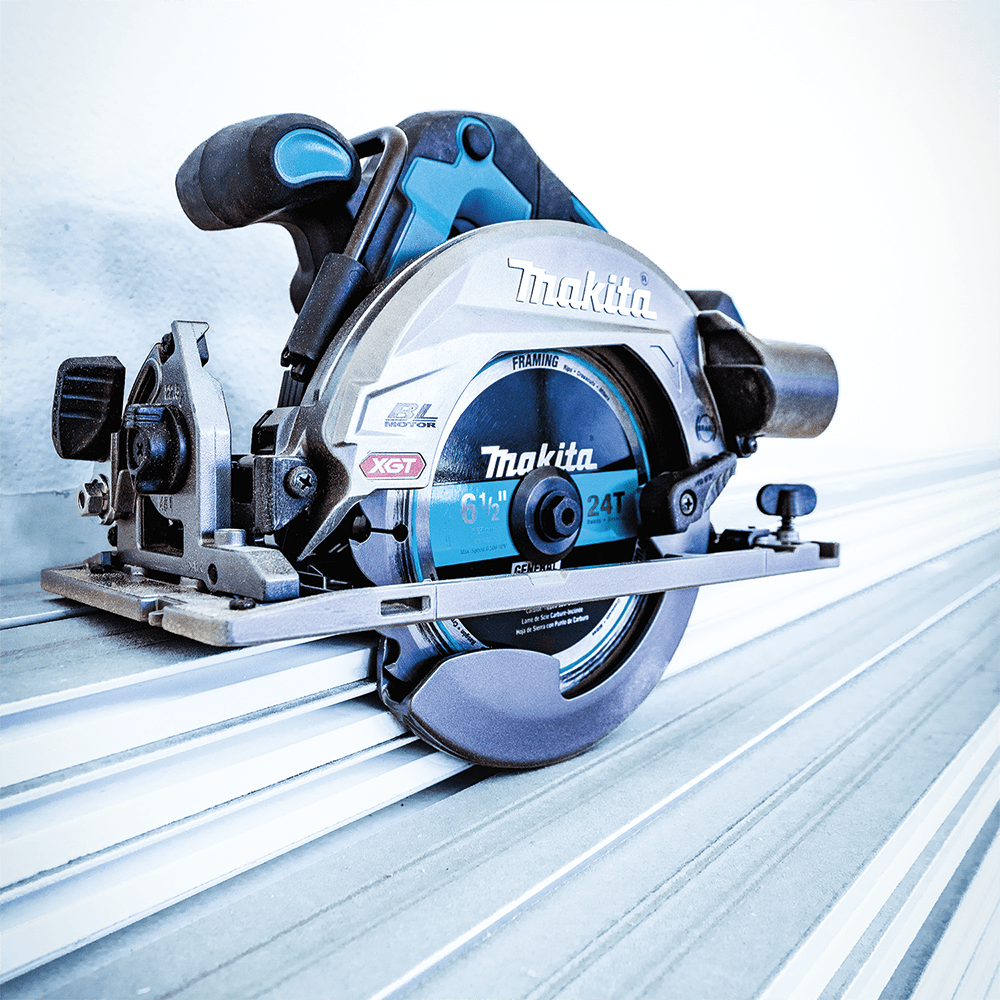

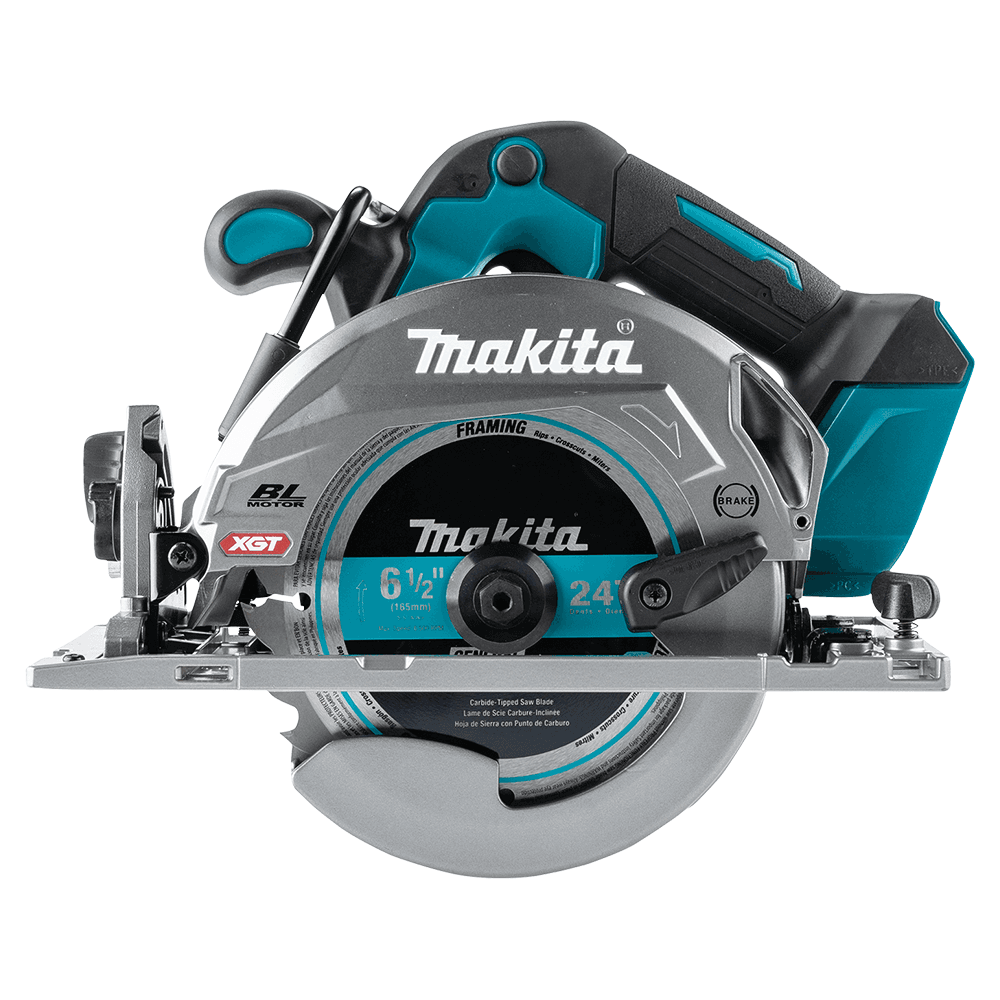

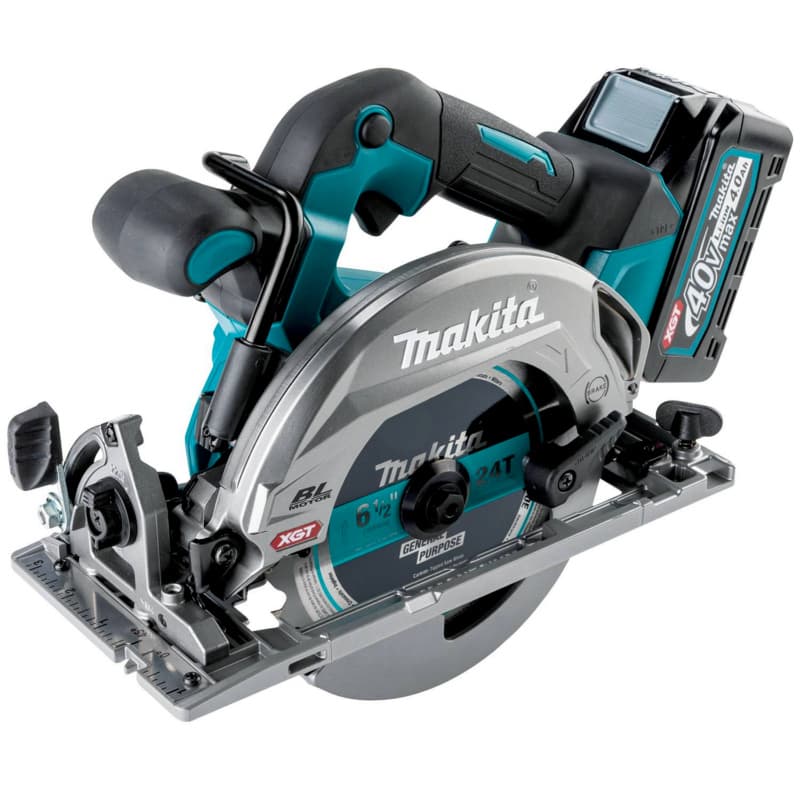

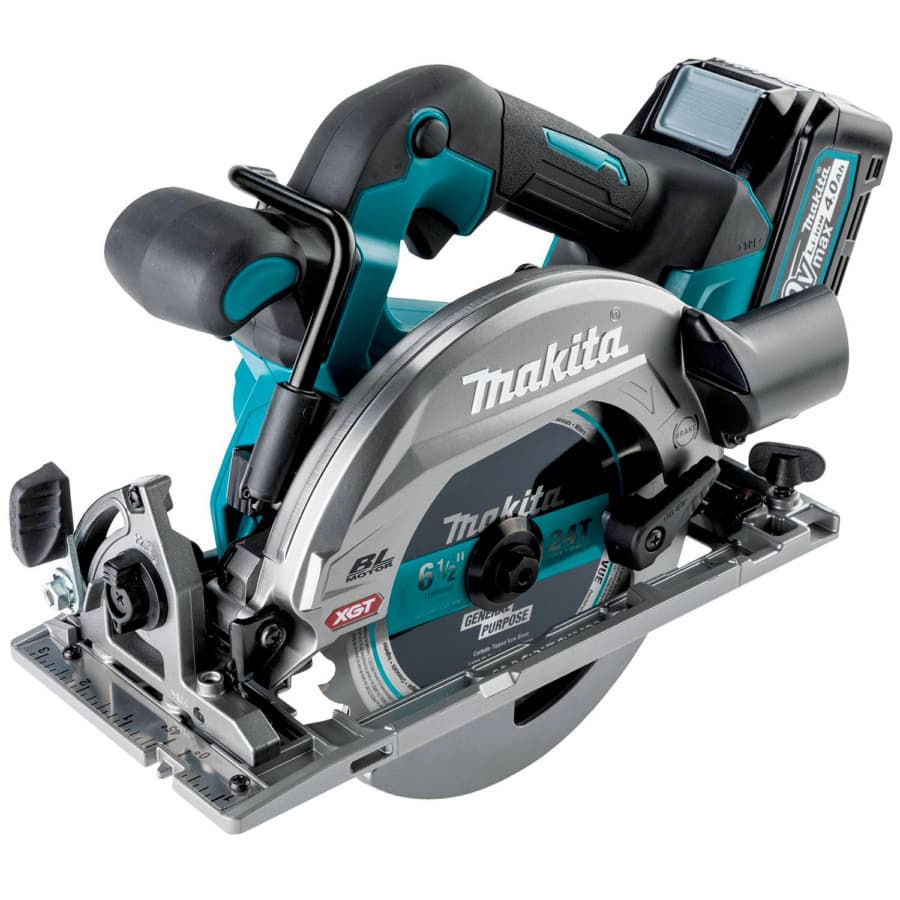

The 40V max XGT Brushless 6-1/2" circular saw kit (GSH05M1) provides cordless convenience while taking on high-demand applications. The built brushless motor delivers up to 5,200 RPM for high-speed cutting performance. The 6-1/2" circular saw can deliver up to 290 cuts per charge in 2x10 SPF lumber on a fully charged 40V max XGT 4.0Ah battery.
The GSH05M1 features a 2-1/4" cutting capacity at 90° and 1-5/8" at 45°, with a 0-50° bevel capacity with positive stops at 22.5°, 45°, and 50°. The saw features electric brake for maximum productivity. It features a die-cast magnesium base, blade guard, and blade cover provide a lightweight design weighs only 7.9lb. with 4.0Ah battery

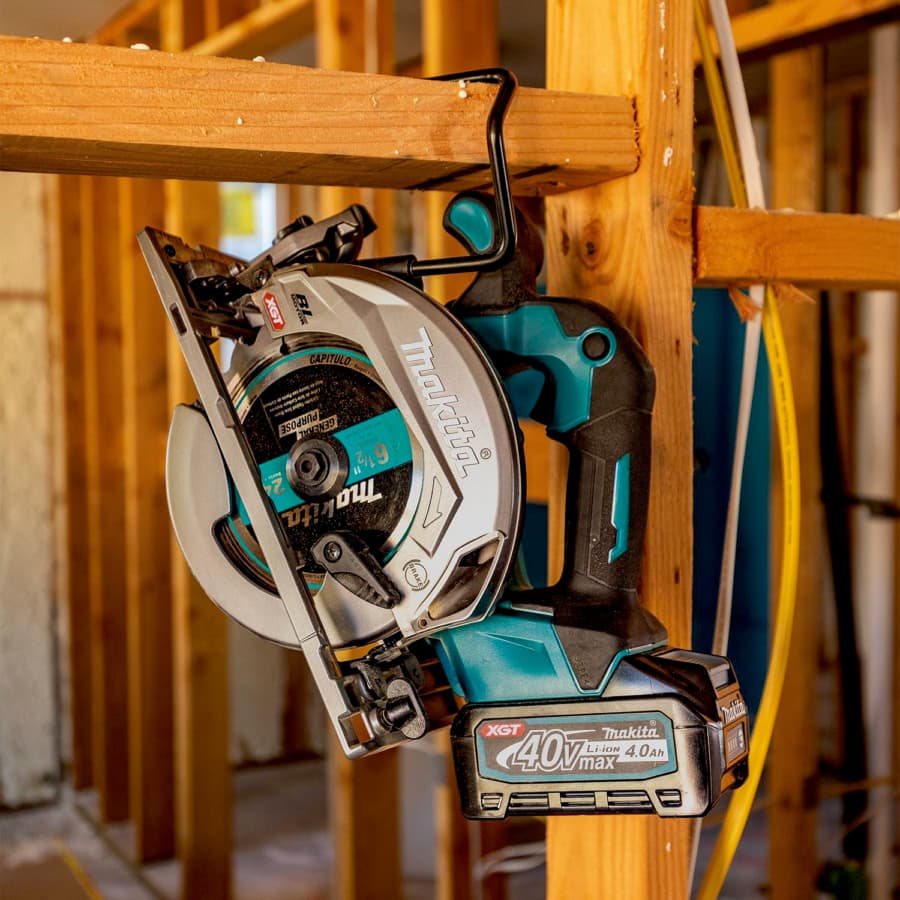

Convenience features include a L.E.D. light with preglow and afterglow illuminates the work area, and a retractable extra wide tool hook that secures the tool when not in use. The GSH05 features a compact and ergonomic design at only 11-3/4" long without battery.
The saw is also equipped with Extreme Protection Technology (XPT), is a series of integrated seals designed to improve a tool's operation in harsh conditions by channeling water and dust from key internal components.

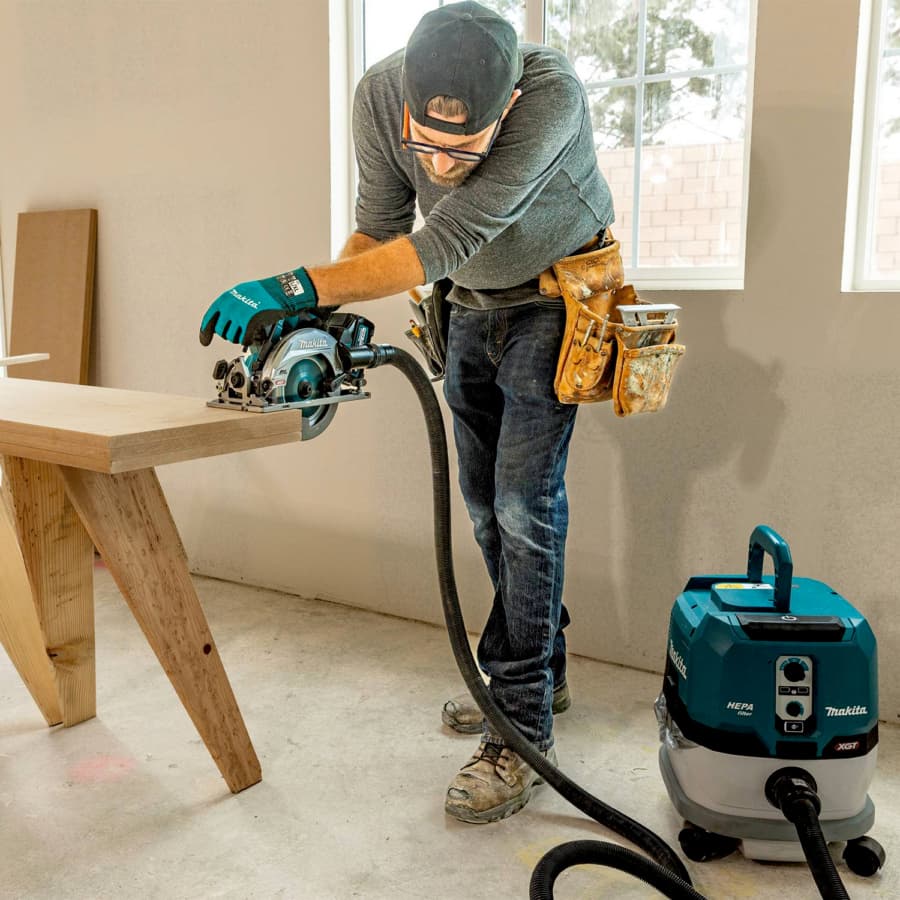

The GSH05 features the Auto-Start Wireless System (AWS), which uses Bluetooth technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site.
XGT is a system of equipment, tools, batteries and chargers utilizing 40V max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to Outpower, Outsmart and Outlast the rest.
XGT is a new 40V max system of cordless equipment and tools. XGT Outpowers, Outsmarts, and Outlasts the rest. Through innovative engineering, the technology within XGT will lead to creating the equipment and tools of the future.
Takes another step toward a truly cordless job site with Auto-Start Wireless System. AWS uses Bluetooth technology for wireless power-on and power-off communication between the equipped tool and dust extractor. AWS is intelligent communication that eliminates cords and excessive noise since the dust extractor runs only when trigger-activated by an AWS tool. When the trigger is released, the dust extractor powers-down. The AWS dust extractor (XCV08Z) is powered by two 18V LXT batteries for maximum performance, and users benefit with an expanding AWS system that includes cordless tools for concrete, metal and woodworking.

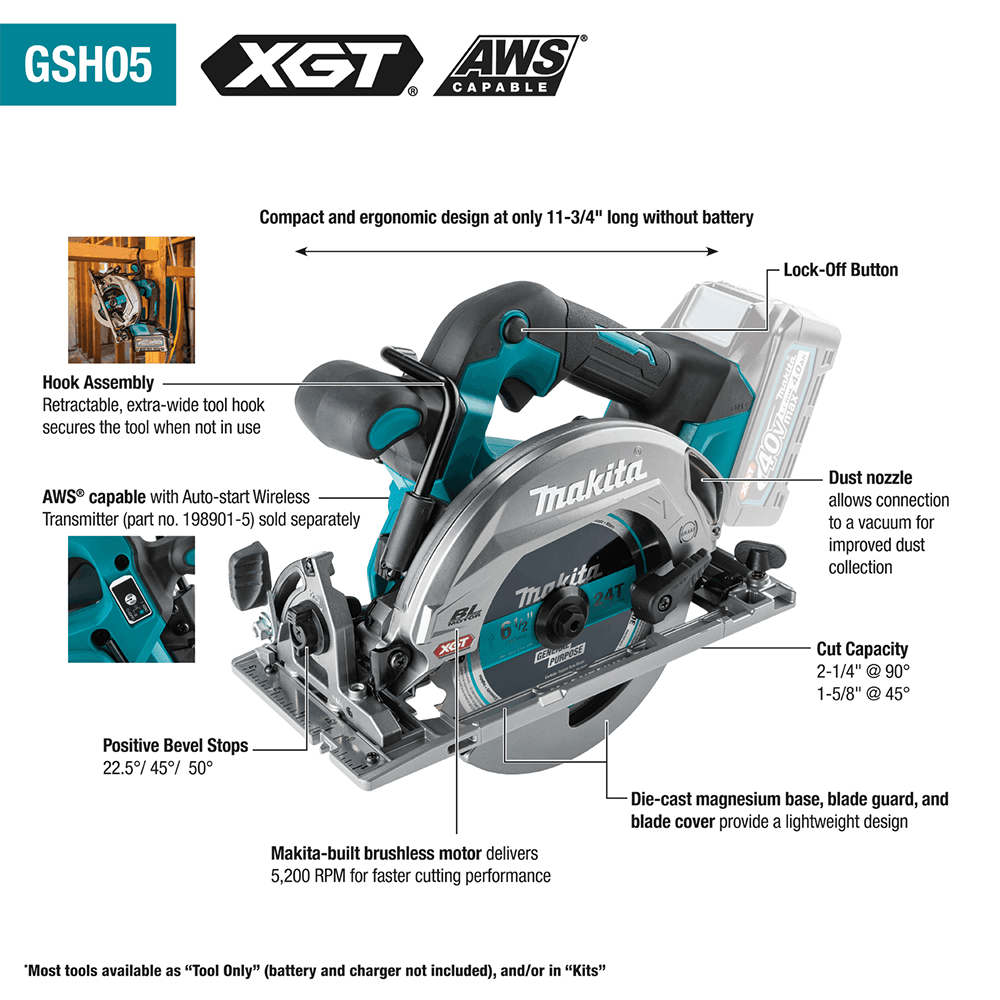

Features:
• Outpower: Up to 40% faster cutting speed
• Outsmart: Magnesium base for durability and less weight
• Outlast: Up to 290 cuts per charge in 2X10 SPF lumber using one 4.0Ah battery
• The built brushless motor delivers 5,200 RPM for faster cutting performance

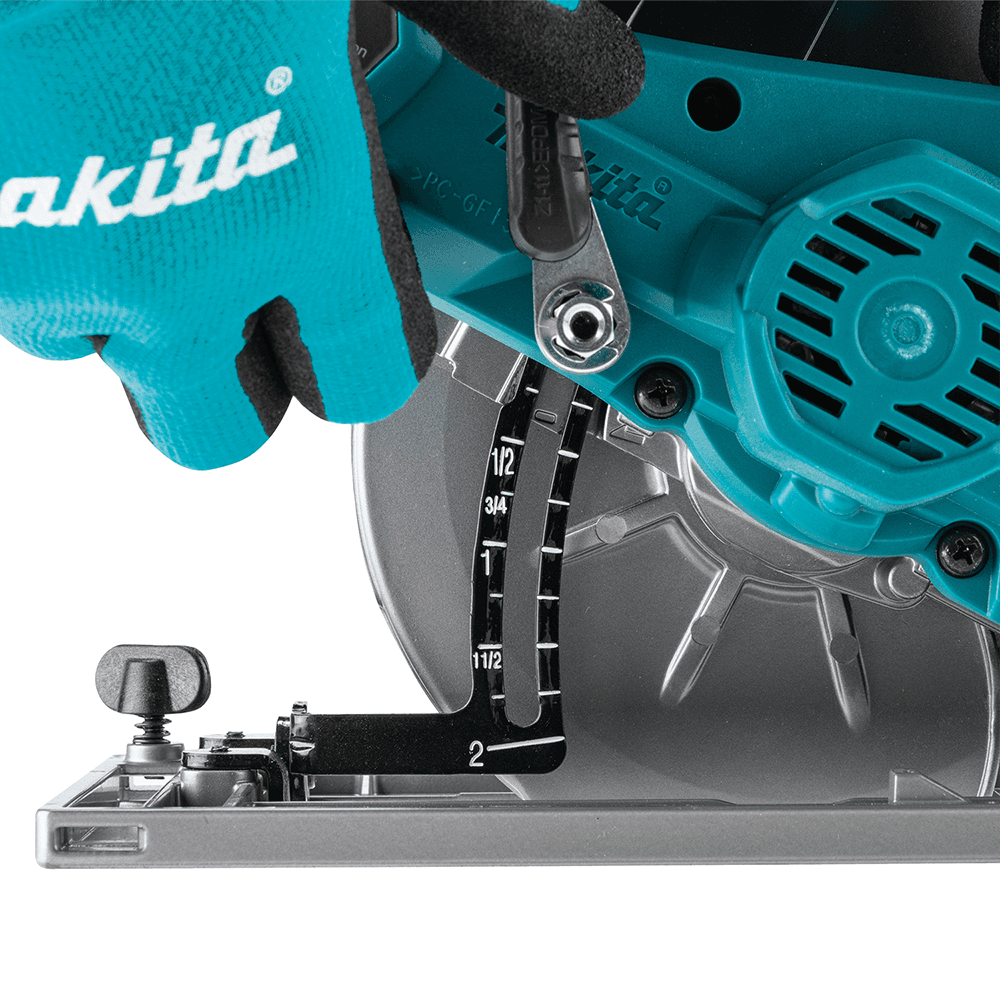

• Large 2-1/4" cutting capacity at 90° and 1-5/8" at 45°

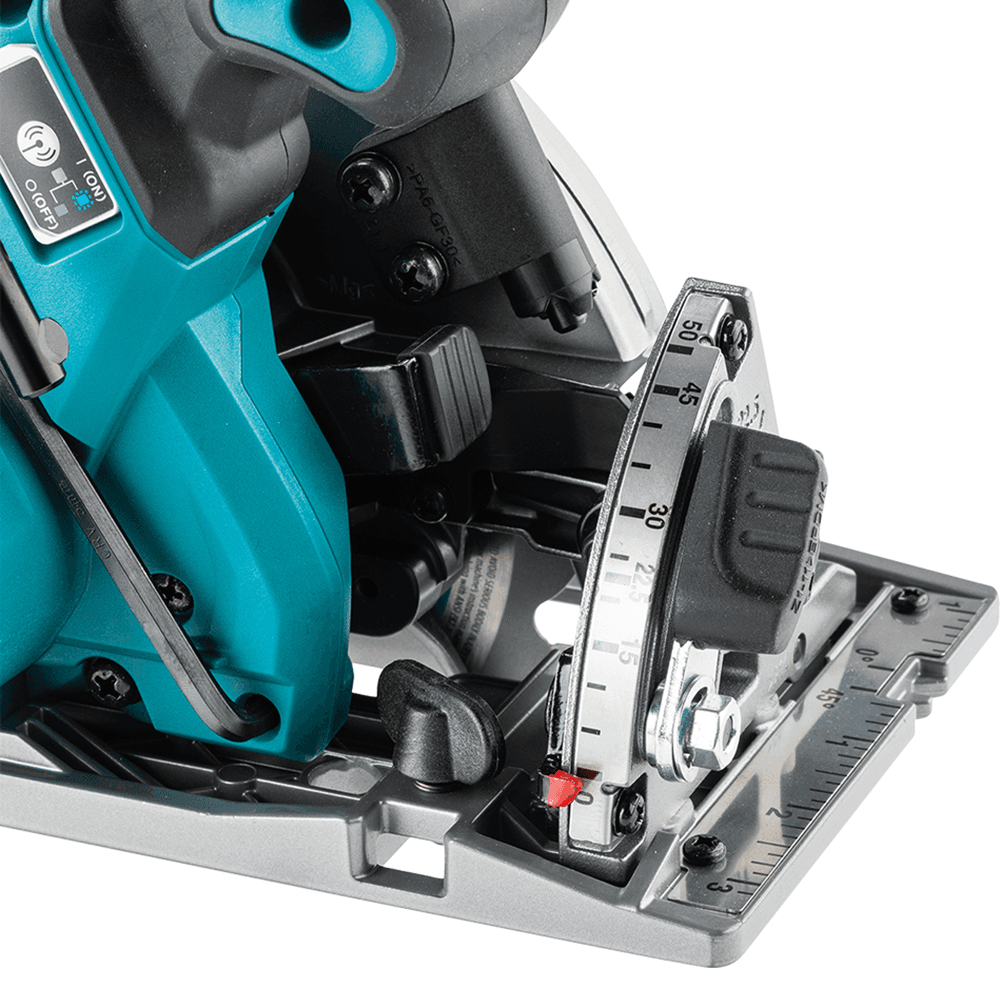

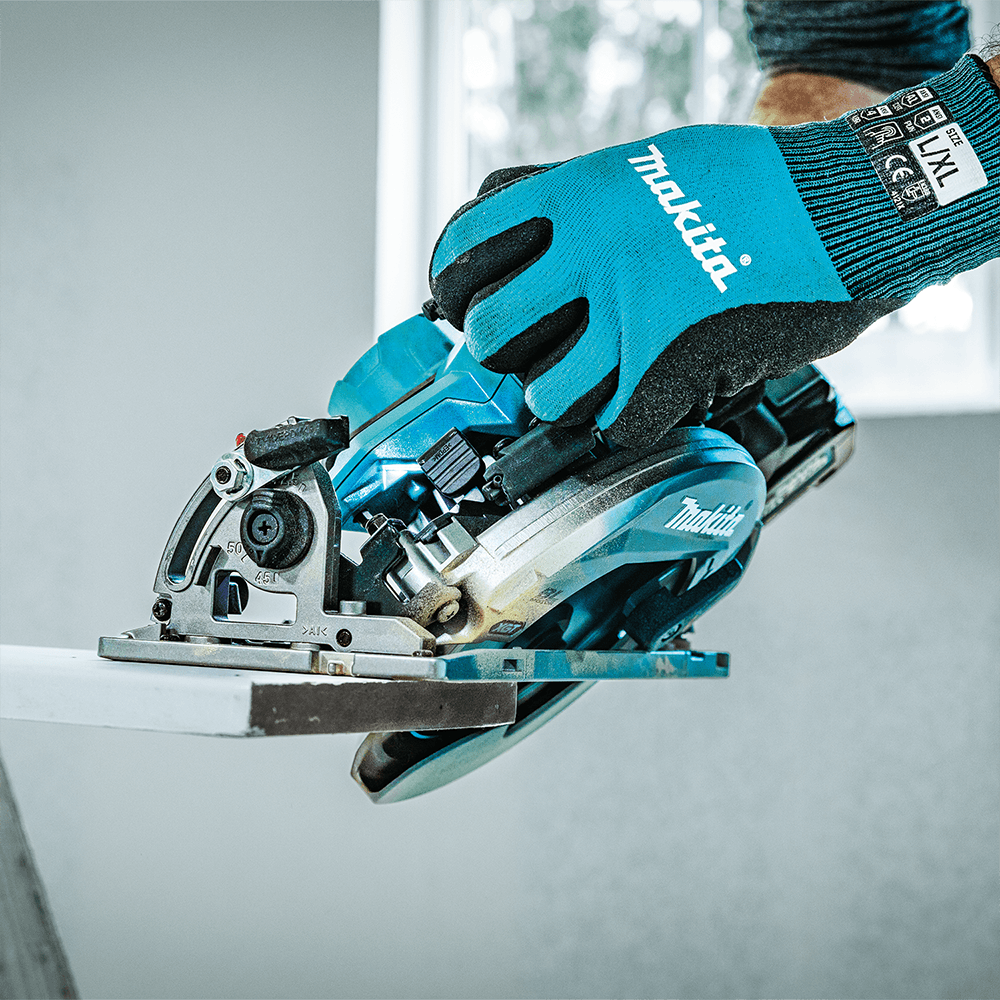

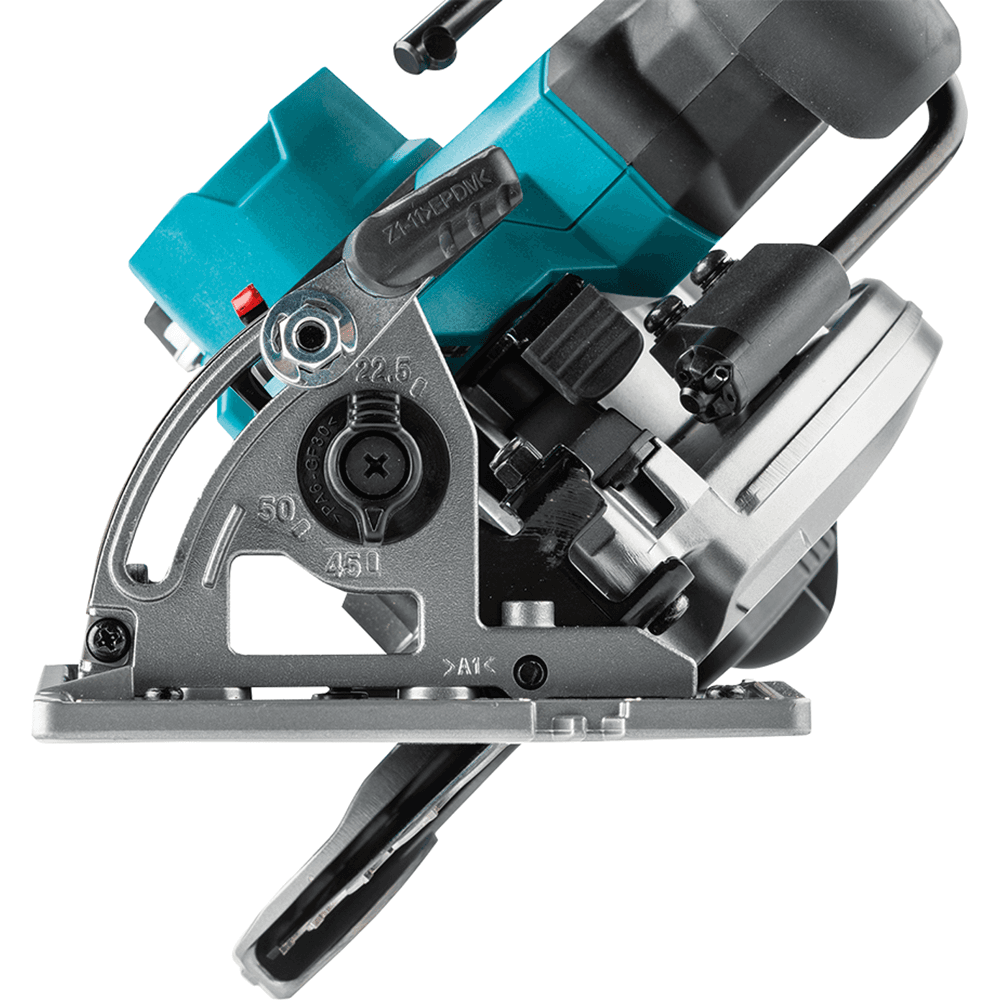

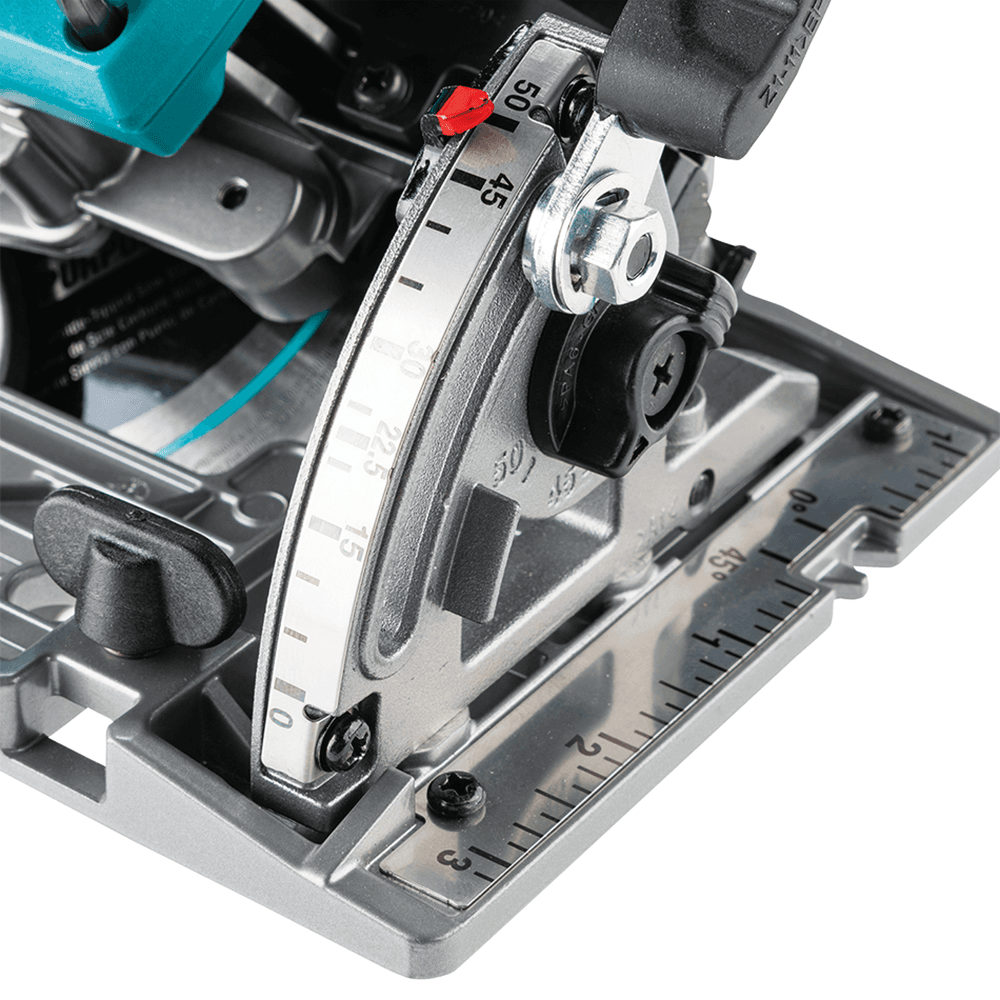

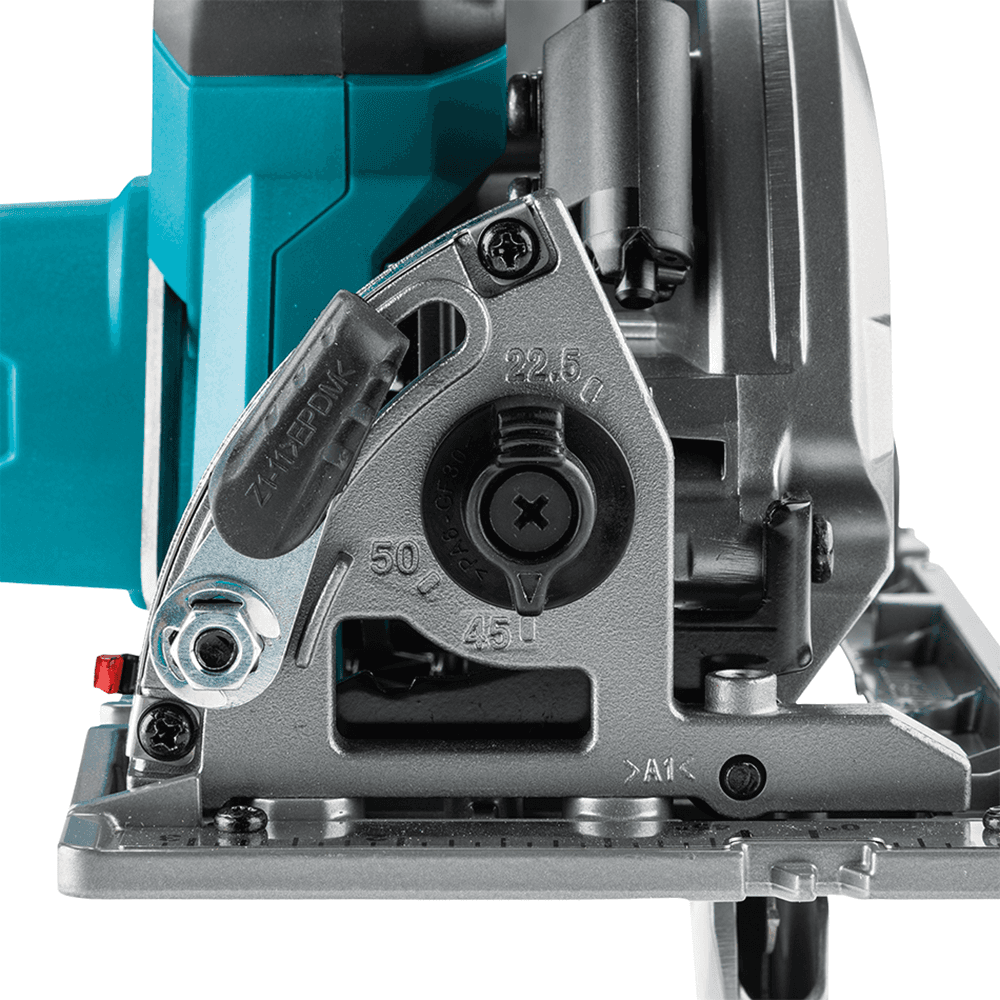

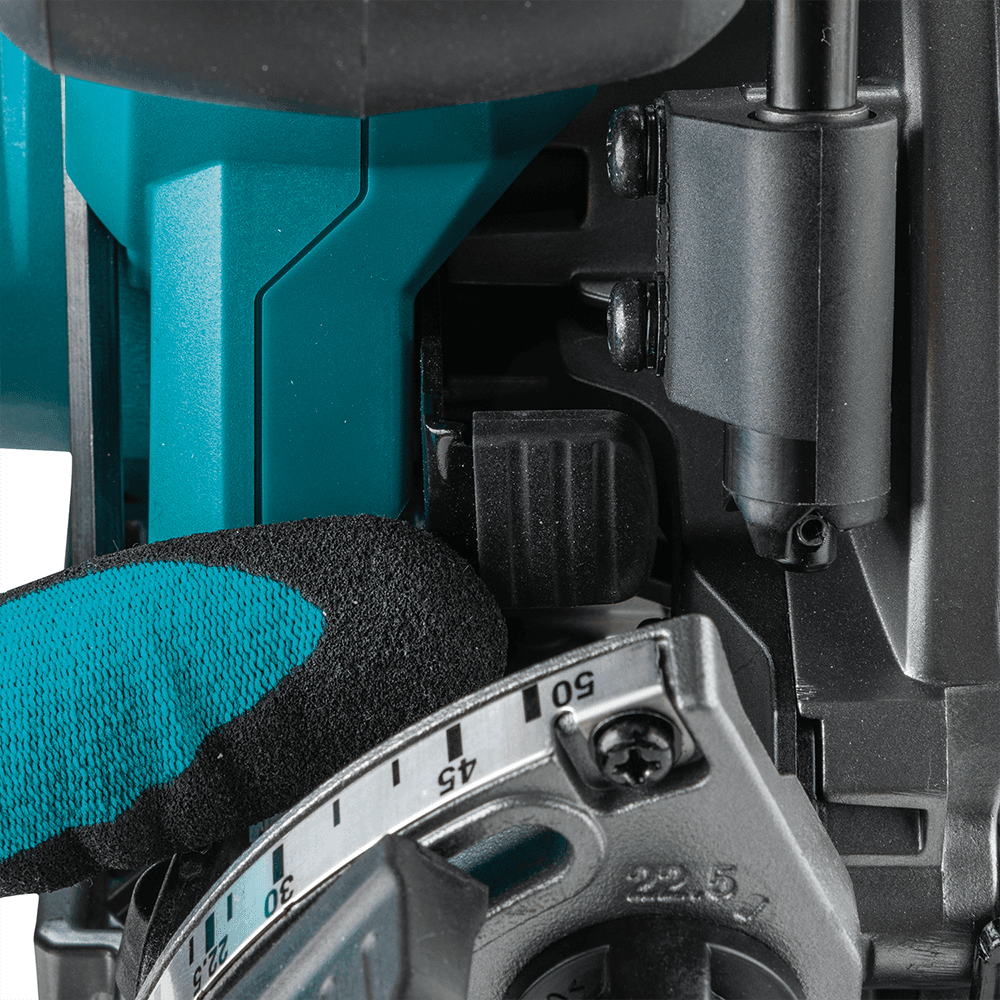

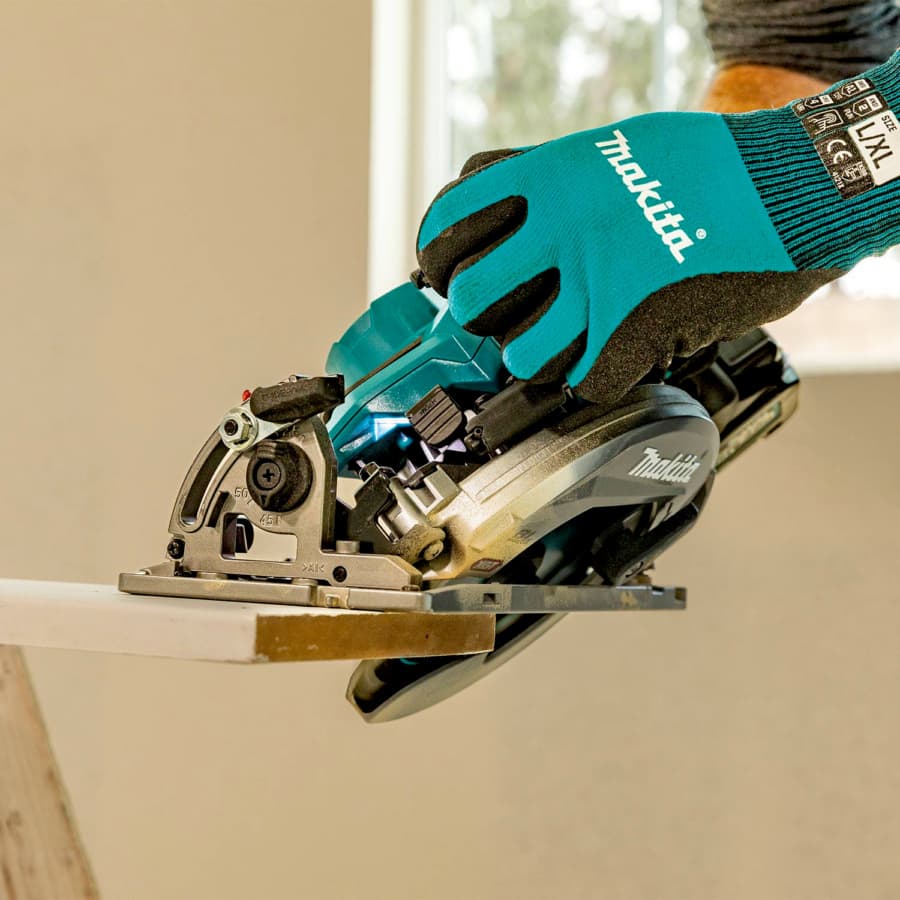

• 0-50° bevel capacity with positive stops at 22.5°, 45°, and 50°

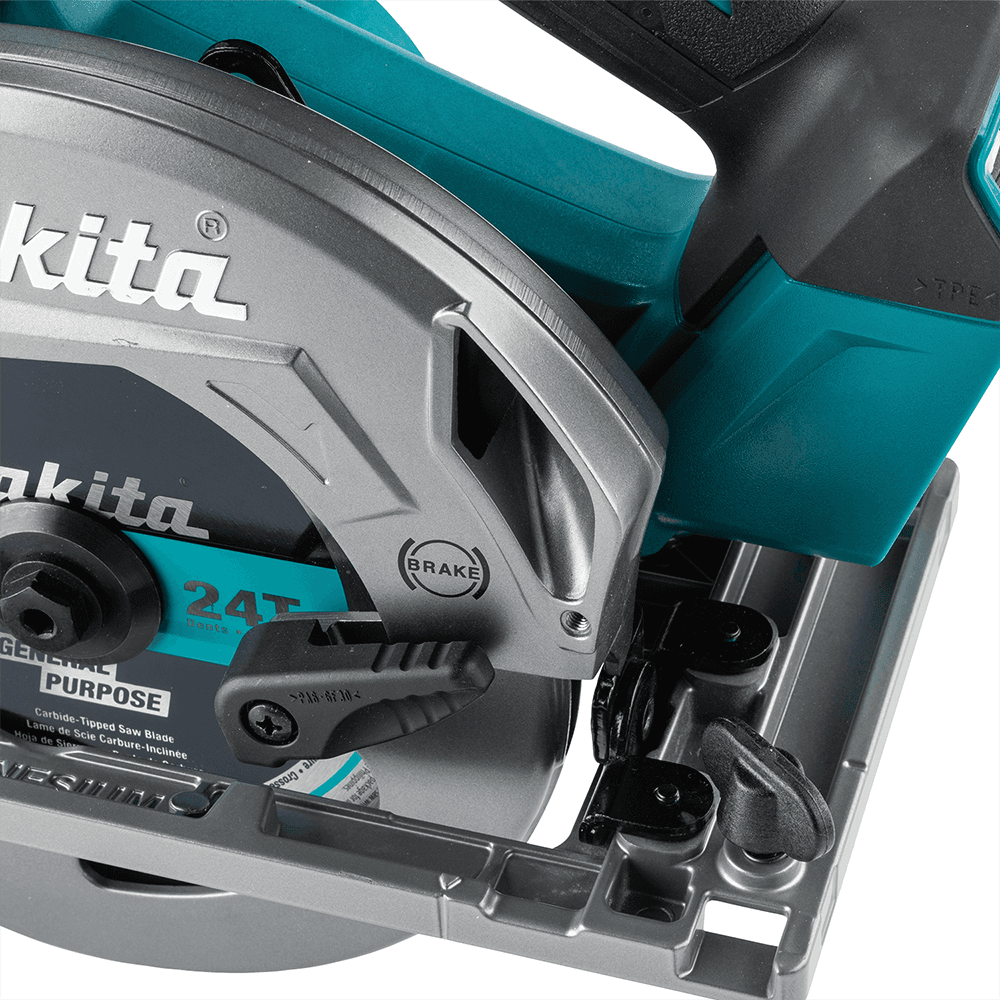

• Electric brake for maximum productivity

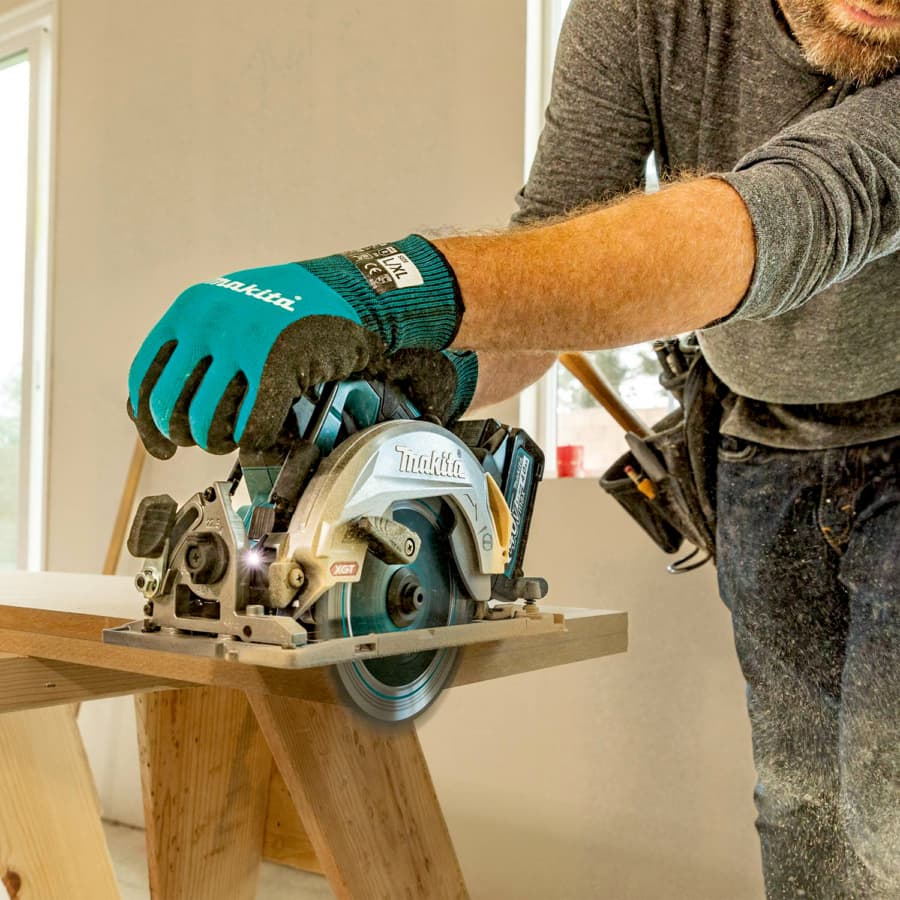

• L.E.D. light with preglow and afterglow illuminates the work area

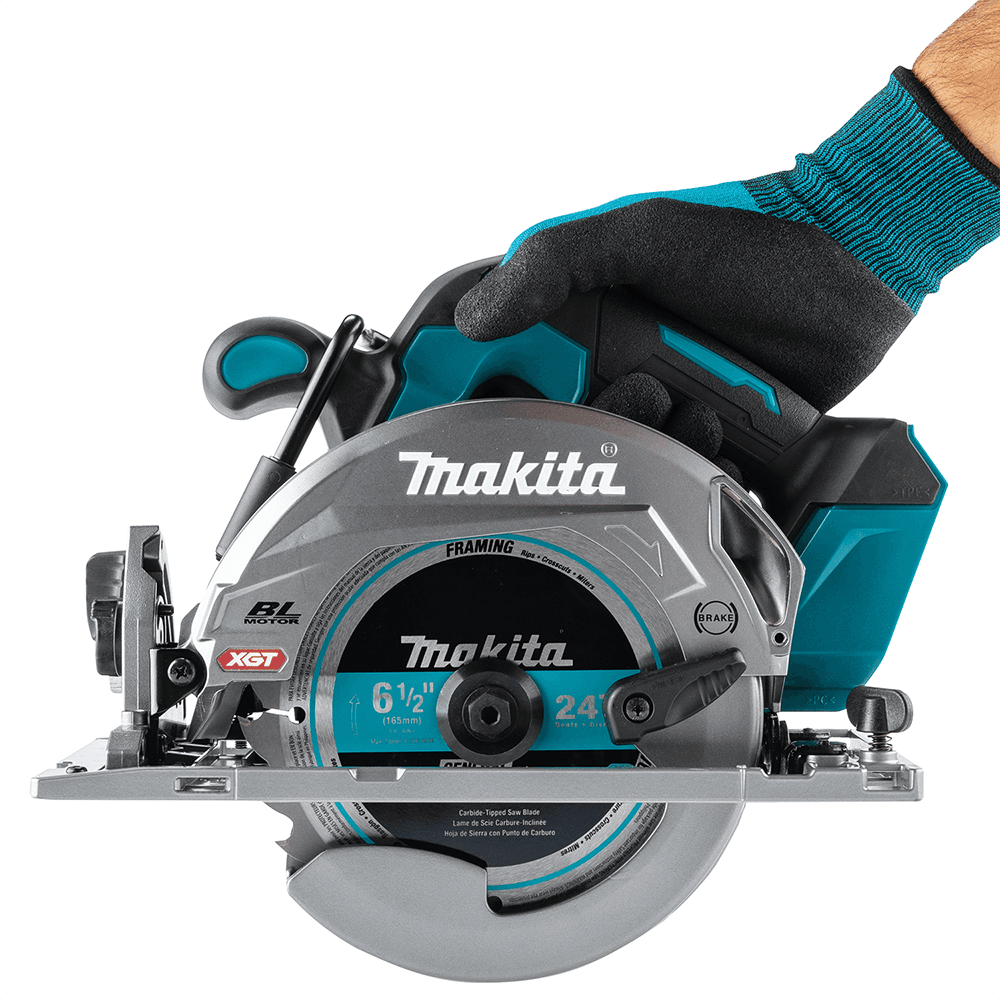

• Compact and ergonomic design at only 11-3/4" long without battery

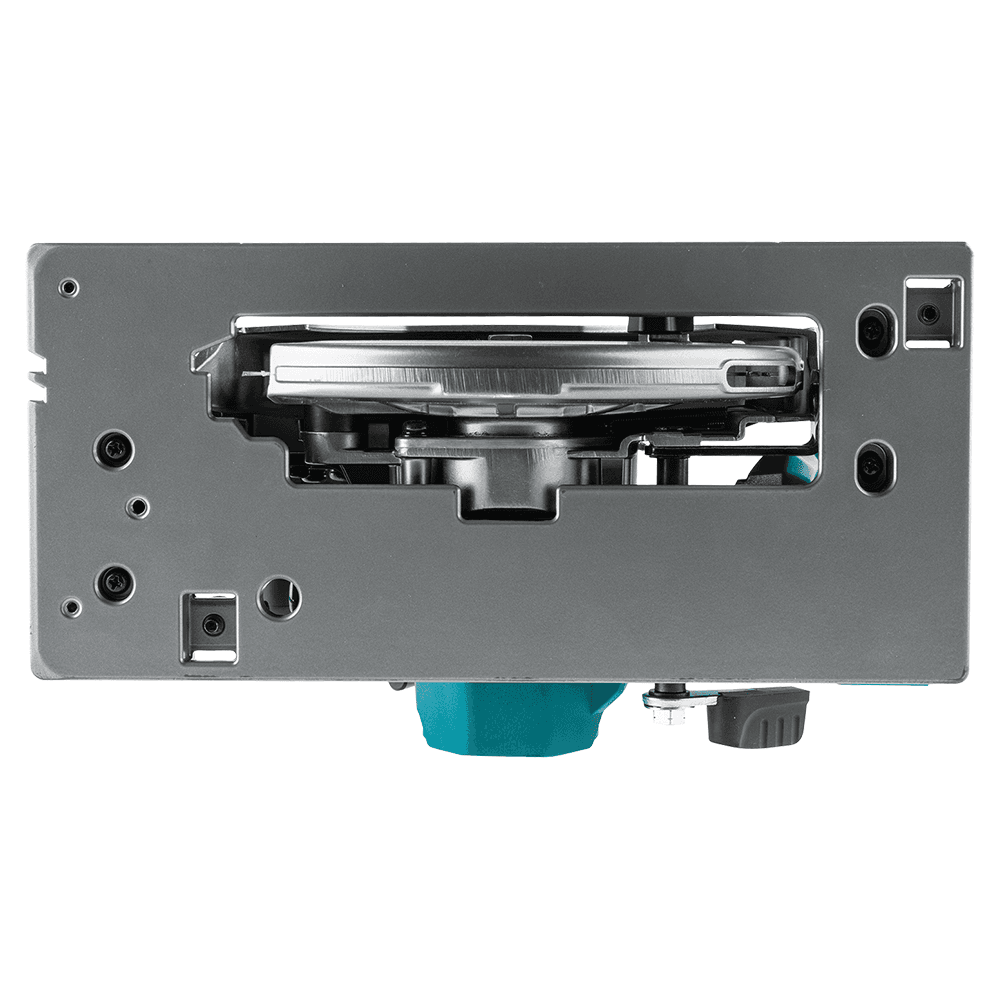

• Die-cast magnesium base, blade guard, and blade cover provide a lightweight design weighs only 7.9lb. with 4.0Ah battery

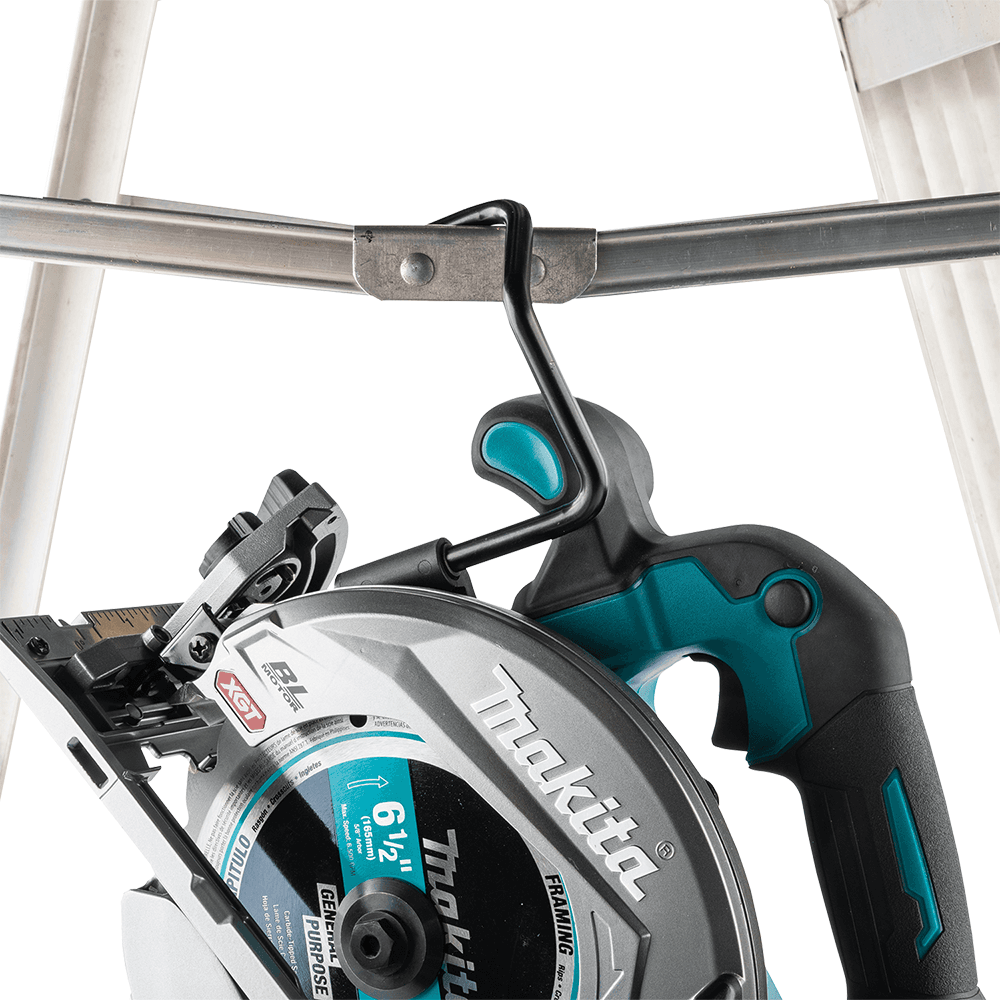

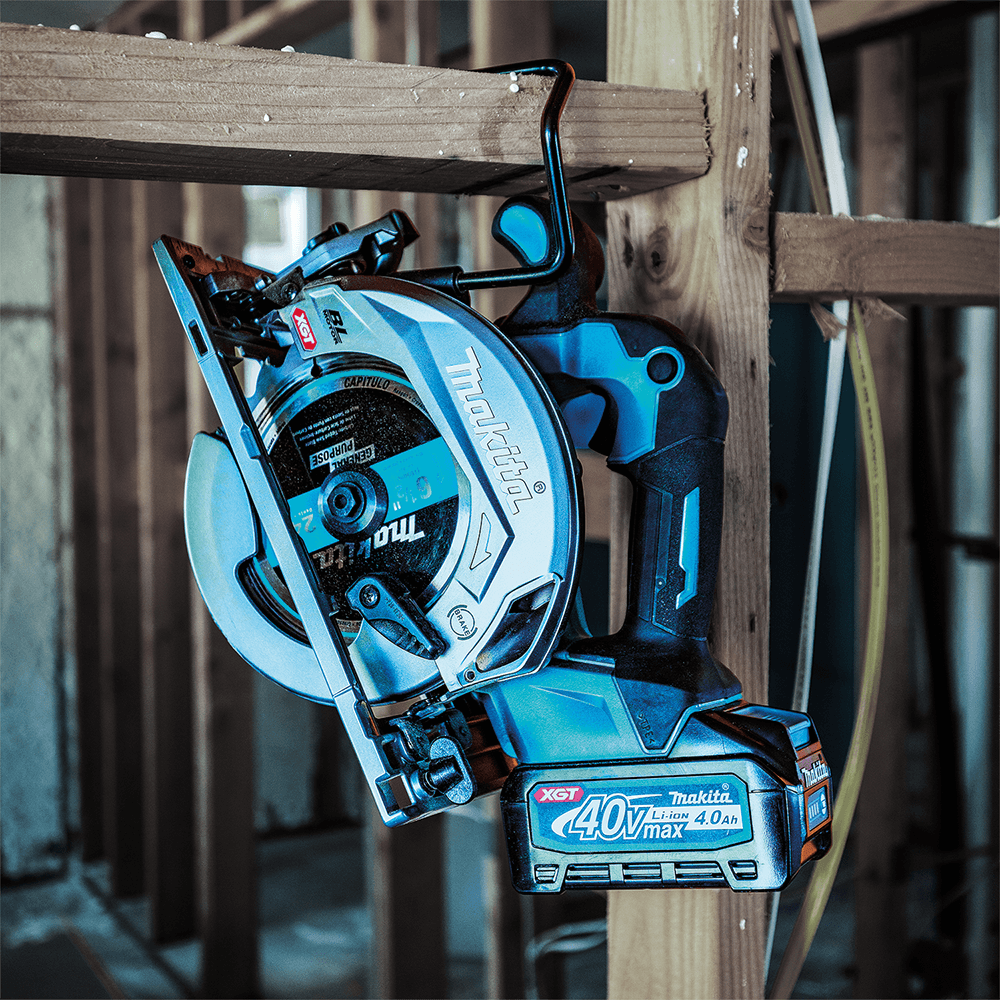

• Retractable, extra-wide tool hook secures the tool when not in use
• XPT is engineered to provide increased dust and water resistance in harsh jobsite conditions

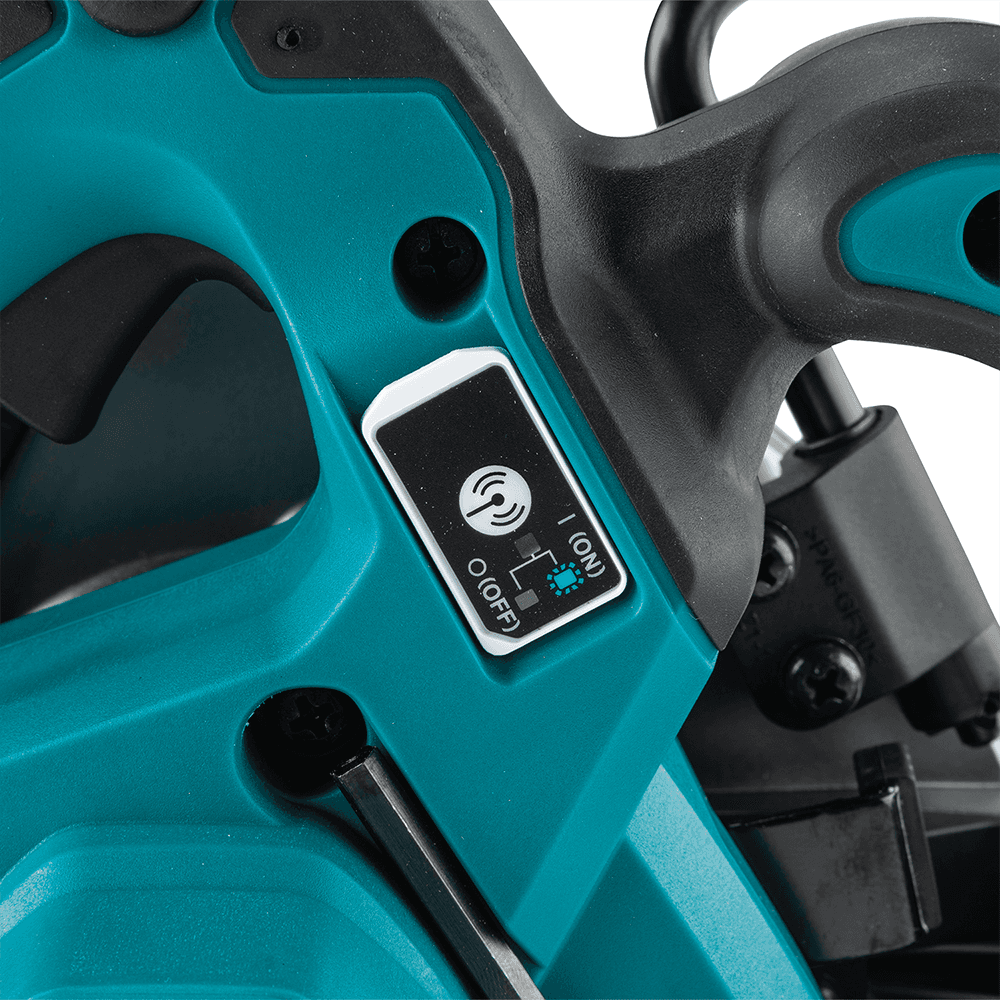

• Auto-start Wireless System (AWS) uses Bluetooth technology to power wireless on-off communication between the tool and dust extractor
• AWS capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
• The digital communication within XGT optimizes performance to provide up to 2X longer sustained power under heavy-load applications
• The digital communication within XGT actively monitors and protects against overload, over-discharge and overheating

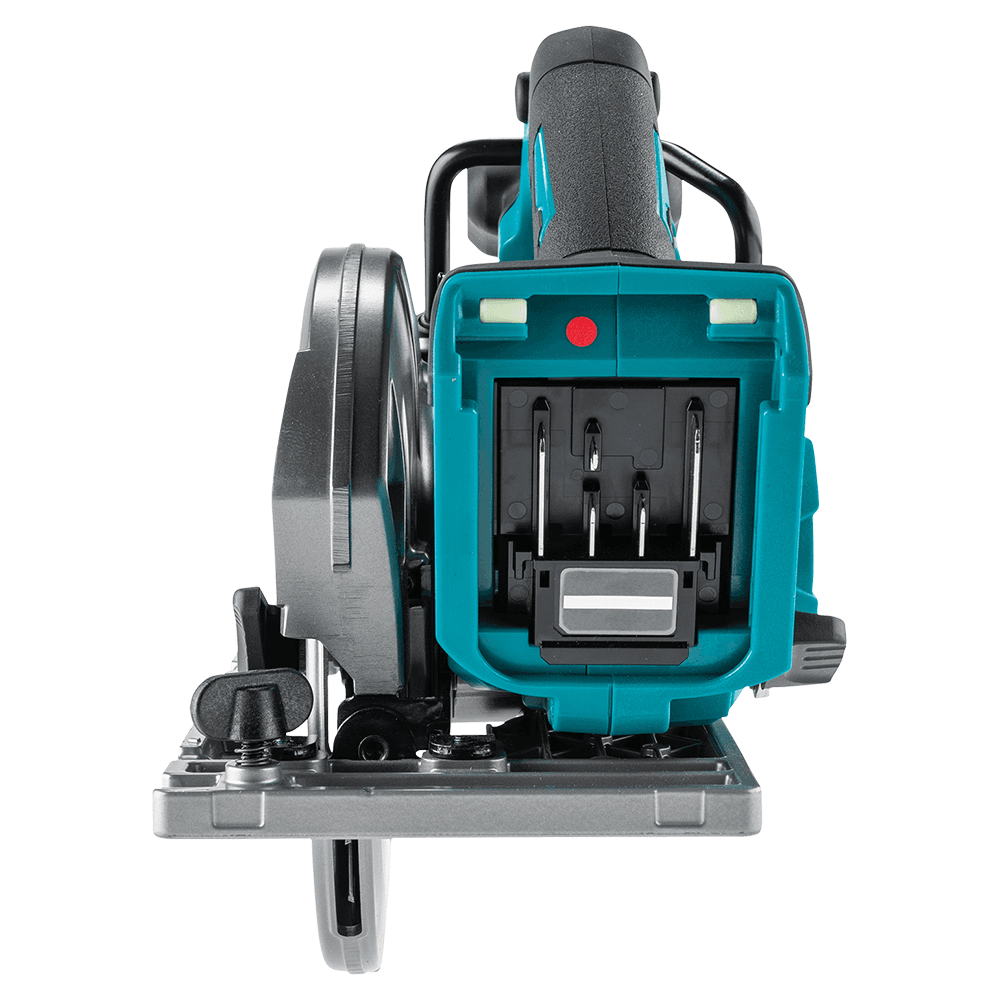

• XGT tools and batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
• XGT Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
• The XGT rapid charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
• The XGT rapid charger's digital display indicates battery charge level (-80%, +80%, 100%)
• The XGT rapid charger's built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
• Compatible with 40V max XGT lithium-ion Batteries
• Only use genuine batteries and chargers
• 3-year limited warranty on tool, battery and charger

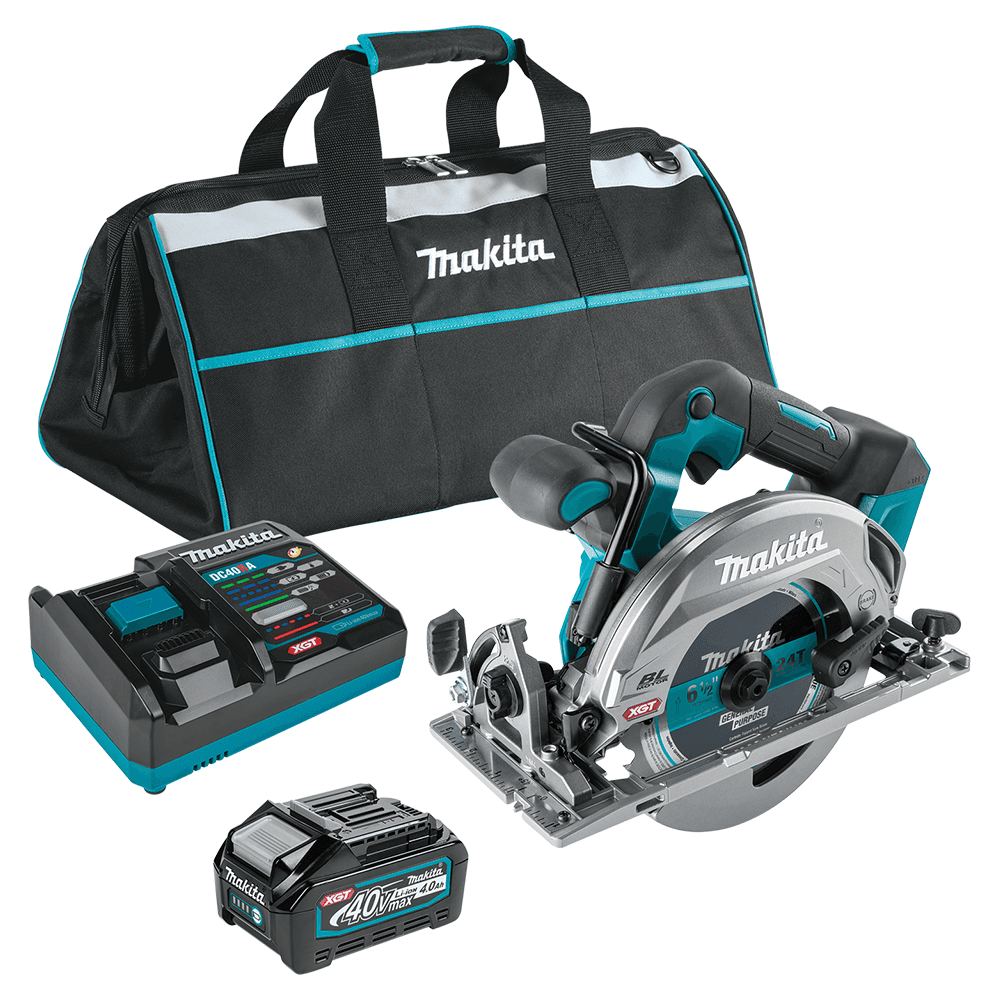

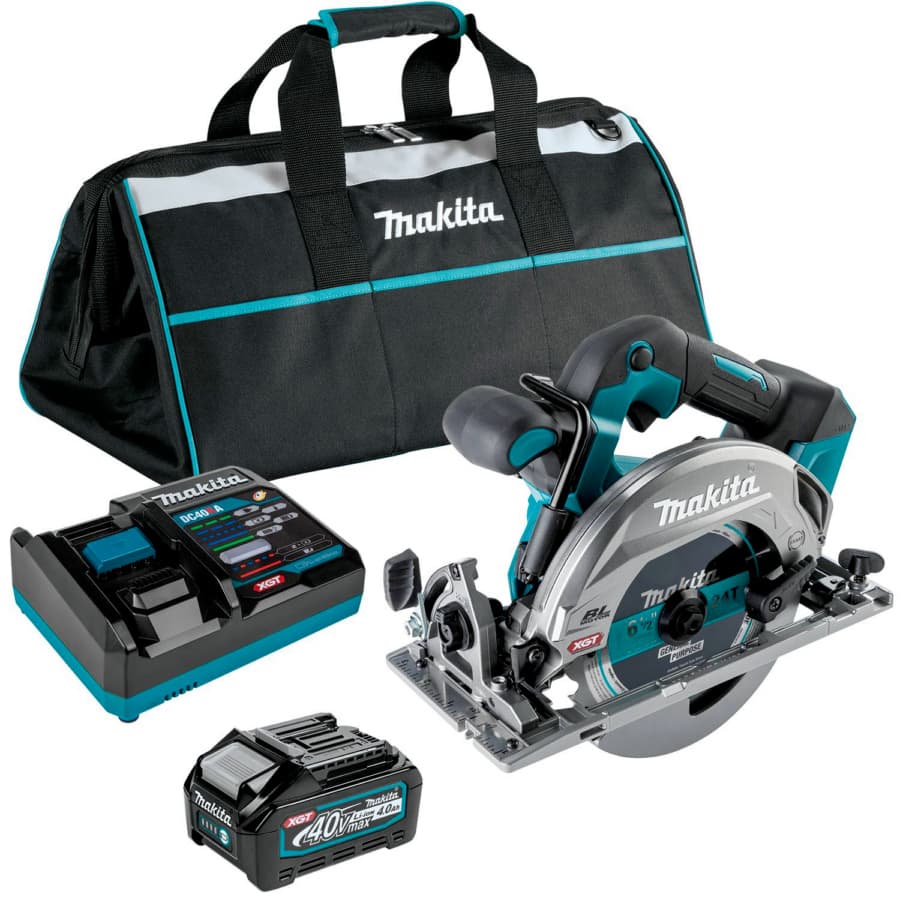

Includes:
• (1) 40V max XGT Brushless 6-1/2" Circular Saw, AWS Capable (GSH05Z)
• (1) 40V max XGT 4.0Ah Battery (BL4040)
• (1) 40V max XGT Rapid Optimum Charger (DC40RA)
• (1) 6-1/2" 24T C.T. Saw Blade (A-85092)

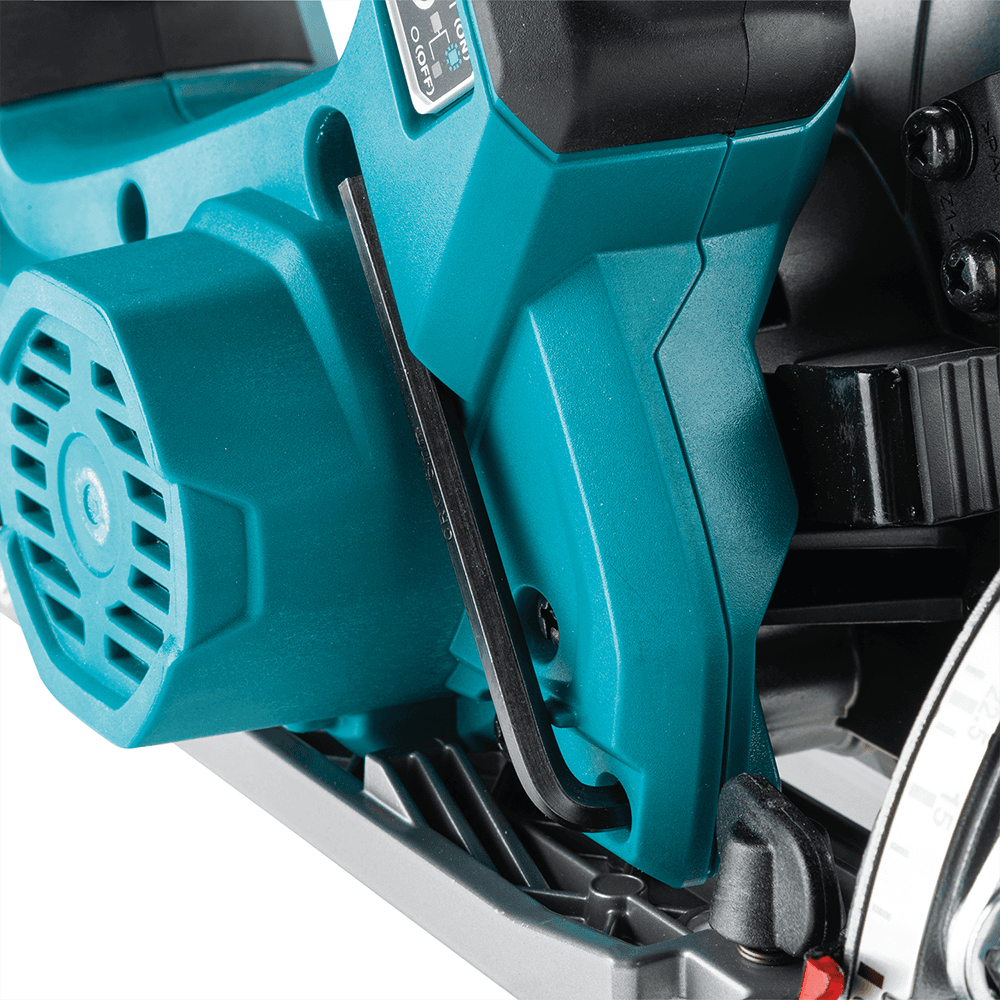

• (1) Hex Wrench (783204-6)
• (1) Dust Nozzle
