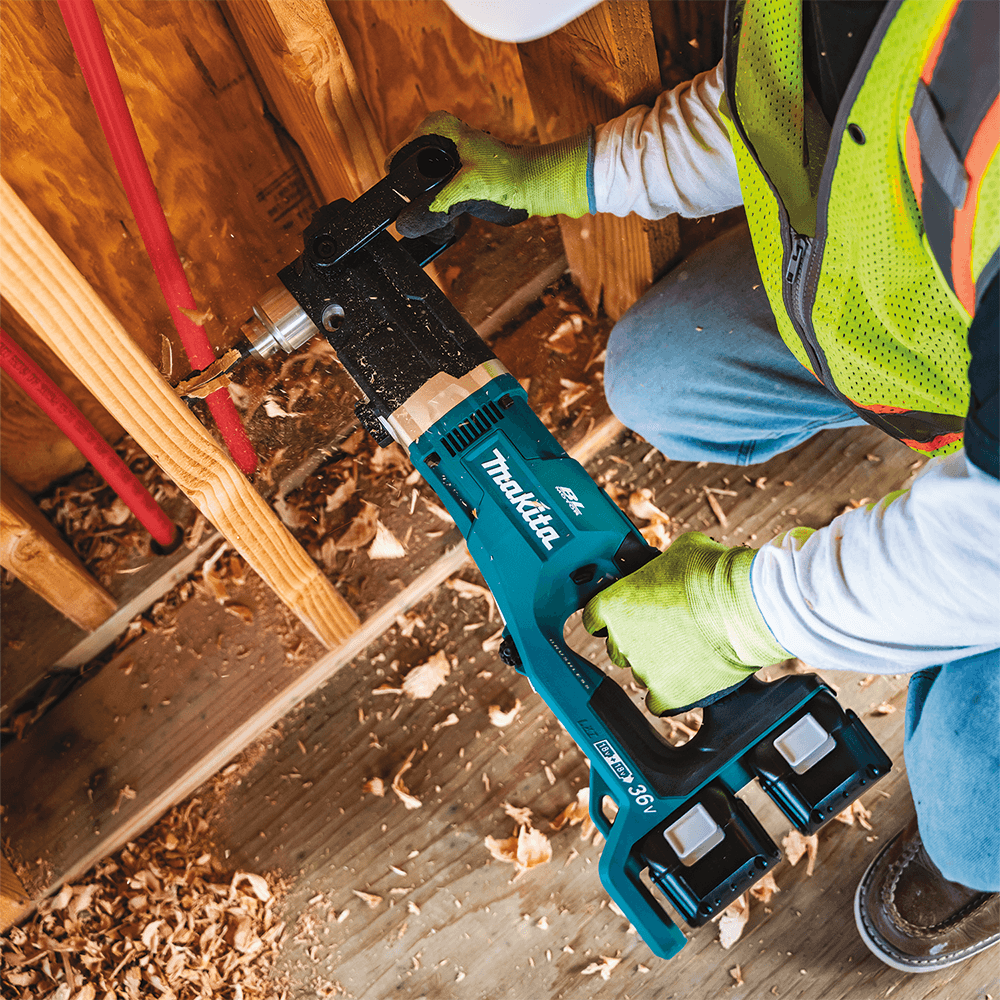

A pioneer in brushless motor technology and battery innovation, combines both in the 36V (18V X2) LXT brushless 1/2" right angle drill. It's powered by two 18V LXT Lithium-Ion batteries for maximum performance, and has an electronically-controlled BL Brushless motor that matches torque and RPM to the changing demands of the application. The 18V X2 means freedom from the cord, and the XAD03 will take on the most demanding applications like drilling up to 6-1/4" holes with hole saws and 4-5/8" holes with self-feed bits. Best of all, users can remain in one battery platform, using the same fast-charging 18V batteries with the XAD03 as they use across the expansive 18V LXT cordless system.
The XAD03 has a long list of features for drilling with superior speed and efficiency. The BL Brushless Motor combined with X2 LXT technology delivers no-load drilling speeds of 0-350 RPM and 0-1,400 RPM. Under load, the Automatic Speed Change technology adjusts drill speed and torque during drilling for optimum performance. Added features include an electric brake for maximum productivity, and a built-in clutch that reduces gear damage by disengaging gears if the bit binds (low speed only). It's powered by two 18V LXT batteries for maximum power, speed and run time without the hassles of a cord. When using two 18V 5.0Ah batteries and a self-feed bit (bit sold separately), the XAD03 will deliver up to 160 2-9/16" holes per charge in 2x SPF.
It's part of expanding 18V Lithium-Ion system, the world's largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. The 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.
For improved tool performance and extended battery life, created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by 18V LXT and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Tool users who unplug the cord with 18V LXT experience new levels of convenience, efficiency and productivity. A created the 18V Lithium-Ion cordless tool category in 2005, and today it is the world's largest 18V cordless tool line-up. A leading technology gives tool users unmatched performance and breadth of line, with innovation in motor and battery technology that is obliterating industry standards - and leaving old thinking behind. With high amp-hour batteries, efficient brushed and brushless motors, and 36V (18V X2) LXT technology, The 18V LXT tools not only meet corded demands, they can exceed the performance of corded, all while remaining in a single cordless platform powered by the industry's fastest-charging 18V lithium-ion batteries.

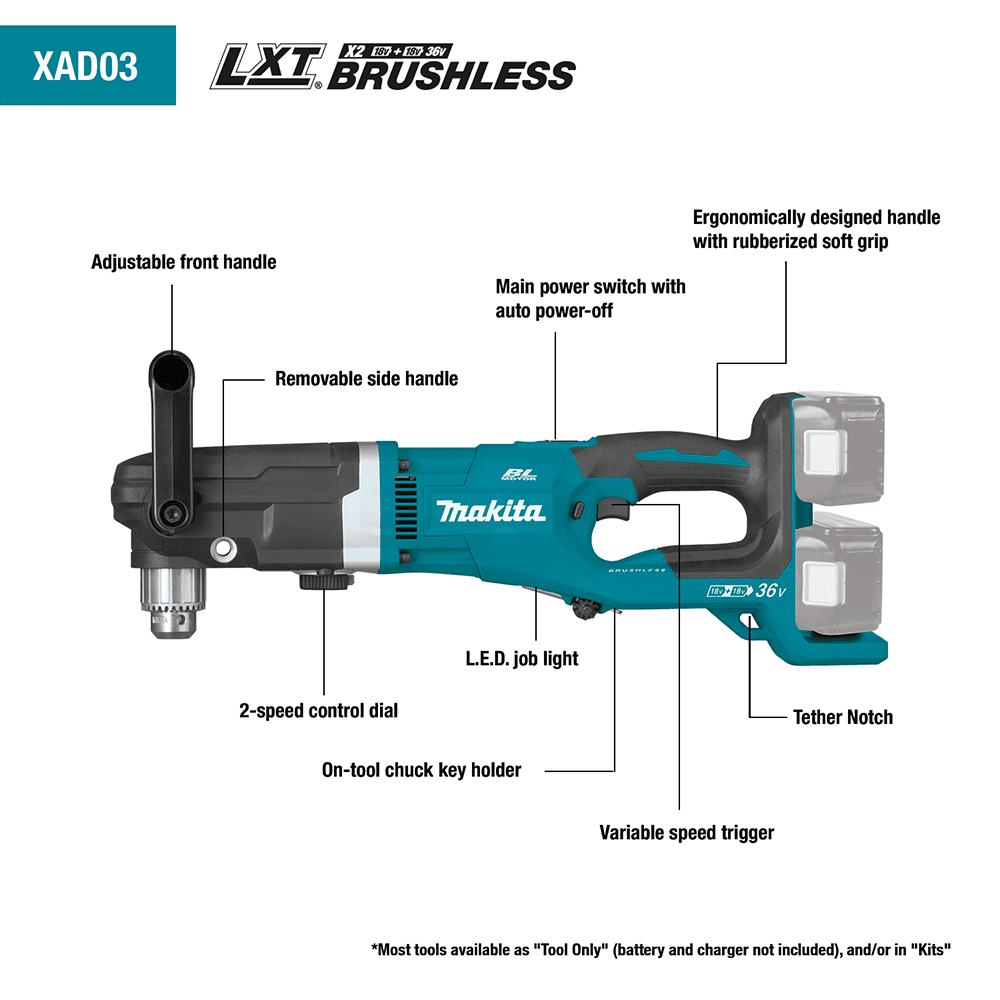

Features:
• Powered by two LXT batteries X2 LXT technology delivers more power, speed and run time without the hassles of a cord

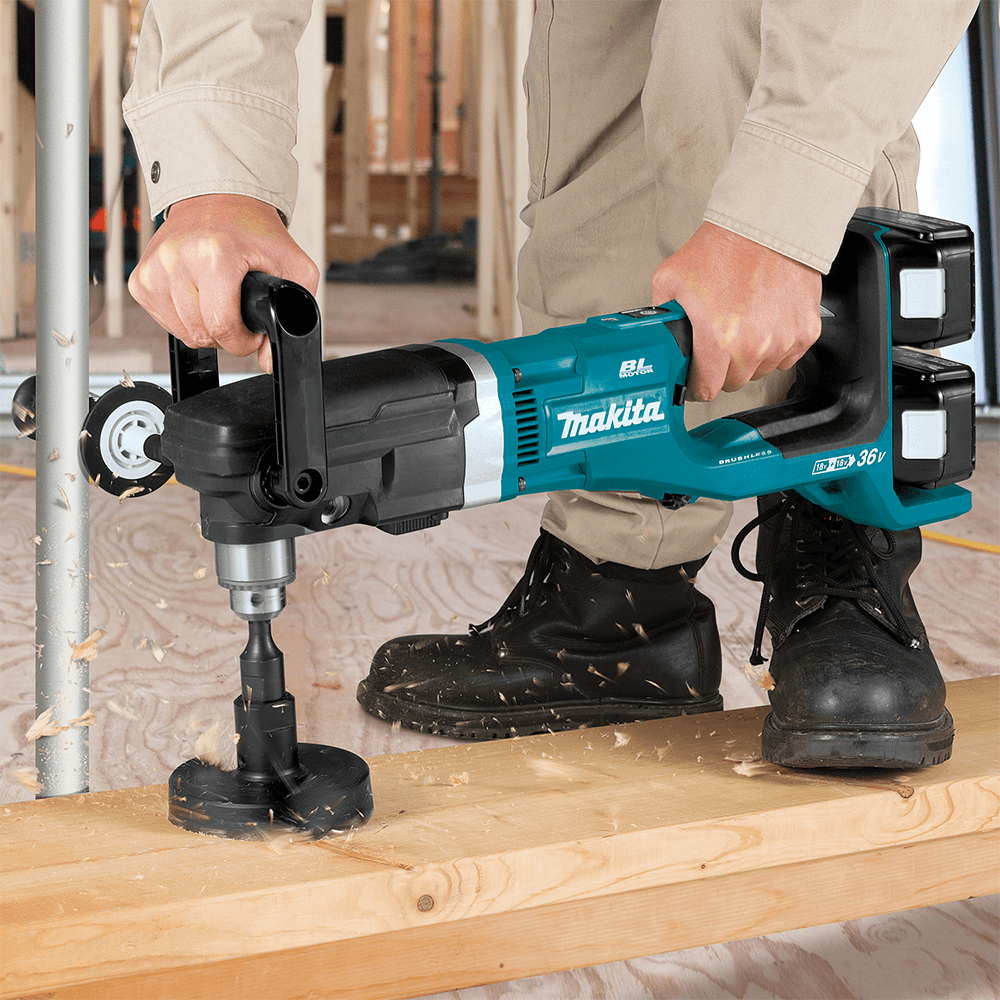

• Drills up to 6-1/4" holes with hole saws and 4-5/8" holes with self feed bits
• Drills up to 160 2-9/16" holes per charge in 2x SPF using two 5.0Ah batteries and self feed bit (self feed bit sold separately)
• The BL brushless motor combined with X2 LXT technology delivers no-load drilling speeds of 0-350 RPM and 0-1,400 RPM for maximum efficiency
• Automatic speed change technology adjusts drill speed and torque during drilling for optimum performance
• Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• Metal-gear housing increases tool durability and extends reliability
• Torque limiter built-in clutch reduces gear damage by disengaging gears if the bit binds (low speed only)
• Electric brake for maximum productivity
• Variable 2-speed design (0-350 RPM and 0-1,400 RPM) for optimum speed control and drilling versatility

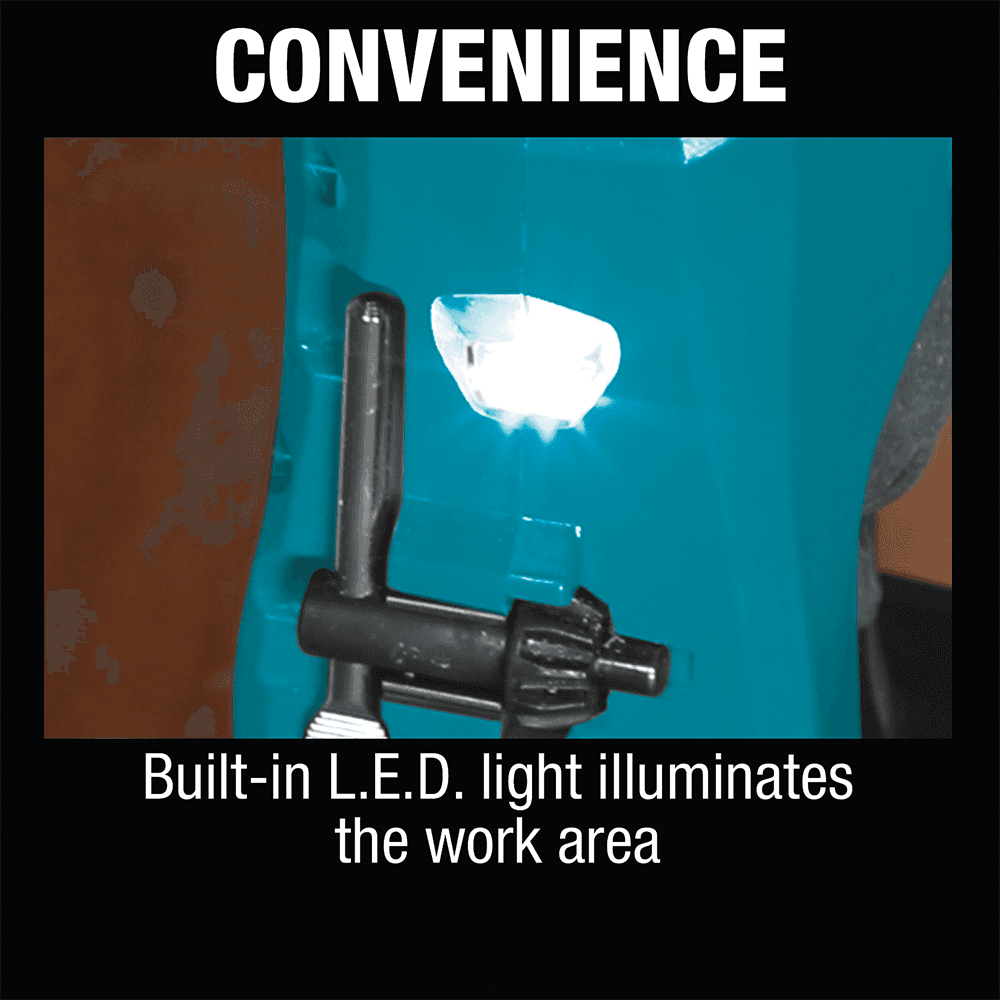

• Built-in L.E.D. light illuminates the work area

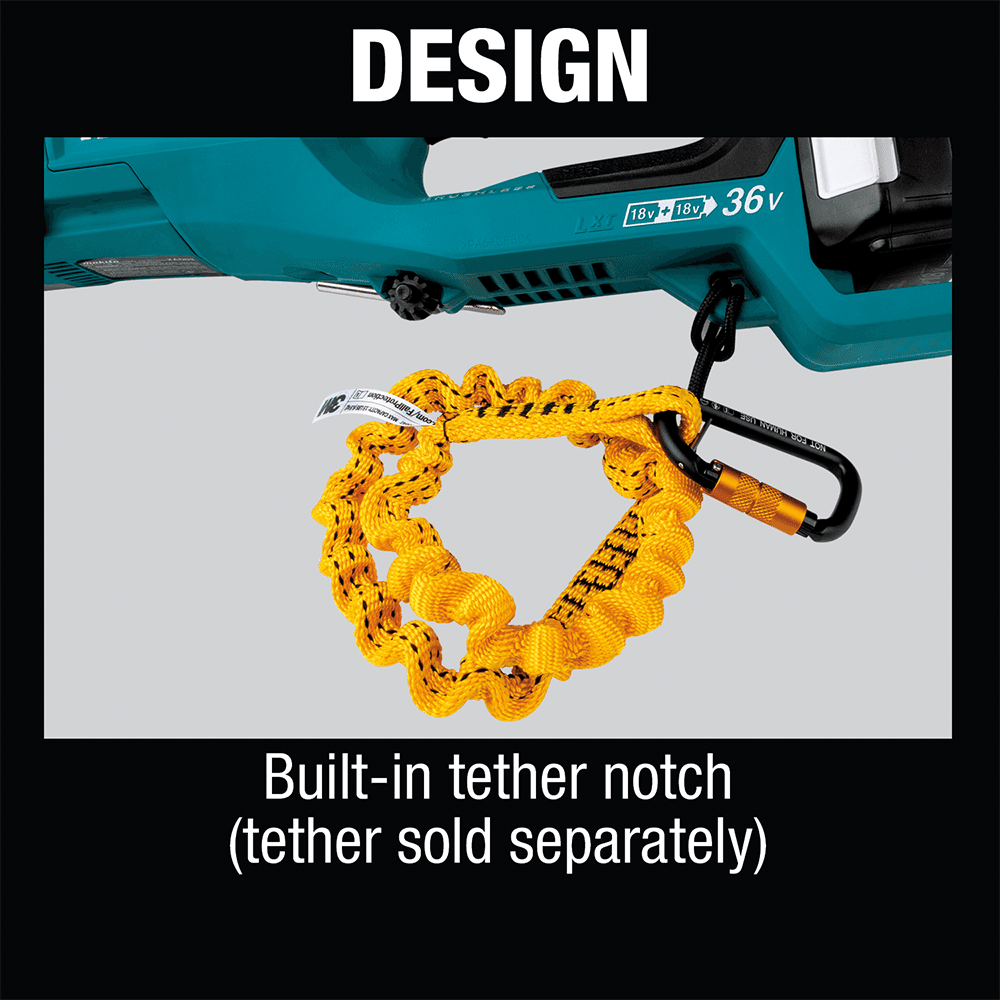

• Built-in tether notch (tether sold separately)
• Includes chuck key with convenient on-tool storage
• Auto power-off feature preserves battery and tool life

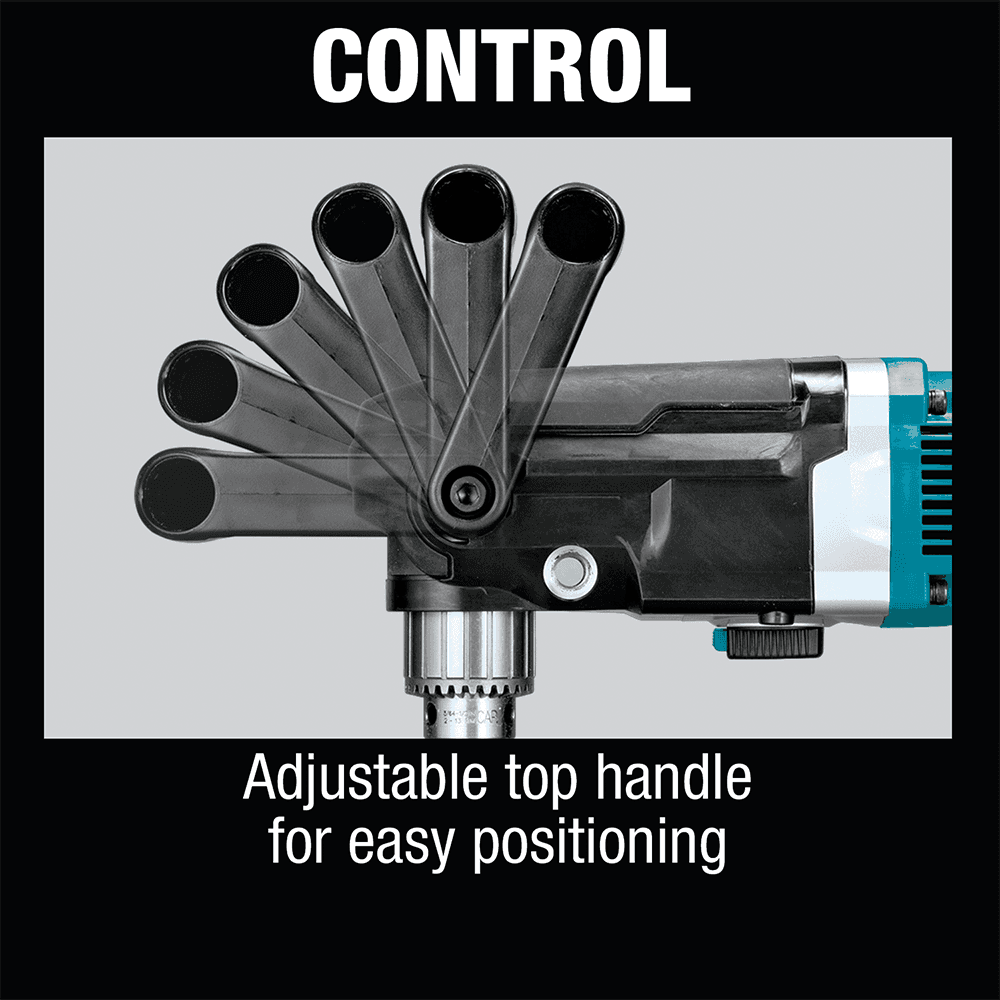

• Adjustable top handle for easy positioning

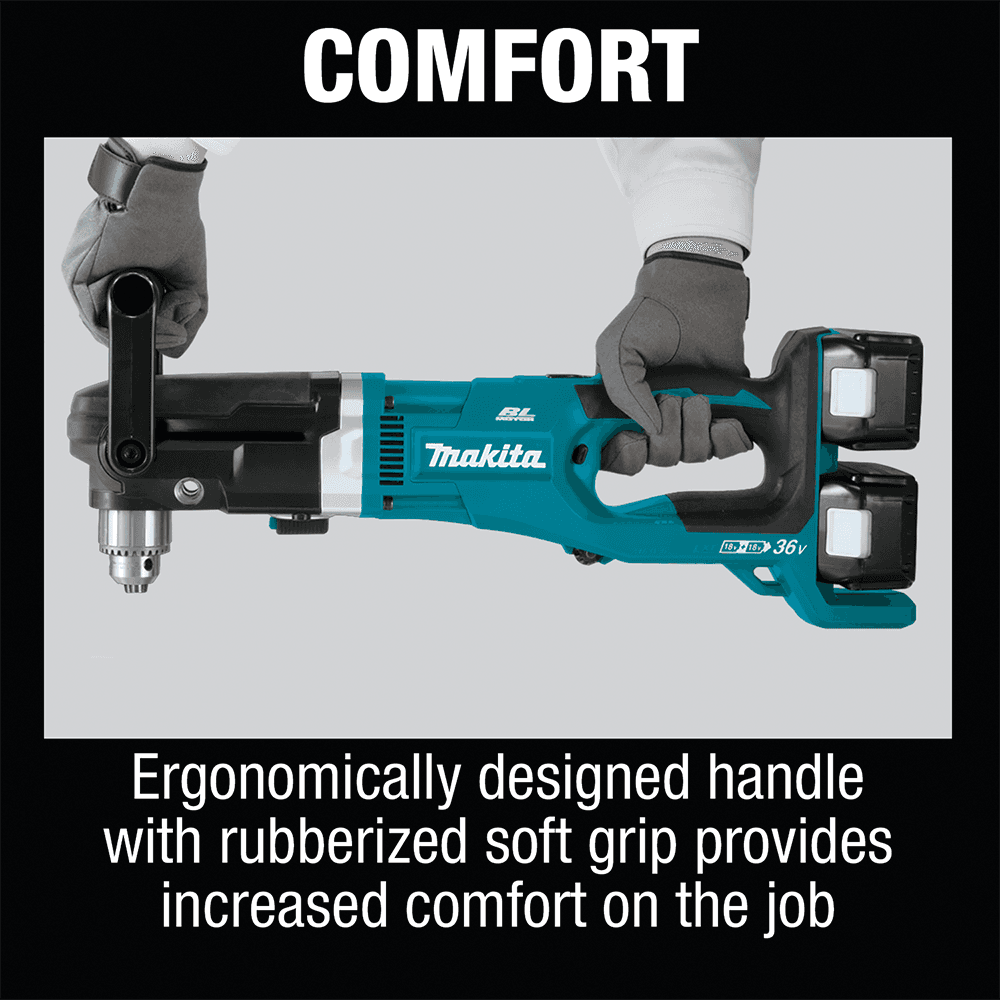

• Ergonomically designed handle with rubberized soft grip provides increased comfort on the job
• Includes side handle for better bracing and control
• Compact and ergonomic design at 21-1/4" long weighs only 14.0lb. with batteries for reduced operator fatigue
• Efficient BL brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
• The BL brushless motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
• The electronically-controlled BL brushless motor efficiently uses energy to match torque and SPM to the changing demands of the application
• Equipped with star protection computer controls to protect against overloading, over-discharging and over-heating
• The technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger
• 18V LXT lithium-ion 5.0Ah batteries (BL1850B) feature an integrated L.E.D. battery charge level indicator
• 18V LXT lithium-ion 5.0Ah batteries (BL1850B) reach a full charge in 45 minutes or less
• Dual port rapid optimum charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
• Dual port rapid optimum charger has a built-in fans to cool the batteries for faster, more efficient charging
• Compatible with 18V lithium-ion batteries with a star symbol
• Only use genuine batteries and chargers
• 3-year limited warranty on tool, battery and charger

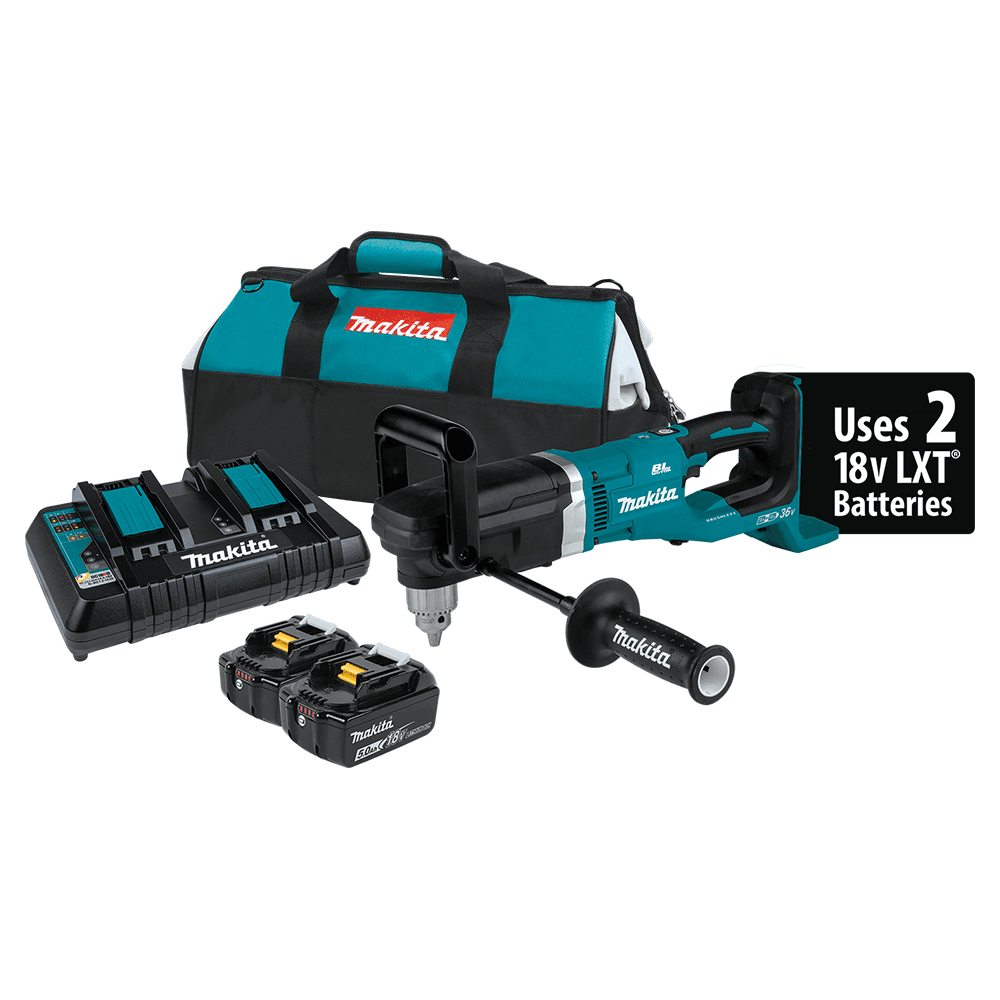

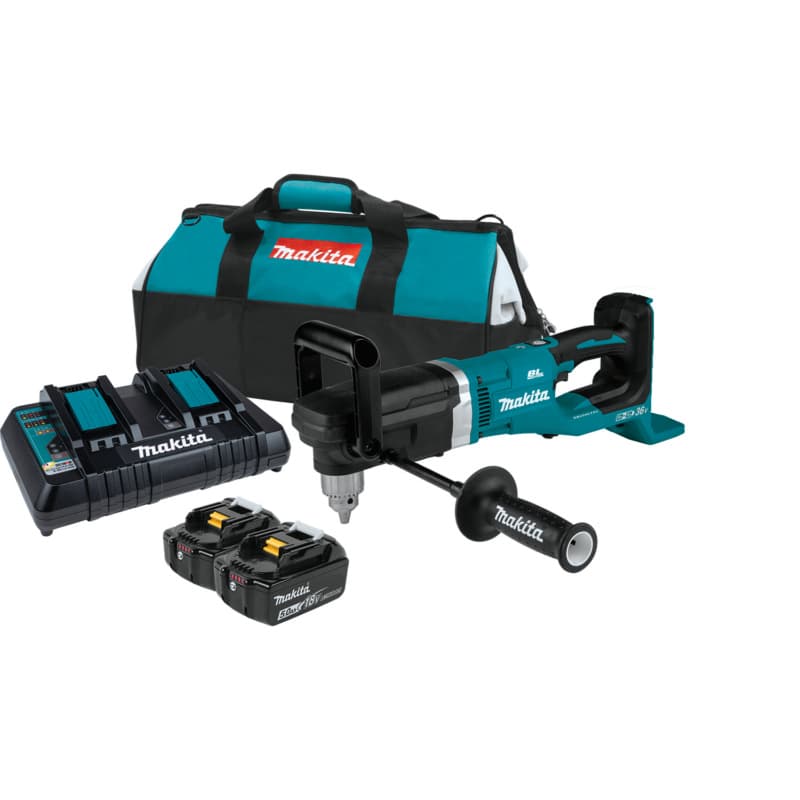

Includes:

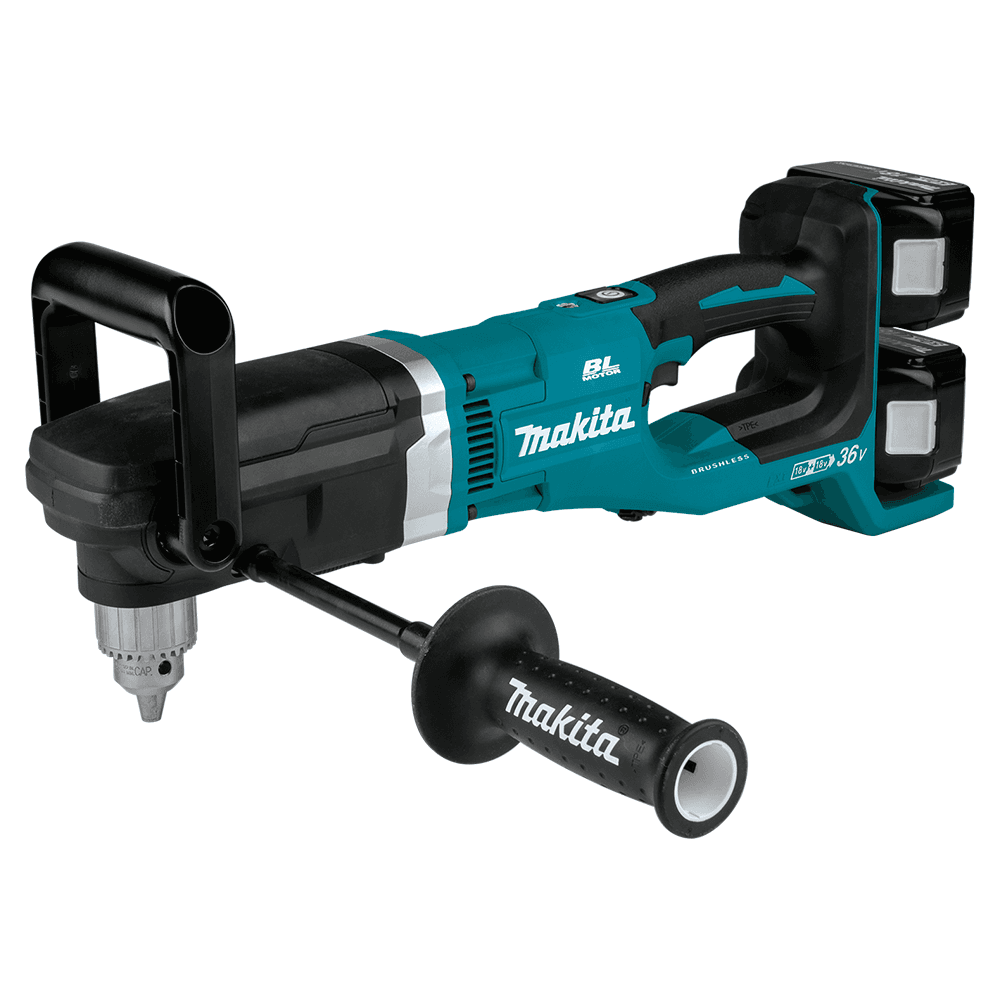

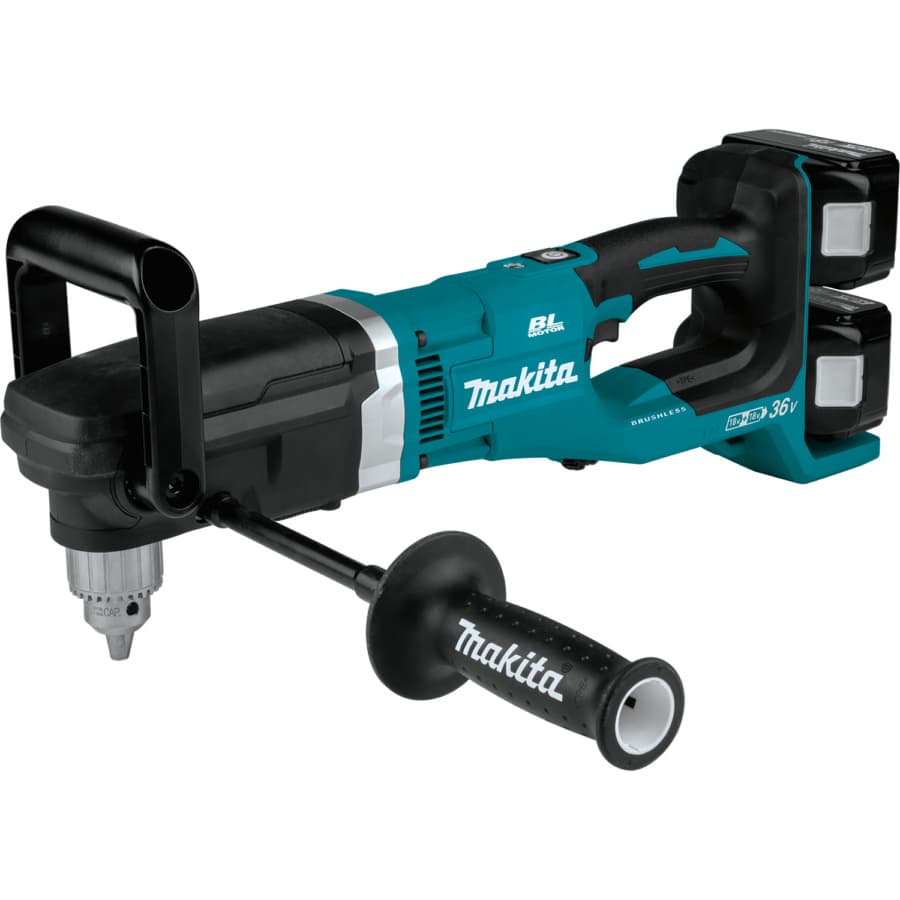

• (1) 36V (18V X2) LXT brushless 1/2" Right Angle Drill (XAD03Z)
• (2) 18V LXT Lithium-Ion 5.0Ah Battery (BL1850B)
• (1) 18V LXT Lithium-Ion Dual Port Charger (DC18RD)
• (1) Tool Bag (831271-6)
• (1) Side Handle (126802-7)
• (1) Hex Wrench (783204-6)
• (1) Drill Chuck (763250-5)
• (1) Chuck Key (763251-3)
