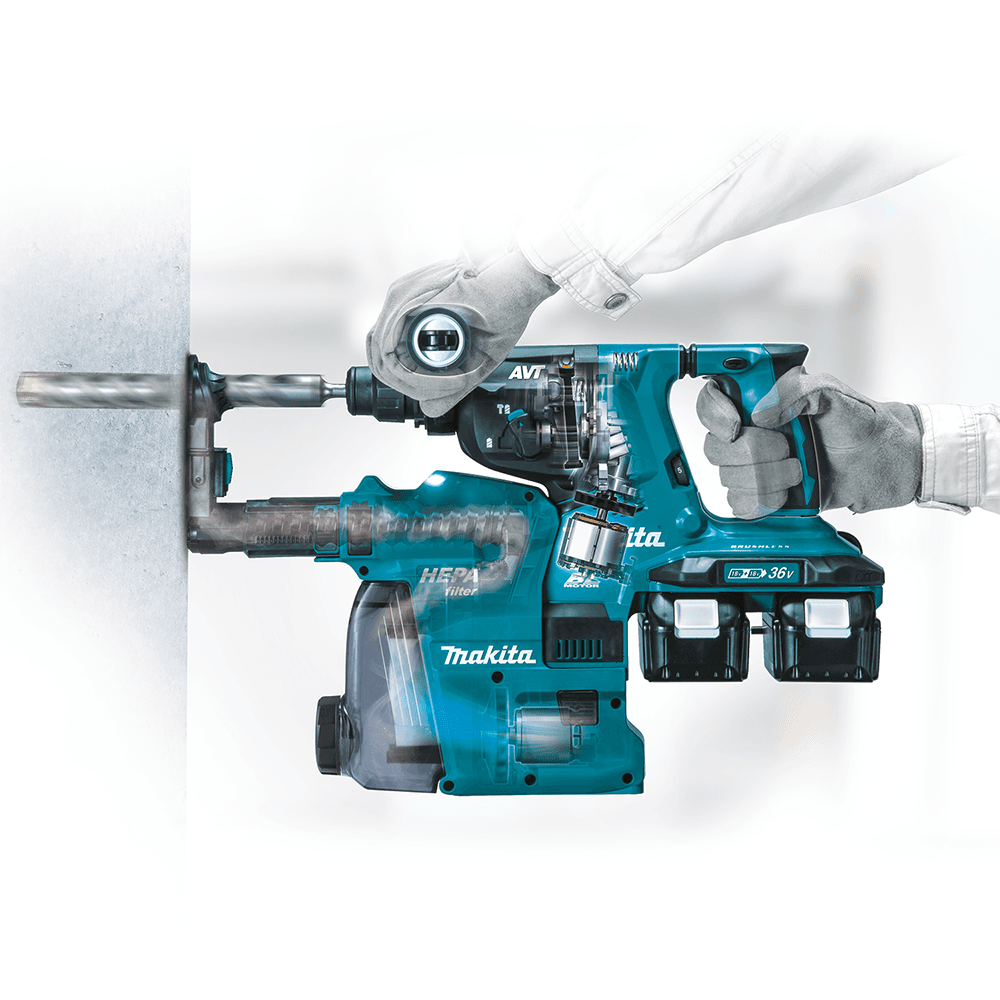

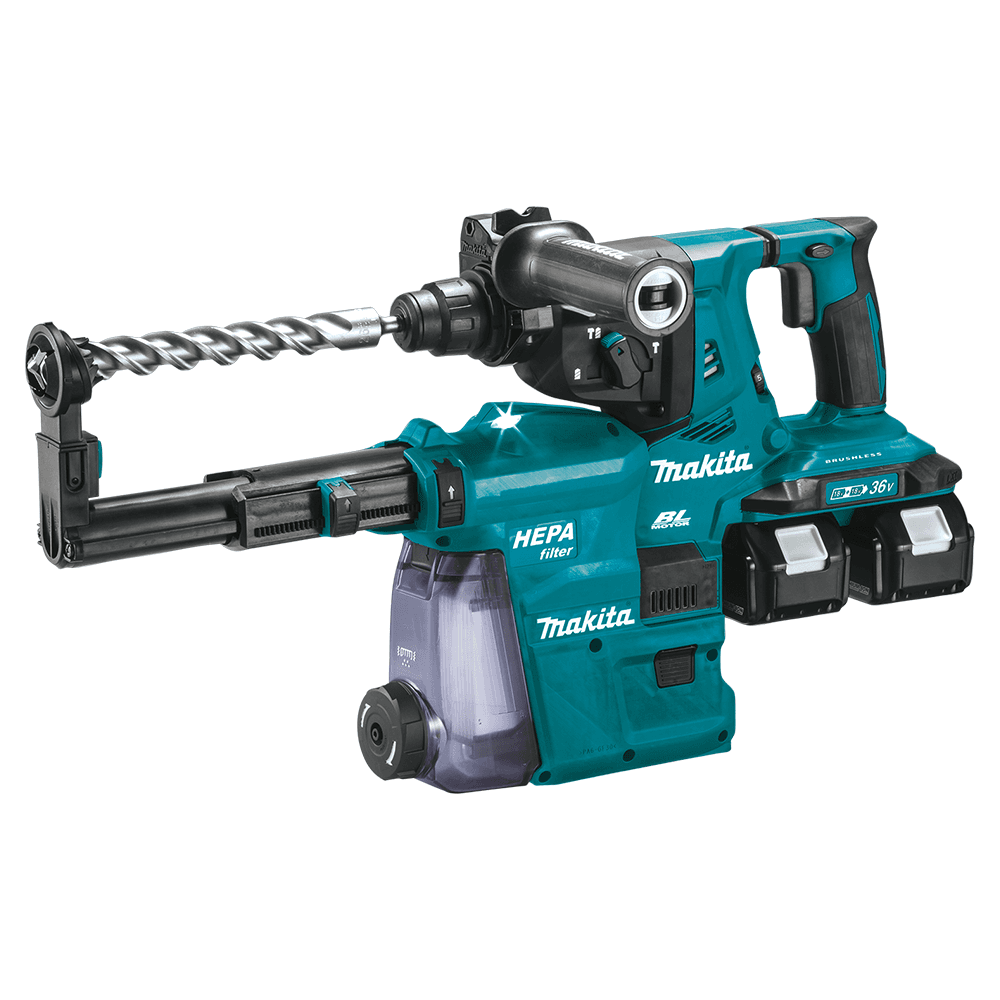

The 36V (18V X2) LXT Brushless 1-1/8" AVT Rotary Hammer (accepts SDS-PLUS bits) is a cordless concrete solution that's loaded with advanced engineering for maximum efficiency and convenient dust extraction. It's powered by two 18V LXT batteries and an efficient brushless motor for maximum power, speed and run-time for corded demands, without the cord. With X2 LXT technology, the Rotary Hammer delivers up to 140 1/2" x 2-3/8" holes per charge when using two 18V LXT 5.0Ah batteries.
The Rotary Hammer includes an OSHA Table 1 compliant on-board dust extractor attachment with filter-cleaning mechanism designed to maintain optimum suction efficiency. The trigger-activated dust extractor is powered by a separate motor which increases suction efficiency without sacrificing the performance of the rotary hammer. The rubber suction gasket is engineered to provide consistent contact with the work surface, where the dust is channeled to the clear dust container with HEPA filter which captures 99.97% of dust particles (size .3 microns). An added feature is a 3-second delay on the vacuum motor: After the trigger is released, the 3-second extended suction collects remnant dust and particles as the bit is being pulled out of the work surface, making it ideal for overhead drilling.
The dust extractor attachment is removable and the rotary hammer can be used with a separate attachment and dust extractor (sold separately). The Rotary Hammer is AWS capable with Auto-Start Wireless System, which utilizes Bluetooth technology for wireless power-on/off communication between tool and equipped dust extractor. To activate AWS, simply install the Auto-Start Wireless Transmitter (198901-5, sold separately) and synchronize with an AWS-equipped dust extractor (XCV08, sold separately).
For reduced vibration, it's equipped with Anti-Vibration Technology (AVT). More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. The result is a low vibration rating of only 9m/s², but with no compromise in performance: The efficient brushless motor delivers a full 2.3 ft. lbs. of impact energy, with 0-980 RPM and 0-5,000 BPM.
The Rotary Hammer includes both mechanical and electronic technologies to address bit binding. Active Feedback-Sensing Technology (AFT) uses an on-board accelerometer to measure rotation and electronically turns off the motor if rotation of bit is suddenly forced to stop. In addition, the torque limiting clutch is engineered to prevent gear damage by automatically disengaging the gears if the bit binds. Added features include constant speed control which automatically adds power to the motor to maintain speed under load to complete the most demanding jobs, electric brake, variable speed dial, built-in L.E.D. light, and a retractable tool hook. For added durability in harsh job site conditions, Extreme Protection Technology (XPT) is engineered for improved dust and water resistance.
It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits.
It's part of expanding 18V Lithium-Ion system, the world's largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.
For improved tool performance and extended battery life, created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by 18V LXT and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Makita takes another step toward a truly cordless job site with Auto-Start Wireless System. AWS uses Bluetooth technology for wireless power-on and power-off communication between the equipped tool and dust extractor. AWS is intelligent communication that eliminates cords and excessive noise since the dust extractor runs only when trigger-activated by an AWS tool. When the trigger is released, the dust extractor powers-down. The AWS dust extractor (XCV08Z) is powered by two 18V LXT batteries for maximum performance, and users benefit with an expanding AWS system that includes cordless tools for concrete, metal and woodworking.
Tool users who unplug the cord with 18V LXT experience new levels of convenience, efficiency and productivity. created the 18V Lithium-Ion cordless tool category in 2005, and today it is the world's largest 18V cordless tool line-up. leading technology gives tool users unmatched performance and breadth of line, with innovation in motor and battery technology that is obliterating industry standards - and leaving old thinking behind. With high amp-hour batteries, efficient brushed and brushless motors, and 36V (18V X2) LXT technology, 18V LXT tools not only meet corded demands, they can exceed the performance of corded, all while remaining in a single cordless platform powered by the industry's fastest-charging 18V lithium-ion batteries.

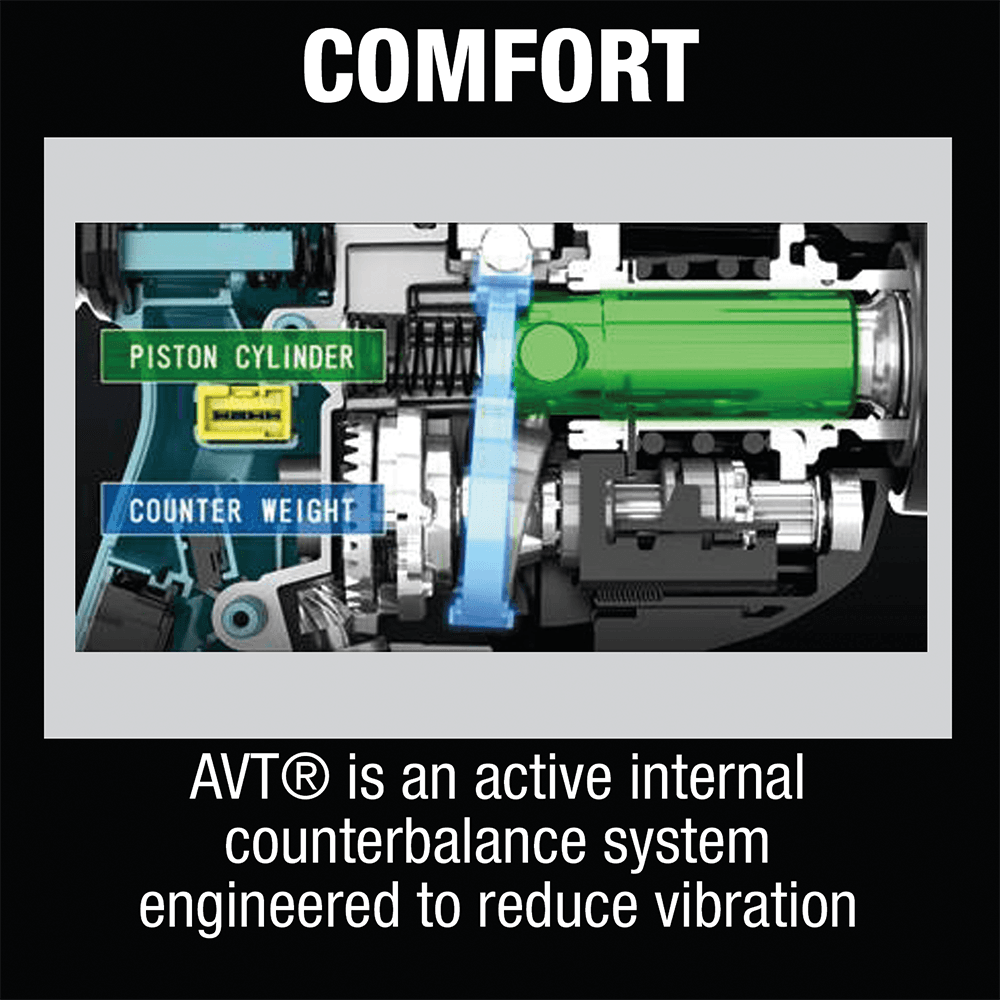

Anti-Vibration Technology (AVT) is a counterbalance system inside the tool that significantly reduces vibration. The AVT counterbalance design is based on seismic engineering, which developed this damping science to absorb shocks and protect buildings from earthquakes. AVT uses a mechanical damper, effectively a counterbalance weight inside the tool, that provides an equal and opposite force that puts a mass directly opposite the point where the striker bolt delivers the impact. As vibration is eliminated, power is efficiently increased which allows more of the generated energy in the motor to be delivered to the tool bit. also has an AVT counterbalance system in select recipro saws. For users, AVT means significantly less vibration with no compromise in power and performance.
Features:

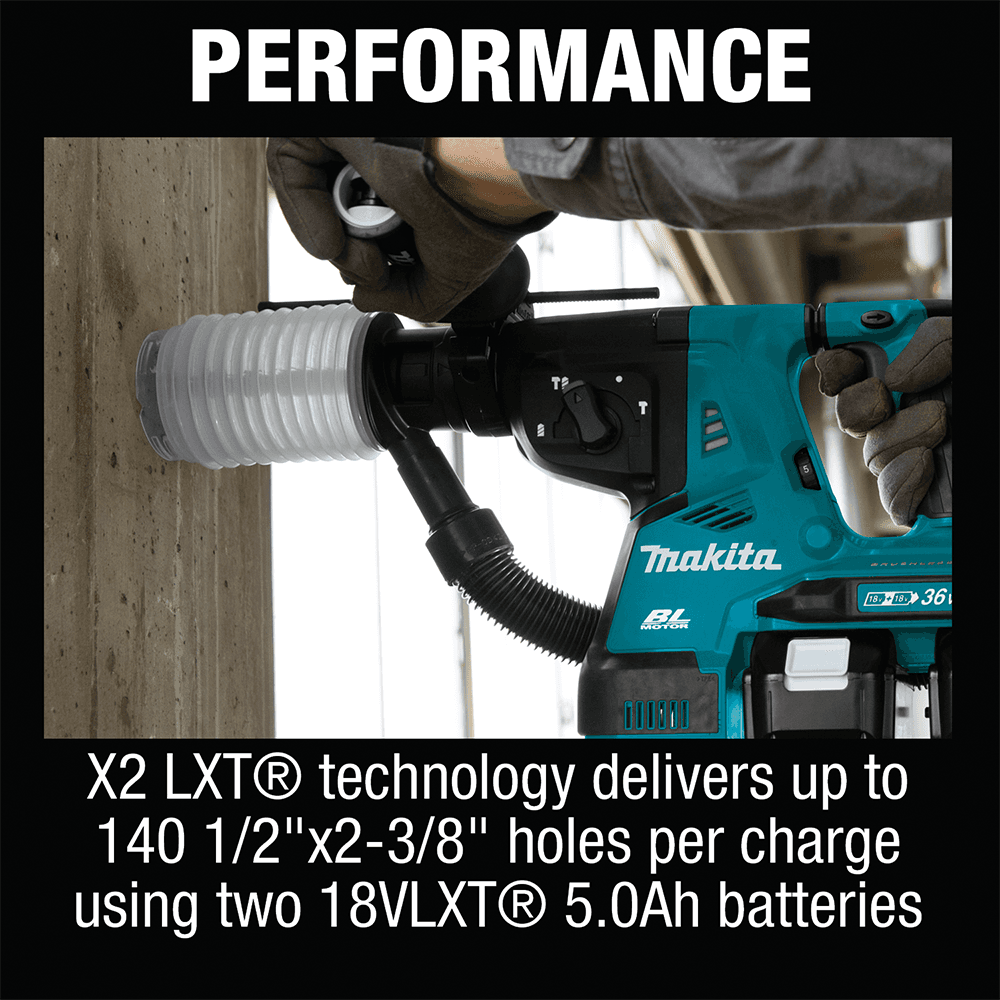

• X2 LXT technology delivers up to 140 1/2" x 2-3/8" holes per charge using two 18V LXT 5.0Ah batteries
• Powerful brushless motor delivers 0-980 RPM, 0-5,000 BPM and 2.3 ft.lbs. of impact energy to handle the most demanding applications

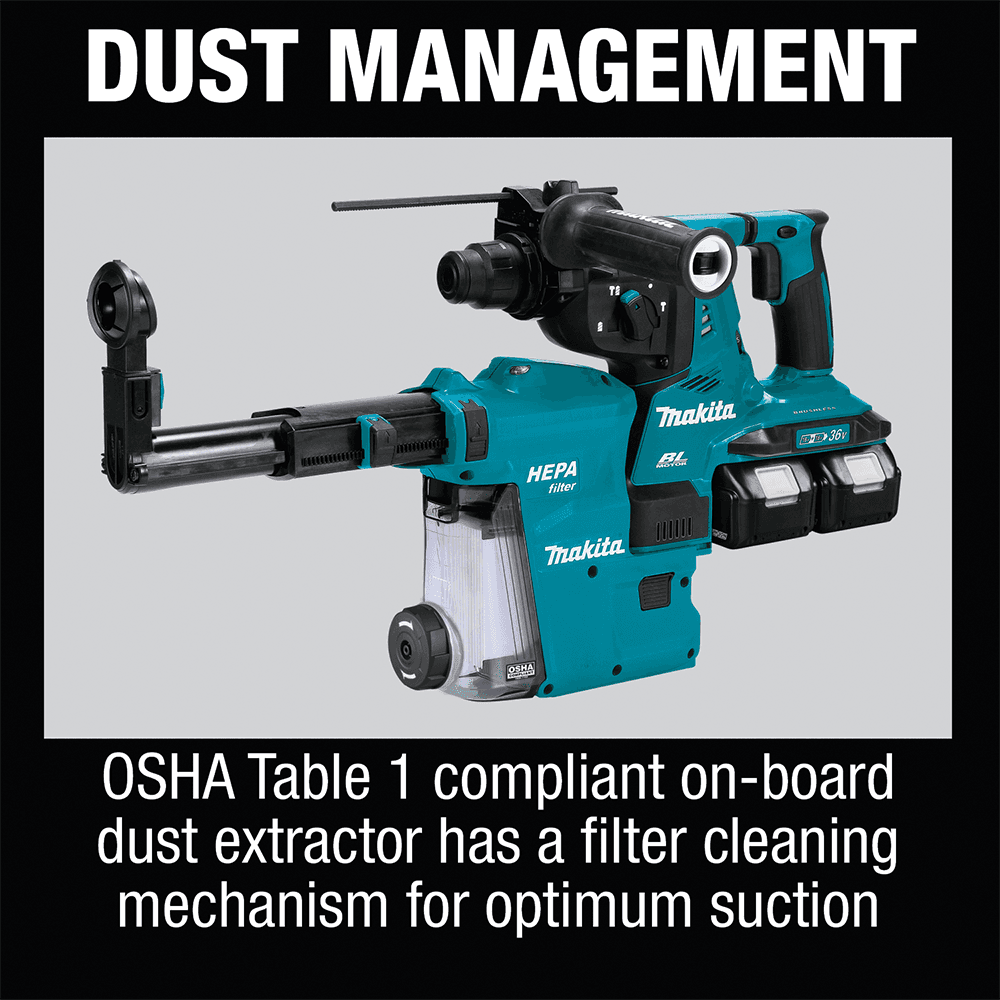

• OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency

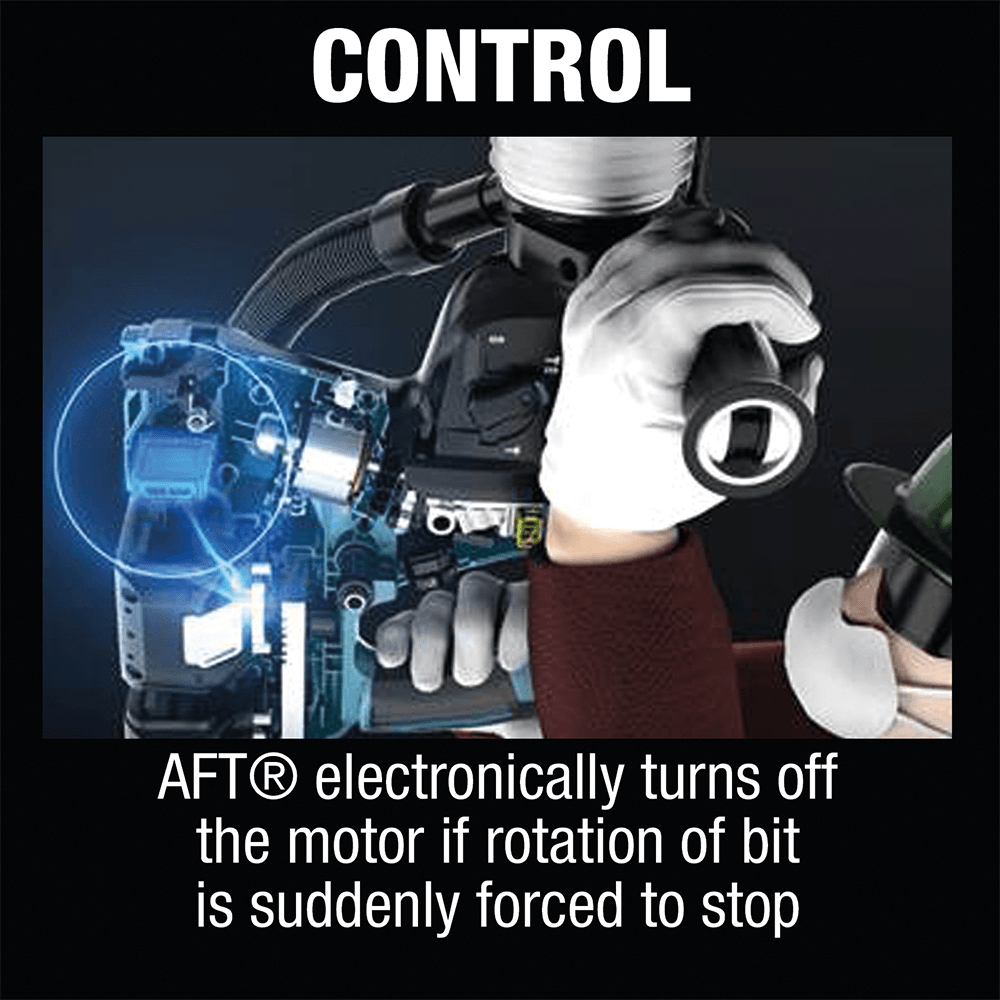

• Active Feedback-Sensing Technology (AFT) electronically turns off the motor if rotation of bit is suddenly forced to stop
• Auto-start Wireless System (AWS) which utilizes Bluetooth technology for wireless power-on/off communication between tool and dust extractor
• AWS capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
• Anti-Vibration Technology (AVT) is an active internal counterbalance system which is engineered to reduce vibration for increased comfort
• Vibration-absorbing back handle and side handle further reduce vibration and increase comfort on the job
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
• Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
• Electric brake allows the tool to be repositioned faster for maximum productivity
• Variable speed dial and trigger enables user to match the speed to the application
• Built-in L.E.D. light with an independent on/off illuminates the work area
• Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
• 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
• Retractable tool hook secures the tool when not in use
• Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• 18V LXT Lithium-Ion 5.0Ah battery BL1850B, features an integrated L.E.D. battery charge level indicator
• 18V LXT Lithium-Ion 5.0Ah battery BL1850B reaches a full charge in 45 minutes or less
• Equipped with Star Protection Computer Controls to protect against overloading, over-discharging and over-heating
• Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
• Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging
• technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger
• Compatible with 18V Lithium-Ion batteries with a Star symbol
• Only use genuine batteries and chargers
• 3-year limited warranty on tool, battery and charger

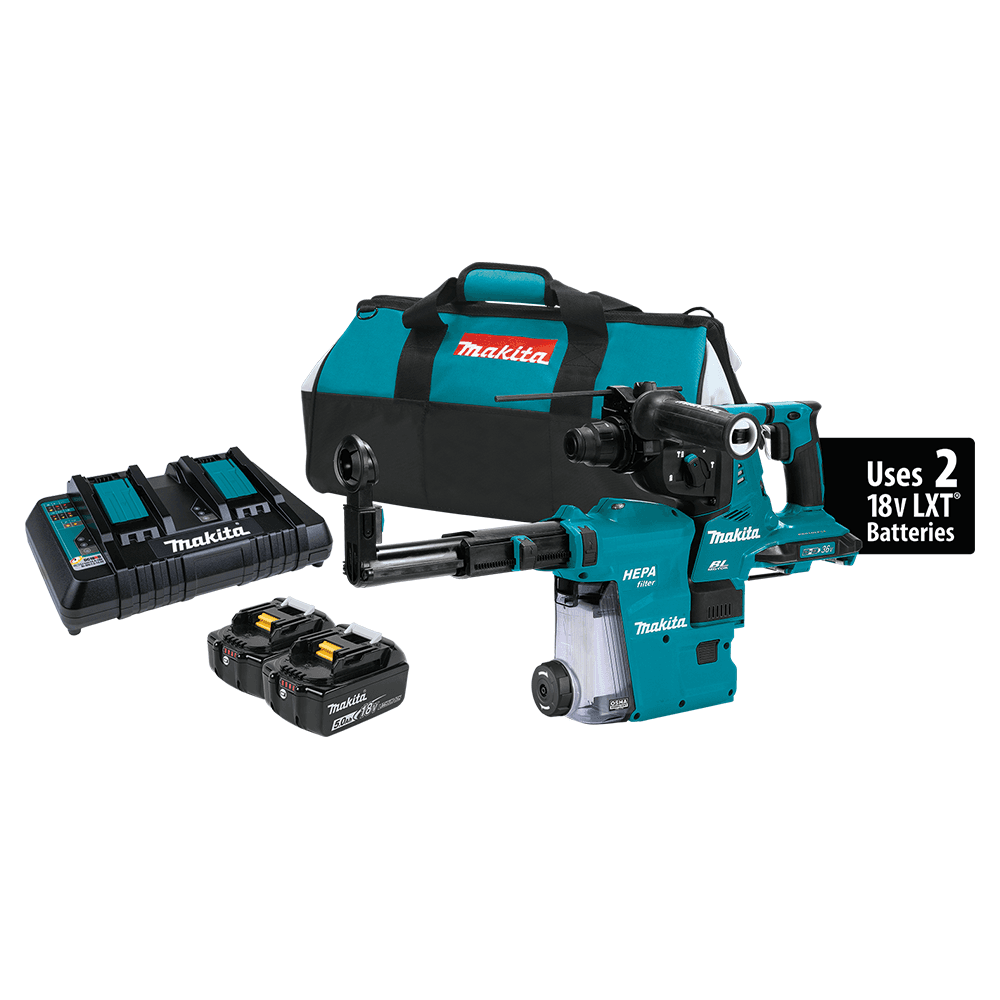

Includes:
• (1) 36V (18V X2) LXT Brushless 1-1/8" SDS-PLUS AVT Rotary Hammer, AFT, AWS Capable (XRH10Z)
• (1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX08)
• (2) 18V LXT Lithium-Ion 5.0Ah Battery (BL1850B)
• (1) 18V LXT Lithium-Ion Dual Port Charger (DC18RD)
• (1) Dust Case with HEPA Filter Cleaning Mechanism (199588-6)
• (1) Side Handle
• (1) Depth Gauge
• (1) Tool Bag
