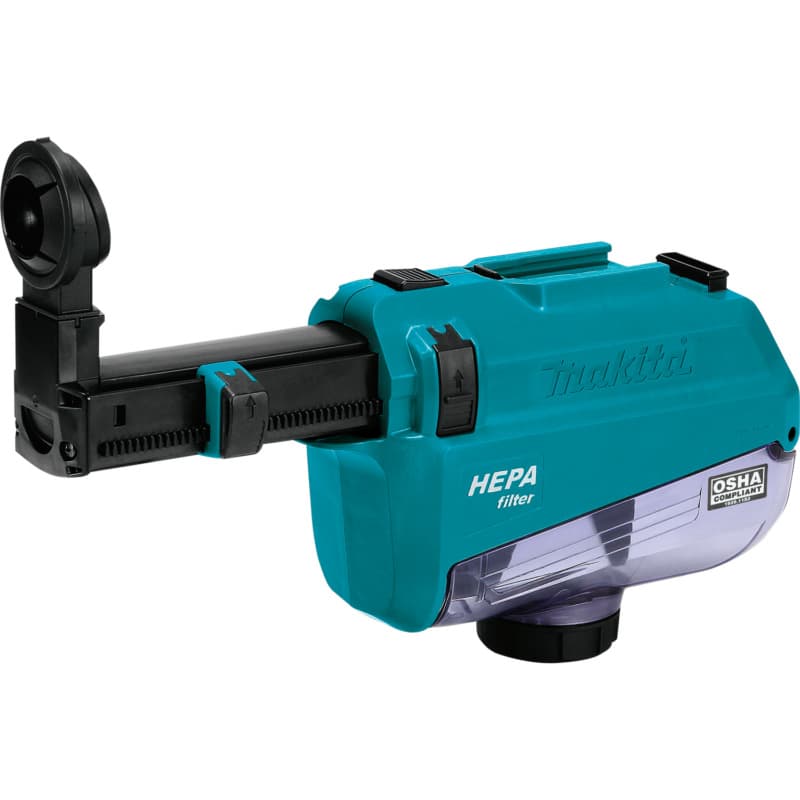

Dust Extractor Attachment with HEPA Filter Cleaning Mechanism for XRH12
Product Details

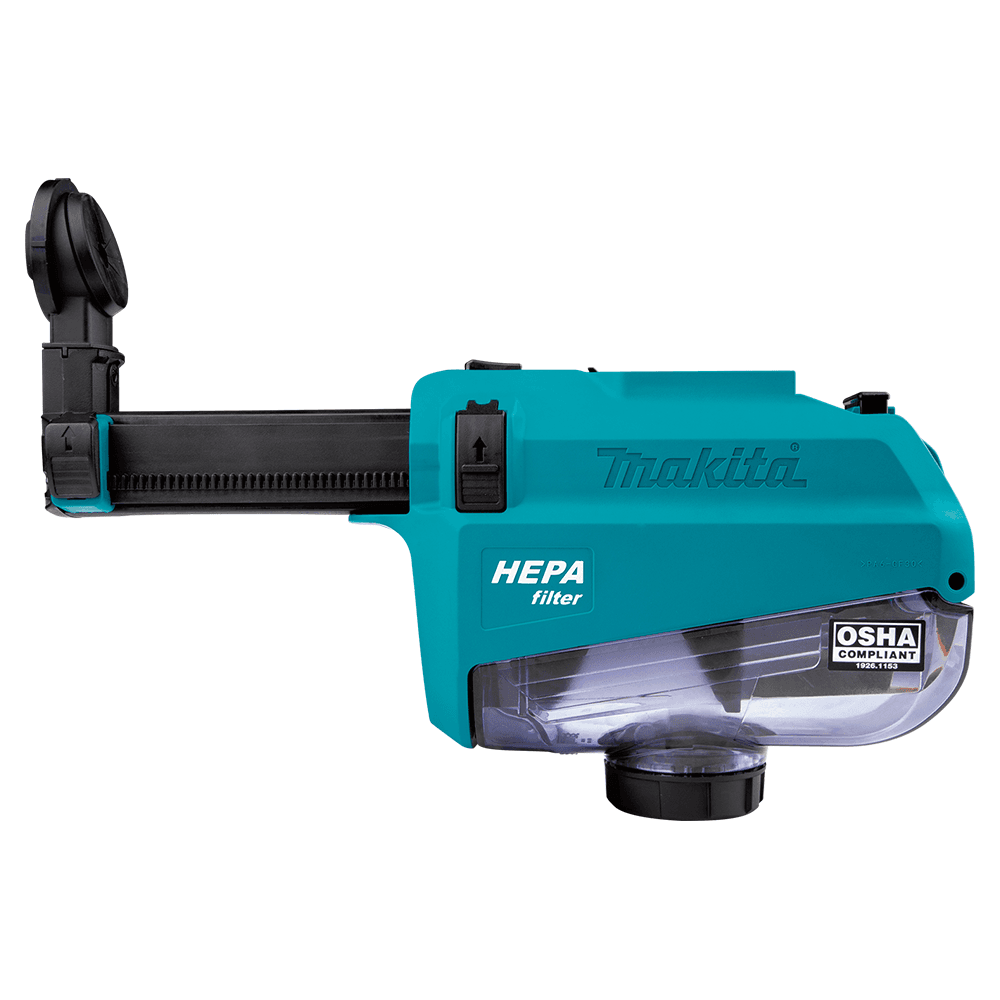

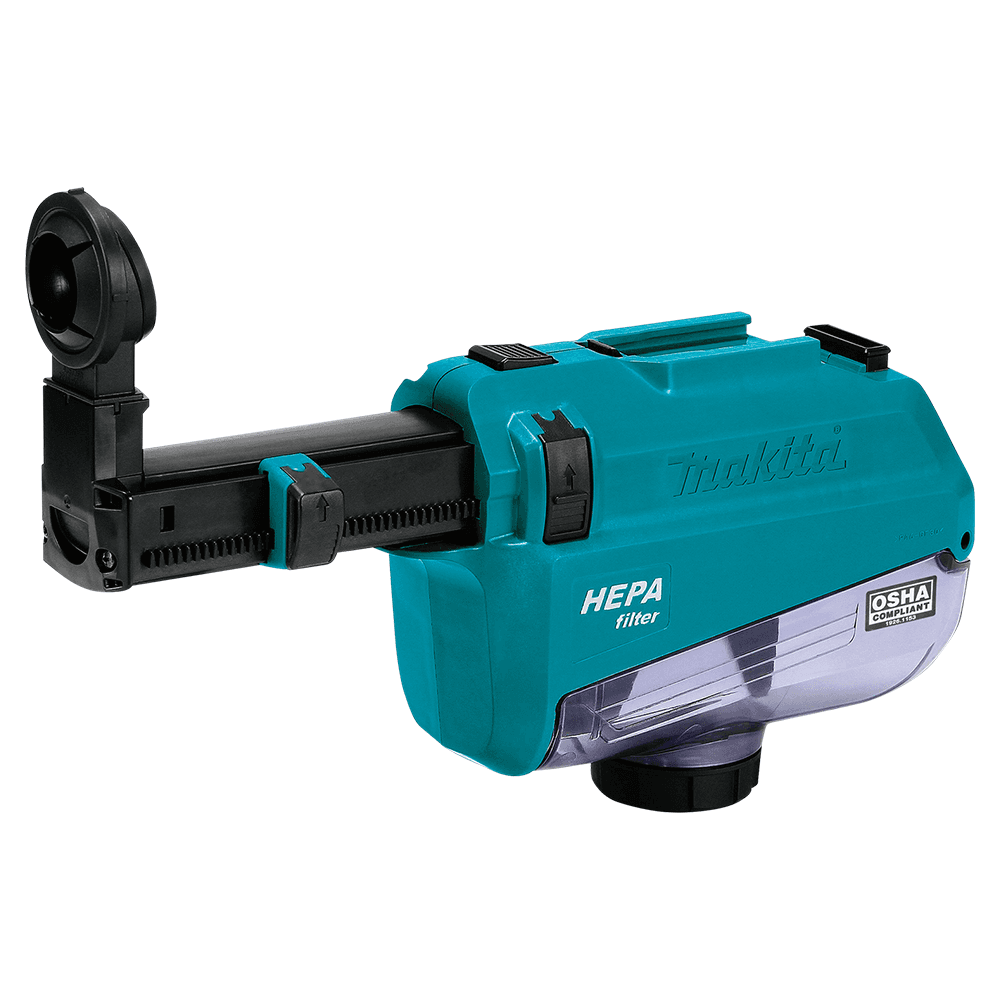

The dust extractor attachment with HEPA filter (model DX05) is for use with the 18V LXT Cordless Brushless 11/16" Rotary Hammer (XRH12). The DX06 Dust Collection Vacuum Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The Dust Extractor Attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.
Features:

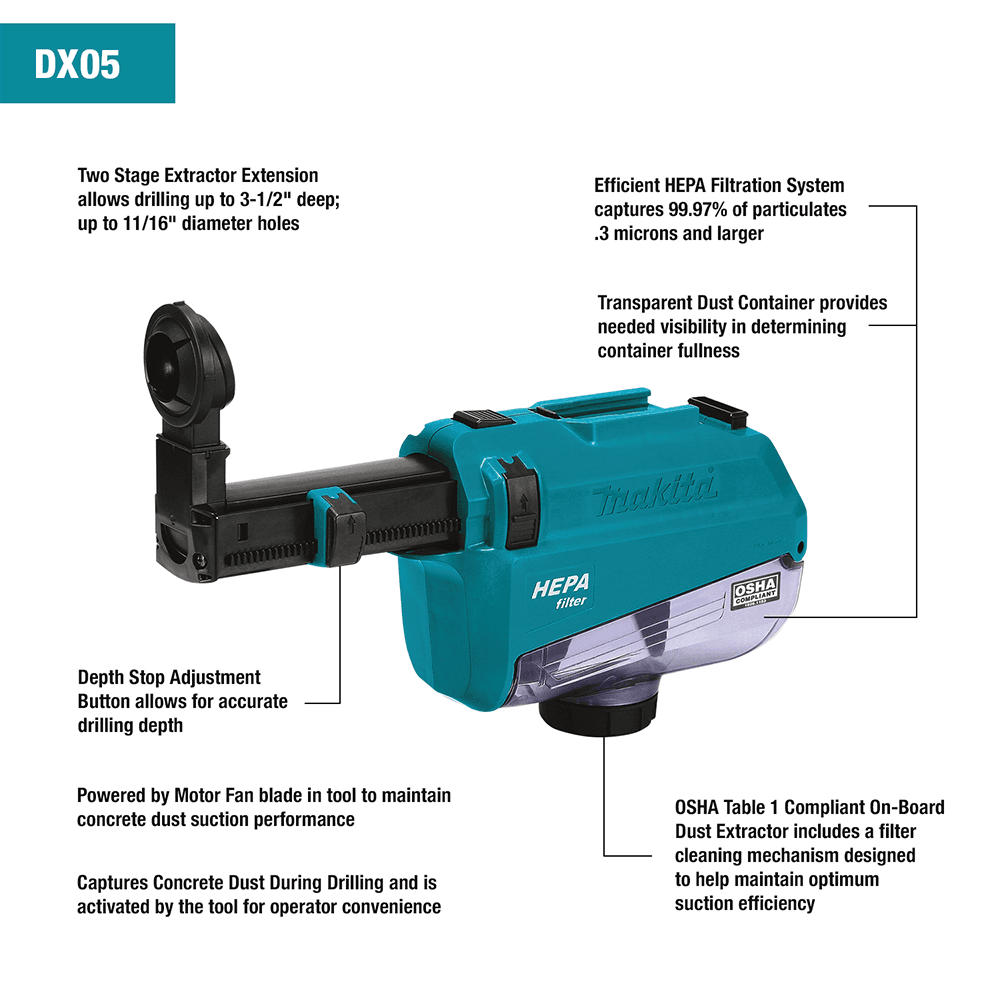

• Captures concrete dust during drilling and is activated by the tool for operator convenience • OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency • Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger • Powered by motor fan blade in tool to maintain concrete dust suction performance • Extraction extension allows drilling up to 3-1/2" deep and up to 11/16" diameter holes • Depth stop adjustment button allows for accurate drilling depth • Transparent dust container provides needed visibility in determining container fullness • Compatible with 18V LXT Rotary Hammer model XRH12Includes:
• (1) HEPA Filter (197556-3) • (1) Sealing Cap (424474-5) • (1) HEPA Filter (199596-7)Specifications
| Box Quantity | 1 |
| Product Type | Dust Extractor Attachment |
| Flow Rating | |
| Height | |
| Handle Length | |
| Speed | |
| Length | |
| Width |
