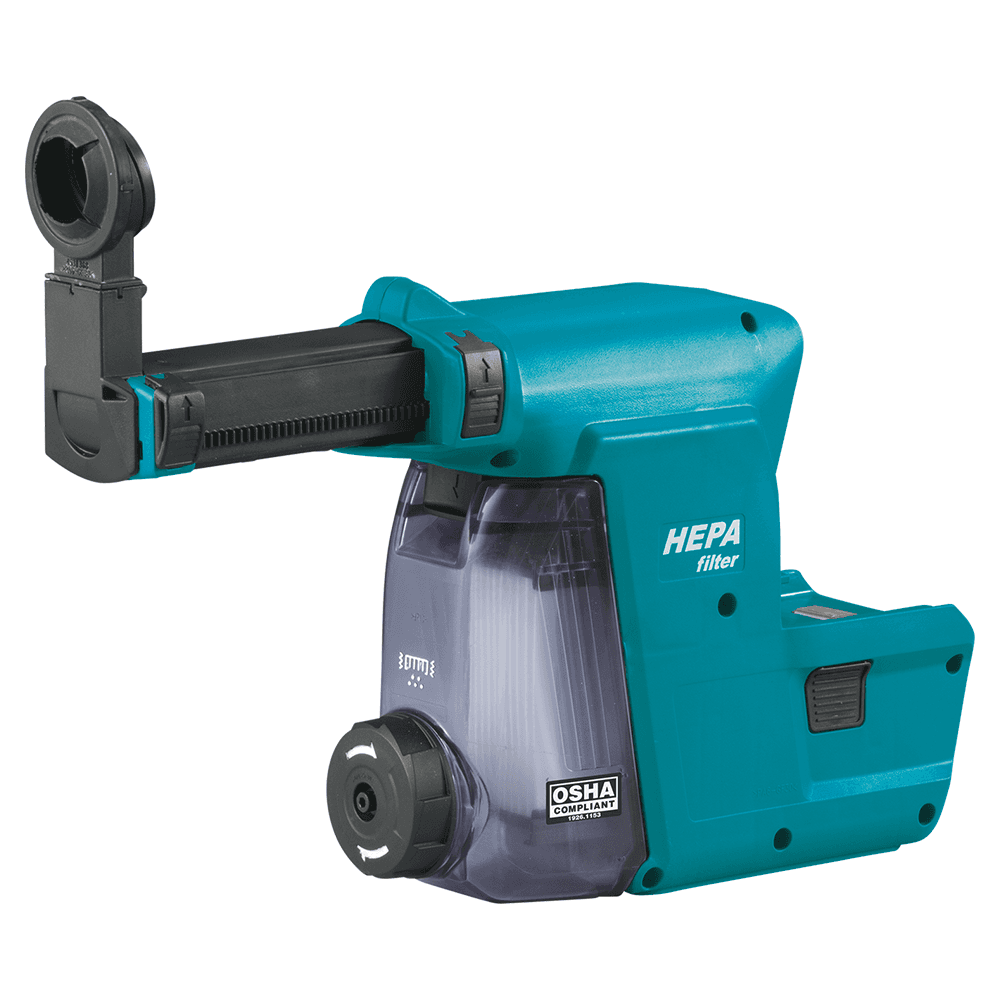

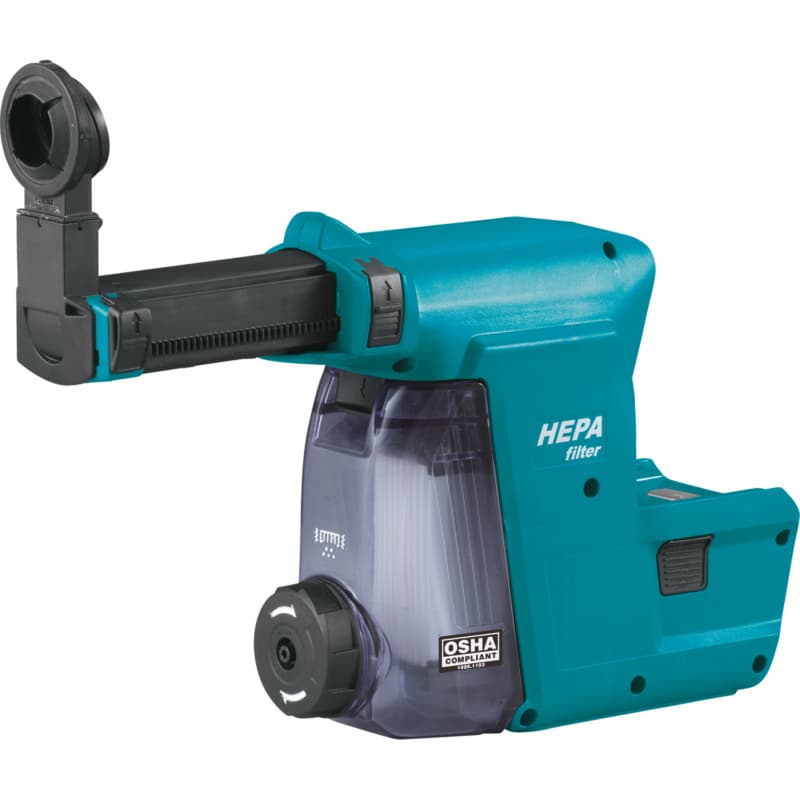

Dust Extractor Attachment with HEPA Filter Cleaning Mechanism for XRH01

The dust extractor attachment with HEPA filter (model DX06) is for use with the 18V LXT Lithium-Ion Cordless Brushless 1" Rotary Hammer (XRH01Z, sold separately). The DX06 Dust Collection Vacuum Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The Dust Extractor Attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance.

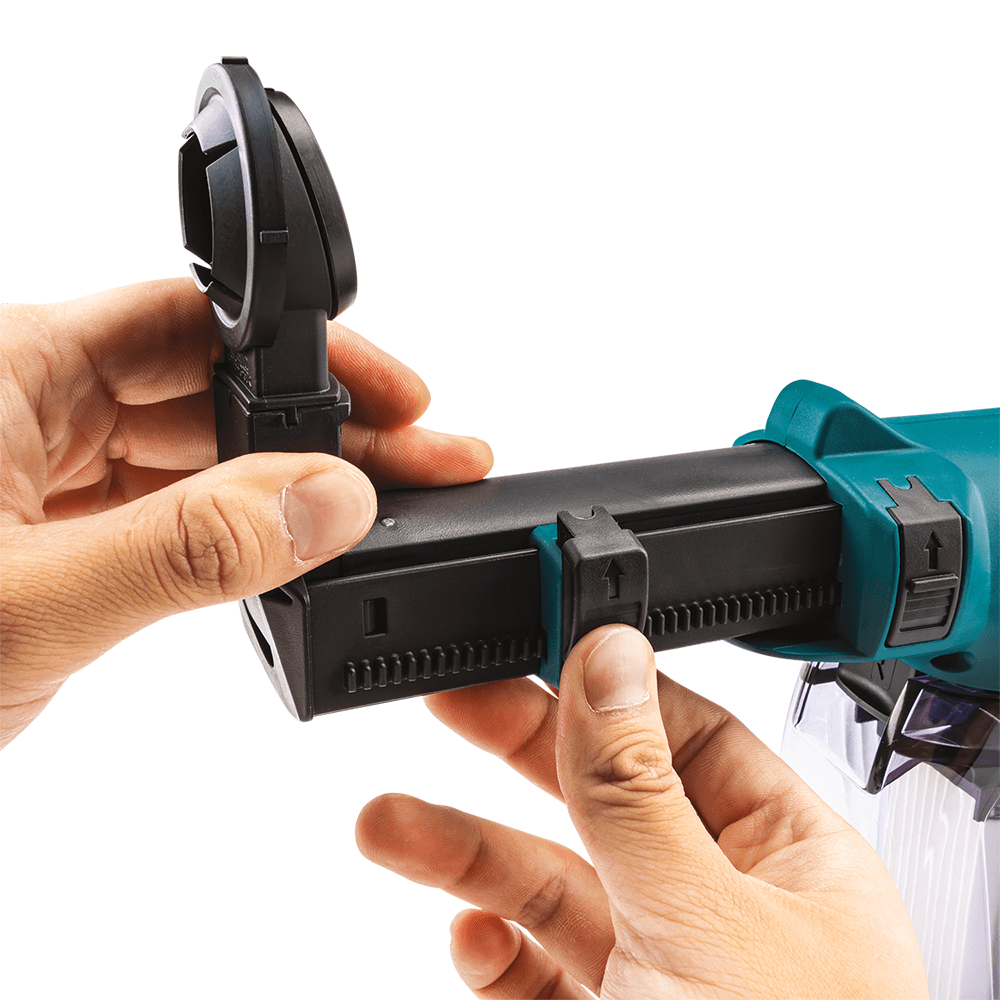

The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.

Features:

• OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
• Extractor is powered by separate motor allowing the rotary hammer to consistently maintain peak drilling performance
• Captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust
• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger

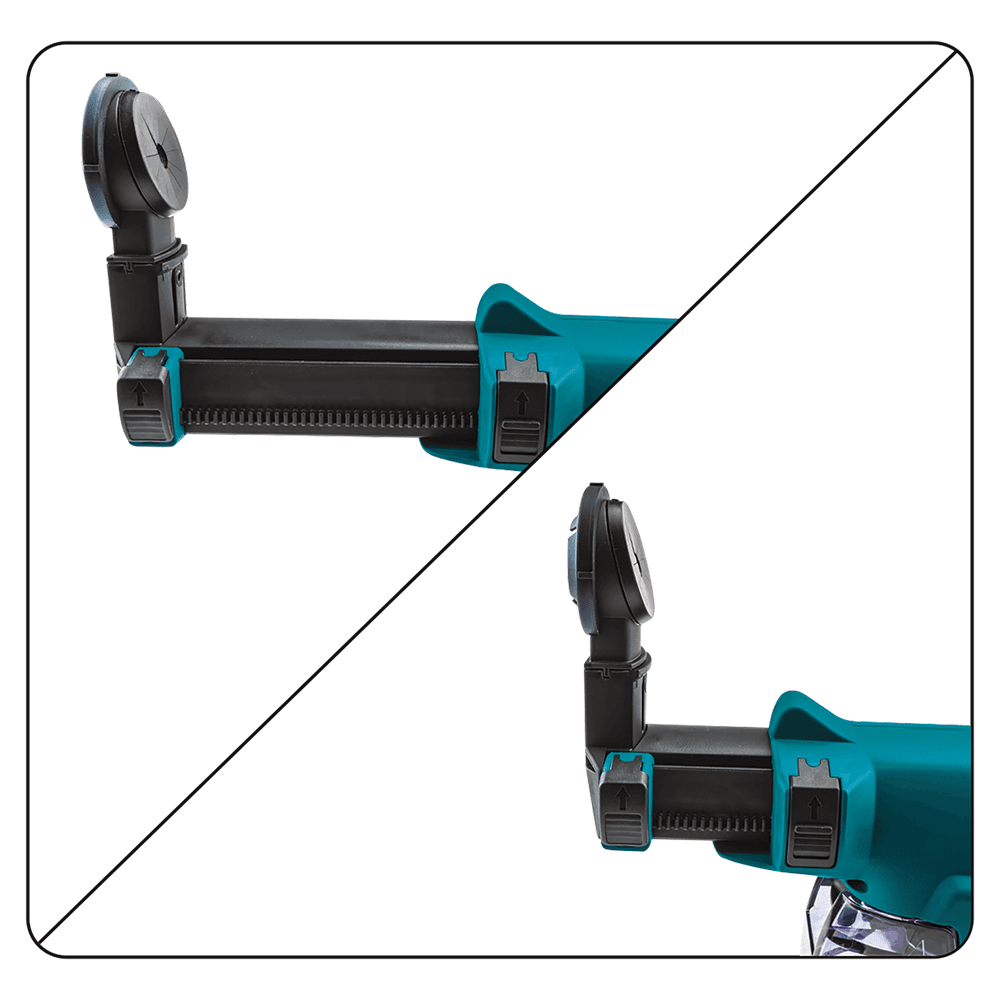

• Extraction extension allows drilling up to 3-1/2" deep and up to 15/16" diameter holes
• Depth stop adjustment button allows for accurate drilling depth
• Transparent dust container provides needed visibility in determining container fullness
• Compatible with 18V LXT Rotary Hammer model XRH01

Includes:

• (1) Dust Case with HEPA Filter Cleaning Mechanism (199588-6)
