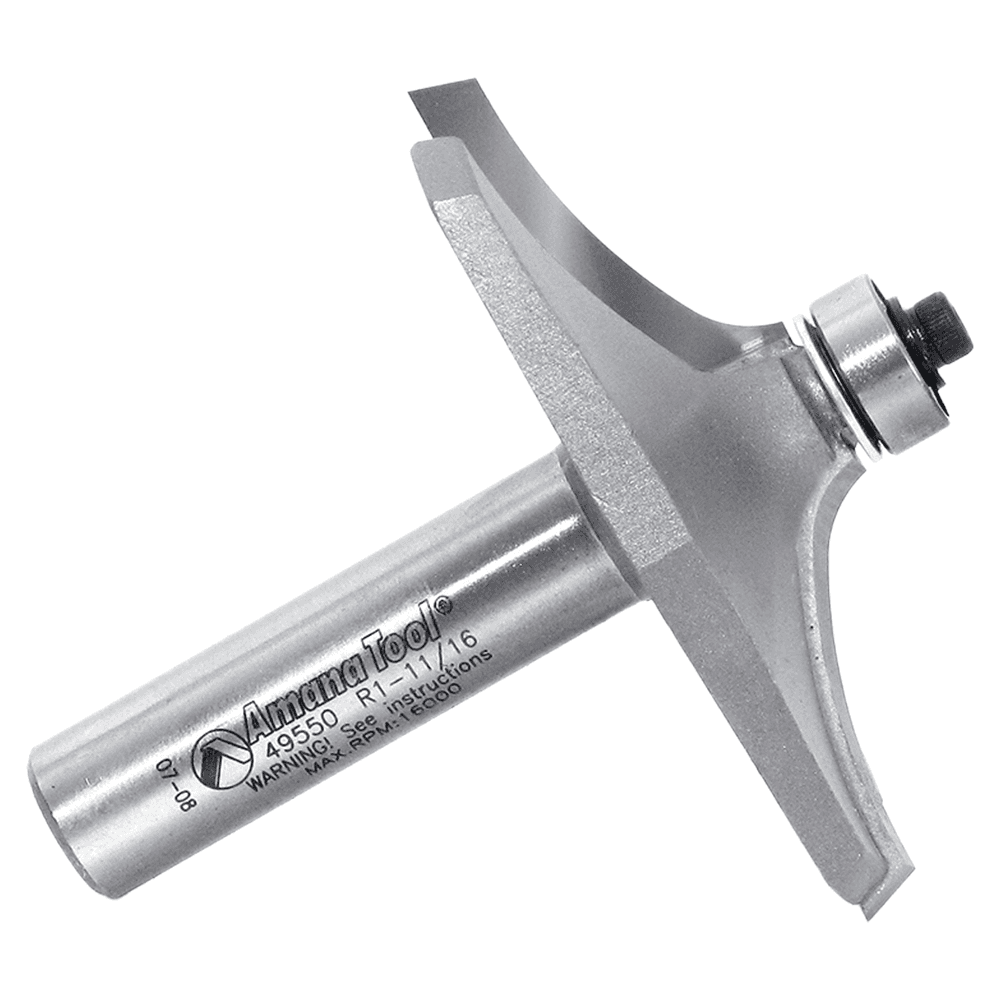

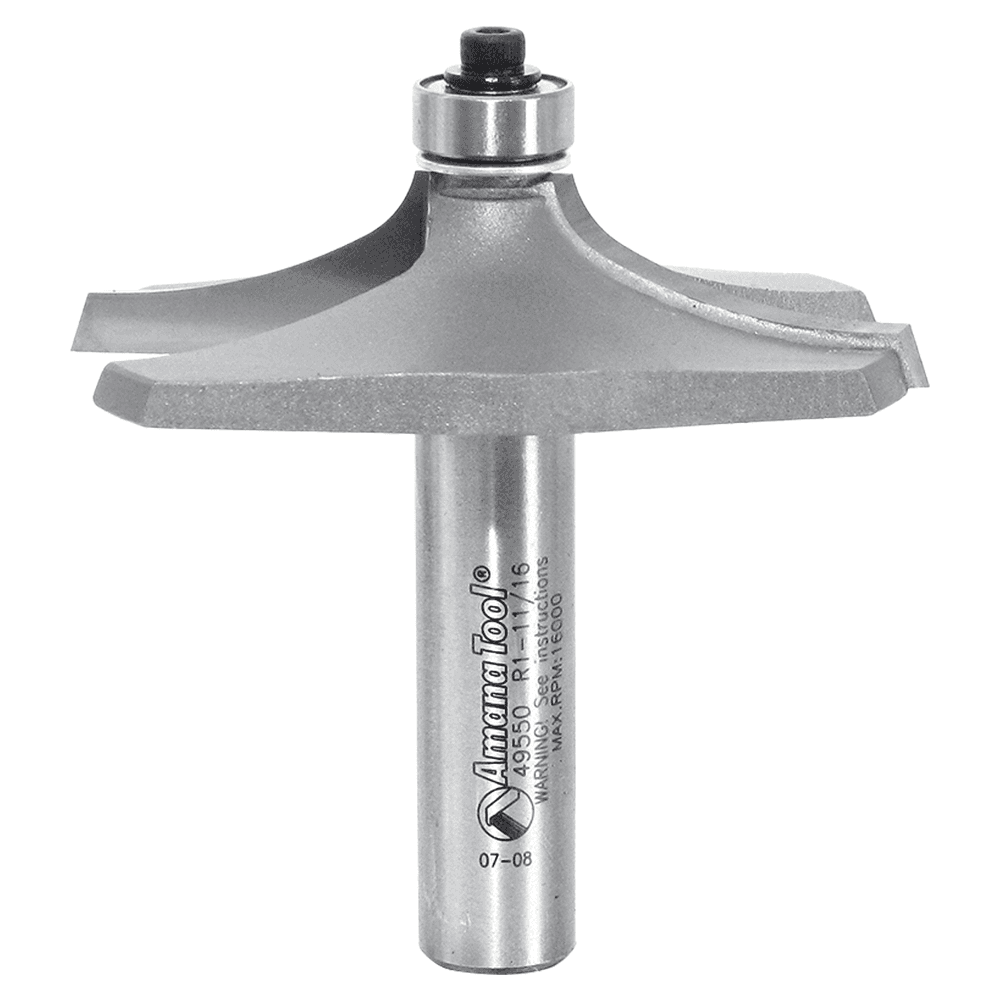

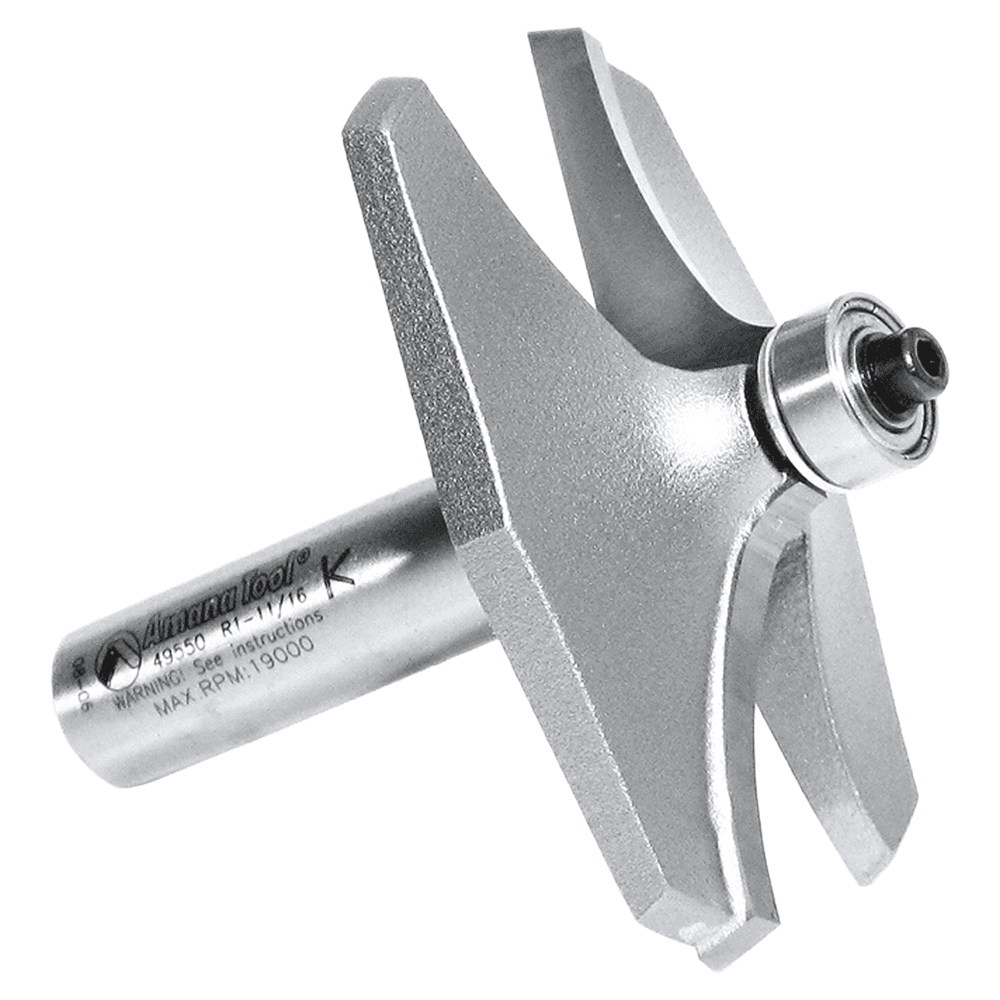

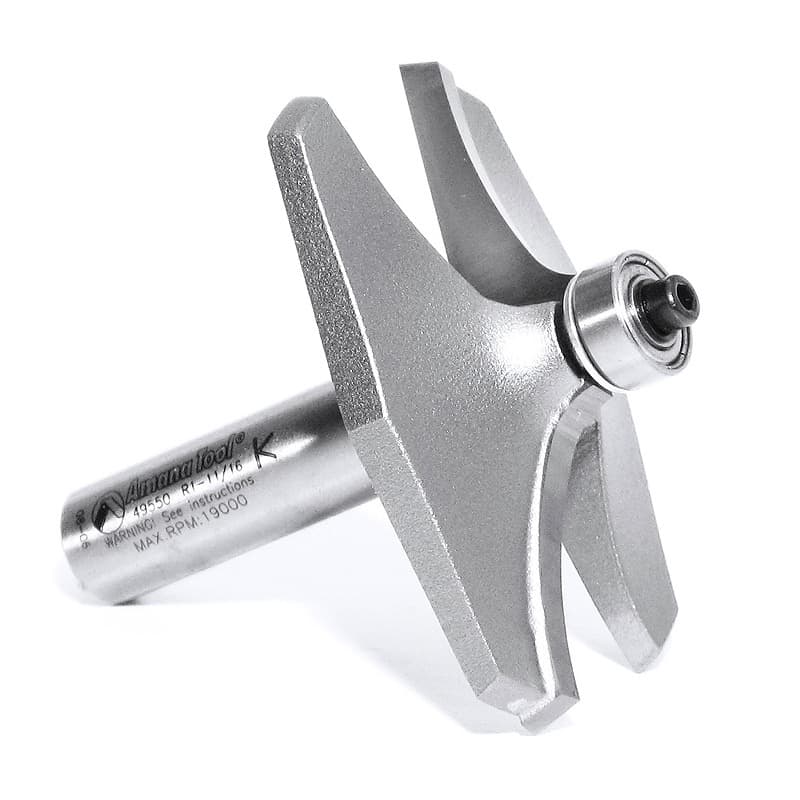

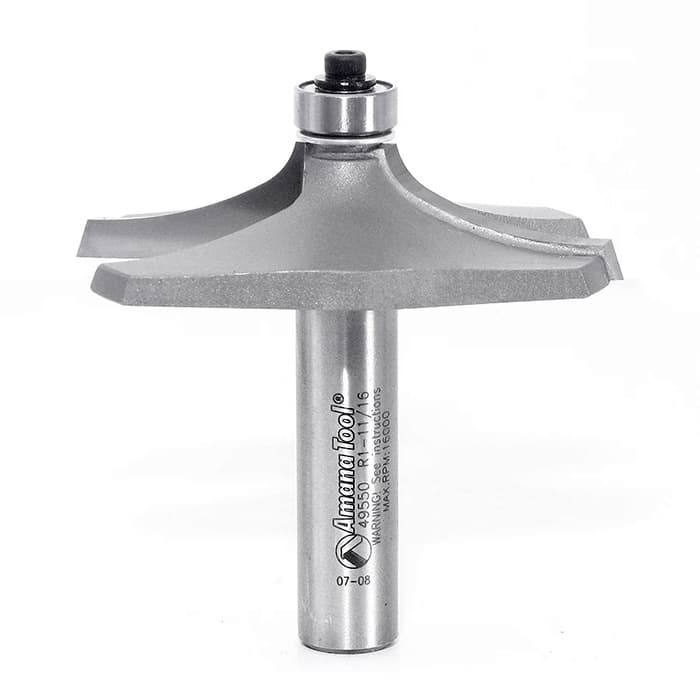

2-23/32" Dia x 5/8" Carbide Tipped Table Edging Bit, 1-11/16" Radius, 1/2" Shank
Product Details

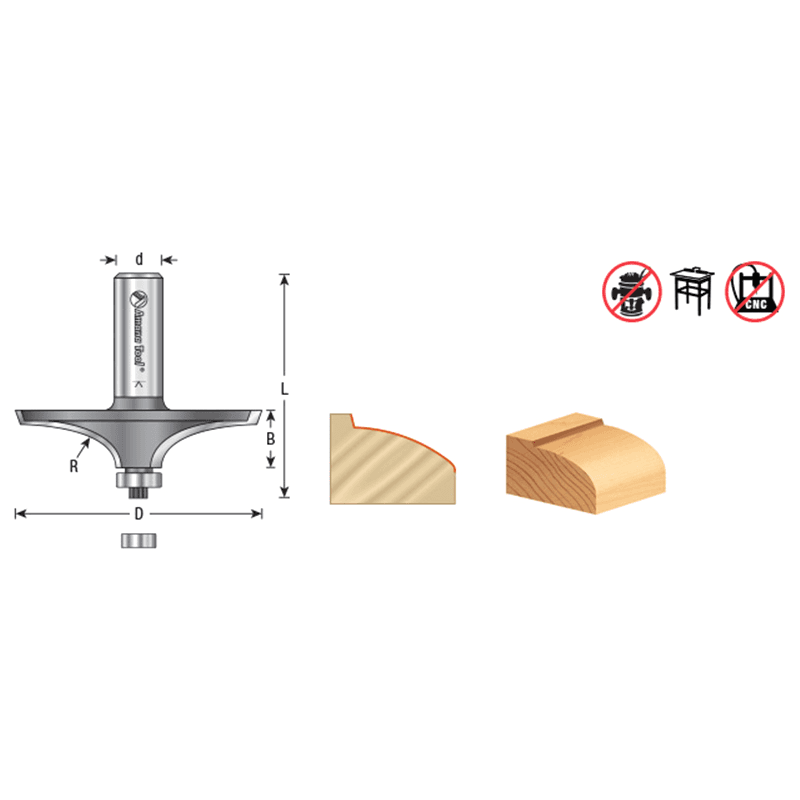

Cuts a shallow ogee into the tabletop surface coupled with a bead at the edge. Bit will produce a fillet if set to cut deep enough. With the optional 3/8" bearing, it will produce a fillet at the cut′s edge. Good choice for handrails. These special router bits are used for cutting table top edges or used with handrail side profile bits. Originally designed for easing and profiling the edges of tabletops, these bits also are widely used for the same purpose on handrails. See also handrail patterns. Eliminate hard edges, reduce the visual thickness of a tabletop, and add an elegant detail simultaneously with these bits. Features: • 2-23/32" Dia x 5/8" Carbide Tipped Table Edge 1-11/16" Radius, 1/2" Shank • Maximum RPM 16,000 • Optional 3/8" bearing #47702 (order separately) • Replacement Bearing: 47706 • Flutes: 2
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 5/8" |
| Width | |
| Cutting Diameter | 2-23/32" |
| Application | |
| Material | |
| Product Type | Table Edging Bit |
| Length | 2-59/64" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
