1-7/8" Dia x 1/8"-23/32" 2-Wings Quadraset Bit, 1/2" Shank
Product Details

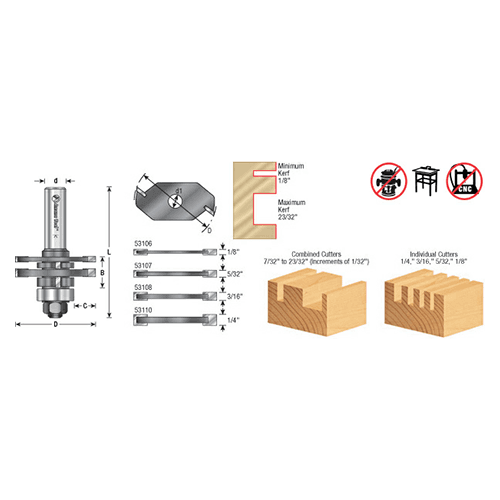

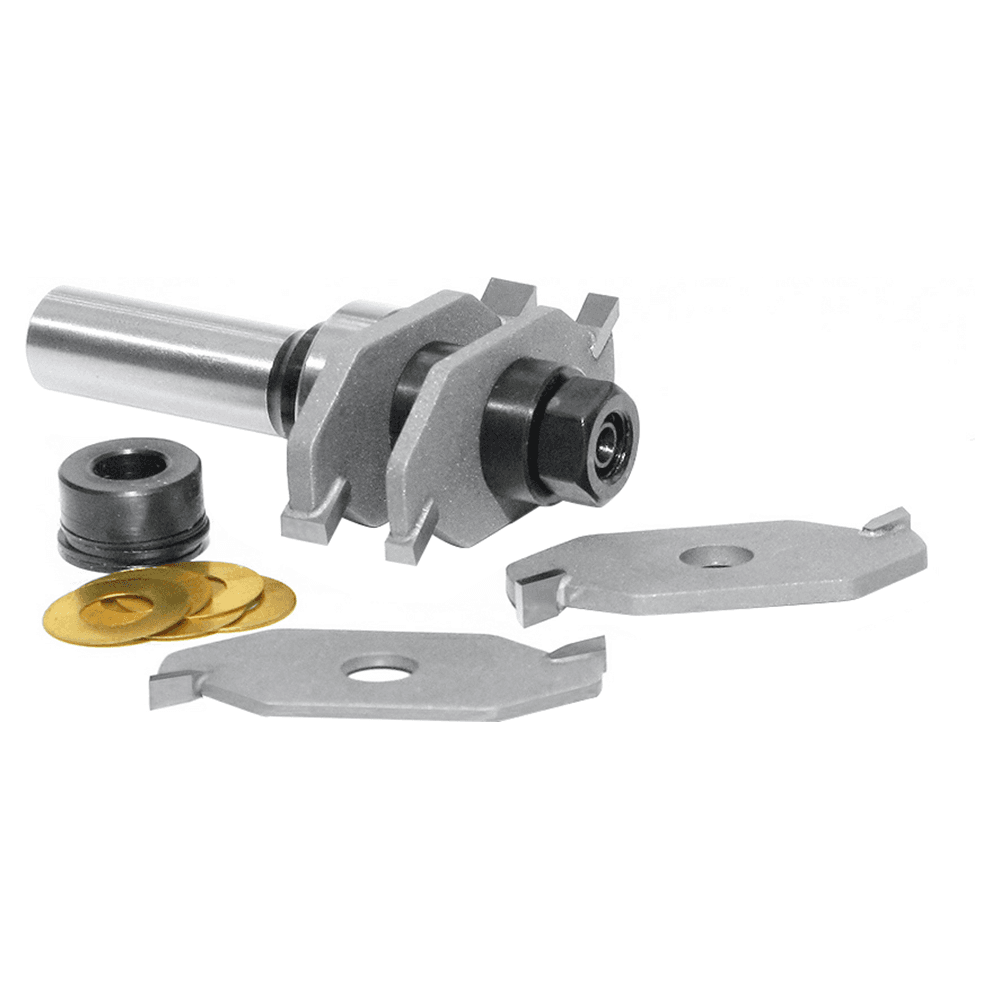

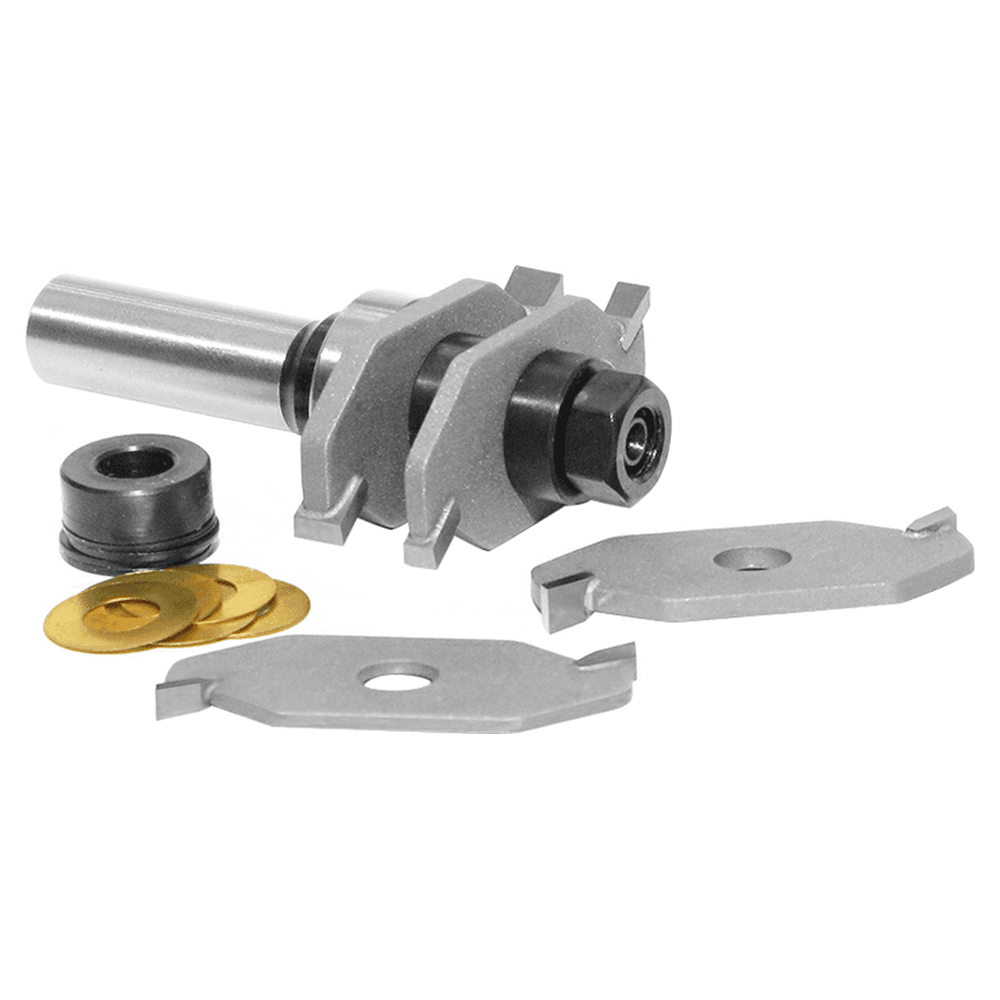

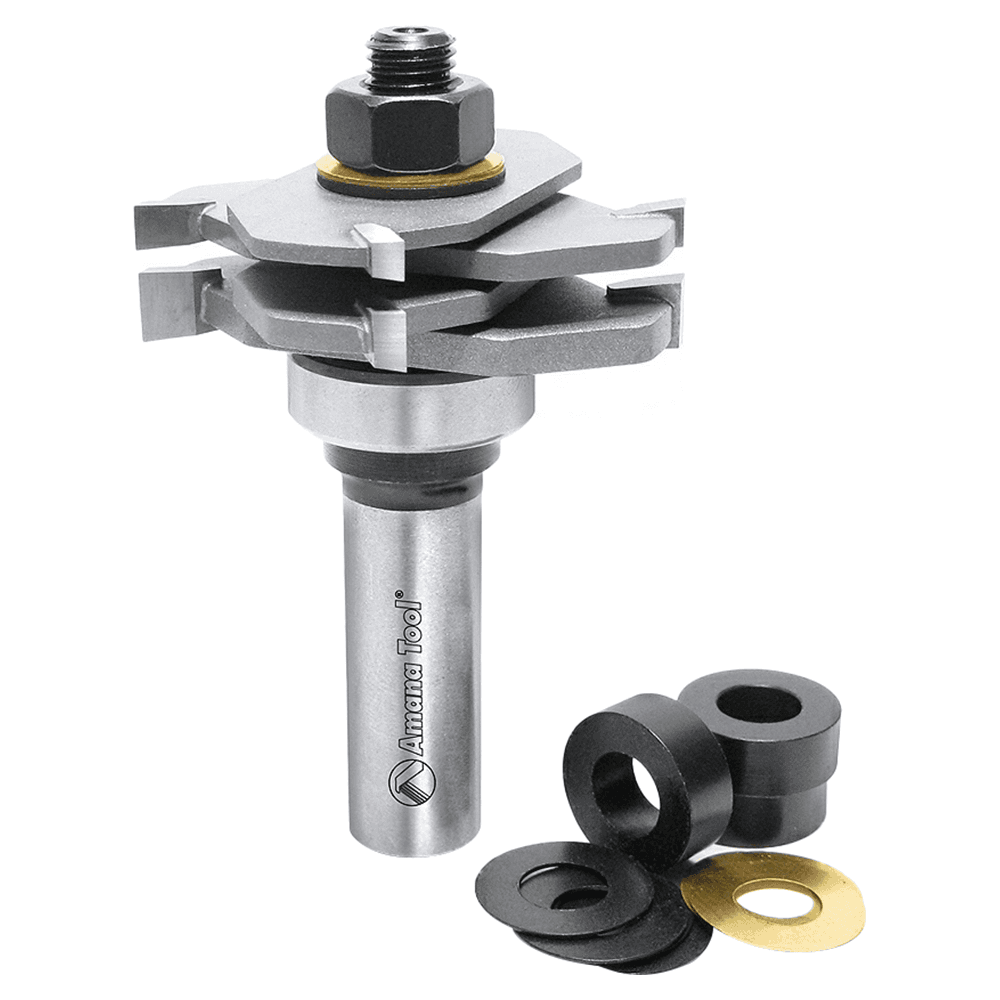

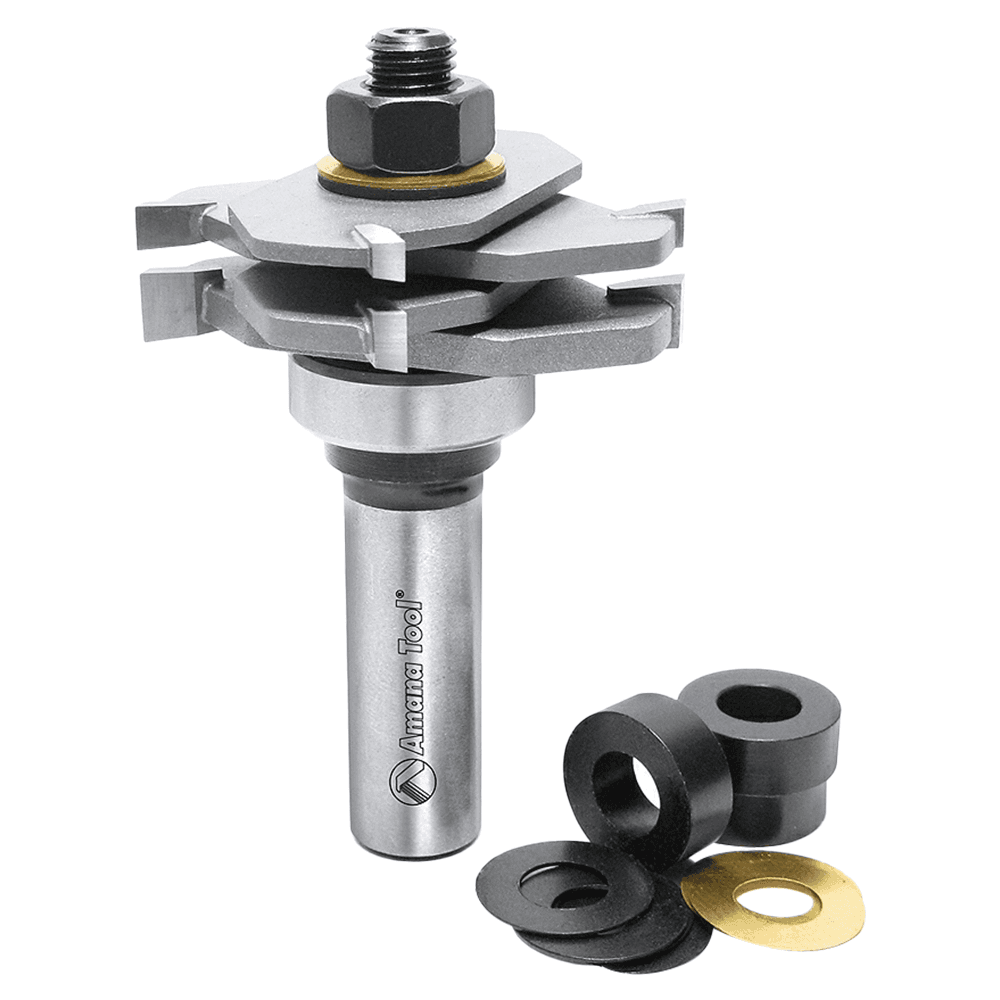

The Quadraset is an adjustable slotting assembly that includes 1/8," 5/32," 3/16," & 1/4" two-wing cutters, a 1/2" shank arbor with a pilot bearing, and a handful of spacers, washers and shims. Conceptually it is like a table-saw dado stack set. You can use the cutters individually on the arbor, or you can combine two, three or all of the cutters on the arbor. Thus you can cut slots that range in widths from 1/8" up to 23/32" in 1/32" increments. Features: • 1-7/8" Dia x 1/8"-23/32" Quadraset, 1/2" Shank • For different depth of cut, see Vari-Depth bearings • A full 3/4" cut can be achieved using one additional #53107 cutter (available separately) • Use in a table-mounted router • Not for use in a handheld router
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1/8" x 23/32" |
| Width | |
| Cutting Diameter | 1-7/8" x 5/16" |
| Application | |
| Material | |
| Product Type | Quadraset Bit |
| Length | 3" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
