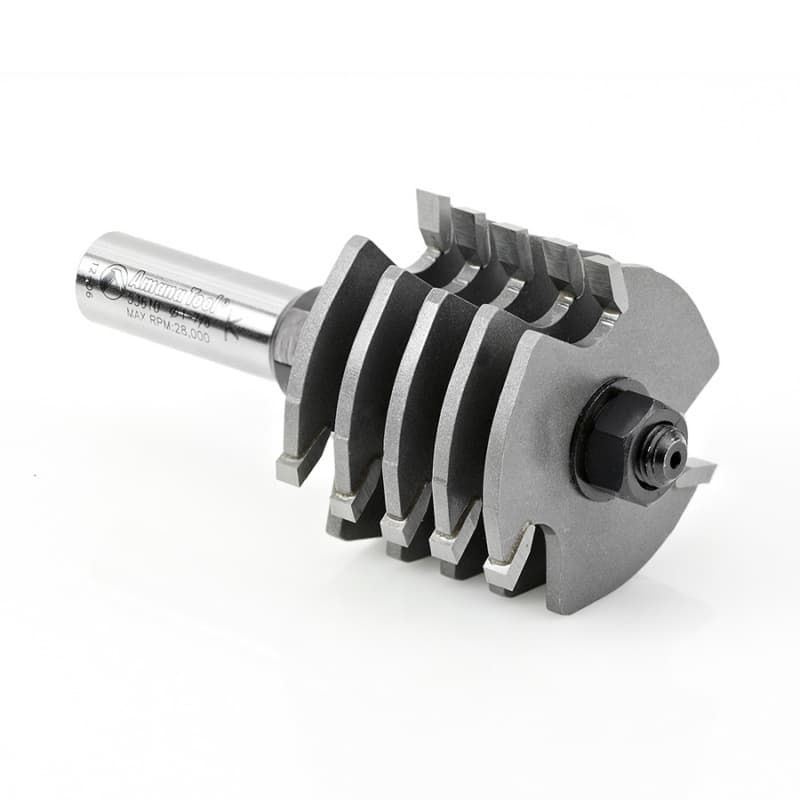

Name: 1-7/8" Dia x 1-3/8" Carbide Tipped Box Joint, 1/2" Shank with Upper BB 3-Flute, Set
Brand: Amana Tool
Availability: BackOrder

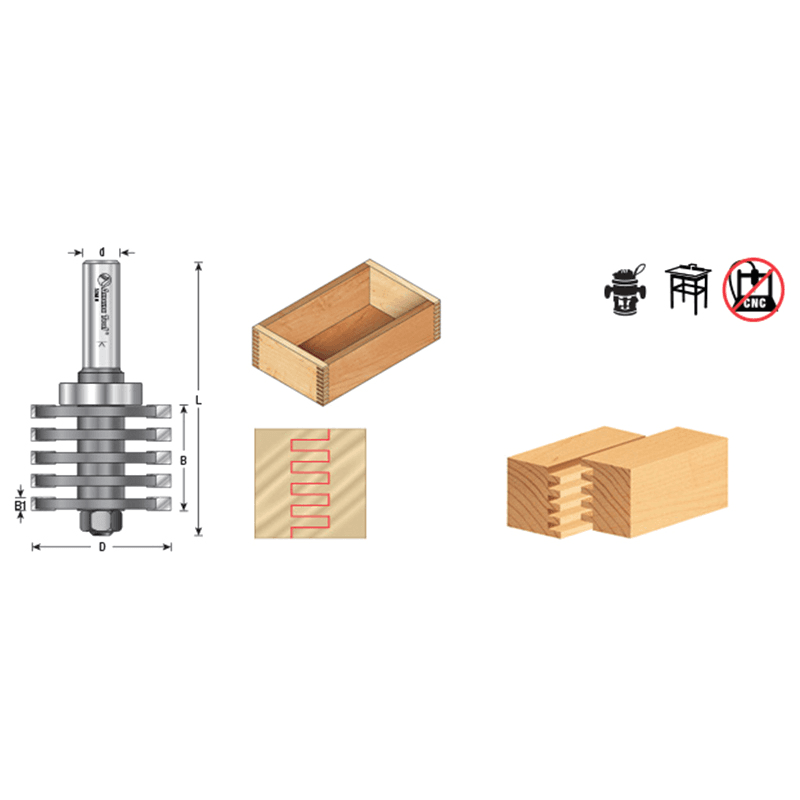

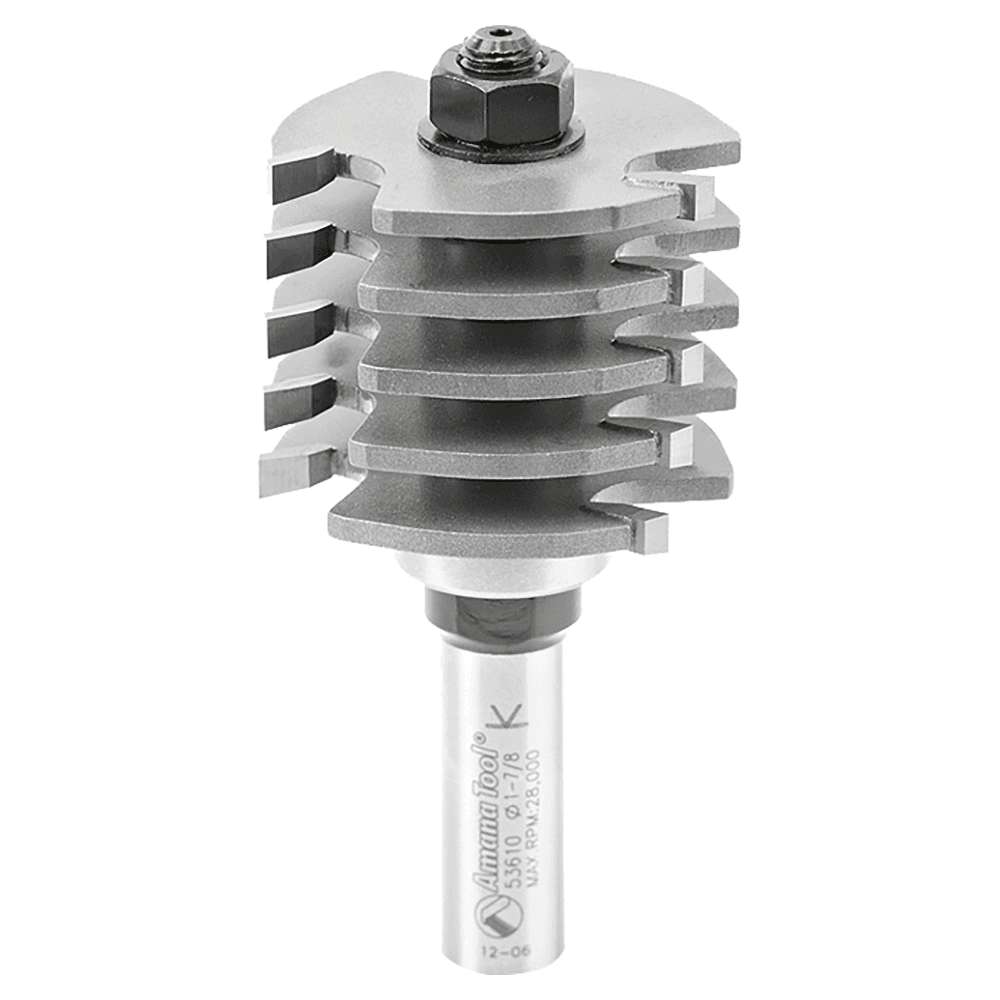

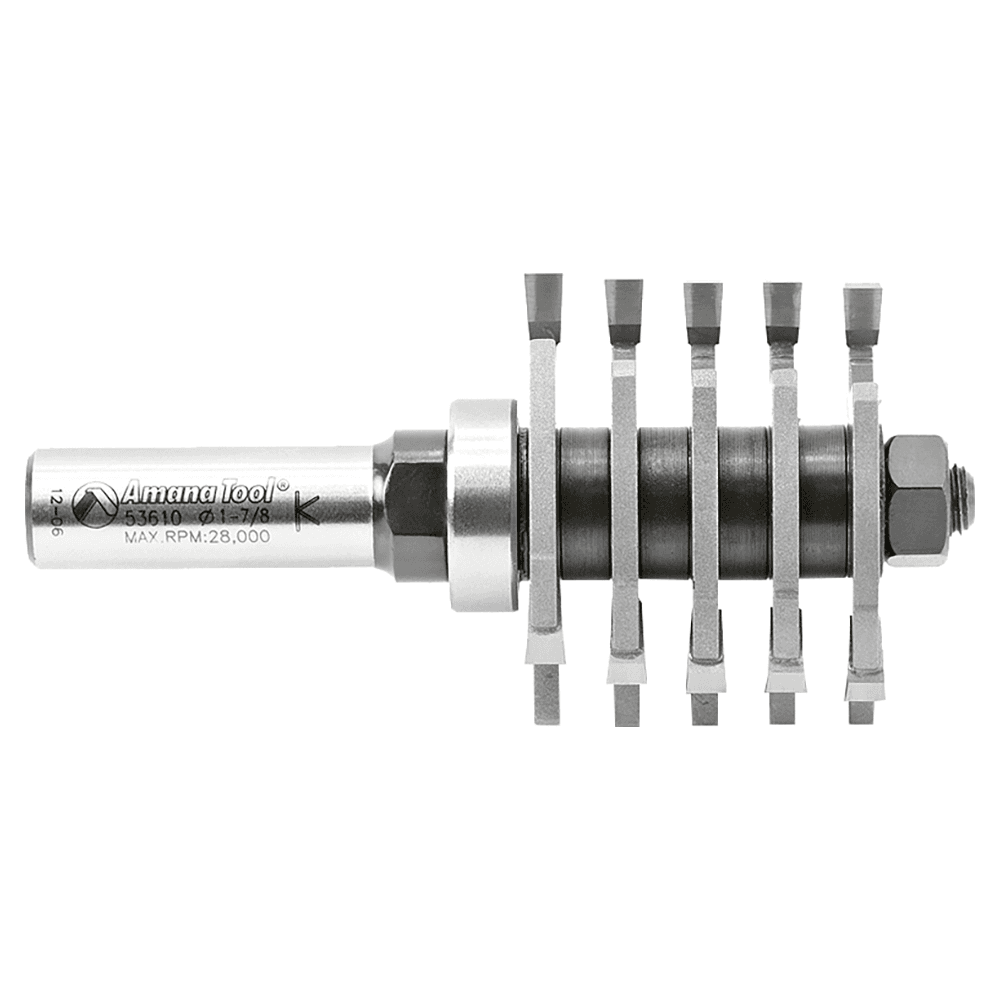

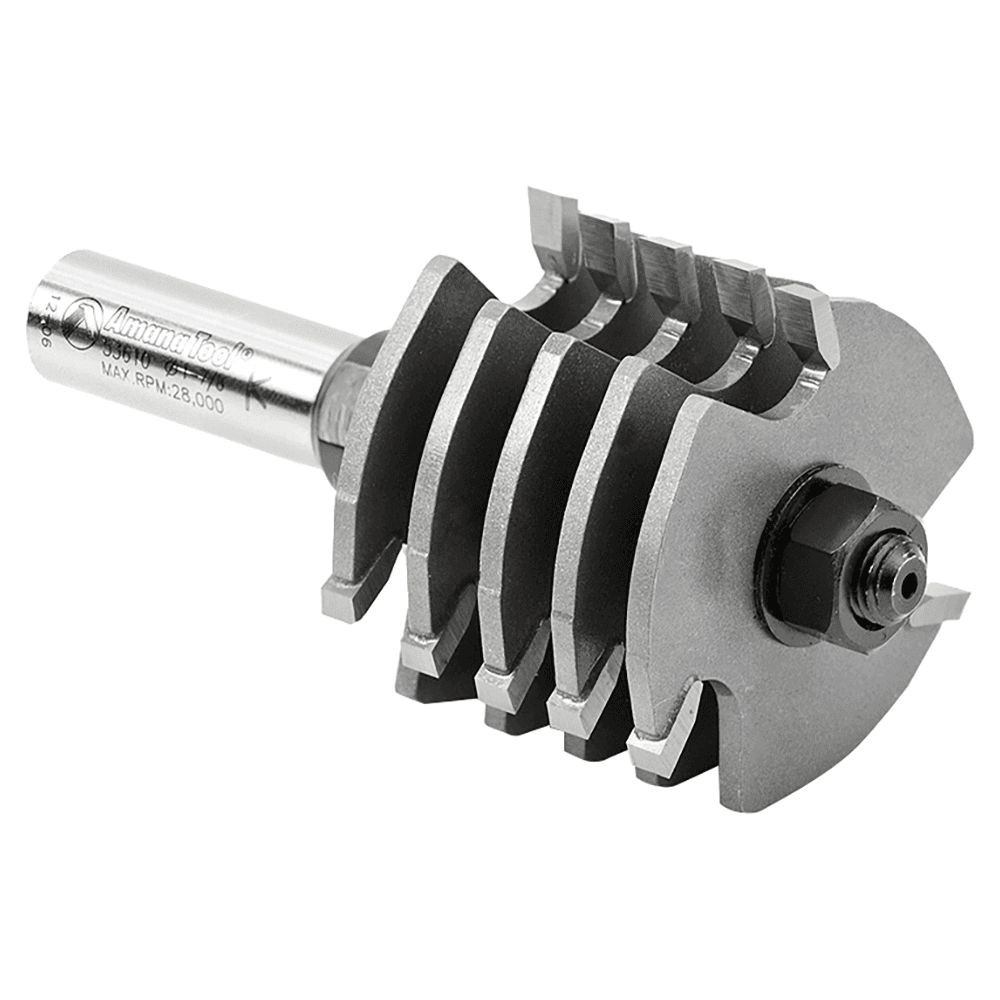

Cut strong, attractive box joints for small boxes, shallow drawers and trays with this bit. By taking three passes it can be used with stock up to 1/2" thick and 4" wide. The most accurate way to adjust the height of the bit while ensuring a good fit when taking multiple passes is to align a cutter on the bit with one of the previous cuts. The bit has five uniformly spaced 3-wing slotting cutters and a ball-bearing guide on a 1/2" shank arbor. Use in a table-mounted router for best results.

Features:
• 1-7/8" Dia x 1-3/8" Carbide Tipped Box Joint, 1/2" Shank with Upper BB 3-Flute Set
• Maximum RPM 13,000
• No of Wings: 3

Box Quantity	1
Diameter (in)	1-7/8 in
Shank Diameter (in)	1/2 in
Product Type	Cabinet Joinery Router Bits
Number of Wings	3
Radius Cutting Height	5/32 in
Overall Length (in)	3-3/4 in
Maximum Speed (RPM)	13000 rpm
Minimum Cutting Height	1-3/8 in

Box Quantity	1
Diameter (in)	1-7/8 in
Shank Diameter (in)	1/2 in
Product Type	Cabinet Joinery Router Bits
Number of Wings	3
Radius Cutting Height	5/32 in
Overall Length (in)	3-3/4 in
Maximum Speed (RPM)	13000 rpm
