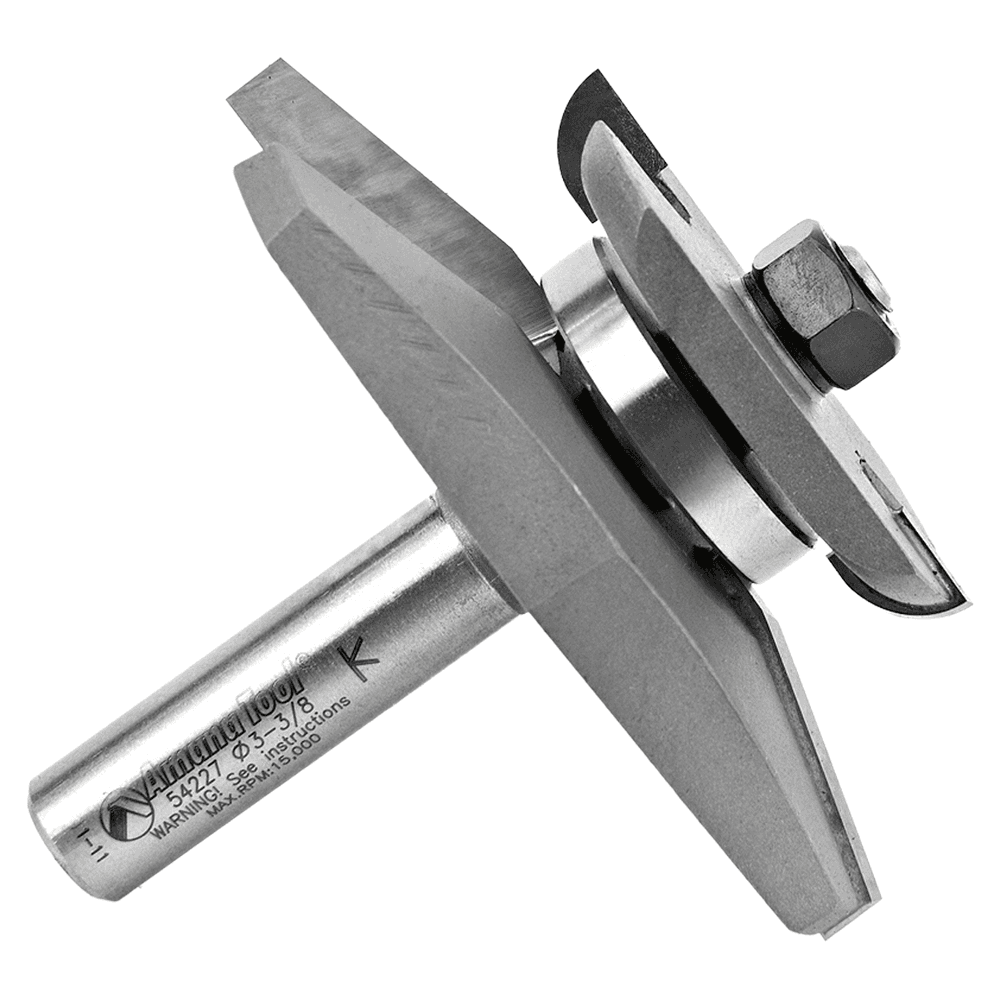

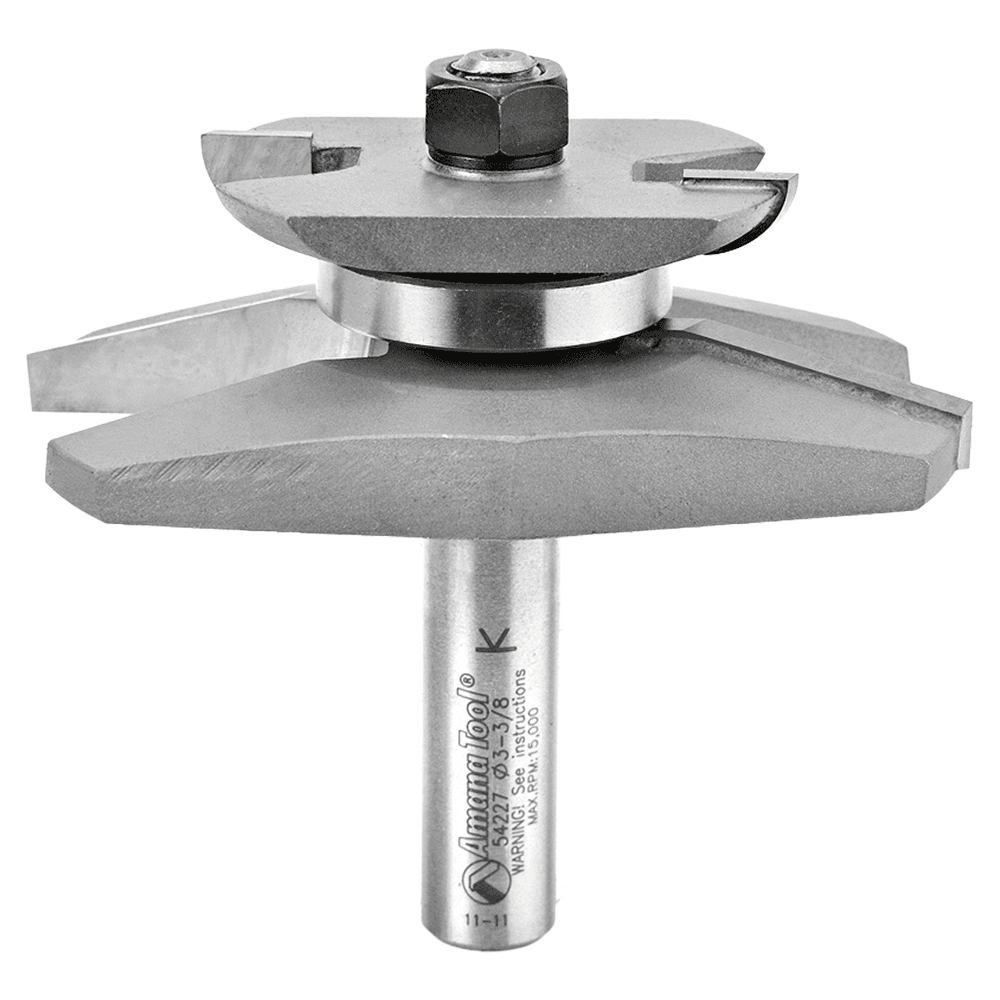

3-3/8" Dia x 1-1/16" Carbide Tipped Traditional Raised Panel Bit with Back Cutter 15° x 1-3/8" Angle, 1/2" Shank
Product Details

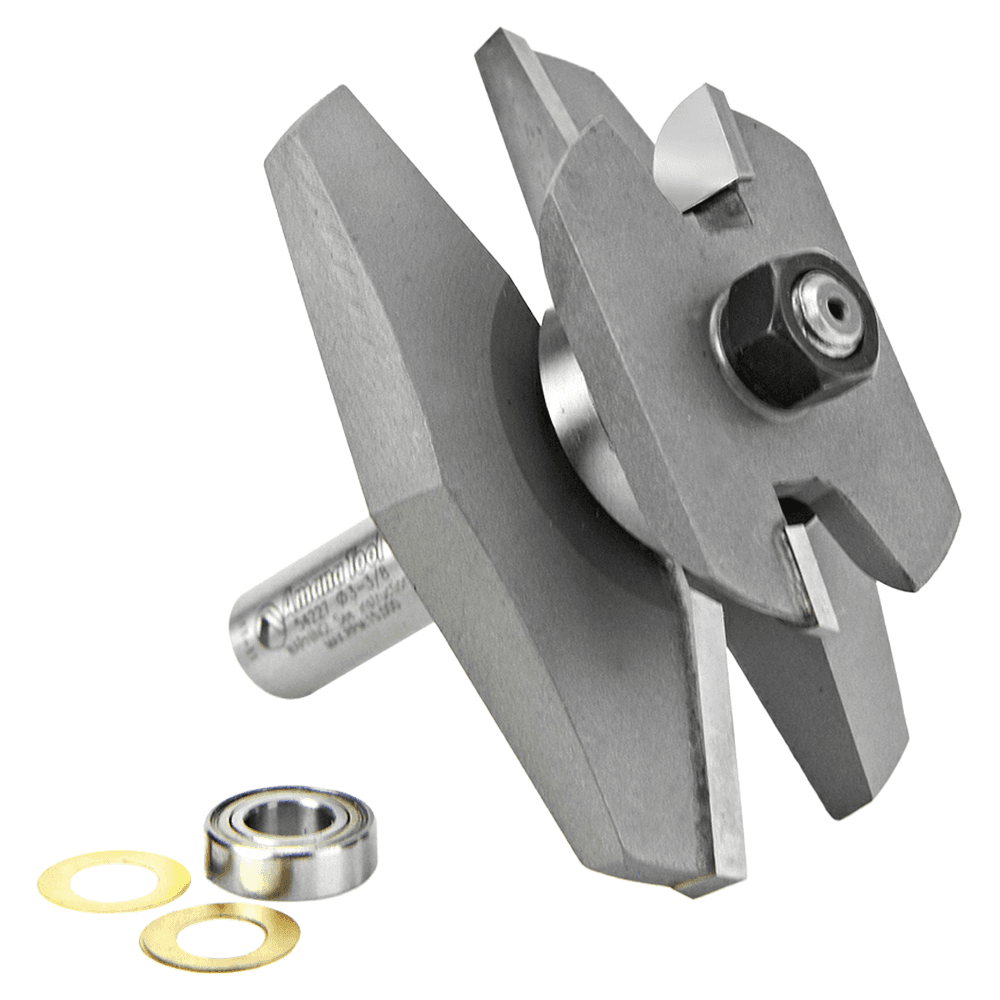

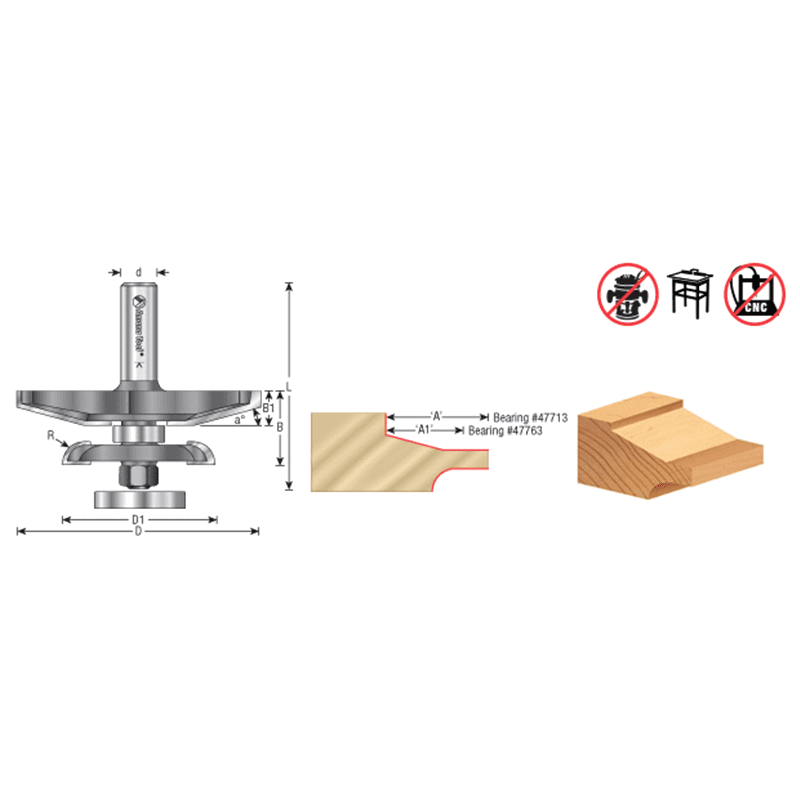

Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8". As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended. Features: • 3-3/8" Dia x 1-1/16" Carbide Tipped Traditional Raised Panel with Back Cutter 15 Deg x 1-3/8" Angle, 1/2" Shank • Note: Reveal (′A′) reflects the total length of cut. Therefore, you must deduct 3/8" (usually) for allowing the panel to recess into the frame • Note: To recieve (′A1′) use bearing #47763 • Maximum RPM 12,000 • Replacement Bearing: 47713,47763 • Flutes: 2 • Cut Depth (A): 1-3/8" • Cut Depth (A1): 1-1/16"
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1-1/16" x 1/2" |
| Width | |
| Cutting Diameter | 3-3/8" x 2-1/8" |
| Application | |
| Material | |
| Product Type | Raised Panel Bit |
| Length | 2-15/16" |
| Degree of Cut | 15° |
| Shank Diameter | 1/2" |
