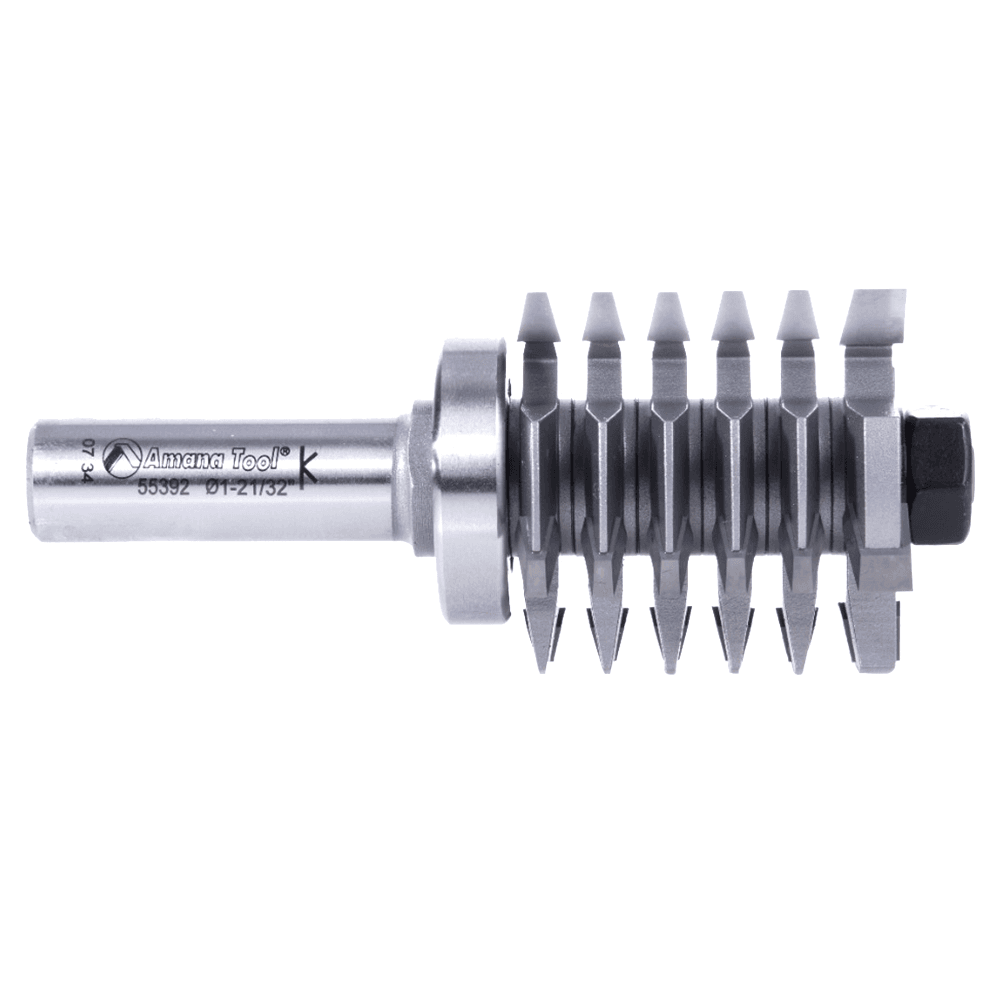

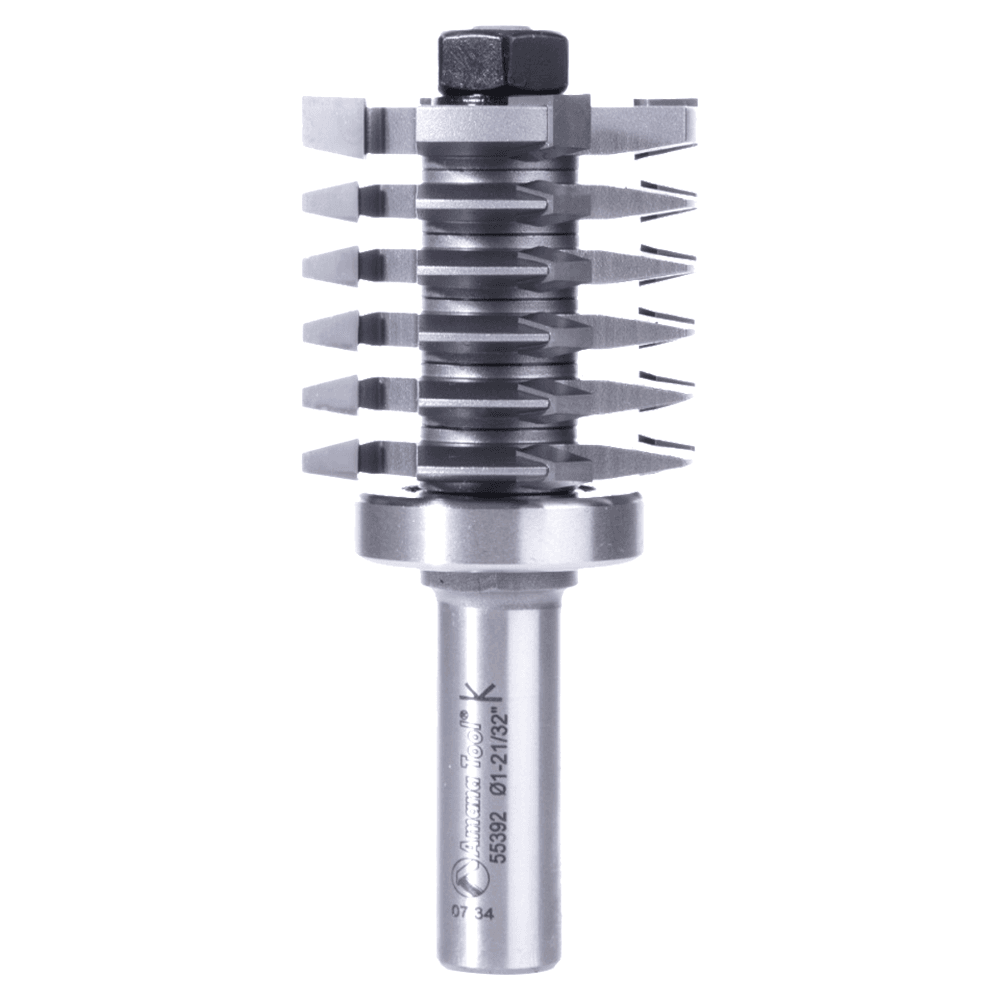

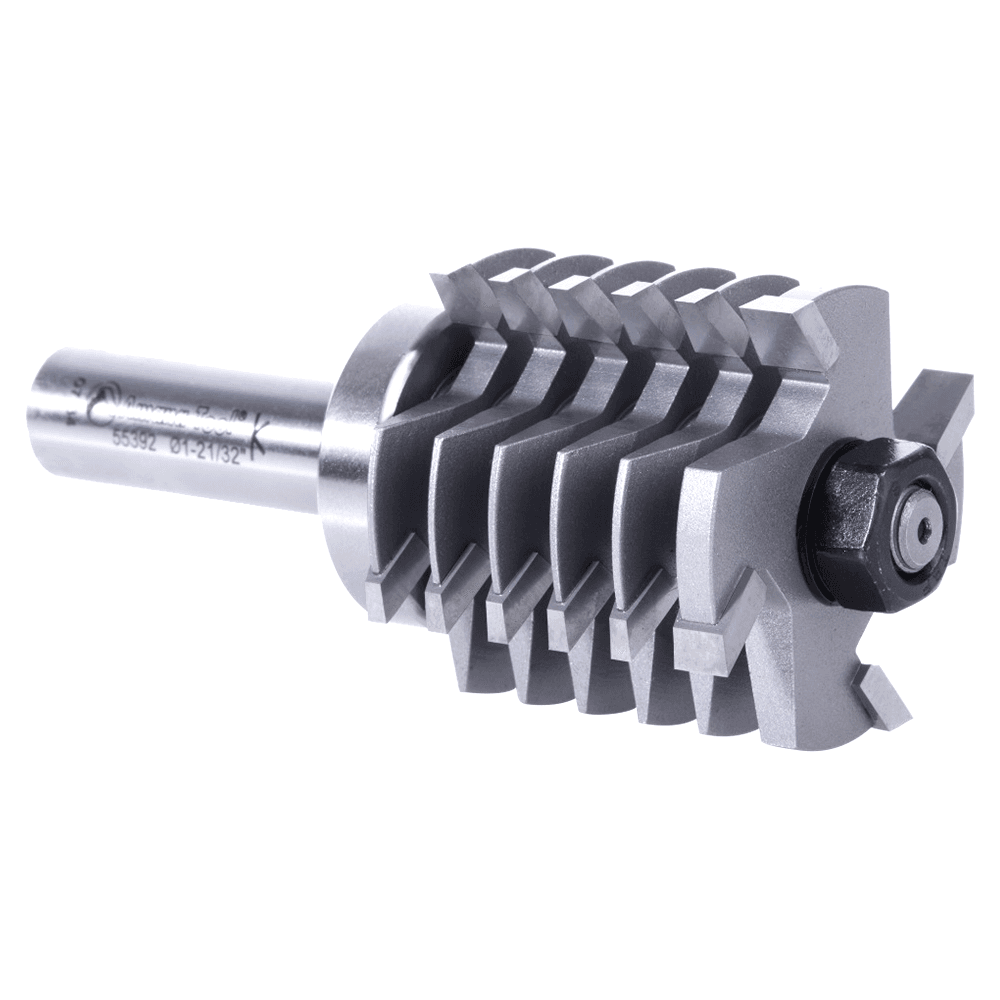

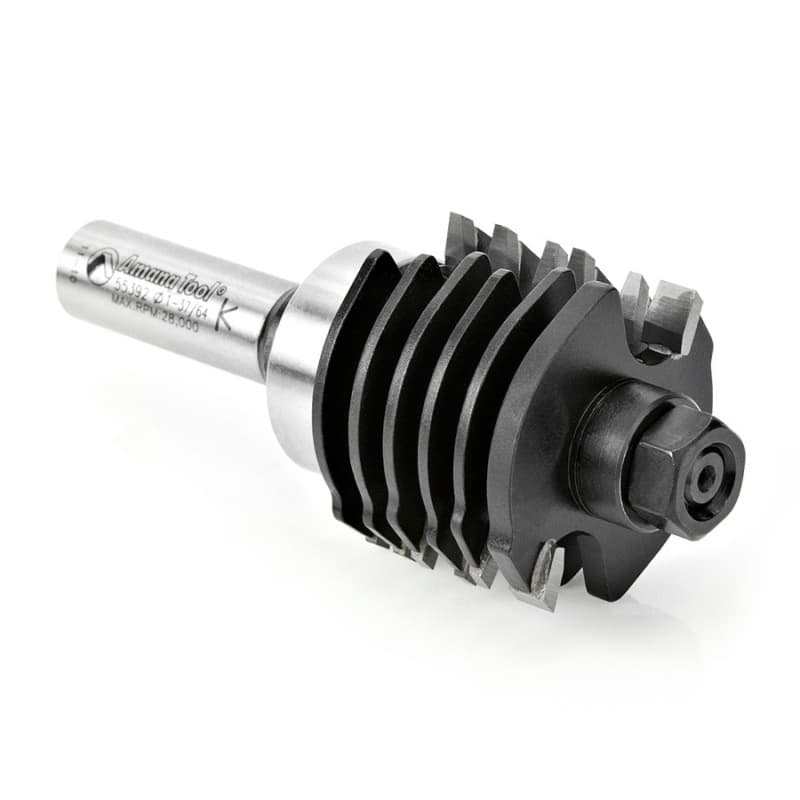

1-21/32" Dia x 1-17/32" Carbide Tipped Finger Joint Assembly, 1/2" Shank with Upper BB
Product Details

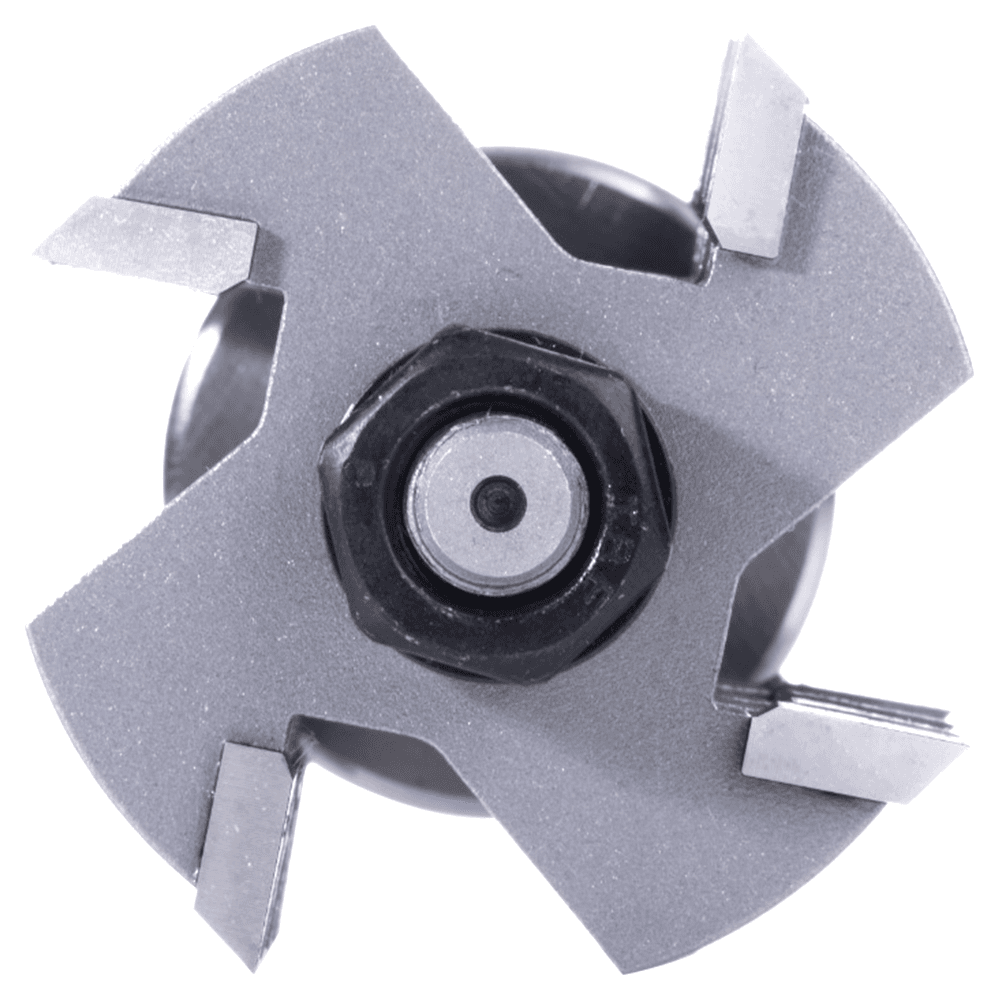

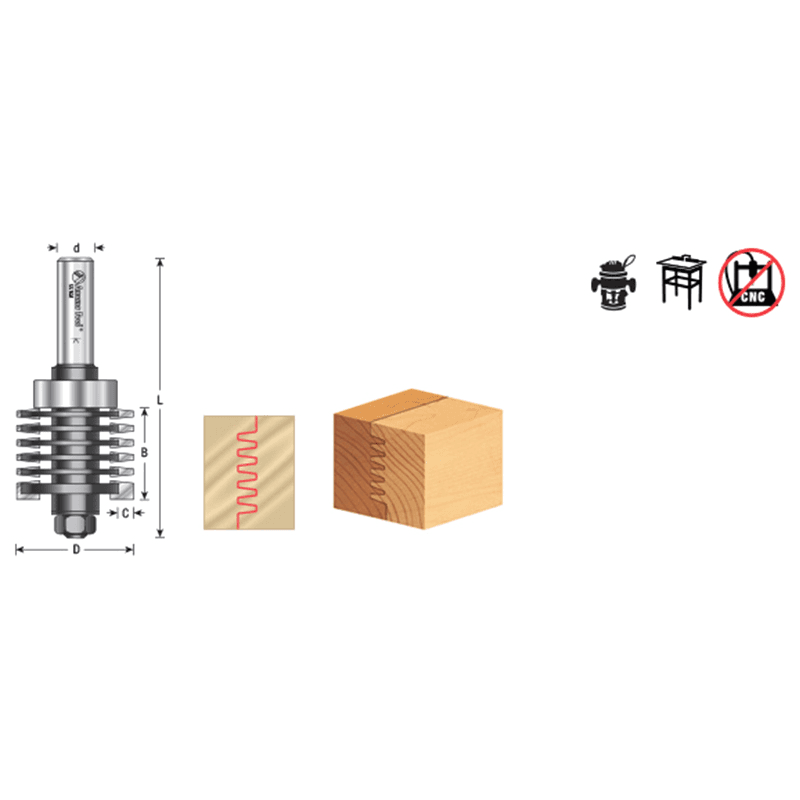

Ideal for joining wood end-to-end as well as edge-to-edge, the finger joint can be routed quickly and accurately with this tool. Rout one workpiece face up, the other face down. When the bit height is correct, the two pieces should slide together with their faces perfectly flush. The assembly includes five 4-wing finger cutters, one 4-wing straight cutter, a ball bearing guide, a 1/2" shank arbor. The number of finger cutters used varies with the stock thickness; it can handle stock between 7/16" and 1-1/2" thick. For best results run at full speed in a 1-1/2 horsepower table-mounted router. Full instructions for setup and use are included. Features: • 1-21/32" Dia x 1-17/32" Carbide Tipped Finger Joint Assembly, 1/2" Shank with Upper BB • Replacement Bearing: 47834 • C: 1/4" • No of Wings: 4
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1-17/32" |
| Width | |
| Cutting Diameter | 1-21/32" |
| Application | |
| Material | |
| Product Type | Finger Joint Assembly |
| Length | 3-21/32" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
