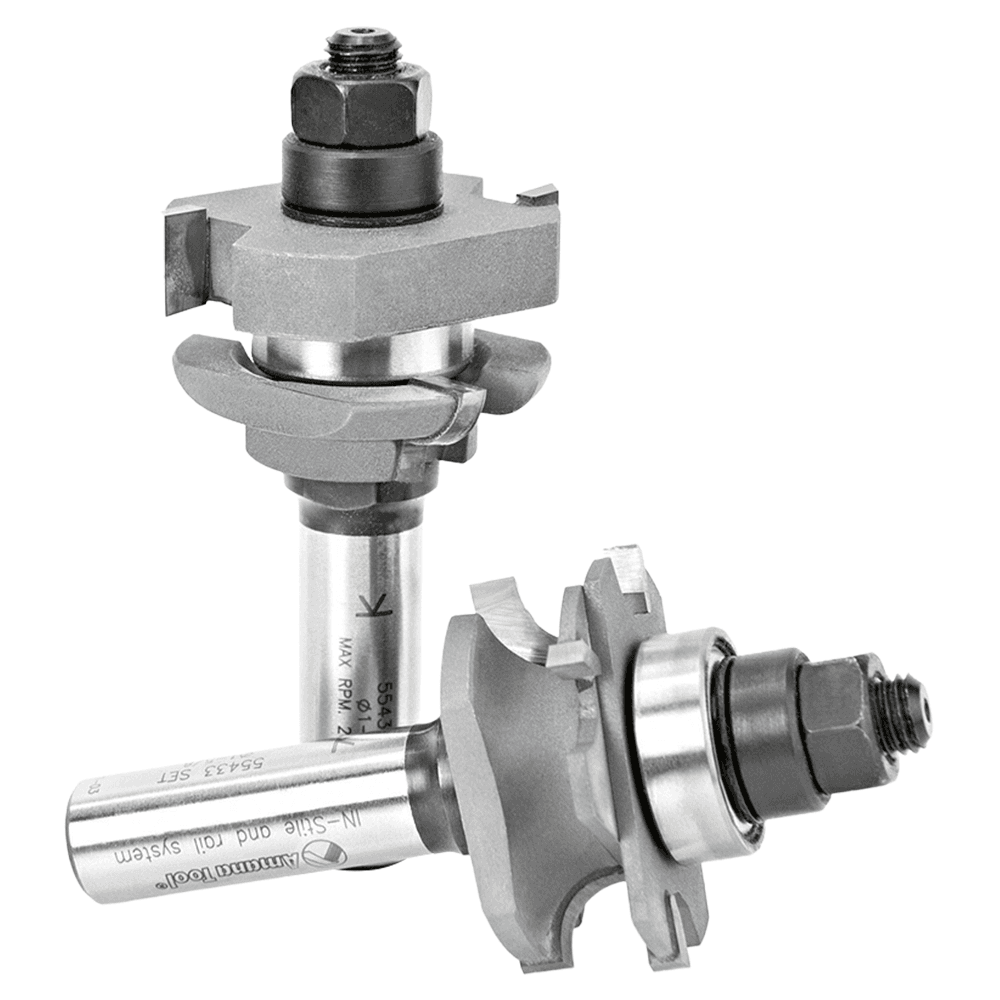

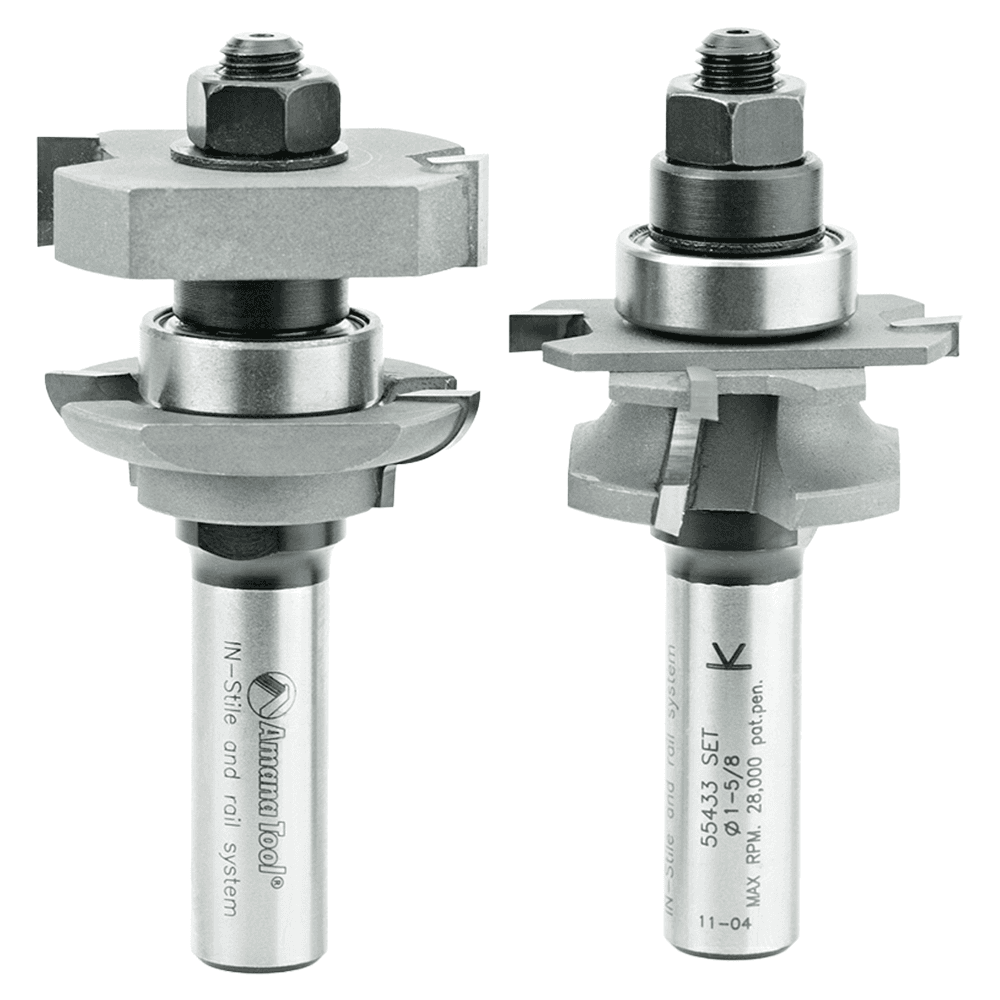

1-5/8" Dia x 5/8" to 1-1/8" Carbide Tipped Adjustable Concave Instile and Rail System, 1/4" Radius, 1/2" Shank Set
Product Details

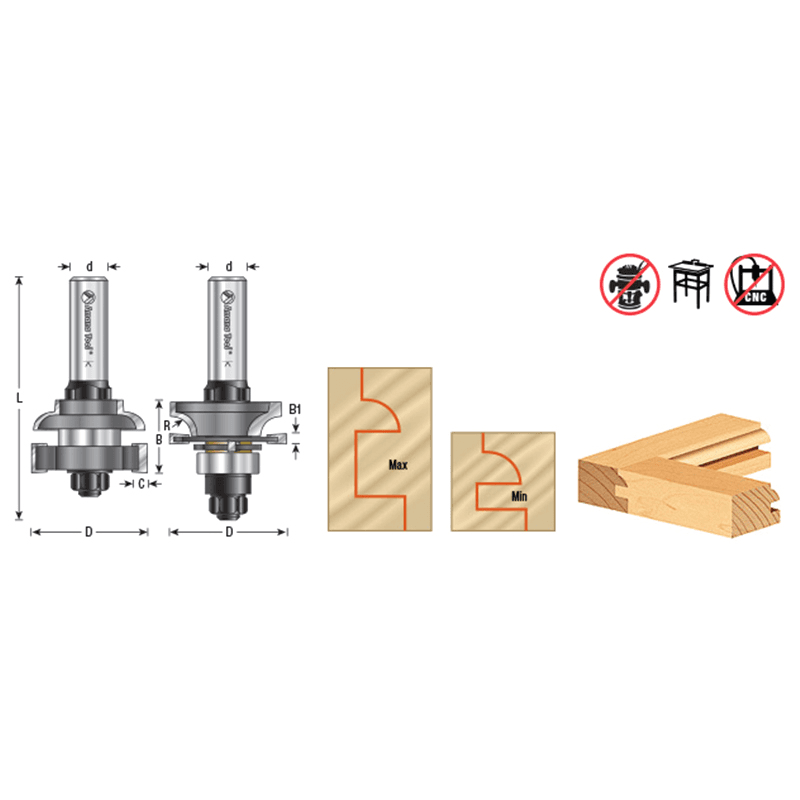

Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary - using the provided shims - after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles. Features: • 1-5/8" Dia x 5/8" to 1-1/8" Carbide Tipped Adjustable Concave Instile and Rail System, 1/4" Radius, 1/2" Shank Set • Flutes: 2 • C: 3/8" • B1 for 1/4" Plywood: 3/16" to 9/32" • B1 for 1/2" Plywood: 7/16" to 17/32"
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 5/8" to 1-1/8" |
| Width | |
| Cutting Diameter | 1-5/8" |
| Application | |
| Material | |
| Product Type | Concave |
| Length | 3-11/32" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
