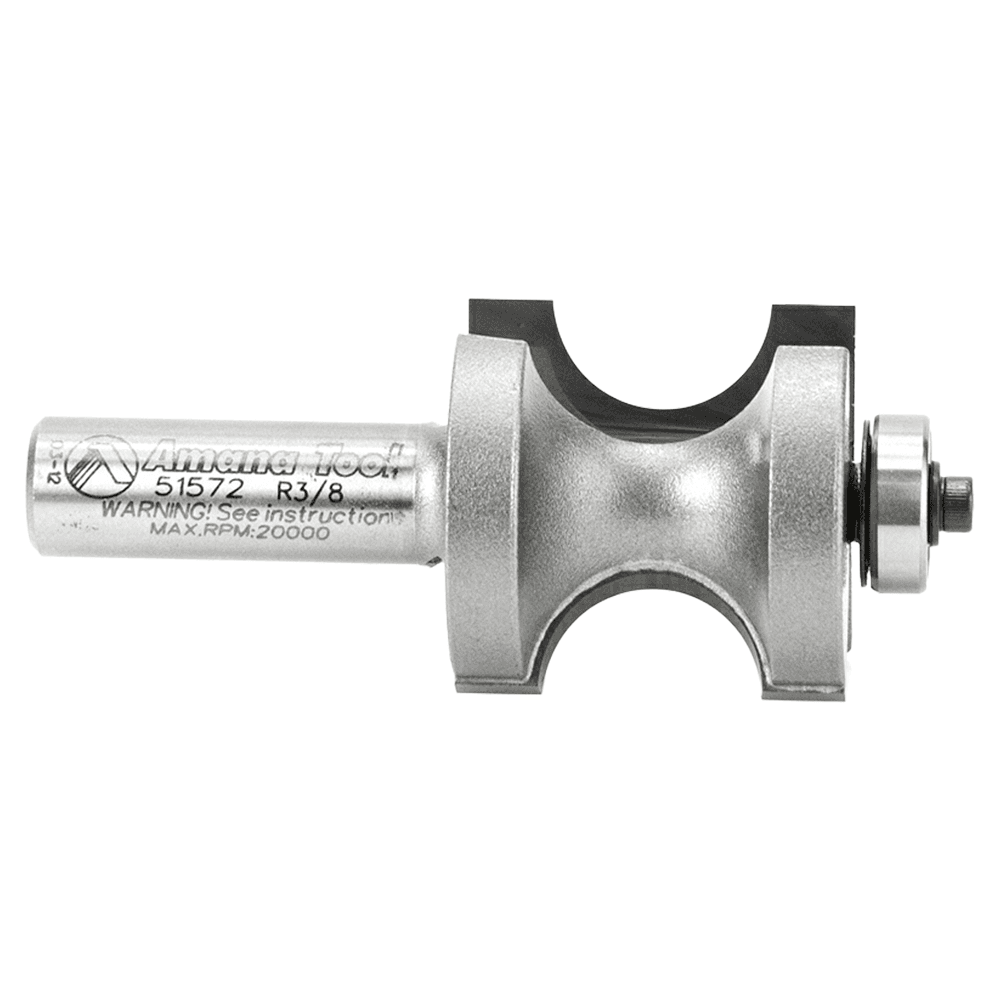

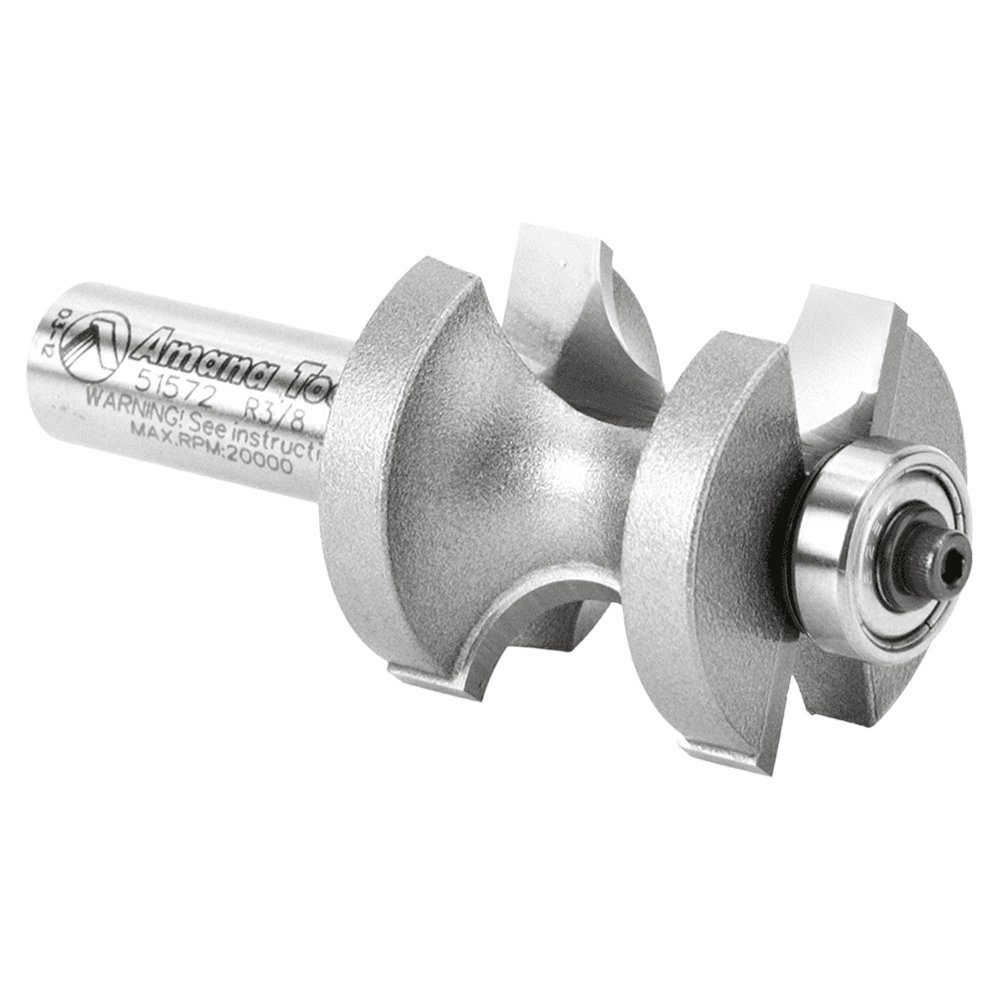

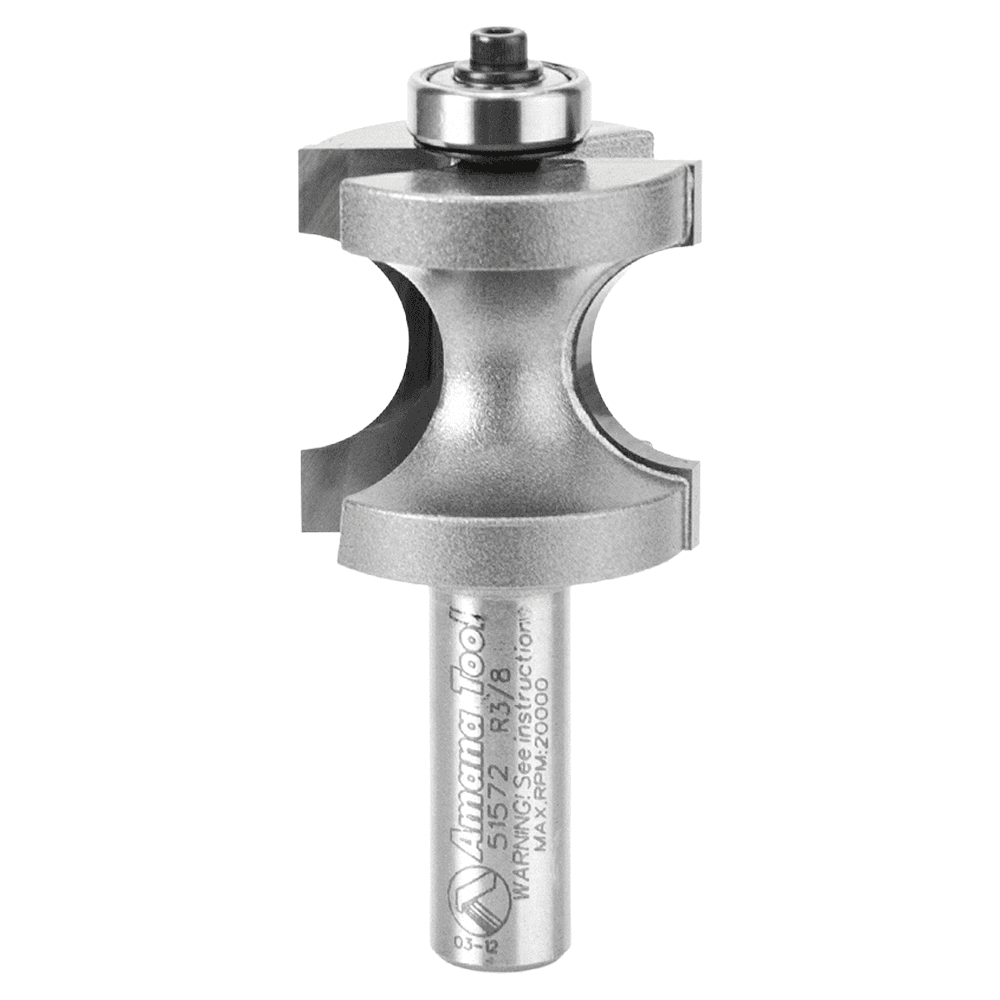

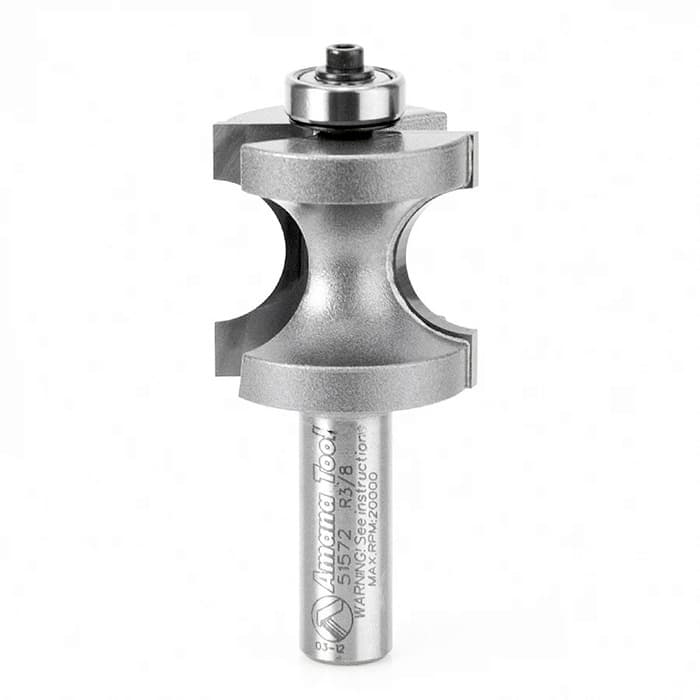

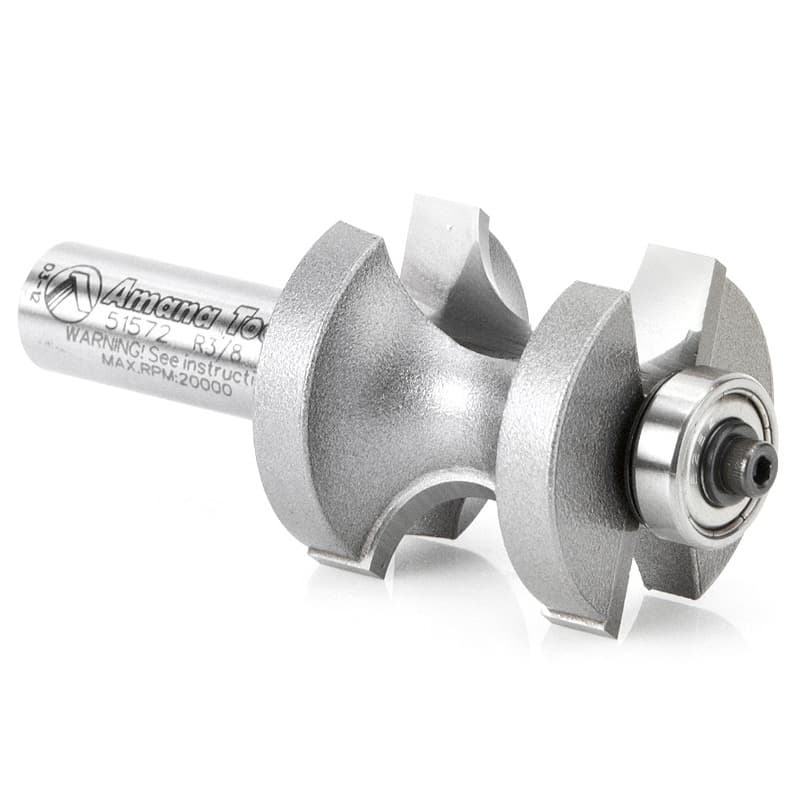

Name: 1-3/8" Dia x 1-5/16" Carbide Tipped Bull Nose Bit, 3/8" Radius, 1/2" Shank
Brand: Amana Tool
Availability: BackOrder

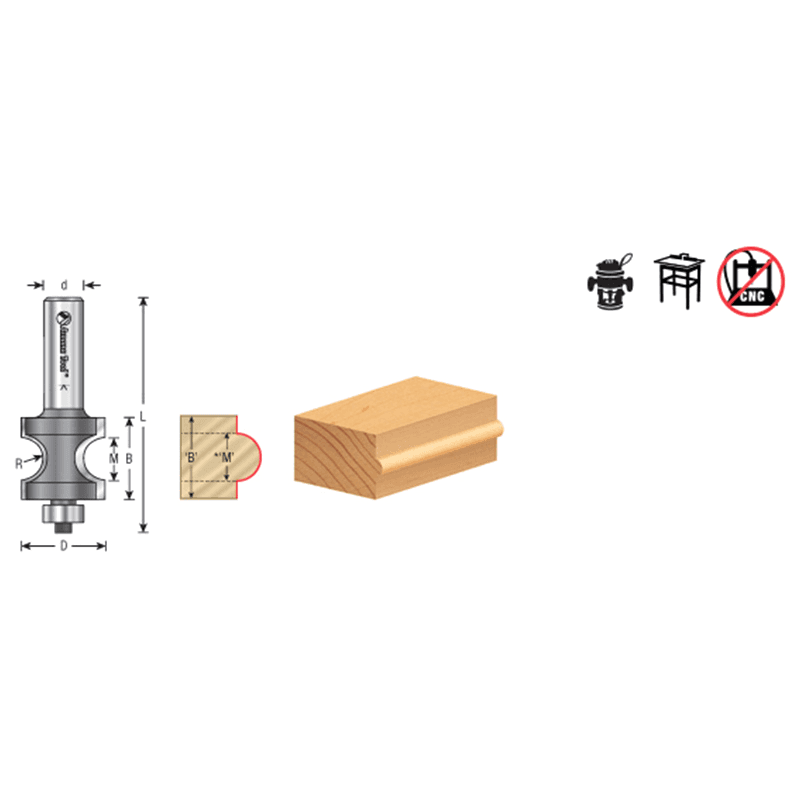

Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and making moldings. The "nose diameter" (M) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. "M™ denotes thickness of material on which a full 180° roundover can be accomplished.

Features:
• 1-3/8" Dia x 1-5/16" Carbide Tipped Bullnose 3/8" Radius, 1/2" Shank
• Maximum RPM 20,000

Box Quantity	1
Diameter (in)	1-3/8 in
Shank Diameter (in)	1/2 in
Product Type	Edgeforming Router Bits
Number of Flutes	2
Radius (in)	3/8 in
Overall Length (in)	3-1/4 in
Material Thickness (in)	3/4 in
Maximum Speed (RPM)	20000 rpm
Minimum Cutting Height	1-5/16 in

Box Quantity	1
Diameter (in)	1-3/8 in
Shank Diameter (in)	1/2 in
Product Type	Edgeforming Router Bits
Number of Flutes	2
Radius (in)	3/8 in
Overall Length (in)	3-1/4 in
