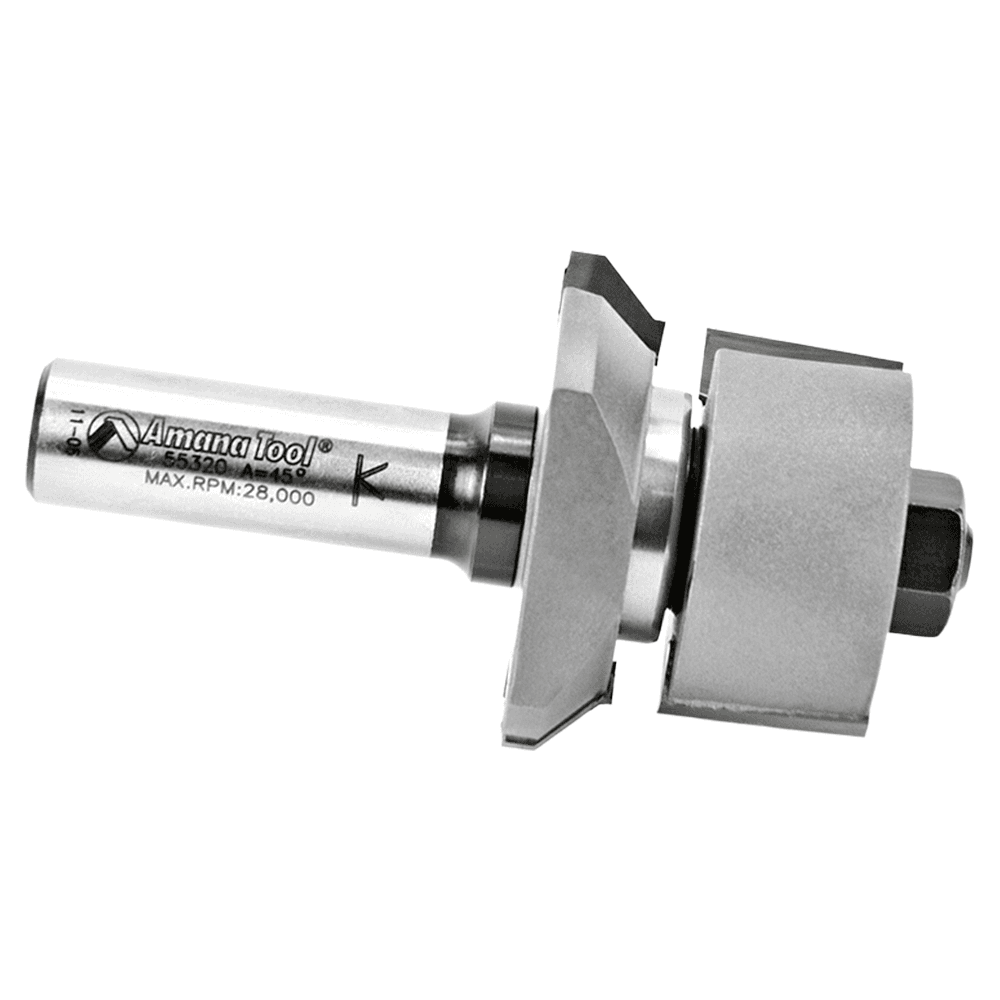

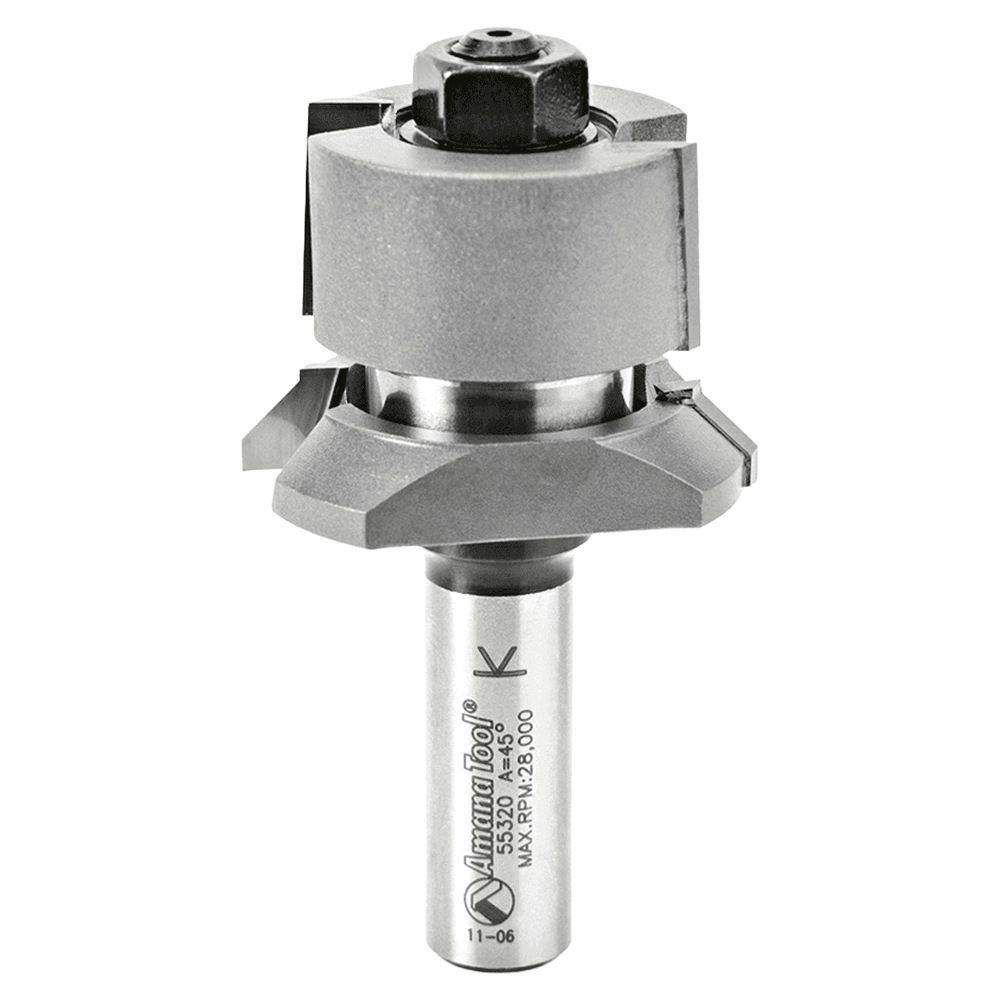

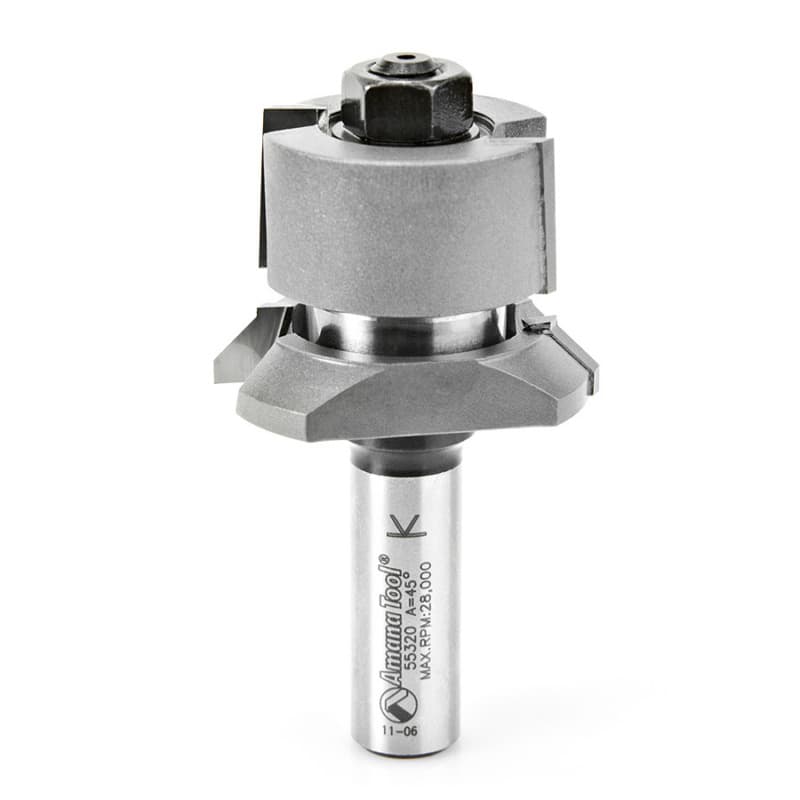

1-13/16" Dia x 1/2" to 1-3/16" Carbide Tipped V Paneling 45° Flush Trim Bit, 1/2" Shank with Ball Bearing Assembly
Product Details

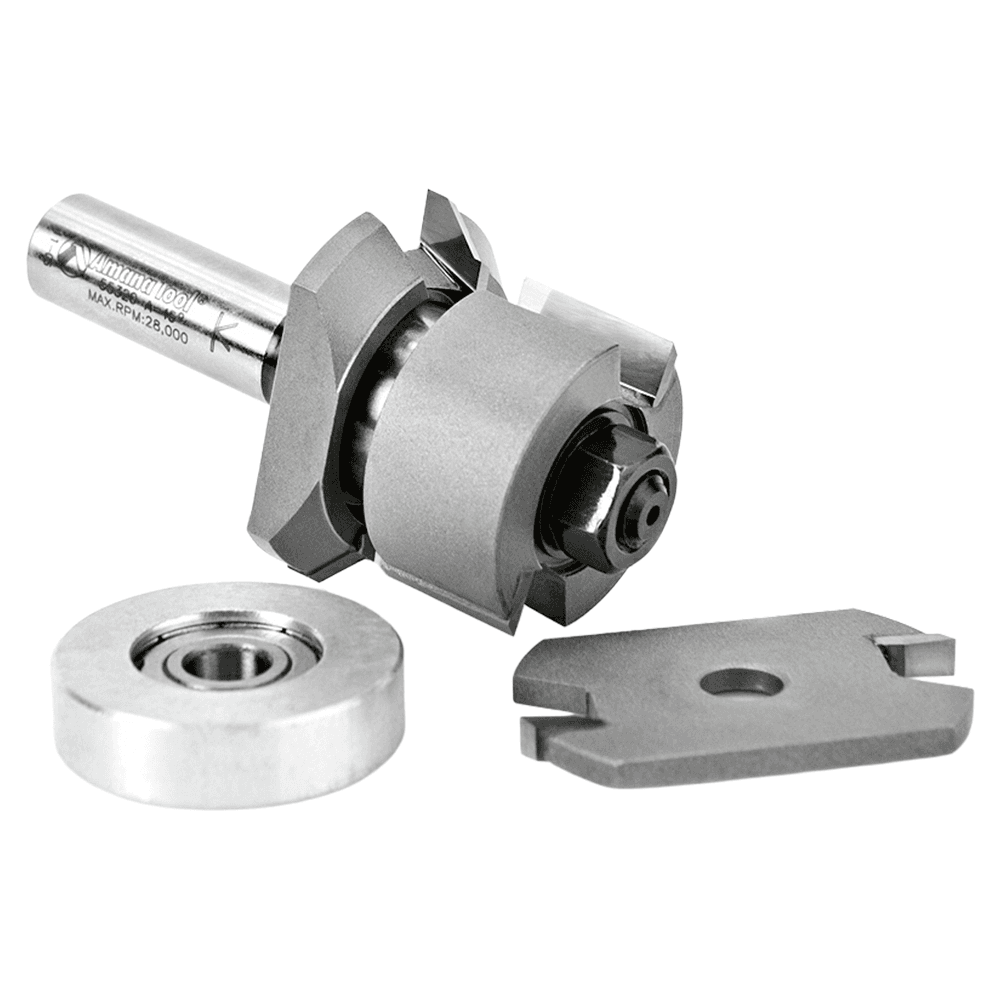

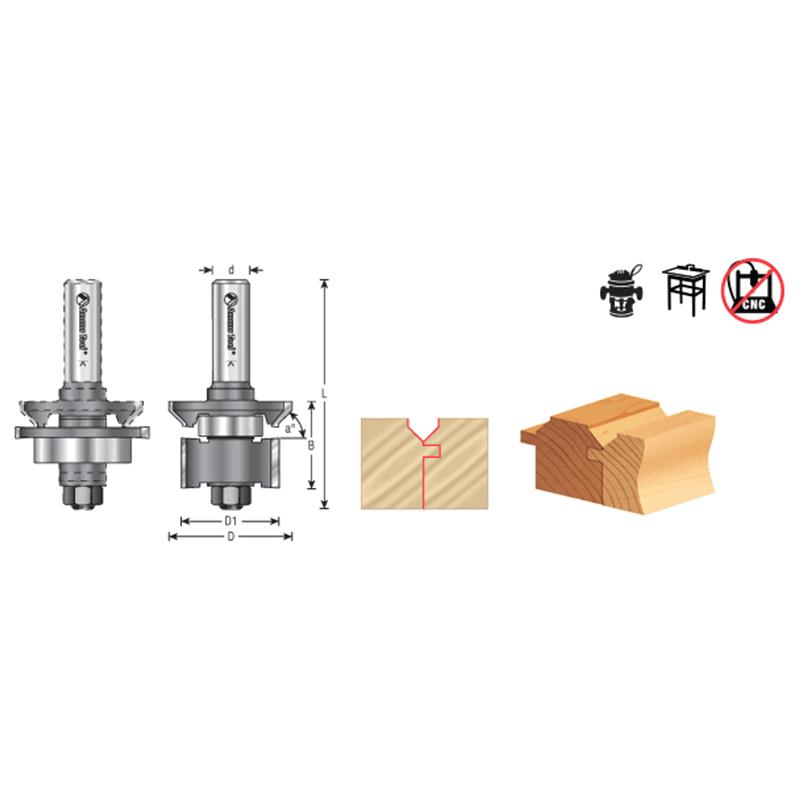

These assemblies are designed to cut tongue & groove joinery for solid wood paneling. Two patterns, a 1/4" bead (#55330) or a 45° ′V′ (#55320), are available individually or as a set. Each assembly comprises a profile cutter, a rabbet cutter and a groove cutter, two different-size bearings, a 1/2" shank arbor, and a selection of washers, shims and spacers. Assemble the profile cutter, small bearing, and rabbet cutter as shown in the solid drawing to cut the tongue. To rout the groove, mount the groover and large bearing with the profiler, as shown in the ghosted drawing. The tool will work with stock from 1/2" through 1" thick. Features: • 1-13/16" Dia x 1/2" to 1-3/16" Carbide Tipped V Paneling 45 Deg ,1/2" Shank with Ball Bearing Assembly
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1/2" to 1-3/16" |
| Width | |
| Cutting Diameter | 1-13/16" x 1-5/16" |
| Application | |
| Material | Carbide Tipped |
| Product Type | Flush Trim Bit |
| Length | 3-1/8" |
| Degree of Cut | 45° |
| Shank Diameter | 1/2" |
