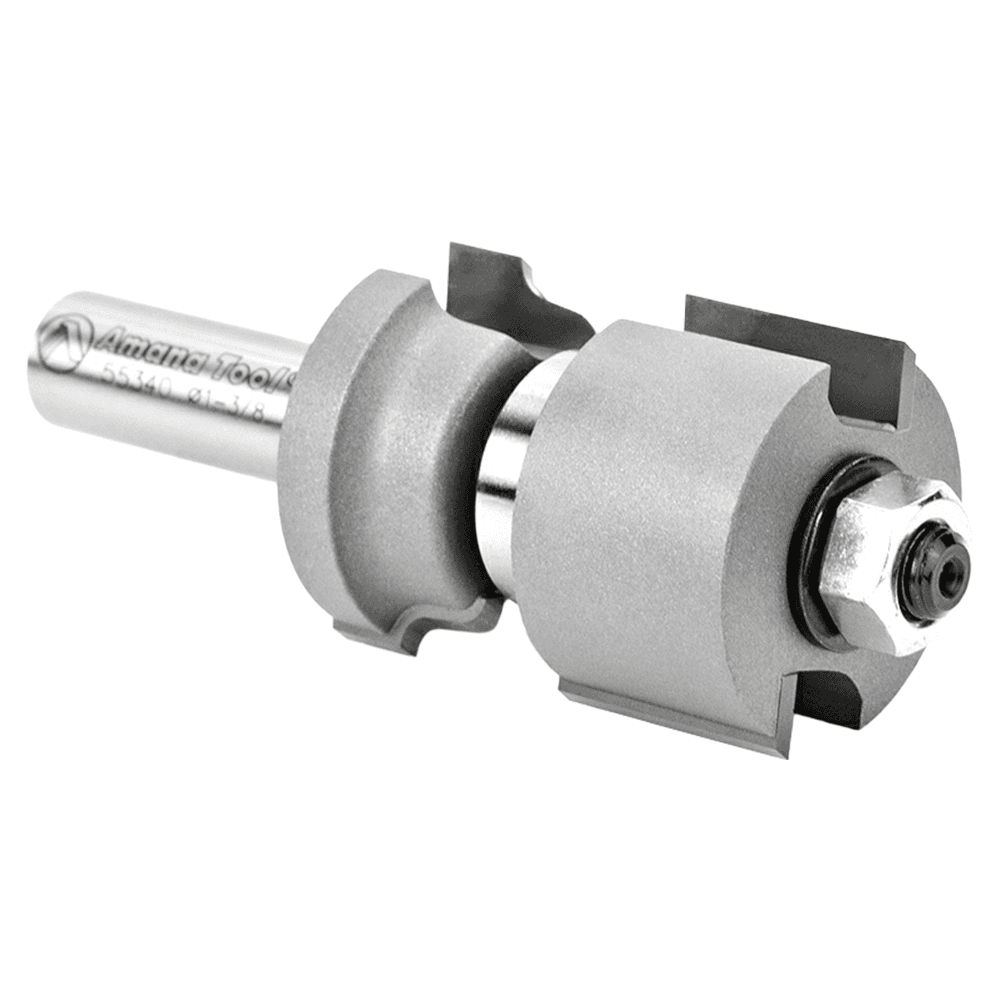

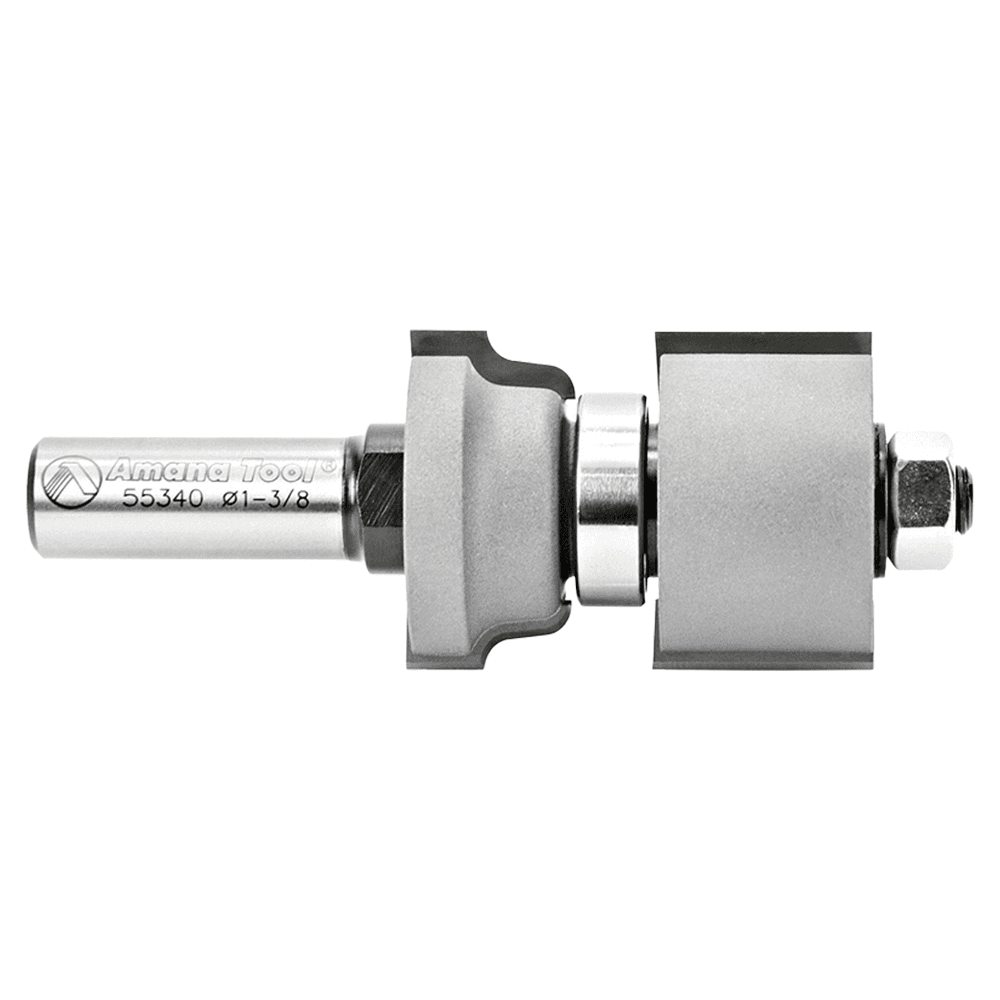

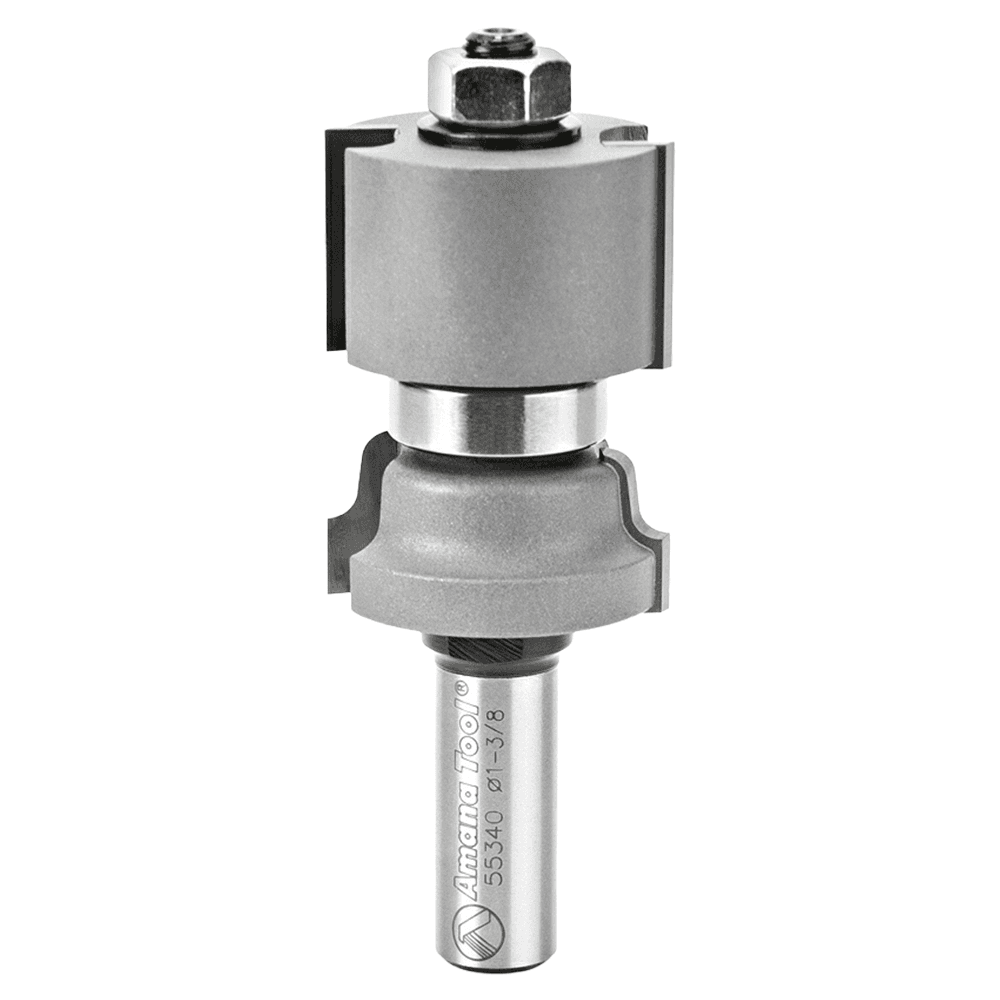

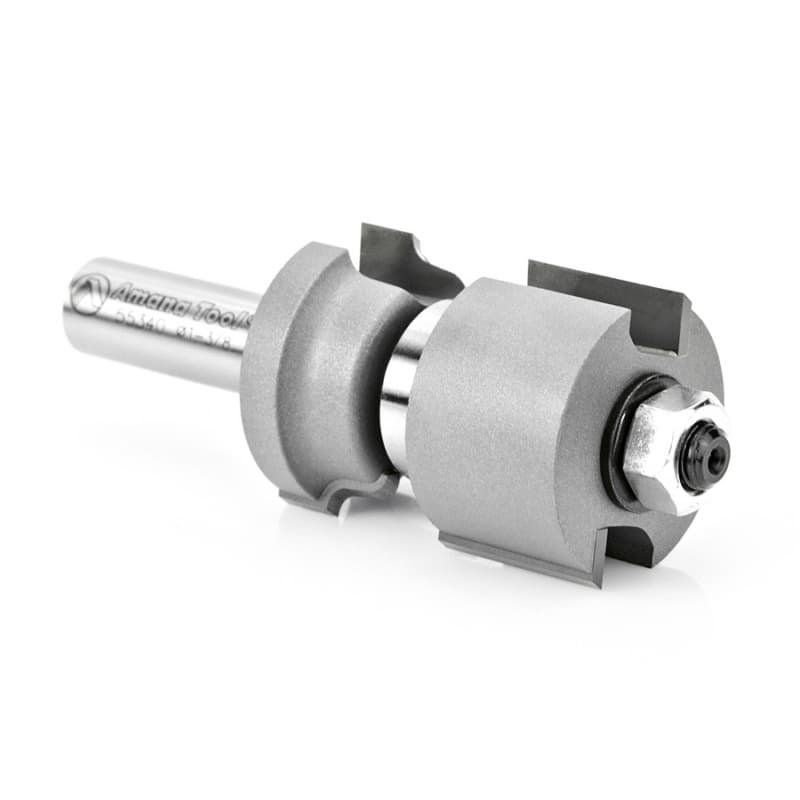

1-9/64" Dia x 43/64" Carbide Tipped Reversible Ogee Bit, Window Sash/Rail 1/8" Radius, 1/2" Shank with Center Ball Bearing
Product Details

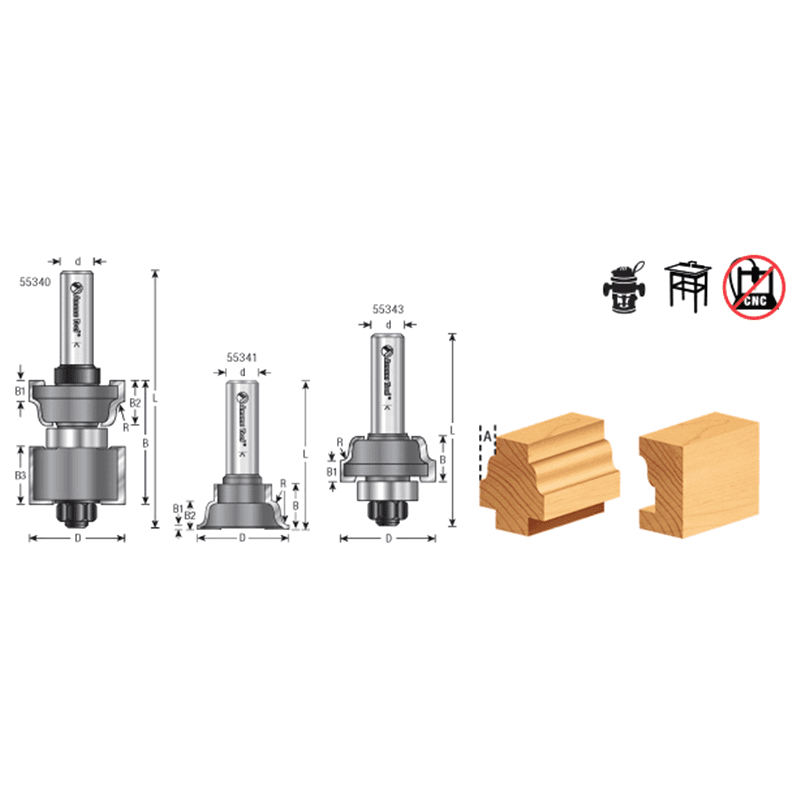

This reversible assembly is designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins, on stock between 1-1/8" and 1-3/4" thick. Assembly includes an ogee profile cutter, a rabbet cutter, one bearing, a 1/2" shank arbor, spacers, shims, and washers. Configure as shown in the drawing to cut profile and rabbet on all parts. Switch bearing and profile cutter and replace rabbet cutter with spacers to rout the copes. Use in a table-mounted router. Features: • 1-9/64" Dia x 43/64" Carbide Tipped Reversible Ogee Window Sash/Rail • Cut Depth (A): 1/4"
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1-55/64" x 5/16" x 43/64" |
| Width | |
| Cutting Diameter | 1-3/8" |
| Application | |
| Material | |
| Product Type | Ogee Bit |
| Length | 3-3/4" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
