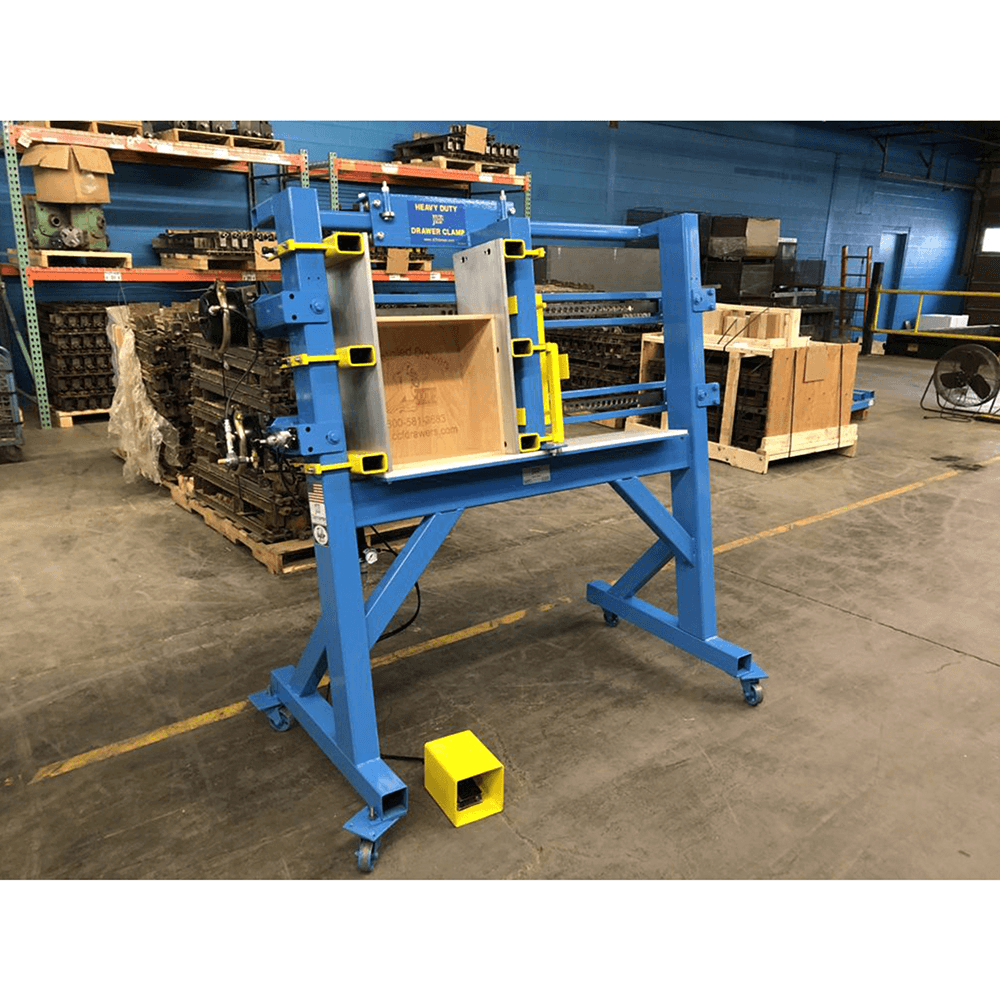

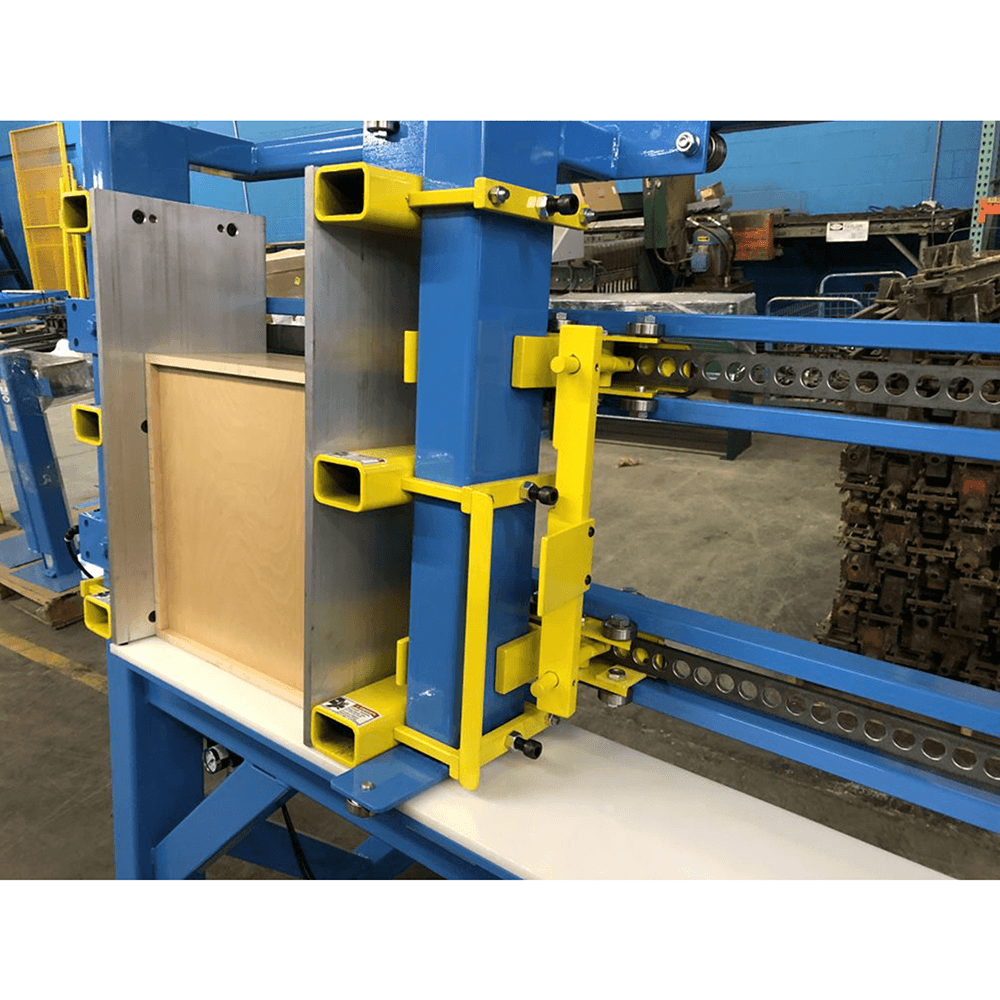

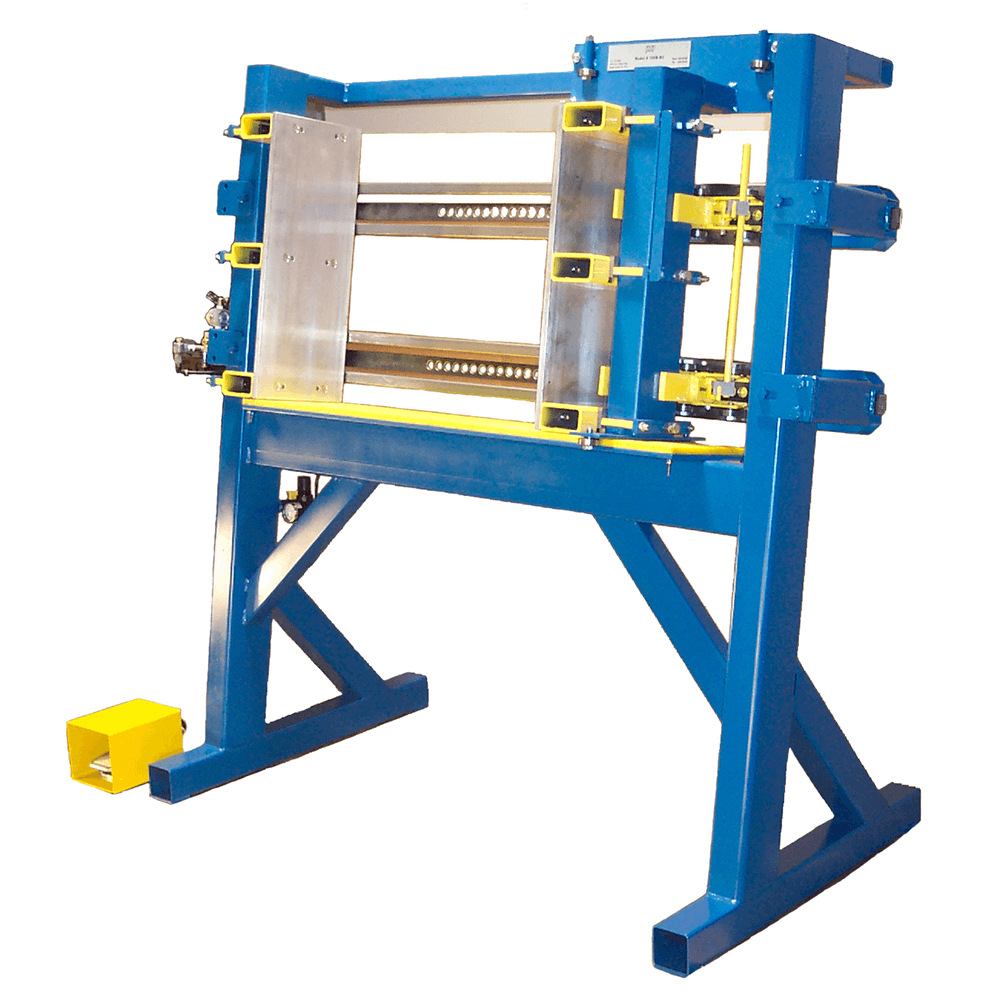

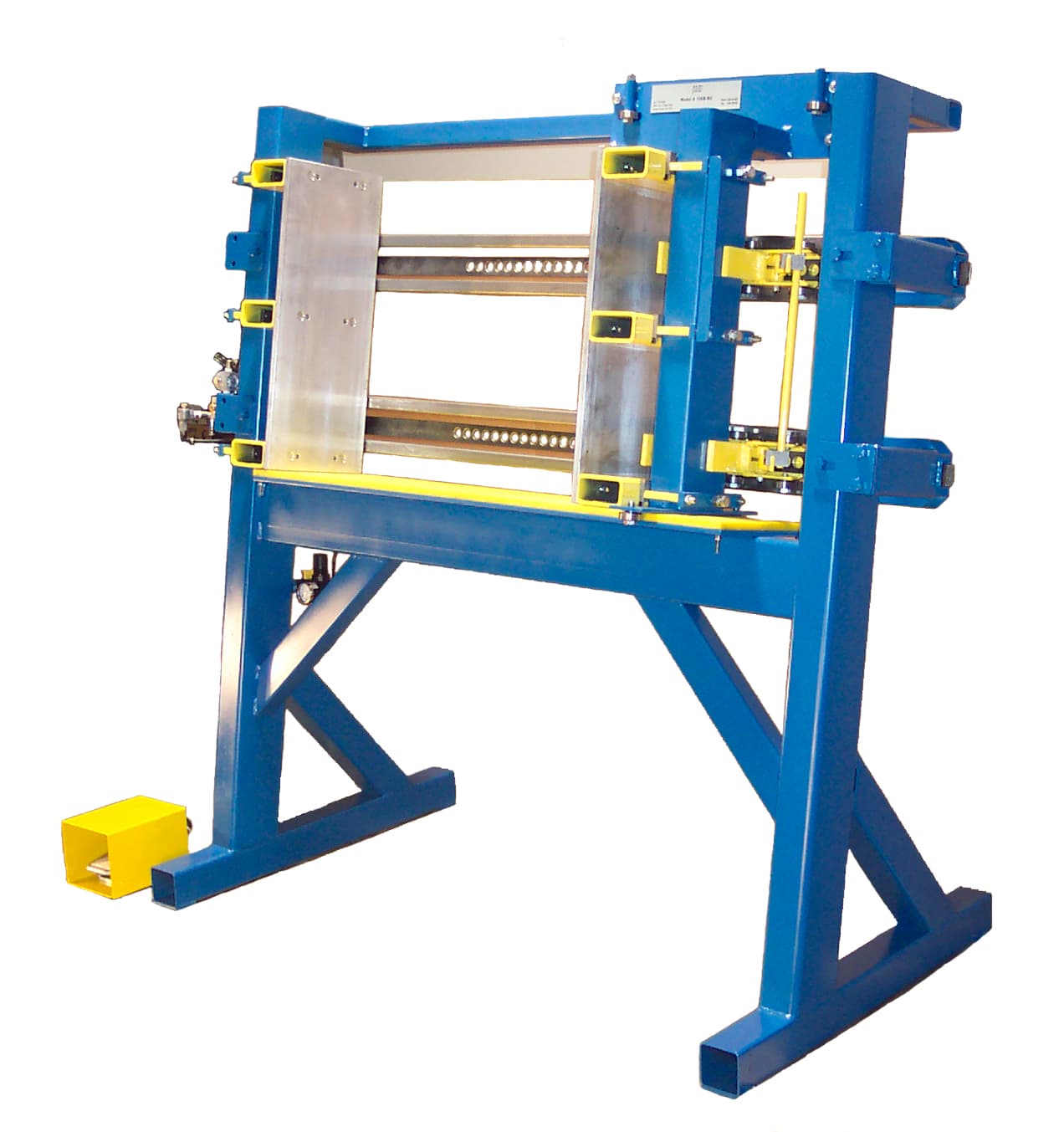

JLT Clamp Heavy Duty Drawer and Box Clamp 10"H X 24"L X 37"W

The JLT heavy duty drawer clamp is designed to clamp and square all doweled and dovetail drawer construction types. Our design is heavy duty, sturdy, intuitive to use and built to last. It has precise squaring capabilities with ample clamping pressure for your boxes. A quick adjusting roller carriage eliminated setup times when moving from size to size, and our fast acting pneumatic system will clamp and square the drawer in (2) seconds.

Features:
• 10" x 24" x 36" maximum capacity
• 100% welded tubular steel frame
• Includes (3) sets of tubular steel pressure shoes and aluminum side plates for a strong and flat clamping surface
• Easy to use and intuitive air system
• Instant on/off pneumatic foot pedal operation
• Lever valve to lock air system on for solid wood doweled drawer boxes that need time to cure
• Side mounted lever valve can be used as a secondary pneumatic control station
• Dual fast acting horizontal pneumatic clamps with a 2" stroke
• Produce up to 3000# of clamping force at 100 psi
• Quick adjusting roller carriage eliminates set-up for faster changeovers
• One hand carriage adjusting with vertical rod and handle grip
• Aluminum side pressure plates provide a solid, flat clamping surface
