Safety Speed 37 X 60 Wide Belt Sander 10 HP 1Ph
Item # SSWBS3760101
•Mfr # WBS3760101
This item may incur additional shipping costs and lead times.
Product Details

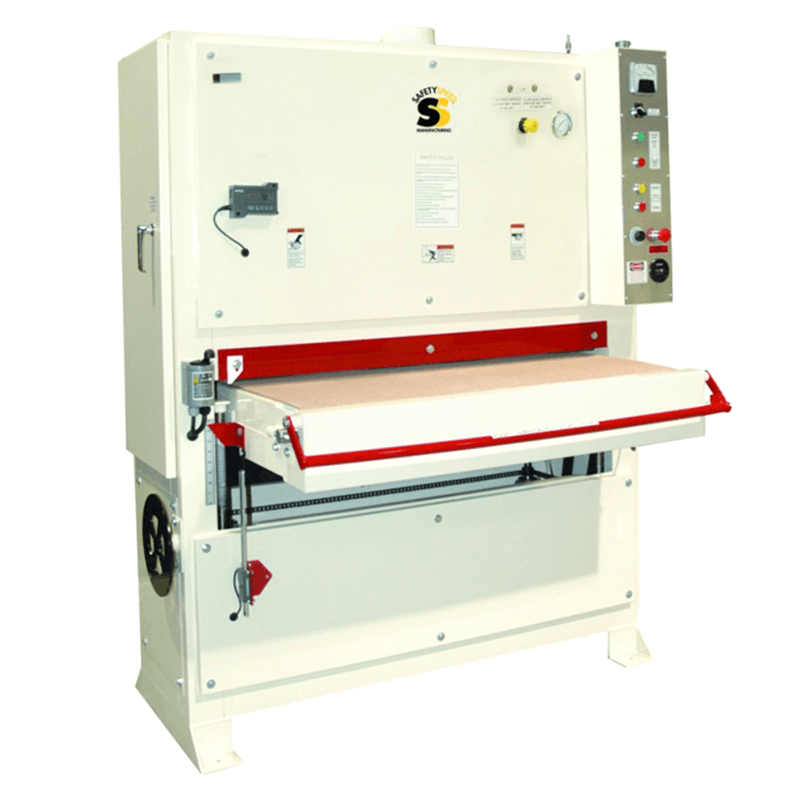

Wide belt sanders solve the most tedious challenge that woodworkers face! Our American made 3760 wide belt sander will improve your finishing time, decrease your hand sanding and increase your productivity. Available with either a 10 horsepower, single phase or a 15 horsepower, three phase motor these American made wide belt sanders are workhorses that will likely outlive you.
Features:
• Photo electric belt tracking
• 2-1/2" removable platen
• 2 height adjustment indicators
• 5 emergency stops
• 2 rubber-covered pinch rollers 1-1/2" OD
• Rubber-covered contact roller 4-1/4" OD with 13/8" drive bearing
• 2 machined idler rollers 2-3/16" OD with 3/4" bearings
• Conveyor table set on four 3/4" acme-threaded jackscrews
• Pneumatic belt tensioning
• 3 year warranty
• 6" internal dust chute
• 3/4 Hp conveyor motor
Features:
• Photo electric belt tracking
• 2-1/2" removable platen
• 2 height adjustment indicators
• 5 emergency stops
• 2 rubber-covered pinch rollers 1-1/2" OD
• Rubber-covered contact roller 4-1/4" OD with 13/8" drive bearing
• 2 machined idler rollers 2-3/16" OD with 3/4" bearings
• Conveyor table set on four 3/4" acme-threaded jackscrews
• Pneumatic belt tensioning
• 3 year warranty
• 6" internal dust chute
• 3/4 Hp conveyor motor
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | Wide Belt Sander |
| Voltage | 220V |
| Belt Size | 37" x 60" |
| Phase | 1 |
| Drive Motor | 10HP |
| Horsepower | |
| Feed Motor Power (HP) | |
| Sanding Belt Speed (FPM) | |
| Drum Diameter (In.) | |
| Minimum Board Thickness (In.) | |
| Style (Type) | |
| Motor Power (HP) | |
| Motor Phase | |
| Table Lift Motor Power | |
| Table Size (L x W) (In.) | |
| Sanding Belt Size (In.) | |
| Electrical Controls | |
| Table Height from Floor (In.) | |
| Maximum Board Thickness (In.) | |
| Maximum Board Width (In.) | |
| Prewired Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Recommended Circuit Size (Amps.) | |
| Wiring Remarks | |
| Motor Current (Amps) | |
| Dust Port Outside Diameter (In.) | |
| Air Required | |
| Table Tilt (Deg.) | |
| Motor Voltage (V.) | |
| Minimum Board Length (In.) | |
| Feed Rate (FPM) | |
| Platen Size (In.) | |
| Warranty |
