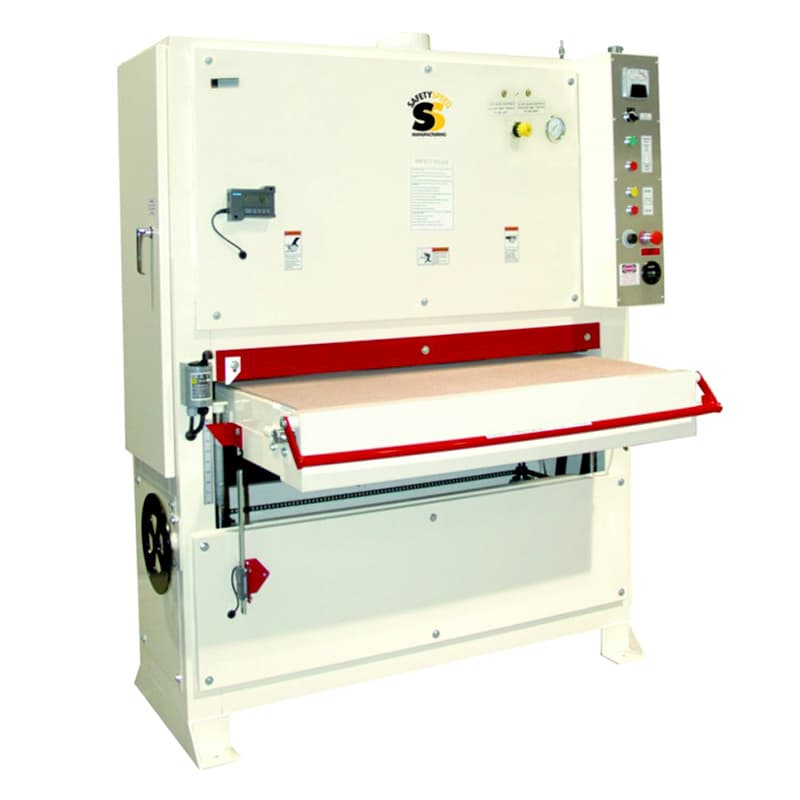

Safety Speed 43 X 75 Wide Belt Sander 20 HP 3Ph
Item # SSWBS4375203
•Mfr # WBS4375203
$20,949.00
/Each
Freight: $549.00
Min Order: 1
Quantity Multiple by: 1
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
The 43" Wide Belt Sander features a 75" belt providing 25% more abrasive surface than the smaller 60" belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time.
Features:
• 20 Hp, 3 phase (3~), 208 Volt / 230 Volt
• Photo electric belt tracking
• Pneumatic belt tension
• 2-1/2" graphite covered felt pad and adjustable platen
• 2 rubber-covered pinch rollers 2-1/2" OD
• 2 machined idler rollers 4-1/4" OD with 1" bearings
• Rubber-covered contact roller 5-1/4" OD with 1-5/8" drive bearing
• Conveyor table set on four 1" acme thread jackscrews
• 2 height adjustment indicators
• 6" internal dust chute
• 5 emergency stops
• 3 year warranty
Features:
• 20 Hp, 3 phase (3~), 208 Volt / 230 Volt
• Photo electric belt tracking
• Pneumatic belt tension
• 2-1/2" graphite covered felt pad and adjustable platen
• 2 rubber-covered pinch rollers 2-1/2" OD
• 2 machined idler rollers 4-1/4" OD with 1" bearings
• Rubber-covered contact roller 5-1/4" OD with 1-5/8" drive bearing
• Conveyor table set on four 1" acme thread jackscrews
• 2 height adjustment indicators
• 6" internal dust chute
• 5 emergency stops
• 3 year warranty
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Product Type | Wide Belt Sander |
| Voltage | 208V/230V |
| Belt Size | 43" x 75" |
| Phase | 3 |
| Drive Motor | 20HP |
| Horsepower | |
| Feed Motor Power (HP) | |
| Sanding Belt Speed (FPM) | |
| Drum Diameter (In.) | |
| Minimum Board Thickness (In.) | |
| Style (Type) | |
| Motor Power (HP) | |
| Motor Phase | |
| Table Lift Motor Power | |
| Table Size (L x W) (In.) | |
| Sanding Belt Size (In.) | |
| Electrical Controls | |
| Table Height from Floor (In.) | |
| Maximum Board Thickness (In.) | |
| Maximum Board Width (In.) | |
| Prewired Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Recommended Circuit Size (Amps.) | |
| Wiring Remarks | |
| Motor Current (Amps) | |
| Dust Port Outside Diameter (In.) | |
| Air Required | |
| Table Tilt (Deg.) | |
| Motor Voltage (V.) | |
| Minimum Board Length (In.) | |
| Feed Rate (FPM) | |
| Platen Size (In.) | |
| Warranty |
