Maggi System 35 Spindle Construction Boring Machine 3Ph
Item # MAG-SYSTEM35
•Mfr # SYSTEM35
This item may incur additional shipping costs and lead times.
Product Details

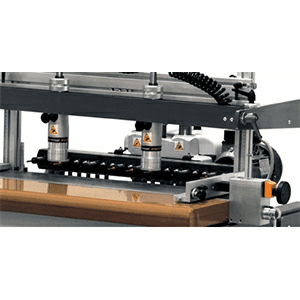

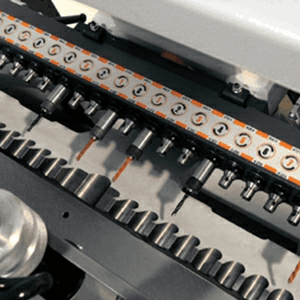

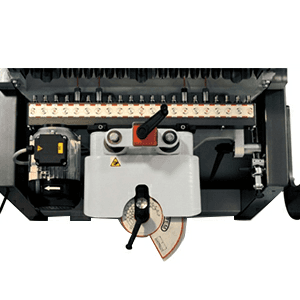

The Maggi system 35 boring machine provides a 35 spindle 32mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90° for quick set-up at any angle.
Features:
• Accurate positioning of the boring unit to the table with digital readout
• 0 to 3.5" adjustable drilling depth with patented spiral setting device
• (4) patented quick release material clamps with auto-setting to firmly hold material to table
• (2) Powerful 2 HP motor
• 52.4" x 16.2" cast iron table
• The MDF portion of the table is treated with non-scratch paint for highest operator comfort and to help prevent scratching of the panel
• Side fences with mechanical digital readout for quick and accurate setting
• 120" line boring fence with (4) stops
• Foot actuated pneumatic clamps and drill cycle
Includes:
• Magnetic Starter with overload protection and (35) quick change chucks
Features:
• Accurate positioning of the boring unit to the table with digital readout
• 0 to 3.5" adjustable drilling depth with patented spiral setting device
• (4) patented quick release material clamps with auto-setting to firmly hold material to table
• (2) Powerful 2 HP motor
• 52.4" x 16.2" cast iron table
• The MDF portion of the table is treated with non-scratch paint for highest operator comfort and to help prevent scratching of the panel
• Side fences with mechanical digital readout for quick and accurate setting
• 120" line boring fence with (4) stops
• Foot actuated pneumatic clamps and drill cycle
Includes:
• Magnetic Starter with overload protection and (35) quick change chucks
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
